Spring boot admin的实现

服务端：

第一步：POM依赖引入



<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>vnacos</artifactId>
        <groupId>com.nacos</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>spring-admin</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--1.  Spring-boot-admin服务端 -->
        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-server</artifactId>
            <version>2.3.1</version>
        </dependency>

        <!--安全问题-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

        <!--nacos-服务注册发现-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!--邮件通知-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-mail</artifactId>
        </dependency>

    </dependencies>

</project>



第二部：配置文件（使用nacos进行管理）



server:
  port: 8091
spring:
  application:
    name: admin
  security:          # 使用 security 进行安全管理
    user:
      name: vn
      password: vn
  cloud:
    nacos:
      server-addr: 192.168.43.197:8848     # nacos 服务器地址
      discovery:
        username: nacos
        password: nacos
        namespace: public

第三步：security进行安全管理

package vn.admin.config;

import de.codecentric.boot.admin.server.config.AdminServerProperties;
import org.springframework.boot.autoconfigure.security.SecurityProperties;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
import org.springframework.security.web.csrf.CookieCsrfTokenRepository;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;

import java.util.UUID;

/**
 *
 * @author vn
 * @date
 */
@Configuration(proxyBeanMethods = false)
public class SecuritySecureConfig extends WebSecurityConfigurerAdapter {

    private final AdminServerProperties adminServer;

    private final SecurityProperties security;

    public SecuritySecureConfig(AdminServerProperties adminServer, SecurityProperties security) {
        this.adminServer = adminServer;
        this.security = security;
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        SavedRequestAwareAuthenticationSuccessHandler successHandler = new SavedRequestAwareAuthenticationSuccessHandler();
        successHandler.setTargetUrlParameter("redirectTo");
        successHandler.setDefaultTargetUrl(this.adminServer.path("/"));

        http.authorizeRequests(
                        (authorizeRequests) -> authorizeRequests.antMatchers(this.adminServer.path("/assets/**")).permitAll()
                                .antMatchers(this.adminServer.path("/actuator/info")).permitAll()
                                .antMatchers(this.adminServer.path("/actuator/health")).permitAll()
                                .antMatchers(this.adminServer.path("/login")).permitAll().anyRequest().authenticated()
                ).formLogin(
                        (formLogin) -> formLogin.loginPage(this.adminServer.path("/login")).successHandler(successHandler).and()
                ).logout((logout) -> logout.logoutUrl(this.adminServer.path("/logout"))).httpBasic(Customizer.withDefaults())
                .csrf((csrf) -> csrf.csrfTokenRepository(CookieCsrfTokenRepository.withHttpOnlyFalse())
                        .ignoringRequestMatchers(
                                new AntPathRequestMatcher(this.adminServer.path("/instances"),
                                        HttpMethod.POST.toString()),
                                new AntPathRequestMatcher(this.adminServer.path("/instances/*"),
                                        HttpMethod.DELETE.toString()),
                                new AntPathRequestMatcher(this.adminServer.path("/actuator/**"))
                        ))
                .rememberMe((rememberMe) -> rememberMe.key(UUID.randomUUID().toString()).tokenValiditySeconds(1209600));
    }

    // Required to provide UserDetailsService for "remember functionality"
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication().withUser(security.getUser().getName())
                .password("{noop}" + security.getUser().getPassword()).roles("USER");
    }

}

第四步：启动类



package vn.admin;

import de.codecentric.boot.admin.server.config.EnableAdminServer;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author vn
 * @version 1.0
 * @date 2022/3/19 20:43
 */

/**
 * 通过添加@EnableAdminServer到配置中来引入Spring Boot Admin Server配置
 */

@SpringBootApplication
@EnableAdminServer
public class VnAdminApplication {

  public static void main(String[] args) {
    SpringApplication.run(VnAdminApplication.class, args);
  }

}



客户端：

第一步：POM文件依赖



<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>vnacos</artifactId>
        <groupId>com.nacos</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>order-feign</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--nacos-服务注册发现-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!--1. 添加openfeign依赖 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>

        <!--spring-boot-admin客户端依赖-->
        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-client</artifactId>
            <version>2.3.1</version>
        </dependency>
    </dependencies>

</project>



第二部：配置文件

server:
  port: 82

spring:
  application:
    name: order-service   # 应用名称  nacos 会将名称作为服务名称
  boot:                   # spring boot admin  服务端密码
    admin:
      client:
        username: vn
        password: vn
  cloud:
    nacos:
      server-addr: 192.168.43.197:8848     # nacos 服务器地址
      discovery:
        username: nacos
        password: nacos
        namespace: public

如图所示：





 非Nacos注册中心管理：



配置文件：



server:
  port: 8090
  shutdown: graceful  # 设置web服务器的关闭方式 （默认是立即关闭） 需要改优雅关闭
spring:
  application:
    name: actuator
  cloud:
    nacos:
      server-addr: 192.168.43.197:8848     # nacos 服务器地址
      discovery:
        username: nacos
        password: nacos
        namespace: public
  boot:
    admin:
      client:
        username: vn
        password: vn
        instance:
          prefer-ip: true       # 使用 IP 进行注册
        url: http://localhost:8091  # 指定服务端地址
# 暴露所有端点
management:
  endpoints:
    enabled-by-default: false    # 下面来看一下如何细粒度的开启指定的端点,需要关闭默认开启的所有端点
    web:
      base-path: /vn   # 设置访问路径
      exposure:
        #        include: '*'       # 属性可以通过逗号分隔符来配置多个端点 include=beans, loggers
        include: health   # 开启并暴露/health端点
  endpoint:
    health:
      #    shutdown:
      show-details: 'always'
      enabled: true         # 开启并暴露/health端点
logging:
  file:
    name: D:/logs/vn.log    #  日志存放位置



邮箱服务：





spring:
  mail:
    # 发件人使用的qq邮箱服务
    host: smtp.qq.com
    username: tulingxushu@foxmail.com

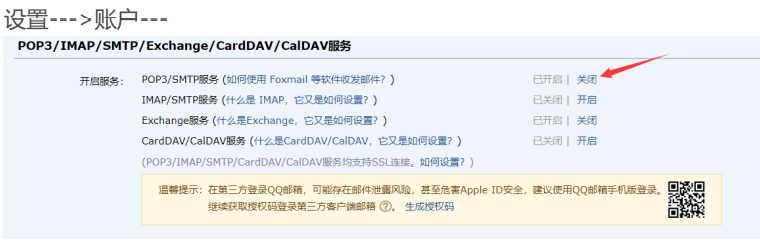

    # 授权码，不是密码，在qq邮箱设置-账号里面有生成授权码
    password: bktymeooyuapggbe
  boot:
    admin:
      notify:
        mail:
          # 收件人，多个中间用,分隔
          to: tulingxushu@foxmail.com
          # 发件人
          from: tulingxushu@foxmail.com
