tcache attack

Tcache attack|Tcache bin的结构

glibc用tcache_entry和tcache_perthread两个结构体来管理tcache bin

1、tcache_entry

2、当我们分配的chunk释放后进入tcache bin时，就会按这个结构体来按链表存储，next指向 下一个tcacgebin,key指向当前线程的tcache perthread struct(低版本的libc没有这个key),主要是用来防范double free

比较新的版本的tcache_entry如下(glibc-2.33)

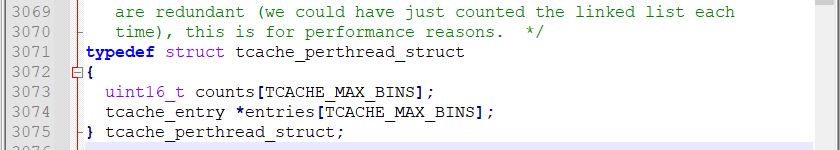

tcache_perthread_struct如下





• Tcache perthread struct在 每- - 个线程中均有一个，用来管理当前线程中所有的tcache_ bins

• Entries用来存储各个大小的tcache bin链表，TCAHE_ MAX_ _BINS默认值为64，也就是0x20, 0x30....0x4 10(64位)大小的chunk被释放后都有可能放入tcache bins里面

• counts结构体用来记录各个大小的tcache bin数量，最大为7

Tcache attack|分配机制

我们malloc时，会将size转化为对 应大小的tcache idx,然后判断这个idx是否有tcache bin,如果有，会将tcache 取出，然后将他的next链表指向的值赋值给tcache->entries[tc_ idx] (使其指向下一-个tcache bin或null),再递减当前大小tcache counts(数量)

_libc_malloc的函数

__libc_malloc (size_t bytes)
{
  mstate ar_ptr;
  void *victim;
​
  _Static_assert (PTRDIFF_MAX <= SIZE_MAX / 2,
                  "PTRDIFF_MAX is not more than half of SIZE_MAX");
​
  void *(*hook) (size_t, const void *)
    = atomic_forced_read (__malloc_hook);
  if (__builtin_expect (hook != NULL, 0))
    return (*hook)(bytes, RETURN_ADDRESS (0));
#if USE_TCACHE
  /* int_free also calls request2size, be careful to not pad twice.  */
  size_t tbytes;
  if (!checked_request2size (bytes, &tbytes))
    {
      __set_errno (ENOMEM);
      return NULL;
    }
  size_t tc_idx = csize2tidx (tbytes);
​
  MAYBE_INIT_TCACHE ();
​
  DIAG_PUSH_NEEDS_COMMENT;
  if (tc_idx < mp_.tcache_bins
      && tcache
      && tcache->counts[tc_idx] > 0)
    {
      victim = tcache_get (tc_idx);
      return TAG_NEW_USABLE (victim);
    }
  DIAG_POP_NEEDS_COMMENT;
#endif
​
  if (SINGLE_THREAD_P)
    {
      victim = TAG_NEW_USABLE (_int_malloc (&main_arena, bytes));
      assert (!victim || chunk_is_mmapped (mem2chunk (victim)) ||
          &main_arena == arena_for_chunk (mem2chunk (victim)));
      return victim;
    }
​
  arena_get (ar_ptr, bytes);
​
  victim = _int_malloc (ar_ptr, bytes);
  /* Retry with another arena only if we were able to find a usable arena
     before.  */
  if (!victim && ar_ptr != NULL)
    {
      LIBC_PROBE (memory_malloc_retry, 1, bytes);
      ar_ptr = arena_get_retry (ar_ptr, bytes);
      victim = _int_malloc (ar_ptr, bytes);
    }
​
  if (ar_ptr != NULL)
    __libc_lock_unlock (ar_ptr->mutex);
​
  victim = TAG_NEW_USABLE (victim);
​
  assert (!victim || chunk_is_mmapped (mem2chunk (victim)) ||
          ar_ptr == arena_for_chunk (mem2chunk (victim)));
  return victim;
}

其中有一个判读语句

 if (tc_idx < mp_.tcache_bins
      && tcache
      && tcache->counts[tc_idx] > 0)
    {
      victim = tcache_get (tc_idx);
      return TAG_NEW_USABLE (victim);
    }

tcache_get中的代码如下

tcache_get (size_t tc_idx)
{
  tcache_entry *e = tcache->entries[tc_idx];
  if (__glibc_unlikely (!aligned_OK (e)))
    malloc_printerr ("malloc(): unaligned tcache chunk detected");
  tcache->entries[tc_idx] = REVEAL_PTR (e->next);
  --(tcache->counts[tc_idx]);
  e->key = NULL;
  return (void *) e;
}

_libc_free函数如下

void
__libc_free (void *mem)
{
  mstate ar_ptr;
  mchunkptr p;                          /* chunk corresponding to mem */
​
  void (*hook) (void *, const void *)
    = atomic_forced_read (__free_hook);
  if (__builtin_expect (hook != NULL, 0))
    {
      (*hook)(mem, RETURN_ADDRESS (0));
      return;
    }
​
  if (mem == 0)                              /* free(0) has no effect */
    return;
​
#ifdef USE_MTAG
  /* Quickly check that the freed pointer matches the tag for the memory.
     This gives a useful double-free detection.  */
  *(volatile char *)mem;
#endif
​
  int err = errno;
​
  p = mem2chunk (mem);
​
  /* Mark the chunk as belonging to the library again.  */
  (void)TAG_REGION (chunk2rawmem (p), CHUNK_AVAILABLE_SIZE (p) - CHUNK_HDR_SZ);
​
  if (chunk_is_mmapped (p))                       /* release mmapped memory. */
    {
      /* See if the dynamic brk/mmap threshold needs adjusting.
     Dumped fake mmapped chunks do not affect the threshold.  */
      if (!mp_.no_dyn_threshold
          && chunksize_nomask (p) > mp_.mmap_threshold
          && chunksize_nomask (p) <= DEFAULT_MMAP_THRESHOLD_MAX
      && !DUMPED_MAIN_ARENA_CHUNK (p))
        {
          mp_.mmap_threshold = chunksize (p);
          mp_.trim_threshold = 2 * mp_.mmap_threshold;
          LIBC_PROBE (memory_mallopt_free_dyn_thresholds, 2,
                      mp_.mmap_threshold, mp_.trim_threshold);
        }
      munmap_chunk (p);
    }
  else
    {
      MAYBE_INIT_TCACHE ();
​
      ar_ptr = arena_for_chunk (p);
      _int_free (ar_ptr, p, 0);
    }
​
  __set_errno (err);
}

其中调用了_int_free，其中有部分的代码如下

#if USE_TCACHE
  {
    size_t tc_idx = csize2tidx (size);
    if (tcache != NULL && tc_idx < mp_.tcache_bins)
      {
    /* Check to see if it's already in the tcache.  */
    tcache_entry *e = (tcache_entry *) chunk2mem (p);
​
    /* This test succeeds on double free.  However, we don't 100%
       trust it (it also matches random payload data at a 1 in
       2^<size_t> chance), so verify it's not an unlikely
       coincidence before aborting.  */
    if (__glibc_unlikely (e->key == tcache))
      {
        tcache_entry *tmp;
        size_t cnt = 0;
        LIBC_PROBE (memory_tcache_double_free, 2, e, tc_idx);
        for (tmp = tcache->entries[tc_idx];
         tmp;
         tmp = REVEAL_PTR (tmp->next), ++cnt)
          {
        if (cnt >= mp_.tcache_count)
          malloc_printerr ("free(): too many chunks detected in tcache");
        if (__glibc_unlikely (!aligned_OK (tmp)))
          malloc_printerr ("free(): unaligned chunk detected in tcache 2");
        if (tmp == e)
          malloc_printerr ("free(): double free detected in tcache 2");
        /* If we get here, it was a coincidence.  We've wasted a
           few cycles, but don't abort.  */
          }
      }
​
    if (tcache->counts[tc_idx] < mp_.tcache_count)
      {
        tcache_put (p, tc_idx);
        return;
      }
      }
  }
#endif

在上述代码的最后一个if语句中，成立后调用tcache_put，其代码如下

tcache_put (mchunkptr chunk, size_t tc_idx)
{
  tcache_entry *e = (tcache_entry *) chunk2mem (chunk);
​
  /* Mark this chunk as "in the tcache" so the test in _int_free will
     detect a double free.  */
  e->key = tcache;
​
  e->next = PROTECT_PTR (&e->next, tcache->entries[tc_idx]);
  tcache->entries[tc_idx] = e;
  ++(tcache->counts[tc_idx]);
}

我们free时，首先会检测当前chunk大小是否属于tcache bin,再检测key值，防止double free,最后再看当前大小tcache数量，如果小于7(默认)，就会调用tcache_ puts将 这块chunk放入对应大小的tcahce，放入时，首先会设置好key值，然后再将next指针指向原当前大小的tcache链表，再结合malloc的代码，我们可以知道tcache bin也是- -个先进后出的结构

Tcache attack|利用原理

Tcache bin攻击方式较为简单，只 要能篡改next指针，malloc 下没有对指针的合法性和堆块大小检测，所有只要能篡改next指针， 就能申请下任意的内存，达到任意地址写
