自定义持久层框架

自定义持久层框架

基于原生jdbc的缺点，通过持久层框架，实现对应问题的解决。

自定义持久层框架需要解决如下问题：
1. 数据库配置信息硬编码问题
2. 频繁创建数据库连接
3. 需要手动释放连接
4. sql语句、参数设置、获取结果集参数存在硬编码
5. 需要手动封装进行结果集解析

分析

- 使用端
	- 提供配置信息
        - 数据库配置信息
            - sqlmapconfig.xml
        - 对应sql配置
            - sql语句、参数类型、返回值类型
            - mapper.xml
	- 对应的类型的javaBean
    - 定义mapper接口
    	- 定义数据库操作函数用于调用

- 持久层：封装jdbc代码
	- 加载配置文件
		- 将配置文件加载为内存数据
		- 通过Resource.getResourceAsStream(String path)进行文件加载
	- 创建配置信息存储javaBean、
		- Configuration
			- 数据库配置信息
		- MapperStatement
			- sql配置信息
	- 解析配置文件
		- DOM4J
	- 定义SqlSessionFactory接口
		- 接口实现类：DefaultSqlSessionFactory
		- 根据获取的配置信息内容，生产sqlSession
		- 使用工厂模式
	- 定义SqlSession接口
		- 接口实现类：DefaultSession
		- 定义数据操作接口

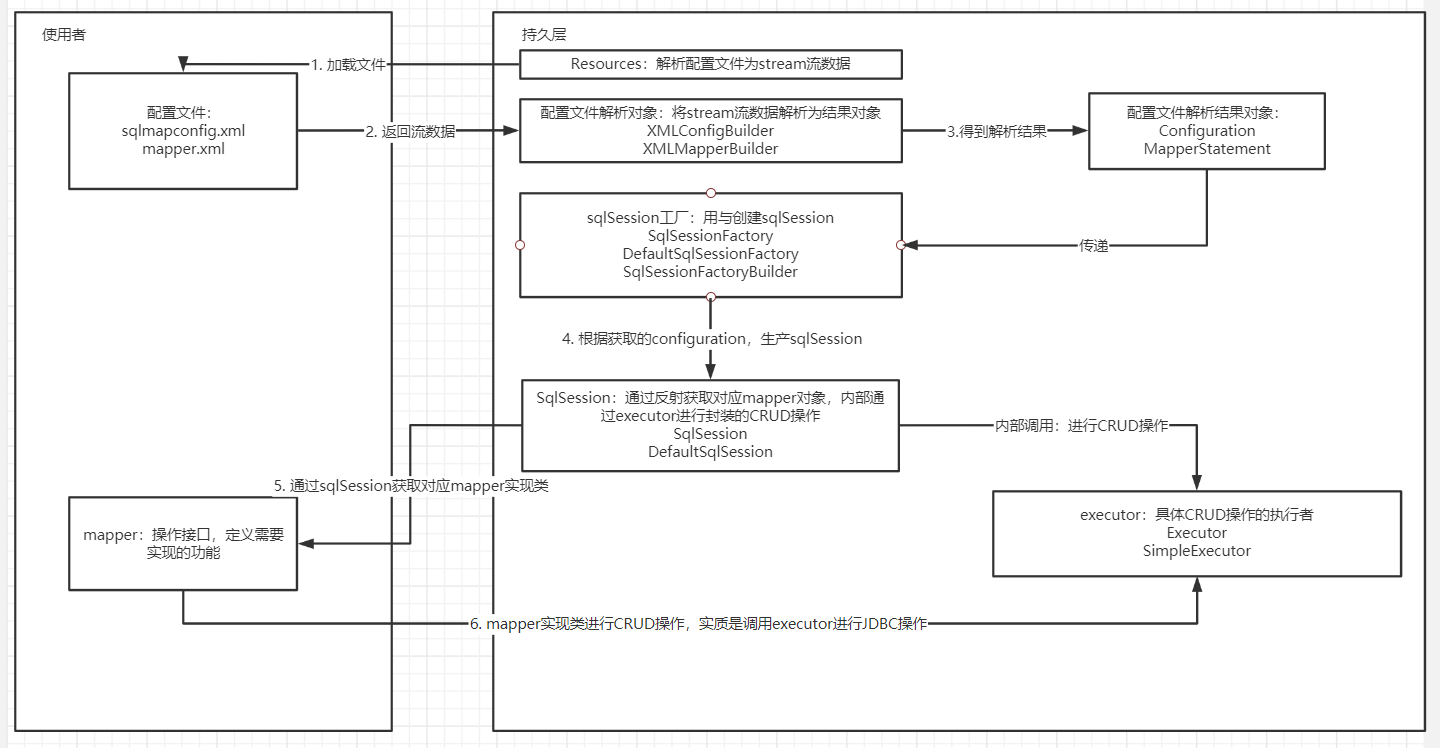

解决思路

代码

依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>customize-persistence</artifactId>
        <groupId>com.learn</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>persistence</artifactId>

    <dependencies>
        <!--mysql依赖-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version> 8.0.23</version>
        </dependency>
        <!--c3p0连接池依赖-->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.5</version>
        </dependency>
        <!--dom4j依赖-->
        <dependency>
            <groupId>dom4j</groupId>
            <artifactId>dom4j</artifactId>
            <version>1.6.1</version>
        </dependency>
        <dependency>
            <groupId>jaxen</groupId>
            <artifactId>jaxen</artifactId>
            <version>1.2.0</version>
        </dependency>
        <!--测试单元依赖-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
        </dependency>
    </dependencies>
</project>

配置文件

• sqlMapConfig.xml

  <configuration>
      <dataSource>
          <property name="dirverClass" value="com.mysql.jdbc.Driver"/>
          <property name="url" value="jdbc:mysql://192.168.1.101:3306/mytest?characterEncoding=utf-8"/>
          <property name="username" value="root"/>
          <property name="password" value="root"/>
      </dataSource>

      <mappers>
          <!--此处引入mapper对应配置，则代码编写时不需要关注mapper配置位置-->
          <mapper resource="PersonMapper.xml"/>
      </mappers>
  </configuration>


• PersonMapper.xml

  <!--nameSpace：主要用于区分不同mapper-->
  <mapper nameSpace="com.test.mapper.PersonMapper">

      <!--sql全局唯一id：nameSpace + . + sqlId组成：statementId-->
      <!--id: nameSpace下sql唯一标识-->
      <!--parameterType：请求参数类型-->
      <!--resultType：结果集类型-->
      <select id="selectOne" resultType="com.test.model.Person" parameterType="com.test.model.Person">
          select t.* from person t where t.id = #{id} and t.name = #{name}
      </select>

      <select id="selectList" resultType="com.test.model.Person">
          select t.* from person t
      </select>
  </mapper>


配置文件解析

package resources;

import java.io.InputStream;

public class Resources {

    /**
     * 根据文件路径，将配置文件加载为stream流
     * @param path
     * @return
     */
    public static InputStream getResourceAsStream(String path) {
        return Resources.class.getClassLoader().getResourceAsStream(path);
    }
}

配置解析结果对象

• Configuration

  package model;

  import lombok.Getter;
  import lombok.Setter;

  import javax.sql.DataSource;
  import java.util.HashMap;
  import java.util.Map;

  @Getter
  @Setter
  public class Configuration {
      //数据源对象
      private DataSource dataSource;

      //key：statementId；value：sql配置解析结果对象
      private Map<String, MappedStatement> mappedStatementMap = new HashMap();
  }


• MapperStatement

  package model;

  import lombok.Getter;
  import lombok.Setter;

  @Getter
  @Setter
  public class MapperStatement {
      //sqlid
      private String id;
      //参数类型
      private String parameterType;
      //结果集类型
      private String resultType;
      //具体sql
      private String sql;
  }


配置解析对象

• XMLConfigBuilder

  package configbuilder;

  import com.mchange.v2.c3p0.ComboPooledDataSource;
  import lombok.AllArgsConstructor;
  import model.Configuration;
  import org.dom4j.Document;
  import org.dom4j.Element;
  import org.dom4j.io.SAXReader;
  import resources.Resources;

  import java.io.InputStream;
  import java.util.List;
  import java.util.Properties;

  /** 解析sqlMapConfig.xml配置文件 */
  public class XMLConfigBuilder {
    private Configuration configuration;

    /** 构造函数默认创建configuration */
    public XMLConfigBuilder() {
      this.configuration = new Configuration();
    }

    /**
     * 解析config配置文件流数据
     *
     * @param inputStream
     * @return
     * @throws Exception
     */
    public Configuration parseConfig(InputStream inputStream) throws Exception {
      // 解析流文件，获取document对象
      Document document = new SAXReader().read(inputStream);

      // 获取根节点，对应<configuration>
      Element rootElement = document.getRootElement();

      // 获取对应属性<property>: database配置
      // 添加//表示向内部查找
      List<Element> list = rootElement.selectNodes("//property");

      // 创建properties封装解析结果
      Properties properties = new Properties();

      // 遍历解析,获取属性配置
      for (Element element : list) {
        String name = element.attributeValue("name");
        String value = element.attributeValue("value");
        properties.setProperty(name, value);
      }

      // 创建数据源，此处使用c3p0连接池，并设置对应连接属性
      ComboPooledDataSource dataSource = new ComboPooledDataSource();
      dataSource.setDriverClass(properties.get("dirverClass").toString());
      dataSource.setJdbcUrl(properties.get("url").toString());
      dataSource.setUser(properties.get("username").toString());
      dataSource.setPassword(properties.get("password").toString());

      // 将数据源设置到configuration
      configuration.setDataSource(dataSource);

      // 解析对应mapper配置
      List<Element> mapperList = rootElement.selectNodes("//mapper");

      for (Element element : mapperList) {
        // 获取mapper配置对应路径
        String mapperConfigPath = element.attributeValue("resource");
        // 解析配置文件为stream流
        InputStream mapperStream = Resources.getResourceAsStream(mapperConfigPath);
        // 创建XMLMapperBuilder用于解析mapper配置文件流
        XMLMapperBuilder xmlMapperBuilder = new XMLMapperBuilder(configuration);
        // 解析文件流
        xmlMapperBuilder.parseMapper(mapperStream);
      }

      return configuration;
    }
  }


• XMLMapperBuilder

  package configbuilder;

  import lombok.AllArgsConstructor;
  import model.Configuration;
  import model.MapperStatement;
  import org.dom4j.Document;
  import org.dom4j.Element;
  import org.dom4j.io.SAXReader;

  import java.io.InputStream;
  import java.util.List;

  /** 解析mapper配置文件 */
  @AllArgsConstructor
  public class XMLMapperBuilder {

    private Configuration configuration;

    /**
     * 解析mapper文件流数据
     *
     * @param inputStream
     * @throws Exception
     */
    public void parseMapper(InputStream inputStream) throws Exception {
      // 解析流文件，获取document对象
      Document document = new SAXReader().read(inputStream);

      // 获取根节点，对应<mapper>
      Element rootElement = document.getRootElement();

      // 获取nameSpace
      String nameSpace = rootElement.attributeValue("nameSpace");

      // 获取<select>配置，此处仅实现select查询功能
      List<Element> list = rootElement.selectNodes("//select");

      // 解析select标签
      for (Element element : list) {
        // 获取sqlId
        String id = element.attributeValue("id");
        String parameterType = element.attributeValue("parameterType");
        String resultType = element.attributeValue("resultType");
        String sql = element.getTextTrim();

        // 获取sql全局唯一id
        String statementId = nameSpace + "." + id;

        // 创建MapperStatement对象
        MapperStatement mapperStatement =
            MapperStatement.builder()
                .id(id)
                .parameterType(parameterType)
                .resultType(resultType)
                .sql(sql)
                .build();

        // 将解析结果保存
        configuration.getMappedStatementMap().put(statementId, mapperStatement);
      }
    }
  }


sqlSession工厂

• SqlSessionFactory

  package sessionfactory;

  import sqlsession.SqlSession;

  /**
   * SqlSessionFactory接口：用于创建SqlSession
   */
  public interface SqlSessionFactory {
      /**
       * 获取SqlSession
       * @return
       */
      SqlSession openSession();
  }


• DefaultSqlSessionFactory

  package sessionfactory;

  import lombok.AllArgsConstructor;
  import model.Configuration;
  import sqlsession.DefaultSqlSession;
  import sqlsession.SqlSession;

  /**
   * SqlSessionFactory默认实现
   */
  @AllArgsConstructor
  public class DefaultSqlSessionFactory implements SqlSessionFactory {

      private Configuration configuration;

      /**
       * 获取sqlSession
       * @return
       */
      public SqlSession openSession() {
          //返回sqlSession默认实现
          return new DefaultSqlSession(configuration);
      }
  }


• SqlSessionFactoryBuilder

  package sessionfactory;

  import configbuilder.XMLConfigBuilder;
  import model.Configuration;
  import resources.Resources;

  import java.io.InputStream;

  /** 用与创建SqlSessionFactory，工厂模式 */
  public class SqlSessionFactoryBuilder {

    public SqlSessionFactory build(InputStream inputStream) throws Exception {
      // 通过配置文件解析对象，获取configuration
      XMLConfigBuilder xmlConfigBuilder = new XMLConfigBuilder();
      Configuration configuration = xmlConfigBuilder.parseConfig(inputStream);

      // 返回默认实现
      return new DefaultSqlSessionFactory(configuration);
    }
  }


sqlSession

• SqlSession

  package sqlsession;

  public interface SqlSession {
    /** 自定义的查询方法，有兴趣可以扩展crud */
    <T> T select(String statementId, boolean isList, Object... params) throws Exception;

    /** 通过jdk动态代理生成mapper的代理对象，则无需自定义mapper实现类 */
    <T> T getMapper(Class<?> mapperClass);
  }


• DefaultSqlSession

  package sqlsession;

  import executor.SimpleExecutor;
  import lombok.AllArgsConstructor;
  import model.Configuration;

  import java.lang.reflect.InvocationHandler;
  import java.lang.reflect.Method;
  import java.lang.reflect.ParameterizedType;
  import java.lang.reflect.Proxy;
  import java.lang.reflect.Type;
  import java.util.List;

  @AllArgsConstructor
  public class DefaultSqlSession implements SqlSession {
    private Configuration configuration;

    public <T> T select(String statementId, boolean isList, Object... params) throws Exception {
      SimpleExecutor simpleExecutor = new SimpleExecutor();
      List<Object> resultList = simpleExecutor.select(configuration, statementId, params);
      if (!isList) {
        if (resultList.size() > 1) {
          throw new RuntimeException("查询结果过多");
        } else if (resultList.size() < 1) {
          // 无查询结果，返回null
          return null;
        } else {
          return (T) resultList.get(0);
        }
      }
      return (T) resultList;
    }

    /** 通过jdk动态代理生成mapper的代理对象，则无需自定义mapper实现类 */
    public <T> T getMapper(Class<?> mapperClass) {
      Object proxyInstance =
          Proxy.newProxyInstance(
              DefaultSqlSession.class.getClassLoader(),
              new Class[] {mapperClass},
              new InvocationHandler() {
                public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                  // 获取方法名称
                  String methodName = method.getName();
                  // 获取方法所在类名称
                  String className = method.getDeclaringClass().getName();
                  // 获取statementId
                  String statementId = className + "." + methodName;

                  // 获取返回值类型
                  Type genericReturnType = method.getGenericReturnType();
                  // 根据类型是否是泛型判断返回结果是否list
                  boolean isList = genericReturnType instanceof ParameterizedType;
                  return select(statementId, isList, args);
                }
              });
      return (T) proxyInstance;
    }
  }


Executor

• Executor

  package executor;

  import model.Configuration;

  import java.util.List;

  public interface Executor {
     /**
      * 查询执行方法
      */
     <T> List<T> select(Configuration configuration, String statementId, Object... params) throws Exception;
  }


• SimpleExecutor

  package executor;

  import model.BoundSql;
  import model.Configuration;
  import model.MapperStatement;
  import utils.GenericTokenParser;
  import utils.ParameterMapping;
  import utils.ParameterMappingTokenHandler;

  import javax.sql.DataSource;
  import java.beans.PropertyDescriptor;
  import java.lang.reflect.Field;
  import java.lang.reflect.Method;
  import java.sql.Connection;
  import java.sql.PreparedStatement;
  import java.sql.ResultSet;
  import java.sql.ResultSetMetaData;
  import java.util.ArrayList;
  import java.util.List;

  public class SimpleExecutor implements Executor {
    /** 真正的jdbc操作 */
    public <T> List<T> select(Configuration configuration, String statementId, Object... params)
        throws Exception {
      // 获取数据库连接
      Connection connection = configuration.getDataSource().getConnection();
      // 获取sql对应mapperStatement对象
      MapperStatement mapperStatement = configuration.getMappedStatementMap().get(statementId);

      // 获取原始sql：select t.* from person t where t.id = #{id} and t.name = #{name}
      String sql = mapperStatement.getSql();
      // 进行sql解析
      // 将#{content} 替换为 占位符 ？
      // 将#{content} 中参数名称获取
      BoundSql boundSql = getBoundSql(sql);

      // sql预编译
      PreparedStatement preparedStatement = connection.prepareStatement(boundSql.getSql());

      // 进行参数设置
      List<ParameterMapping> mappingList = boundSql.getMappingList();
      // 获取入参类型
      String parameterType = mapperStatement.getParameterType();
      Class<?> parameterClass = getClassType(parameterType);

      // 此处使用fori，需要获取下标使用
      for (int i = 0; i < mappingList.size(); i++) {
        ParameterMapping parameterMapping = mappingList.get(i);
        // 获取目标属性id
        String content = parameterMapping.getContent();
        // 通过反射，获取参数中对应id的值
        Field declaredField = parameterClass.getDeclaredField(content);
        declaredField.setAccessible(true);
        Object o = declaredField.get(params[0]);
        // 设置到参数中
        // jdbc中，占位符从1开始
        preparedStatement.setObject(i + 1, o);
      }

      // 进行结果获取
      ResultSet resultSet = preparedStatement.executeQuery();
      // 获取结果集类型
      String resultType = mapperStatement.getResultType();
      Class<?> resultClass = getClassType(resultType);

      // 进行结果集封装
      List resultList = new ArrayList();
      while (resultSet.next()) {
        // 获取元数据
        ResultSetMetaData metaData = resultSet.getMetaData();
        // 创建响应结果对象
        Object result = resultClass.newInstance();
        for (int i = 1; i < metaData.getColumnCount(); i++) {
          // 获取字段名称
          String columnName = metaData.getColumnName(i);
          // 获取字段值
          Object value = resultSet.getObject(columnName);
          // 通过内省方式设置值
          PropertyDescriptor propertyDescriptor = new PropertyDescriptor(columnName, resultClass);
          Method writeMethod = propertyDescriptor.getWriteMethod();
          writeMethod.invoke(result, value);
        }
        // 将结果入列表
        resultList.add(result);
      }

      return resultList;
    }

    /**
     * 获取BoundSql对象
     *
     * @param sql
     * @return
     */
    private BoundSql getBoundSql(String sql) {
      // 标记处理类
      ParameterMappingTokenHandler tokenHandler = new ParameterMappingTokenHandler();
      GenericTokenParser genericTokenParser = new GenericTokenParser("#{", "}", tokenHandler);
      // 解析之后的sql
      String parse = genericTokenParser.parse(sql);
      // 解析出的参数名称
      List<ParameterMapping> parameterMappings = tokenHandler.getParameterMappings();
      return new BoundSql(parse, parameterMappings);
    }

    /**
     * 获取clasName对应class对象
     *
     * @param clasName
     * @return
     */
    private Class<?> getClassType(String clasName) throws Exception {
      if (clasName != null) {
        return Class.forName(clasName);
      }
      return null;
    }
  }


sql解析工具

• BoundSql

  package model;

  import lombok.AllArgsConstructor;
  import lombok.Getter;
  import lombok.Setter;
  import utils.ParameterMapping;

  import java.util.List;

  @Getter
  @Setter
  @AllArgsConstructor
  public class BoundSql {
    //解析后sql
    private String sql;
    //对应sql参数
    private List<ParameterMapping> mappingList;
  }


• GenericTokenParser

  /**
   * Copyright 2009-2017 the original author or authors.
   * <p>
   * Licensed under the Apache License, Version 2.0 (the "License");
   * you may not use this file except in compliance with the License.
   * You may obtain a copy of the License at
   * <p>
   * http://www.apache.org/licenses/LICENSE-2.0
   * <p>
   * Unless required by applicable law or agreed to in writing, software
   * distributed under the License is distributed on an "AS IS" BASIS,
   * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
   * See the License for the specific language governing permissions and
   * limitations under the License.
   */
  package utils;

  /**
   * @author Clinton Begin
   */
  public class GenericTokenParser {

      private final String openToken; //开始标记
      private final String closeToken; //结束标记
      private final TokenHandler handler; //标记处理器

      public GenericTokenParser(String openToken, String closeToken, TokenHandler handler) {
          this.openToken = openToken;
          this.closeToken = closeToken;
          this.handler = handler;
      }

      /**
       * 解析${}和#{}
       * @param text
       * @return
       * 该方法主要实现了配置文件、脚本等片段中占位符的解析、处理工作，并返回最终需要的数据。
       * 其中，解析工作由该方法完成，处理工作是由处理器handler的handleToken()方法来实现
       */
      public String parse(String text) {
          // 验证参数问题，如果是null，就返回空字符串。
          if (text == null || text.isEmpty()) {
              return "";
          }

          // 下面继续验证是否包含开始标签，如果不包含，默认不是占位符，直接原样返回即可，否则继续执行。
          int start = text.indexOf(openToken, 0);
          if (start == -1) {
              return text;
          }

          // 把text转成字符数组src，并且定义默认偏移量offset=0、存储最终需要返回字符串的变量builder，
          // text变量中占位符对应的变量名expression。判断start是否大于-1(即text中是否存在openToken)，如果存在就执行下面代码
          char[] src = text.toCharArray();
          int offset = 0;
          final StringBuilder builder = new StringBuilder();
          StringBuilder expression = null;
          while (start > -1) {
              // 判断如果开始标记前如果有转义字符，就不作为openToken进行处理，否则继续处理
              if (start > 0 && src[start - 1] == '\\') {
                  builder.append(src, offset, start - offset - 1).append(openToken);
                  offset = start + openToken.length();
              } else {
                  //重置expression变量，避免空指针或者老数据干扰。
                  if (expression == null) {
                      expression = new StringBuilder();
                  } else {
                      expression.setLength(0);
                  }
                  builder.append(src, offset, start - offset);
                  offset = start + openToken.length();
                  int end = text.indexOf(closeToken, offset);
                  while (end > -1) {////存在结束标记时
                      if (end > offset && src[end - 1] == '\\') {//如果结束标记前面有转义字符时
                          // this close token is escaped. remove the backslash and continue.
                          expression.append(src, offset, end - offset - 1).append(closeToken);
                          offset = end + closeToken.length();
                          end = text.indexOf(closeToken, offset);
                      } else {//不存在转义字符，即需要作为参数进行处理
                          expression.append(src, offset, end - offset);
                          offset = end + closeToken.length();
                          break;
                      }
                  }
                  if (end == -1) {
                      // close token was not found.
                      builder.append(src, start, src.length - start);
                      offset = src.length;
                  } else {
                      //首先根据参数的key（即expression）进行参数处理，返回?作为占位符
                      builder.append(handler.handleToken(expression.toString()));
                      offset = end + closeToken.length();
                  }
              }
              start = text.indexOf(openToken, offset);
          }
          if (offset < src.length) {
              builder.append(src, offset, src.length - offset);
          }
          return builder.toString();
      }
  }


• ParameterMapping

  package utils;

  import lombok.AllArgsConstructor;
  import lombok.Getter;
  import lombok.Setter;

  @Getter
  @Setter
  @AllArgsConstructor
  public class ParameterMapping {
      //对应sql #{content}
      private String content;

  }


• TokenHandler

  /**
   *    Copyright 2009-2015 the original author or authors.
   *
   *    Licensed under the Apache License, Version 2.0 (the "License");
   *    you may not use this file except in compliance with the License.
   *    You may obtain a copy of the License at
   *
   *       http://www.apache.org/licenses/LICENSE-2.0
   *
   *    Unless required by applicable law or agreed to in writing, software
   *    distributed under the License is distributed on an "AS IS" BASIS,
   *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
   *    See the License for the specific language governing permissions and
   *    limitations under the License.
   */
  package utils;

  /**
   * @author Clinton Begin
   */
  public interface TokenHandler {
    String handleToken(String content);
  }


• ParameterMappingTokenHandler

  package utils;

  import java.util.ArrayList;
  import java.util.List;


  public class ParameterMappingTokenHandler implements TokenHandler {
  	private List<ParameterMapping> parameterMappings = new ArrayList<ParameterMapping>();

  	// context是参数名称 #{id} #{username}

  	public String handleToken(String content) {
  		parameterMappings.add(buildParameterMapping(content));
  		return "?";
  	}

  	private ParameterMapping buildParameterMapping(String content) {
  		ParameterMapping parameterMapping = new ParameterMapping(content);
  		return parameterMapping;
  	}

  	public List<ParameterMapping> getParameterMappings() {
  		return parameterMappings;
  	}

  	public void setParameterMappings(List<ParameterMapping> parameterMappings) {
  		this.parameterMappings = parameterMappings;
  	}

  }


• 源码下载地址
  https://files-cdn.cnblogs.com/files/u1314/customize-persistence.zip
