C Sharp 中的 ManagementClass 类和获取硬件的信息的用法
C Sharp 中的 ManagementClass 类和获取硬件的信息的用法
在. NET 的项目中，有时候需要获取计算机的硬件的相关信息，在 C# 语言中需要利用 ManagementClass 这个类来进行相关操作。
ManagementClass 类: 对表示一个通用信息模型 (CIM) 管理类。管理类是 WMI 类，如 Win32_LogicalDisk，该类型可表示一个磁盘驱动器，并 Win32_Process，它表示的进程 Notepad. exe 等。此类的成员可以访问 WMI 数据，使用一个特定的 WMI 类路径。
继承层次结构：
System.Object
System.MarshalByRefObject
System.ComponentModel.Component
System.Management.ManagementBaseObject
System.Management.ManagementObject
System.Management.ManagementClass
- GetInstances（）：此方法存在四个重载
| 方法名 | 作用 |
|---|---|
| GetInstance () | 返回类的所有实例集合 |
| GetInstance (EnumerationOptions) | 返回使用指定选项的类的所有实例的集合 |
| GetInstance (ManagementOperationObserver) | 以异步方式返回类的所有实例的集合 |
| GetInstance (ManagementOperationObserver, EnumerationOptions) | 使用指定的选项以异步方式返回类的所有实例的集合 |
- Get ()：
| 方法名 | 作用 |
|---|---|
| Get () | 将 WMI 类信息绑定到管理对象 |
| Get (ManagementOperationObserver) | 将以异步方式绑定到管理对象 |
- GetSubclasses（）：此方法存在四个重载版本
| 方法名 | 作用 |
|---|---|
| GetSubclasses () | 返回所有子类的类的集合 |
| GetSubclasses (EnumerationOptions) | 检索使用指定选项的类的子类 |
| GetSubclasses（ManagementOperationObserver） | 返回所有以异步方式从该类派生的类的集合 |
| GetSubclasses（ManagementOperationObserver, EnumerationOptions） | 检索所有以异步方式派生自此类并使用指定选项的子类 |

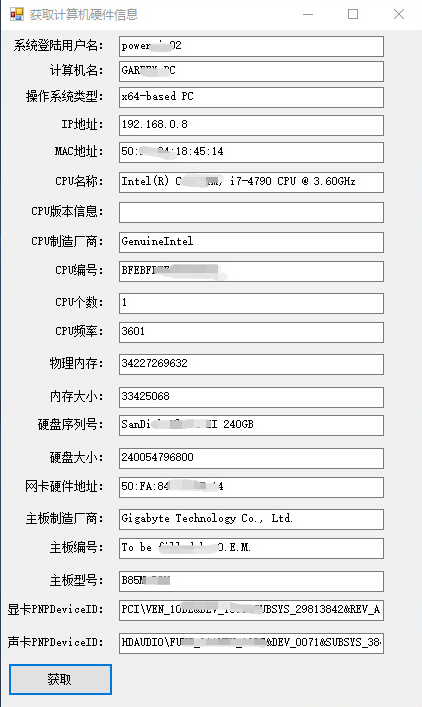

C# 提供了 ManagementClass 类来获取本机的一些基本信息，比如 CPU 的个数，CPU 的频率，网卡的 MAC，内存的大小，硬盘的大小等。
using System;
using System.Management;
using System.Windows.Forms;
namespace GetPCInfo
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
this.macPathtextBox.Text = GetMACString();
this.cpuCounttextBox.Text = GetCpuCount().ToString();
string[] cpuhz = GetCpuMHZ();
foreach( string hz in cpuhz)
{
this.cpuMHZtextBox.Text += hz+"\n";
}
this.diskSizetextBox.Text = GetSizeOfDisk();
this.MemorySizetextBox.Text = GetSizeOfMemery();
this.cpuIdtextBox.Text = GetCpuid();
this.diskSerialNumbertextBox.Text = GetDiskSerialNumber();
this.networkAddresstextBox.Text = GetMacAddress();
this.IpAddresstextBox.Text = GetIpAddress();
this.userNametextBox.Text = GetUserName();
this.pcNametextBox.Text = GetComputerName();
this.sysTypetextBox.Text = GetSystemType();
this.physicalMemorytextBox.Text = GetPhysicalMemory();
this.videoPnpidtextBox.Text = GetVideoPnpid();
this.soundPnpidtextBox.Text = GetSoundPnpid();
this.cpuVersiontextBox.Text = GetCpuVersion();
this.cpuNametextBox.Text = GetCpuName();
this.cpuManufacturertextBox.Text = GetCpuManufacturer();
this.boardManufacturertextBox.Text = GetBoardManufacturer();
this.boardIdtextBox.Text = GetBoardId();
this.boardTypetextBox.Text = GetBoardType();
}
// 获取本机的MAC地址
private string GetMACString()
{
ManagementClass mAdapter = new ManagementClass("Win32_NetworkAdapterConfiguration");
ManagementObjectCollection mo = mAdapter.GetInstances();
foreach (ManagementBaseObject m in mo)
{
if ((bool)m["IpEnabled"] == true)
{
return m["MacAddress"].ToString();
}
}
mo.Dispose();
return "";// null;
}
// 获取CPU的个数
private int GetCpuCount()
{
try
{
using (ManagementClass mCpu = new ManagementClass("Win32_Processor"))
{
ManagementObjectCollection cpus = mCpu.GetInstances();
return cpus.Count;
}
}
catch
{
}
return -1;
}
// 获取CPU的频率 这里之所以使用string类型的数组，主要是因为cpu的多核
private string[] GetCpuMHZ()
{
ManagementClass mc = new ManagementClass("Win32_Processor");
ManagementObjectCollection cpus = mc.GetInstances();
string[] mHz = new string[cpus.Count];
int c = 0;
ManagementObjectSearcher mySearch = new ManagementObjectSearcher("select * from Win32_Processor");
foreach (ManagementObject mo in mySearch.Get())
{
mHz[c] = mo.Properties["CurrentClockSpeed"].Value.ToString();
c++;
}
mc.Dispose();
mySearch.Dispose();
return mHz;
}
// 获取硬盘的大小
private string GetSizeOfDisk()
{
ManagementClass mc = new ManagementClass("Win32_DiskDrive");
ManagementObjectCollection moj = mc.GetInstances();
foreach (ManagementObject m in moj)
{
return m.Properties["Size"].Value.ToString();
}
return "-1";
}
// 获取内存的大小
private string GetSizeOfMemery()
{
ManagementClass mc = new ManagementClass("Win32_OperatingSystem");
ManagementObjectCollection moc = mc.GetInstances();
double sizeAll = 0.0;
foreach (ManagementObject m in moc)
{
if (m.Properties["TotalVisibleMemorySize"].Value != null)
{
sizeAll += Convert.ToDouble(m.Properties["TotalVisibleMemorySize"].Value.ToString());
}
}
mc = null;
moc.Dispose();
return sizeAll.ToString();
}
// 获得CPU编号
public string GetCpuid()
{
var cpuid = string.Empty;
var mc = new ManagementClass("Win32_Processor");
var moc = mc.GetInstances();
foreach (var o in moc)
{
var mo = (ManagementObject)o;
cpuid = mo.Properties["ProcessorId"].Value.ToString();
}
return cpuid;
}
// 获取硬盘序列号
public string GetDiskSerialNumber()
{
//这种模式在插入一个U盘后可能会有不同的结果，如插入我的手机时
var hDid = string.Empty;
var mc = new ManagementClass("Win32_DiskDrive");
var moc = mc.GetInstances();
foreach (var o in moc)
{
var mo = (ManagementObject)o;
hDid = (string)mo.Properties["Model"].Value;
//这名话解决有多个物理盘时产生的问题，只取第一个物理硬盘
break;
}
return hDid;
}
// 获取网卡硬件地址
public string GetMacAddress()
{
var mac = "";
var mc = new ManagementClass("Win32_NetworkAdapterConfiguration");
var moc = mc.GetInstances();
foreach (var o in moc)
{
var mo = (ManagementObject)o;
if (!(bool)mo["IPEnabled"]) continue;
mac = mo["MacAddress"].ToString();
break;
}
return mac;
}
// 获取IP地址
public string GetIpAddress()
{
var st = string.Empty;
var mc = new ManagementClass("Win32_NetworkAdapterConfiguration");
var moc = mc.GetInstances();
foreach (var o in moc)
{
var mo = (ManagementObject)o;
if (!(bool)mo["IPEnabled"]) continue;
var ar = (Array)(mo.Properties["IpAddress"].Value);
st = ar.GetValue(0).ToString();
break;
}
return st;
}
// 操作系统的登录用户名
public string GetUserName()
{
return Environment.UserName;
}
// 获取计算机名
public string GetComputerName()
{
return Environment.MachineName;
}
// 操作系统类型
public string GetSystemType()
{
var st = string.Empty;
var mc = new ManagementClass("Win32_ComputerSystem");
var moc = mc.GetInstances();
foreach (var o in moc)
{
var mo = (ManagementObject)o;
st = mo["SystemType"].ToString();
}
return st;
}
// 物理内存
public string GetPhysicalMemory()
{
var st = string.Empty;
var mc = new ManagementClass("Win32_ComputerSystem");
var moc = mc.GetInstances();
foreach (var o in moc)
{
var mo = (ManagementObject)o;
st = mo["TotalPhysicalMemory"].ToString();
}
return st;
}
// 显卡PNPDeviceID
public string GetVideoPnpid()
{
var st = "";
var mos = new ManagementObjectSearcher("Select * from Win32_VideoController");
foreach (var o in mos.Get())
{
var mo = (ManagementObject)o;
st = mo["PNPDeviceID"].ToString();
}
return st;
}
// 声卡PNPDeviceID
public string GetSoundPnpid()
{
var st = string.Empty;
var mos = new ManagementObjectSearcher("Select * from Win32_SoundDevice");
foreach (var o in mos.Get())
{
var mo = (ManagementObject)o;
st = mo["PNPDeviceID"].ToString();
}
return st;
}
// CPU版本信息
public string GetCpuVersion()
{
var st = string.Empty;
var mos = new ManagementObjectSearcher("Select * from Win32_Processor");
foreach (var o in mos.Get())
{
var mo = (ManagementObject)o;
st = mo["Version"].ToString();
}
return st;
}
// CPU名称信息
public string GetCpuName()
{
var st = string.Empty;
var driveId = new ManagementObjectSearcher("Select * from Win32_Processor");
foreach (var o in driveId.Get())
{
var mo = (ManagementObject)o;
st = mo["Name"].ToString();
}
return st;
}
// CPU制造厂商
public string GetCpuManufacturer()
{
var st = string.Empty;
var mos = new ManagementObjectSearcher("Select * from Win32_Processor");
foreach (var o in mos.Get())
{
var mo = (ManagementObject)o;
st = mo["Manufacturer"].ToString();
}
return st;
}
// 主板制造厂商
public string GetBoardManufacturer()
{
var query = new SelectQuery("Select * from Win32_BaseBoard");
var mos = new ManagementObjectSearcher(query);
var data = mos.Get().GetEnumerator();
data.MoveNext();
var board = data.Current;
return board.GetPropertyValue("Manufacturer").ToString();
}
// 主板编号
public string GetBoardId()
{
var st = string.Empty;
var mos = new ManagementObjectSearcher("Select * from Win32_BaseBoard");
foreach (var o in mos.Get())
{
var mo = (ManagementObject)o;
st = mo["SerialNumber"].ToString();
}
return st;
}
// 主板型号
public string GetBoardType()
{
var st = string.Empty;
var mos = new ManagementObjectSearcher("Select * from Win32_BaseBoard");
foreach (var o in mos.Get())
{
var mo = (ManagementObject)o;
st = mo["Product"].ToString();
}
return st;
}
}
}
