基于变分推断的贝叶斯神经网络详解（keras实现）

基于变分推断的贝叶斯神经网络详解（keras实现）

2019-08-04 14:20:53 Mr.Jcak 阅读数 190更多

分类专栏： 机器学习 Keras



版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。

本文链接：https://blog.csdn.net/weixin_38314865/article/details/98468583

http://krasserm.github.io/2019/03/14/bayesian-neural-networks/

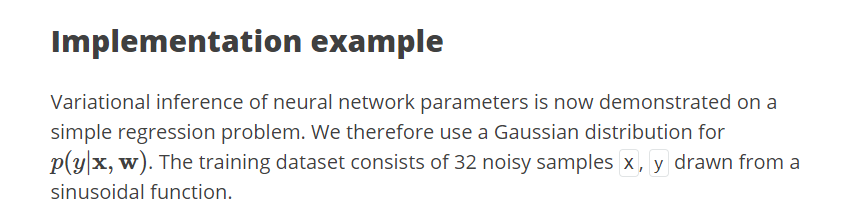

1.
   import numpy as np
2.
   import matplotlib.pyplot as plt
3.

4.
   %matplotlib inline
5.

6.
   def f(x, sigma):
7.
   epsilon = np.random.randn(*x.shape) * sigma
8.
   return 10 * np.sin(2 * np.pi * (x)) + epsilon
9.

10.
    train_size = 32
11.
    noise = 1.0
12.

13.
    X = np.linspace(-0.5, 0.5, train_size).reshape(-1, 1)
14.
    y = f(X, sigma=noise)
15.
    y_true = f(X, sigma=0.0)
16.

17.
    plt.scatter(X, y, marker='+', label='Training data')
18.
    plt.plot(X, y_true, label='Truth')
19.

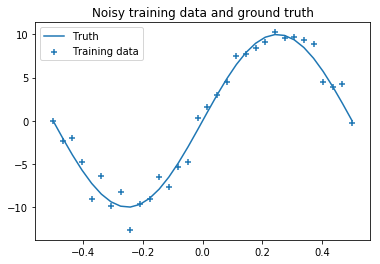

    plt.title('Noisy training data and ground truth')
20.
    plt.legend();

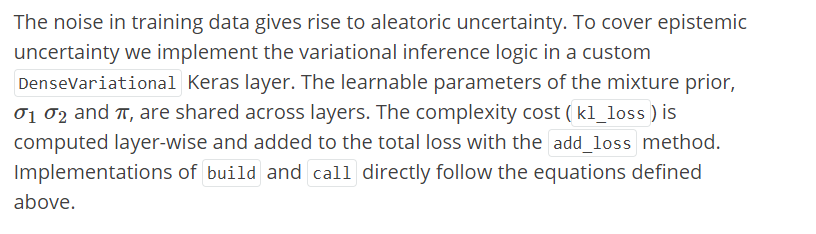

1.
   from keras import backend as K
2.
   from keras import activations, initializers
3.
   from keras.layers import Layer
4.

5.
   import tensorflow as tf
6.

7.
   def mixture_prior_params(sigma_1, sigma_2, pi, return_sigma=False):
8.
   params = K.variable([sigma_1, sigma_2, pi], name='mixture_prior_params')
9.
   sigma = np.sqrt(pi * sigma_1 ** 2 + (1 - pi) * sigma_2 ** 2)
10.
    return params, sigma
11.

12.
    def log_mixture_prior_prob(w):
13.
    comp_1_dist = tf.distributions.Normal(0.0, prior_params[0])
14.
    comp_2_dist = tf.distributions.Normal(0.0, prior_params[1])
15.
    comp_1_weight = prior_params[2]
16.
    return K.log(comp_1_weight * comp_1_dist.prob(w) + (1 - comp_1_weight) * comp_2_dist.prob(w))
17.

18.
    # Mixture prior parameters shared across DenseVariational layer instances
19.
    prior_params, prior_sigma = mixture_prior_params(sigma_1=1.0, sigma_2=0.1, pi=0.2)
20.

21.
    class DenseVariational(Layer):
22.
    def __init__(self, output_dim, kl_loss_weight, activation=None, **kwargs):
23.
    self.output_dim = output_dim
24.
    self.kl_loss_weight = kl_loss_weight
25.
    self.activation = activations.get(activation)
26.
    super().__init__(**kwargs)
27.

28.
    def build(self, input_shape):
29.
    self._trainable_weights.append(prior_params)
30.

31.
    self.kernel_mu = self.add_weight(name='kernel_mu',
32.
    shape=(input_shape[1], self.output_dim),
33.
    initializer=initializers.normal(stddev=prior_sigma),
34.
    trainable=True)
35.
    self.bias_mu = self.add_weight(name='bias_mu',
36.
    shape=(self.output_dim,),
37.
    initializer=initializers.normal(stddev=prior_sigma),
38.
    trainable=True)
39.
    self.kernel_rho = self.add_weight(name='kernel_rho',
40.
    shape=(input_shape[1], self.output_dim),
41.
    initializer=initializers.constant(0.0),
42.
    trainable=True)
43.
    self.bias_rho = self.add_weight(name='bias_rho',
44.
    shape=(self.output_dim,),
45.
    initializer=initializers.constant(0.0),
46.
    trainable=True)
47.
    super().build(input_shape)
48.

49.
    def call(self, x):
50.
    kernel_sigma = tf.math.softplus(self.kernel_rho)
51.
    kernel = self.kernel_mu + kernel_sigma * tf.random.normal(self.kernel_mu.shape)
52.

53.
    bias_sigma = tf.math.softplus(self.bias_rho)
54.
    bias = self.bias_mu + bias_sigma * tf.random.normal(self.bias_mu.shape)
55.

56.
    self.add_loss(self.kl_loss(kernel, self.kernel_mu, kernel_sigma) +
57.
    self.kl_loss(bias, self.bias_mu, bias_sigma))
58.

59.
    return self.activation(K.dot(x, kernel) + bias)
60.

61.
    def compute_output_shape(self, input_shape):
62.
    return (input_shape[0], self.output_dim)
63.

64.
    def kl_loss(self, w, mu, sigma):
65.
    variational_dist = tf.distributions.Normal(mu, sigma)
66.
    return kl_loss_weight * K.sum(variational_dist.log_prob(w) - log_mixture_prior_prob(w))

1.
   from keras.layers import Input
2.
   from keras.models import Model
3.

4.
   batch_size = train_size
5.
   num_batches = train_size / batch_size
6.
   kl_loss_weight = 1.0 / num_batches
7.

8.
   x_in = Input(shape=(1,))
9.
   x = DenseVariational(20, kl_loss_weight=kl_loss_weight, activation='relu')(x_in)
10.
    x = DenseVariational(20, kl_loss_weight=kl_loss_weight, activation='relu')(x)
11.
    x = DenseVariational(1, kl_loss_weight=kl_loss_weight)(x)
12.

13.
    model = Model(x_in, x)

1.
   from keras import callbacks, optimizers
2.

3.
   def neg_log_likelihood(y_obs, y_pred, sigma=noise):
4.
   dist = tf.distributions.Normal(loc=y_pred, scale=sigma)
5.
   return K.sum(-dist.log_prob(y_obs))
6.

7.
   model.compile(loss=neg_log_likelihood, optimizer=optimizers.Adam(lr=0.03), metrics=['mse'])
8.
   model.fit(X, y, batch_size=batch_size, epochs=1500, verbose=0);

1.
   import tqdm
2.

3.
   X_test = np.linspace(-1.5, 1.5, 1000).reshape(-1, 1)
4.
   y_pred_list = []
5.

6.
   for i in tqdm.tqdm(range(500)):
7.
   y_pred = model.predict(X_test)
8.
   y_pred_list.append(y_pred)
9.

10.
    y_preds = np.concatenate(y_pred_list, axis=1)
11.

12.
    y_mean = np.mean(y_preds, axis=1)
13.
    y_sigma = np.std(y_preds, axis=1)
14.

15.
    plt.plot(X_test, y_mean, 'r-', label='Predictive mean');
16.
    plt.scatter(X, y, marker='+', label='Training data')
17.
    plt.fill_between(X_test.ravel(),
18.
    y_mean + 2 * y_sigma,
19.
    y_mean - 2 * y_sigma,
20.
    alpha=0.5, label='Epistemic uncertainty')
21.

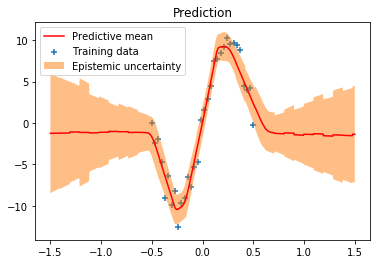

    plt.title('Prediction')
22.
    plt.legend();
