spring源码之字段填充逻辑

 总结：

1先获取被Autowired、Value、Inject注解的字段和方法

2从容器中获取到对应的值

3利用反射设置

/**
     * Actually create the specified bean. Pre-creation processing has already happened
     * at this point, e.g. checking {@code postProcessBeforeInstantiation} callbacks.
     * <p>Differentiates between default bean instantiation, use of a
     * factory method, and autowiring a constructor.
     * @param beanName the name of the bean
     * @param mbd the merged bean definition for the bean
     * @param args explicit arguments to use for constructor or factory method invocation
     * @return a new instance of the bean
     * @throws BeanCreationException if the bean could not be created
     * @see #instantiateBean
     * @see #instantiateUsingFactoryMethod
     * @see #autowireConstructor
     */
    protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
            throws BeanCreationException {

        // Instantiate the bean.
        BeanWrapper instanceWrapper = null;
        if (mbd.isSingleton()) {
            instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
        }
        if (instanceWrapper == null) {
            instanceWrapper = createBeanInstance(beanName, mbd, args);
        }
        Object bean = instanceWrapper.getWrappedInstance();
        Class<?> beanType = instanceWrapper.getWrappedClass();
        if (beanType != NullBean.class) {
            mbd.resolvedTargetType = beanType;
        }

        // Allow post-processors to modify the merged bean definition.
        synchronized (mbd.postProcessingLock) {
            if (!mbd.postProcessed) {
                try {
                    applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
                }
                catch (Throwable ex) {
                    throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                            "Post-processing of merged bean definition failed", ex);
                }
                mbd.postProcessed = true;
            }
        }

        // Eagerly cache singletons to be able to resolve circular references
        // even when triggered by lifecycle interfaces like BeanFactoryAware.
        boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
                isSingletonCurrentlyInCreation(beanName));
        if (earlySingletonExposure) {
            if (logger.isTraceEnabled()) {
                logger.trace("Eagerly caching bean '" + beanName +
                        "' to allow for resolving potential circular references");
            }
            addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
        }

        // Initialize the bean instance.
        Object exposedObject = bean;
        try {
            populateBean(beanName, mbd, instanceWrapper);
            exposedObject = initializeBean(beanName, exposedObject, mbd);
        }
        catch (Throwable ex) {
            if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
                throw (BeanCreationException) ex;
            }
            else {
                throw new BeanCreationException(
                        mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
            }
        }

        if (earlySingletonExposure) {
            Object earlySingletonReference = getSingleton(beanName, false);
            if (earlySingletonReference != null) {
                if (exposedObject == bean) {
                    exposedObject = earlySingletonReference;
                }
                else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
                    String[] dependentBeans = getDependentBeans(beanName);
                    Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
                    for (String dependentBean : dependentBeans) {
                        if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                            actualDependentBeans.add(dependentBean);
                        }
                    }
                    if (!actualDependentBeans.isEmpty()) {
                        throw new BeanCurrentlyInCreationException(beanName,
                                "Bean with name '" + beanName + "' has been injected into other beans [" +
                                StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                                "] in its raw version as part of a circular reference, but has eventually been " +
                                "wrapped. This means that said other beans do not use the final version of the " +
                                "bean. This is often the result of over-eager type matching - consider using " +
                                "'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
                    }
                }
            }
        }

        // Register bean as disposable.
        try {
            registerDisposableBeanIfNecessary(beanName, bean, mbd);
        }
        catch (BeanDefinitionValidationException ex) {
            throw new BeanCreationException(
                    mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
        }

        return exposedObject;
    }



/**
     * Populate the bean instance in the given BeanWrapper with the property values
     * from the bean definition.
     * @param beanName the name of the bean
     * @param mbd the bean definition for the bean
     * @param bw the BeanWrapper with bean instance
     */
    @SuppressWarnings("deprecation")  // for postProcessPropertyValues
    protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
        if (bw == null) {
            if (mbd.hasPropertyValues()) {
                throw new BeanCreationException(
                        mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
            }
            else {
                // Skip property population phase for null instance.
                return;
            }
        }

        // Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
        // state of the bean before properties are set. This can be used, for example,
        // to support styles of field injection.
        if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
            for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
                if (!bp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
                    return;
                }
            }
        }

        PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);

        int resolvedAutowireMode = mbd.getResolvedAutowireMode();
        if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
            MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
            // Add property values based on autowire by name if applicable.
            if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
                autowireByName(beanName, mbd, bw, newPvs);
            }
            // Add property values based on autowire by type if applicable.
            if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
                autowireByType(beanName, mbd, bw, newPvs);
            }
            pvs = newPvs;
        }

        boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
        boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);

        PropertyDescriptor[] filteredPds = null;
        if (hasInstAwareBpps) {
            if (pvs == null) {
                pvs = mbd.getPropertyValues();
            }
            for (InstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().instantiationAware) {
                PropertyValues pvsToUse = bp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
                if (pvsToUse == null) {
                    if (filteredPds == null) {
                        filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
                    }
                    pvsToUse = bp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
                    if (pvsToUse == null) {
                        return;
                    }
                }
                pvs = pvsToUse;
            }
        }
        if (needsDepCheck) {
            if (filteredPds == null) {
                filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
            }
            checkDependencies(beanName, mbd, filteredPds, pvs);
        }

        if (pvs != null) {
            applyPropertyValues(beanName, mbd, bw, pvs);
        }
    }



AutowiredAnnotationBeanPostProcessor类

@Override
    public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) {
        InjectionMetadata metadata = findAutowiringMetadata(beanName, bean.getClass(), pvs);//找出所有被Autowired、Value、Inject注解的字段以及方法
        try {

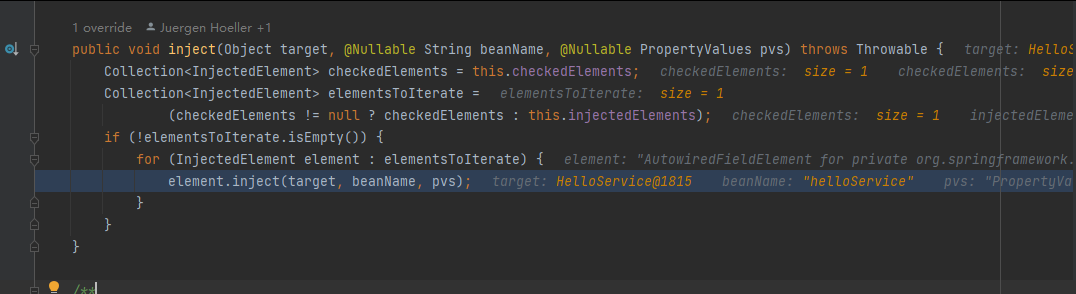

            metadata.inject(bean, beanName, pvs);
        }
        catch (BeanCreationException ex) {
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanCreationException(beanName, "Injection of autowired dependencies failed", ex);
        }
        return pvs;
    }





这个是处理字段的处理逻辑，处理方法的会不一样

@Override
        protected void inject(Object bean, @Nullable String beanName, @Nullable PropertyValues pvs) throws Throwable {
            Field field = (Field) this.member;
            Object value;
            if (this.cached) {
                try {
                    value = resolvedCachedArgument(beanName, this.cachedFieldValue);
                }
                catch (NoSuchBeanDefinitionException ex) {
                    // Unexpected removal of target bean for cached argument -> re-resolve
                    value = resolveFieldValue(field, bean, beanName);
                }
            }
            else {
                value = resolveFieldValue(field, bean, beanName);
            }
            if (value != null) {
                ReflectionUtils.makeAccessible(field);
                field.set(bean, value);
            }
        }



@Nullable
        private Object resolveFieldValue(Field field, Object bean, @Nullable String beanName) {
            DependencyDescriptor desc = new DependencyDescriptor(field, this.required);
            desc.setContainingClass(bean.getClass());
            Set<String> autowiredBeanNames = new LinkedHashSet<>(1);
            Assert.state(beanFactory != null, "No BeanFactory available");
            TypeConverter typeConverter = beanFactory.getTypeConverter();
            Object value;
            try {
                value = beanFactory.resolveDependency(desc, beanName, autowiredBeanNames, typeConverter);
            }
            catch (BeansException ex) {
                throw new UnsatisfiedDependencyException(null, beanName, new InjectionPoint(field), ex);
            }
            synchronized (this) {
                if (!this.cached) {
                    Object cachedFieldValue = null;
                    if (value != null || this.required) {
                        cachedFieldValue = desc;
                        registerDependentBeans(beanName, autowiredBeanNames);
                        if (autowiredBeanNames.size() == 1) {
                            String autowiredBeanName = autowiredBeanNames.iterator().next();
                            if (beanFactory.containsBean(autowiredBeanName) &&
                                    beanFactory.isTypeMatch(autowiredBeanName, field.getType())) {
                                cachedFieldValue = new ShortcutDependencyDescriptor(
                                        desc, autowiredBeanName, field.getType());
                            }
                        }
                    }
                    this.cachedFieldValue = cachedFieldValue;
                    this.cached = true;
                }
            }
            return value;
        }
    }



@Override
    @Nullable
    public Object resolveDependency(DependencyDescriptor descriptor, @Nullable String requestingBeanName,
            @Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {

        descriptor.initParameterNameDiscovery(getParameterNameDiscoverer());
        if (Optional.class == descriptor.getDependencyType()) {
            return createOptionalDependency(descriptor, requestingBeanName);
        }
        else if (ObjectFactory.class == descriptor.getDependencyType() ||
                ObjectProvider.class == descriptor.getDependencyType()) {
            return new DependencyObjectProvider(descriptor, requestingBeanName);
        }
        else if (javaxInjectProviderClass == descriptor.getDependencyType()) {
            return new Jsr330Factory().createDependencyProvider(descriptor, requestingBeanName);
        }
        else {
            Object result = getAutowireCandidateResolver().getLazyResolutionProxyIfNecessary(
                    descriptor, requestingBeanName);
            if (result == null) {
                result = doResolveDependency(descriptor, requestingBeanName, autowiredBeanNames, typeConverter);
            }
            return result;
        }
    }



@Nullable
    public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
            @Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {

        InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
        try {
            Object shortcut = descriptor.resolveShortcut(this);
            if (shortcut != null) {
                return shortcut;
            }

            Class<?> type = descriptor.getDependencyType();
            Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
            if (value != null) {
                if (value instanceof String) {
                    String strVal = resolveEmbeddedValue((String) value);
                    BeanDefinition bd = (beanName != null && containsBean(beanName) ?
                            getMergedBeanDefinition(beanName) : null);
                    value = evaluateBeanDefinitionString(strVal, bd);
                }
                TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
                try {
                    return converter.convertIfNecessary(value, type, descriptor.getTypeDescriptor());
                }
                catch (UnsupportedOperationException ex) {
                    // A custom TypeConverter which does not support TypeDescriptor resolution...
                    return (descriptor.getField() != null ?
                            converter.convertIfNecessary(value, type, descriptor.getField()) :
                            converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
                }
            }

            Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
            if (multipleBeans != null) {
                return multipleBeans;
            }

            Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
            if (matchingBeans.isEmpty()) {
                if (isRequired(descriptor)) {
                    raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
                }
                return null;
            }

            String autowiredBeanName;
            Object instanceCandidate;

            if (matchingBeans.size() > 1) {
                autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
                if (autowiredBeanName == null) {
                    if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
                        return descriptor.resolveNotUnique(descriptor.getResolvableType(), matchingBeans);
                    }
                    else {
                        // In case of an optional Collection/Map, silently ignore a non-unique case:
                        // possibly it was meant to be an empty collection of multiple regular beans
                        // (before 4.3 in particular when we didn't even look for collection beans).
                        return null;
                    }
                }
                instanceCandidate = matchingBeans.get(autowiredBeanName);
            }
            else {
                // We have exactly one match.
                Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
                autowiredBeanName = entry.getKey();
                instanceCandidate = entry.getValue();
            }

            if (autowiredBeanNames != null) {
                autowiredBeanNames.add(autowiredBeanName);
            }
            if (instanceCandidate instanceof Class) {
                instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
            }
            Object result = instanceCandidate;
            if (result instanceof NullBean) {
                if (isRequired(descriptor)) {
                    raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
                }
                result = null;
            }
            if (!ClassUtils.isAssignableValue(type, result)) {
                throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
            }
            return result;
        }
        finally {
            ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
        }
    }



/**
     * Find bean instances that match the required type.
     * Called during autowiring for the specified bean.
     * @param beanName the name of the bean that is about to be wired
     * @param requiredType the actual type of bean to look for
     * (may be an array component type or collection element type)
     * @param descriptor the descriptor of the dependency to resolve
     * @return a Map of candidate names and candidate instances that match
     * the required type (never {@code null})
     * @throws BeansException in case of errors
     * @see #autowireByType
     * @see #autowireConstructor
     */
    protected Map<String, Object> findAutowireCandidates(
            @Nullable String beanName, Class<?> requiredType, DependencyDescriptor descriptor) {

        String[] candidateNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
                this, requiredType, true, descriptor.isEager());
        Map<String, Object> result = CollectionUtils.newLinkedHashMap(candidateNames.length);
        for (Map.Entry<Class<?>, Object> classObjectEntry : this.resolvableDependencies.entrySet()) {//如果是对应的类型，把默认的值作为一个候选
            Class<?> autowiringType = classObjectEntry.getKey();
            if (autowiringType.isAssignableFrom(requiredType)) {
                Object autowiringValue = classObjectEntry.getValue();
                autowiringValue = AutowireUtils.resolveAutowiringValue(autowiringValue, requiredType);
                if (requiredType.isInstance(autowiringValue)) {
                    result.put(ObjectUtils.identityToString(autowiringValue), autowiringValue);
                    break;
                }
            }
        }
        for (String candidate : candidateNames) {
            if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, descriptor)) {
                addCandidateEntry(result, candidate, descriptor, requiredType);
            }
        }
        if (result.isEmpty()) {
            boolean multiple = indicatesMultipleBeans(requiredType);
            // Consider fallback matches if the first pass failed to find anything...
            DependencyDescriptor fallbackDescriptor = descriptor.forFallbackMatch();
            for (String candidate : candidateNames) {
                if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, fallbackDescriptor) &&
                        (!multiple || getAutowireCandidateResolver().hasQualifier(descriptor))) {
                    addCandidateEntry(result, candidate, descriptor, requiredType);
                }
            }
            if (result.isEmpty() && !multiple) {
                // Consider self references as a final pass...
                // but in the case of a dependency collection, not the very same bean itself.
                for (String candidate : candidateNames) {
                    if (isSelfReference(beanName, candidate) &&
                            (!(descriptor instanceof MultiElementDescriptor) || !beanName.equals(candidate)) &&
                            isAutowireCandidate(candidate, fallbackDescriptor)) {
                        addCandidateEntry(result, candidate, descriptor, requiredType);
                    }
                }
            }
        }
        return result;
    }



/**
     * Add an entry to the candidate map: a bean instance if available or just the resolved
     * type, preventing early bean initialization ahead of primary candidate selection.
     */
    private void addCandidateEntry(Map<String, Object> candidates, String candidateName,
            DependencyDescriptor descriptor, Class<?> requiredType) {

        if (descriptor instanceof MultiElementDescriptor) {
            Object beanInstance = descriptor.resolveCandidate(candidateName, requiredType, this);
            if (!(beanInstance instanceof NullBean)) {
                candidates.put(candidateName, beanInstance);
            }
        }
        else if (containsSingleton(candidateName) || (descriptor instanceof StreamDependencyDescriptor &&
                ((StreamDependencyDescriptor) descriptor).isOrdered())) {
            Object beanInstance = descriptor.resolveCandidate(candidateName, requiredType, this);
            candidates.put(candidateName, (beanInstance instanceof NullBean ? null : beanInstance));
        }
        else {
            candidates.put(candidateName, getType(candidateName));
        }
    }



从工厂中取

/**
     * Resolve the specified bean name, as a candidate result of the matching
     * algorithm for this dependency, to a bean instance from the given factory.
     * <p>The default implementation calls {@link BeanFactory#getBean(String)}.
     * Subclasses may provide additional arguments or other customizations.
     * @param beanName the bean name, as a candidate result for this dependency
     * @param requiredType the expected type of the bean (as an assertion)
     * @param beanFactory the associated factory
     * @return the bean instance (never {@code null})
     * @throws BeansException if the bean could not be obtained
     * @since 4.3.2
     * @see BeanFactory#getBean(String)
     */
    public Object resolveCandidate(String beanName, Class<?> requiredType, BeanFactory beanFactory)
            throws BeansException {

        return beanFactory.getBean(beanName);
    }
