icmpv6

1path mtu discovery (pmtud路径mtu发现协议）

整个路径mut发现，当发现一段线路的mtu过小就会发送icmp error消息，说包过大让其进行分片，用来测试整个路径mtu最小值

2ndr-replace arp（邻居发现协议替代arp)

当a想访问b的时候，发现不知道目标的mac，就会发送一个组播icmp type=135的消息，当b收到会单播回复一个type=136的消息。包含的内容

icmp type =135

src=a

dst=solicited-node multicast of b

data=link-layer address of a

query=what is your link address

icmp type=136

src=b

dst=a

data=link-layer address of b

ns 135邻居请求

na 136邻居通告

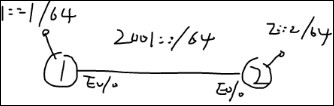

实验：

r1:

int e0/0

ipv6 address 2001::1/64

no sh

r2:

int e0/0

ipv6 address 2001::2/64

no sh

show ipv6 neighbors(看到以太网对方mac，等于ipv4的show arp)

ndp-prefix advertisement(前缀通告）

pa packet defaintions:

icmp type=134

src=router link-local address

dst=all-nodes multicast address ff02::1

data=options,prefix,lifetime,autoconfig flag

ra 134 路由通告，通告路由器网络号

边界网关发出来的。

rs 133 回应

rs packet defintions:

icmp type=133

src=unspecified address ::

dst=all-routers multicast address ff02::2

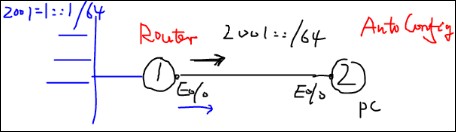

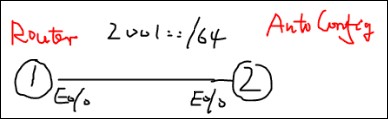

实验：

r2:

int e0/0

ipv6 address autoconfig

no sh

show ipv6 int e0/0

r1:

ipv6 unicast-routing(运行ipv6的路由器才会发送请求）

icmpv6

type:135和136替代arp

type:133和134通告前缀

duplicate address detection(重复地址检测）

icmp type=135

src=0(::)

dst=solicited-node multicast of a

data=link-layer address of a

query=what is your link address

如果收到就会冲突，

ip gratuitous-arps(ipv4免费arp)

在运行路由协议的路由器可以关闭ra消息

r1:

ipv6 nd suppress-ra（关掉ra消息)

重编址

int e0

ipv6 nd prefix 2001:db8:c18:1::/64 43200 0

ipv6 nd prefix 2001:db8:c18:2::/64 43200 43200

or

int e0

ipv6 nd prefix 2::/64 at JUN 12 12:00 JUN 1 12:00

ipv6 nd prefix 2001:sb8:c18:2::/64 43200 43200

ipv6 acl例：

ipv6 access-list blocksite deny fe:ce:0:0:2/64 any

ipv6 access-list blocksite permit any

interface e0

ipv6 traffic-filter blocksite out

实验：

r1:

ipv6 access-list wolf

permit ipv6 host 2001:::1 any

int e0/0

ipv6 traffic-filter wolf out

ipv6 acl隐含条件

permit icmp any any nd-ns

permit icmp any any nd-na

deny ipv6 any any

ipv6 静态路由

r1:

int lo0

ipv6 address 1::1/64

r2:

int e0/0

ipv6 address 2001::2/64

int lo0

ipv6 address 2:2/64

r1:

ipv6 route 2::/64 2001::2

r2:

ipv6 route 1::/64 2001::1

show ipv6 route

ipv6 rip

协议封装udp521

组播地址ff02::9

实验：

r1:

ipv6 unicast-routing

ipv6 router rip a(名字本地有效，可以起多个进程）

inter e0/0

ipv6 rip a enable

int lo0

ipv6 rip a enable

r2:

ipv6 unicast-routing

ipv6 router rip a

int e0/0

ipv6 rip a enable

int lo0

ipv6 rip a enable

debug ipv6 rip

ipv6 router rip a

split-horizon(开启水平分割）

在ipv4开启水平分割

int e0/0

ip split-horizon

ipv6 ospf

version 3

协议号89

ff02::5/6

实验：

r1:

ipv6 unicast-routing

ipv6 router ospf 110

router-id 1.1.1.1

int e0/0

ipv6 ospf 110 area 0

int lo0

ipv6 ospf 110 area 0

r2:

ipv6 unicast-routing

ipv6 router ospf 110

router-id 2.2.2.2

int e0/0

ipv6 ospf 110 area 0

int lo0

ipv6 ospf 110 area 0

ipv6 isis

直接封装进2层头部，

l1

l2

r1:

ipv6 unicast-routing

router isis

net 49.0001.1111.1111.1111.00

log-adjacency-changes all(打开log信息）

int e0/0

ipv6 router isis

int lo0

ipv6 router isis

r2:

ipv6 unicast-routing

router isis

net 49.0001.2222.2222.2222.00

log-adjacency-changes all

int e0/0

ipv6 router isis

int lo0

ipv6 router isis

show clns neighbors

r1:

int lo100

ipv6 address 100::1/64

router isis(重发布）

address-family ipv6 地址族

redistribute connected

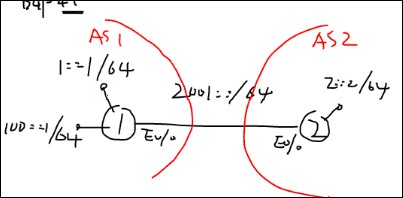

r1:

router bgp 1bgp router-id 1.1.1.1

no syn

no au

neighbor 2001::2 remote-as 2

address-framily ipv6

neighbor 2001::2 active

no bgp default ipv4-unicast(关闭bgp ipv4)

show bgp ipv6 summary

r2:

router bgp 2

bgp router-id 2.2.2.2

no syn

no au

neighbor 2001::1 remote-as 1

address-framily ipv6

neighbor 2001:1 activate

no bgp default ipv4-unicast(关闭bgp ipv4)

show bgp ipv6 summary

r1:

address-family ipv6

network 1::/64

show bgp ipv6

ipv4传递ipv6路由

1.双栈：在路由器上即配置ipv6地址再配置ipv4,上网线探测ipv6 dns。

例：

int e0

ip add 192.168.99.1 255.255.255.0

ipv6 address 1::1/127

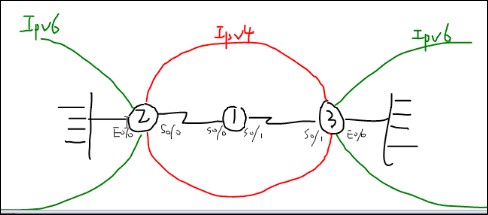

2.overlay tunnel

实验:

r1:

int s0/0

ip add 12.1.1.1 255.255.255.0

no sh

int s0/1

ip add 13.1.1.1 255.255.255.0

no sh

int lo0

ip add 1.1.1.1 255.255.255.0

no sh

r2:

int s0/0

ip add 12.1.1.2 255.255.255.0

no sh

int lo0

ip add 2.2.2.2 255.255.255.0

r3:

int s0/1

ip add 13.1.1.3 255.255.255.0

no sh

int lo0

ip add 3.3.3.3 255.255.255.0

no sh

int e0/0

ipv6 address 3::3/64

no sh

r2:

int e0/0

ipv6 address 2::2/64

r1:

router ospf 110

router-id 1.1.1.1

net 12.1.1.0 0.0.0.255 area 0

net 13.1.1.0 0.0.0.255 area 0

net 1.1.1.0 0.0.0.255 area 0

r2:

router ospf 110

router-id 2.2.2.2

net 12.1.1.0 0.0.0.255 area0

net 2.2.2.0 0.0.0.255 area 0

r3:

router ospf 110

router-id 3.3.3.3

network 13.1.1.0 0.0.0.255 area 0

net 3.3.3.0 0.0.0.255 area 0

r2:

interface tunnel 2

tunnel source 2.2.2.2

tunnel destination 3.3.3.3

tunnel mode ipv6ip（把ipv6转成ipv4)

r3:

interface tunnel 3

tunnel source 3.3.3.3

tunnel destination 2.2.2.2

tunnel mode ipv6ip

r2:

int tunnel 2

ipv6 enable

r3:

int tunnel 3

ipv6 enable

r2:

ipv 6 router rip a

inter tunnel 2

ipv6 rip a enable

int e0/0

ipv6 rip a enable

r3:

ipv6 router rip a

inter tunnel 3

ipv6 rip a enable

int e0/0

ipv6 rip a enable

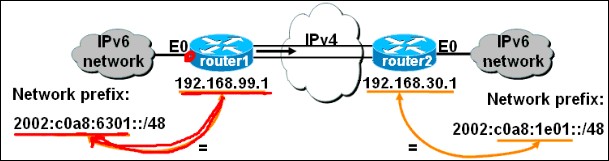

6to4 tunnel

router1#

interface loopback0

ip add 192.168.99.1 255.255.255.0

int e0

ipv6 add 2002:c0a8:6301:1::/64 eui-64

inter tunnel0

ipv6 unnumbered e0

tunnel source lo0

tunnel mode ipv6ip 6to4

ipv6 route 2002::/16 tunnel0

router2#interface lo0

ip add 192.168.30.1 255.255.255.0

int e0

ipv6 add 2002:c0a8:1e01:1::/64 eui-64

inter tunnel0

no ip address

ipv6 unnumbered ethernet0

tunnel source loopback0

tunnel mode ipv6ip 6to4

ipv6 route 2002::/16 tunnel0

1.自动tunnel不用指定tunnel destination

2.几乎没有ipv6路由表。

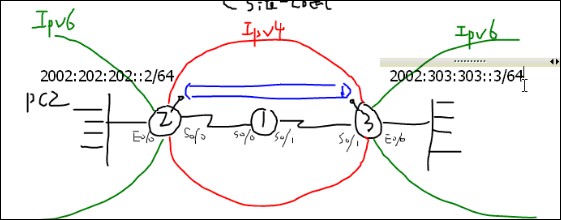

实验：

r2:

int e0/0

ipv6 address 2002:202:202::2/64

int tunnel 2

tunnel source 2.2.2.2

tunnel mode ipv6ip 6to4

ipv6 unnumbered e0(借用e0口地址）

ipv6 route 2002::/16 tunnel2

r3:

int e0/0

ipv6 address 2002:303:303::3/64

int tunnel 3

tunnel source 3.3.3.3

tunnel mode ipv6ip 6to4

ipv6 unnumbered e0/0

ip route 2002::/16 tunnel 3
