Python高级应用程序设计任务
一、主题式网络爬虫设计方案(15分)
1.主题式网络爬虫名称
刀塔2热门饰品交易分析
2.主题式网络爬虫爬取的内容与数据特征分析
2.主题式网络爬虫爬取的内容与数据特征分析
对热门饰品的成交价格和时间爬取
3.主题式网络爬虫设计方案概述(包括实现思路与技术难点)
3.主题式网络爬虫设计方案概述(包括实现思路与技术难点)
用request库从商品列表获取单个商品的url,然后从商品获取名字和价格,然后根据价格做出图表已达到数据可视化持久化。
二、主题页面的结构特征分析(15分)
1.主题页面的结构特征
1.主题页面的结构特征
通过填写{}中的内容获取页面
2.Htmls页面解析
2.Htmls页面解析

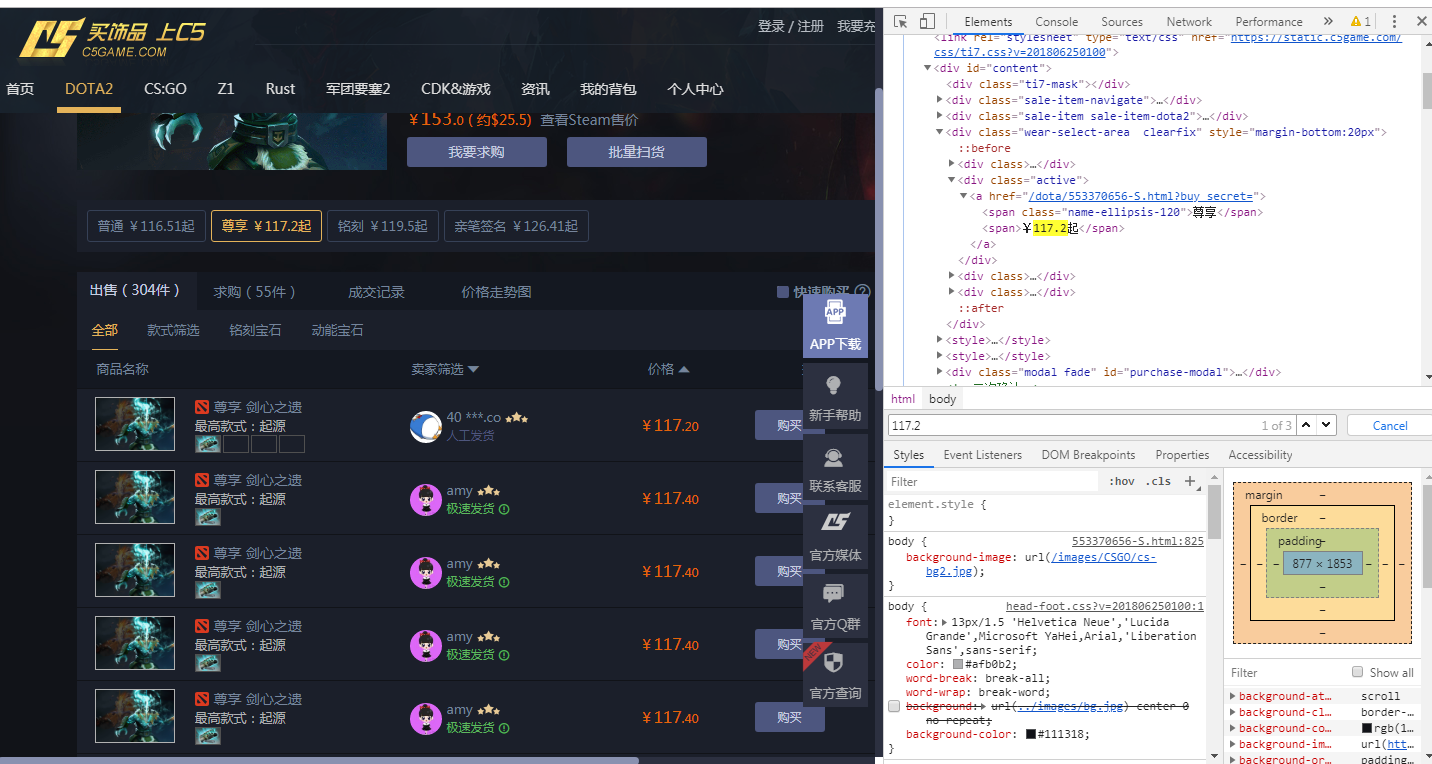

通过谷歌浏览器(F12)查看页面结构
3.节点(标签)查找方法与遍历方法
Ctrl+F定位信息,然后分析标签,为谷歌浏览器自带的功能
三、网络爬虫程序设计(60分)
爬虫程序主体要包括以下各部分,要附源代码及较详细注释,并在每部分程序后面提供输出结果的截图。
总代码
import requests, matplotlib, re import matplotlib.pyplot as plt from bs4 import BeautifulSoup #url定位 def ahtml(url): a = {'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/73.0.3683.75 Safari/537.36'} try: data = requests.get(url, headers=a) data.raise_for_status() data.encoding = data.apparent_encoding return data.text except: return " " #获取商品代码 def getcommodity(coms): for i in range(1, 3): html = ahtml('https://www.c5game.com/dota.html?quality=&hero=&type=&exterior=&tag=%E8%8F%A0%E8%8F%9C&page={}'.format(i)) soup = BeautifulSoup(html, "html.parser") for span in soup.find_all("p", attrs="name"): temp = span.a.attrs['href'] temp1 = temp.split('/')[2] temp2 = temp1.split('-')[0] coms.append(temp2) return coms #获取价格 def getprice(coms): count = [] html = ahtml('https://www.c5game.com/dota/history/{}.html'.format(coms)) soup = BeautifulSoup(html, "html.parser") span = soup.find_all("span", attrs="ft-gold") i = 0 while i < 8: temp = span[i].string count.append(eval(temp.split('¥')[1])) i += 1 return count #获取饰品名称 def getname(coms): name = [] html = ahtml('https://www.c5game.com/dota/history/{}.html'.format(coms)) soup = BeautifulSoup(html, "html.parser") span = soup.find_all("div", attrs="name-ellipsis") name.append(span[0].string) return name def ChartBroken(x, y, doc): plt.figure() plt.plot(x, y) plt.ylabel('Price') plt.xlabel('Number') plt.title(doc) plt.savefig(doc, dpi=600) plt.show() def ChartBar(x, y, doc): plt.figure() plt.bar(left=x, height=y, color='b', width=0.5) plt.ylabel('Price') plt.xlabel('Number') plt.title(doc) plt.savefig(doc, dpi=600) plt.show() #修正pandas绘图中文乱码问题 matplotlib.rcParams['font.sans-serif'] = ['SimHei'] matplotlib.rcParams['font.family']='sans-serif' matplotlib.rcParams['axes.unicode_minus'] = False #主函数 def main(): a = [] comslist = getcommodity(a)[0:3] i = 0 while i < 3: name = getname(comslist[i]) print(name) price = getprice(comslist[i]) print(price) ChartBroken([1, 2, 3, 4, 5, 6, 7, 8], price, name[0]) ChartBar([1, 2, 3, 4, 5, 6, 7, 8], price, name[0]) i += 1 if __name__ == '__main__': main()
1.爬取
#url定位 def ahtml(url): a = {'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/73.0.3683.75 Safari/537.36'} try: data = requests.get(url, headers=a) data.raise_for_status() data.encoding = data.apparent_encoding return data.text except: return " " #获取商品代码并将无用信息删除 def getcommodity(coms): for i in range(1, 3): html = ahtml('https://www.c5game.com/dota.html?quality=&hero=&type=&exterior=&tag=%E8%8F%A0%E8%8F%9C&page={}'.format(i)) soup = BeautifulSoup(html, "html.parser") for span in soup.find_all("p", attrs="name"): temp = span.a.attrs['href'] temp1 = temp.split('/')[2] temp2 = temp1.split('-')[0] coms.append(temp2) return coms #获取价格 def getprice(coms): count = [] html = ahtml('https://www.c5game.com/dota/history/{}.html'.format(coms)) soup = BeautifulSoup(html, "html.parser") span = soup.find_all("span", attrs="ft-gold") i = 0 while i < 8: temp = span[i].string count.append(eval(temp.split('¥')[1])) i += 1 return count #获取饰品名称 def getname(coms): name = [] html = ahtml('https://www.c5game.com/dota/history/{}.html'.format(coms)) soup = BeautifulSoup(html, "html.parser") span = soup.find_all("div", attrs="name-ellipsis") name.append(span[0].string) return name
2.对数据进行清洗和处理
#获取商品代码并将无用信息删除 def getcommodity(coms): for i in range(1, 3): html = ahtml('https://www.c5game.com/dota.html?quality=&hero=&type=&exterior=&tag=%E8%8F%A0%E8%8F%9C&page={}'.format(i)) soup = BeautifulSoup(html, "html.parser") for span in soup.find_all("p", attrs="name"): temp = span.a.attrs['href'] temp1 = temp.split('/')[2] temp2 = temp1.split('-')[0] coms.append(temp2) return coms
(例如:数据柱形图、直方图、散点图、盒图、分布图、数据回归分析等)
4.数据持久化
#数据保存 def ChartBroken(x, y, doc): plt.figure() plt.plot(x, y) plt.ylabel('Price') plt.xlabel('Times') plt.title(doc) plt.savefig(doc, dpi=600) plt.show() def ChartBar(x, y, doc): plt.figure() plt.bar(left=x, height=y, color='b', width=0.5) plt.ylabel('Price') plt.xlabel('Times') plt.title(doc) plt.savefig(doc, dpi=600) plt.show()
四、结论(10分)
1.经过对主题数据的分析与可视化,可以得到哪些结论?
1.经过对主题数据的分析与可视化,可以得到哪些结论?
对于DOTA2饰品的价格,可以看到一个明显的上升,对比游戏版本更新,可以得出结论。
在游戏版本初,英雄的改动将导致价格和需求的上升。
2.对本次程序设计任务完成的情况做一个简单的小结。
2.对本次程序设计任务完成的情况做一个简单的小结。
看视频一步一步学,但是还是有点困难,要一直百度错误信息
