【OpenCV】找圆方法（阈值分割：大律算法otsu）

【OpenCV】找圆方法（阈值分割：大律算法otsu）

2018-04-13 Taily老段 OpenCV学习交流

原文地址：https://blog.csdn.net/taily_duan/article/details/51217777

作者：Taily老段



opencv查找轮廓---cvFindContours && cvDrawCountours 用法及例子







1、找到轮廓；

2、每个连通域的均值中心；

3、求连通域半径（平均）；

4、相似度——最小半径/最大半径；

5、根据相似度阈值、半径阈值来判断是否是圆

[cpp] view plain copy

1. #include <iostream>

2. #include <opencv2/imgproc/imgproc.hpp>

3. #include <opencv2/core/core.hpp>

4. #include <opencv2/highgui/highgui.hpp>

5. using namespace cv;

6. using namespace std;

7.

8.

9. int main()

10. {

11.     Mat q_MatImage;

12. Mat q_MatImageGray;

13. Mat q_MatImageShow;

14. Mat q_MatImageShow2;

15. q_MatImage=imread("1.png");//读入一张图片

16. q_MatImage.copyTo(q_MatImageShow);

17. q_MatImage.copyTo(q_MatImageShow2);

18. cvtColor(q_MatImage,q_MatImageGray,CV_RGB2GRAY);

19.     double q_dEpsilon = 10E-9;

20.     unsigned int q_iReturn=0;

21.

22.     int q_iX,q_iY,q_iWidth,q_iHeight;

23.     q_iX=20;

24.     q_iY=40;

25.     q_iWidth=600;

26.     q_iHeight=420;

27.

28.     double q_dThresholdSimilarity=60;

29.     double q_dThresholdMin=35;

30.     double q_dThresholdMax=75;

31.

32.     //      Rect q_RectROI = Rect(q_iX,q_iY,q_iWidth,q_iHeight);

33.     //      Mat q_MatROI = q_MatImageGray(q_RectROI);

34.     //

35.     //      threshold(q_MatROI, q_MatROI, 150, 255, CV_THRESH_BINARY);

36.     threshold(q_MatImageGray, q_MatImageGray, 150, 255, CV_THRESH_BINARY);

37.

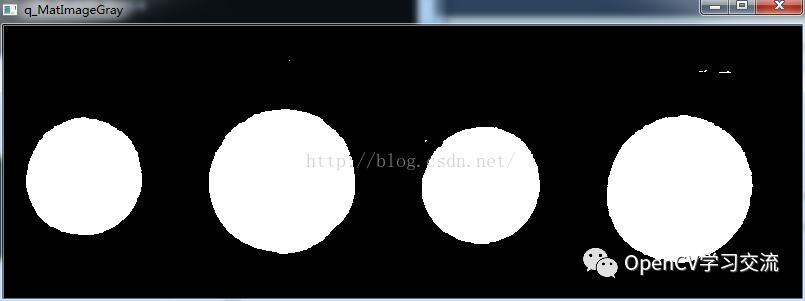

38.     namedWindow("Test1");       //创建一个名为Test窗口

39.     imshow("Test1",q_MatImageGray);         //窗口中显示图像

40.

41.     vector<vector<Point>> q_vPointContours;

42.

43.     //findContours(q_MatROI, q_vPointContours, CV_RETR_EXTERNAL, CV_CHAIN_APPROX_NONE,Point(q_iX,q_iY));

44.     findContours(q_MatImageGray, q_vPointContours, CV_RETR_EXTERNAL, CV_CHAIN_APPROX_NONE,Point(0,0));

45.

46.     size_t q_iAmountContours = q_vPointContours.size();

47.

48.     for (size_t i = 0;i < q_iAmountContours; i++)

49.     {

50.         size_t q_perNum = q_vPointContours[i].size();

51.         for (size_t j = 0;j < q_iAmountContours; j++)

52.         {

53.             circle( q_MatImageGray, q_vPointContours[i][j] ,3 , CV_RGB(0,255,0),1, 8, 3 );

54.         }

55.     }

56.

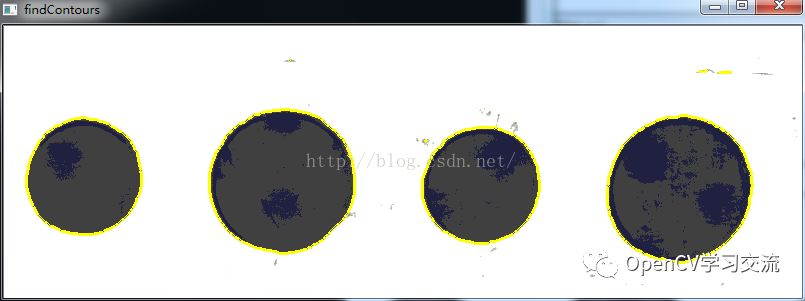

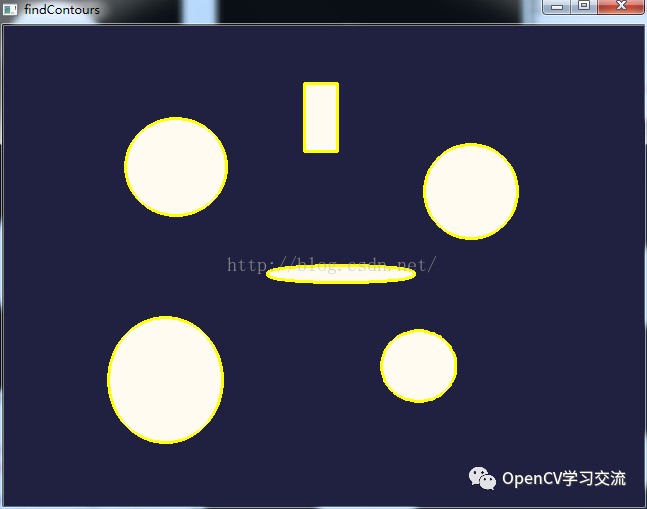

57.     namedWindow("findContours");

58.     imshow("findContours",q_MatImageGray);

59.

60.     std::vector<cv::Point2f> q_vPointCentersContours(q_iAmountContours);

61.     std::vector<double> q_vdRadiusesContours(q_iAmountContours);

62.     std::vector<double> q_vdSimilarityContours(q_iAmountContours);

63.     std::vector<bool> q_vbFlagCircles(q_iAmountContours);

64.

65.     std::vector<double> q_vdRadiusesContour;

66.     double q_dRadiusMax,q_dRadiusMin;

67.     double q_dSumX,q_dSumY;

68.     size_t q_iAmountPoints;

69.

70.     for(size_t q_iCycleContours=0;q_iCycleContours<q_iAmountContours;q_iCycleContours++)

71.     {

72.         q_dSumX=0.0;

73.         q_dSumY=0.0;

74.         q_iAmountPoints=q_vPointContours[q_iCycleContours].size();

75.         if(0>=q_iAmountPoints)

76.         {

77.             continue;

78.         }

79.         for(size_t q_iCyclePoints=0;q_iCyclePoints<q_iAmountPoints;q_iCyclePoints++)

80.         {

81.             q_dSumX+=q_vPointContours[q_iCycleContours].at(q_iCyclePoints).x;

82.             q_dSumY+=q_vPointContours[q_iCycleContours].at(q_iCyclePoints).y;

83.         }

84.

85.         q_vPointCentersContours[q_iCycleContours].x=(float)(q_dSumX/q_iAmountPoints);//均值中心点X</span>

86.         q_vPointCentersContours[q_iCycleContours].y=(float)(q_dSumY/q_iAmountPoints);//均值中心点Y</span>

87.

88.

89.         q_vdRadiusesContour.resize(q_iAmountPoints);

90.         double q_dDifferenceX,q_dDifferenceY;

91.         double q_dSumRadius=0.0;

92.         q_dRadiusMax=0.0;

93.         q_dRadiusMin=DBL_MAX;;

94.         for(size_t q_iCyclePoints=0;q_iCyclePoints<q_iAmountPoints;q_iCyclePoints++)

95.         {

96.             q_dDifferenceX=q_vPointCentersContours[q_iCycleContours].x-q_vPointContours[q_iCycleContours].at(q_iCyclePoints).x;

97.             q_dDifferenceY=q_vPointCentersContours[q_iCycleContours].y-q_vPointContours[q_iCycleContours].at(q_iCyclePoints).y;

98.             q_vdRadiusesContour[q_iCyclePoints]=sqrt(q_dDifferenceX*q_dDifferenceX+q_dDifferenceY*q_dDifferenceY);

99.

100.             if(q_vdRadiusesContour[q_iCyclePoints]>q_dRadiusMax)

101.             {

102.                 q_dRadiusMax=q_vdRadiusesContour[q_iCyclePoints];

103.             }

104.             if(q_vdRadiusesContour[q_iCyclePoints]<q_dRadiusMin)

105.             {

106.                 q_dRadiusMin=q_vdRadiusesContour[q_iCyclePoints];

107.             }

108.

109.             q_dSumRadius+=q_vdRadiusesContour[q_iCyclePoints];

110.         }

111.         q_vdRadiusesContours[q_iCycleContours]=q_dSumRadius/q_iAmountPoints;   //均值半径

112.

113.         q_vdSimilarityContours[q_iCycleContours]=100.0*q_dRadiusMin/q_dRadiusMax;  //相似度

114.         if((q_dThresholdSimilarity<q_vdSimilarityContours[q_iCycleContours])&&

115.             (q_dThresholdMin<q_vdRadiusesContours[q_iCycleContours])&&

116.             (q_dThresholdMax>q_vdRadiusesContours[q_iCycleContours]))    //判断是否是圆

117.         {

118.             q_vbFlagCircles[q_iCycleContours]=true;

119.         }

120.         else

121.         {

122.             q_vbFlagCircles[q_iCycleContours]=false;

123.         }

124.     }

125.

126.

127.     if(q_dEpsilon < 10)

128.     {

129.         cv::Point q_PointCenterCurrent;

130.         for(size_t q_iCycleContours=0;q_iCycleContours<q_iAmountContours;q_iCycleContours++)

131.         {

132.             if(q_vbFlagCircles[q_iCycleContours])

133.             {

134.                 q_PointCenterCurrent.x=(int)(q_vPointCentersContours[q_iCycleContours].x);

135.                 q_PointCenterCurrent.y=(int)(q_vPointCentersContours[q_iCycleContours].y);

136.                 circle(q_MatImageShow,q_PointCenterCurrent,3,Scalar(0.0,0.0,255.0),0);

137.             }

138.         }

139.     }

140.

141.     int q_iIndexResultBegin=4;

142.     int q_iAmountCircleResult=4;

143.     int q_iIndexCiecleCurrent;

144.

145.     int q_iCountCircles=0;

146.

147.     for(size_t q_iCycleContours=0;q_iCycleContours<q_iAmountContours;q_iCycleContours++)

148.     {

149.         if(q_vbFlagCircles[q_iCycleContours])

150.         {

151.             q_iIndexCiecleCurrent=q_iIndexResultBegin+q_iAmountCircleResult*q_iCountCircles;

152.             //          match_result[q_iIndexCiecleCurrent]=(float)(q_vdSimilarityContours[q_iCycleContours]);

153.             //          match_result[q_iIndexCiecleCurrent+1]=(float)(q_vdRadiusesContours[q_iCycleContours]);

154.             //          match_result[q_iIndexCiecleCurrent+2]=(float)(q_vPointCentersContours[q_iCycleContours].x);

155.             //          match_result[q_iIndexCiecleCurrent+3]=(float)(q_vPointCentersContours[q_iCycleContours].y);

156.             q_iCountCircles++;

157.         }

158.     }

159.     cout << "总共找到 " <<  q_iCountCircles << "个圆！" << endl;

160.

161.

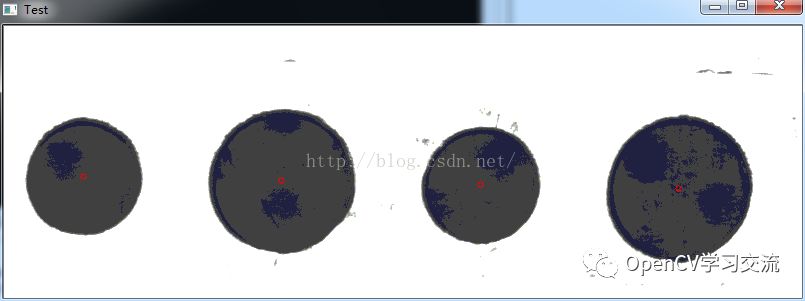

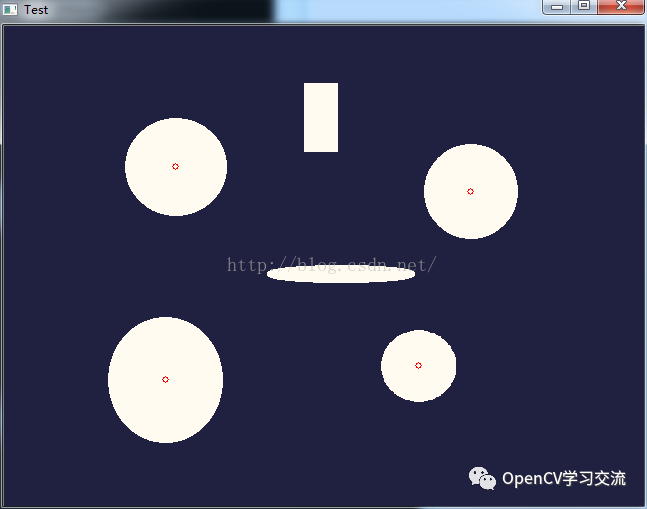

162.     namedWindow("Test");        //创建一个名为Test窗口

163.     imshow("Test",q_MatImageShow);//窗口中显示图像

164.     waitKey();              //等待5000ms后窗口自动关闭

165. }







大律算法otsu：



[cpp] view plain copy

1. int thresh = Otsu(q_MatImageGray);

2. threshold(q_MatImageGray, q_MatImageGray, thresh, 255, CV_THRESH_BINARY);

3.

4. for(int i=0; i < q_MatImageGray.rows; i++)

5. {

6.     for(int j = 0; j < q_MatImageGray.cols; j++)

7.     {

8.         q_MatImageGray.at<uchar>(i,j) = 255 -q_MatImageGray.at<uchar>(i,j);

9.     }

10. }



[cpp] view plain copy

1. int Otsu(Mat src)

2. {

3.     int height=src.rows;

4.     int width =src.cols;

5.

6.

7.     //histogram

8.     float histogram[256] = {0};

9.     for(int i=0; i < height; i++)

10.     {

11.         unsigned char* p=(unsigned char*)src.ptr<uchar>(i);

12.         for(int j = 0; j < width; j++)

13.         {

14.             histogram[*p++]++;

15.         }

16.     }

17.     //normalize histogram

18.     int size = height * width;

19.     for(int i = 0; i < 256; i++)

20.     {

21.         histogram[i] = histogram[i] / size;

22.     }

23.

24.

25.     //average pixel value

26.     float avgValue=0;

27.     for(int i=0; i < 256; i++)

28.     {

29.         avgValue += i * histogram[i];  //整幅图像的平均灰度

30.     }

31.

32.

33.     int threshold;

34.     float maxVariance=0;

35.     float w = 0, u = 0;

36.     for(int i = 0; i < 256; i++)

37.     {

38.         w += histogram[i];  //假设当前灰度i为阈值, 0~i 灰度的像素(假设像素值在此范围的像素叫做前景像素) 所占整幅图像的比例

39.         u += i * histogram[i];  // 灰度i 之前的像素(0~i)的平均灰度值： 前景像素的平均灰度值

40.

41.

42.         float t = avgValue * w - u;

43.         float variance = t * t / (w * (1 - w) );

44.         if(variance > maxVariance)

45.         {

46.             maxVariance = variance;

47.             threshold = i;

48.         }

49.     }

50.

51.

52.     return threshold;

53. }





[cpp] view plain copy

1. int Otsu2(Mat src)

2. {

3.     int height=src.rows;

4.     int width =src.cols;

5.

6.     int x=0,y=0;

7.     int pixelCount[256];

8.     float pixelPro[256];

9.     int i, j, pixelSum = width * height, threshold = 0;

10.

11.     //初始化

12.     for(i = 0; i < 256; i++)

13.     {

14.         pixelCount[i] = 0;

15.         pixelPro[i] = 0;

16.     }

17.

18.     //统计灰度级中每个像素在整幅图像中的个数

19.     for(i = y; i < height; i++)

20.     {

21.         for(j = x;j <width;j++)

22.         {

23.             pixelCount[src.at<uchar>(i,j)]++;

24.         }

25.     }

26.

27.

28.     //计算每个像素在整幅图像中的比例

29.     for(i = 0; i < 256; i++)

30.     {

31.         pixelPro[i] = (float)(pixelCount[i]) / (float)(pixelSum);

32.     }

33.

34.     //经典ostu算法,得到前景和背景的分割

35.     //遍历灰度级[0,255],计算出方差最大的灰度值,为最佳阈值

36.     float w0, w1, u0tmp, u1tmp, u0, u1, u,deltaTmp, deltaMax = 0;

37.     for(i = 0; i < 256; i++)

38.     {

39.         w0 = w1 = u0tmp = u1tmp = u0 = u1 = u = deltaTmp = 0;

40.

41.         for(j = 0; j < 256; j++)

42.         {

43.             if(j <= i) //背景部分

44.             {

45.                 //以i为阈值分类，第一类总的概率

46.                 w0 += pixelPro[j];

47.                 u0tmp += j * pixelPro[j];

48.             }

49.             else       //前景部分

50.             {

51.                 //以i为阈值分类，第二类总的概率

52.                 w1 += pixelPro[j];

53.                 u1tmp += j * pixelPro[j];

54.             }

55.         }

56.

57.         u0 = u0tmp / w0;        //第一类的平均灰度

58.         u1 = u1tmp / w1;        //第二类的平均灰度

59.         u = u0tmp + u1tmp;      //整幅图像的平均灰度

60.         //计算类间方差

61.         deltaTmp = w0 * (u0 - u)*(u0 - u) + w1 * (u1 - u)*(u1 - u);

62.         //找出最大类间方差以及对应的阈值

63.         if(deltaTmp > deltaMax)

64.         {

65.             deltaMax = deltaTmp;

66.             threshold = i;

67.         }

68.     }

69.     //返回最佳阈值;

70.     return threshold;

71. }







#include <iostream>
#include <opencv2/imgproc/imgproc.hpp>
#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
using namespace cv;
using namespace std;


int main()
{
    Mat q_MatImage;
    Mat q_MatImageGray;
    Mat q_MatImageShow;
    //Mat q_MatImageShow2;
    //读入一张图片
    q_MatImage=imread("1.png");
    q_MatImage.copyTo(q_MatImageShow);
    //q_MatImage.copyTo(q_MatImageShow2);
    cvtColor(q_MatImage,q_MatImageGray,CV_RGB2GRAY);
    double q_dEpsilon = 10E-9;
    unsigned int q_iReturn=0;

    int q_iX,q_iY,q_iWidth,q_iHeight;
    q_iX=20;
    q_iY=40;
    q_iWidth=600;
    q_iHeight=420;

    double q_dThresholdSimilarity=60;
    double q_dThresholdMin=35;
    double q_dThresholdMax=75;

    namedWindow("Test1");       //创建一个名为Test窗口
    imshow("Test1",q_MatImageGray);         //窗口中显示图像
    waitKey();

    //      Rect q_RectROI = Rect(q_iX,q_iY,q_iWidth,q_iHeight);
    //      Mat q_MatROI = q_MatImageGray(q_RectROI);
    //
    //      threshold(q_MatROI, q_MatROI, 150, 255, CV_THRESH_BINARY);
    threshold(q_MatImageGray, q_MatImageGray, 150, 255, CV_THRESH_BINARY);
    imshow("Test1",q_MatImageGray);         //窗口中显示图像
    waitKey();
    vector<vector<Point>> q_vPointContours;

    //findContours(q_MatROI, q_vPointContours, CV_RETR_EXTERNAL, CV_CHAIN_APPROX_NONE,Point(q_iX,q_iY));
    findContours(q_MatImageGray, q_vPointContours, CV_RETR_EXTERNAL, CV_CHAIN_APPROX_NONE,Point(0,0));

    size_t q_iAmountContours = q_vPointContours.size();

    for (size_t i = 0;i < q_iAmountContours; i++)
    {
        size_t q_perNum = q_vPointContours[i].size();
        for (size_t j = 0;j < q_iAmountContours; j++)
        {
            circle( q_MatImageGray, q_vPointContours[i][j] ,3 , CV_RGB(0,255,0),1, 8, 3 );
        }
    }

    namedWindow("findContours");
    imshow("findContours",q_MatImageGray);
    waitKey();

    std::vector<cv::Point2f> q_vPointCentersContours(q_iAmountContours);
    std::vector<double> q_vdRadiusesContours(q_iAmountContours);
    std::vector<double> q_vdSimilarityContours(q_iAmountContours);
    std::vector<bool> q_vbFlagCircles(q_iAmountContours);

    std::vector<double> q_vdRadiusesContour;
    double q_dRadiusMax,q_dRadiusMin;
    double q_dSumX,q_dSumY;
    size_t q_iAmountPoints;

    for(size_t q_iCycleContours=0;q_iCycleContours<q_iAmountContours;q_iCycleContours++)
    {
        q_dSumX=0.0;
        q_dSumY=0.0;
        q_iAmountPoints=q_vPointContours[q_iCycleContours].size();
        if(0>=q_iAmountPoints)
        {
            continue;
        }
        for(size_t q_iCyclePoints=0;q_iCyclePoints<q_iAmountPoints;q_iCyclePoints++)
        {
            q_dSumX+=q_vPointContours[q_iCycleContours].at(q_iCyclePoints).x;
            q_dSumY+=q_vPointContours[q_iCycleContours].at(q_iCyclePoints).y;
        }

        q_vPointCentersContours[q_iCycleContours].x=(float)(q_dSumX/q_iAmountPoints);//均值中心点X</span>
        q_vPointCentersContours[q_iCycleContours].y=(float)(q_dSumY/q_iAmountPoints);//均值中心点Y</span>


        q_vdRadiusesContour.resize(q_iAmountPoints);
        double q_dDifferenceX,q_dDifferenceY;
        double q_dSumRadius=0.0;
        q_dRadiusMax=0.0;
        q_dRadiusMin=DBL_MAX;;
        for(size_t q_iCyclePoints=0;q_iCyclePoints<q_iAmountPoints;q_iCyclePoints++)
        {
            q_dDifferenceX=q_vPointCentersContours[q_iCycleContours].x-q_vPointContours[q_iCycleContours].at(q_iCyclePoints).x;
            q_dDifferenceY=q_vPointCentersContours[q_iCycleContours].y-q_vPointContours[q_iCycleContours].at(q_iCyclePoints).y;
            q_vdRadiusesContour[q_iCyclePoints]=sqrt(q_dDifferenceX*q_dDifferenceX+q_dDifferenceY*q_dDifferenceY);

            if(q_vdRadiusesContour[q_iCyclePoints]>q_dRadiusMax)
            {
                q_dRadiusMax=q_vdRadiusesContour[q_iCyclePoints];
            }
            if(q_vdRadiusesContour[q_iCyclePoints]<q_dRadiusMin)
            {
                q_dRadiusMin=q_vdRadiusesContour[q_iCyclePoints];
            }

            q_dSumRadius+=q_vdRadiusesContour[q_iCyclePoints];
        }
        q_vdRadiusesContours[q_iCycleContours]=q_dSumRadius/q_iAmountPoints;   //均值半径

        q_vdSimilarityContours[q_iCycleContours]=100.0*q_dRadiusMin/q_dRadiusMax;  //相似度
        if((q_dThresholdSimilarity<q_vdSimilarityContours[q_iCycleContours])&&
            (q_dThresholdMin<q_vdRadiusesContours[q_iCycleContours])&&
            (q_dThresholdMax>q_vdRadiusesContours[q_iCycleContours]))    //判断是否是圆
        {
            q_vbFlagCircles[q_iCycleContours]=true;
        }
        else
        {
            q_vbFlagCircles[q_iCycleContours]=false;
        }
    }

    namedWindow("Test");        //创建一个名为Test窗口
    int q_iCountCircles=0;
    if(q_dEpsilon < 10)
    {
        cv::Point q_PointCenterCurrent;
        for(size_t q_iCycleContours=0;q_iCycleContours<q_iAmountContours;q_iCycleContours++)
        {
            if(q_vbFlagCircles[q_iCycleContours])
            {
                q_PointCenterCurrent.x=(int)(q_vPointCentersContours[q_iCycleContours].x);
                q_PointCenterCurrent.y=(int)(q_vPointCentersContours[q_iCycleContours].y);
                waitKey();
                circle(q_MatImageShow,q_PointCenterCurrent,3,Scalar(0.0,0.0,255.0),0);
                imshow("Test",q_MatImageShow);//窗口中显示图像
                q_iCountCircles++;
                cout << "共找到第 " <<  q_iCountCircles << "个圆！" << endl;
            }
        }
    }

    cout << "总共找到 " <<  q_iCountCircles << "个圆！" << endl;
    waitKey();              //等待5000ms后窗口自动关闭
    /*
    int q_iIndexResultBegin=4;
    int q_iAmountCircleResult=4;
    int q_iIndexCiecleCurrent;

    for(size_t q_iCycleContours=0;q_iCycleContours<q_iAmountContours;q_iCycleContours++)
    {
        if(q_vbFlagCircles[q_iCycleContours])
        {
            q_iIndexCiecleCurrent=q_iIndexResultBegin+q_iAmountCircleResult*q_iCountCircles;
            //          match_result[q_iIndexCiecleCurrent]=(float)(q_vdSimilarityContours[q_iCycleContours]);
            //          match_result[q_iIndexCiecleCurrent+1]=(float)(q_vdRadiusesContours[q_iCycleContours]);
            //          match_result[q_iIndexCiecleCurrent+2]=(float)(q_vPointCentersContours[q_iCycleContours].x);
            //          match_result[q_iIndexCiecleCurrent+3]=(float)(q_vPointCentersContours[q_iCycleContours].y);
            //q_iCountCircles++;
        }
    }
    */

}
