gpu风扇速度设置
sudo apt install -y xorg sudo nvidia-xconfig --enable-all-gpus --allow-empty-initial-configuration --cool-bits=7
vi ~/gpufansetting 编辑脚本gpufansetting,内容如下：
sudo chmod +x gpufansetting 为脚本添加执行权限
#!/bin/bash #a delay can be specified on the command line if not used from termonal session DEFAULT_DELAY=0 if [ "x$1" = "x" -o "x$1" = "xnone" ]; then DELAY=$DEFAULT_DELAY else DELAY=$1 fi sleep $DELAY #write log file for debugging exec 2> /tmp/gpufansetting.log exec 1>&2 set -x #make sure an Xorg server is running which you can connect to # ":1" can be any unused display number. # there may be better ways using an already running server, but this works. #more on targets: https://www.systutorials.com/239880/change-systemd-boot-target-linux/ #not tested: isolate could be the better way than using set-default! systemctl set-default graphical.target X :1 & sleep 10 export DISPLAY=:1 #set GPU 0..5 fan to 100%. (This assumes six GPUs) nvidia-settings -a [gpu:0]/GPUFanControlState=1 -a [fan-0]/GPUTargetFanSpeed=100 nvidia-settings -a [gpu:1]/GPUFanControlState=1 -a [fan-1]/GPUTargetFanSpeed=100 nvidia-settings -a [gpu:2]/GPUFanControlState=1 -a [fan-2]/GPUTargetFanSpeed=100 nvidia-settings -a [gpu:3]/GPUFanControlState=1 -a [fan-3]/GPUTargetFanSpeed=100 nvidia-settings -a [gpu:4]/GPUFanControlState=1 -a [fan-4]/GPUTargetFanSpeed=100 nvidia-settings -a [gpu:5]/GPUFanControlState=1 -a [fan-5]/GPUTargetFanSpeed=100 #set back to command line prompt after boot (optional) sudo systemctl set-default multi-user.target #terminating Xorg will reset fan speeds to default so do not terminate Xorg! #sudo killall Xorg
参考：http://ideanist.com/2017/07/29/control-nvidia-fan-speed-linux-ubuntu-16/
cpu风扇设置 （impitools）
https://github.com/ipmitool/ipmitool/tree/master/lib
#!/usr/local/bin/perl # This script is based on the hybrid fan controller script created by @Stux, and posted at: # https://forums.freenas.org/index.php?threads/script-hybrid-cpu-hd-fan-zone-controller.46159/ # The significant changes from @Stux's script are: # 1. Replace HD fan control of several discrete duty cycles as a function of hottest HD temperature with a PID controller # which controls duty cycle in 1% steps as a function of average HD temperature. As a protection, if any HD temperature # exceeds a specified value, the HD fans are commanded to 100% duty cycle. This covers cases where one HD may be running # hot, even if the average HD temperature is acceptable, or the PID loop control has gone awry. # 2. Add optional setting to command CPU fans to 100% duty cycle if needed to assist with HD cooling, to cover scenarios # where the CPU fan zone also controls chassis exit fans. # 3. Add optional log of HD fan temperatures, PID loop values and commanded fan duty cycles. The log may optionally contain # a record of each HD temperature, or only the coolest and warmest HD temperatures. # This script can be downloaded from : # https://forums.freenas.org/index.php?threads/pid-fan-controller-perl-script.50908/ ############################################################################################### # This script is designed to control both the CPU and HD fans in a Supermicro X10 based system according to both # the CPU and HD temperatures in order to minimize noise while providing sufficient cooling to deal with scrubs # and CPU torture tests. It may work in X9 based system, but this has not been tested. # It relies on you having two fan zones. # To use this correctly, you should connect all your PWM HD fans, by splitters if necessary to the FANA header. # CPU, case and exhaust fans should then be connected to the numbered (ie CPU based) headers. This script will then control the # HD fans in response to the HD temp, and the other fans in response to CPU temperature. When CPU temperature is high the HD fans. # will be used to provide additional cooling, if you specify cpu/hd shared cooling. # If the fans should be high, and they are stuck low, or vice-versa, the BMC will be rebooted, thus it is critical to set the # cpu/hd_max_fan_speed variables correctly. # NOTE: It is highly likely the "get_hd_temp" function will not work as-is with your HDs. Until a better solution is provided # you will need to modify this function to properly acquire the temperature. Setting debug=2 will help. # Tested with a SuperMicro X10SRH-cF, Xeon E5-1650v4, Noctua 120, 90 and 80mm fans in a Norco RPC-4224 4U chassis, with 16 x 4 TB WD Red drives. # More information on CPU/Peripheral Zone can be found in this post: # https://forums.freenas.org/index.php?threads/thermal-and-accoustical-design-validation.28364/ # stux ############################################################################################### # VERSION HISTORY ##################### # 2016-09-19 Initial Version # 2016-09-19 Added cpu_hd_override_temp, to prevent HD fans cycling when CPU fans are sufficient for cooling CPU # 2016-09-26 hd_list is now refreshed before checking HD temps so that we start/stop monitoring devices that # have been hot inserted/removed. # "Drives are warm, going to 75%" log message was missing an unless clause causing it to print # every time # 2016-10-07 Replaced get_cpu_temp() function with get_cpu_temp_sysctl() which queries the kernel, instead of # IPMI. This is faster, more accurate and more compatible, hopefully allowing this to work on X9 # systems. The original function is still present and is now called get_cpu_temp_ipmi(). # Because this is a much faster method of reading the temps, and because its actually the max core # temp, I found that the previous cpu_hd_override_temp of 60 was too sensitive and caused the override # too often. I've bumped it up to 62, which on my system seems good. This means that if a core gets to # 62C the HD fans will kick in, and this will generally bring temps back down to around 60C... depending # on the actual load. Your results will vary, and for best results you should tune controller with # mprime testing at various thread levels. Updated the cpu threasholds to 35/45/55 because of the improved # responsiveness of the get_cpu_temp function # # The following changes are by Kevin Horton # 2017-01-14 Reworked get_hd_list() to exclude SSDs # Added function to calculate maximum and average HD temperatures. # Replaced original HD fan control scheme with a PID controller, controlling the average HD temp.. # Added safety override if any HD reaches a specified max temperature. If so, the PID loop is overridden, # and HD fans are set to 100% # Retain float value of fan duty cycle between loop cycles, so that small duty cycle corrections # accumulate and eventually push the duty cycle to the next integer value. # 2017-01-18 Added log file # 2017-01-21 Refactored code to bump up CPU fan to help cool HD. Drop the variabe CPU duty cycle, and just set to High, # Added log file option without temps for every HD. # 2017-01-29 Add header to log file every X hours # TO DO # Add option for no CPU fan control. ############################################################################################### ## CONFIGURATION ################ ## DEBUG LEVEL ## 0 means no debugging. 1,2,3,4 provide more verbosity ## You should run this script in at least level 1 to verify its working correctly on your system $debug = 1; ## LOG $log = 'IPMIFanControl.log'; #Ubuntu mod - I personally added my home directory to make it easy to spot check temps, so /home/<username>/IPMIFanControl.log instead $log_temp_summary_only = 0; # 1 if not logging individual HD temperatures. 0 if logging temp of each HD $log_header_hourly_interval = 2; # number of hours between log headers. Valid options are 1, 2, 3, 4, 6 & 12. # log headers will always appear at the start of a log, at midnight and any # time the list of HDs changes (if individual HD temperatures are logged) ## CPU THRESHOLD TEMPS ## A modern CPU can heat up from 35C to 60C in a second or two. The fan duty cycle is set based on this $high_cpu_temp = 65; # will go HIGH when we hit $med_cpu_temp = 55; # will go MEDIUM when we hit, or drop below again $low_cpu_temp = 45; # will go LOW when we fall below 35 again ## HD THRESHOLD TEMPS ## HD change temperature slowly. ## This is the temperature that we regard as being uncomfortable. The higher this is the ## more silent your system. ## Note, it is possible for your HDs to go above this... but if your cooling is good, they shouldn't. $hd_ave_target = 45; # PID control loop will target this average temperature $hd_max_allowed_temp = 50; # celsius. PID control aborts and fans set to 100% duty cycle when a HD hits this temp. # This ensures that no matter how poorly chosen the PID gains are, or how much of a spread # there is between the average HD temperature and the maximum HD temperature, the HD fans # will be set to 100% if any drive reaches this temperature. ## CPU TEMP TO OVERRIDE HD FANS ## when the CPU climbs above this temperature, the HD fans will be overridden ## this prevents the HD fans from spinning up when the CPU fans are capable of providing ## sufficient cooling. $cpu_hd_override_temp = 70; ## CPU/HD SHARED COOLING ## If your HD fans contribute to the cooling of your CPU you should set this value. ## It will mean when you CPU heats up your HD fans will be turned up to help cool the ## case/cpu. This would only not apply if your HDs and fans are in a separate thermal compartment. $hd_fans_cool_cpu = 1; # 1 if the hd fans should spin up to cool the cpu, 0 otherwise ## HD FAN DUTY CYCLE TO OVERRIDE CPU FANS $cpu_fans_cool_hd = 1; # 1 if the CPU fans should spin up to cool the HDs, when needed. 0 otherwise. This may be useful if # the CPU fan zone also contains chassis exit fans, as an increase in chassis exit fan speed may # increase the HD cooling air flow. $hd_cpu_override_duty_cycle = 95; # when the HD duty cycle equals or exceeds this value, the CPU fans may be overridden to help cool HDs ## CPU TEMP CONTROL $cpu_temp_control = 1; # 1 if the script will control a CPU fan to control CPU temperatures. 0 if the script only controls HD fans. ## PID CONTROL GAINS ## If you were using the spinpid.sh PID control script published by @Glorious1 at the link below, you will need to adjust the value of $Kp ## that you were using, as that script defined Kp in terms of the gain per one cycle around the loop, but this script defines it in terms ## of the gain per minute. Divide the Kp value from the spinpid.sh script by the time in minutes for checking hard drive temperatures. ## For example, if you used a gain of Kp = 8, and a T = 3 (3 minute interval), the new value is $Kp = 8/3. ## Kd values from the spinpid.sh script can be used directly here. ## https://forums.freenas.org/index.php?threads/script-to-control-fan-speed-in-response-to-hard-drive-temperatures.41294/page-4#post-285668 $Kp = 16/3; # 5.333 $Ki = 0; $Kd = 120; ####################### ## FAN CONFIGURATION #################### ## FAN SPEEDS ## You need to determine the actual max fan speeds that are achieved by the fans ## Connected to the cpu_fan_header and the hd_fan_header. ## These values are used to verify high/low fan speeds and trigger a BMC reset if necessary. $cpu_max_fan_speed = 1500; $hd_max_fan_speed = 1500; ## CPU FAN DUTY LEVELS ## These levels are used to control the CPU fans $fan_duty_high = 100; # percentage on, ie 100% is full speed. $fan_duty_med = 60; $fan_duty_low = 30; ## HD FAN DUTY LEVELS ## These levels are used to control the HD fans $hd_fan_duty_high = 100; # percentage on, ie 100% is full speed. $hd_fan_duty_med_high = 80; $hd_fan_duty_med_low = 50; $hd_fan_duty_low = 30; # some 120mm fans stall below 30. $hd_fan_duty_start = 65; # HD fan duty cycle when script starts. ## FAN ZONES # Your CPU/case fans should probably be connected to the main fan sockets, which are in fan zone zero # Your HD fans should be connected to FANA which is in Zone 1 # You could switch the CPU/HD fans around, as long as you change the zones and fan header configurations. # # 0 = FAN1..5 # 1 = FANA $cpu_fan_zone = 0; $hd_fan_zone = 1; ## FAN HEADERS ## these are the fan headers which are used to verify the fan zone is high. FAN1+ are all in Zone 0, FANA is Zone 1. ## cpu_fan_header should be in the cpu_fan_zone ## hd_fan_header should be in the hd_fan_zone $cpu_fan_header = "FAN1"; # used for printing to standard output for debugging $hd_fan_header = "FANA"; # used for printing to standard output for debugging @hd_fan_list = ("FANA", "FANB", "FANC"); # used for logging to file ################ ## MISC ####### ## IPMITOOL PATH ## The script needs to know where ipmitool is $ipmitool = "/usr/bin/ipmitool"; ## HD POLLING INTERVAL ## The controller will only poll the harddrives periodically. Since hard drives change temperature slowly ## this is a good thing. 180 seconds is a good value. $hd_polling_interval = 180; # seconds ## FAN SPEED CHANGE DELAY TIME ## It takes the fans a few seconds to change speeds, we allow a grace before verifying. If we fail the verify ## we'll reset the BMC $fan_speed_change_delay = 10; # seconds ## BMC REBOOT TIME ## It takes the BMC a number of seconds to reset and start providing sensible output. We'll only ## Reset the BMC if its still providing rubbish after this time. $bmc_reboot_grace_time = 120; # seconds ## BMC RETRIES BEFORE REBOOTING ## We verify high/low of fans, and if they're not where they should be we reboot the BMC after so many failures $bmc_fail_threshold = 1; # will retry n times before rebooting # edit nothing below this line ######################################################################################################################## # GLOBALS @hd_list = ("sda", "sdb", "sdc", "sdd", "sde", "sdf", "sdg", "sdh"); # massage fan speeds $cpu_max_fan_speed *= 0.8; $hd_max_fan_speed *= 0.8; $hd_duty = $hd_fan_duty_start; #fan/bmc verification globals/timers $last_fan_level_change_time = 0; # the time when we changed a fan level last $fan_unreadable_time = 0; # the time when a fan read failure started, 0 if there is none. $bmc_fail_count = 0; # how many times the fans failed verification in the last period. #this is the last cpu temp that was read $last_cpu_temp = 0; use POSIX qw(strftime); use Time::Local; # start the controller main(); ################################################ MAIN sub main { open LOG, ">>", $log or die $!; # Print Log Header print_log_header(@hd_list); # current time ($sec,$min,$hour,$day,$month,$year,$wday,$yday,$isdst) = localtime(time); $next_log_hour = ( int( $hour/$log_header_hourly_interval ) + 1 ) * $log_header_hourly_interval; if ( $next_log_hour >= 24 ) { # next log time is after midnight. Roll back to previous log time, calcuate Unix epoch seconds, and add required seconds to get next log time $next_log_hour -= $log_header_hourly_interval; $next_log_time = timelocal(0,0,$next_log_hour,$day,$month,$year) + 3600 * $log_header_hourly_interval; } else { # next log time in seconds past Unix epoch $next_log_time = timelocal(0,0,$next_log_hour,$day,$month,$year); } # need to go to Full mode so we have unfettered control of Fans set_fan_mode("full"); my $cpu_fan_level = ""; my $old_cpu_fan_level = ""; my $override_hd_fan_level = 0; my $last_hd_check_time = 0; $temp_error = 0; my $integral = 0; $cpu_fan_override = 0; $hd_fan_duty = $hd_fan_duty_start; ($hd_min_temp, $hd_max_temp, $hd_ave_temp_old, @hd_temps) = get_hd_temps(); while() { if ($cpu_temp_control) { $old_cpu_fan_level = $cpu_fan_level; $cpu_fan_level = control_cpu_fan( $old_cpu_fan_level ); if( $old_cpu_fan_level ne $cpu_fan_level ) { $last_fan_level_change_time = time; } if( $cpu_fan_level eq "high" ) { if( $hd_fans_cool_cpu && !$override_hd_fan_level && ($last_cpu_temp >= $cpu_hd_override_temp || $last_cpu_temp == 0) ) { #override hd fan zone level, once we override we won't backoff until the cpu drops to below "high" $override_hd_fan_level = 1; dprint( 0, "CPU Temp: $last_cpu_temp >= $cpu_hd_override_temp, Overiding HD fan zone to $hd_fan_duty_high%, \n" ); set_fan_zone_duty_cycle( $hd_fan_zone, $hd_fan_duty_high ); $last_fan_level_change_time = time; } } elsif( $override_hd_fan_level ) { #restore hd fan zone level; $override_hd_fan_level = 0; dprint( 0, "Restoring HD fan zone to $hd_fan_duty%\n" ); set_fan_zone_duty_cycle( $hd_fan_zone, $hd_fan_duty ); $last_fan_level_change_time = time; } } # periodically determine hd fan zone level my $check_time = time; if( $check_time - $last_hd_check_time >= $hd_polling_interval ) { $last_hd_check_time = $check_time; @last_hd_list = @hd_list; ($hd_min_temp, $hd_max_temp, $hd_ave_temp, @hd_temps) = get_hd_temps(); $hd_fan_duty_old = $hd_fan_duty; $hd_fan_duty = calculate_hd_fan_duty_cycle_PID( $hd_max_temp, $hd_ave_temp, $hd_fan_duty ); if( !$override_hd_fan_level ) { set_fan_zone_duty_cycle( $hd_fan_zone, $hd_fan_duty ); $last_fan_level_change_time = time; # this resets every time, but it shouldn't matter since hd_polling_interval is large. } # print to log if (@hd_list != @last_hd_list && $log_temp_summary_only == 0) { # print new disk iD header if it has changed (e.g. hot swap insert or remove) @hd_list = print_log_header(@hd_list); } elsif ( $check_time >= $next_log_time ) { # time to print a new log header @hd_list = print_log_header(@hd_list); $next_log_time += 3600 * $log_header_hourly_interval; } my $timestring = build_time_string(); # ($hd_min_temp, $hd_max_temp, $hd_ave_temp, @hd_temps) = get_hd_temps(); print LOG "$timestring"; if ($log_temp_summary_only) { printf(LOG " %2i", 0+@hd_list); # number of HDs, so it can be seen if a hot swap addition or removal was detected printf(LOG " %2i", $hd_min_temp); } else { foreach my $item (@hd_temps) { printf(LOG "%5s", $item); } } printf(LOG " ^%2i", $hd_max_temp); printf(LOG "%7.2f", $hd_ave_temp); printf(LOG "%6.2f", $hd_ave_temp - $hd_ave_target); $hd_fan_mode = get_fan_mode(); printf(LOG "%6s", $hd_fan_mode); $ave_fan_speed = get_fan_ave_speed(@hd_fan_list); printf(LOG "%6s", $ave_fan_speed); printf(LOG "%4i/%-3i", $hd_fan_duty_old, $hd_fan_duty); $cput = get_cpu_temp_sysctl(); printf(LOG "%4i %6.2f %6.2f %6.2f %6.2f%\n", $cput, $P, $I, $D, $hd_duty); } # verify_fan_speed_levels function is fairly complicated if ($cpu_temp_control) { verify_fan_speed_levels( $cpu_fan_level, $override_hd_fan_level ? $hd_fan_duty_high : $hd_fan_duty ); } else { verify_fan_speed_levels2( $hd_fan_duty ); } # if ($cpu_temp_control) # { # # CPU temps can go from cool to hot in 2 seconds! so we only ever sleep for 1 second. # sleep 1; # } # else # { # sleep $hd_polling_interval - 1; # } # CPU temps can go from cool to hot in 2 seconds! so we only ever sleep for 1 second. sleep 1; } # inf loop } ################################################# SUBS sub get_hd_temps # return minimum, maximum, average HD temperatures and array of individual temps { my $max_temp = 0; my $min_temp = 1000; my $temp_sum = 0; my $HD_count = 0; my @temp_list = (); foreach my $item (@hd_list) { my $disk_dev = "/dev/$item"; my $command = "/usr/sbin/hddtemp -n $disk_dev"; my $temp = `$command`; chomp $temp; if( $temp ) { push(@temp_list, $temp); $temp_sum += $temp; $HD_count +=1; $max_temp = $temp if $temp > $max_temp; $min_temp = $temp if $temp < $min_temp; } } my $ave_temp = $temp_sum / $HD_count; return ($min_temp, $max_temp, $ave_temp, @temp_list); } sub verify_fan_speed_levels { my( $cpu_fan_level, $hd_fan_duty ) = @_; dprint( 4, "verify_fan_speed_levels: cpu_fan_level: $cpu_fan_level, hd_fan_duty: $hd_fan_duty\n"); my $extra_delay_before_next_check = 0; my $temp_time = time - $last_fan_level_change_time; dprint( 4, "Time since last verify : $temp_time, last change: $last_fan_level_change_time, delay: $fan_speed_change_delay\n"); if( $temp_time > $fan_speed_change_delay ) { # we've waited for the speed change to take effect. my $cpu_fan_speed = get_fan_speed("CPU"); if( $cpu_fan_speed < 0 ) { dprint(1,"CPU Fan speed unavailable\n" ); $fan_unreadable_time = time if $fan_unreadable_time == 0; } my $hd_fan_speed = get_fan_speed("HD"); if( $hd_fan_speed < 0 ) { dprint(1,"HD Fan speed unavailable\n" ); $fan_unreadable_time = time if $fan_unreadable_time == 0; } if( $hd_fan_speed < 0 || $cpu_fan_speed < 0 ) { # one of the fans couldn't be reliably read my $temp_time = time - $fan_unreadable_time; if( $temp_time > $bmc_reboot_grace_time ) { #we've waited, and we still can't read fan speed. dprint(0, "Fan speeds are unreadable after $bmc_reboot_grace_time seconds, rebooting BMC\n"); reset_bmc(); $fan_unreadable_time = 0; } else { dprint(2, "Fan speeds are unreadable after $temp_time seconds, will try again\n"); } } else { # we have no been able to read the fan speeds my $cpu_fan_is_wrong = 0; my $hd_fan_is_wrong = 0; #verify cpu fans if( $cpu_fan_level eq "high" && $cpu_fan_speed < $cpu_max_fan_speed ) { dprint(0, "CPU fan speed should be high, but $cpu_fan_speed < $cpu_max_fan_speed.\n"); $cpu_fan_is_wrong=1; } elsif( $cpu_fan_level eq "low" && $cpu_fan_speed > $cpu_max_fan_speed ) { dprint(0, "CPU fan speed should be low, but $cpu_fan_speed > $cpu_max_fan_speed.\n"); $cpu_fan_is_wrong=1; } #verify hd fans if( $hd_fan_duty >= $hd_fan_duty_high && $hd_fan_speed < $hd_max_fan_speed ) { dprint(0, "HD fan speed should be high, but $hd_fan_speed < $hd_max_fan_speed.\n"); $hd_fan_is_wrong=1; } elsif( $hd_fan_duty <= $hd_fan_duty_low && $hd_fan_speed > $hd_max_fan_speed ) { dprint(0, "HD fan speed should be low, but $hd_fan_speed > $hd_max_fan_speed.\n"); $hd_fan_is_wrong=1; } #verify both fans are good if( $cpu_fan_is_wrong || $hd_fan_is_wrong ) { $bmc_fail_count++; dprint( 3, "bmc_fail_count: $bmc_fail_count, bmc_fail_threshold: $bmc_fail_threshold\n"); if( $bmc_fail_count <= $bmc_fail_threshold ) { #we'll try setting the fan speeds, and giving it another attempt dprint(1, "Fan speeds are not where they should be, will try again.\n"); set_fan_mode("full"); set_fan_zone_level( $cpu_fan_zone, $cpu_fan_level ); set_fan_zone_duty_cycle( $hd_fan_zone, $hd_fan_duty ); } else { #time to reset the bmc dprint(1, "Fan speeds are still not where they should be after $bmc_fail_count attempts, will reboot BMC.\n"); set_fan_mode("full"); reset_bmc(); $bmc_fail_count = 0; } } else { #everything is good. We'll sit back for another minute. dprint( 2, "Verified fan levels, CPU: $cpu_fan_speed, HD: $hd_fan_speed. All good.\n" ); $bmc_fail_count = 0; # we succeeded $extra_delay_before_next_check = 60 - $fan_speed_change_delay; # lets give it a minute since it was good. } #reset our unreadable timer, since we read the fan speeds. $fan_unreadable_time = 0; } #reset our timer, so that we'll wait before checking again. $last_fan_level_change_time = time + $extra_delay_before_next_check; #another delay before checking please. } return; } sub verify_fan_speed_levels2 { my( $hd_fan_duty ) = @_; dprint( 4, "verify_fan_speed_level: hd_fan_duty: $hd_fan_duty\n"); my $extra_delay_before_next_check = 0; my $temp_time = time - $last_fan_level_change_time; dprint( 4, "Time since last verify : $temp_time, last change: $last_fan_level_change_time, delay: $fan_speed_change_delay\n"); if( $temp_time > $fan_speed_change_delay ) { # we've waited for the speed change to take effect. my $hd_fan_speed = get_fan_speed("HD"); if( $hd_fan_speed < 0 ) { dprint(1,"HD Fan speed unavailable\n" ); $fan_unreadable_time = time if $fan_unreadable_time == 0; } if( $hd_fan_speed < 0 ) { # one of the fans couldn't be reliably read my $temp_time = time - $fan_unreadable_time; if( $temp_time > $bmc_reboot_grace_time ) { #we've waited, and we still can't read fan speed. dprint(0, "Fan speeds are unreadable after $bmc_reboot_grace_time seconds, rebooting BMC\n"); reset_bmc(); $fan_unreadable_time = 0; } else { dprint(2, "Fan speeds are unreadable after $temp_time seconds, will try again\n"); } } else { # we have no been able to read the fan speeds my $hd_fan_is_wrong = 0; #verify hd fans if( $hd_fan_duty >= $hd_fan_duty_high && $hd_fan_speed < $hd_max_fan_speed ) { dprint(0, "HD fan speed should be high, but $hd_fan_speed < $hd_max_fan_speed.\n"); $hd_fan_is_wrong=1; } elsif( $hd_fan_duty <= $hd_fan_duty_low && $hd_fan_speed > $hd_max_fan_speed ) { dprint(0, "HD fan speed should be low, but $hd_fan_speed > $hd_max_fan_speed.\n"); $hd_fan_is_wrong=1; } #verify HD fans are good if( $hd_fan_is_wrong ) { $bmc_fail_count++; dprint( 3, "bmc_fail_count: $bmc_fail_count, bmc_fail_threshold: $bmc_fail_threshold\n"); if( $bmc_fail_count <= $bmc_fail_threshold ) { #we'll try setting the fan speeds, and giving it another attempt dprint(1, "Fan speeds are not where they should be, will try again.\n"); set_fan_mode("full"); set_fan_zone_duty_cycle( $hd_fan_zone, $hd_fan_duty ); } else { #time to reset the bmc dprint(1, "Fan speeds are still not where they should be after $bmc_fail_count attempts, will reboot BMC.\n"); set_fan_mode("full"); reset_bmc(); $bmc_fail_count = 0; } } else { #everything is good. We'll sit back for another minute. dprint( 2, "Verified fan levels, HD: $hd_fan_speed. All good.\n" ); $bmc_fail_count = 0; # we succeeded $extra_delay_before_next_check = 60 - $fan_speed_change_delay; # lets give it a minute since it was good. } #reset our unreadable timer, since we read the fan speeds. $fan_unreadable_time = 0; } #reset our timer, so that we'll wait before checking again. $last_fan_level_change_time = time + $extra_delay_before_next_check; #another delay before checking please. } return; } # need to pass in last $cpu_fan sub control_cpu_fan { my ($old_cpu_fan_level) = @_; # my $cpu_temp = get_cpu_temp_ipmi(); # no longer used, because sysctl is better, and more compatible. my $cpu_temp = get_cpu_temp_sysctl(); my $cpu_fan_level = decide_cpu_fan_level( $cpu_temp, $old_cpu_fan_level ); if( $old_cpu_fan_level ne $cpu_fan_level ) { dprint( 1, "CPU Fan changing... ($cpu_fan_level)\n"); set_fan_zone_level( $cpu_fan_zone, $cpu_fan_level ); } return $cpu_fan_level; } sub calculate_hd_fan_duty_cycle_PID { my ($hd_max_temp, $hd_ave_temp, $old_hd_duty) = @_; # my $hd_duty; my $temp_error_old = $hd_ave_temp_old - $hd_ave_target; my $temp_error = $hd_ave_temp - $hd_ave_target; if ($hd_max_temp >= $hd_max_allowed_temp ) { $hd_duty = $hd_fan_duty_high; dprint(0, "Drives are too hot, going to $hd_fan_duty_high%\n") unless $old_hd_duty == $hd_duty; } elsif ($hd_max_temp >= 0 ) { my $temp_error = $hd_ave_temp - $hd_ave_target; $integral += $temp_error * $hd_polling_interval / 60; my $derivative = ($temp_error - $temp_error_old) * 60 / $hd_polling_interval; # my $P = $Kp * $temp_error * $hd_polling_interval / 60; # my $I = $Ki * $integral; # my $D = $Kd * $derivative; $P = $Kp * $temp_error * $hd_polling_interval / 60; $I = $Ki * $integral; $D = $Kd * $derivative; # $hd_duty = $old_hd_duty + $P + $I + $D; $hd_duty = $hd_duty + $P + $I + $D; if ($hd_duty > $hd_fan_duty_high) { $hd_duty = $hd_fan_duty_high; } elsif ($hd_duty < $hd_fan_duty_low) { $hd_duty = $hd_fan_duty_low; } dprint(0, "temperature error = $temp_error\n"); dprint(1, "PID corrections are P = $P, I = $I and D = $D\n"); dprint(0, "PID control new duty cycle is $hd_duty%\n") unless $old_hd_duty == $hd_duty; } else { $hd_duty = 100; dprint( 0, "Drive temperature ($hd_temp) invalid. going to 100%\n"); } $hd_ave_temp_old = $hd_ave_temp; if ($cpu_fans_cool_hd == 1 && $hd_duty > $hd_cpu_override_duty_cycle) { $cpu_fan_override = 1; } else { $cpu_fan_override = 0; } # $hd_duty is retained as float between cycles, so any small incremental adjustments less # than 1 will not be lost, but build up until they are large enough to cause a change # after the value is truncated with int() # add 0.5 before truncating with int() to approximate the behaviour of a proper round() function return int($hd_duty + 0.5); } sub build_date_time_string { my $datetimestring = strftime "%F %H:%M:%S", localtime; return $datetimestring; } sub build_date_string { my $datestring = strftime "%F", localtime; return $datestring; } sub build_time_string { my $timestring = strftime "%H:%M:%S", localtime; return $timestring; } sub print_log_header { @hd_list = @_; my $timestring = build_time_string(); my $datestring = build_date_string(); printf(LOG "\n\nPID Fan Controller Log --- Target HD Temperature = %5.2f deg C --- PID Control Gains: Kp = %6.3f, Ki = %6.3f, Kd = %5.1f\n ", $hd_ave_target, $Kp, $Ki, $Kd); if ($log_temp_summary_only) { print LOG " HD Min"; } else { foreach $item (@hd_list) { print LOG " "; } } print LOG " Max Ave Temp Fan Fan Fan % CPU P I D Fan\n$datestring"; if ($log_temp_summary_only) { print LOG " Qty Temp "; } else { foreach $item (@hd_list) { printf(LOG "%4s ", $item); } } print LOG "Temp Temp Err Mode RPM Old/New Temp Corr Corr Corr Duty\n"; return @hd_list; } sub get_fan_ave_speed { my $speed_sum = 0; my $fan_count = 0; foreach my $fan (@_) { $speed_sum += get_fan_speed2($fan); $fan_count += 1; } my $ave_speed = sprintf("%i", $speed_sum / $fan_count); return $ave_speed; } sub dprint { my ( $level,$output) = @_; # print( "dprintf: debug = $debug, level = $level, output = \"$output\"\n" ); if( $debug > $level ) { my $datestring = build_date_time_string(); print "$datestring: $output"; } return; } sub dprint_list { my ( $level,$name,@output) = @_; if( $debug > $level ) { dprint($level,"$name:\n"); foreach my $item (@output) { dprint( $level, " $item\n"); } } return; } sub bail_with_fans_full { dprint( 0, "Setting fans full before bailing!\n"); set_fan_mode("full"); die @_; } sub get_fan_mode { my $command = "$ipmitool raw 0x30 0x45 0"; my $fan_code = `$command`; if ($fan_code == 1) { $hd_fan_mode = "Full"; } elsif ($fan_code == 0) { $hd_fan_mode = " Std"; } elsif ($fan_code == 2) { $hd_fan_mode = " Opt"; } elsif ($fan_code == 4) { $hd_fan_mode = " Hvy"; } return $hd_fan_mode; } sub get_fan_mode_code { my ( $fan_mode ) = @_; my $m; if( $fan_mode eq 'standard' ) { $m = 0; } elsif( $fan_mode eq 'full' ) { $m = 1; } elsif( $fan_mode eq 'optimal' ) { $m = 2; } elsif( $fan_mode eq 'heavyio' ) { $m = 4; } else { die "illegal fan mode: $fan_mode\n" } dprint( 3, "fanmode: $fan_mode = $m\n"); return $m; } sub set_fan_mode { my ($fan_mode) = @_; my $mode = get_fan_mode_code( $fan_mode ); dprint( 1, "Setting fan mode to $mode ($fan_mode)\n"); `$ipmitool raw 0x30 0x45 0x01 $mode`; sleep 5; #need to give the BMC some breathing room return; } # returns the maximum core temperature from the kernel to determine CPU temperature. # in my testing I found that the max core temperature was pretty much the same as the IPMI 'CPU Temp' # value, but its much quicker to read, and doesn't require X10 IPMI. And works when the IPMI is rebooting too. sub get_cpu_temp_sysctl { # significantly more efficient to filter to dev.cpu than to just grep the whole lot! # my $core_temps = `sysctl -a dev.cpu | egrep -E \"dev.cpu\.[0-9]+\.temperature\" | awk '{print \$2}' | sed 's/.\$//'`; my $core_temps = `sensors | awk '/temp1/{ print int(\$2) }'`; chomp($core_temps); dprint(3,"core_temps:\n$core_temps\n"); my @core_temps_list = split(" ", $core_temps); dprint_list( 4, "core_temps_list", @core_temps_list ); my $max_core_temp = 0; foreach my $core_temp (@core_temps_list) { if( $core_temp ) { dprint( 2, "core_temp = $core_temp C\n"); $max_core_temp = $core_temp if $core_temp > $max_core_temp; } } dprint(1, "CPU Temp: $max_core_temp\n"); $last_cpu_temp = $max_core_temp; #possible that this is 0 if there was a fault reading the core temps return $max_core_temp; } # reads the IPMI 'CPU Temp' field to determine overall CPU temperature sub get_cpu_temp_ipmi { my $cpu_temp = `$ipmitool sensor get \"CPU Temp\" | awk '/Sensor Reading/{print \$4}'`; chomp $cpu_temp; dprint( 1, "CPU Temp: $cpu_temp\n"); $last_cpu_temp = $cpu_temp; # note, this hasn't been cleaned. return $cpu_temp; } sub decide_cpu_fan_level { my ($cpu_temp, $cpu_fan) = @_; if ($cpu_fan_override == 1) { $cpu_fan = "high"; dprint( 0, "CPU fan set to high to help cool HDs.\n"); } else { #if cpu_temp evaluates as "0", its most likely the reading returned rubbish. if ($cpu_temp <= 0) { if( $cpu_temp eq "No") # "No reading" { dprint( 0, "CPU Temp has no reading.\n"); } elsif( $cpu_temp eq "Disabled" ) { dprint( 0, "CPU Temp reading disabled.\n"); } else { dprint( 0, "Unexpected CPU Temp ($cpu_temp).\n"); } dprint( 0, "Assuming worst-case and going high.\n"); $cpu_fan = "high"; } else { if( $cpu_temp >= $high_cpu_temp ) { if( $cpu_fan ne "high" ) { dprint( 0, "CPU Temp: $cpu_temp >= $high_cpu_temp, CPU Fan going high.\n"); } $cpu_fan = "high"; } elsif( $cpu_temp >= $med_cpu_temp ) { if( $cpu_fan ne "med" ) { dprint( 0, "CPU Temp: $cpu_temp >= $med_cpu_temp, CPU Fan going med.\n"); } $cpu_fan = "med"; } elsif( $cpu_temp > $low_cpu_temp && ($cpu_fan eq "high" || $cpu_fan eq "" ) ) { dprint( 0, "CPU Temp: $cpu_temp dropped below $med_cpu_temp, CPU Fan going med.\n"); $cpu_fan = "med"; } elsif( $cpu_temp <= $low_cpu_temp ) { if( $cpu_fan ne "low" ) { dprint( 0, "CPU Temp: $cpu_temp <= $low_cpu_temp, CPU Fan going low.\n"); } $cpu_fan = "low"; } } } dprint( 1, "CPU Fan: $cpu_fan\n"); return $cpu_fan; } # zone,dutycycle% sub set_fan_zone_duty_cycle { my ( $zone, $duty ) = @_; if( $zone < 0 || $zone > 1 ) { bail_with_fans_full( "Illegal Fan Zone" ); } if( $duty < 0 || $duty > 100 ) { dprint( 0, "illegal duty cycle, assuming 100%\n"); $duty = 100; } dprint( 1, "Setting Zone $zone duty cycle to $duty%\n"); `$ipmitool raw 0x30 0x70 0x66 0x01 $zone $duty`; return; } sub set_fan_zone_level { my ( $fan_zone, $level) = @_; my $duty = 0; #assumes high if not low or med, for safety. if( $level eq "low" ) { $duty = $fan_duty_low; } elsif( $level eq "med" ) { $duty = $fan_duty_med; } else { $duty = $fan_duty_high; } set_fan_zone_duty_cycle( $fan_zone, $duty ); } sub get_fan_header_by_name { my ($fan_name) = @_; if( $fan_name eq "CPU" ) { return $cpu_fan_header; } elsif( $fan_name eq "HD" ) { return $hd_fan_header; } else { bail_with_full_fans( "No such fan : $fan_name\n" ); } } sub get_fan_speed { my ($fan_name) = @_; my $fan = get_fan_header_by_name( $fan_name ); my $command = "$ipmitool sdr | grep $fan"; dprint( 4, "get fan speed command = $command\n"); my $output = `$command`; my @vals = split(" ", $output); my $fan_speed = "$vals[2]"; dprint( 3, "fan_speed = $fan_speed\n"); if( $fan_speed eq "no" ) { dprint( 0, "$fan_name Fan speed: No reading\n"); $fan_speed = -1; } elsif( $fan_speed eq "disabled" ) { dprint( 0, "$fan_name Fan speed: Disabled\n"); $fan_speed = -1; } elsif( $fan_speed > 10000 || $fan_speed < 0 ) { dprint( 0, "$fan_name Fan speed: $fan_speed RPM, is nonsensical\n"); $fan_speed = -1; } else { dprint( 1, "$fan_name Fan speed: $fan_speed RPM\n"); } return $fan_speed; } sub get_fan_speed2 # get fan speed for specified fan header { my ($fan_name) = @_; my $command = "$ipmitool sdr | grep $fan_name"; my $output = `$command`; my @vals = split(" ", $output); my $fan_speed = "$vals[2]"; return $fan_speed; } sub reset_bmc { #when the BMC reboots, it comes back up in its last fan mode... which should be FULL. dprint( 0, "Resetting BMC\n"); `$ipmitool bmc reset cold`; return; }
https://github.com/boris-dimitrov/set_gpu_fans_public
gpu报错：https://blog.csdn.net/songyu0120/article/details/89201525
问题：

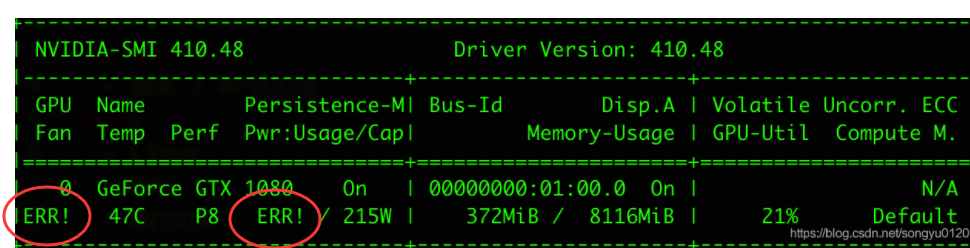

Nvidia GPU风扇和电源显示ERR! 解决办法
方法：
https://forums.developer.nvidia.com/t/nvidia-smi-shows-err-on-both-fan-and-power-usage/68293/13
This issue is due to the higher temperature. First, you should reseat the question card to the coolest location of your workstation. Second, set the power limitation [1] and fan speed [2] to ensure the peak temperature does not exceed 75C. [1] Change them to 150W-to-200W sudo nvidia-smi -pm 1 sudo nvidia-smi -pl 150(200) [2] https://github.com/boris-dimitrov/set_gpu_fans_public 157 Using these methods, I have restored two 1080ti cards which have the same issues.
