一、搭建服务提供者集群
-

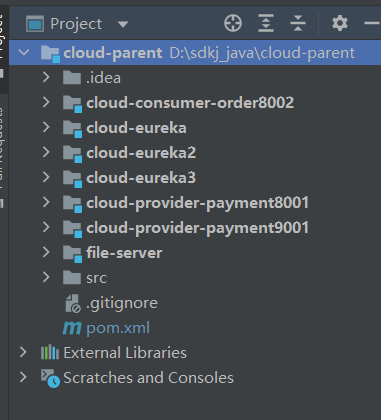

项目层级
-
创建一个新module(cloud-provider-payment9001)
这个module只修改端口号,其余内容和8001一样
server:
# 端口
port: 9001
spring:
#要配置集群、名字必须相同
application:
name: cloud-payment-service
#安全认证
security:
user:
name: root
password: root
#数据源基本配置
datasource:
url: jdbc:mysql://localhost:3306/test_springcloud
username: root
password: 678678
#druid
type: com.alibaba.druid.pool.DruidDataSource
driver-class-name: com.mysql.cj.jdbc.Driver
eureka:
client:
# 表示将自己注册进Eureka Server默认为true
register-with-eureka: true
# 是否从Eureka Server抓去已有的注册信息,默认是true
fetch-registry: true
# 设置与Eureka Server交互的地址查询服务和注册服务都需要依赖这个地址
service-url:
defaultZone: http://${spring.security.user.name}:${spring.security.user.password}@eureka1.com:8887/eureka,http://${spring.security.user.name}:${spring.security.user.password}@eureka2.com:8888/eureka,http://${spring.security.user.name}:${spring.security.user.password}@eureka3.com:8889/eureka
mybatis:
mapper-locations: classpath:mapping/*.xml
#开启优雅停服
#(必须通过POST请求向Eureka Client发起一个shutdown请求。请求路径为:http://ip:port/shutdown。可以通过任意技术实现,如:HTTPClient,AJAX等。)
management:
endpoint:
shutdown:
enabled: true
-
重启服务。调用消费者就会负载均衡了
1 package com.sdkj.config; 2 3 import org.springframework.cloud.client.loadbalancer.LoadBalanced; 4 import org.springframework.context.annotation.Bean; 5 import org.springframework.context.annotation.Configuration; 6 import org.springframework.web.client.RestTemplate; 7 8 /** 9 * @Author wangshuo 10 * @Date 2022/5/19, 19:49 11 * Please add a comment 12 */ 13 @Configuration 14 public class AppConfig { 15 16 /** 17 * 注入restTemplate,请用请求rest接口 18 * @return 19 */ 20 @Bean 21 // 标注此注解后,RestTemplate就具有了客户端负载均衡能力 22 // 负载均衡技术依赖于的是Ribbon组件~ 23 // RestTemplate都塞入一个loadBalancerInterceptor 让其具备有负载均衡的能力 24 @LoadBalanced 25 public RestTemplate restTemplate(){ 26 return new RestTemplate(); 27 } 28 }
二、服务发现
-
App
1 package com.sdkj; 2 3 import org.mybatis.spring.annotation.MapperScan; 4 import org.springframework.boot.SpringApplication; 5 import org.springframework.boot.autoconfigure.SpringBootApplication; 6 import org.springframework.cloud.client.discovery.EnableDiscoveryClient; 7 import org.springframework.cloud.netflix.eureka.EnableEurekaClient; 8 9 /** 10 * @Author wangshuo 11 * @Date 2022/5/18, 16:37 12 * Please add a comment 13 */ 14 @SpringBootApplication(scanBasePackages = {"com.sdkj"}) 15 @EnableEurekaClient 16 //启用服务发现 17 @EnableDiscoveryClient 18 @MapperScan("com.sdkj.dao")//扫描dao添加Mapper 19 public class App { 20 21 public static void main(String[] args) { 22 SpringApplication.run(App.class); 23 } 24 }
-
PaymentController
1 package com.sdkj.controller; 2 3 import com.sdkj.dataobject.PaymentDO; 4 import com.sdkj.error.BusinessException; 5 import com.sdkj.error.EnumBusinessError; 6 import com.sdkj.response.CommonReturnType; 7 import com.sdkj.service.PaymentService; 8 import lombok.extern.slf4j.Slf4j; 9 import org.apache.commons.lang.StringUtils; 10 import org.springframework.beans.factory.annotation.Autowired; 11 import org.springframework.cloud.client.ServiceInstance; 12 import org.springframework.cloud.client.discovery.DiscoveryClient; 13 import org.springframework.stereotype.Controller; 14 import org.springframework.web.bind.annotation.CrossOrigin; 15 import org.springframework.web.bind.annotation.RequestMapping; 16 import org.springframework.web.bind.annotation.ResponseBody; 17 18 /** 19 * @Author wangshuo 20 * @Date 2022/5/19, 9:08 21 * Please add a comment 22 */ 23 @Controller 24 @RequestMapping(value = "/payment") 25 @CrossOrigin(origins = {"*"}, allowCredentials = "true") 26 @Slf4j 27 public class PaymentController extends BaseController { 28 29 @Autowired 30 PaymentService paymentService; 31 //注入服务发现 32 @Autowired 33 DiscoveryClient discoveryClient; 34 35 @RequestMapping(value = "/findById") 36 @ResponseBody 37 public CommonReturnType findById(Long id) throws BusinessException { 38 39 if (StringUtils.isEmpty(id.toString())) 40 throw new BusinessException(EnumBusinessError.REGISTER_OTP_ERROR);//参数不合法 41 PaymentDO payment = paymentService.getPaymentById(id); 42 return CommonReturnType.create(payment); 43 } 44 45 @RequestMapping(value = "/getDiscovery") 46 @ResponseBody 47 public Object getDiscovery(){ 48 49 //获取服务列表 50 for (String service : discoveryClient.getServices()) { 51 log.info("发现service:" + service); 52 } 53 //获取服务实例集合 54 for (ServiceInstance instance : discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE")) { 55 log.info("发现服务CLOUD-PAYMENT-SERVICE:" + 56 " serviceId = " +instance.getServiceId() + 57 " host = " + instance.getHost() + 58 " port = " + instance.getPort() + 59 " uri = " + instance.getUri()); 60 } 61 return this.discoveryClient; 62 } 63 }
三、自带负载均衡规则说明
策略名 | 策略声明 | 策略描述 | 实现说明 |
BestAvailableRule | public class BestAvailableRule extends ClientConfigEnabledRoundRobinRule | 选择一个最小的并发请求的server | 逐个考察Server,如果Server被tripped了,则忽略,在选择其中ActiveRequestsCount最小的server |
AvailabilityFilteringRule | public class AvailabilityFilteringRule extends PredicateBasedRule | 过滤掉那些因为一直连接失败的被标记为circuit tripped的后端server,并过滤掉那些高并发的的后端server(active connections 超过配置的阈值) | 使用一个AvailabilityPredicate来包含过滤server的逻辑,其实就就是检查status里记录的各个server的运行状态 |
WeightedResponseTimeRule | public class WeightedResponseTimeRule extends RoundRobinRule | 根据相应时间分配一个weight,相应时间越长,weight越小,被选中的可能性越低。 | 一个后台线程定期的从status里面读取评价响应时间,为每个server计算一个weight。Weight的计算也比较简单responsetime 减去每个server自己平均的responsetime是server的权重。当刚开始运行,没有形成statas时,使用roubine策略选择server。 |
RetryRule | public class RetryRule extends AbstractLoadBalancerRule | 对选定的负载均衡策略机上重试机制。 | 在一个配置时间段内当选择server不成功,则一直尝试使用subRule的方式选择一个可用的server |
RoundRobinRule | public class RoundRobinRule extends AbstractLoadBalancerRule | roundRobin方式轮询选择server | 轮询index,选择index对应位置的server |
RandomRule | public class RandomRule extends AbstractLoadBalancerRule | 随机选择一个server | 在index上随机,选择index对应位置的server |
ZoneAvoidanceRule | public class ZoneAvoidanceRule extends PredicateBasedRule | 复合判断server所在区域的性能和server的可用性选择server | 使用ZoneAvoidancePredicate和AvailabilityPredicate来判断是否选择某个server,前一个判断判定一个zone的运行性能是否可用,剔除不可用的zone(的所有server),AvailabilityPredicate用于过滤掉连接数过多的Server。 |
