组网实验记录

要求:ospf  单臂路由  三层交换  telnet  vlan  接口模式
1.配置设备中所有设备的IP地址
2.配置单臂路由--lsw8为纯二层设备、为保证vlan20、vlan30之间能够互通，需要R1上做单臂路由，子接口g0/0/1.20地址为192.168.20.254/24；子接口g0/0/1.30地址为192.168.30.254/24
实现pc2,pc3之间的通信。
3.全网配置OSPF---如图所示R1、R2、R3、LSW6间运行ospf协议
4.配置三层交换---lsw6为三层设备，通过vlan间路由保证vlan80、vlan90互通
5.r3为telnet服务器，r1能够通过VTY aaa的认证方式登录到r3上
6.保证所有pc之间互通

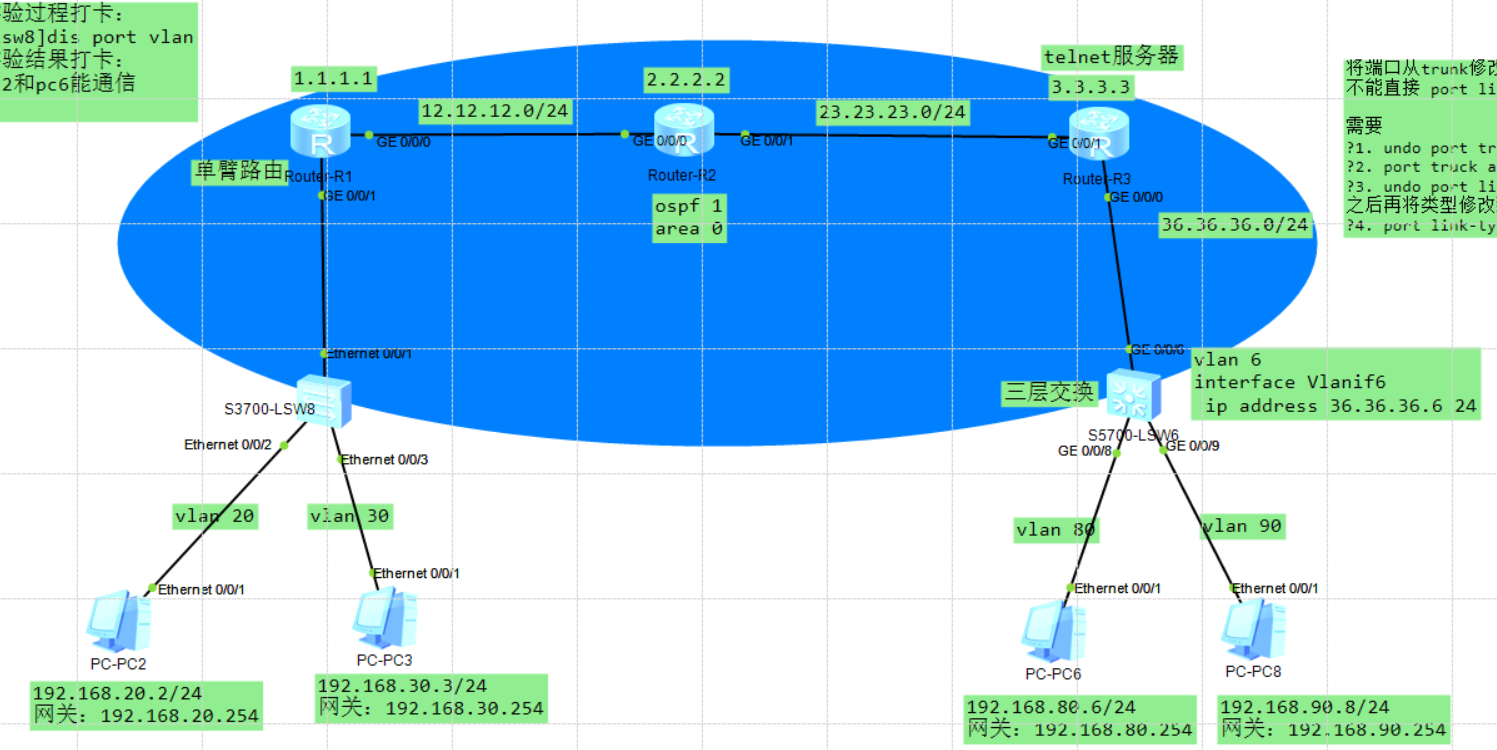

拓扑图



 PC的IP配置跳过

S3700-LSW8

undo ter mon
sys
vlan b 20 30 80 90
int e0/0/2
p l a
p d v 20
int e0/0/3
p l a
p d v 30
int e0/0/1
p l t
p t a v a

R!

undo ter mon
sys
#单臂路由 start
int g0/0/1.20
ip add 192.168.20.254 24
d t v 20
int g0/0/1.30
ip add 192.168.30.254 24
d  t v 30
quit
#end
#ospf   start
int g0/0/0
ip add 12.12.12.1 24
quit
ospf 1 route   1.1.1.1
area 0
net    192.168.20.0 0.0.0.255
net 192.168.30.0 0.0.0.255
net 12.12.12.0 0.0.0.255

R2

undo ter mon
sys
int g0/0/0
ip add 12.12.12.2 24
int g0/0/1
ip add 23.23.23.1 24
quit
ospf 1 rou 2.2.2.2
area 0
net 12.12.12.0 0.0.0.255
net 23.23.23.0 0.0.0.255
quit

R3

undo ter mon
sys
int g0/0/1
ip add 23.23.23.2 24
int g0/0/0
ip add 36.36.36.254 24
quit
ospf 1 rou 3.3.3.3
a 0
net 23.23.23.0 0.0.0.255
net 36.36.36.0 0.0.0.255
quit
quit
user-in vty 0 4
auth pass
set auth pass ci 123
user pri level 3
quit

S5700-LSW6

undo ter mon
sys
vlan b 6 20 30 80 90
int vlan 6
ip add 36.36.36.6 24
int vlan 80
ip add 192.168.80.254 24
int vlan 90
ip add 192.168.90.254 24
quit
int g0/0/8
p l a
p d v 80
int g0/0/9
p l a
p d v 90
int g0/0/0
p l a
p d v 6
quit
ospf 1 rou 4.4.4.4
a 0
net 192.168.80.0 0.0.0.255
net 192.168.90.0 0.0.0.255
net 36.36.36.0 0.0.0.255
quit

结果图

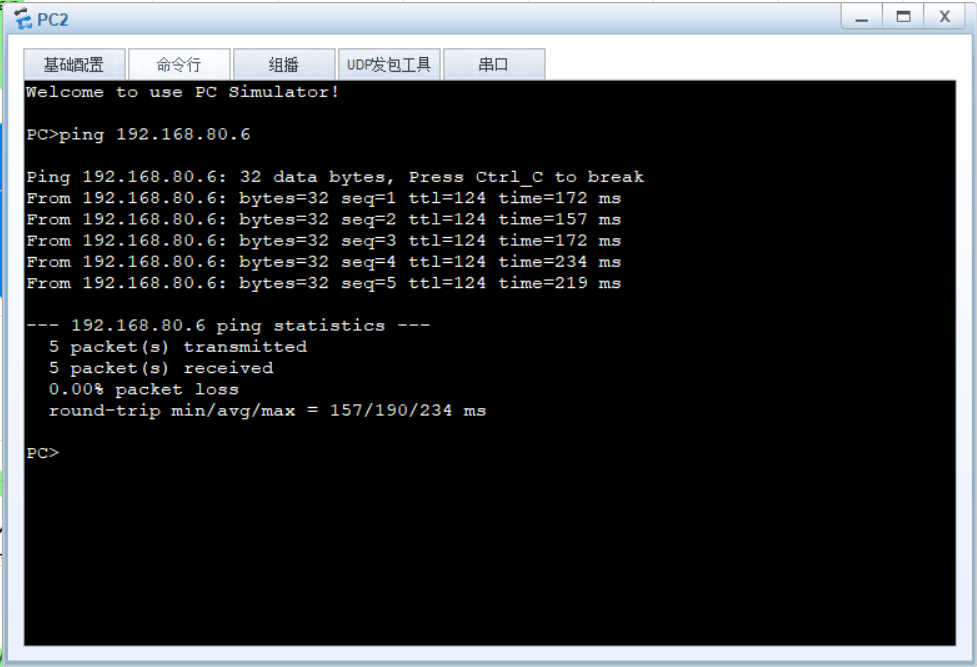

PC2  ping  PC6

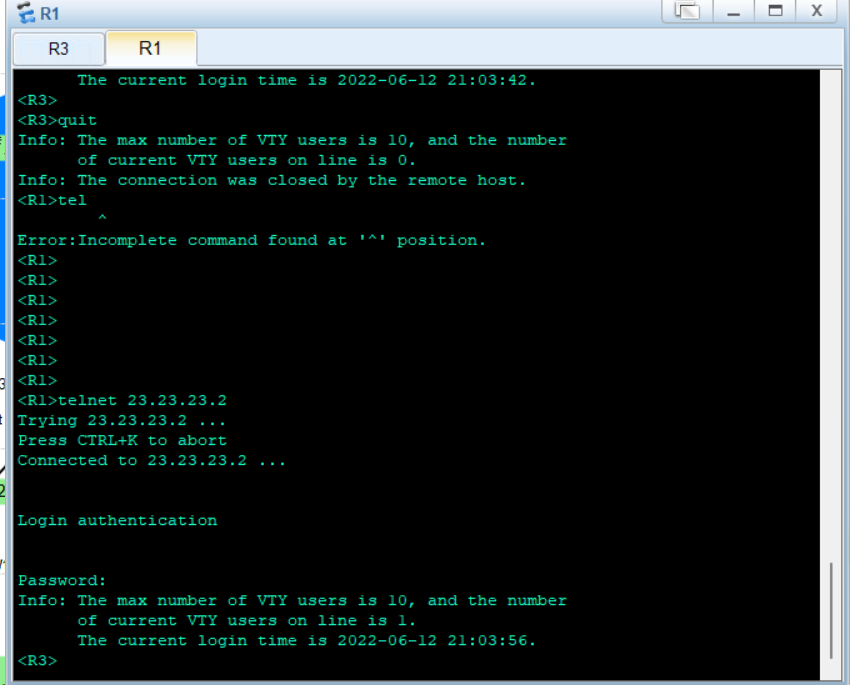

R1 telnet  R3
