IDEA DEMO练习一

一、环境搭建

需要准备的环境：
　　idea 2017.1
　　jdk1.7
　　Maven 3.3.3
　　请提前将idea与Maven、jdk配置好，本次项目用的都是比较新的，注：配置完ide红线报错没关系！可以run！
步骤：

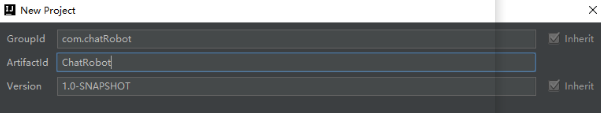

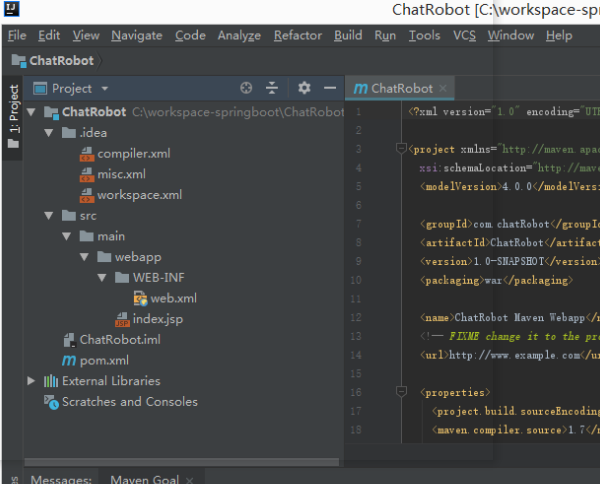

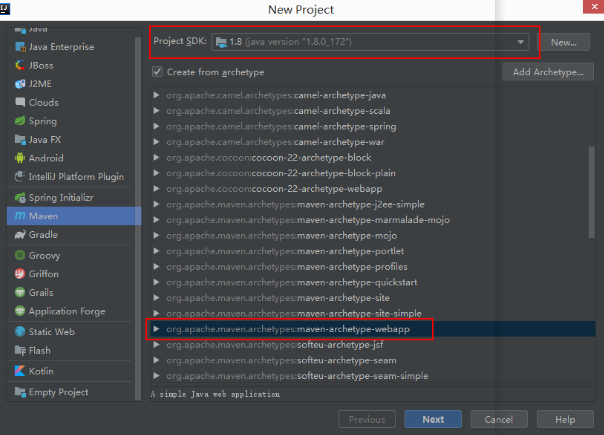

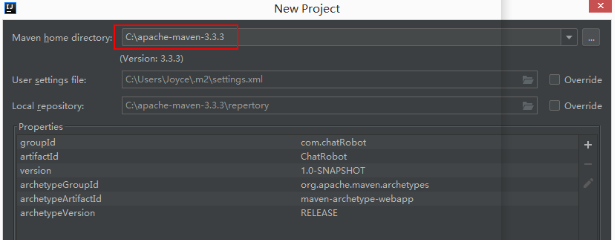

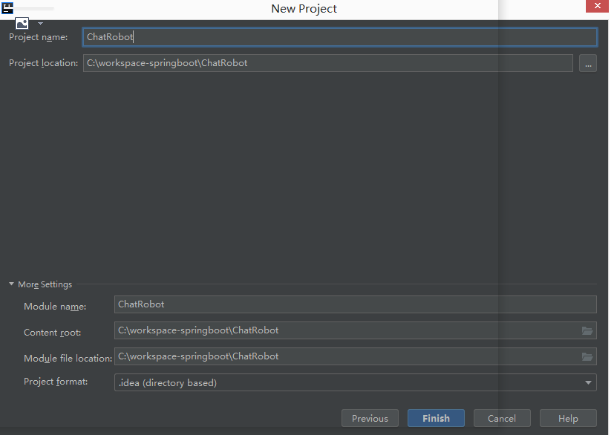

一》、首先使用idea新建一个Maven webapp项目

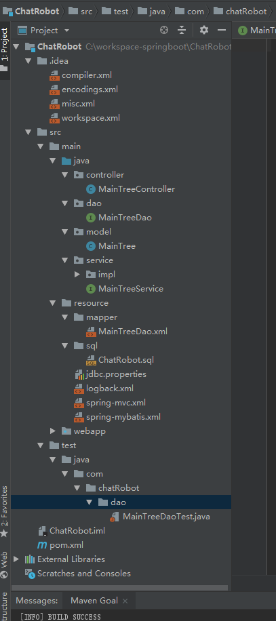

二》、搭建目录结构

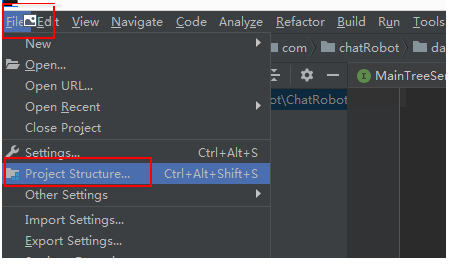

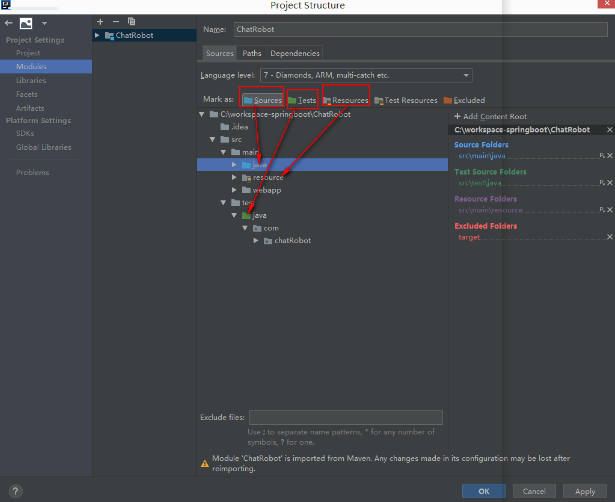

这里的目录建好之后还需要设置一下，让idea识别目录作用，选择File-Project Structure

三》更改pom.xml文件，如下：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.chatRobot</groupId>
  <artifactId>ChatRobot</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>ChatRobot Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://maven.apache.org</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <!-- spring版本号 -->
    <spring.version>4.3.5.RELEASE</spring.version>
    <!-- mybatis版本号 -->
    <mybatis.version>3.4.1</mybatis.version>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <dependencies>
    <!-- java ee -->
    <dependency>
      <groupId>javax</groupId>
      <artifactId>javaee-api</artifactId>
      <version>7.0</version>
    </dependency>

    <!-- 单元测试 -->
    <dependency>
           <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>
    <!-- 实现slf4j接口并整合 -->
    <dependency>
      <groupId>ch.qos.logback</groupId>
      <artifactId>logback-classic</artifactId>
      <version>1.2.2</version>
    </dependency>

    <!-- JSON -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.8.7</version>
    </dependency>


    <!-- 数据库 -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.41</version>
      <scope>runtime</scope>
    </dependency>

    <!-- 数据库连接池 -->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.2</version>
    </dependency>

    <!-- MyBatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>

    <!-- mybatis/spring整合包 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.1</version>
    </dependency>

    <!-- Spring -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
  </dependencies>

  <build>
    <finalName>ChatRobot</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <groupId>org.apache.maven.plugins</groupId>
          <artifactId>maven-compiler-plugin</artifactId>
          <configuration>
            <!-- 设置JDK版本 -->
            <source>1.8</source>
            <target>1.8</target>
          </configuration>
        </plugin>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.0.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.7.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.20.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

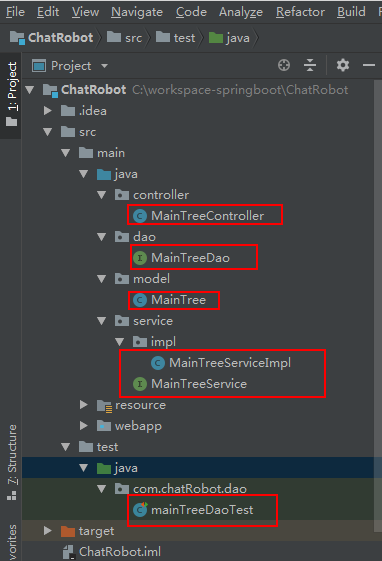

到此完成基本设置，再看具体代码

MainTreeController.java

package controller;

import com.fasterxml.jackson.databind.ObjectMapper;
import model.MainTree;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import service.MainTreeService;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Controller
@RequestMapping("/tree")
public class MainTreeController {
    @Resource
    private MainTreeService mainTreeService;

    @RequestMapping("/showTree.do")
    public void selectUser(HttpServletRequest request, HttpServletResponse response) throws IOException {
        request.setCharacterEncoding("UTF-8");
        response.setCharacterEncoding("UTF-8");
        long id = Long.parseLong(request.getParameter("id"));
        MainTree mainTree = this.mainTreeService.selectTree(id);
        ObjectMapper mapper = new ObjectMapper();
        response.getWriter().write(mapper.writeValueAsString(mainTree));
        response.getWriter().close();
    }

}

MainTreeService.java

package service;

import model.MainTree;

public interface MainTreeService {
    public MainTree selectTree(long id);
}

MainTreeServiceImpl.java

package service.impl;

import dao.MainTreeDao;
import model.MainTree;
import org.springframework.stereotype.Service;
import service.MainTreeService;

import javax.annotation.Resource;
@Service("userService")
public class MainTreeServiceImpl  implements MainTreeService {
    @Resource
    private MainTreeDao mainTreeDao;
    public MainTree selectTree(long id){
        return this.mainTreeDao.selectTree(id);
    }
}

MainTreeDao.java

package dao;

import model.MainTree;

public interface MainTreeDao {
    MainTree selectTree(long id);
}

MainTree.java

package model;

import java.math.BigDecimal;
import java.util.Date;

public class MainTree {
    Long id;
    String name;
    Long left_node_id;
    Long right_node_id;
    Long real_node_id;
    Long batch_id;
    BigDecimal matrix_bonus;
    BigDecimal binary_bonus;
    BigDecimal direct_bonus;
    Date create_time;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Long getLeft_node_id() {
        return left_node_id;
    }

    public void setLeft_node_id(Long left_node_id) {
        this.left_node_id = left_node_id;
    }

    public Long getRight_node_id() {
        return right_node_id;
    }

    public void setRight_node_id(Long right_node_id) {
        this.right_node_id = right_node_id;
    }

    public Long getReal_node_id() {
        return real_node_id;
    }

    public void setReal_node_id(Long real_node_id) {
        this.real_node_id = real_node_id;
    }

    public Long getBatch_id() {
        return batch_id;
    }

    public void setBatch_id(Long batch_id) {
        this.batch_id = batch_id;
    }

    public BigDecimal getMatrix_bonus() {
        return matrix_bonus;
    }

    public void setMatrix_bonus(BigDecimal matrix_bonus) {
        this.matrix_bonus = matrix_bonus;
    }

    public BigDecimal getBinary_bonus() {
        return binary_bonus;
    }

    public void setBinary_bonus(BigDecimal binary_bonus) {
        this.binary_bonus = binary_bonus;
    }

    public BigDecimal getDirect_bonus() {
        return direct_bonus;
    }

    public void setDirect_bonus(BigDecimal direct_bonus) {
        this.direct_bonus = direct_bonus;
    }

    public Date getCreate_time() {
        return create_time;
    }

    public void setCreate_time(Date create_time) {
        this.create_time = create_time;
    }

}

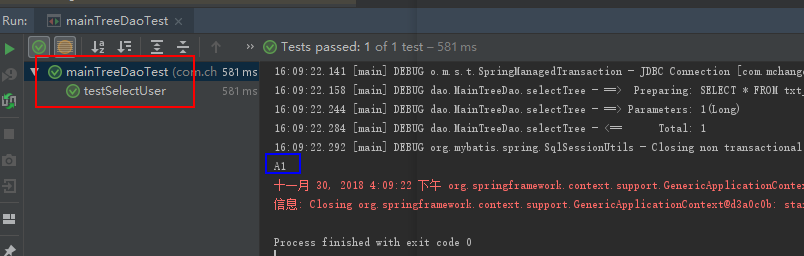

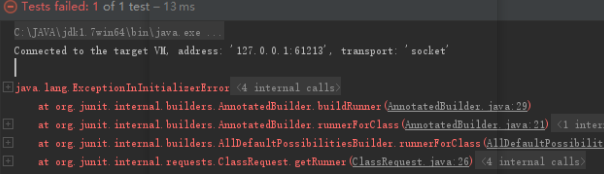

mainTreeDaoTest.java(这里要注意IDEA的测试类首字母要小写，否则在运行测试类的时候报错。)

package com.chatRobot.dao;

import dao.MainTreeDao;
import model.MainTree;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

// 加载spring配置文件
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({"classpath:spring-mybatis.xml"})
public class mainTreeDaoTest {

    @Autowired
    private MainTreeDao dao;

    @Test
    public void testSelectUser() throws Exception {
        long id = 1;
        MainTree user = dao.selectTree(id);
        System.out.println(user.getName());
    }

}

MainTreeDao.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!-- 设置为IUserDao接口方法提供sql语句配置 -->
<mapper namespace="dao.MainTreeDao">

    <select id="selectTree" resultType="MainTree" parameterType="long">
        SELECT * FROM txt_main_tree WHERE id = #{id}
    </select>

</mapper>

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
#数据库地址
jdbc.url=jdbc:mysql://127.0.0.1:3306/pjjdb?useUnicode=true&characterEncoding=utf8
#用户名
jdbc.username=root
#密码
jdbc.password=root
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2

logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="true">
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
        </encoder>
    </appender>
    <root level="debug">
        <appender-ref ref="STDOUT"/>
    </root>
</configuration>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

    <!-- 扫描web相关的bean -->
    <context:component-scan base-package="controller"/>

    <!-- 开启SpringMVC注解模式 -->
    <mvc:annotation-driven/>

    <!-- 静态资源默认servlet配置 -->
    <mvc:default-servlet-handler/>

    <!-- 配置jsp 显示ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

</beans>

spring-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 扫描service包下所有使用注解的类型 -->
    <context:component-scan base-package="service"/>

    <!-- 配置数据库相关参数properties的属性：${url} -->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 数据库连接池 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="${c3p0.maxPoolSize}"/>
        <property name="minPoolSize" value="${c3p0.minPoolSize}"/>
        <property name="autoCommitOnClose" value="${c3p0.autoCommitOnClose}"/>
        <property name="checkoutTimeout" value="${c3p0.checkoutTimeout}"/>
        <property name="acquireRetryAttempts" value="${c3p0.acquireRetryAttempts}"/>
    </bean>

    <!-- 配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 扫描model包 使用别名 -->
        <property name="typeAliasesPackage" value="model"/>
        <!-- 扫描sql配置文件:mapper需要的xml文件 -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

    <!-- 配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="dao"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 配置基于注解的声明式事务 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>

</beans>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

  <display-name>ChatRobot</display-name>
  <description>ChatRobot_Alpha_0.0.1</description>

  <!-- 编码过滤器 -->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!-- 配置DispatcherServlet -->
  <servlet>
    <servlet-name>SpringMVC</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <!-- 配置springMVC需要加载的配置文件-->
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring-*.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
    <async-supported>true</async-supported>
  </servlet>
  <servlet-mapping>
    <servlet-name>SpringMVC</servlet-name>
    <!-- 匹配所有请求，此处也可以配置成 *.do 形式 -->
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>

</web-app>

index.jsp

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>test</title>
</head>
<script>
    function selectUser() {
        var xmlhttp = new XMLHttpRequest();
        xmlhttp.onreadystatechange = function () {
            if (xmlhttp.readyState == 4 && xmlhttp.status == 200) {
                document.getElementById("test").innerHTML = xmlhttp.responseText;
            }
        }
        xmlhttp.open("POST", "tree/showTree.do", true);
        xmlhttp.setRequestHeader("Content-type", "application/x-www-form-urlencoded");
        xmlhttp.send("id=1");
    }
</script>
<body>
<p id="test">Hello World!</p>
<button type="button" onclick="selectUser()">onclick test</button>
</body>
</html>

其他文件可以忽略。

运行测试类mainTreeDaoTest.java

因第一次没有把首字母改为小写，报过错误

当改完类首字母，仍然提示错误，因Junit版本过低，要求4.12及以上版本才行，更新如下

重新执行测试文件mainTreeDaoTest.java

下面再试一下通过tomcat来运行项目，发现通过下面的方式选不到tomcat图标，原来是因为settings里的Application Servers没有添加tomcat

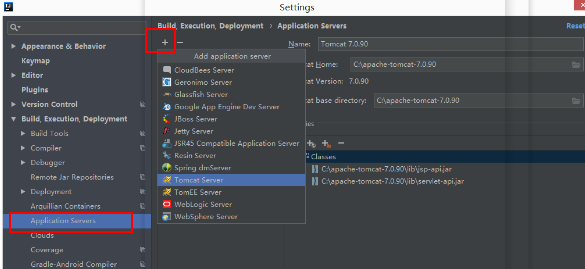

先配置tomcat图标，在file -> settings里的Application Servers没有添加tomcat

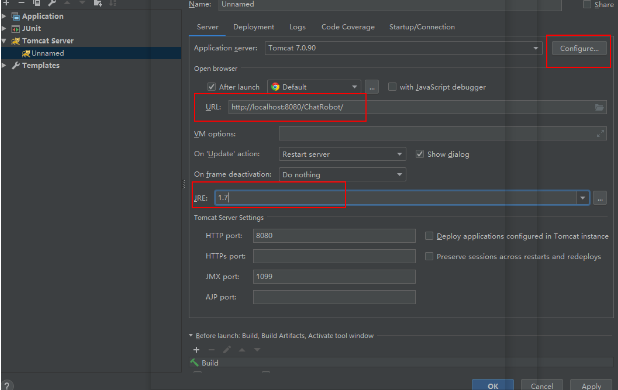

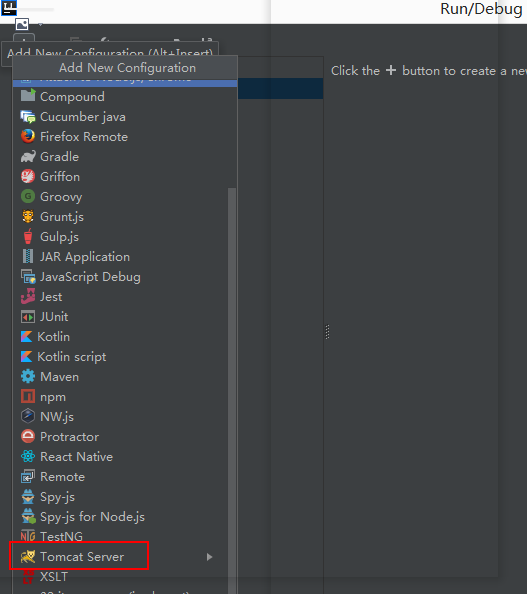

再重新选择Run -> Edit Configurations,这回可以看到小猫了

点击屏幕右上角的运行

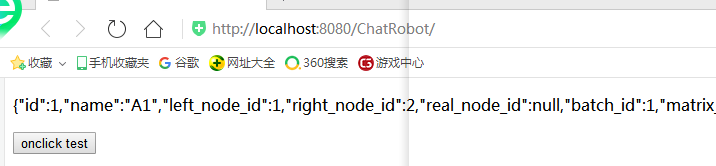

默认浏览器会出现运行结果界面

点击按钮，出现查询结果数据

{"id":1,"name":"A1","left_node_id":1,"right_node_id":2,"real_node_id":null,"batch_id":1,"matrix_bonus":null,"binary_bonus":null,"direct_bonus":null,"create_time":null}

以上为一个简单的查询DB例子。待续

参考文档：

环境搭建：

IDEA主代码参考：https://www.cnblogs.com/hackyo/p/6646051.html

IDEA添加TOMCATA https://www.cnblogs.com/Knowledge-has-no-limit/p/7240585.html

IDEA 中edit configurations加号找不到tomcat server：https://www.cnblogs.com/yuxiaole/p/9537177.html

IDEA JDK配置：https://blog.csdn.net/nobb111/article/details/77116259

posted @ 2018-11-30 16:24 piaojinji1026 阅读(1075) 评论(0) 收藏举报

刷新页面返回顶部

piaojinji1026

IDEA DEMO练习一

公告
