chirpstack Device-profiles

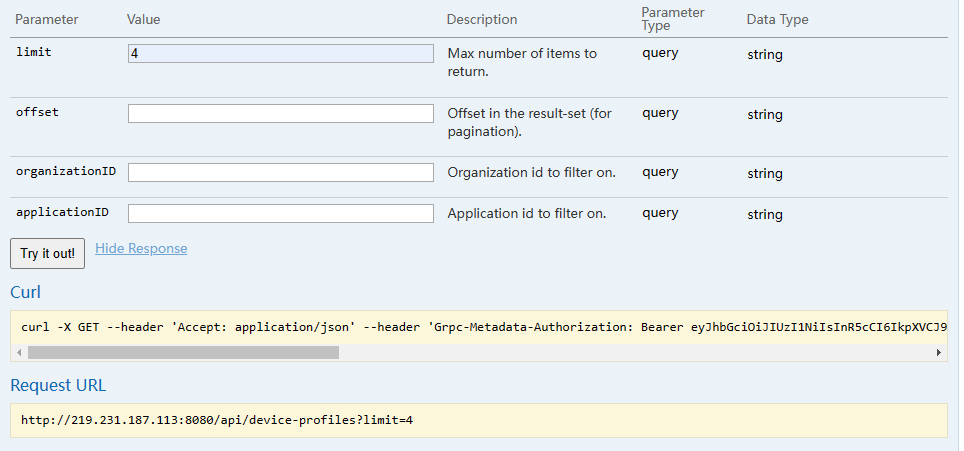

get api/device-profiles?limit=2

organizationID 和application来进行选择



#返回数据格式

{

    "totalCount": "5",

    "result": [

        {

            "id": "6eb4b05a-dc53-4921-a490-574c17de6bed",

            "name": "demo",

            "organizationID": "1",

            "networkServerID": "1",

            "createdAt": "2022-04-04T04:40:55.552639Z",

            "updatedAt": "2022-05-01T07:43:00.861773Z",

            "networkServerName": "local_ns"

        },



    ]

}

#post请求 api/device-profiles

携带：{

  "deviceProfile":{

    "name":"ClassA_OTAA",

    "networkServerID":"1",

    "macVersion":"1.0.2",

    "regParamsRevision":"A",

    "supportsJoin":true,

    "organizationID":"1"

  }

}

返回id号

"id": "6eb4b05a-dc53-4921-a490-574c17de6bed",

查看单个设备GET /api/device-profiles/{id}

{

    "deviceProfile": {

        "id": "d7befbe6-926f-42d5-84f4-767a175fd2e2",

        "name": "ClassA_OTAA",

        "organizationID": "1",

        "networkServerID": "1",

        "supportsClassB": false,

        "classBTimeout": 0,

        "pingSlotPeriod": 0,

        "pingSlotDR": 0,

        "pingSlotFreq": 0,

        "supportsClassC": false,

        "classCTimeout": 0,

        "macVersion": "1.0.2",

        "regParamsRevision": "A",

        "rxDelay1": 0,

        "rxDROffset1": 0,

        "rxDataRate2": 0,

        "rxFreq2": 0,

        "factoryPresetFreqs": [],

        "maxEIRP": 0,

        "maxDutyCycle": 0,

        "supportsJoin": true,

        "rfRegion": "CN470",

        "supports32BitFCnt": false,

        "payloadCodec": "",

        "payloadEncoderScript": "",

        "payloadDecoderScript": "",

        "geolocBufferTTL": 0,

        "geolocMinBufferSize": 0,

        "tags": {},

        "uplinkInterval": "0s",

        "adrAlgorithmID": ""

    },

    "createdAt": "2023-04-05T08:23:15.931011Z",

    "updatedAt": "2023-04-05T08:23:15.931011Z"

}

更新put api/device-profiles/d7befbe6-926f-42d5-84f4-767a175fd2e2

携带数据：

{

  "deviceProfile":{

    "name":"qq", 修改的，下面也都可以修改

    "networkServerID":"1",

    "macVersion":"1.0.2",

    "regParamsRevision":"A",

    "supportsJoin":true,

    "organizationID":"1"

  }

}



 上面是更新后的

#delete 删除  api/device-profiles/d7befbe6-926f-42d5-84f4-767a175fd2e2带着id
返回空



{ "totalCount": "4", "result": [ { "id": "6eb4b05a-dc53-4921-a490-574c17de6bed", "name": "demo", "organizationID": "1", "networkServerID": "1", "createdAt": "2022-04-04T04:40:55.552639Z", "updatedAt": "2022-05-01T07:43:00.861773Z", "networkServerName": "local_ns" }, { "id": "c64fa28f-d987-4e63-a68f-5afa4ed193b3", "name": "deviceprofileABP_C", "organizationID": "1", "networkServerID": "1", "createdAt": "2022-04-04T04:40:55.564646Z", "updatedAt": "2022-04-04T04:40:55.564646Z", "networkServerName": "local_ns" }, { "id": "1e67ab3f-de6b-432a-8ad4-ead3f76ac3cf", "name": "deviceprofileOTAA", "organizationID": "1", "networkServerID": "1", "createdAt": "2022-04-04T04:40:55.570641Z", "updatedAt": "2022-04-04T04:40:55.570641Z", "networkServerName": "local_ns" }, { "id": "a9cd4fc0-0cce-41df-95af-8d4ce528cfab", "name": "deviceprofileOTAA_C", "organizationID": "1", "networkServerID": "1", "createdAt": "2022-04-04T04:40:55.575642Z", "updatedAt": "2022-04-04T04:40:55.575642Z", "networkServerName": "local_ns" } ] }
