CSLA.NET快速入门系列——实现DataPortal扩展（二）

在 CSLA.NET快速入门系列——实现DataPortal扩展（一） 中我们介绍了实现DataPortal扩展的步骤和DataPortal扩展实际的流程，并提出一个实际DataPortal扩展需求。

在要本篇中我们介绍第一步骤：实现Csla.DataPortalClient.IDataPortalProxy

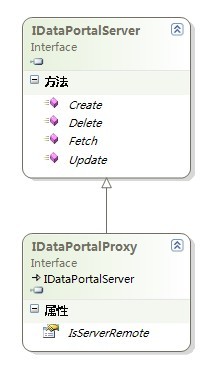

IDataPortalProxy接口包含1个属性和四个方法：



// 摘要:
        //     Get a value indicating whether this proxy will invoke a remote data portal
        //     server, or run the "server-side" data portal in the caller's process and
        //     AppDomain.
bool IsServerRemote { get; }
// 摘要:
        //     Create a new business object.
        //
        // 参数:
        //   objectType:
        //     Type of business object to create.
        //
        //   criteria:
        //     Criteria object describing business object.
        //
        //   context:
        //     Csla.Server.DataPortalContext object passed to the server.
        DataPortalResult Create(Type objectType, object criteria, DataPortalContext context);
        //
        // 摘要:
        //     Delete a business object.
        //
        // 参数:
        //   objectType:
        //     Type of business object to create.
        //
        //   criteria:
        //     Criteria object describing business object.
        //
        //   context:
        //     Csla.Server.DataPortalContext object passed to the server.
        DataPortalResult Delete(Type objectType, object criteria, DataPortalContext context);
        //
        // 摘要:
        //     Get an existing business object.
        //
        // 参数:
        //   objectType:
        //     Type of business object to retrieve.
        //
        //   criteria:
        //     Criteria object describing business object.
        //
        //   context:
        //     Csla.Server.DataPortalContext object passed to the server.
        DataPortalResult Fetch(Type objectType, object criteria, DataPortalContext context);
        //
        // 摘要:
        //     Update a business object.
        //
        // 参数:
        //   obj:
        //     Business object to update.
        //
        //   context:
        //     Csla.Server.DataPortalContext object passed to the server.
        DataPortalResult Update(object obj, DataPortalContext context);



其中四个方法返回的都是Csla.Server.DataPortalResult类型，在Csla的DataPortal框架中可以接收这种类型的结果并更新业务对象的状态。



由于 1、采用远程DataPortal，以Wcf作为客户端和服务端连接的方式，需要定义一个wcf的服务契约：

定义四个方法分别用来传送IDataPortalProxy接口相应的方法，

又由于 2、业务对象在移动过程中采用二进制序列化的方式，因此，此契约的参数和返回值必须包含二进制序列化数据。

代码如下：



using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using Csla.Server.Hosts.WcfChannel;

namespace ITLead.CslaExtend.Server.Hosts
{
    /// <summary>
    /// WcfPortal扩展接口
    /// </summary>
  [ServiceContract(Namespace = "http://www.itlead.com.cn/extendwcfportal")]
  public interface IExtendWcfPortal
  {
      /// <summary>
      /// 创建业务对象
      /// </summary>
      /// <param name="request"></param>
      /// <returns></returns>
    [OperationContract]
    [UseNetDataContract]
    WcfResponse Create(CriteriaRequest request);

      /// <summary>
      /// 获取业务对象
      /// </summary>
      /// <param name="request"></param>
      /// <returns></returns>
    [OperationContract]
    [UseNetDataContract]
    WcfResponse Fetch(CriteriaRequest request);

      /// <summary>
      /// 更新业务对象
      /// </summary>
      /// <param name="request"></param>
      /// <returns></returns>
    [OperationContract]
    [UseNetDataContract]
    WcfResponse Update(UpdateRequest request);

      /// <summary>
      /// 删除业务对象
      /// </summary>
      /// <param name="request"></param>
      /// <returns></returns>
    [OperationContract]
    [UseNetDataContract]
    WcfResponse Delete(CriteriaRequest request);
  }
}

契约中的参数我们在下篇再做说明。



现在，我们可以实现自己的DataPortalProxy类：

代码如下：



using System;
using System.ServiceModel;
using Csla.Server;
using Csla.Serialization;
using Csla.Core;
using Csla;
using ITLead.CslaExtend.Server.Hosts;

namespace ITLead.CslaExtend.DataPortalClient
{
    /// <summary>
    /// 二进制序列化wcf服务代理
    /// </summary>
    public class BFWcfProxy : Csla.DataPortalClient.IDataPortalProxy
    {
        #region IDataPortalProxy Members

        /// <summary>
        /// 获取服务器是否在远程，始终返回真
        /// </summary>
        public bool IsServerRemote
        {
            get { return true; }
        }

        #endregion

        #region IDataPortalServer Members

        private string _endPoint = "BFWcfDataPortal";

        /// <summary>
        /// WCF EndPoint
        /// </summary>
        /// <remarks>
        /// 默认为BFWcfDataPortal
        /// </remarks>
        protected　virtual string EndPoint
        {
            get
            {
                return _endPoint;
            }
            set
            {
                _endPoint = value;
            }
        }

        /// <summary>
        /// 获取通道工厂
        /// </summary>
        /// <remarks>为了保持和Csla一致，也可以配置DataPortalUrl</remarks>
        protected virtual ChannelFactory<IExtendWcfPortal> GetChannelFactory()
        {
            if (!string.IsNullOrEmpty(ApplicationContext.DataPortalUrlString))
            {
                var binding = new WSHttpBinding()
                {
                    MaxReceivedMessageSize = int.MaxValue,
                    ReaderQuotas = new System.Xml.XmlDictionaryReaderQuotas()
                    {
                        MaxBytesPerRead = int.MaxValue,
                        MaxDepth = int.MaxValue,
                        MaxArrayLength = int.MaxValue,
                        MaxStringContentLength = int.MaxValue,
                        MaxNameTableCharCount = int.MaxValue
                    }
                };
                return new ChannelFactory<IExtendWcfPortal>(binding, new EndpointAddress(ApplicationContext.DataPortalUrl));
            }
            return new ChannelFactory<IExtendWcfPortal>(EndPoint);
        }

        /// <summary>
        ///　获取WcfDataPortal的代理
        /// </summary>
        /// <param name="cf">
        /// 通过GetChannelFactory()方法创建的通道工厂
        /// </param>
        protected virtual IExtendWcfPortal GetProxy(ChannelFactory<IExtendWcfPortal> cf)
        {
            return cf.CreateChannel();
        }

        /// <summary>
        /// 创建业务对象
        /// </summary>
        /// <param name="objectType">要创建的业务对象类型</param>
        /// <param name="criteria">描述要创建的业务对象的Criteria对象</param>
        /// <param name="context">
        /// <see cref="Server.DataPortalContext" /> 要传递的DataPortal服务器的上下文.
        /// </param>
        public DataPortalResult Create(Type objectType, object criteria, DataPortalContext context)
        {
            ChannelFactory<IExtendWcfPortal> cf = GetChannelFactory();
            IExtendWcfPortal svr = GetProxy(cf);
            WcfResponse response = null;
            ISerializationFormatter formatter = SerializationFormatterFactory.GetFormatter();
            try
            {
                response =
                  svr.Create(GetRequest(formatter, objectType, criteria, context));
                if (cf != null)
                    cf.Close();
            }
            catch
            {
                cf.Abort();
                throw;
            }
            DataPortalResult result = GetResult(formatter, response);
            Exception error = (Exception)formatter.Deserialize(response.Error);
            if (error != null)
            {
                throw error;
            }
            return result;
        }

        /// <summary>
        /// 获取业务对象
        /// </summary>
        /// <param name="objectType">要获取的业务对象类型</param>
        /// <param name="criteria">描述要获取的业务对象的Criteria对象</param>
        /// <param name="context">
        /// <see cref="Server.DataPortalContext" /> 要传递的DataPortal服务器的上下文
        /// </param>
        public DataPortalResult Fetch(Type objectType, object criteria, DataPortalContext context)
        {
            ChannelFactory<IExtendWcfPortal> cf = GetChannelFactory();
            IExtendWcfPortal svr = GetProxy(cf);
            WcfResponse response = null;
            ISerializationFormatter formatter = SerializationFormatterFactory.GetFormatter();
            try
            {
                response =
                       svr.Fetch(GetRequest(formatter, objectType, criteria, context));
                if (cf != null)
                    cf.Close();
            }
            catch
            {
                cf.Abort();
                throw;
            }
            DataPortalResult result = GetResult(formatter, response);
            Exception error = (Exception)formatter.Deserialize(response.Error);
            if (error != null)
            {
                throw error;
            }
            return result;
        }

        /// <summary>
        /// 更新业务对象
        /// </summary>
        /// <param name="obj">要更新的业务对象</param>
        /// <param name="context">
        /// <see cref="Server.DataPortalContext" /> 要传递的DataPortal服务器的上下文
        /// </param>
        public DataPortalResult Update(object obj, DataPortalContext context)
        {
            ChannelFactory<IExtendWcfPortal> cf = GetChannelFactory();
            IExtendWcfPortal svr = GetProxy(cf);
            WcfResponse response = null;
            ISerializationFormatter formatter = SerializationFormatterFactory.GetFormatter();
            try
            {
                response =
                      svr.Update(GetRequest(formatter, obj, context));
                if (cf != null)
                    cf.Close();
            }
            catch
            {
                cf.Abort();
                throw;
            }


            DataPortalResult result = GetResult(formatter, response);
            Exception error = (Exception)formatter.Deserialize(response.Error);
            if (error != null)
            {
                throw error;
            }
            return result;
        }

        /// <summary>
        /// 删除业务对象
        /// </summary>
        /// <param name="objectType">要删除的业务对象类型</param>
        /// <param name="criteria">描述要删除的业务对象的Criteria对象</param>
        /// <param name="context">
        /// <see cref="Server.DataPortalContext" /> 要传递的DataPortal服务器的上下文
        /// </param>
        public DataPortalResult Delete(Type objectType, object criteria, DataPortalContext context)
        {
            ChannelFactory<IExtendWcfPortal> cf = GetChannelFactory();
            IExtendWcfPortal svr = GetProxy(cf);
            WcfResponse response = null;
            ISerializationFormatter formatter = SerializationFormatterFactory.GetFormatter();
            try
            {
                response =
                      svr.Delete(GetRequest(formatter, objectType, criteria, context));
                if (cf != null)
                    cf.Close();
            }
            catch
            {
                cf.Abort();
                throw;
            }
            DataPortalResult result = GetResult(formatter, response);
            Exception error = (Exception)formatter.Deserialize(response.Error);
            if (error != null)
            {
                throw error;
            }
            return result;
        }

        #endregion

        /// <summary>
        /// 获取请求CriteriaRequest对象
        /// </summary>
        /// <param name="formatter">序列化器</param>
        /// <param name="objectType">业务对象类型</param>
        /// <param name="criteria">Criteria对象</param>
        /// <param name="context">要发送到DataPortal的上下文对象</param>
        /// <returns></returns>
        private CriteriaRequest GetRequest(ISerializationFormatter formatter, Type objectType, object criteria, DataPortalContext context)
        {
            CriteriaRequest request = new CriteriaRequest();
            request.ClientContext = formatter.Serialize(Csla.ApplicationContext.ClientContext);
            request.ClientCulture = System.Threading.Thread.CurrentThread.CurrentCulture.Name;
            request.ClientUICulture = System.Threading.Thread.CurrentThread.CurrentUICulture.Name;
            request.CriteriaData = formatter.Serialize(criteria);
            request.GlobalContext = formatter.Serialize(Csla.ApplicationContext.GlobalContext);
            if (Csla.ApplicationContext.User is System.Security.Principal.WindowsPrincipal)
            {

            }
            else
            {
                request.Principal = formatter.Serialize(Csla.ApplicationContext.User);
            }
            request.TypeName = objectType.AssemblyQualifiedName;
            request = ConvertRequest(request);
            return request;
        }

        /// <summary>
        /// 获取请求UpdateRequest对象
        /// </summary>
        /// <param name="formatter">序列化器</param>
        /// <param name="obj">要更新的业务对象</param>
        /// <param name="context">要发送到DataPortal的上下文对象</param>
        /// <returns></returns>
        private UpdateRequest GetRequest(ISerializationFormatter formatter, object obj, DataPortalContext context)
        {
            UpdateRequest request = new UpdateRequest();
            request.ClientContext = formatter.Serialize(Csla.ApplicationContext.ClientContext);
            request.ClientCulture = System.Threading.Thread.CurrentThread.CurrentCulture.Name;
            request.ClientUICulture = System.Threading.Thread.CurrentThread.CurrentUICulture.Name;
            request.GlobalContext = formatter.Serialize(Csla.ApplicationContext.GlobalContext);
            if (Csla.ApplicationContext.User is System.Security.Principal.WindowsPrincipal)
            {

            }
            else
            {
                request.Principal = formatter.Serialize(Csla.ApplicationContext.User);
            }
            request.ObjectData = formatter.Serialize(obj);
            request = ConvertRequest(request);
            return request;
        }

        /// <summary>
        /// 获取DataPortalResult对象
        /// </summary>
        /// <param name="formatter">序列化器</param>
        /// <param name="response">响应</param>
        /// <returns></returns>
        private DataPortalResult GetResult(ISerializationFormatter formatter, WcfResponse response)
        {
            response = ConvertResponse(response);
            object result = formatter.Deserialize(response.ObjectData);
            ContextDictionary globalContext = (ContextDictionary)formatter.Deserialize(response.GlobalContext);
            DataPortalResult returnValue = new DataPortalResult(result, globalContext);
            return returnValue;
        }

        /// <summary>
        /// 转换WcfResponse
        /// </summary>
        /// <param name="response"></param>
        /// <returns></returns>
        /// <remarks>默认不做转换</remarks>
        protected virtual WcfResponse ConvertResponse(WcfResponse response)
        {
            return response;
        }

        /// <summary>
        /// 转换CriteriaRequest
        /// </summary>
        /// <param name="request"></param>
        /// <returns>默认不做转换</returns>
        protected virtual CriteriaRequest ConvertRequest(CriteriaRequest request)
        {
            return request;
        }

        /// <summary>
        /// 转换UpdateRequest
        /// </summary>
        /// <param name="request"></param>
        /// <returns>默认不做转换</returns>
        protected virtual UpdateRequest ConvertRequest(UpdateRequest request)
        {
            return request;
        }


    }
}

由于我们需要远程访问DataPortal,因此，IsServerRemote属性始终为true。

为了方便快速配置，我们定义Endpoint属性。

为了能在此基础上做进一步的传送参数处理，定义了ConvertXYZ的虚方法，这样子类就可以在序列化的基础上做进一步的传输处理。
