docker部署zabbix7

centos7.9

zabbix7



1、服务器准备

安装docker（略）

docker pull mysql:8

docker pull zabbix/zabbix-server-mysql

docker pull zabbix/zabbix-web-nginx-mysql

docker pull zabbix/zabbix-java-gateway

docker pull zabbix/zabbix-agent



创建网桥zabbix-net

docker network create --subnet 172.20.10.0/16 --ip-range 172.20.10.10/20 zabbix-net



2、创建zabbix数据库容器

docker run --name zabbix-database-mysql -itd -e MYSQL_DATABASE="zabbix" -e MYSQL_USER="zabbix" -e MYSQL_PASSWORD="123#888" -e MYSQL_ROOT_PASSWORD="123456" -e TZ="Asia/Shanghai" --network=zabbix-net --ip=172.20.10.11 --restart=always --privileged=true mysql --character-set-server=utf8 --collation-server=utf8_bin



3、创建zabbix-gateway容器

docker run --name zabbix-java-gateway -itd -e TZ="Asia/Shanghai" --network=zabbix-net --ip=172.20.10.12 --restart=always --privileged=true zabbix/zabbix-java-gateway



4、创建zabbix-server容器

docker run --name zabbix-server-mysql -itd -e DB_SERVER_HOST="zabbix-database-mysql" -e MYSQL_DATABASE="zabbix" -e MYSQL_USER="zabbix" -e MYSQL_PASSWORD="123#888" -e MYSQL_ROOT_PASSWORD="123456" -e ZBX_JAVAGATEWAY="zabbix-java-gateway" -e TZ="Asia/Shanghai" --network=zabbix-net --ip=172.20.10.13 -p 10051:10051 --restart=always --privileged=true zabbix/zabbix-server-mysql



5、创建zabbix-web容器

docker run --name zabbix-web-nginx-mysql -itd -e ZBX_SERVER_HOST="zabbix-server-mysql" -e DB_SERVER_HOST="zabbix-database-mysql" -e MYSQL_DATABASE="zabbix" -e MYSQL_USER="zabbix" -e MYSQL_PASSWORD="sData#888" -e MYSQL_ROOT_PASSWORD="123456" -e TZ="Asia/shanghai" -e PHP_TZ="Asia/shanghai" --network=zabbix-net --ip=172.20.10.14 -p 88:8080 --restart=always --privileged=true zabbix/zabbix-web-nginx-mysql



6、创建zabbix-agent容器

docker run -itd --name zabbix-agent -e ZBX_SERVER_HOST="zabbix-server-mysql" -e ZBX_HOSTNAME="Zabbix server" -e TZ="Asia/shanghai" --network=zabbix-net --ip=172.20.10.15 -p 10050:10050 --restart=always --privileged=true zabbix/zabbix-agent

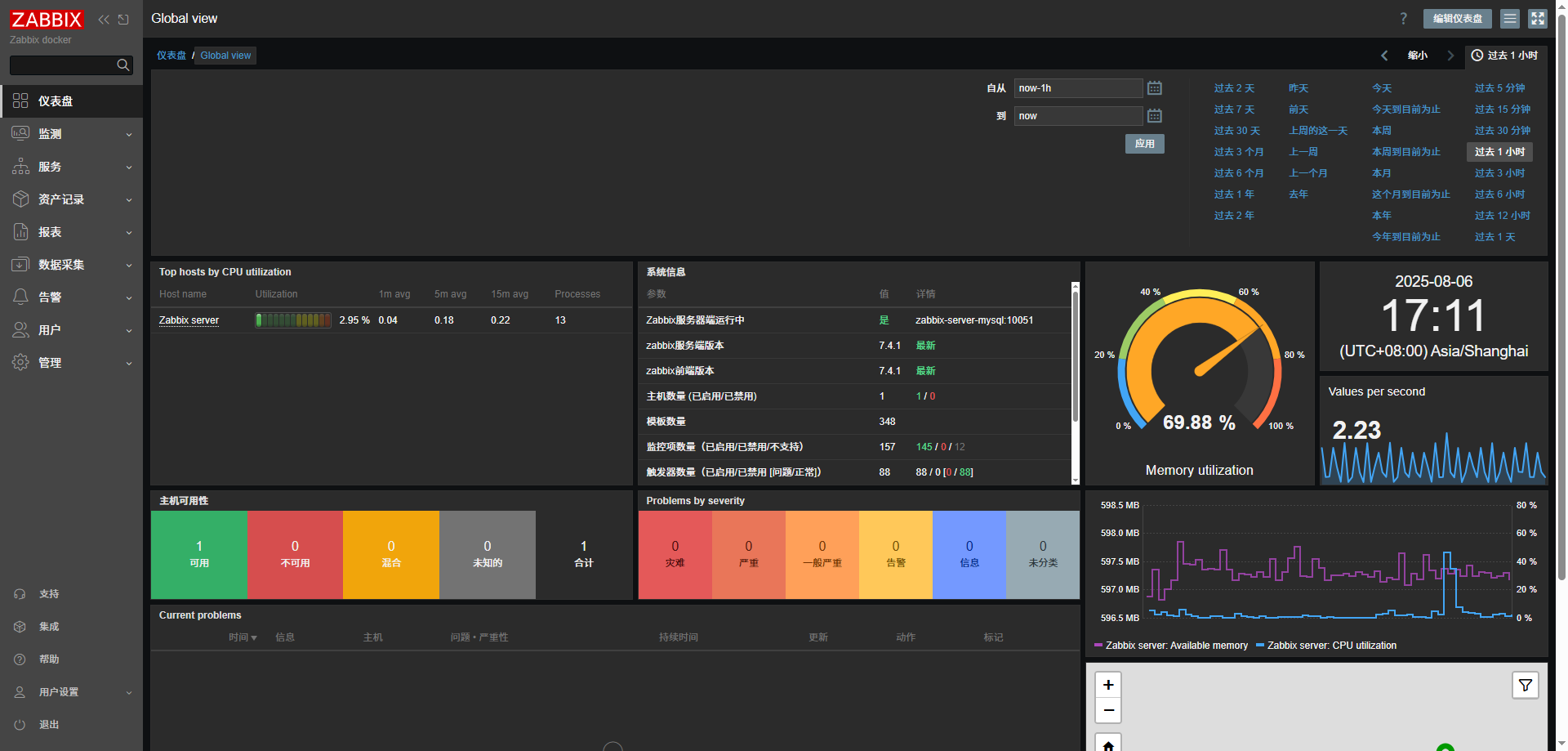

7、浏览器访问

https://ip:88

Admin zabbix





8、修改图形的字体

注：可提前拷贝Windows系统的字体上传到系统：/srv/simsun.ttc



备份zabbix自带字体

# docker exec -it -u root zabbix-web-nginx-mysql bash

bash-5.1# mv /usr/share/zabbix/assets/fonts/DejaVuSans.ttf /usr/share/zabbix/assets/fonts/DejaVuSans.ttf.bak

bash-5.1# exit



拷贝字体到zabbix容器

# docker cp /srv/simsun.ttc zabbix-web-nginx-mysql:/usr/share/zabbix/assets/fonts/DejaVuSans.ttf

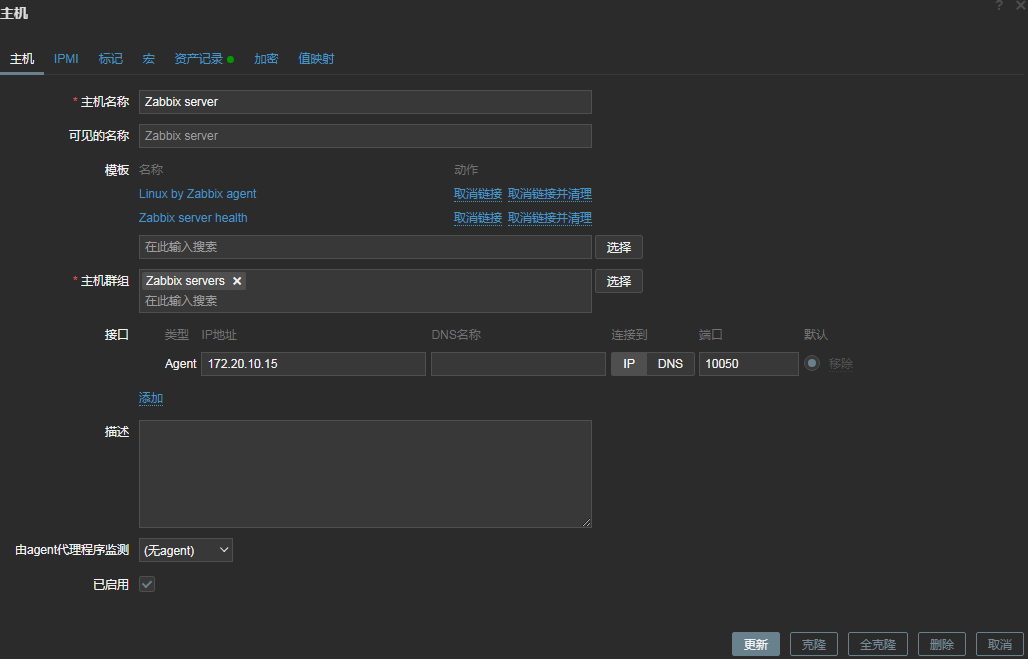

9、修改 Zabbix server 的IP地址为agent地址 172.20.10.15



 10、被监控主机 192.168.124.191 安装docker

docker pull zabbix/zabbix-agent

docker run -itd --name zabbix-agent-191 -e ZBX_SERVER_HOST="192.168.10.11" -e ZBX_HOSTNAME="zabbix191" -e TZ="Asia/shanghai" -p 10050:10050 --restart=always --privileged=true zabbix/zabbix-agent



# docker exec -it -u root zabbix-agent-191 /bin/bash

bash-5.1# cat /etc/zabbix/zabbix_agentd.conf | grep -vE "^$|^#"

LogType=console

Server=192.168.10.11

ServerActive=192.168.10.11:10051

Hostname=zabbix191

User=zabbix

Include=/etc/zabbix/zabbix_agentd.d/*.conf

LoadModulePath=/var/lib/zabbix/modules/
