5.Hive整合Hbase

0.系统版本信息

OS：Debian-8.2
Jdk：1.8.0_181
hadoop:2.8.4
zookeeper:3.4.10
hbase:1.4.6
hive:2.3.3

主机信息

192.168.74.131  master
192.168.74.133  slave1
192.168.74.134  slave2
192.168.74.135  slave3

1.修改hive配置文件，需要hadoop，zookeeper，hbase全都启动，创建相关的测试表

A:hive-site.xml文件添加配置

<property>
    <name>hbase.zookeeper.quorum</name>
    <value>master,slave1,slave2,slave3</value>
    <description></description>
</property>

B:在hive安装目录bin下执行./hive

cd /home/hadoop/opt/hive-2.3.3/bin
./hive

#或者执行
/home/hadoop/opt/hive-2.3.3/bin/hive

C:创建hbase识别的表

hive>
CREATE TABLE hbase_table_1(key int, value string)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES ("hbase.columns.mapping" = ":key,cf1:val")
TBLPROPERTIES ("hbase.table.name" = "table_1");

D:hbase shell：list发现有新创建的table_1

2.hbase表不存在，然后通过hive创建关联表，插入数据进行测试

主要有两种方式

　　1：通过hive插入数据，在hbase中可以查到相关数据

　　2：通过hbase插入数据，在hive中可以查询到

A:在hive中创建临时表导入数据

hive> create table ccc(foo int,bar string) row format delimited fields terminated by '\t' lines terminated by '\n' stored as textfile;



B:创建数据文件data.txt

touch /home/hadoop/software/data.txt
vim data.txt
1   zhangsan
2   lisi
3   wangwu

C:将数据导入临时的hive表中，数据字段之间是tab键分隔，数据条数之间使用换行符分隔

hive>load data local inpath '/home/hadoop/software/data.txt' overwrite into table ccc;

D:将临时表中的数据导入到hbase中

hive> insert overwrite table hbase_table_1 select * from ccc where foo=1;

E:在hbas-shell中查看数据是否插入成功

这样就说明了插入通过hive插入的数据实际上最后保存到了habse的表中去了

下面证明的通过hbase插入的记录也可以通过hive查询出来，在hbase-shell中插入数据

hbase>put 'table_1','4','cf1:val','zhaoliu'
hbase>scan 'table_1'

hive>select * from hbase_table_1;

3.hbase表存在，然后通过hive创建关联表，插入数据进行测试

A:在hbase-shell中创建新的表，并插入新的数据

hbase>create 'student','info'
hbase>put "student",'1','info:name','tom'
hbase>put "student",'2','info:name','lily'
hbase>put "student",'3','info:name','wwn'
hbase>scan 'student'

B:创建hive关联关系表读取hbase中的数据

hive>CREATE EXTERNAL TABLE hbase_table_2(key int, value string)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES ("hbase.columns.mapping" = "info:name")
TBLPROPERTIES("hbase.table.name" = "student");

4.hive和hbase多列多族的问题

下面在hbase中创建这样一张表customer

rowkey	address			info		contact
	province	city	country	age	company	phone
zhangsan	hubei	wuhan	china	24	douyu	101
lisi	guangdong	guangzhou	china	24	netease	102









hbase>create 'customer','address','info', 'contact'

hbase>put 'customer','zhangsan','contact:phone','101'
hbase>put 'customer','zhangsan','address:province','hubie'
hbase>put 'customer','zhangsan','address:city','wuhan'
hbase>put 'customer','zhangsan','address:country','china'
hbase>put 'customer','zhangsan','info:age','24'
hbase>put 'customer','zhangsan','info:company','douyu'

hbase>put 'customer','lisi','contact:phone','102'
hbase>put 'customer','lisi','address:province','guangdong'
hbase>put 'customer','lisi','address:city','guangzhou'
hbase>put 'customer','lisi','address:country','china'
hbase>put 'customer','lisi','info:age','24'
hbase>put 'customer','lisi','info:company','netease'

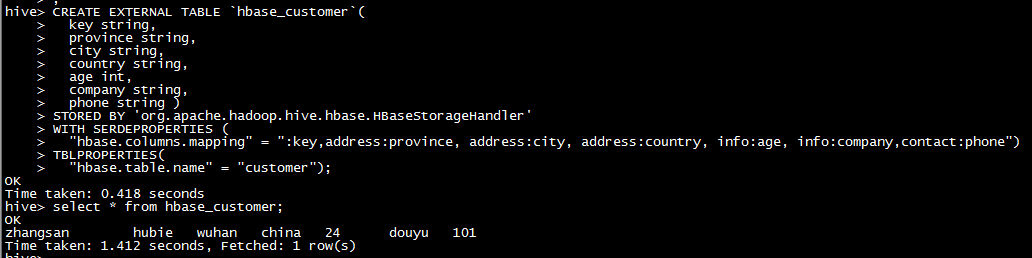

CREATE EXTERNAL TABLE `hbase_customer`(
  key string,
  province string,
  city string,
  country string,
  age int,
  company string,
  phone string )
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler'
WITH SERDEPROPERTIES (
  "hbase.columns.mapping" = ":key,address:province, address:city, address:country, info:age, info:company,contact:phone")
TBLPROPERTIES(
  "hbase.table.name" = "customer");
