逻辑回归

数据

吴恩达老师的数据
数据来源

logistics_regression介绍

线性二分类模型：有一个线性决策面，用sigmoid函数来计算后验概率 ，是判别模型

假设函数

代价函数

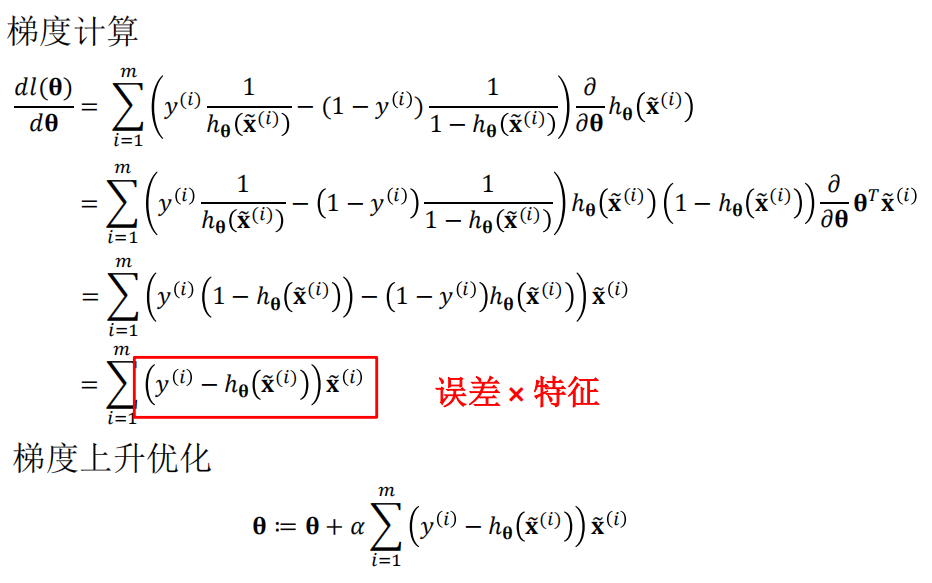

梯度计算

代码实现

import numpy as np
import math
import matplotlib.pyplot as plt
import random

#获取数据
def getData():
    X=[]
    Y=[]
    X0=[]
    X1=[]
    X2=[]
    Y0=[]
    with open("./ex4Data/ex4x.dat") as f:
        for line in f.readlines():
            data =line.split('\n\t')
            for str0 in data:
                sub_str = str0.split(' ')
            if sub_str:
                X.append(sub_str)
    for i in range(0,80):
        X0.append(float(1))
        X1.append(float(X[i][3]))
        X2.append(float(X[i][6]))
    X=[X0,X1,X2]
    with open("./ex4Data/ex4y.dat") as f2:
        for line in f2.readlines():
            data =line.split('\n\t')
            for str0 in data:
                sub_str=str0.split(' ')
            if sub_str:
                Y0.append(sub_str)
    for i in range(0,80):
        Y.append(float(Y0[i][3]))

    xMat=np.mat(X).T
    yMat=np.mat(Y).T
    x0Mat=np.mat(X0)
    return xMat,yMat,x0Mat

xMat,yMat,x0Mat=getData()
#损失函数
def cost(xMat,yMat,weights):
    m,n=xMat.shape
    hypothesis=1/( np.exp( -np.dot(xMat,weights) )+1 )
    cost=(-1/m)*(np.sum(yMat.T*np.log(hypothesis)+(x0Mat-yMat).T*np.log(x0Mat-hypothesis)))
    return cost

#批处理
def Training(xMat,yMat,alpha=0.01,maxepochs=200,epslion=0.001):
    m,n=xMat.shape
    weights=np.zeros((n,1))#weights 3*1
    weights[0]=[-16] #如果各个参数为0的话，需要跑二十万轮才会出现结果，因此将参数初始为接近答案，以减小过程

    while epochs_count<maxepochs:
        loss=cost(xMat,yMat,weights)
        hypothesis=1/(np.exp( -np.dot(xMat,weights) )+1)
        error=yMat-hypothesis #error 80*1
        grad=(1/m)*np.dot(xMat.T,error)
        weights=weights+alpha*grad#参数更新，梯度下降
        loss_new=cost(xMat,yMat,weights)#weights更新后，损失的值
        if abs(loss_new-loss)<epslion:
            break
        loss_list.append(loss_new)
        epochs_count+=1
        print("第"+str(epochs_count)+"轮，weight0="+str(weights[0])+"，weight1="+str(weights[1])+"，weights2="+str(weights[2]))

    plt.plot(loss_list)
    plt.show()

    return weights

#随机梯度下降  注意：计算损失函数应该使用全部数据集，而求梯度时使用随机数据
def SGD_Training(xMat,yMat,alpha=0.01,maxepochs=200):
    m,n=xMat.shape
    weights=np.zeros((n,1))#weights 3*1
    weights[0]=[-16] #如果各个参数为0的话，需要跑二十万轮才会出现结果，因此将参数初始为接近答案，以减小过程

    epochs_count=0
    loss_list=[]

    while epochs_count<maxepochs:
        i=random.randint(0,m-1)
        data_x=xMat[i]
        data_y=yMat[i]
        loss=cost(xMat,yMat,weights)
        hypothesis=1/(np.exp( -np.dot(data_x,weights) )+1)
        error=data_y-hypothesis #error 80*1
        grad=(1/m)*np.dot(data_x.T,error)
        weights=weights+alpha*grad#参数更新，梯度下降
        loss_new=cost(xMat,yMat,weights)#weights更新后，损失的值
        if abs(loss-loss_new)<0.000001:
            break
        loss_list.append(loss_new)
        epochs_count+=1
        print("第"+str(epochs_count)+"轮，weight0="+str(weights[0])+"，weight1="+str(weights[1])+"，weights2="+str(weights[2]))

    plt.plot(loss_list)
    plt.show()
    return weights

#牛顿法
def Newton_Training(xMat,yMat,maxepochs=200,epslion=0.001):
    m,n=xMat.shape
    weights=np.zeros((n,1))#weights 3*1
    epochs_count=0
    loss_list=[]


    while epochs_count<maxepochs:
        loss=cost(xMat,yMat,weights)
        hypothesis=1/(np.exp( -np.dot(xMat,weights) )+1)
        error=hypothesis-yMat #error 80*1
        grad=(1/m)*np.dot(xMat.T,error) #grad 3*1
        H=(1/m)*xMat.T*np.diag( np.multiply(hypothesis,(1-hypothesis)).T.getA()[0] )*xMat
        weights=weights-np.linalg.pinv(H) *grad#参数更新，梯度下降,注意求H的逆
        loss_new=cost(xMat,yMat,weights)#weights更新后，损失的值
        if abs(loss_new-loss)<epslion:
            break
        loss_list.append(loss_new)
        epochs_count+=1
        print("第"+str(epochs_count)+"轮，weight0="+str(weights[0])+"，weight1="+str(weights[1])+"，weights2="+str(weights[2]))

    plt.plot(loss_list)
    plt.show()

    return weights

#批梯度下降算法
#Weights=Training(xMat,yMat,alpha=0.001,maxepochs=10000,epslion=0.00001)
#随机梯度下降算法
#Weights=SGD_Training(xMat,yMat,alpha=0.001,maxepochs=1000)
#牛顿法
#Weights=Newton_Training(xMat,yMat,maxepochs=10,epslion=0.001)
