docker基础之八monitor-3-weavescope

weave scope

所用镜像
weaveworks/scope:1.11.5

Weave Scope 的最大特点是会自动生成一张 Docker 容器地图，让我们能够直观地理解、监控和控制容器。千言万语不及一张图

安装

curl -L git.io/scope -o /usr/local/bin/scope

chmod a+x /usr/local/bin/scope

[root@nas5 ~]# scope launch
69ebf839c7da58718415464bb11e95cf3b5b85bdd6e3d41d77b0f42c148af1dc
Scope probe started
Weave Scope is listening at the following URL(s):
  * http://10.100.4.105:4040/
  * http://10.1.1.15:4040/

scope launch 将以容器方式启动 Weave Scope。

[root@nas5 ~]# docker ps -a
CONTAINER ID        IMAGE                     COMMAND                  CREATED             STATUS                  PORTS               NAMES
2ac512380650        weaveworks/scope:1.11.5   "/bin/sh -c 'curl -m…"   1 second ago        Created                                     clever_einstein
69ebf839c7da        weaveworks/scope:1.11.5   "/home/weave/entrypo…"   28 seconds ago      Up Less than a second                       weavescope
a16675950610        httpd                     "httpd-foreground"       3 days ago          Up About an hour        80/tcp              httpd
[root@nas5 ~]# docker ps -a
CONTAINER ID        IMAGE                     COMMAND                  CREATED             STATUS              PORTS               NAMES
69ebf839c7da        weaveworks/scope:1.11.5   "/home/weave/entrypo…"   3 minutes ago       Up 2 minutes                            weavescope
a16675950610        httpd                     "httpd-foreground"       3 days ago          Up About an hour    80/tcp              httpd

访问页面：

http://10.1.1.15:4040

容器监控

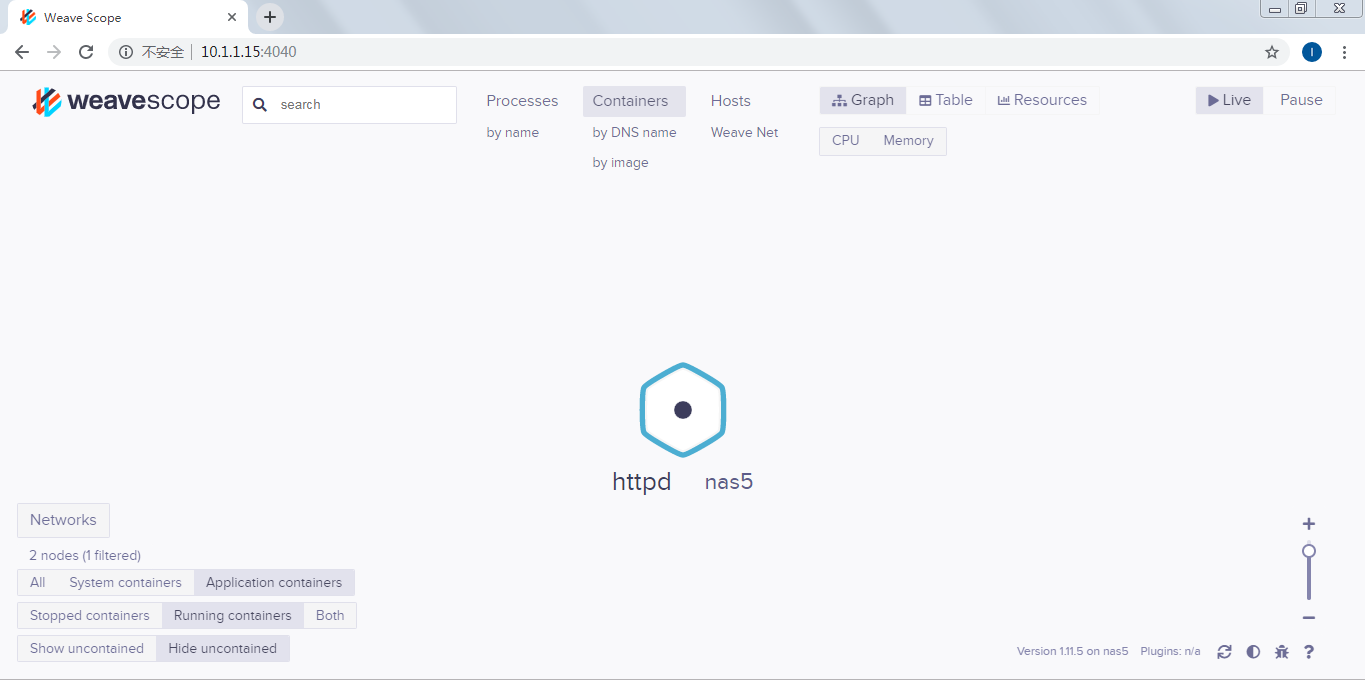

weave scope地图中间显示了host当前运行的容器，不过少了weave相关的容器

weave scope将容器分为两类：weave自己的容器system container,和其它容器application container,默认仅显示后者

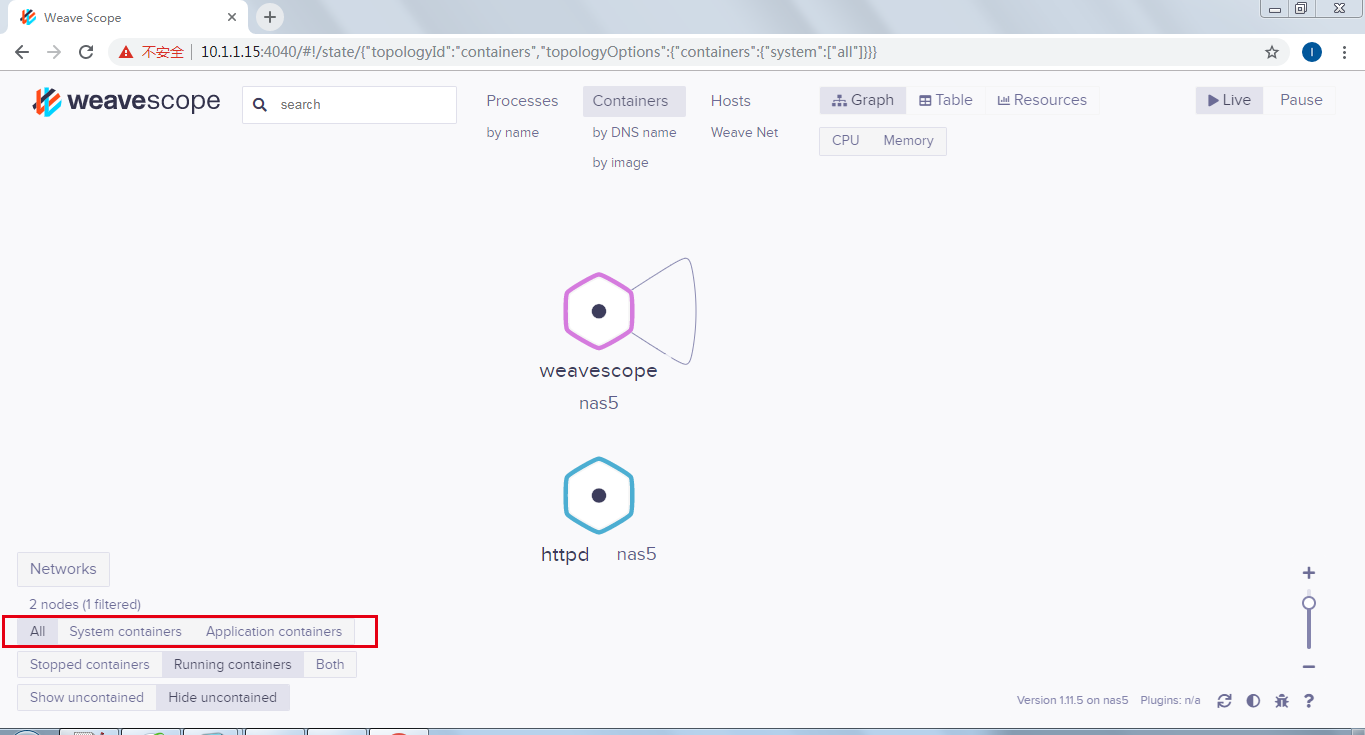

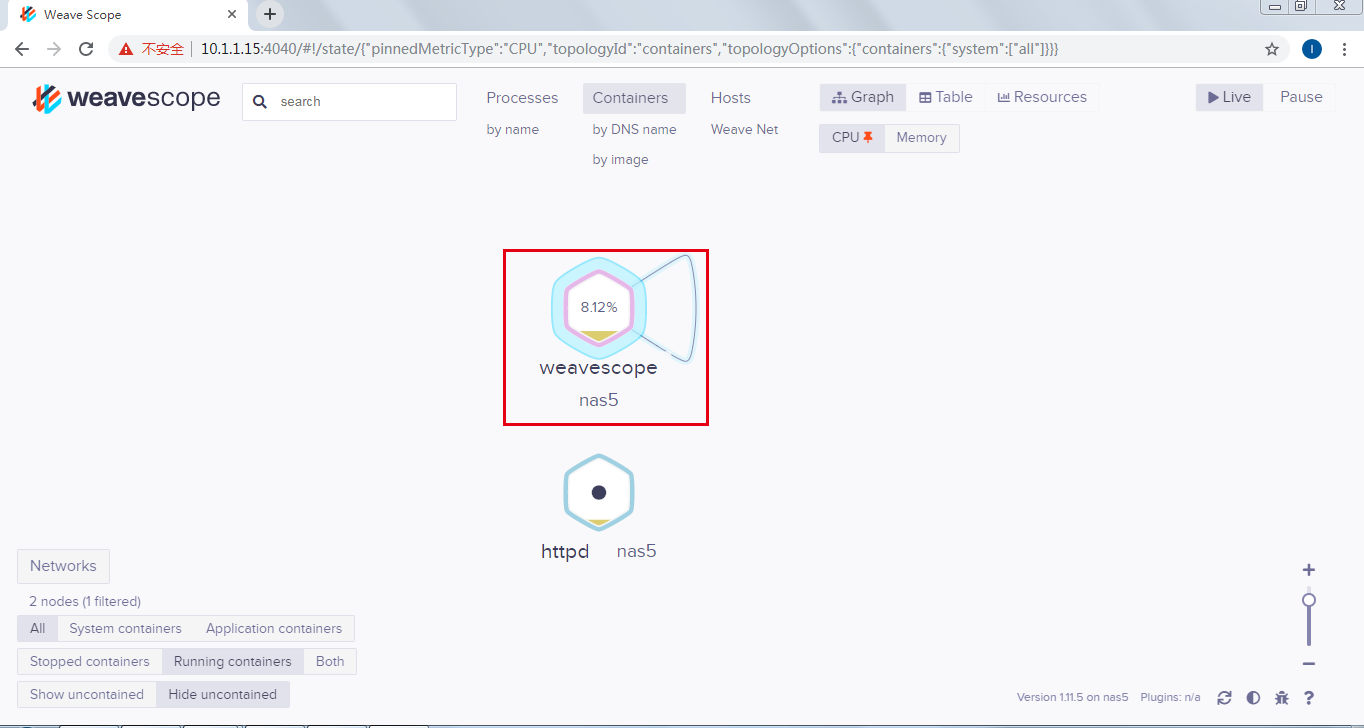

weavescope界面可交互的，点击地图左下角的All可显示所有container

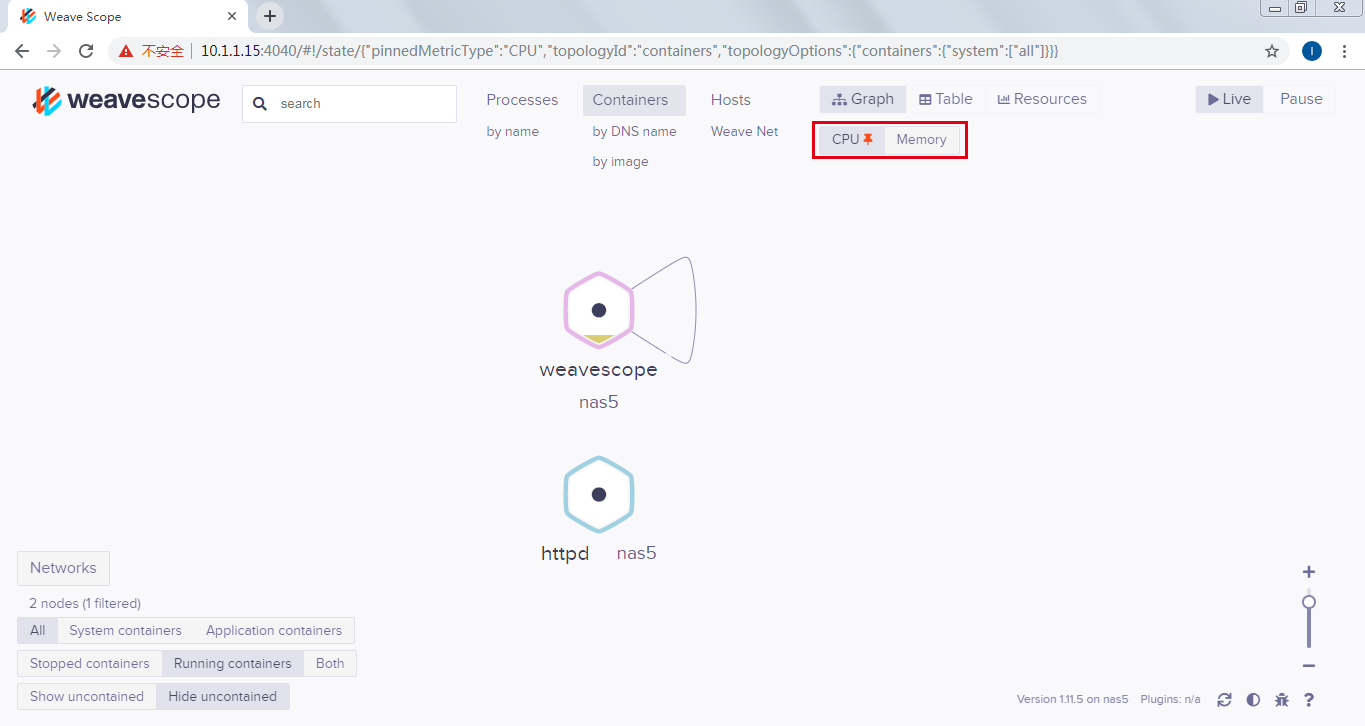

点击cpu选择器，weave scope将以高低水位方式显示容器CPU使用量

如果此时将鼠标放到容器图标，则会显示具体的CPU%

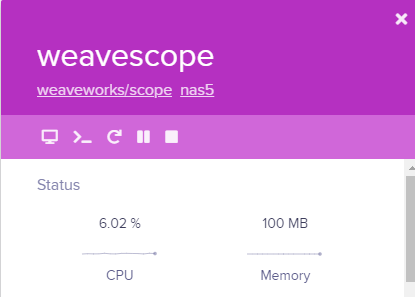

点击容器图标，可以查看容器详细信息

详细信息包括：

Status

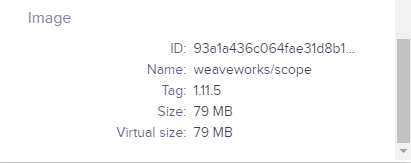

Info

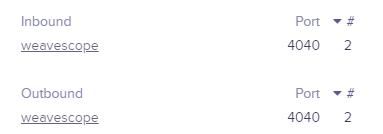

Inbond

Outbond

Processes

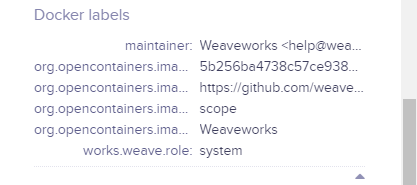

Docker labels


对容器的操作按钮

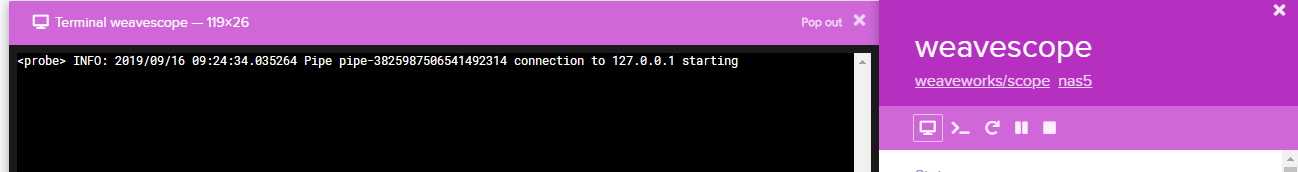

docker container attach

docker container exec

docker container restart

docker container pause

docker container stop

Hosts监控

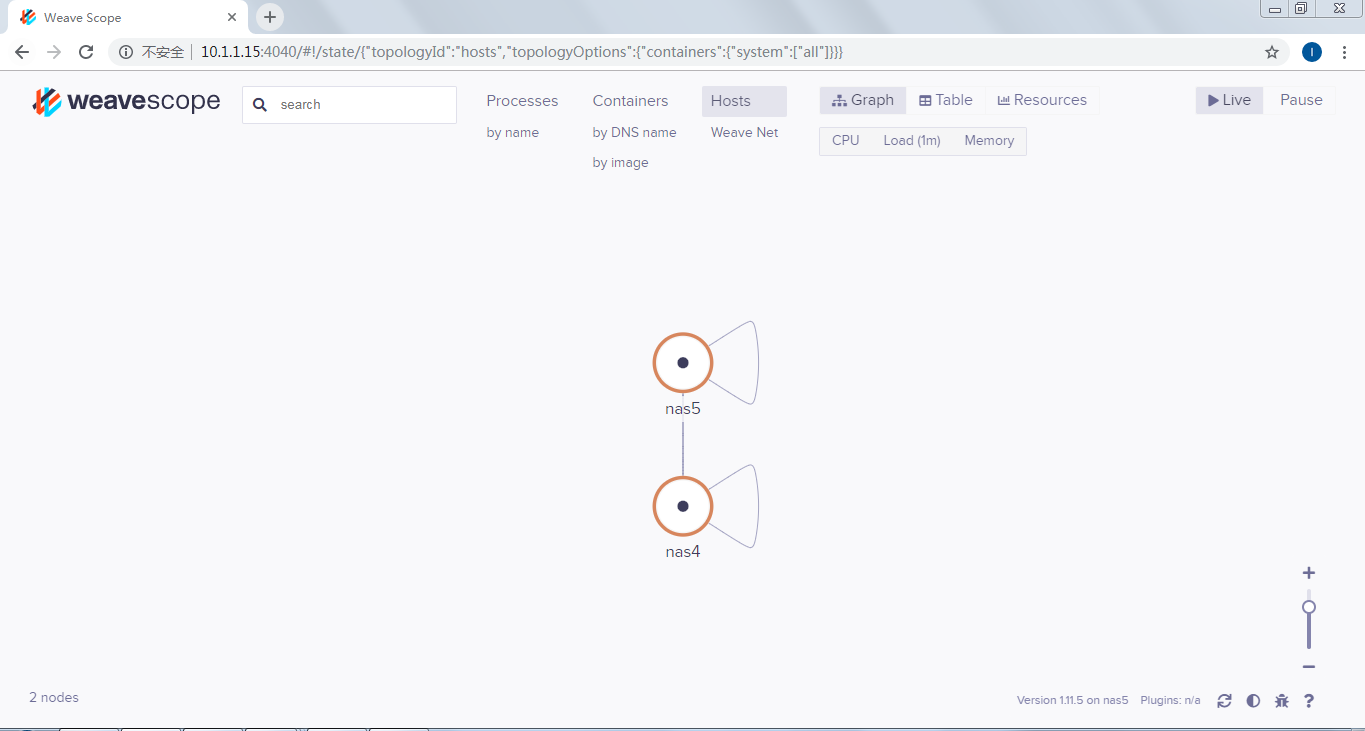

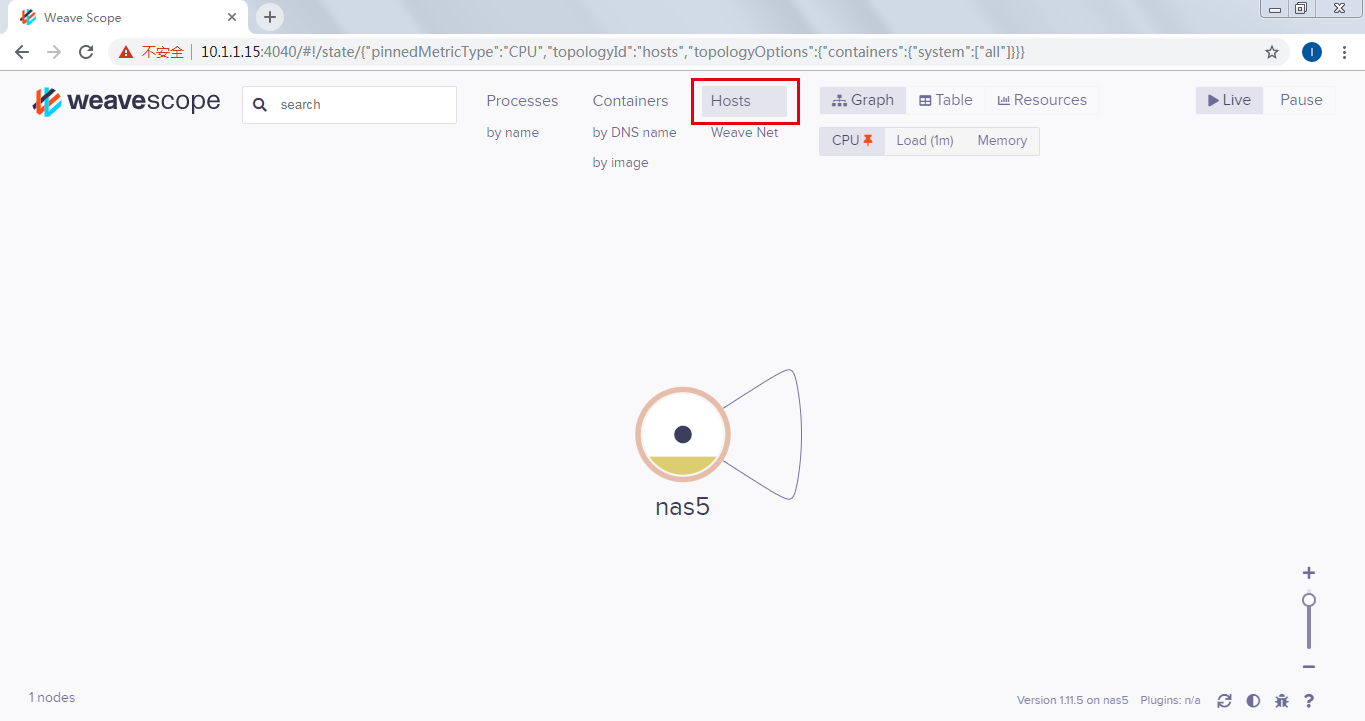

点击顶部Hosts菜单项，地图将显示当前host

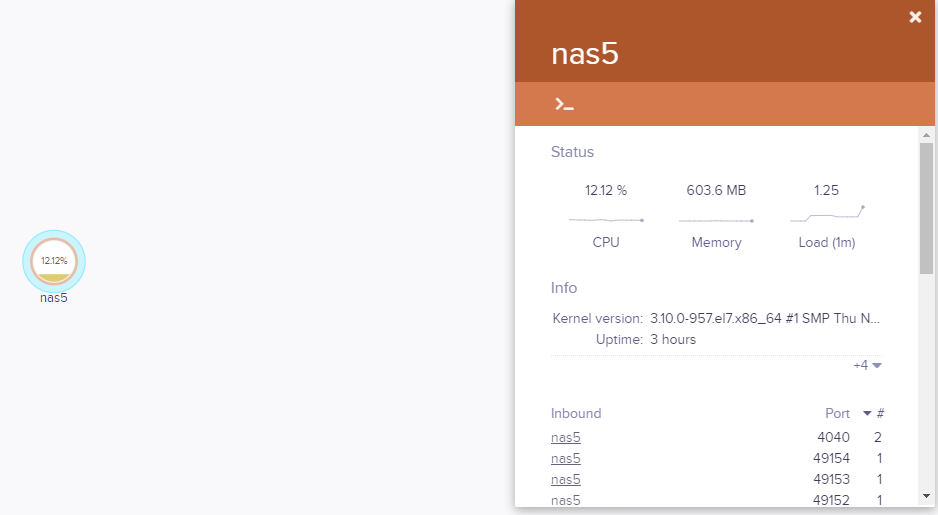

与容器类似，点击host图标将显示详细信息

host当前的资源使用情况和历史曲线一览无余

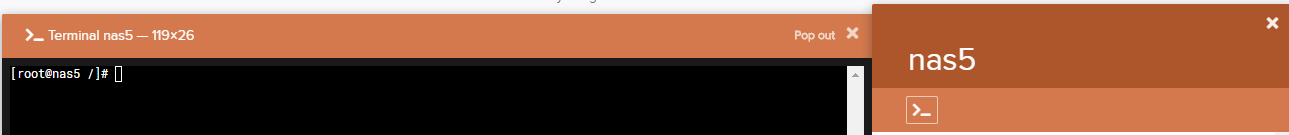

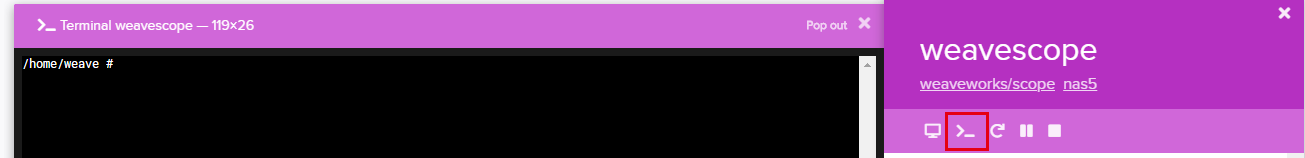

host页面上部有一个按钮，可以直接打开host的shell窗口，进行远程远程管理

多主机监控

在同时需要监控的两台主机上都运行

[root@nas5 ~]# scope launch 10.1.1.14  10.1.1.15
d47809d6a5b0914851728fc373fda23264f8c1d2af7a770b314be06d181d7801
Scope probe started
Weave Scope is listening at the following URL(s):
  * http://10.1.1.15:4040/
  * http://10.100.4.105:4040/

[root@nas4 ~]# scope launch 10.1.1.14  10.1.1.15
Unable to find image 'weaveworks/scope:1.11.5' locally
1.11.5: Pulling from weaveworks/scope
48ecbb6b270e: Pull complete
a9173551d000: Pull complete
e1cb00bed8ea: Pull complete
e99cc8ba1bc9: Pull complete
2f4d78d76aee: Pull complete
e28b73b9f8e7: Pull complete
e1b00f4c68ab: Pull complete
1463816cff46: Pull complete
b7955d090a66: Pull complete
16e5522f4d88: Pull complete
Digest: sha256:5a63d0be7988c05059a7511abfa50e217eff101ff843c783ee6da27b113d3d23
Status: Downloaded newer image for weaveworks/scope:1.11.5
a96318b58ed3f9c1eff2ad236b2a0b89819753761cfd0f7031d0ecf45193f991
Scope probe started
Weave Scope is listening at the following URL(s):
  * http://10.100.10.165:4040/
  * http://10.1.1.14:4040/
You have new mail in /var/spool/mail/root

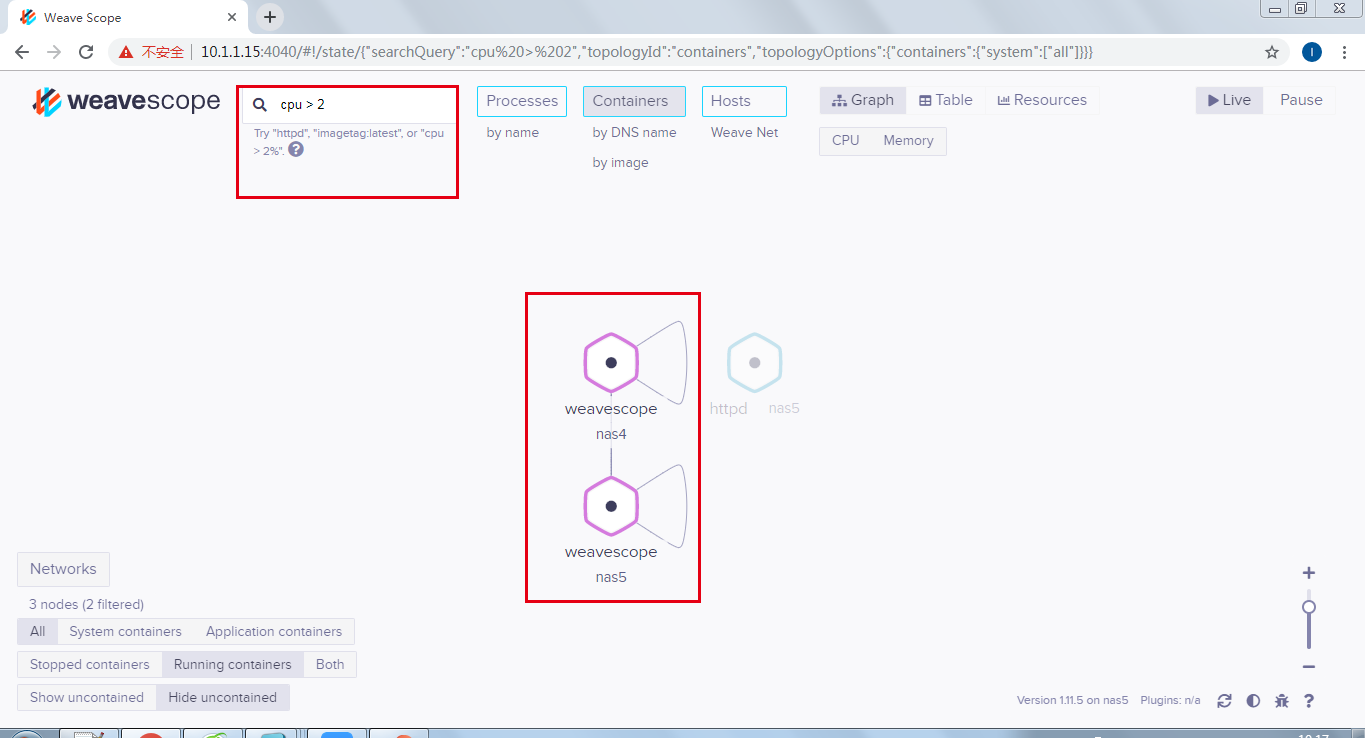

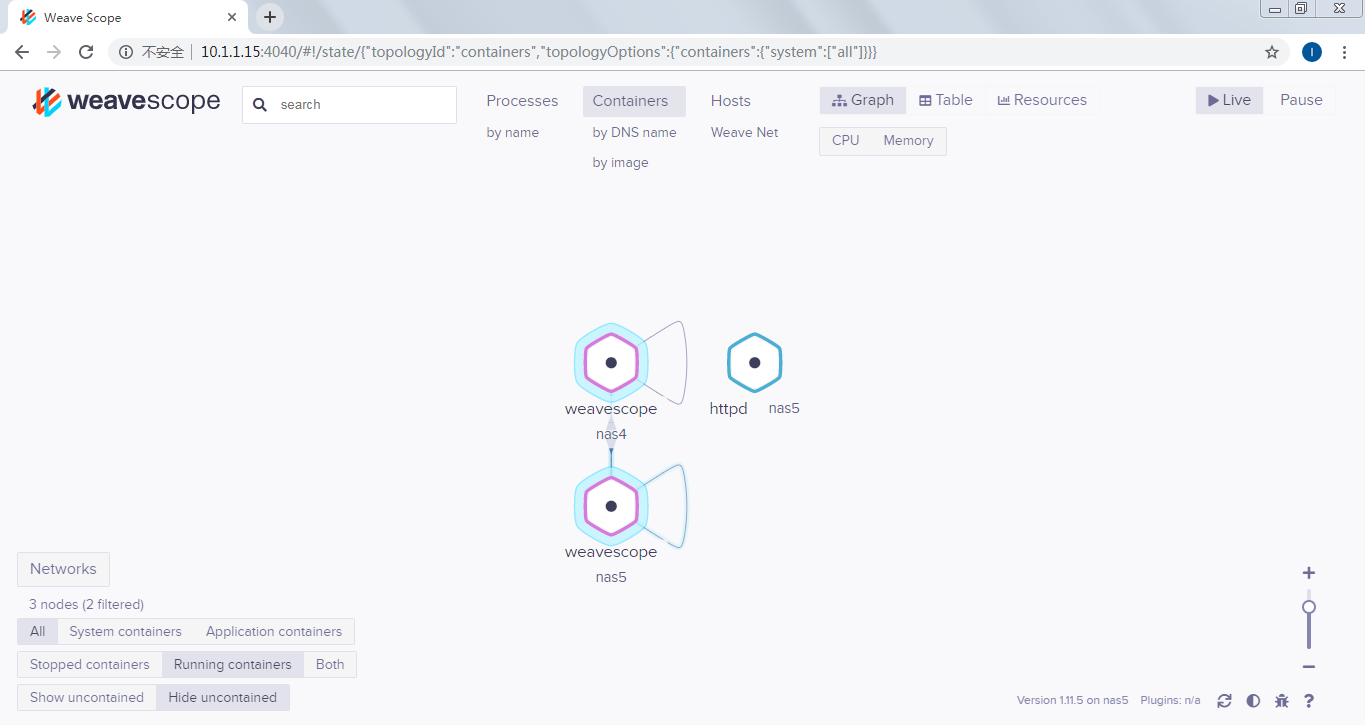

无论访问http://10.1.1.14:4040还是http://10.1.1.15:4040，都能监控到两个host
