Spring AOP源码

WARING

Spring 5.x 中 AOP 默认依旧使用 JDK 动态代理。

SpringBoot 2.x 开始，为了解决使用 JDK 动态代理可能导致的类型转化异常而默认使用 CGLIB。

在 SpringBoot 2.x 中，如果需要默认使用 JDK 动态代理可以通过配置项spring.aop.proxy-target-class=false来进行修改，proxyTargetClass配置已无效。

1.注册加载

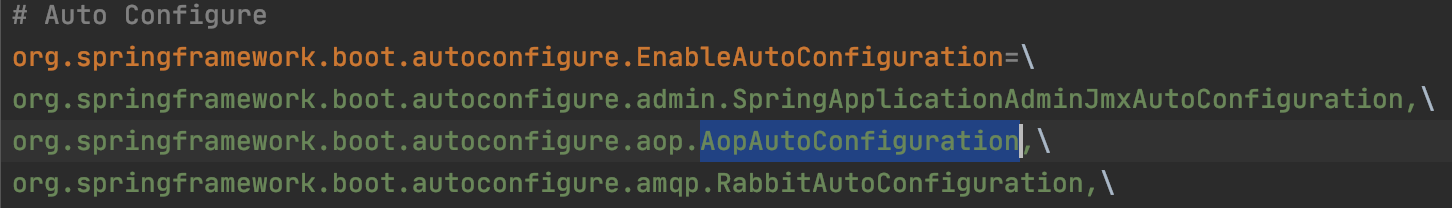

Spring.factories中AopAutoConfiguration配置类



// proxyBeanMethods属性默认值是true,也就是说该配置类会被代理（CGLIB）,在同一个配置文件中调用其它被@Bean注解标注的方法获取对象时会直接从IOC容器之中获取；
// 如果设置为false,每次调用@Bean标注的方法获取到的对象是一个新的对象
@Configuration(proxyBeanMethods = false)
// name 与 prefix 组合使用组成完整属性名称，与value不可同时存在
// havingValue 比较获取的属性值与havingValue给定的值是否相同，相同才加载配置类
// matchIfMissing 缺少 property 时是否加载，如果为true，没有该property属性也会正常加载，反之报错
@ConditionalOnProperty(prefix = "spring.aop", name = "auto", havingValue = "true", matchIfMissing = true)
public class AopAutoConfiguration {

    @Configuration(proxyBeanMethods = false)
    @ConditionalOnClass(Advice.class)
    static class AspectJAutoProxyingConfiguration {

        // JDK代理
        @Configuration(proxyBeanMethods = false)
        @EnableAspectJAutoProxy(proxyTargetClass = false)
        @ConditionalOnProperty(prefix = "spring.aop", name = "proxy-target-class", havingValue = "false",
                matchIfMissing = false)
        static class JdkDynamicAutoProxyConfiguration {
        }

        // CGLIB代理
        @Configuration(proxyBeanMethods = false)
        @EnableAspectJAutoProxy(proxyTargetClass = true)
        @ConditionalOnProperty(prefix = "spring.aop", name = "proxy-target-class", havingValue = "true",
                matchIfMissing = true)
        static class CglibAutoProxyConfiguration {
        }
    }

    @Configuration(proxyBeanMethods = false)
    // 当项目里没有 aspectjweaver 的依赖的时候生效
    @ConditionalOnMissingClass("org.aspectj.weaver.Advice")
    @ConditionalOnProperty(prefix = "spring.aop", name = "proxy-target-class", havingValue = "true",
            matchIfMissing = true)
    static class ClassProxyingConfiguration {
        ClassProxyingConfiguration(BeanFactory beanFactory) {
            if (beanFactory instanceof BeanDefinitionRegistry) {
                BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
                AopConfigUtils.registerAutoProxyCreatorIfNecessary(registry);
                AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
            }
        }
    }
}

@EnableAspectJAutoProxy(proxyTargetClass = false)

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {

    //true: 使用CGLIB基于类创建代理；false: 使用java接口创建代理
    boolean proxyTargetClass() default false;

    // 是否通过aop框架暴露该代理对象，aopContext能够访问.
    boolean exposeProxy() default false;

}

AspectJAutoProxyRegistrar.class

class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {

    @Override
    public void registerBeanDefinitions(
            AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {

        // 注册bean : AnnotationAwareAspectJAutoProxyCreator
        AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);

        // 获取注解 @EnableAspectJAutoProxy 的属性,并设置为Bean Definition的属性
        AnnotationAttributes enableAspectJAutoProxy =
                AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
        if (enableAspectJAutoProxy != null) {
            if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
                AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
            }
            if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
                AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
            }
        }
    }
}

AnnotationAwareAspectJAutoProxyCreator.class

AnnotationAwareAspectJAutoProxyCreator：
　　->AspectJAwareAdvisorAutoProxyCreator
　　　　->AbstractAdvisorAutoProxyCreator
　　　　　　->AbstractAutoProxyCreator
　　　　　　　　implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware
　　　　　　　　//关注后置处理器（在bean初始化完成强做的事情）、自动装配BeanFactory

在执行 ConfigurationClassPostProcessor 的 processConfigBeanDefinitions 中会执行AspectJAutoProxyRegistrar来创建AnnotationAwareAspectJAutoProxyCreator BeanDefinition，但并没有实例化和初始化该对象。

因为AnnotationAwareAspectJAutoProxyCreator 顶层接口是 BeanPostProcessor，是在 registerBeanPostProcessors 时会实例化注册到容器中；

而又因为实现了BeanFactoryAware 接口，在实例化之后的初始化阶段会注入 BeanFactory ( void setBeanFactory ); AbstractAdvisorAutoProxyCreator 中重写了setBeanFactory 方法。

public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport
        implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {

    @Override
    public Object getEarlyBeanReference(Object bean, String beanName) {
        Object cacheKey = getCacheKey(bean.getClass(), beanName);
        this.earlyProxyReferences.put(cacheKey, bean);
        return wrapIfNecessary(bean, beanName, cacheKey);
    }

    @Override
    public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) {
        Object cacheKey = getCacheKey(beanClass, beanName);

        if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
            // advisedBeans 用于存储不可代理的bean，如果包含直接返回
            if (this.advisedBeans.containsKey(cacheKey)) {
                return null;
            }
            // 判断当前bean是否可以被代理，然后存入 advisedBeans; 判断有没有 @Advice,@Pointcut,@Advisor,@AopInfrastructureBean注解
            // shouldSkip 方法在 子类AspectJAwareAdvisorAutoProxyCreator中已经重写,并且已经把所有的切面的通知(增强方法)加载,排序并缓存了
            // 顺序：Around, Before, After, AfterReturning, AfterThrowing
            if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
                this.advisedBeans.put(cacheKey, Boolean.FALSE);
                return null;
            }
        }

        // 获取自定义目标类来创建代理并返回,如果没有则在 postProcessorAfterInitialization 中创建代理
        TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
        if (targetSource != null) {
            if (StringUtils.hasLength(beanName)) {
                this.targetSourcedBeans.add(beanName);
            }
            Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
            Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
            this.proxyTypes.put(cacheKey, proxy.getClass());
            return proxy;
        }
        return null;
    }

    @Override
    public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
        if (bean != null) {
            Object cacheKey = getCacheKey(bean.getClass(), beanName);
            // 包装并创建代理
            if (this.earlyProxyReferences.remove(cacheKey) != bean) {
                return wrapIfNecessary(bean, beanName, cacheKey);
            }
        }
        return bean;
    }
    // 包装 Bean
    protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
        // 缓存中是否存在，存在直接获取返回
        if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
            return bean;
        }
        //
        if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
            return bean;
        }
        if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
            this.advisedBeans.put(cacheKey, Boolean.FALSE);
            return bean;
        }

        // 查找适合当前Bean的切面方法
        Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
        if (specificInterceptors != DO_NOT_PROXY) {
            this.advisedBeans.put(cacheKey, Boolean.TRUE);
            // 创建代理
            Object proxy = createProxy(
                    bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
            this.proxyTypes.put(cacheKey, proxy.getClass());
            return proxy;
        }

        this.advisedBeans.put(cacheKey, Boolean.FALSE);
        return bean;
    }
}


AbstractAdvisorAutoProxyCreator：
protected Object[] getAdvicesAndAdvisorsForBean(
        Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
    // 查找应用当前Bean的增强方法
    List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
    if (advisors.isEmpty()) {
        return DO_NOT_PROXY;
    }
    return advisors.toArray();
}

protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
    // 查找所有切面并解析其中的通知增强方法
    List<Advisor> candidateAdvisors = findCandidateAdvisors();
    // 查找可以应用于指定bean的所有增强方法。
    List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
    extendAdvisors(eligibleAdvisors);
    if (!eligibleAdvisors.isEmpty()) {
        // 顺序：Around, Before, After, AfterReturning, AfterThrowing
        eligibleAdvisors = sortAdvisors(eligibleAdvisors);
    }
    return eligibleAdvisors;
}


protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
        @Nullable Object[] specificInterceptors, TargetSource targetSource) {

    if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
        AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
    }
    // 动态代理工厂
    ProxyFactory proxyFactory = new ProxyFactory();
    proxyFactory.copyFrom(this);

    if (!proxyFactory.isProxyTargetClass()) {
        if (shouldProxyTargetClass(beanClass, beanName)) {
            proxyFactory.setProxyTargetClass(true);
        }
        else {
            evaluateProxyInterfaces(beanClass, proxyFactory);
        }
    }
    Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
    // 增强方法
    proxyFactory.addAdvisors(advisors);
    proxyFactory.setTargetSource(targetSource);
    customizeProxyFactory(proxyFactory);

    proxyFactory.setFrozen(this.freezeProxy);
    if (advisorsPreFiltered()) {
        proxyFactory.setPreFiltered(true);
    }
    // 获取动态代理类,SpringBoot 默认使用CGLib动态代理
    return proxyFactory.getProxy(getProxyClassLoader());
}

2.AOP调用

CglibAopProxy 类中的静态内部类 DynamicAdvisedInterceptor下:

private static class DynamicAdvisedInterceptor implements MethodInterceptor, Serializable {...}

public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
    Object oldProxy = null;
    boolean setProxyContext = false;
    Object target = null;
    TargetSource targetSource = this.advised.getTargetSource();
    try {
        if (this.advised.exposeProxy) {
            oldProxy = AopContext.setCurrentProxy(proxy);
            setProxyContext = true;
        }
        target = targetSource.getTarget();
        Class<?> targetClass = (target != null ? target.getClass() : null);
        // 获取MethodInterceptor拦截器链
        List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
        Object retVal;
        if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) {
            Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
            retVal = methodProxy.invoke(target, argsToUse);
        }
        else {
            // 创建一个方法并调用proceed()
            // 实际是调用父类 ReflectiveMethodInvocation 的构造方法
            retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
        }
        retVal = processReturnType(proxy, target, method, retVal);
        return retVal;
    }
    finally {
        if (target != null && !targetSource.isStatic()) {
            targetSource.releaseTarget(target);
        }
        if (setProxyContext) {
            // Restore old proxy.
            AopContext.setCurrentProxy(oldProxy);
        }
    }
}

CglibMethodInvocation 继承 ReflectiveMethodInvocation，实际是调用父类 ReflectiveMethodInvocation 的 proceed()方法

public Object proceed() throws Throwable {
    // 从索引-1开始并提前递增，最后一个永远是被代理的方法
    if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
        return invokeJoinpoint();
    }

    Object interceptorOrInterceptionAdvice =
            this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
    if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
        // 在这里评估动态方法匹配器：静态部分已经被评估并发现匹配。
        InterceptorAndDynamicMethodMatcher dm =
                (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
        Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
        if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
            return dm.interceptor.invoke(this);
        }
        else {
            // 动态匹配失败,跳过这个拦截器并调用链中的下一个。
            return proceed();
        }
    }
    else {
        // 它是一个拦截器，所以我们调用它：切入点将具有在构造此对象之前静态求值。
        // MethodBeforeAdviceInterceptor、
        return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
    }
}

这里以前置通知@Before 为例：会执行 前置通知拦截器例的invoke 方法

public class MethodBeforeAdviceInterceptor implements MethodInterceptor, BeforeAdvice, Serializable {

    private final MethodBeforeAdvice advice;

    public MethodBeforeAdviceInterceptor(MethodBeforeAdvice advice) {
        Assert.notNull(advice, "Advice must not be null");
        this.advice = advice;
    }

    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis());
        return mi.proceed();
    }
}

public class AspectJMethodBeforeAdvice extends AbstractAspectJAdvice implements MethodBeforeAdvice, Serializable {...}

public void before(Method method, Object[] args, @Nullable Object target) throws Throwable {
    invokeAdviceMethod(getJoinPointMatch(), null, null);
}

public abstract class AbstractAspectJAdvice implements Advice, AspectJPrecedenceInformation, Serializable {...}

protected Object invokeAdviceMethod(
        @Nullable JoinPointMatch jpMatch, @Nullable Object returnValue, @Nullable Throwable ex)
        throws Throwable {
    // 调用通知方法基于给定参数
    return invokeAdviceMethodWithGivenArgs(argBinding(getJoinPoint(), jpMatch, returnValue, ex));
}

protected Object invokeAdviceMethodWithGivenArgs(Object[] args) throws Throwable {
    Object[] actualArgs = args;
    if (this.aspectJAdviceMethod.getParameterCount() == 0) {
        actualArgs = null;
    }
    try {
        ReflectionUtils.makeAccessible(this.aspectJAdviceMethod);
        return this.aspectJAdviceMethod.invoke(this.aspectInstanceFactory.getAspectInstance(), actualArgs);
    }
    catch (IllegalArgumentException ex) {
        throw new AopInvocationException("Mismatch on arguments to advice method [" +
                this.aspectJAdviceMethod + "]; pointcut expression [" +
                this.pointcut.getPointcutExpression() + "]", ex);
    }
    catch (InvocationTargetException ex) {
        throw ex.getTargetException();
    }
}

public final class Method extends Executable {...}

public Object invoke(Object obj, Object... args)
    throws IllegalAccessException, IllegalArgumentException,
       InvocationTargetException
{
    if (!override) {
        if (!Reflection.quickCheckMemberAccess(clazz, modifiers)) {
            Class<?> caller = Reflection.getCallerClass();
            checkAccess(caller, clazz, obj, modifiers);
        }
    }
    MethodAccessor ma = methodAccessor;             // read volatile
    if (ma == null) {
        ma = acquireMethodAccessor();
    }
    // 执行通知方法
    return ma.invoke(obj, args);
}

最后执行 被增强的方法时：

回到ReflectiveMethodInvocation

最后一个是被代理的方法，也是索引最后一位
public Object proceed() throws Throwable {
    // 从索引-1开始并提前递增
    if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
        return invokeJoinpoint();
    }

    Object interceptorOrInterceptionAdvice =
            this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
    if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
        // 在这里评估动态方法匹配器：静态部分已经被评估并发现匹配。
        InterceptorAndDynamicMethodMatcher dm =
                (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
        Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
        if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
            return dm.interceptor.invoke(this);
        }
        else {
            // 动态匹配失败,跳过这个拦截器并调用链中的下一个。
            return proceed();
        }
    }
    else {
        // 它是一个拦截器，所以我们调用它：切入点将具有在构造此对象之前静态求值。
        // MethodBeforeAdviceInterceptor、
        return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
    }
}

private static class CglibMethodInvocation extends ReflectiveMethodInvocation {...}

protected Object invokeJoinpoint() throws Throwable {
    if (this.methodProxy != null) {
        return this.methodProxy.invoke(this.target, this.arguments);
    }
    else {
        return super.invokeJoinpoint();
    }
}

public class MethodProxy {...}

public Object invoke(Object obj, Object[] args) throws Throwable {
    try {
        init();
        FastClassInfo fci = fastClassInfo;
        return fci.f1.invoke(fci.i1, obj, args);
    }
    catch (InvocationTargetException ex) {
        throw ex.getTargetException();
    }
    catch (IllegalArgumentException ex) {
        if (fastClassInfo.i1 < 0)
            throw new IllegalArgumentException("Protected method: " + sig1);
        throw ex;
    }
}

大致的一个AOP调用过程就是如此
