SpringBoot源码分析

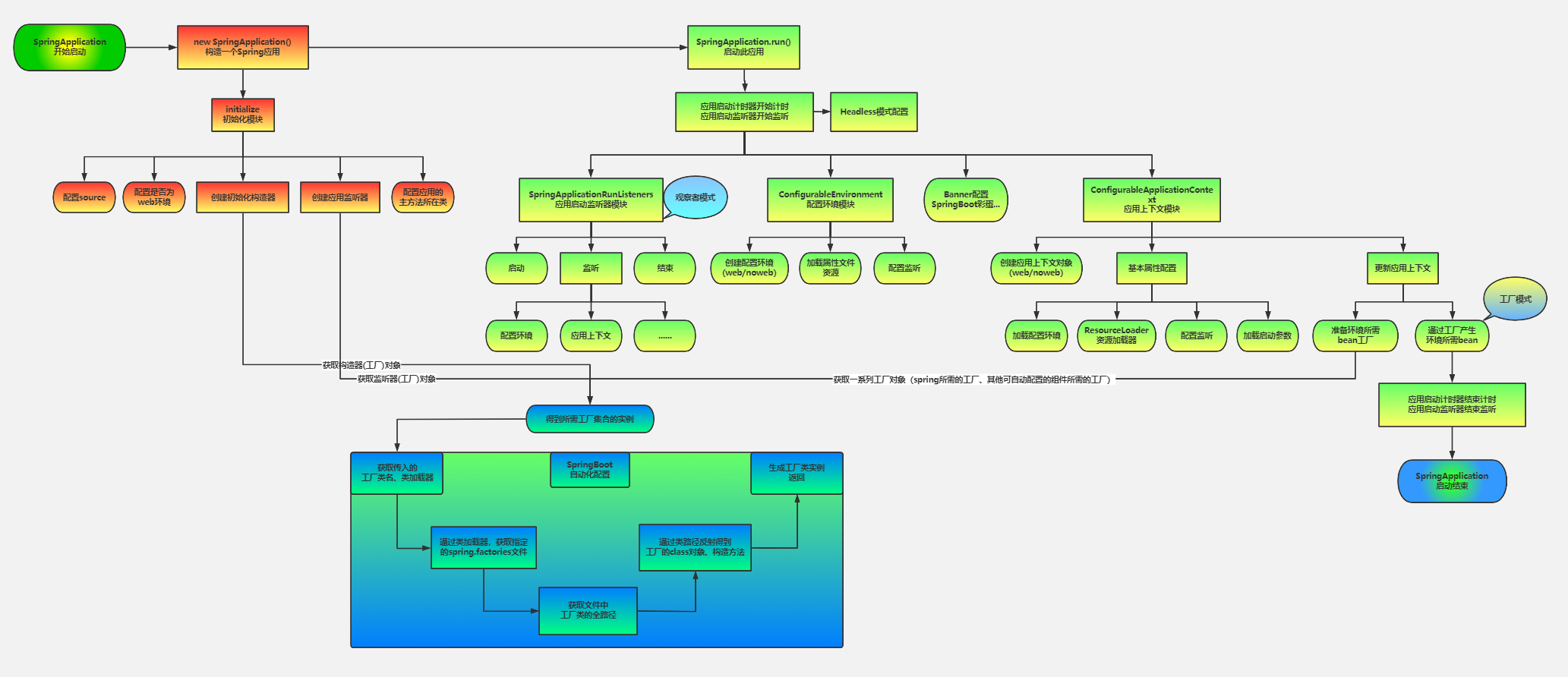

流程图

1.入口

@SpringBootApplication
public class SsoApplication{
    public static void main(String[] args) {
        SpringApplication.run(SsoApplication.class, args);
    }
}
public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
    return new SpringApplication(primarySources).run(args);
}

1.1 new SpringApplication(primarySources);

public SpringApplication(Class<?>... primarySources) {
    this(null, primarySources);
}
public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
    this.resourceLoader = resourceLoader;
    Assert.notNull(primarySources, "PrimarySources must not be null");
    this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
　　 // 设置应用程序类型
    this.webApplicationType = WebApplicationType.deduceFromClasspath();
    // 找出实现ApplicationContextInitializer接口的类
    setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
    // 找出实现ApplicationListener接口的类
    setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
    this.mainApplicationClass = deduceMainApplicationClass();
}
// 从META-INF/spring.factories中获取Spring工厂实例
private <T> Collection<T> getSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes, Object... args) {
    ClassLoader classLoader = getClassLoader();
    // 使用名称并确保唯一以防止重复
    Set<String> names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));
    // 使用构造方法创建实例
    List<T> instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
    AnnotationAwareOrderComparator.sort(instances);
    return instances;
}
public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
    String factoryTypeName = factoryType.getName();
    return loadSpringFactories(classLoader).getOrDefault(factoryTypeName, Collections.emptyList());
}
// 加载META-INF/spring.factories
private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
    MultiValueMap<String, String> result = cache.get(classLoader);
    if (result != null) {
        return result;
    }
    try {
        Enumeration<URL> urls = (classLoader != null ?
                classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
                ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
        result = new LinkedMultiValueMap<>();
        while (urls.hasMoreElements()) {
            URL url = urls.nextElement();
            UrlResource resource = new UrlResource(url);
            Properties properties = PropertiesLoaderUtils.loadProperties(resource);
            for (Map.Entry<?, ?> entry : properties.entrySet()) {
                String factoryTypeName = ((String) entry.getKey()).trim();
                for (String factoryImplementationName : StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
                    result.add(factoryTypeName, factoryImplementationName.trim());
                }
            }
        }
        cache.put(classLoader, result);
        return result;
    }
    ...省略
}
// 遍历栈信息，找到调用main方法的类型，将其加载，赋值给变量mainApplicationClass
private Class<?> deduceMainApplicationClass() {
    try {
        StackTraceElement[] stackTrace = new RuntimeException().getStackTrace();
        for (StackTraceElement stackTraceElement : stackTrace) {
            if ("main".equals(stackTraceElement.getMethodName())) {
                return Class.forName(stackTraceElement.getClassName());
            }
        }
    }
    catch (ClassNotFoundException ex) {
        // Swallow and continue
    }
    return null;
}

1.2 run();

public ConfigurableApplicationContext run(String... args) {
    StopWatch stopWatch = new StopWatch();
    stopWatch.start();
    ConfigurableApplicationContext context = null;
    Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
    // 设置Headless模式
    configureHeadlessProperty();
　　 // 重点① 开启监听，默认的监听器是：EventPublishRunListener
    SpringApplicationRunListeners listeners = getRunListeners(args);
    listeners.starting();
    try {
        ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
　　　　　// 重点② 准备环境
        ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
        configureIgnoreBeanInfo(environment);
        Banner printedBanner = printBanner(environment);
　　　　 // 重点③ 创建容器上下文
        context = createApplicationContext();
        exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
                new Class[] { ConfigurableApplicationContext.class }, context);
　　　　 // 重点④ 准备容器
        prepareContext(context, environment, listeners, applicationArguments, printedBanner);
　　　　 // 重点⑤ 刷新容器，注册bean
        refreshContext(context);
　　　　　// 空实现方法
        afterRefresh(context, applicationArguments);
        stopWatch.stop();
        if (this.logStartupInfo) {
            new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
        }
　　　　 // 发布容器启动事件： ApplicationStartedEvent
        listeners.started(context);
　　　　 // 执行Runner：ApplicationRunner/CommandLineRunner
        callRunners(context, applicationArguments);
    }
    catch (Throwable ex) {
        handleRunFailure(context, ex, exceptionReporters, listeners);
        throw new IllegalStateException(ex);
    }
    try {
　　　　 // 发布容器就绪事件： ApplicationReadyEvent
        listeners.running(context);
    }
    catch (Throwable ex) {
        handleRunFailure(context, ex, exceptionReporters, null);
        throw new IllegalStateException(ex);
    }
    return context;
}
// EventPublishingRunListener 事件广播类

① getRunListenners(args); 开启监听

// 找出实现SpringApplicationRunListener 接口的类
private SpringApplicationRunListeners getRunListeners(String[] args) {
    Class<?>[] types = new Class<?>[] { SpringApplication.class, String[].class };
    return new SpringApplicationRunListeners(logger,
            getSpringFactoriesInstances(SpringApplicationRunListener.class, types, this, args));
}
// 启动监听 SpringApplicationRunListener
void starting() {
    for (SpringApplicationRunListener listener : this.listeners) {
        listener.starting();
    }
}
// 广播程序开始事件：ApplicationStartingEvent
public void starting() {
    this.initialMulticaster.multicastEvent(new ApplicationStartingEvent(this.application, this.args));
}
public void multicastEvent(final ApplicationEvent event, @Nullable ResolvableType eventType) {
    ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
    Executor executor = getTaskExecutor();
    // 获取监听当前ApplicationStartingEvent事件的Listener，并遍历执行程序开始事件
    for (ApplicationListener<?> listener : getApplicationListeners(event, type)) {
        if (executor != null) {
            executor.execute(() -> invokeListener(listener, event));
        }
        else {
            invokeListener(listener, event);
        }
    }
}

② prepareEnvironment(listeners, applicationArguments); 准备环境

// 准备环境
private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners,
        ApplicationArguments applicationArguments) {
    // 创建和配置环境： SERVLET---StandardServletEnvironment
    ConfigurableEnvironment environment = getOrCreateEnvironment();
    // 配置属性资源
    configureEnvironment(environment, applicationArguments.getSourceArgs());
    // 将配置属性加入环境
    ConfigurationPropertySources.attach(environment);
    // 环境准备
    listeners.environmentPrepared(environment);
    // 将环境绑定到SpringApplication
    bindToSpringApplication(environment);
    if (!this.isCustomEnvironment) {
        environment = new EnvironmentConverter(getClassLoader()).convertEnvironmentIfNecessary(environment,
                deduceEnvironmentClass());
    }
　　 // 将配置属性再次加入环境中
    ConfigurationPropertySources.attach(environment);
    return environment;
}
// 环境准备
void environmentPrepared(ConfigurableEnvironment environment) {
    for (SpringApplicationRunListener listener : this.listeners) {
        listener.environmentPrepared(environment);
    }
}
// EventPublishingRunListener下发布环境准备事件： ApplicationEnvironmentPreparedEvent
public void environmentPrepared(ConfigurableEnvironment environment) {
    this.initialMulticaster
            .multicastEvent(new ApplicationEnvironmentPreparedEvent(this.application, this.args, environment));
}
// ConfigFileApplicationListener下监听事件
private void onApplicationEnvironmentPreparedEvent(ApplicationEnvironmentPreparedEvent event) {
    List<EnvironmentPostProcessor> postProcessors = loadPostProcessors();
    postProcessors.add(this);
    AnnotationAwareOrderComparator.sort(postProcessors);
    // 执行后置处理器的环境处理
    for (EnvironmentPostProcessor postProcessor : postProcessors) {
        postProcessor.postProcessEnvironment(event.getEnvironment(), event.getSpringApplication());
    }
}
// 获取环境后置处理器实例
List<EnvironmentPostProcessor> loadPostProcessors() {
    return SpringFactoriesLoader.loadFactories(EnvironmentPostProcessor.class, getClass().getClassLoader());
}
// 将配置文件属性源添加到指定的环境
public void postProcessEnvironment(ConfigurableEnvironment environment, SpringApplication application) {
    addPropertySources(environment, application.getResourceLoader());
}
//加载yml或.properties中的配置
protected void addPropertySources(ConfigurableEnvironment environment, ResourceLoader resourceLoader) {
    RandomValuePropertySource.addToEnvironment(environment);
    new Loader(environment, resourceLoader).load();
}

③ createApplicationContext(); 创建容器上下文，执行Spring框架中的this()；

执行AnnotationConfigServletWebServerApplicationContext() 构造方法；

初始化读取注解的Bean定义读取器，并注册注解配置的的处理器

初始化一个ClassPath类型的Bean的扫描器

// org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext
protected ConfigurableApplicationContext createApplicationContext() {
    Class<?> contextClass = this.applicationContextClass;
    if (contextClass == null) {
        try {
            switch (this.webApplicationType) {
            case SERVLET:
                contextClass = Class.forName(DEFAULT_SERVLET_WEB_CONTEXT_CLASS);
                break;
            case REACTIVE:
                contextClass = Class.forName(DEFAULT_REACTIVE_WEB_CONTEXT_CLASS);
                break;
            default:
                contextClass = Class.forName(DEFAULT_CONTEXT_CLASS);
            }
        }
        ...
    }
    return (ConfigurableApplicationContext) BeanUtils.instantiateClass(contextClass);
}

④ prepareContext(...); 准备容器

private void prepareContext(ConfigurableApplicationContext context, ConfigurableEnvironment environment,
        SpringApplicationRunListeners listeners, ApplicationArguments applicationArguments, Banner printedBanner) {
    context.setEnvironment(environment);
    // 后置处理，注册系统使用Bean
    postProcessApplicationContext(context);
    // 执行所有ApplicationContextInitializer实现类初始化
    applyInitializers(context);
    // 发布容器初始化事件：ApplicationContextInitializedEvent
    listeners.contextPrepared(context);
    if (this.logStartupInfo) {
        logStartupInfo(context.getParent() == null);
        logStartupProfileInfo(context);
    }
    // 注册系统单例bean
    ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
    beanFactory.registerSingleton("springApplicationArguments", applicationArguments);
    if (printedBanner != null) {
        beanFactory.registerSingleton("springBootBanner", printedBanner);
    }
    if (beanFactory instanceof DefaultListableBeanFactory) {
        ((DefaultListableBeanFactory) beanFactory)
                .setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
    }
    //添加延迟初始化BeanFactoryPostProcessor
    if (this.lazyInitialization) {
        context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
    }
    // 加载资源文件
    Set<Object> sources = getAllSources();
    Assert.notEmpty(sources, "Sources must not be empty");
    // 加载bean 到容器上下文中
    load(context, sources.toArray(new Object[0]));
    // 发布容器准备完成事件： ApplicationPreparedEvent
    listeners.contextLoaded(context);
}
// 后置处理
protected void postProcessApplicationContext(ConfigurableApplicationContext context) {
    if (this.beanNameGenerator != null) {
        // 注册BeanNameGenerator: org.springframework.context.annotation.internalConfigurationBeanNameGenerator
        context.getBeanFactory().registerSingleton(AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR,
                this.beanNameGenerator);
    }
    if (this.resourceLoader != null) {
        if (context instanceof GenericApplicationContext) {
            ((GenericApplicationContext) context).setResourceLoader(this.resourceLoader);
        }
        if (context instanceof DefaultResourceLoader) {
            ((DefaultResourceLoader) context).setClassLoader(this.resourceLoader.getClassLoader());
        }
    }
    if (this.addConversionService) {
        context.getBeanFactory().setConversionService(ApplicationConversionService.getSharedInstance());
    }
}
// 执行所有ApplicationContextInitializer实现类初始化
protected void applyInitializers(ConfigurableApplicationContext context) {
    for (ApplicationContextInitializer initializer : getInitializers()) {
        Class<?> requiredType = GenericTypeResolver.resolveTypeArgument(initializer.getClass(),
                ApplicationContextInitializer.class);
        Assert.isInstanceOf(requiredType, context, "Unable to call initializer.");
        initializer.initialize(context);
    }
}
// 发布容器初始化事件： ApplicationContextInitializedEvent
void contextPrepared(ConfigurableApplicationContext context) {
    for (SpringApplicationRunListener listener : this.listeners) {
        listener.contextPrepared(context);
    }
}
public void contextPrepared(ConfigurableApplicationContext context) {
    this.initialMulticaster
            .multicastEvent(new ApplicationContextInitializedEvent(this.application, this.args, context));
}
// 将bean加载到应用程序上下文中
protected void load(ApplicationContext context, Object[] sources) {
    if (logger.isDebugEnabled()) {
        logger.debug("Loading source " + StringUtils.arrayToCommaDelimitedString(sources));
    }
    BeanDefinitionLoader loader = createBeanDefinitionLoader(getBeanDefinitionRegistry(context), sources);
    if (this.beanNameGenerator != null) {
        loader.setBeanNameGenerator(this.beanNameGenerator);
    }
    if (this.resourceLoader != null) {
        loader.setResourceLoader(this.resourceLoader);
    }
    if (this.environment != null) {
        loader.setEnvironment(this.environment);
    }
    loader.load();
}

⑤ refreshContext(context)；刷新容器，注册bean

private void refreshContext(ConfigurableApplicationContext context) {
    if (this.registerShutdownHook) {
        try {
            context.registerShutdownHook();
        }
        ...
    }
    refresh((ApplicationContext) context);
}
protected void refresh(ConfigurableApplicationContext applicationContext) {
    applicationContext.refresh();
}

AbstractApplicationContext下：
public void refresh() throws BeansException, IllegalStateException {
    synchronized (this.startupShutdownMonitor) {
        // 准备刷新上下文
        prepareRefresh();
        // 刷新内部bean工厂
        ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
        // 准备BeanFactory
        prepareBeanFactory(beanFactory);
        try {
            // 处理后置处理器，目前没有任何实现
            postProcessBeanFactory(beanFactory);
            /*
            拿到所有自定义和内置的BeanDefinitionRegistryPostProcessor后置处理器,循环调用postProcessBeanDefinitionRegistry;
            其中最重要的是ConfigurationClassPostProcessor处理器的执行：遍历BeanDefinition找到带有@Configuration注解的BeanDefinition,
            解析处理配置类中的@Import，@PropertySources，@ComponentScans(如果存在注解，则会扫描对应路径的类转换成BeanDefinition，
　　　　　　　存入BeanDefinitionMap)，@Bean(同样)注解等 */
            invokeBeanFactoryPostProcessors(beanFactory);
            // 注册BeanPostProcessor后置处理器
            registerBeanPostProcessors(beanFactory);
            // 初始化消息资源解析器
            initMessageSource();
            // 初始化注册一个单列ApplicationContext事件监听器applicationEventMulticaster
            initApplicationEventMulticaster();
            // 初始化特定上下文子类中的其他特殊bean。交给子类实现
            onRefresh();
            //注册事件监听器,派发容器初始化的事件：监听器需要实现ApplicationListener接口
            registerListeners();
            // 实例所有的单例Bean，创建单例非懒加载的bean
            finishBeanFactoryInitialization(beanFactory);
            // 容器初始化完成，发布事件
            finishRefresh();
        }
        catch (BeansException ex) {
            // 销毁已经创建的单实例以避免悬空资源。
            destroyBeans();
            // 重置 'active' 标记
            cancelRefresh(ex);
            throw ex;
        }
        finally {
            // 重置Spring核心的缓存
            resetCommonCaches();
        }
    }
}

至此，SpringBoot启动完成。

关于refresh()方法中的源码分析，请参考另一篇： https://www.cnblogs.com/lucky-yqy/p/13854310.html。

posted @ 2020-11-20 16:56 柒月丶阅读(330) 评论(0) 收藏举报

刷新页面返回顶部

柒月丶
