RabbitMQ

RabbitMQ是一个在AMQP基础上完整的，可复用的企业消息系统。他遵循Mozilla Public License开源协议。

其他队列：

- queue
- redis列表
- rabbitmq
- zeromq 专业的

为什么要有消息队列：

解决生产者消费者不对等的问题
数据通信

MQ全称为Message Queue, 消息队列（MQ）是一种应用程序对应用程序的通信方法。应用程序通过读写出入队列的消息（针对应用程序的数据）
来通信，而无需专用连接来链接它们。消 息传递指的是程序之间通过在消息中发送数据进行通信，而不是通过直接调用彼此来通信，
直接调用通常是用于诸如远程过程调用的技术。排队指的是应用程序通过 队列来通信。队列的使用除去了接收和发送应用程序同时执行的要求。

Exchange ：消息交换机，决定消息按什么规则，路由到哪个队列
Queue:    消息载体，每个消息都会被被投到一个或多个队列
Binding:    绑定，把exchange和queue按照路由规则绑定起来
Routing key:    路由关键字，exchange根据这个关键字来投递消息
Channel: 消息通道，客户端的每个连接建立多个channel
Producer
Consumer

RabbitMQ安装　　　　

依赖erlang

sudo apt-get install erlang

echo 'deb http://www.rabbitmq.com/debian/ testing main' | sudo tee /etc/apt/sources.list.d/rabbitmq.list

wget -O- https://www.rabbitmq.com/rabbitmq-release-signing-key.asc | sudo apt-key add -

sudo apt-get update

sudo apt-get install rabbitmq-server

sudo rabbitmqctl add_user wupeiqi 123
# 设置用户为administrator角色
sudo rabbitmqctl set_user_tags wupeiqi administrator
# 设置权限
sudo rabbitmqctl set_permissions -p "/" wupeiqi ".*" ".*" ".*"

systemctl restart rabbitmq-server

docker run --name rebbit -p 5672:5672 -p 15672:15672 -p 25672:25672 -v /data/rabbitmq:/var/lib/rabbitmq rabbitmq:management

5672:api
15672 :ui
25672: 集群

guest/guest

python 　　操作　　RabbitMQ

pip3 install pika

import queue
import threading


message = queue.Queue(10)


def producer(i):
    while True:
        message.put(i)


def consumer(i):
    while True:
        msg = message.get()
        print(msg)


for i in range(12):
    t = threading.Thread(target=producer, args=(i,))
    t.start()

for i in range(10):
    t = threading.Thread(target=consumer, args=(i,))
    t.start()

基于Queue实现生产者消费者模型

对于RabbitMQ来说，生产和消费不再针对内存里的一个Queue对象，而是某台服务器上的RabbitMQ Server实现的消息队列。

# 生产者
import pika
credentials = pika.PlainCredentials("xxxxxxxx", "123")
connection = pika.BlockingConnection(pika.ConnectionParameters(host='193.112.27.150', credentials=credentials))
channel = connection.channel()
# 创建一个队列：s91
channel.queue_declare(queue='s91')
# 向队列s91中发送一个 Hello World!
channel.basic_publish(exchange='', routing_key='s91', body='66')
connection.close()

# 消费者，不会终止，一直等待着取
import pika

credentials = pika.PlainCredentials("xxxxxxxx", "123")
connection = pika.BlockingConnection(pika.ConnectionParameters(host='193.112.27.150', credentials=credentials))

channel = connection.channel()
channel.queue_declare(queue='s91')

def callback(ch, method, properties, body):
    print(body)

channel.basic_consume(callback, queue='s91', no_ack=True)　　# 从指定的queue取
channel.start_consuming()

1、acknowledgment 消息不丢失

no-ack ＝ False，如果消费者遇到情况(its channel is closed, connection is closed, or TCP connection is lost)挂掉了，那么，RabbitMQ会重新将该任务添加到队列中。

import pika

connection = pika.BlockingConnection(pika.ConnectionParameters(
        host='10.211.55.4'))
channel = connection.channel()

channel.queue_declare(queue='hello')

def callback(ch, method, properties, body):
    print(" [x] Received %r" % body)
    import time
    time.sleep(10)
    print 'ok'
    ch.basic_ack(delivery_tag = method.delivery_tag)

channel.basic_consume(callback,
                      queue='hello',
                      no_ack=False)

print(' [*] Waiting for messages. To exit press CTRL+C')
channel.start_consuming()

消费者

2、durable 消息不丢失

import pika
connection = pika.BlockingConnection(pika.ConnectionParameters(host='10.211.55.4'))
channel = connection.channel()

# make message persistent
channel.queue_declare(queue='hello', durable=True)

channel.basic_publish(exchange='',
                      routing_key='hello',
                      body='Hello World!',
                      properties=pika.BasicProperties(
                          delivery_mode=2, # make message persistent
                      ))
connection.close()

import pika

connection = pika.BlockingConnection(pika.ConnectionParameters(host='10.211.55.4'))
channel = connection.channel()

# make message persistent
channel.queue_declare(queue='hello', durable=True)


def callback(ch, method, properties, body):
    print(" [x] Received %r" % body)
    import time
    time.sleep(10)
    print 'ok'
    ch.basic_ack(delivery_tag = method.delivery_tag)

channel.basic_consume(callback,
                      queue='hello',
                      no_ack=False)

print(' [*] Waiting for messages. To exit press CTRL+C')
channel.start_consuming()

3、消息获取顺序

默认消息队列里的数据是按照顺序被消费者拿走，例如：消费者1 去队列中获取奇数序列的任务，消费者1去队列中获取偶数序列的任务。

channel.basic_qos(prefetch_count=1) 表示谁来谁取，不再按照奇偶数排列

#!/usr/bin/env python
# -*- coding:utf-8 -*-
import pika

connection = pika.BlockingConnection(pika.ConnectionParameters(host='10.211.55.4'))
channel = connection.channel()

# make message persistent
channel.queue_declare(queue='hello')


def callback(ch, method, properties, body):
    print(" [x] Received %r" % body)
    import time
    time.sleep(10)
    print 'ok'
    ch.basic_ack(delivery_tag = method.delivery_tag)

channel.basic_qos(prefetch_count=1)

channel.basic_consume(callback,
                      queue='hello',
                      no_ack=False)

print(' [*] Waiting for messages. To exit press CTRL+C')
channel.start_consuming()

消费者

工作模式

Fanout 类似广播，转发到所有与绑定的交换机的queue
Direct    类似单播，Routing key 和binding key完全匹配
Topic    类似组播，转发到符合通配符匹配的Queue
Headers    请求头与消息头匹配，才能接收消息

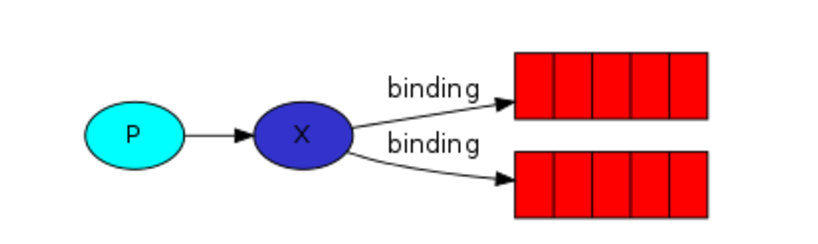

4、发布订阅

发布订阅和简单的消息队列区别在于，发布订阅会将消息发送给所有的订阅者，而消息队列中的数据被消费一次便消失。所以，RabbitMQ实现发布和订阅时，会为每一个订阅者创建一个队列，而发布者发布消息时，会将消息放置在所有相关队列中。

exchange type = fanout

#!/usr/bin/env python
import pika
import sys

connection = pika.BlockingConnection(pika.ConnectionParameters(
        host='localhost'))
channel = connection.channel()

channel.exchange_declare(exchange='logs',
                         type='fanout')

message = ' '.join(sys.argv[1:]) or "info: Hello World!"
channel.basic_publish(exchange='logs',
                      routing_key='',
                      body=message)
print(" [x] Sent %r" % message)
connection.close()

发布者

#!/usr/bin/env python
import pika

connection = pika.BlockingConnection(pika.ConnectionParameters(
        host='localhost'))
channel = connection.channel()

channel.exchange_declare(exchange='logs',
                         type='fanout')

result = channel.queue_declare(exclusive=True)
queue_name = result.method.queue

channel.queue_bind(exchange='logs',
                   queue=queue_name)

print(' [*] Waiting for logs. To exit press CTRL+C')

def callback(ch, method, properties, body):
    print(" [x] %r" % body)

channel.basic_consume(callback,
                      queue=queue_name,
                      no_ack=True)

channel.start_consuming()

订阅者

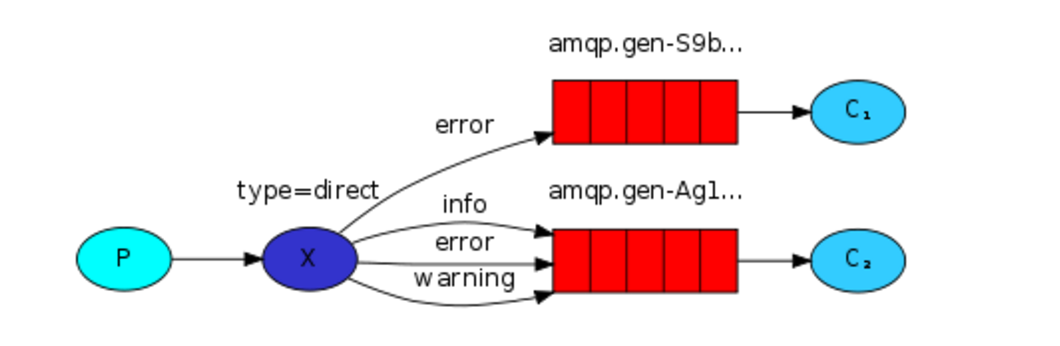

5、关键字发送

exchange type = direct

之前事例，发送消息时明确指定某个队列并向其中发送消息，RabbitMQ还支持根据关键字发送，即：队列绑定关键字，发送者将数据根据关键字发送到消息exchange，exchange根据关键字判定应该将数据发送至指定队列。

#!/usr/bin/env python
import pika
import sys

connection = pika.BlockingConnection(pika.ConnectionParameters(
        host='localhost'))
channel = connection.channel()

channel.exchange_declare(exchange='direct_logs',
                         type='direct')

result = channel.queue_declare(exclusive=True)
queue_name = result.method.queue

severities = sys.argv[1:]
if not severities:
    sys.stderr.write("Usage: %s [info] [warning] [error]\n" % sys.argv[0])
    sys.exit(1)

for severity in severities:
    channel.queue_bind(exchange='direct_logs',
                       queue=queue_name,
                       routing_key=severity)

print(' [*] Waiting for logs. To exit press CTRL+C')

def callback(ch, method, properties, body):
    print(" [x] %r:%r" % (method.routing_key, body))

channel.basic_consume(callback,
                      queue=queue_name,
                      no_ack=True)

channel.start_consuming()

消费者

#!/usr/bin/env python
import pika
import sys

connection = pika.BlockingConnection(pika.ConnectionParameters(
        host='localhost'))
channel = connection.channel()

channel.exchange_declare(exchange='direct_logs',
                         type='direct')

severity = sys.argv[1] if len(sys.argv) > 1 else 'info'
message = ' '.join(sys.argv[2:]) or 'Hello World!'
channel.basic_publish(exchange='direct_logs',
                      routing_key=severity,
                      body=message)
print(" [x] Sent %r:%r" % (severity, message))
connection.close()

生产者

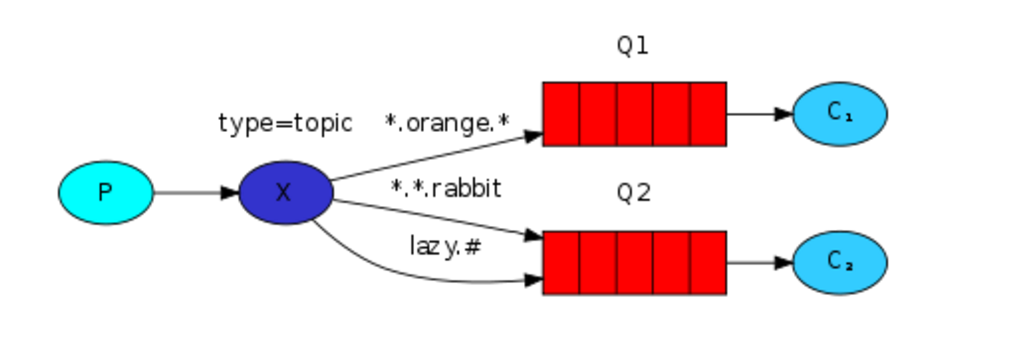

6、模糊匹配

exchange type = topic

在topic类型下，可以让队列绑定几个模糊的关键字，之后发送者将数据发送到exchange，exchange将传入”路由值“和 ”关键字“进行匹配，匹配成功，则将数据发送到指定队列。

# 表示可以匹配 0 个或多个单词
* 表示只能匹配一个单词

发送者路由值              队列中
old.boy.python          old.*  -- 不匹配
old.boy.python          old.#  -- 匹配

#!/usr/bin/env python
import pika
import sys

connection = pika.BlockingConnection(pika.ConnectionParameters(
        host='localhost'))
channel = connection.channel()

channel.exchange_declare(exchange='topic_logs',
                         type='topic')

result = channel.queue_declare(exclusive=True)
queue_name = result.method.queue

binding_keys = sys.argv[1:]
if not binding_keys:
    sys.stderr.write("Usage: %s [binding_key]...\n" % sys.argv[0])
    sys.exit(1)

for binding_key in binding_keys:
    channel.queue_bind(exchange='topic_logs',
                       queue=queue_name,
                       routing_key=binding_key)

print(' [*] Waiting for logs. To exit press CTRL+C')

def callback(ch, method, properties, body):
    print(" [x] %r:%r" % (method.routing_key, body))

channel.basic_consume(callback,
                      queue=queue_name,
                      no_ack=True)

channel.start_consuming()

消费者

#!/usr/bin/env python
import pika
import sys

connection = pika.BlockingConnection(pika.ConnectionParameters(
        host='localhost'))
channel = connection.channel()

channel.exchange_declare(exchange='topic_logs',
                         type='topic')

routing_key = sys.argv[1] if len(sys.argv) > 1 else 'anonymous.info'
message = ' '.join(sys.argv[2:]) or 'Hello World!'
channel.basic_publish(exchange='topic_logs',
                      routing_key=routing_key,
                      body=message)
print(" [x] Sent %r:%r" % (routing_key, message))
connection.close()

生产者

注意：

sudo rabbitmqctl add_user wupeiqi 123
# 设置用户为administrator角色
sudo rabbitmqctl set_user_tags wupeiqi administrator
# 设置权限
sudo rabbitmqctl set_permissions -p "/" root ".*" ".*" ".*"

# 然后重启rabbiMQ服务
sudo /etc/init.d/rabbitmq-server restart

# 然后可以使用刚才的用户远程连接rabbitmq server了。


------------------------------
credentials = pika.PlainCredentials("wupeiqi","123")

connection = pika.BlockingConnection(pika.ConnectionParameters('192.168.14.47',credentials=credentials))

设置链接密码

#!/usr/bin/env python
# -*- coding:utf-8 -*-
import pika
from pika.adapters.blocking_connection import BlockingChannel

credentials = pika.PlainCredentials("root", "123")

conn = pika.BlockingConnection(pika.ConnectionParameters(host='10.211.55.20', credentials=credentials))
# 超时时间
conn.add_timeout(5, lambda: channel.stop_consuming())

channel = conn.channel()

channel.queue_declare(queue='hello')


def callback(ch, method, properties, body):
    print(" [x] Received %r" % body)
    channel.stop_consuming()


channel.basic_consume(callback,
                      queue='hello',
                      no_ack=True)

print(' [*] Waiting for messages. To exit press CTRL+C')
channel.start_consuming()

设置超时时间
