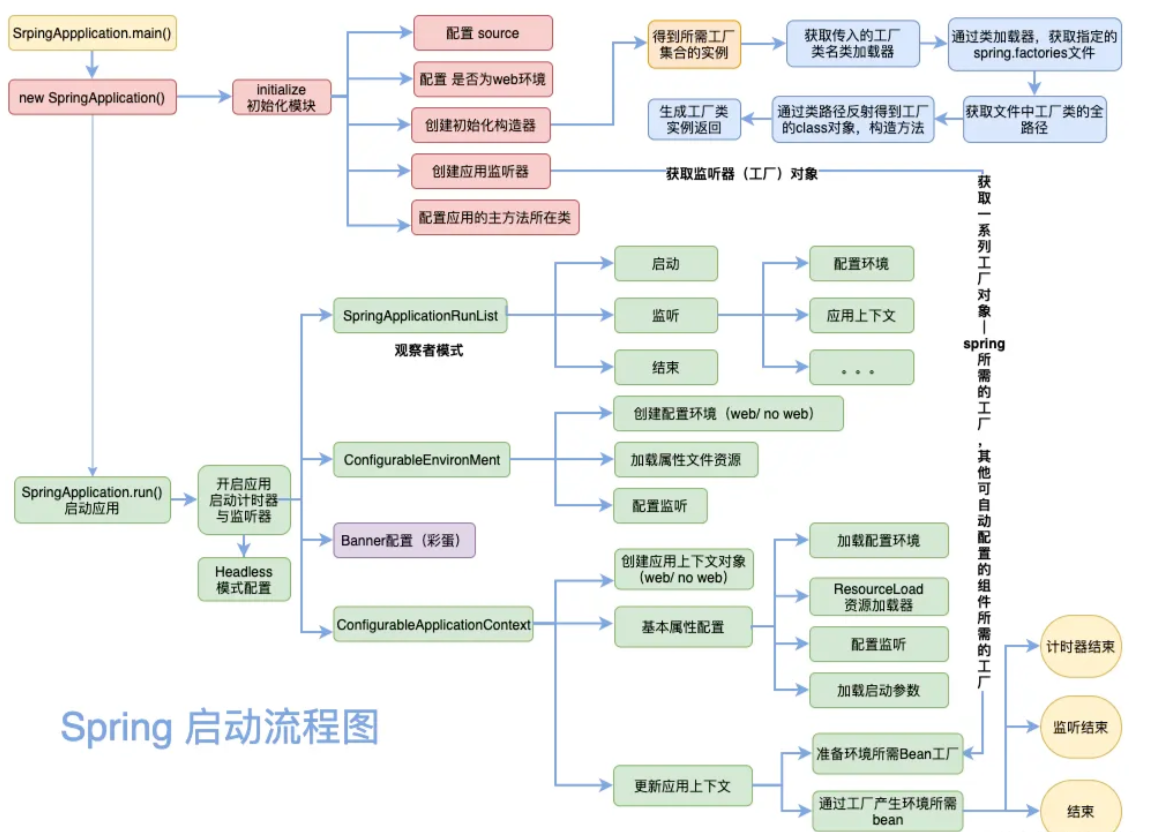

启动过程



• 启动主类调用main()方法开始。
• 调用 SpringApplication的构造方法，实例一个Spirng应用对象。在构造方法里主要完成启动环境初始化工作，如推断主类，spring应用类型，加载配置文件，读取spring.factories文件等。
• 调用run方法，所有的启动工作在该方法内完成，主要完成加载配置资源，准备上下文，创建上下文，刷新上下文，过程事件发布等

@SpringBootApplication 注解

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration   //注册为配置类
@EnableAutoConfiguration   //配置可自动装配
@ComponentScan(excludeFilters = { @Filter(type = FilterType.CUSTOM, classes = TypeExcludeFilter.class),
        @Filter(type = FilterType.CUSTOM, classes = AutoConfigurationExcludeFilter.class) })
public @interface SpringBootApplication {
}

@SpringBootConfiguration

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Configuration
@Indexed
public @interface SpringBootConfiguration {
}

@EnableAutoConfiguration

     @EnableAutoConfiguration借助@Import的帮助，将所有符合自动配置条件的bean定义加载到IoC容器，会根据类路径中的jar依赖为项目进行自动配置，如：添加spring-boot-starter-web依赖，会自动添加Tomcat和Spring MVC的依赖，Spring Boot会对Tomcat和Spring MVC进行自动配置。

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {

    /**
     * Environment property that can be used to override when auto-configuration is
     * enabled.
     */
    String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";

    /**
     * Exclude specific auto-configuration classes such that they will never be applied.
     * @return the classes to exclude
     */
    Class<?>[] exclude() default {};

    /**
     * Exclude specific auto-configuration class names such that they will never be
     * applied.
     * @return the class names to exclude
     * @since 1.3.0
     */
    String[] excludeName() default {};

}

　  最关键的要属@Import(EnableAutoConfigurationImportSelector.class) ，借助EnableAutoConfigurationImportSelector，@EnableAutoConfiguration可以帮助SpringBoot应用将所有符合条件的@Configuration配置都加载到当前SpringBoot创建并使用的IoC容器。

@ComponentScan

　   @ComponentScan的功能就是自动扫描并加载符合条件的组件（比如@Component和@Repository等）或者bean定义，最终将这些bean定义加载到IoC容器中。可以通过basePackages等属性来细粒度的定制@ComponentScan自动扫描的范围，如果不指定，则默认Spring框架实现会从声明@ComponentScan所在类的package进行扫描。

构造器

　　创建SpringApplication对象

    public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
        this.resourceLoader = resourceLoader;
        Assert.notNull(primarySources, "PrimarySources must not be null");
        this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
        this.webApplicationType = WebApplicationType.deduceFromClasspath();  //判断当前程序类型
        this.bootstrapRegistryInitializers = getBootstrapRegistryInitializersFromSpringFactories();
        setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));  //使用SpringFactoriesLoader 实例化所有可用的初始器
        setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));  // 使用SpringFactoriesLoader 实例化所有可用的监听器
        this.mainApplicationClass = deduceMainApplicationClass();  // 配置应用主方法所在类
    }

判断当前程序类型

　　根据classpath里面是否存在某个特征类（org.springframework.web.context.ConfigurableWebApplicationContext）来决定是否应该创建一个为Web应用使用的ApplicationContext类型。

启动方法（RUN）

　　初始化完成之后就进到run方法，run方法完成所有Spring的整个启动过程：

• 准备Environment

• 发布事件

• 创建上下文、bean

• 刷新上下文

• 结束

public ConfigurableApplicationContext run(String... args) {
        StopWatch stopWatch = new StopWatch();   //开启时钟计时
        stopWatch.start();
        DefaultBootstrapContext bootstrapContext = createBootstrapContext();
        ConfigurableApplicationContext context = null;  //spring上下文
        configureHeadlessProperty();
        SpringApplicationRunListeners listeners = getRunListeners(args);  //初始化SpringApplicationRunListener 监听器，并进行封装
        listeners.starting(bootstrapContext, this.mainApplicationClass);  //
        try {
            ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
            ConfigurableEnvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);  //Environment 的准备
            configureIgnoreBeanInfo(environment);
            Banner printedBanner = printBanner(environment);
            context = createApplicationContext();  //创建上下文实例
            context.setApplicationStartup(this.applicationStartup);
            prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner); //容器初始化
            refreshContext(context);  //刷新上下文容器
            afterRefresh(context, applicationArguments);
            stopWatch.stop();
            if (this.logStartupInfo) {
                new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
            }
            listeners.started(context);
            callRunners(context, applicationArguments);
        }
        catch (Throwable ex) {
            handleRunFailure(context, ex, listeners);
            throw new IllegalStateException(ex);
        }

        try {
            listeners.running(context);
        }
        catch (Throwable ex) {
            handleRunFailure(context, ex, null);
            throw new IllegalStateException(ex);
        }
        return context;
    }

SpringApplicationRunListener 的使用

　　通过getSpringFactoriesInstances 获取到所有实现SpringApplicationRunListener 接口的实例，默认情况下该接口的实现类只有 EventPublishingRunListener 他的主要作用是作为springboot 的一个广播器

    private SpringApplicationRunListeners getRunListeners(String[] args) {
        Class<?>[] types = new Class<?>[] { SpringApplication.class, String[].class };
        return new SpringApplicationRunListeners(logger,
                getSpringFactoriesInstances(SpringApplicationRunListener.class, types, this, args),
                this.applicationStartup);
    }

prepareEnvironment

       写业务代码时，使用的都是只读类型的接口Environment，该接口是对运行程序环境的抽象，是保存系统配置的中心，而在启动过程中使用的则是可编辑的ConfigurableEnvironment。接口的UML类图如下，提供了合并父环境、添加active profile以及一些设置解析配置文件方式的接口。

　　其中一个比较重要的方法MutablePropertySources getPropertySources();，该方法返回一个可编辑的PropertySources，在启动阶段自定义环境的PropertySources的需求，就可以通过该方法设置。

    private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners,
            DefaultBootstrapContext bootstrapContext, ApplicationArguments applicationArguments) {
        // Create and configure the environment
        ConfigurableEnvironment environment = getOrCreateEnvironment();
        configureEnvironment(environment, applicationArguments.getSourceArgs());
        ConfigurationPropertySources.attach(environment);    //填充启动类参数到enviroment 对象
        listeners.environmentPrepared(bootstrapContext, environment);
        DefaultPropertiesPropertySource.moveToEnd(environment);
        Assert.state(!environment.containsProperty("spring.main.environment-prefix"),
                "Environment prefix cannot be set via properties.");
        bindToSpringApplication(environment);   //绑定主类
        if (!this.isCustomEnvironment) {  //转换environment的类型，但这里应该类型和deduce的相同不用转换
            environment = convertEnvironment(environment);
        }
        ConfigurationPropertySources.attach(environment);
        return environment;
    }

创建springApplicationContext 上下文

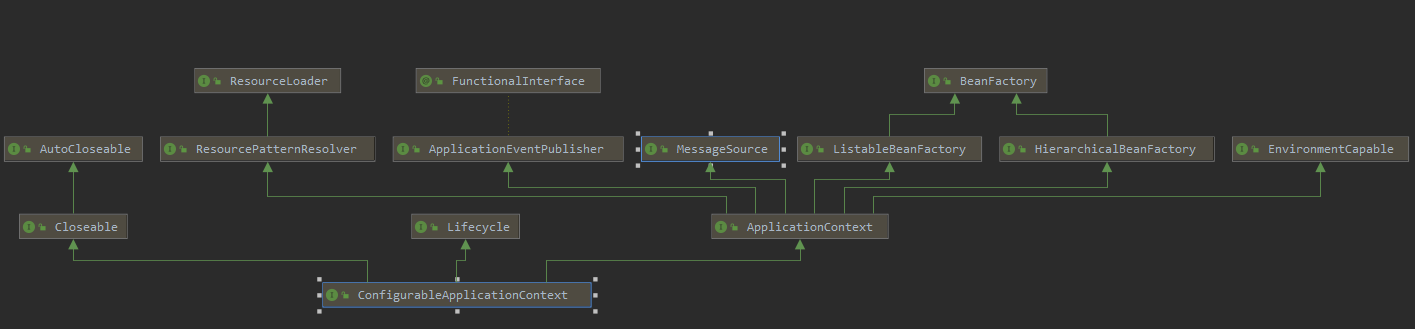

 Closeable提供了关闭时资源释放的接口，Lifecycle是提供对生命周期控制的接口(start\stop)以及查询当前运行状态的接口，ApplicationContext则是配置上下文的中心配置接口

上下文初始化

private void prepareContext(DefaultBootstrapContext bootstrapContext, ConfigurableApplicationContext context,
            ConfigurableEnvironment environment, SpringApplicationRunListeners listeners,
            ApplicationArguments applicationArguments, Banner printedBanner) {
        context.setEnvironment(environment);
        postProcessApplicationContext(context);
        applyInitializers(context); //调用初始化的切面
        listeners.contextPrepared(context);  //发布ApplicationContextInitializedEvent事件
        bootstrapContext.close(context);
        if (this.logStartupInfo) {
            logStartupInfo(context.getParent() == null);
            logStartupProfileInfo(context);
        }
        // Add boot specific singleton beans
        ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
        beanFactory.registerSingleton("springApplicationArguments", applicationArguments);
        if (printedBanner != null) {
            beanFactory.registerSingleton("springBootBanner", printedBanner);
        }
        if (beanFactory instanceof DefaultListableBeanFactory) {
            ((DefaultListableBeanFactory) beanFactory)
                    .setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
        }
        if (this.lazyInitialization) {
            context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
        }
        // Load the sources
        Set<Object> sources = getAllSources();
        Assert.notEmpty(sources, "Sources must not be empty");
        load(context, sources.toArray(new Object[0]));
        listeners.contextLoaded(context); //发布ApplicationPreparedEvent事件
    }

刷新上下文

public void refresh() throws BeansException, IllegalStateException {
    synchronized (this.startupShutdownMonitor) {
        //记录启动时间、状态，web容器初始化其property，复制listener
        prepareRefresh();
        //这里返回的是context的BeanFactory
        ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
        //beanFactory注入一些标准组件，例如ApplicationContextAwareProcessor，ClassLoader等
        prepareBeanFactory(beanFactory);
        try {
            //给实现类留的一个钩子，例如注入BeanPostProcessors，这里是个空方法
            postProcessBeanFactory(beanFactory);

            // 调用切面方法
            invokeBeanFactoryPostProcessors(beanFactory);

            // 注册切面bean
            registerBeanPostProcessors(beanFactory);

            // Initialize message source for this context.
            initMessageSource();

            // bean工厂注册一个key为applicationEventMulticaster的广播器
            initApplicationEventMulticaster();

            // 给实现类留的一钩子，可以执行其他refresh的工作，这里是个空方法
            onRefresh();

            // 将listener注册到广播器中
            registerListeners();

            // 实例化未实例化的bean
            finishBeanFactoryInitialization(beanFactory);

            // 清理缓存，注入DefaultLifecycleProcessor，发布ContextRefreshedEvent
            finishRefresh();
        }

        catch (BeansException ex) {
            if (logger.isWarnEnabled()) {
                logger.warn("Exception encountered during context initialization - " +
                        "cancelling refresh attempt: " + ex);
            }

            // Destroy already created singletons to avoid dangling resources.
            destroyBeans();

            // Reset 'active' flag.
            cancelRefresh(ex);

            // Propagate exception to caller.
            throw ex;
        }

        finally {
            // Reset common introspection caches in Spring's core, since we
            // might not ever need metadata for singleton beans anymore...
            resetCommonCaches();
        }
    }
}
