ElasticJob job框架升级: dangdang.ElasticJob2.1.5升级org.apache.shardingsphere ElasticJob 3.0.2

先说下为什么升级,

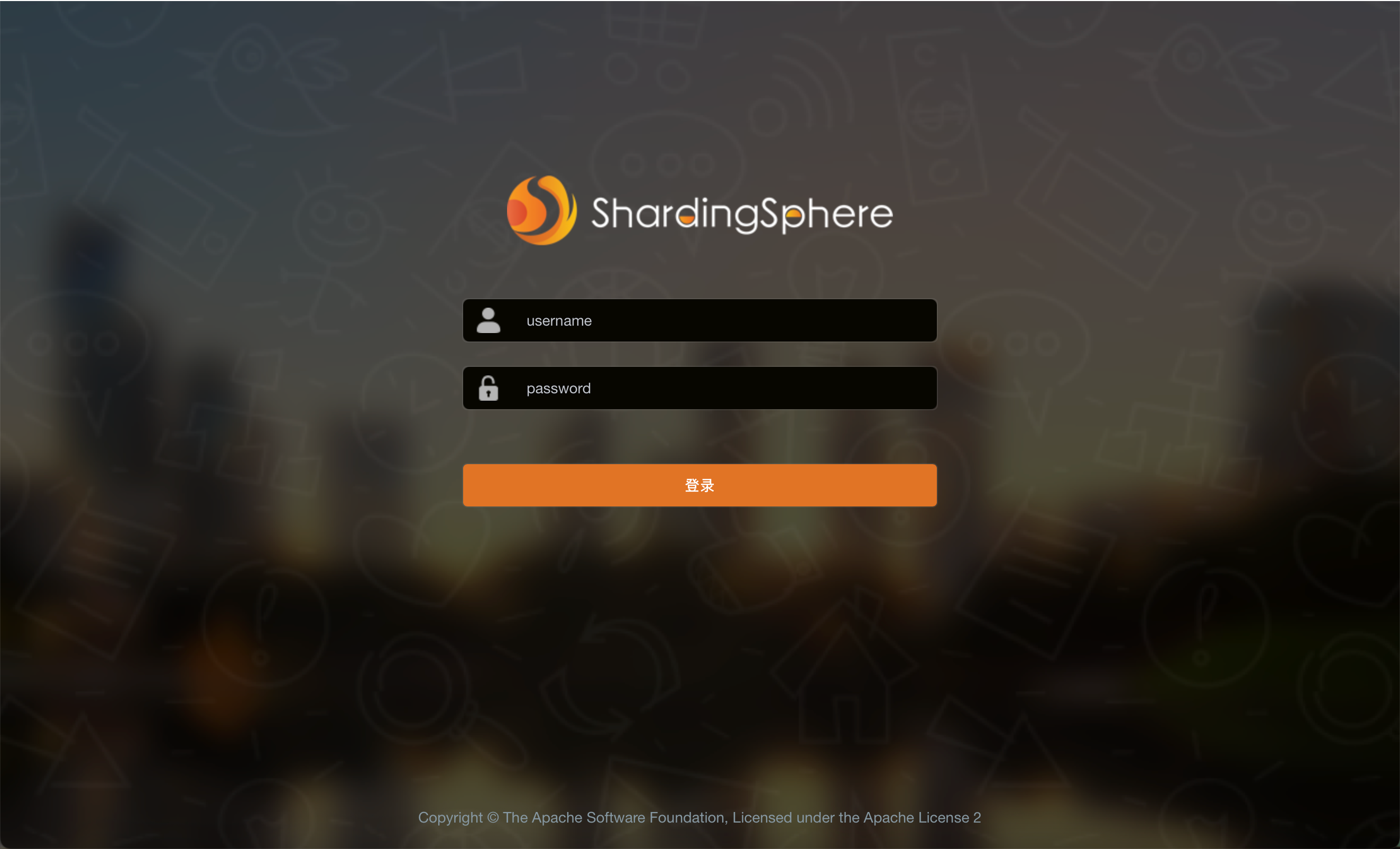

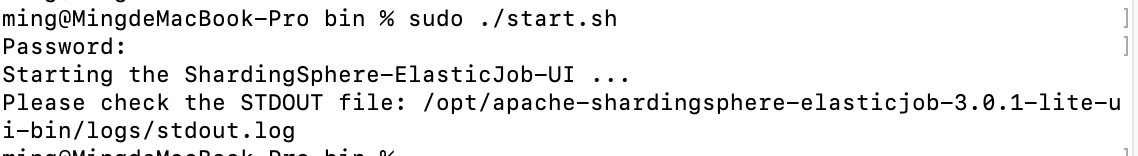

当我本地部署zk 启动job服务后,想这本地安装一个本地的job控制台, 无奈找了半天找到一个apache的3.0.2的结果启动后,和本地版本不一致无法使用, 一怒之下升级了自己项目的ElasticJob 3.0.2

大致介绍下

1禁用旧的pom,加上新的

<!--        <dependency>-->
<!--            <groupId>com.dangdang</groupId>-->
<!--            <artifactId>elastic-job-common-core</artifactId>-->
<!--            <version>2.1.5</version>-->
<!--        </dependency>-->

<!--        <dependency>-->
<!--            <groupId>com.dangdang</groupId>-->
<!--            <artifactId>elastic-job-lite-spring</artifactId>-->
<!--            <version>2.1.5</version>-->
<!--        </dependency>-->

        <!-- ElasticJob核心依赖 -->
        <dependency>
            <groupId>org.apache.shardingsphere.elasticjob</groupId>
            <artifactId>elasticjob-lite-core</artifactId>
            <version>3.0.2</version>
        </dependency>

        <!-- 添加新版本依赖 -->
        <dependency>
            <groupId>org.apache.shardingsphere.elasticjob</groupId>
            <artifactId>elasticjob-lite-spring-boot-starter</artifactId>
            <version>3.0.2</version>
        </dependency>

如果是在问的ai他会让你还加一个zookeeper的引用,这里其实不用。

springbootstarter应该已经包含了

2,升级job配置中心,用于启动项目是扫描被注解的类,作为任务注册到任务中心

旧代码:

旧代码,注册任务中心

 ///*
// * Copyright © 2015-2026 the original author or authors.
// *
// * Licensed under the Apache License, Version 2.0 (the "License");
// * you may not use this file except in compliance with the License.
// * You may obtain a copy of the License at
// *
// *     http://www.apache.org/licenses/LICENSE-2.0
// *
// * Unless required by applicable law or agreed to in writing, software
// * distributed under the License is distributed on an "AS IS" BASIS,
// * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// * See the License for the specific language governing permissions and
// * limitations under the License.
// * @since 0.0.1
// */
//package com.zmm.ninja.config;
//
//
//import com.dangdang.ddframe.job.api.ElasticJob;
//import com.dangdang.ddframe.job.config.JobCoreConfiguration;
//import com.dangdang.ddframe.job.config.simple.SimpleJobConfiguration;
//import com.dangdang.ddframe.job.lite.config.LiteJobConfiguration;
//import com.dangdang.ddframe.job.lite.spring.api.SpringJobScheduler;
//import com.dangdang.ddframe.job.reg.zookeeper.ZookeeperRegistryCenter;
//import lombok.extern.slf4j.Slf4j;
//import org.apache.commons.lang3.StringUtils;
//import org.springframework.beans.BeansException;
//import org.springframework.beans.factory.InitializingBean;
//import org.springframework.beans.factory.annotation.Autowired;
//import org.springframework.context.ApplicationContext;
//import org.springframework.context.ApplicationContextAware;
//import org.springframework.core.annotation.AnnotationUtils;
//import org.springframework.stereotype.Component;
//
//import java.util.Map;
//import java.util.Optional;
//
///**
// * @author zhengmingming
// * @since 1.0.0
// */
//@Component
//@Slf4j
//public class RegisterEjob implements ApplicationContextAware, InitializingBean {
//
//    @Autowired
//    private ZookeeperRegistryCenter zookeeperRegistryCenter;
//
//    private ApplicationContext applicationContext;
//
//    @Override
//    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
//        this.applicationContext = applicationContext;
//    }
//
//    @Override
//    public void afterPropertiesSet() throws Exception {
//        Map<String, Object> registerJobs = applicationContext.getBeansWithAnnotation(ElasticJobZ.class);
//        for (Map.Entry<String, Object> entry : registerJobs.entrySet()) {
//            try {
//                Object object = entry.getValue();
//                if (!(object instanceof ElasticJob)) {
//                    throw new ClassCastException("[" + object.getClass().getName() + "] The class type is not com.dangdang.ddframe.job.api.ElasticJobZ");
//                }
//                ElasticJobZ elasticJob = AnnotationUtils.findAnnotation(object.getClass(), ElasticJobZ.class);
//                // 判断 disable 属性是否为 true
//                if (elasticJob != null && elasticJob.disable()) {
//                    log.info("Job {} is disabled and will not be scheduled.", elasticJob.jobName());
//                    continue;
//                }
//                SpringJobScheduler springJobScheduler = new SpringJobScheduler((ElasticJob) object, zookeeperRegistryCenter, getJobConfiguration(elasticJob, object));
//                springJobScheduler.init();
//            } catch (Exception e) {
//                log.error("注册任务异常 ", e);
//            }
//        }
//    }
//
//    /**
//     * 配置job任务
//     *
//     * @param elasticJob
//     * @param object
//     * @return
//     */
//    private LiteJobConfiguration getJobConfiguration(ElasticJobZ elasticJob, Object object) {
//
//        Optional.ofNullable(elasticJob.jobName()).orElseThrow(() -> new IllegalArgumentException("The jobName cannot be null !"));
//        Optional.ofNullable(elasticJob.cron()).orElseThrow(() -> new IllegalArgumentException("The cron cannot be null !"));
//        Optional.ofNullable(elasticJob.desc()).orElseThrow(() -> new IllegalArgumentException("The desc cannot be null !"));
//
//        SimpleJobConfiguration simpleJobConfiguration = new SimpleJobConfiguration(
//                JobCoreConfiguration
//                        .newBuilder(elasticJob.jobName(), elasticJob.cron(), elasticJob.shardingTotalCount())
//                        .shardingItemParameters(StringUtils.isEmpty(elasticJob.shardingItemParameters()) ? null : elasticJob.shardingItemParameters())
//                        .description(elasticJob.desc())
//                        .failover(elasticJob.failover())
//                        .jobParameter(StringUtils.isEmpty(elasticJob.jobParameter()) ? null : elasticJob.jobParameter())
//                        .build(),
//                object.getClass().getName());
//        LiteJobConfiguration liteJobConfiguration = LiteJobConfiguration
//                .newBuilder(simpleJobConfiguration).overwrite(elasticJob.overwrite())
//                .monitorExecution(true)
//                .build();
//        return liteJobConfiguration;
//    }
//}

升级i后到代码,注册中心配置:

/*
 * Copyright © 2015-2026 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 * @since 0.0.1
 */
package com.zmm.ninja.config;

import org.apache.shardingsphere.elasticjob.api.ElasticJob;
import org.apache.shardingsphere.elasticjob.api.JobConfiguration;
import org.apache.shardingsphere.elasticjob.lite.api.bootstrap.impl.ScheduleJobBootstrap;
import org.apache.shardingsphere.elasticjob.reg.zookeeper.ZookeeperRegistryCenter;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.core.annotation.AnnotationUtils;
import org.springframework.stereotype.Component;

import java.util.Map;
import java.util.Optional;

/**
 * @author zhengmingming
 * @since 1.0.0
 */
@Component
@Slf4j
public class ElasticJobAnnotationProcessor implements ApplicationContextAware, InitializingBean {

    @Autowired
    private ZookeeperRegistryCenter zookeeperRegistryCenter;

    private ApplicationContext applicationContext;

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        Map<String, Object> registerJobs = applicationContext.getBeansWithAnnotation(ElasticScheduledJob.class);
        for (Map.Entry<String, Object> entry : registerJobs.entrySet()) {
            try {
                Object object = entry.getValue();
                if (!(object instanceof ElasticJob)) {
                    throw new ClassCastException("[" + object.getClass().getName() + "] The class type is not org.apache.shardingsphere.elasticjob.api.ElasticJob");
                }
                ElasticScheduledJob elasticJob = AnnotationUtils.findAnnotation(object.getClass(), ElasticScheduledJob.class);
//                if (elasticJob != null && elasticJob.disabled()) {
//                    log.info("Job {} is disabled and will not be scheduled.", elasticJob.jobName());
//                    continue;
//                }
                new ScheduleJobBootstrap(zookeeperRegistryCenter, (ElasticJob) object, getJobConfiguration(elasticJob)).schedule();
            } catch (Exception e) {
                log.error("注册任务异常 ", e);
            }
        }
    }

    /**
     * 配置job任务
     *
     * @param elasticJob 自定义的作业注解
     * @return 作业配置
     */
    private JobConfiguration getJobConfiguration(ElasticScheduledJob elasticJob) {
        Optional.ofNullable(elasticJob.jobName()).orElseThrow(() -> new IllegalArgumentException("The jobName cannot be null !"));
        Optional.ofNullable(elasticJob.cron()).orElseThrow(() -> new IllegalArgumentException("The cron cannot be null !"));
        Optional.ofNullable(elasticJob.description()).orElseThrow(() -> new IllegalArgumentException("The desc cannot be null !"));

        return JobConfiguration.newBuilder(elasticJob.jobName(), elasticJob.shardingTotalCount())
                .cron(elasticJob.cron())
                .shardingItemParameters(StringUtils.isEmpty(elasticJob.shardingItemParameters()) ? "" : elasticJob.shardingItemParameters())
                .description(elasticJob.description())
                .failover(elasticJob.failover())
                .jobParameter(StringUtils.isEmpty(elasticJob.jobParameter()) ? "" : elasticJob.jobParameter())
                .overwrite(elasticJob.overwrite())
                .monitorExecution(true)
                .disabled(elasticJob.disabled())
                .build();
    }
}

3升级后 zookpeer会在启动时注册,删除之前的zk注册类

删除之前的zk注册类

 //
//package com.zmm.ninja.config;
//
//import lombok.extern.slf4j.Slf4j;
//import org.apache.shardingsphere.elasticjob.reg.zookeeper.ZookeeperConfiguration;
//import org.apache.shardingsphere.elasticjob.reg.zookeeper.ZookeeperRegistryCenter;
//import org.springframework.beans.factory.annotation.Value;
//import org.springframework.context.annotation.Bean;
//import org.springframework.context.annotation.Configuration;
//
///**
// * @author zhengmingming
// * @since 1.0.0
// */
//@Configuration
//@Slf4j
//public class ZookeeperConfig {
//
//    @Value("${server_lists}")
//    private String serverLists;
//
//    @Value("${namespace}")
//    private String namespace;
//
//    @Value("${base_sleep_time_milliseconds}")
//    private int baseSleepTimeMilliseconds;
//
//    @Value("${max_sleep_time_milliseconds}")
//    private int maxSleepTimeMilliseconds;
//
//    @Value("${max_retries}")
//    private int maxRetries;
//    /**
//     * 初始化注册中心
//     *
//     * */
//    @Bean(initMethod = "init")
//    public ZookeeperRegistryCenter zookeeperRegistryCenter() {
//        log.info("初始化zoopeeker");
//        ZookeeperConfiguration zookeeperConfiguration = new ZookeeperConfiguration(serverLists, namespace);
//        zookeeperConfiguration.setBaseSleepTimeMilliseconds(baseSleepTimeMilliseconds);
//        zookeeperConfiguration.setMaxSleepTimeMilliseconds(maxSleepTimeMilliseconds);
//        zookeeperConfiguration.setMaxRetries(maxRetries);
//        return new ZookeeperRegistryCenter(zookeeperConfiguration);
//    }
//}

zk配置中心配置类会自动配置

需要调整zk地址配置

elasticjob.reg-center.serverLists=127.0.0.1:2181
elasticjob.reg-center.namespace=ninjaJob

自定义注解:

package com.zmm.ninja.config;

import org.springframework.stereotype.Component;

import java.lang.annotation.*;

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Component
public @interface ElasticScheduledJob {

    /**
     * 作业名称
     */
    String jobName();

    /**
     * cron表达式
     */
    String cron();

    /**
     * 分片总数
     */
    int shardingTotalCount() default 1;

    /**
     * 分片参数
     * 格式: 0=北京,1=上海,2=广州
     */
    String shardingItemParameters() default "";

    /**
     * 作业参数
     */
    String jobParameter() default "";

    /**
     * 是否开启失效转移
     */
    boolean failover() default false;

    /**
     * 是否开启错过任务重新执行
     */
    boolean misfire() default true;

    /**
     * 作业描述信息
     */
    String description() default "";

    /**
     * 是否覆盖已存在的作业配置
     */
    boolean overwrite() default false;

    /**
     * 是否流式处理 (仅DataflowJob有效)
     */
    boolean streamingProcess() default false;

    /**
     * 脚本命令 (仅ScriptJob有效)
     */
    String scriptCommandLine() default "";

    /**
     * 是否禁用
     */
    boolean disabled() default false;
}

新建任务
