Sqoop简介和实战 (三) Kettle&Sqoop数据同步框架案例

Posted on 2021-06-19 17:45 MissRong 阅读(699) 评论(0) 收藏举报

Sqoop简介和实战 (三) Kettle&Sqoop数据同步框架案例

说明:

etl数据库的control_table表中记录着需要同步到Hive的表的表名

总体用 Kettle的转换-Transformation 来实现数据的同步

转换包括两个分支: 建Hive表(创建和task_name同名的表)

第一阶段(Shell)Sqoop语句的任务--创建表:

将test数据库中需要同步的TABLE_NAME

同步到Hive的DB_NAME库的ODS_TABLE_NAME表中

这3个变量的值从前一步(Table input)的SQL语句中获取

第二阶段(Shell)Sqoop语句的任务--插入数据:

将test数据库中需要同步的TABLE_NAME中的数据

同步到Hive中,目标用路径的方式书写, /user/hive/warehouse/下

${DB_NAME}.db为数据库

${ODS_TABLE_NAME}为表名

这3个变量的值依然是从同分支的前一步(Table input2)的SQL语句中获取

前期准备

--test数据库下：
create table product
(
id         bigint,
product_id bigint,
product_name varchar(50),
created_at datetime,
updated_at datetime
)
;
insert into product
select 1,1,'name1',now(),now();
commit;

--etl数据库下创建表control_table来存储等待存库的表名：
create table control_table
(id int primary key auto_increment,
task_name varchar(255),
run_flag int,
created_at datetime,
updated_at datetime
)
;

批量建表:

create table test.product1  as select * from product ;
create table test.product2  as select * from product ;
create table test.product3  as select * from product ;
create table test.product4  as select * from product ;
create table test.product5  as select * from product ;
create table test.product6  as select * from product ;
create table test.product7  as select * from product ;
create table test.product8  as select * from product ;
create table test.product9  as select * from product ;
create table test.product10 as select * from product ;
create table test.product11 as select * from product ;
create table test.product12 as select * from product ;
create table test.product13 as select * from product ;
create table test.product14 as select * from product ;
create table test.product15 as select * from product ;
create table test.product16 as select * from product ;
create table test.product17 as select * from product ;
create table test.product18 as select * from product ;
create table test.product19 as select * from product ;
create table test.product20 as select * from product ;
create table test.product21 as select * from product ;
create table test.product22 as select * from product ;
create table test.product23 as select * from product ;
create table test.product24 as select * from product ;
create table test.product25 as select * from product ;
create table test.product26 as select * from product ;
create table test.product27 as select * from product ;
create table test.product28 as select * from product ;
create table test.product29 as select * from product ;
create table test.product30 as select * from product ;
create table test.product31 as select * from product ;
create table test.product32 as select * from product ;
create table test.product33 as select * from product ;
create table test.product34 as select * from product ;
create table test.product35 as select * from product ;
create table test.product36 as select * from product ;
create table test.product37 as select * from product ;
create table test.product38 as select * from product ;
create table test.product39 as select * from product ;
create table test.product40 as select * from product ;
create table test.product41 as select * from product ;
create table test.product42 as select * from product ;
create table test.product43 as select * from product ;
create table test.product44 as select * from product ;
create table test.product45 as select * from product ;
create table test.product46 as select * from product ;
create table test.product47 as select * from product ;
create table test.product48 as select * from product ;
create table test.product49 as select * from product ;
create table test.product50 as select * from product ;

insert into control_table(task_name,run_flag,created_at,updated_at) select  'product1',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product2',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product3',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product4',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product5',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product6',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product7',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product8',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product9',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product10',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product11',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product12',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product13',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product14',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product15',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product16',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product17',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product18',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product19',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product20',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product21',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product22',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product23',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product24',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product25',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product26',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product27',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product28',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product29',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product30',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product31',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product32',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product33',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product34',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product35',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product36',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product37',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product38',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product39',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product40',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product41',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product42',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product43',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product44',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product45',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product46',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product47',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product48',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product49',0,now(),now() from dual; commit;
insert into control_table(task_name,run_flag,created_at,updated_at) select  'product50',0,now(),now() from dual; commit;

update control_table
set run_flag = 1;

run_flag代表表是否被禁掉,如果值为 0 则被禁掉,为 1 则不是.

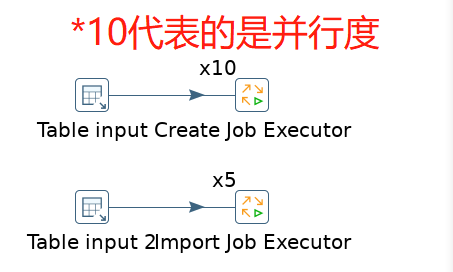

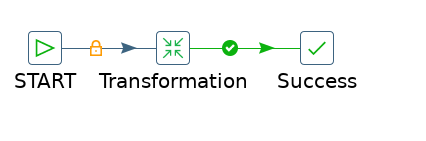

一、Kettle整体流程图

二、转换的详情

并行度为10就是并行执行10个任务-job

1、第一条线路--创建表

Table input

连接的是etl数据库，JNDI的配置文件jdbc.properties (Linux中的/opt/module/Kettle7.1/data-integration/simple-jndi) 加上：

MYSQL_ETL/type=javax.sql.DataSource
MYSQL_ETL/driver=org.gjt.mm.mysql.Driver
MYSQL_ETL/url=jdbc:mysql://192.168.212.50:3306/etl
MYSQL_ETL/user=root
MYSQL_ETL/password=000000

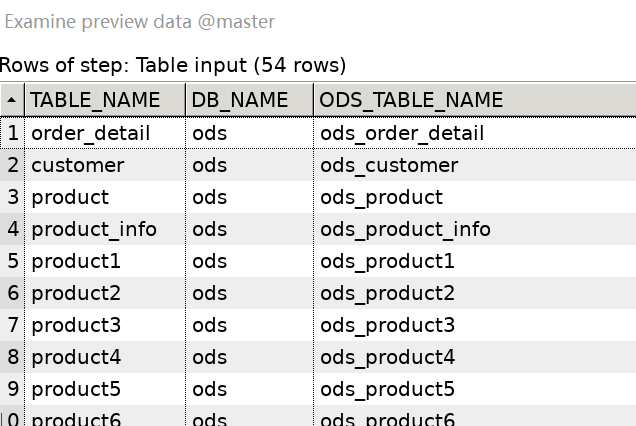

SQL语句：

SELECT task_name AS TABLE_NAME,
              'ods'  AS DB_NAME,
             CONCAT( 'ods_', task_name)  AS  ODS_TABLE_NAME
FROM control_table
WHERE run_flag = 1
and 1=1
;

concat() 返回结果为连接参数产生的字符串。如有任何一个参数为NULL ，则返回值为 NULL。

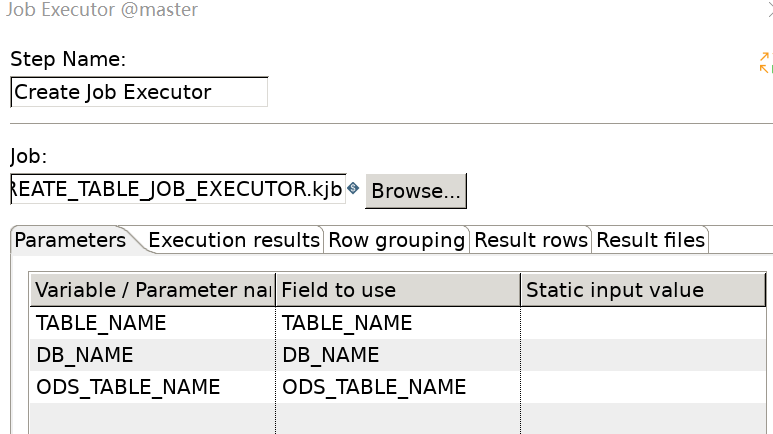

Create Job Executor

2、第二条线路--导入数据

注意,转换中如果没有start的话,多条线路是会并行执行的,

需要先创建表,走完第一个线路才能够走第二个线路,因此需要在不执行的SQL语句中修改限制条件为 1=2

Table input2

同上,连接的是etl数据库, SQL语句为:

SELECT task_name AS TABLE_NAME,
             'ods'  AS DB_NAME,
             CONCAT( 'ods_', task_name)  AS  ODS_TABLE_NAME,
             DATE_FORMAT(now(),'%Y%m%d%H%i%s') AS DW_LOAD_TIME
FROM control_table
WHERE run_flag = 1
and 1=1
;

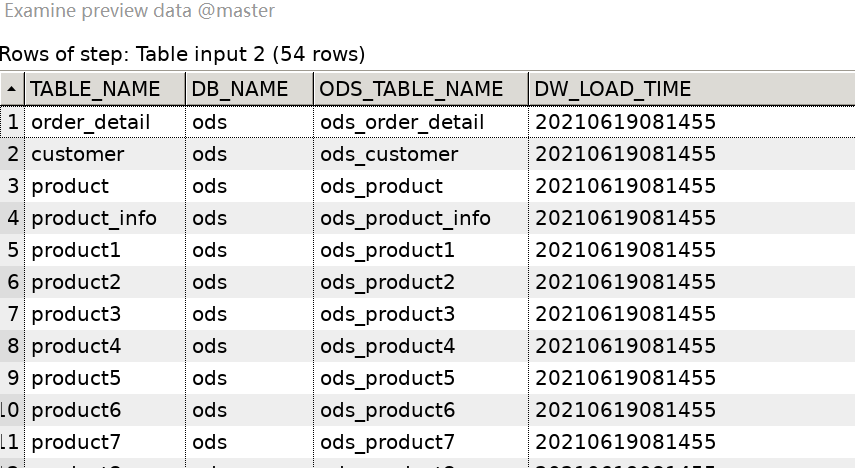

预览下得到的数据:

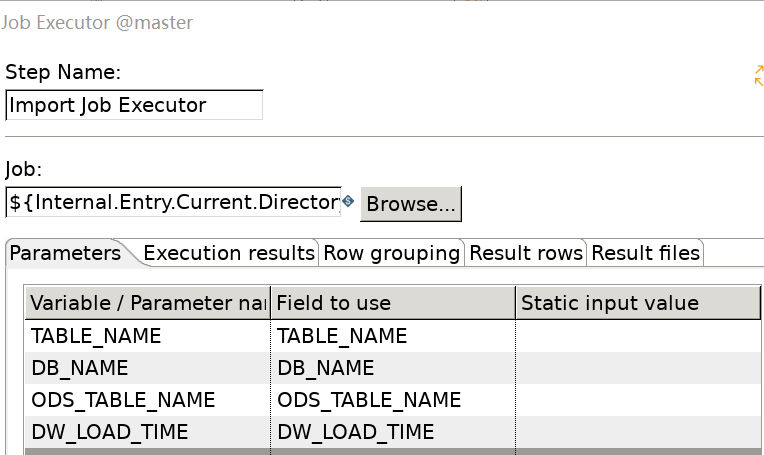

Import Job Executor

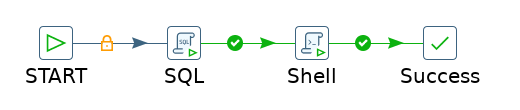

三、第一条线路--Create Job Executor

SQL语句--如果表在Hive中存在就删除掉：

DROP TABLE IF EXISTS ${DB_NAME}.${ODS_TABLE_NAME};

根据前面的Table input的SQL语句，

DB_NAME　变量会变成：ods

ODS_TABLE_NAME　变量会变成：CONCAT( 'ods_', task_name)

Shell语句（Sqoop）：

sqoop create-hive-table \
-Dmapreduce.job.name=sqoop_create_table \
-Dmapreduce.job.queuename=root.users.root \
--connect jdbc:mysql://master:3306/test \
--username root \
--password-file /user/root/vingo/sqoop.pwd \
--table '${TABLE_NAME}' \
--hive-database '${DB_NAME}' \
--hive-table '${ODS_TABLE_NAME}' \
--hive-overwrite \
--fields-terminated-by ','  \
--lines-terminated-by '\n'  \
--hive-drop-import-delims

hive-drop-import-delims: 删除数据中的分隔符,防止错行

将 test 库中的TABLE_NAME表导入到Hive的 DB_NAME 库的 ODS_TABLE_NAME 表中.

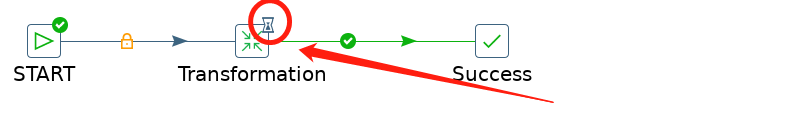

这个过程会有漏斗的标识,证明还在运行,需要再等待一会儿.

查看Hive中创建的表:

四、第二条线路--Import Job Executor

Shell语句(Sqoop)--增量更新:

sqoop import \
-Dmapreduce.job.name=sqoop_import_${TABLE_NAME}_${DW_LOAD_TIME} \
-Dmapreduce.job.queuename=root.users.root \
--connect jdbc:mysql://master:3306/test \
--username root \
--password-file /user/root/vingo/sqoop.pwd \
--table '${TABLE_NAME}'  \
--check-column 'updated_at' \
--incremental lastmodified \
--last-value '2018-01-14 16:40:53.0' \
--target-dir '/user/hive/warehouse/${DB_NAME}.db/${ODS_TABLE_NAME}'  \
--merge-key 'id'  \
-m 1

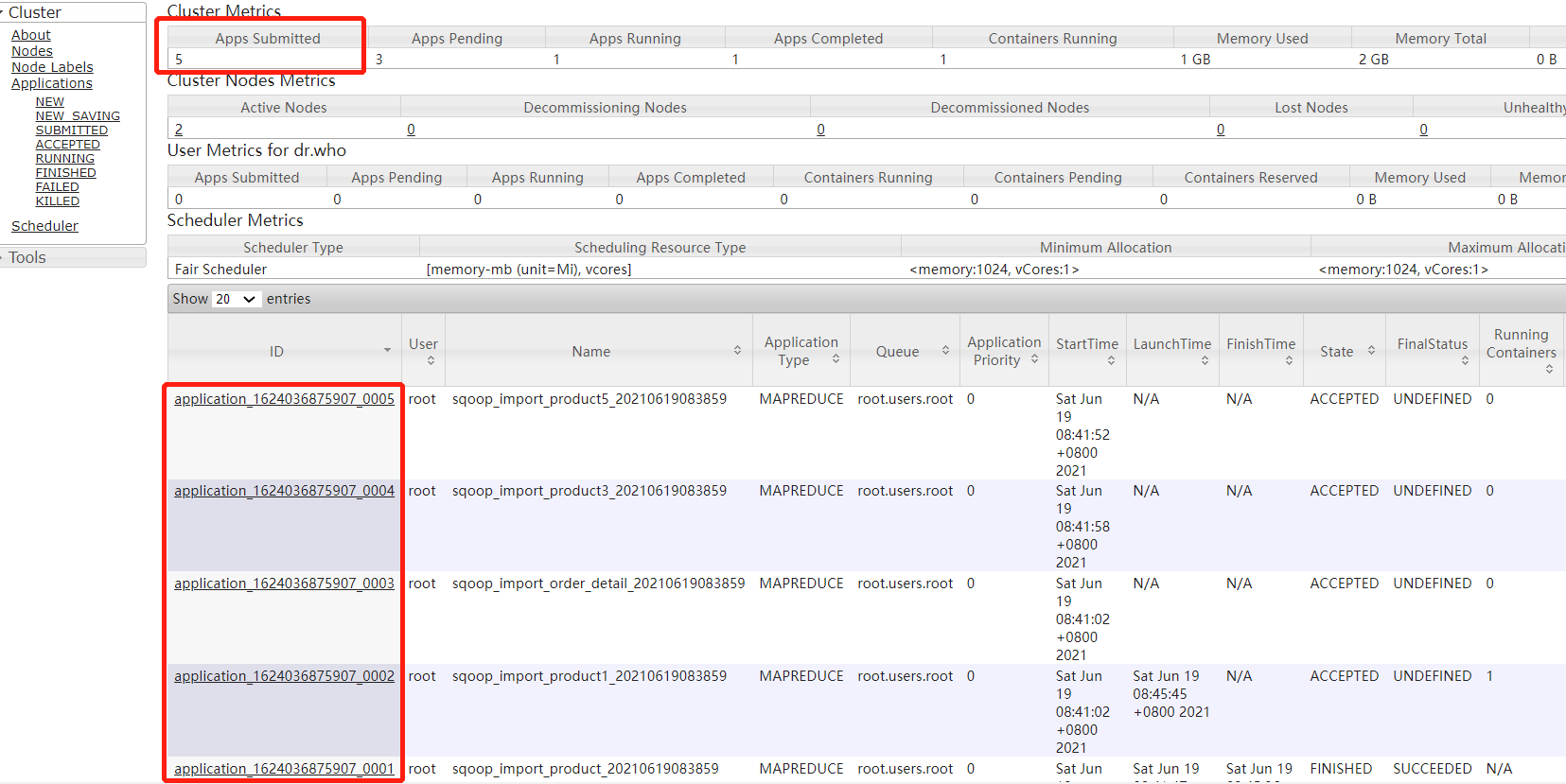

查看Yarn中的Applications:

一共可以有5个Job并行执行

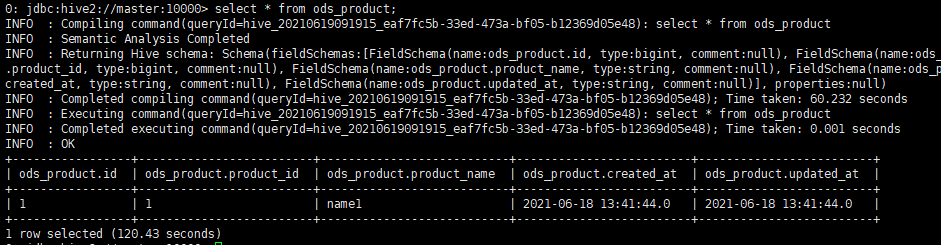

查看引入到表中的数据:
