【数码管】— 静态数码管按键控制大小

上午学了使用2片74HC595芯片控制数码管静态显示

吃午饭时和我对象聊起时，他建议我使用3个按键分别控制数码管：+1、-1、清零

于是吃完午饭回到实验室尝试做了出来，并上板验证成功

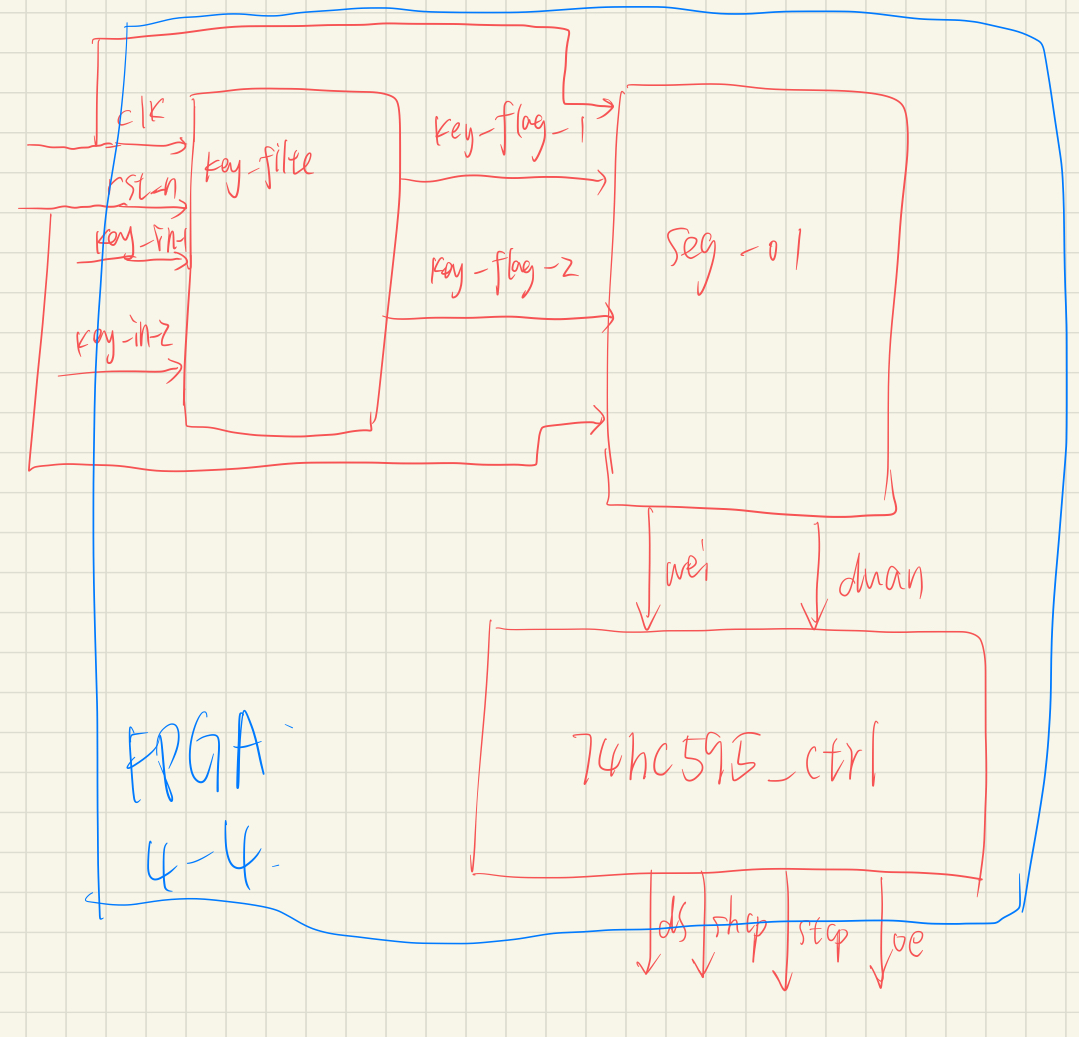

设计的框图：





一、设计文件

模块1：按键消抖

注意：之前在检测到按键下降沿后，计时20ms后将按键信号拉高，在上板验证时发现不够稳定

于是将时间延长到50ms

// ----------------------------

// 功能：按键消抖

// 细节：下降沿稳定50ms

// ----------------------------

module key_filter
(
    input wire Clk,
    input wire Rst_n,
    input wire key_in,

    output reg key_flag

);
parameter MAX = 22'd2499_999;
reg [21:0] Count;//计数器:999_999

always @(posedge Clk or negedge Rst_n)begin
    if(Rst_n == 1'b0)
        Count <= 22'd0;

    else if(key_in == 1'b1)
        Count <= 22'd0;
        else if(Count == MAX)
        Count <= MAX;
    else
        Count <= Count + 22'd1;

    end

always @(posedge Clk or negedge Rst_n)begin
    if(Rst_n == 1'b0)
        key_flag <= 1'b0;
    else if(Count == (MAX-22'd1))
        key_flag <= 1'b1;
    else
        key_flag <= 1'b0;

    end
endmodule

模块2：位选、段选驱动模块

module seg_01
(

input sys_clk,
input sys_rst_n,
input key_flage_01,//加1按键
input key_flage_02,//减1按键

output reg [5:0]wei,
output reg[7:0]duan

);
//reg     [25:0]  cnt_wait    ;   //时钟分频计数器
reg     [3:0]   num         ;   //数码管显示的十六进制数
parameter   CNT_WAIT_MAX  =  26'd49_999_999;   //计数器最大值（1s）

parameter   SEG_0 = 8'b1100_0000,   SEG_1 = 8'b1111_1001,
            SEG_2 = 8'b1010_0100,   SEG_3 = 8'b1011_0000,
            SEG_4 = 8'b1001_1001,   SEG_5 = 8'b1001_0010,
            SEG_6 = 8'b1000_0010,   SEG_7 = 8'b1111_1000,
            SEG_8 = 8'b1000_0000,   SEG_9 = 8'b1001_0000,
            SEG_A = 8'b1000_1000,   SEG_B = 8'b1000_0011,
            SEG_C = 8'b1100_0110,   SEG_D = 8'b1010_0001,
            SEG_E = 8'b1000_0110,   SEG_F = 8'b1000_1110;
parameter   IDLE  = 8'b1111_1111;   //不显示状态

// 共阳极数码管，位选需要让6位拉高，段选低电平有效

//wei：选中六个数码管
always@(posedge sys_clk or  negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        wei <=  6'b000000;
    else
        wei <=  6'b111111;

//显示什么
always@(posedge sys_clk or  negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        duan    <=  IDLE;
    else    case(num)
        4'd0:   duan    <=  SEG_0;
        4'd1:   duan    <=  SEG_1;
        4'd2:   duan    <=  SEG_2;
        4'd3:   duan    <=  SEG_3;
        4'd4:   duan    <=  SEG_4;
        4'd5:   duan    <=  SEG_5;
        4'd6:   duan    <=  SEG_6;
        4'd7:   duan    <=  SEG_7;
        4'd8:   duan    <=  SEG_8;
        4'd9:   duan    <=  SEG_9;
        4'd10:  duan    <=  SEG_A;
        4'd11:  duan    <=  SEG_B;
        4'd12:  duan    <=  SEG_C;
        4'd13:  duan    <=  SEG_D;
        4'd14:  duan    <=  SEG_E;
        4'd15:  duan    <=  SEG_F;
        default:duan    <=  IDLE ;  //闲置状态，不显示
    endcase
//num：从 4'h0 加到 4'hf 循环
always@(posedge sys_clk or  negedge sys_rst_n)
    if(sys_rst_n == 1'b0)
        num <=  4'd0;
    else if(key_flage_01 == 1'b1)
        num <=  num + 1'b1;
    else if(key_flage_02 == 1'b1)
        num <=  num - 1'b1;

endmodule

模块3:74HC595芯片

module seg_595
(
input                     clk        ,
input                     rst_n        ,
input         [5:0]        wei        ,
input           [7:0]        duan        ,

output        reg        ds            ,
output        reg        shcp        ,
output        reg        stcp        ,
output                    oe

);

wire   [13:0]        data            ;
reg    [1:0]            cnt_4            ;
reg    [3:0]            cnt_bit_14    ;

assign    data    =    {duan[0],duan[1],duan[2],duan[3],duan[4],duan[5],duan[6],duan[7],wei};
assign     oe = 1'b0;

// 4分频计数器

always@(posedge clk or negedge rst_n)begin
if(rst_n == 1'b0)
    cnt_4 <= 2'b0    ;
else if(cnt_4 == 2'd3)
    cnt_4 <= 2'b0    ;
else
    cnt_4 <= cnt_4 + 2'b1    ;
end

// 传输14位计数器

always@(posedge clk or negedge rst_n)begin
if(rst_n == 1'b0)
    cnt_bit_14 <= 4'b0;
else if(cnt_bit_14 == 4'd13 && cnt_4 == 2'd3)
    cnt_bit_14 <= 4'b0;
else if(cnt_4 == 2'd3)
    cnt_bit_14 <= cnt_bit_14 + 4'b1;
else
    cnt_bit_14 <= cnt_bit_14;
end

// -------------------- 输出信号  ----------------------------------

always@(posedge clk or negedge rst_n)begin
if(rst_n == 1'b0)
    shcp <= 1'b0;
else if(cnt_4>=2'd2)
    shcp <= 1'b1;
else
    shcp <= 1'b0;

end

always@(posedge clk or negedge rst_n)begin
if(rst_n == 1'b0)
    stcp <= 1'b0;
else if(cnt_bit_14 == 4'd0 && cnt_4 == 2'd0)
    stcp <= 1'b1;
else
    stcp <= 1'b0;
end

always@(posedge clk or negedge rst_n)begin
if(rst_n == 1'b0)
    ds <= 1'b0;
else if(cnt_4 == 1'b0)
    ds <= data[cnt_bit_14];
else
    ds <= ds;
end

endmodule

顶层模块

module seg_key
(
input clk                            ,
input rst_n                            ,
input key_01                        ,
input key_02                        ,

output                ds            ,
output                shcp        ,
output                stcp        ,
output                oe

);

wire[5:0]wei;
wire[7:0]duan;
wire key_flage_01;
wire key_flage_02;

key_filter c1
(
    .Clk(clk),
    .Rst_n(rst_n),
    .key_in(key_01),

    .key_flag(key_flage_01)

);

key_filter c2
(
    .Clk(clk),
    .Rst_n(rst_n),
    .key_in(key_02),

    .key_flag(key_flage_02)

);

seg_01

//#
//(
//    .CNT_WAIT_MAX(24'd24) // 减小仿真时间
//)

a1
(

.sys_clk(clk),
.sys_rst_n(rst_n),
.key_flage_01(key_flage_01),
.key_flage_02(key_flage_02),

.wei(wei),
.duan(duan)

);

seg_595 a2
(
.clk(clk)        ,
.rst_n(rst_n)        ,
.wei(wei)        ,
.duan(duan)        ,

.ds(ds)            ,
.shcp(shcp)        ,
.stcp(stcp)        ,
.oe(oe)

);

endmodule



二、测试文件

module tb_seg_key;

reg clk;
reg rst_n;
reg key_01;
reg key_02;

wire ds;
wire shcp;
wire stcp;
wire oe;

initial begin
clk = 1'b0;
rst_n = 1'b0;
#20;
rst_n = 1'b1;
key_01 = 1'b1;
key_02 = 1'b1;
end

always #10 clk = ~ clk;
always #10 key_01 = {$random}%2;
always #10 key_02 = {$random}%2;

seg_key out
(
.clk(clk)                            ,
.rst_n(rst_n)                            ,
.key_01(key_01)                        ,
.key_02(key_02)                        ,

.ds(ds)            ,
.shcp(shcp)        ,
.stcp(stcp)        ,
.oe(oe)

);

endmodule



三、波形图

由于需要的时间太长，因此不方便查看仿真图

四、RTL图

五、上板验证
