用 Markdown 语法创建图表文档，这个工具真心厉害

Mermaid 是一个基于 Javascript 的图表绘制工具，通过解析类 Markdown 的文本语法来实现图表的创建和动态修改。Mermaid 诞生的主要目的是让文档的更新能够及时跟上开发进度。

绘图和编写文档花费了开发者宝贵的开发时间，而且随着业务的变更，它很快就会过期。但是如果缺少了图表或文档，对于生产力和团队新人的业务学习都会产生巨大的阻碍。Mermaid 通过允许用户创建便于修改的图表来解决这一难题，它也可以作为生产脚本（或其他代码）的一部分。

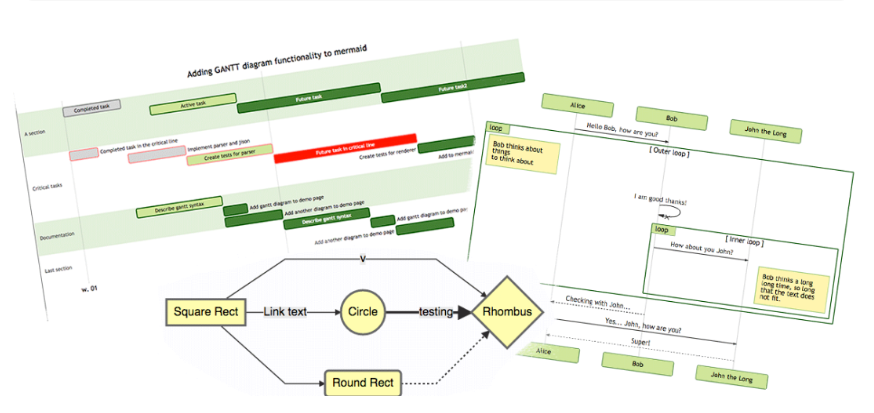

图表示例

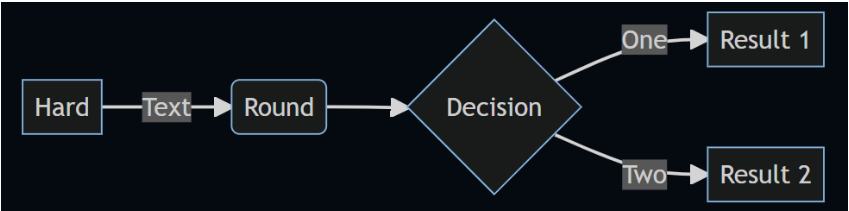

流程图

flowchart LR
A[Hard] -->|Text| B(Round)
B --> C{Decision}
C -->|One| D[Result 1]
C -->|Two| E[Result 2]

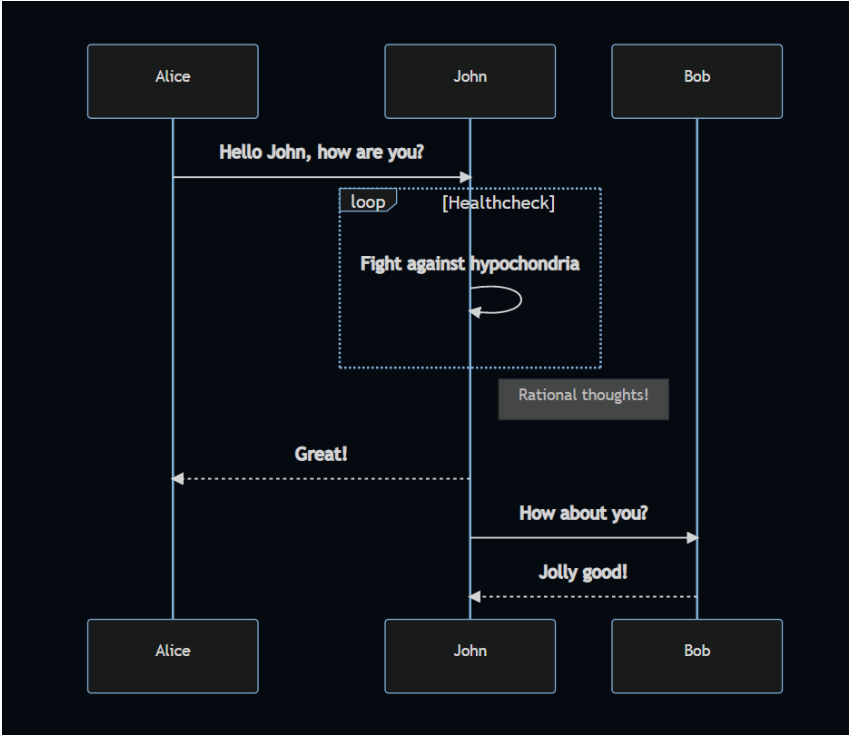

时序图

sequenceDiagram
Alice->>John: Hello John, how are you?
loop Healthcheck
    John->>John: Fight against hypochondria
end
Note right of John: Rational thoughts!
John-->>Alice: Great!
John->>Bob: How about you?
Bob-->>John: Jolly good!

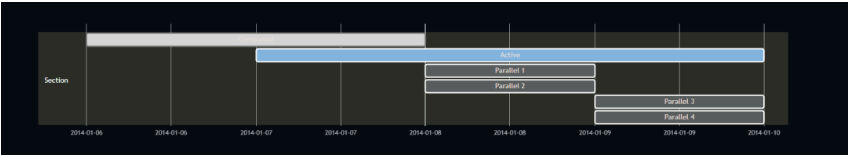

甘特图

gantt
    section Section
    Completed :done,    des1, 2014-01-06,2014-01-08
    Active        :active,  des2, 2014-01-07, 3d
    Parallel 1   :         des3, after des1, 1d
    Parallel 2   :         des4, after des1, 1d
    Parallel 3   :         des5, after des3, 1d
    Parallel 4   :         des6, after des4, 1d

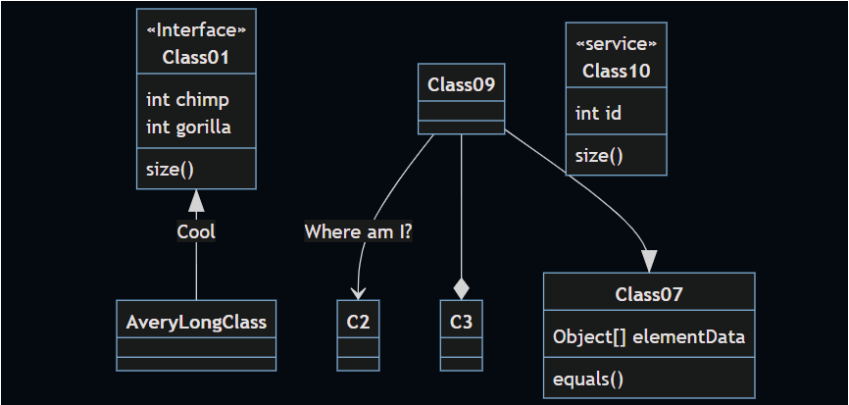

类图

classDiagram
Class01 <|-- AveryLongClass : Cool
<<Interface>> Class01
Class09 --> C2 : Where am I?
Class09 --* C3
Class09 --|> Class07
Class07 : equals()
Class07 : Object[] elementData
Class01 : size()
Class01 : int chimp
Class01 : int gorilla
class Class10 {
  <<service>>
  int id
  size()
}

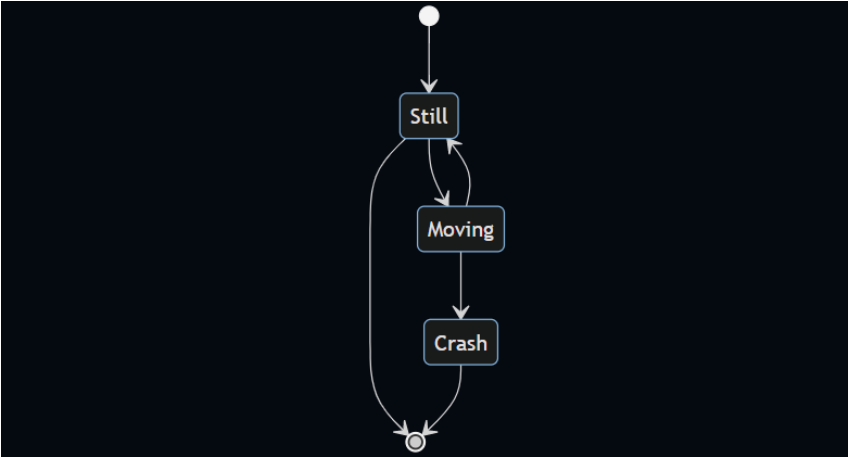

状态图

stateDiagram-v2
[*] --> Still
Still --> [*]
Still --> Moving
Moving --> Still
Moving --> Crash
Crash --> [*]

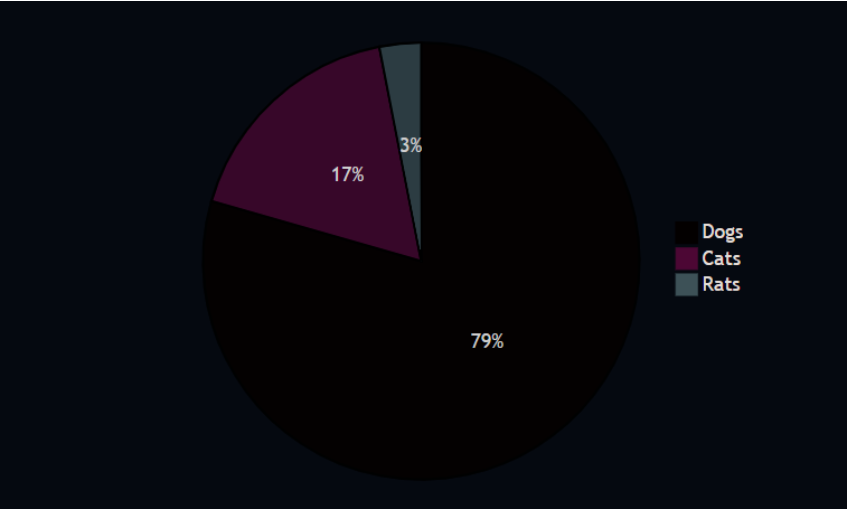

饼图

pie
"Dogs" : 386
"Cats" : 85
"Rats" : 15

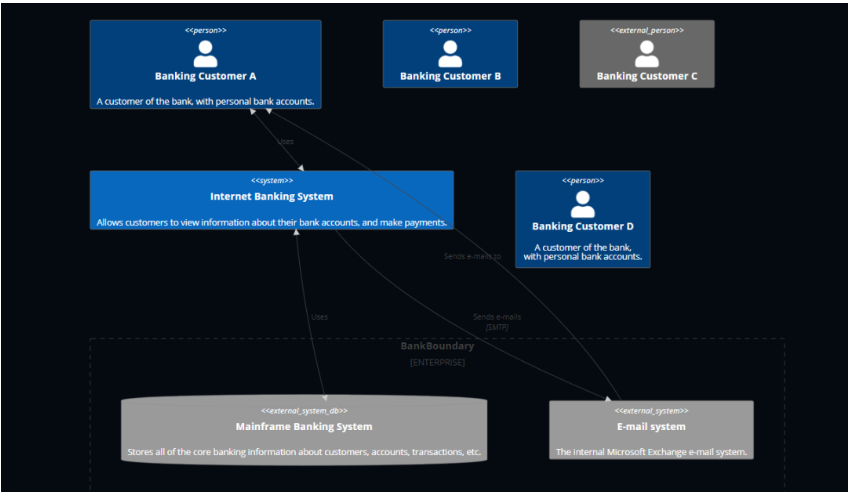

C4 图

C4Context
title System Context diagram for Internet Banking System

Person(customerA, "Banking Customer A", "A customer of the bank, with personal bank accounts.")
Person(customerB, "Banking Customer B")
Person_Ext(customerC, "Banking Customer C")
System(SystemAA, "Internet Banking System", "Allows customers to view information about their bank accounts, and make payments.")

Person(customerD, "Banking Customer D", "A customer of the bank, <br/> with personal bank accounts.")

Enterprise_Boundary(b1, "BankBoundary") {

  SystemDb_Ext(SystemE, "Mainframe Banking System", "Stores all of the core banking information about customers, accounts, transactions, etc.")

  System_Boundary(b2, "BankBoundary2") {
    System(SystemA, "Banking System A")
    System(SystemB, "Banking System B", "A system of the bank, with personal bank accounts.")
  }

  System_Ext(SystemC, "E-mail system", "The internal Microsoft Exchange e-mail system.")
  SystemDb(SystemD, "Banking System D Database", "A system of the bank, with personal bank accounts.")

  Boundary(b3, "BankBoundary3", "boundary") {
    SystemQueue(SystemF, "Banking System F Queue", "A system of the bank, with personal bank accounts.")
    SystemQueue_Ext(SystemG, "Banking System G Queue", "A system of the bank, with personal bank accounts.")
  }
}

BiRel(customerA, SystemAA, "Uses")
BiRel(SystemAA, SystemE, "Uses")
Rel(SystemAA, SystemC, "Sends e-mails", "SMTP")
Rel(SystemC, customerA, "Sends e-mails to")

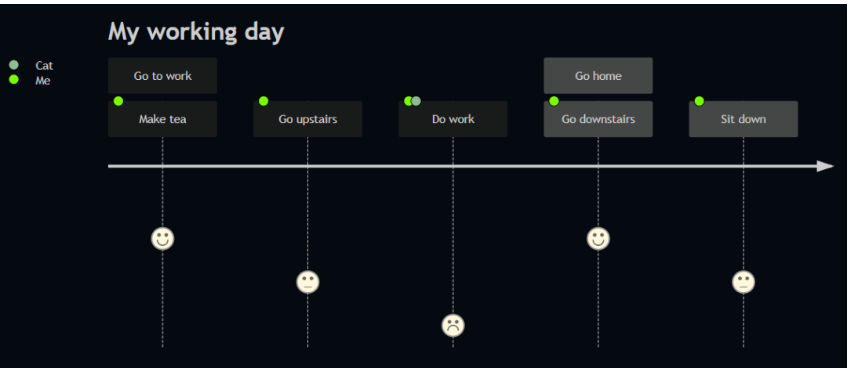

用户体验旅程图

  journey
    title My working day
    section Go to work
      Make tea: 5: Me
      Go upstairs: 3: Me
      Do work: 1: Me, Cat
    section Go home
      Go downstairs: 5: Me
      Sit down: 3: Me

如何使用

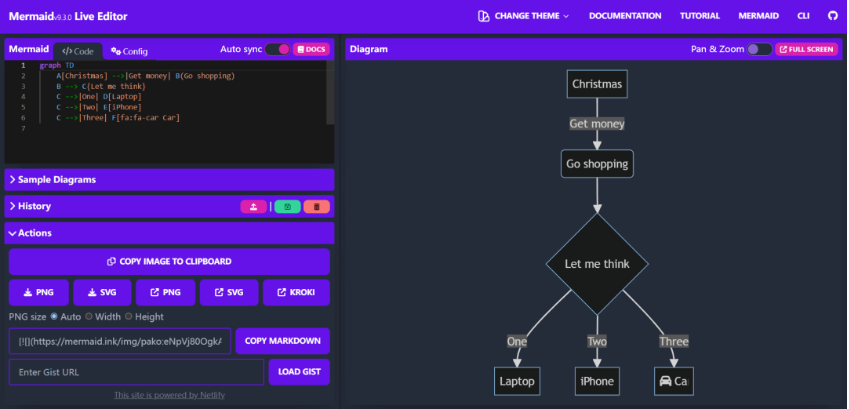

在线编辑器中使用：`mermaid.live`

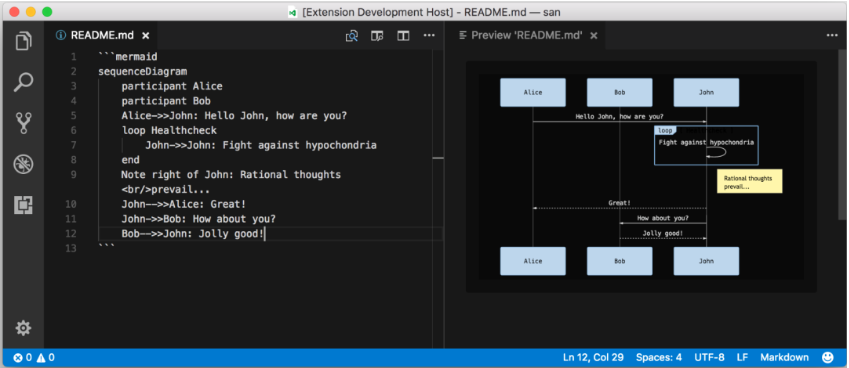

使用 Mermaid 插件

Mermaid目前在 GitLab、Azure Devops、Tuleap、Joplin 、Notion 五个平台添加默认插件，可直接使用。其他平台，例如：GitHub、GitBook、Wordpress、Hexo、Vs Code 等需要手动添加插件。

调用 Mermaid Javascript API

通过 CDN 调用示例：

<html>
    <body>
        <script src="https://cdn.jsdelivr.net/npm/mermaid/dist/mermaid.min.js"></script>
        <script>
            mermaid.initialize({ startOnLoad: true });
        </script>

        Here is one mermaid diagram:
        <div class="mermaid">
            graph TD
            A[Client] --> B[Load Balancer]
            B --> C[Server1]
            B --> D[Server2]
        </div>

        And here is another:
        <div class="mermaid">
            graph TD
            A[Client] -->|tcp_123|
            B(Load Balancer)
            B -->|tcp_456| C[Server1]
            B -->|tcp_456| D[Server2]
        </div>
    </body>
</html>

或者引用单独文件：

<html lang="en">
    <head>
        <meta charset="utf-8" />
    </head>
    <body>
        <div class="mermaid">
            graph LR
            A --- B
            B-->C[fa:fa-ban forbidden]
            B-->D(fa:fa-spinner);
        </div>
        <div class="mermaid">
            graph TD
            A[Client] --> B[Load Balancer]
            B --> C[Server1]
            B --> D[Server2]
        </div>
        <script src="The\Path\In\Your\Package\mermaid.js"></script>
        <script>
            mermaid.initialize({ startOnLoad: true });
        </script>
    </body>
</html>

在Python 与 mermaid-js 集成的示例：

import base64
from IPython.display import Image, display
import matplotlib.pyplot as plt

def mm(graph):
  graphbytes = graph.encode("ascii")
  base64_bytes = base64.b64encode(graphbytes)
  base64_string = base64_bytes.decode("ascii")
  display(Image(url="https://mermaid.ink/img/" + base64_string))

mm("""
graph LR;
    A--> B & C & D;
    B--> A & E;
    C--> A & E;
    D--> A & E;
    E--> B & C & D;
""")

添加 Mermaid 作为依赖项

npm：

npm install -g yarn

yarn：

yarn add mermaid

或者

 yarn add --dev mermaid
