发布任务模块
一、代码发布任务

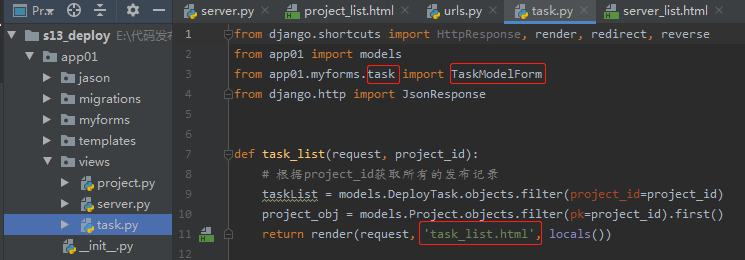

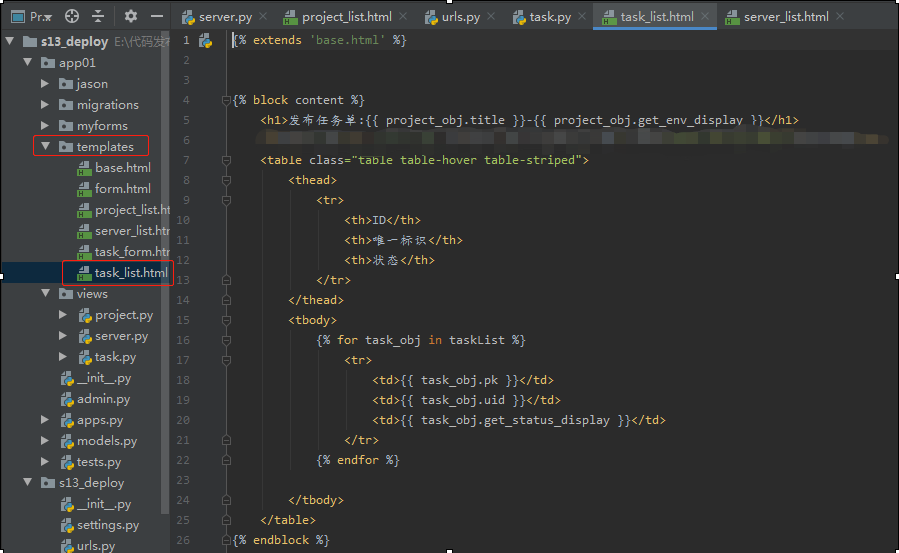

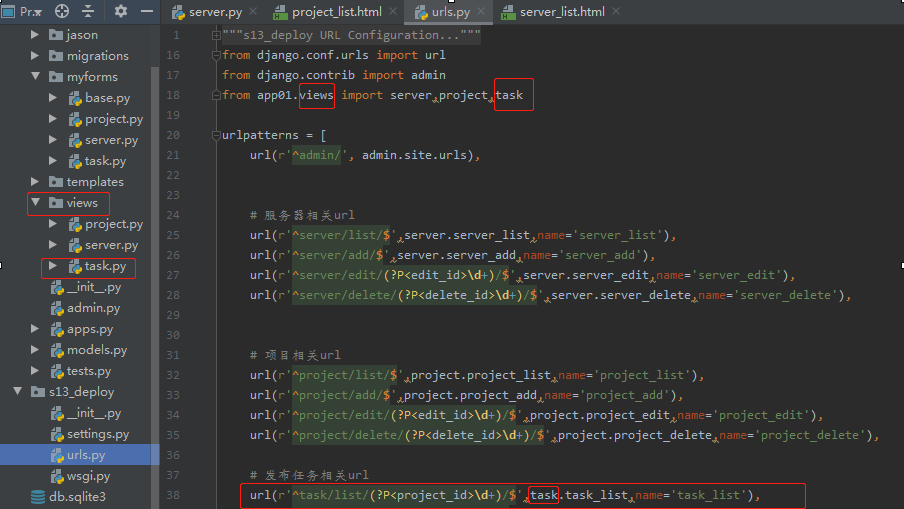

发布任务的首页列表

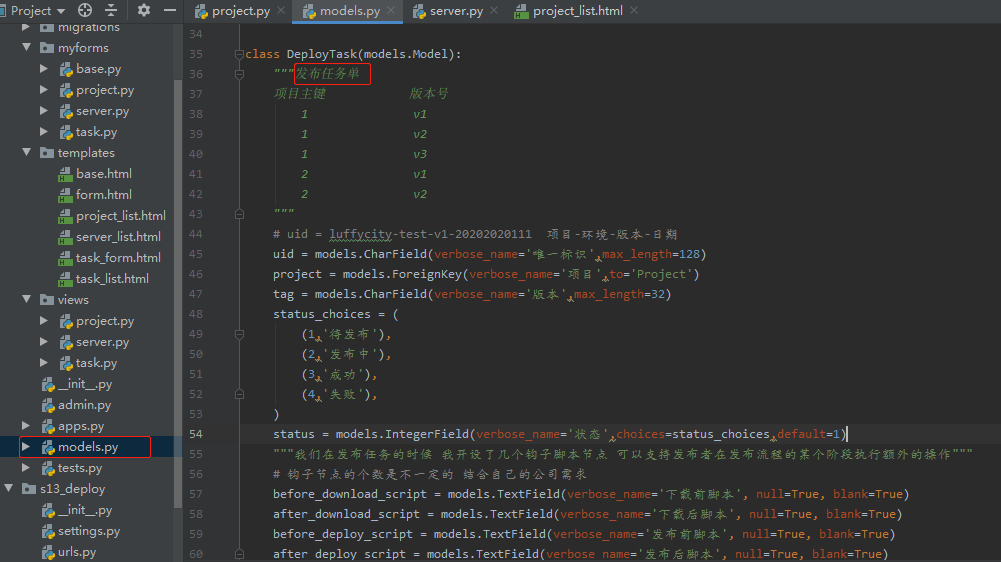

1、models
不直接写增删改查

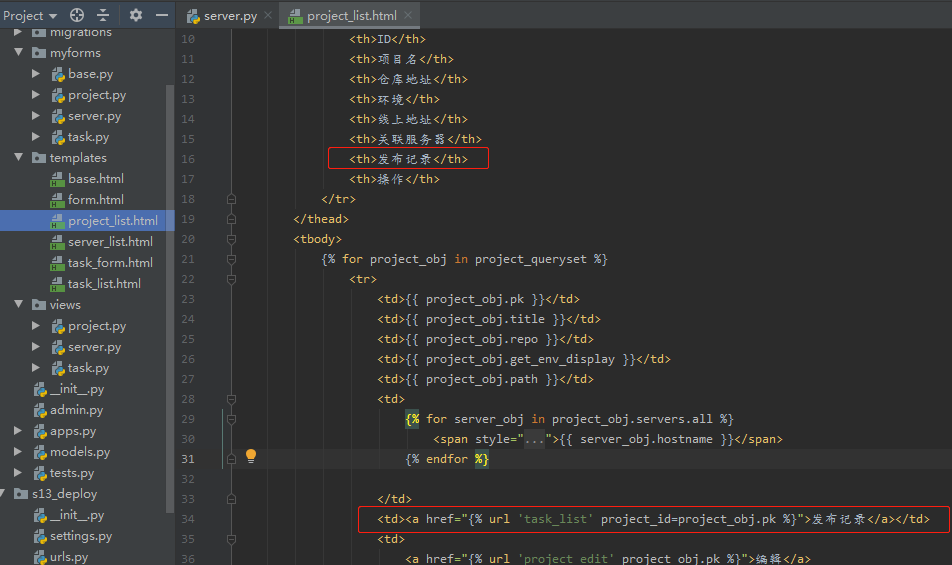

而是在项目管理的查看列表中新增一个发布记录字段，点击该字段查看当前项目所对应的发布记录，
然后在查看页面书写增删改查，这样做的目的就是可以直接针对对应的项目，无需用户自己选择。

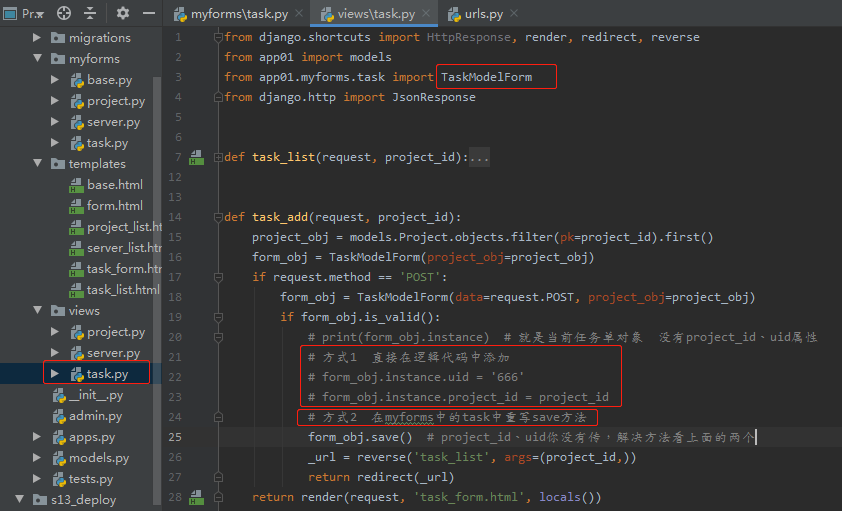

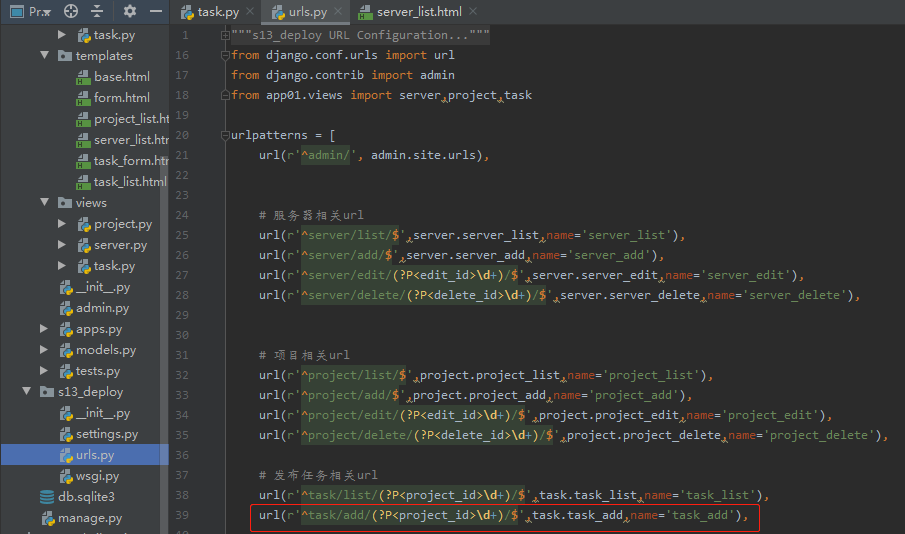

发布任务的增加
myforms（校验组件）中的task 对应task _form.html文件
from app01.myforms.base import BaseModelForm from app01 import models import datetime from django import forms class TaskModelForm(BaseModelForm):class Meta: model = models.DeployTask fields = '__all__' # 指定字段不展示到前端页面 exclude = ['uid', 'project', 'status'] def __init__(self, project_obj, *args, **kwargs): """当你不知道一个函数或者方法都有哪些参数的时候 就用*args,**kwargs哥俩""" super().__init__(*args, **kwargs) # 给对象添加额外的属性 self.project_obj = project_objdef create_uid(self): #动态生成唯一标识 # 生成唯一标识 # luffycity-test-v1-20202020111 如果有项目对象会非常简单 title = self.project_obj.title env = self.project_obj.env tag = self.cleaned_data.get('tag') current_time = datetime.datetime.now().strftime('%Y%m%d%H%M%S') return "{0}-{1}-{2}-{3}".format(title, env, tag, current_time) def save(self, commit=True): self.instance.uid = self.create_uid() self.instance.project_id = self.project_obj.pk # 看上面的__init__ # 调用父类的save方法保存数据 super().save(commit)

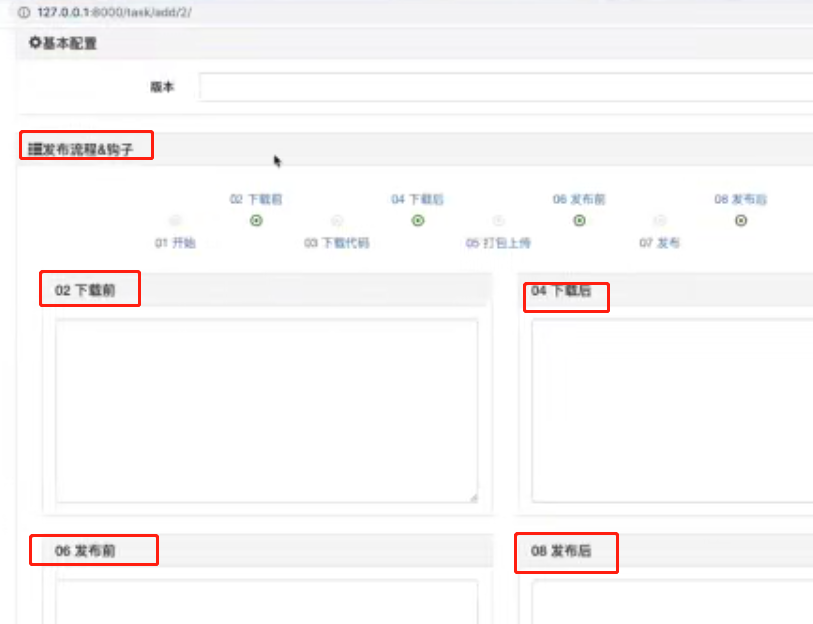

我们将添加任务单的界面大致分为三块区域:
基本信息展示区
基本配置
钩子脚本渲染
{% extends 'base.html' %} {% block css %} <style> .outline .series .module { line-height: 100px; vertical-align: middle; width: 940px; margin: 0 auto; padding-bottom: 10px; } .outline .series .module .item .line { float: left; width: 80px; } .outline .series .module .item .line hr { margin-top: 49px } .outline .series .module .item .icon { float: left; color: #dddddd; position: relative; } .outline .series .module .item .icon .up, .outline .series .module .item .icon .down { position: absolute; line-height: 49px; min-width: 90px; left: 0; text-align: center; margin-left: -38px; color: #337ab7; } .outline .series .module .item:hover .icon, .outline .series .module .item.active .icon { color: green; } .outline .series .module .item .icon .up { top: 0; } .outline .series .module .item .icon .down { bottom: 0; } </style> {% endblock %} {% block content %} {# 1 基本信息展示区#} <table class="table table-hover table-striped"> <tbody> <tr> <td>项目名称:{{ project_obj.title }}</td> <td>环境:{{ project_obj.get_env_display }}</td> </tr> <tr> <td colspan="2">仓库地址:{{ project_obj.repo }}</td> </tr> <tr> <td colspan="2">线上路径:{{ project_obj.path }}</td> </tr> <tr> <td colspan="2"> <div>关联服务器</div> <ul> {% for server_obj in project_obj.servers.all %} <li>{{ server_obj.hostname }}</li> {% endfor %} </ul> </td> </tr> </tbody> </table> <form action="" method="post" novalidate> {% csrf_token %} {# 2 基本配置#} <div class="panel panel-default"> <div class="panel-heading"> <h3 class="panel-title"><span class="glyphicon glyphicon-cog"></span>基本配置</h3> </div> <div class="panel-body form-horizontal"> <label for="{{ form_obj.tag.id_for_label }}" class="col-md-2 control-label">{{ form_obj.tag.label }}</label> <div class="col-md-10"> {{ form_obj.tag }} <span style="color: red">{{ form_obj.tag.errors.0 }}</span> </div> </div> </div> {# 3 钩子脚本#} <div class="panel panel-default"> <div class="panel-heading"> <h3 class="panel-title"><span class="glyphicon glyphicon-th-list"></span>发布流程&钩子</h3> </div> <div class="panel-body form-horizontal"> {# 1 简易流程图区域#} <div class="outline"> <div class="series"> <div class="module clearfix"> <div class="item left"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="down">01 开始</a> </div> </div> <div class="item left active"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="up">02 下载前</a> </div> </div> <div class="item left"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="down">03 下载代码</a> </div> </div> <div class="item left active"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="up">04 下载后</a> </div> </div> <div class="item left"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="down">05 打包上传</a> </div> </div> <div class="item left active"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="up">06 发布前</a> </div> </div> <div class="item left"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="down">07 发布</a> </div> </div> <div class="item left active"> <div class="line"> <hr> </div> <div class="icon"> <span class="glyphicon glyphicon-record" aria-hidden="true"></span> <a class="up">08 发布后</a> </div> </div> <div class="item left"> <div class="line"> <hr> </div> </div> </div> </div> </div> {# 2 钩子脚本渲染区域#} <div class="hooks"> <div class="col-md-6"> <div class="panel panel-default"> <div class="panel-heading"> <h3 class="panel-title">02 下载前</h3> </div> <div class="panel-body form-horizontal"> <div class="form-group"> <div class="col-md-12"> {{ form_obj.before_download_select }} </div> </div> <div class="form-group"> <div class="col-md-12"> {{ form_obj.before_download_script }} <span style="color: red">{{ form_obj.before_download_script.errors.0 }}</span> </div> </div> <div class="form-group" style="height: 60px"> <div class="col-md-3"> <div class="checkbox"> <label>{{ form_obj.before_download_template }}保存为模版</label> </div> </div> <div class="col-md-9"> {{ form_obj.before_download_title }} <span style="color: red">{{ form_obj.before_download_title.errors.0 }}</span> </div> </div> </div> </div> </div> <div class="col-md-6"> <div class="panel panel-default"> <div class="panel-heading"> <h3 class="panel-title">04 下载后</h3> </div> <div class="panel-body form-horizontal"> <div class="form-group"> <div class="col-md-12"> {{ form_obj.after_download_select }} </div> </div> <div class="form-group"> <div class="col-md-12"> {{ form_obj.after_download_script }} <span style="color: red">{{ form_obj.after_download_script.errors.0 }}</span> </div> </div> <div class="form-group" style="height: 60px"> <div class="col-md-3"> <div class="checkbox"> <label>{{ form_obj.after_download_template }}保存为模版</label> </div> </div> <div class="col-md-9"> {{ form_obj.after_download_title }} <span style="color: red">{{ form_obj.after_download_title.errors.0 }}</span> </div> </div> </div> </div> </div> <div class="col-md-6"> <div class="panel panel-default"> <div class="panel-heading"> <h3 class="panel-title">06 发布前</h3> </div> <div class="panel-body form-horizontal"> <div class="form-group"> <div class="col-md-12"> {{ form_obj.before_deploy_select }} </div> </div> <div class="form-group"> <div class="col-md-12"> {{ form_obj.before_deploy_script }} <span style="color: red">{{ form_obj.before_deploy_script.errors.0 }}</span> </div> </div> <div class="form-group" style="height: 60px"> <div class="col-md-3"> <div class="checkbox"> <label>{{ form_obj.before_deploy_template }}保存为模版</label> </div> </div> <div class="col-md-9"> {{ form_obj.before_deploy_title }} <span style="color: red">{{ form_obj.before_deploy_title.errors.0 }}</span> </div> </div> </div> </div> </div> <div class="col-md-6"> <div class="panel panel-default"> <div class="panel-heading"> <h3 class="panel-title">08 发布后</h3> </div> <div class="panel-body form-horizontal"> <div class="form-group"> <div class="col-md-12"> {{ form_obj.after_deploy_select }} </div> </div> <div class="form-group"> <div class="col-md-12"> {{ form_obj.after_deploy_script }} <span style="color: red">{{ form_obj.after_deploy_script.errors.0 }}</span> </div> </div> <div class="form-group" style="height: 60px"> <div class="col-md-3"> <div class="checkbox"> <label>{{ form_obj.after_deploy_template }}保存为模版</label> </div> </div> <div class="col-md-9"> {{ form_obj.after_deploy_title }} <span style="color: red">{{ form_obj.after_deploy_title.errors.0 }}</span> </div> </div> </div> </div> </div> </div> </div> </div> <input type="submit" class="btn btn-success"> </form> {% endblock %} {% block js %} <script> // 给所有的下拉框绑定文本域改变事件 // 避免麻烦 直接使用范围查找 $('.hooks').find('select').change(function () { var that = $(this); // 发送ajax请求获取脚本内容 $.ajax({ url:'/hook/template/' + that.val() + '/', type:'get', dataType:'JSON', success:function (args) { if(args.status){ {#alert(args.content)#} // 将脚本内容通过DOM操作渲染到对应的文本框中 that.parent().parent().next().find('textarea').val(args.content) } } }) }) </script> {% endblock %}

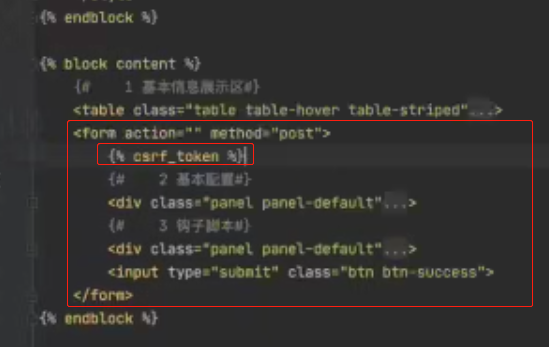

9、task_form.html文件中：
10、问题：
我们前面写的taskmodelform中，没有下拉框，checkbox和模版文本框
自定义额外的字段类型
from app01.myforms.base import BaseModelForm from app01 import models import datetime from django import forms class TaskModelForm(BaseModelForm): """自定义额外的字段类型""" # 无需添加form-control的字段 exclude_bootstrap = [ 'before_download_template', 'after_download_template', 'before_deploy_template', 'after_deploy_template' ] # 每一个钩子脚本都需要额外的添加 下拉框 checkbox 文本框 before_download_select = forms.ChoiceField(required=False, label='下载前') before_download_title = forms.CharField(required=False, label='模板名称') before_download_template = forms.BooleanField(required=False, widget=forms.CheckboxInput, label='是否保存为模板') after_download_select = forms.ChoiceField(required=False, label='下载后') after_download_title = forms.CharField(required=False, label='模板名称') after_download_template = forms.BooleanField(required=False, widget=forms.CheckboxInput, label='是否保存为模板') before_deploy_select = forms.ChoiceField(required=False, label='发布前') before_deploy_title = forms.CharField(required=False, label='模板名称') before_deploy_template = forms.BooleanField(required=False, widget=forms.CheckboxInput, label='是否保存为模板') after_deploy_select = forms.ChoiceField(required=False, label='下载后') after_deploy_title = forms.CharField(required=False, label='模板名称') after_deploy_template = forms.BooleanField(required=False, widget=forms.CheckboxInput, label='是否保存为模板') class Meta: model = models.DeployTask fields = '__all__' # 指定字段不展示到前端页面 exclude = ['uid', 'project', 'status']

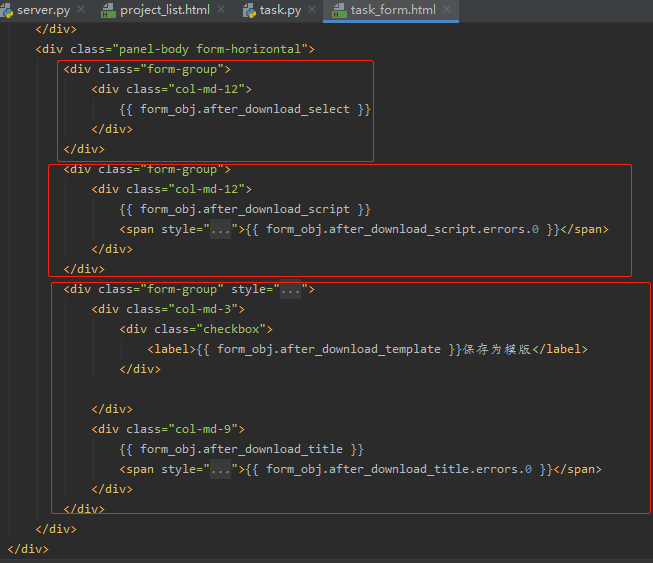

在task_form.html中写下拉框代码：
还有改其他task_form.html的代码 。
在
def __init__(self,project_obj,*args,**kwargs): """当你不知道一个函数或者方法都有哪些参数的时候 就用*args,**kwargs哥俩""" super().__init__(*args,**kwargs) # 给对象添加额外的属性 self.project_obj = project_obj # 给下拉框添加数据 <option value="0">请选择</option> self.fields['before_download_select'].choices = [(0,'请选择')] self.fields['after_download_select'].choices = [(0,'请选择')] self.fields['before_deploy_select'].choices = [(0,'请选择')] self.fields['after_deploy_select'].choices = [(0,'请选择')]
二、
下拉框中点击脚本名称就会去后端请求对于的脚本内容

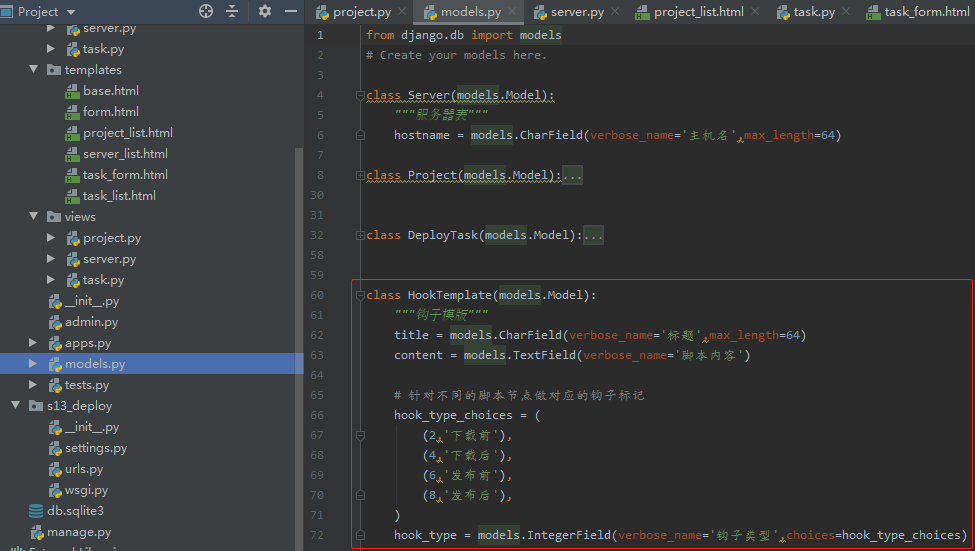

当用户点击了checkbox按钮的时候，就应该去操作上面的表来存储脚本内容
我们在后端只需要判断用户是否点击了，再做相应的处理即可。
def save(self, commit=True): self.instance.uid = self.create_uid() self.instance.project_id = self.project_obj.pk # 调用父类的save方法保存数据 super().save(commit) # 判断用户是否点击了checkbox if self.cleaned_data.get('before_download_template'): # 获取脚本文件名和脚本内容 title = self.cleaned_data.get('before_download_title') content = self.cleaned_data.get('before_download_script') # 写入数据库 models.HookTemplate.objects.create( title=title, content=content, hook_type=2 ) if self.cleaned_data.get('after_download_template'): # 获取脚本文件名和脚本内容 title = self.cleaned_data.get('after_download_title') content = self.cleaned_data.get('after_download_script') # 写入数据库 models.HookTemplate.objects.create( title=title, content=content, hook_type=4 ) if self.cleaned_data.get('before_deploy_template'): # 获取脚本文件名和脚本内容 title = self.cleaned_data.get('before_deploy_title') content = self.cleaned_data.get('before_deploy_script') # 写入数据库 models.HookTemplate.objects.create( title=title, content=content, hook_type=6 ) if self.cleaned_data.get('after_deploy_template'): # 获取脚本文件名和脚本内容 title = self.cleaned_data.get('after_deploy_title') content = self.cleaned_data.get('after_deploy_script') # 写入数据库 models.HookTemplate.objects.create( title=title, content=content, hook_type=8 )
def __init__(self, project_obj, *args, **kwargs): """当你不知道一个函数或者方法都有哪些参数的时候 就用*args,**kwargs哥俩""" super().__init__(*args, **kwargs) # 给对象添加额外的属性 self.project_obj = project_obj # 给下拉框添加数据 <option value="0">请选择</option> before_download = [(0, '请选择')] extra_choices = models.HookTemplate.objects.filter(hook_type=2).values_list('pk','title') # [(),()] before_download.extend(extra_choices) self.fields['before_download_select'].choices = before_download after_download = [(0, '请选择')] extra_choices = models.HookTemplate.objects.filter(hook_type=4).values_list('pk', 'title') # [(),()] after_download.extend(extra_choices) self.fields['after_download_select'].choices = after_download before_deploy = [(0, '请选择')] extra_choices = models.HookTemplate.objects.filter(hook_type=6).values_list('pk', 'title') # [(),()] before_deploy.extend(extra_choices) self.fields['before_deploy_select'].choices = before_deploy after_deploy = [(0, '请选择')] extra_choices = models.HookTemplate.objects.filter(hook_type=8).values_list('pk', 'title') # [(),()] after_deploy.extend(extra_choices) self.fields['after_deploy_select'].choices = after_deploy

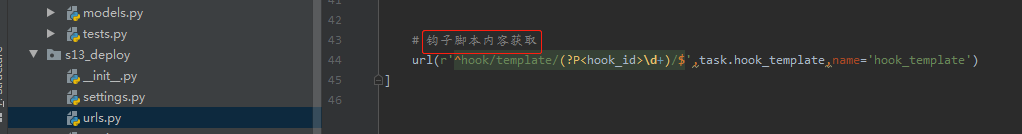

后端：url

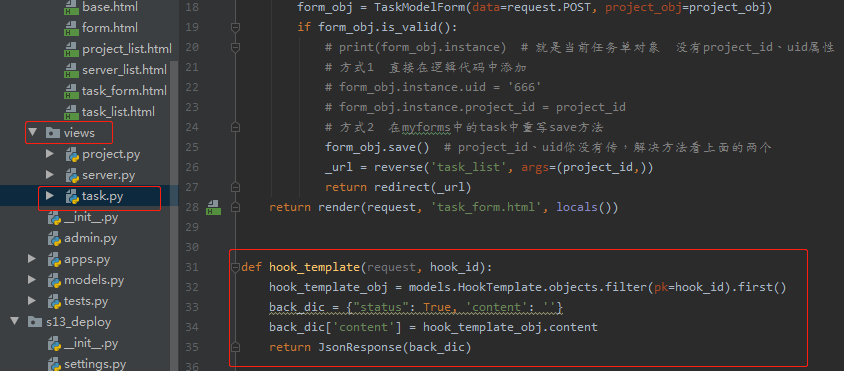

views
当用户点击了保存模版，但是没有填写脚本内容的时候，应该作出相应的提示信息
重写clean方法(局部钩子 全局钩子) 在 myforms（校验组件）中的task中的写局部钩子方法中
def clean(self): """全局钩子 校验用户钩子脚本标题是否填写""" if self.cleaned_data.get('before_download_template'): title = self.cleaned_data.get('before_download_title') if not title: # 添加报错信息 self.add_error('before_download_title','请输入模版名称') if self.cleaned_data.get('after_download_template'): title = self.cleaned_data.get('after_download_title') if not title: # 添加报错信息 self.add_error('after_download_title','请输入模版名称') if self.cleaned_data.get('before_deploy_template'): title = self.cleaned_data.get('before_deploy_title') if not title: # 添加报错信息 self.add_error('before_deploy_title','请输入模版名称') if self.cleaned_data.get('after_deploy_template'): title = self.cleaned_data.get('after_deploy_title') if not title: # 添加报错信息 self.add_error('after_deploy_title','请输入模版名称')

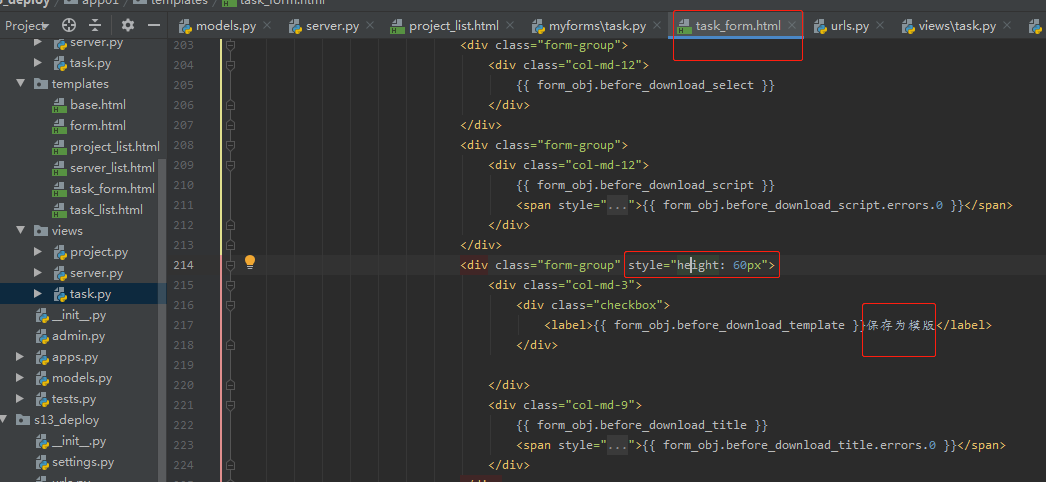

提示信息没有足够的位置展示，会出现页面错乱的情况
提前给提示信息预留位置，添加一个高度
。
