1023021226李坤铭第三次作业

作业①:
要求：指定一个网站，爬取这个网站中的所有的所有图片，例如：中国气象网（http://www.weather.com.cn）。实现单线程和多线程的方式爬取。
1）单线程代码：

点击查看代码

import os
import requests
from bs4 import BeautifulSoup
from urllib.parse import urljoin
from concurrent.futures import ThreadPoolExecutor

# 基础配置
TARGET_URL = "http://www.weather.com.cn"
HEADERS = {
    "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36"
}

def fetch_page(url):
    try:
        response = requests.get(url, headers=HEADERS, timeout=10)
        response.raise_for_status()
        return response.text
    except requests.RequestException as e:
        print(f"请求页面失败: {e}")
        return None

def extract_image_urls(html, base_url):
    soup = BeautifulSoup(html, 'html.parser')
    img_tags = soup.find_all('img')
    img_urls = set()

    for img in img_tags:
        img_url = img.get('src')
        if img_url:
            absolute_url = urljoin(base_url, img_url)
            img_urls.add(absolute_url)

    return img_urls

def download_image(img_url):
    try:
        print(f"开始下载: {img_url}")
        response = requests.get(img_url, headers=HEADERS, timeout=10)
        response.raise_for_status()

        filename = os.path.join("images", img_url.split("/")[-1])
        with open(filename, 'wb') as f:
            f.write(response.content)
        print(f"下载成功: {filename}")
    except Exception as e:
        print(f"下载失败: {img_url} 错误: {str(e)}")

def single_threaded_crawler():
    print("=== 单线程爬虫开始 ===")
    html = fetch_page(TARGET_URL)
    if html:
        img_urls = extract_image_urls(html, TARGET_URL)
        os.makedirs("images", exist_ok=True)

        for url in img_urls:
            download_image(url)
    print("=== 单线程爬虫结束 ===")

def multi_threaded_crawler():
    print("=== 多线程爬虫开始 ===")
    html = fetch_page(TARGET_URL)
    if html:
        img_urls = extract_image_urls(html, TARGET_URL)
        os.makedirs("images", exist_ok=True)

        with ThreadPoolExecutor(max_workers=5) as executor:
            executor.map(download_image, img_urls)
    print("=== 多线程爬虫结束 ===")

if __name__ == "__main__":
    single_threaded_crawler()
    multi_threaded_crawler()

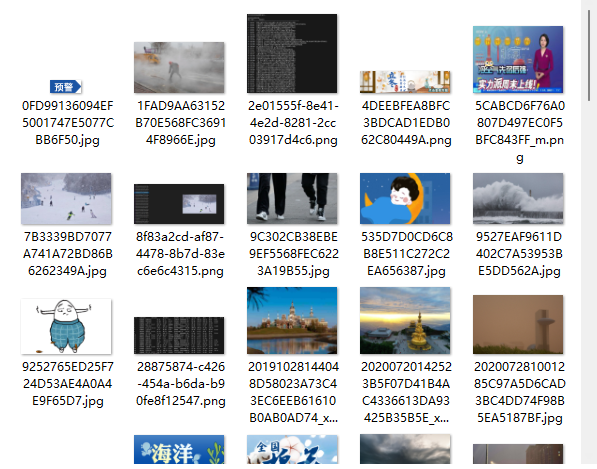

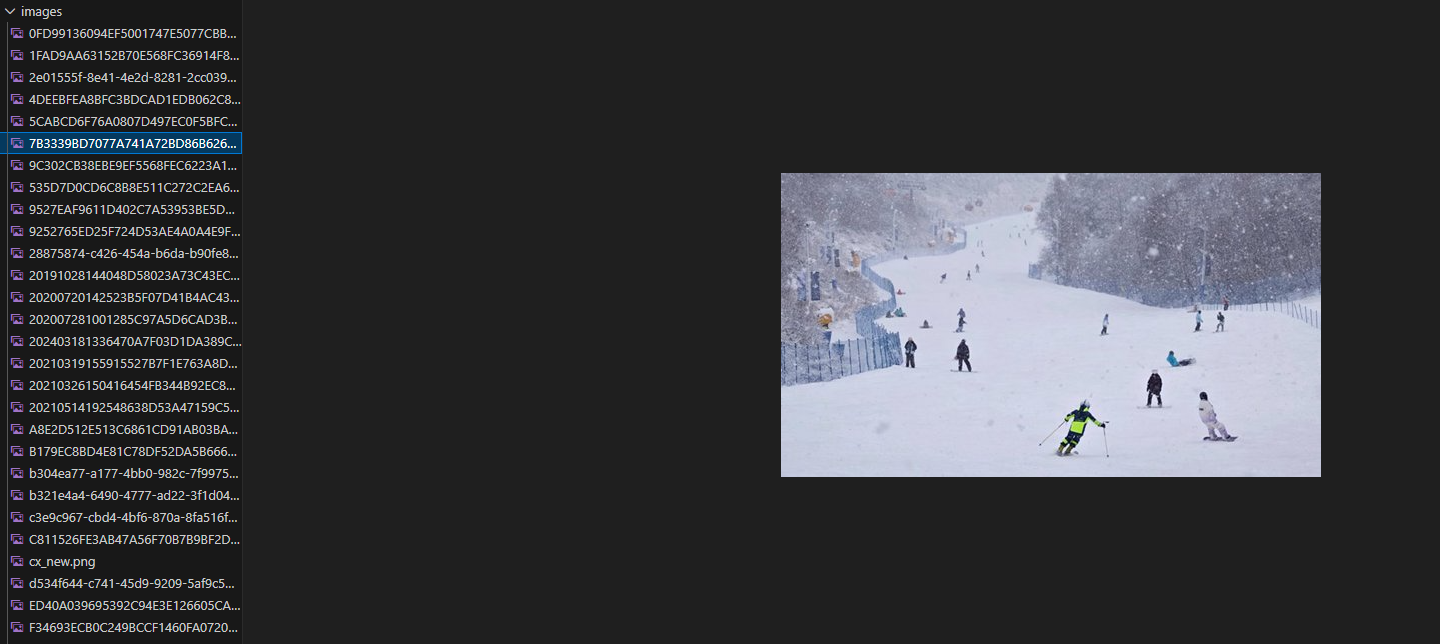

输出结果：

多线程代码：

点击查看代码

import requests
from bs4 import BeautifulSoup
import os
import time
import threading
from urllib.parse import urljoin, urlparse
from queue import Queue


class ConcurrentImageScraper:
    def __init__(self, start_url, page_limit=24, image_limit=124, worker_count=5):
        self.start_url = start_url
        self.page_limit = page_limit
        self.image_limit = image_limit
        self.worker_count = worker_count
        self.images_downloaded = 0
        self.processed_pages = set()
        self.url_queue = Queue()
        self.thread_lock = threading.Lock()
        self.http_session = requests.Session()
        self.http_session.headers.update({
            'User-Agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36'
        })

        # 初始化图片存储目录
        self.storage_dir = 'downloaded_images'
        os.makedirs(self.storage_dir, exist_ok=True)

        # 将起始URL加入队列
        self.url_queue.put(start_url)
        self.processed_pages.add(start_url)

    def validate_url(self, url):
        """验证URL是否合法"""
        parsed = urlparse(url)
        return all([parsed.netloc, parsed.scheme])

    def fetch_image(self, image_url, source_page):
        """获取并保存图片"""
        with self.thread_lock:
            if self.images_downloaded >= self.image_limit:
                return False

        try:
            # 处理相对路径
            final_url = image_url if image_url.startswith(('http://', 'https://')) \
                else urljoin(source_page, image_url)

            if not self.validate_url(final_url):
                return False

            # 验证图片扩展名
            supported_formats = ('.jpg', '.jpeg', '.png', '.gif', '.bmp', '.webp')
            if not final_url.lower().endswith(supported_formats):
                return False

            print(f"{threading.current_thread().name} 正在获取图片: {final_url}")

            response = self.http_session.get(final_url, timeout=10)
            response.raise_for_status()

            # 生成唯一文件名
            filename = os.path.basename(urlparse(final_url).path) or f"img_{self.images_downloaded + 1}.jpg"
            save_path = os.path.join(self.storage_dir, filename)

            # 处理文件名冲突
            counter = 1
            while os.path.exists(save_path):
                name, ext = os.path.splitext(filename)
                save_path = os.path.join(self.storage_dir, f"{name}_{counter}{ext}")
                counter += 1

            # 写入文件
            with open(save_path, 'wb') as file:
                file.write(response.content)

            with self.thread_lock:
                self.images_downloaded += 1
                progress = self.images_downloaded

            print(f"{threading.current_thread().name} 已保存: {filename} (进度: {progress}/{self.image_limit})")
            return True

        except Exception as error:
            print(f"{threading.current_thread().name} 获取图片失败 {image_url}: {error}")
            return False

    def parse_page(self, page_url):
        """解析页面内容"""
        print(f"{threading.current_thread().name} 正在解析: {page_url}")

        try:
            response = self.http_session.get(page_url, timeout=10)
            response.raise_for_status()
            response.encoding = 'utf-8'

            page_content = BeautifulSoup(response.text, 'html.parser')

            # 提取图片链接
            image_elements = page_content.find_all('img')
            for img in image_elements:
                with self.thread_lock:
                    if self.images_downloaded >= self.image_limit:
                        return

                image_src = img.get('src') or img.get('data-src')
                if image_src:
                    self.fetch_image(image_src, page_url)

            # 提取后续页面链接
            with self.thread_lock:
                if len(self.processed_pages) >= self.page_limit:
                    return

            link_elements = page_content.find_all('a', href=True)
            for link in link_elements[:8]:  # 限制每页处理的链接数
                with self.thread_lock:
                    if self.images_downloaded >= self.image_limit or \
                       len(self.processed_pages) >= self.page_limit:
                        return

                next_page = link['href']
                if not next_page.startswith('http'):
                    next_page = urljoin(page_url, next_page)

                if self.start_url in next_page and \
                   next_page not in self.processed_pages and \
                   len(self.processed_pages) < self.page_limit:

                    with self.thread_lock:
                        if next_page not in self.processed_pages:
                            self.processed_pages.add(next_page)
                            self.url_queue.put(next_page)

        except Exception as error:
            print(f"{threading.current_thread().name} 解析页面出错 {page_url}: {error}")

    def task_executor(self):
        """线程任务执行器"""
        while True:
            with self.thread_lock:
                if self.images_downloaded >= self.image_limit or \
                   (self.url_queue.empty() and len(self.processed_pages) >= self.page_limit):
                    break

            try:
                current_url = self.url_queue.get(timeout=5)
                self.parse_page(current_url)
                self.url_queue.task_done()
            except:
                break

    def run_scraper(self):
        """启动爬虫"""
        print("启动多线程爬虫...")
        print(f"起始URL: {self.start_url}")
        print(f"页面限制: {self.page_limit}")
        print(f"图片限制: {self.image_limit}")
        print(f"并发线程: {self.worker_count}")
        print("=" * 50)

        start = time.time()

        # 创建工作线程
        workers = []
        for idx in range(self.worker_count):
            worker = threading.Thread(
                target=self.task_executor,
                name=f"Worker-{idx + 1}",
                daemon=True
            )
            worker.start()
            workers.append(worker)

        # 等待所有任务完成
        self.url_queue.join()

        # 等待工作线程结束
        for worker in workers:
            worker.join(timeout=1)

        duration = time.time() - start
        print("=" * 50)
        print("爬取任务完成!")
        print(f"总耗时: {duration:.2f}秒")
        print(f"已处理页面: {len(self.processed_pages)}个")
        print(f"已下载图片: {self.images_downloaded}张")


# 使用示例
if __name__ == "__main__":
    scraper = ConcurrentImageScraper(
        start_url="http://www.weather.com.cn",
        page_limit=24,
        image_limit=124,
        worker_count=5
    )
    scraper.run_scraper()

输出结果：

2）心得体会：
单线程爬虫实现简单，逻辑清晰。多线程爬虫比较复杂，但效率高。
作业②
要求：熟练掌握 scrapy 中 Item、Pipeline 数据的序列化输出方法；使用scrapy框架+Xpath+MySQL数据库存储技术路线爬取股票相关信息。
1）代码：

点击查看代码

import scrapy
import json


class EastmoneyStockSpider(scrapy.Spider):
    name = 'eastmoney_stock_spider'

    def initiate_requests(self):
        # 东方财富A股数据接口
        api_endpoints = [
            'http://82.push2.eastmoney.com/api/qt/clist/get?pn=1&pz=20&po=1&np=1&ut=bd1d9ddb04089700cf9c27f6f7426281&fltt=2&invt=2&fid=f3&fs=m:0+t:6,m:0+t:13,m:0+t:80,m:1+t:2,m:1+t:23&fields=f1,f2,f3,f4,f5,f6,f7,f8,f9,f10,f12,f13,f14,f15,f16,f17,f18,f20,f21,f23,f24,f25,f22,f11,f62,f128,f136,f115,f152',
        ]

        for endpoint in api_endpoints:
            yield scrapy.Request(
                url=endpoint,
                callback=self.process_api_response,
                meta={'page_number': 1}
            )

    def process_api_response(self, response):
        try:
            response_data = json.loads(response.text)
            stock_list = response_data.get('data', {}).get('diff', [])

            for idx, (code, details) in enumerate(stock_list.items(), start=1):
                yield {
                    'rank': idx,
                    'code': details.get('f12', '未知'),
                    'name': details.get('f14', '未知'),
                    'price': details.get('f2', '未知'),
                    'change_percent': f"{details.get('f3', 0)}%",
                    'change_value': details.get('f4', '未知'),
                    'trading_volume': details.get('f5', '未知'),
                    'trading_value': details.get('f6', '未知'),
                    'price_range': f"{details.get('f7', 0)}%",
                    'daily_high': details.get('f15', '未知'),
                    'daily_low': details.get('f16', '未知'),
                    'opening_price': details.get('f17', '未知'),
                    'previous_closing': details.get('f18', '未知'),
                }
        except json.JSONDecodeError:
            self.logger.error(f"Failed to parse JSON response from {response.url}")
        except Exception as e:
            self.logger.error(f"Error processing response: {str(e)}")
    def start_requests(self):
        return self.initiate_requests()

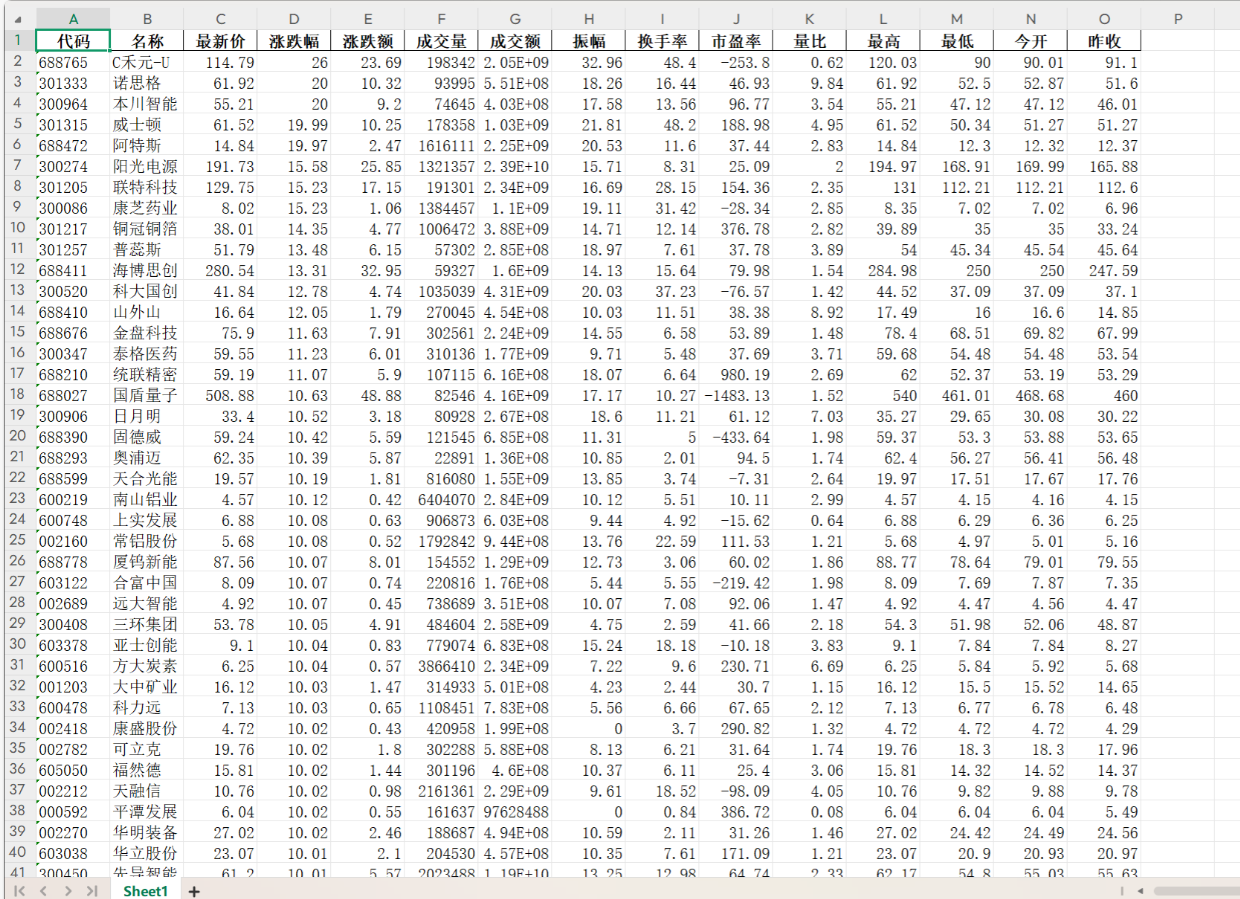

输出结果：

2）心得体会：
在本次针对东方财富网的股票数据采集实践中，我学会了如何组件Spider、Item、Pipeline、Middleware的架构，对Scrapy框架的运行机制理解更深入了。
作业③:
要求：熟练掌握 scrapy 中 Item、Pipeline 数据的序列化输出方法；使用scrapy框架+Xpath+MySQL数据库存储技术路线爬取外汇网站数据。
1）代码：

点击查看代码

import scrapy
from boc_forex.items import BocForexItem


class BankOfChinaForexSpider(scrapy.Spider):
    name = 'boc_forex_rates'
    allowed_domains = ['boc.cn']
    start_urls = ['https://www.boc.cn/sourcedb/whpj/']

    def parse(self, response, **kwargs):
        # 选择汇率数据表格中的行（跳过表头）
        currency_rows = response.xpath('//table[contains(@align, "left")]/tr[position() > 1]')

        for row in currency_rows:

            yield BocForexItem(
                currency=row.xpath('./td[1]/text()').get(default='').strip(),
                tbp=row.xpath('./td[2]/text()').get(default='').strip(),      # 现汇买入价
                cash_buy_price=row.xpath('./td[3]/text()').get(default='').strip(),  # 现钞买入价
                tsp=row.xpath('./td[4]/text()').get(default='').strip(),      # 现汇卖出价
                cash_sell_price=row.xpath('./td[5]/text()').get(default='').strip(), # 现钞卖出价
                publish_time=row.xpath('./td[7]/text()').get(default='').strip()     # 发布时间
            )

    def handle_error(self, failure):
        self.logger.error(f"Request failed: {failure.request.url}")

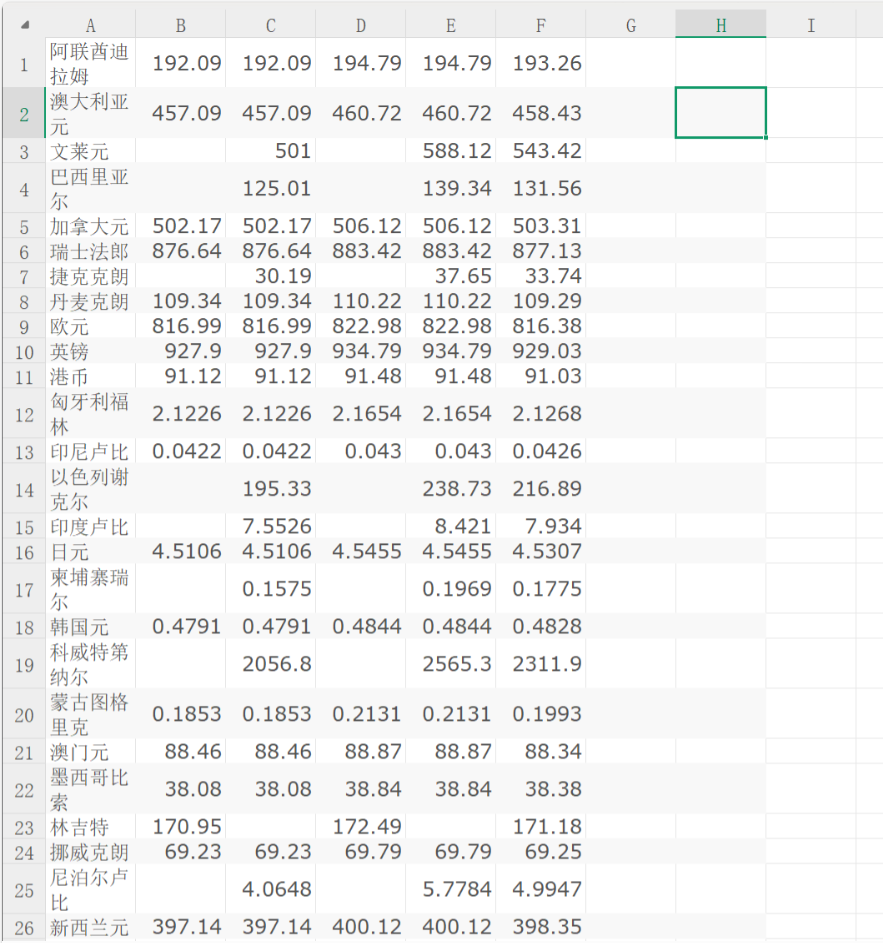

输出结果：

2）心得体会：
在本次针对中国银行外汇牌价数据的采集实践中，我掌握了时间参数在URL中的传递机制。通过使用 XPath 选择器，我学会如何更高效的处理非结构化网页数据。
