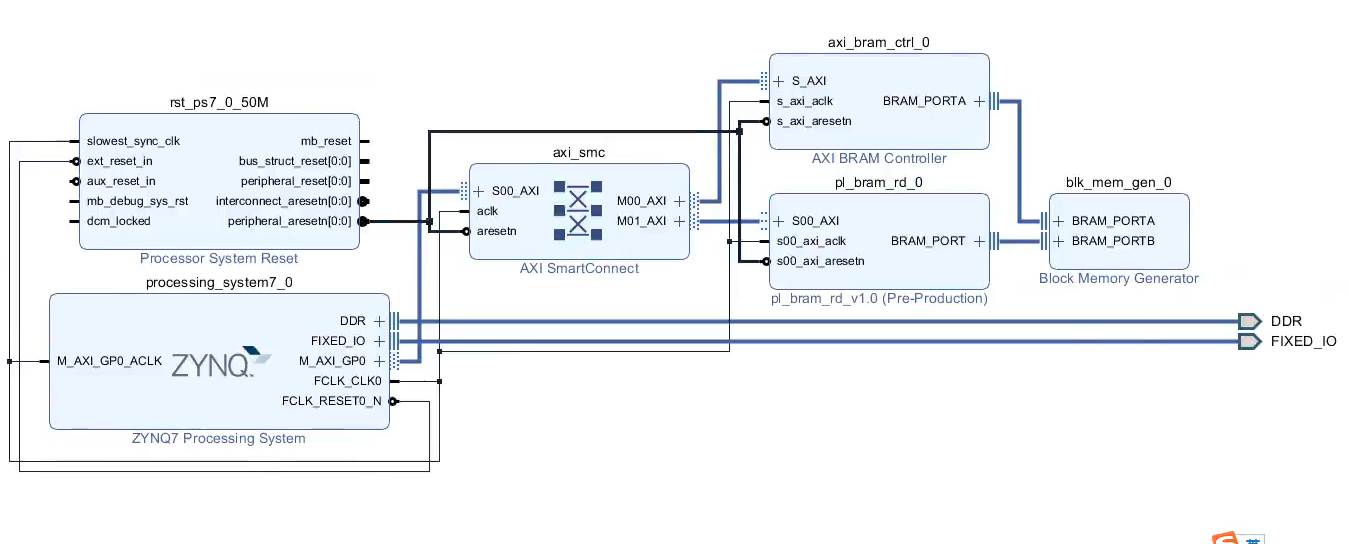

BRAM

C代码功能：

先接收串口的数据，之后将接收到的数据写到 BRAM里边，写完之后再读出来。



























/*
 * main.c
 *
 *  Created on: 2022年3月6日
 *      Author: lht
 */

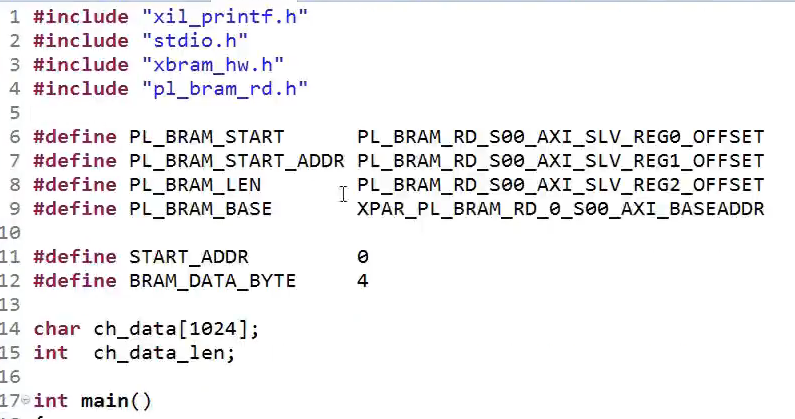

#include "xil_printf.h"
#include "stdio.h"
#include "xbram_hw.h"
#include "pl_bram_sw.h"
#include "xparameters.h"

#define PL_BRAM_START         PL_BRAM_SW_S00_AXI_SLV_REG0_OFFSET
#define PL_BRAM_START_ADDR     PL_BRAM_SW_S00_AXI_SLV_REG1_OFFSET
#define PL_BRAM_LEN         PL_BRAM_SW_S00_AXI_SLV_REG2_OFFSET
#define PL_BRAM_BASE        XPAR_PL_BRAM_SW_0_S00_AXI_BASEADDR

#define START_ADDR            0
#define BRAM_DATA_BYTE        4 //BRAM单个数据4个字节

char ch_data[1024];
int  ch_data_len;

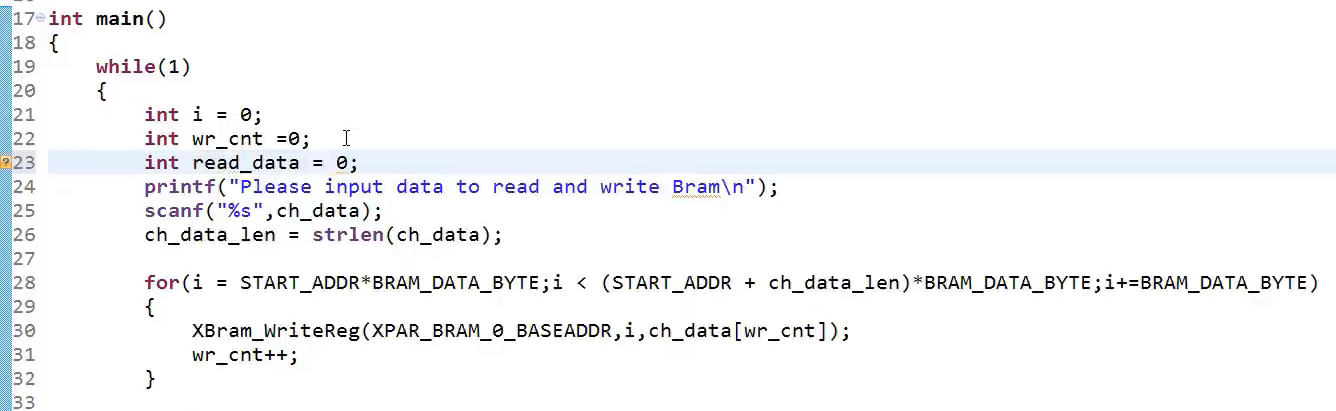

int main()
{

    printf("please1 input data to read and write bram\n");
    while(1)
    {

        int i=0;
        int wr_cnt=0;
        int read_data;
        printf("please input data to read and write bram\n");

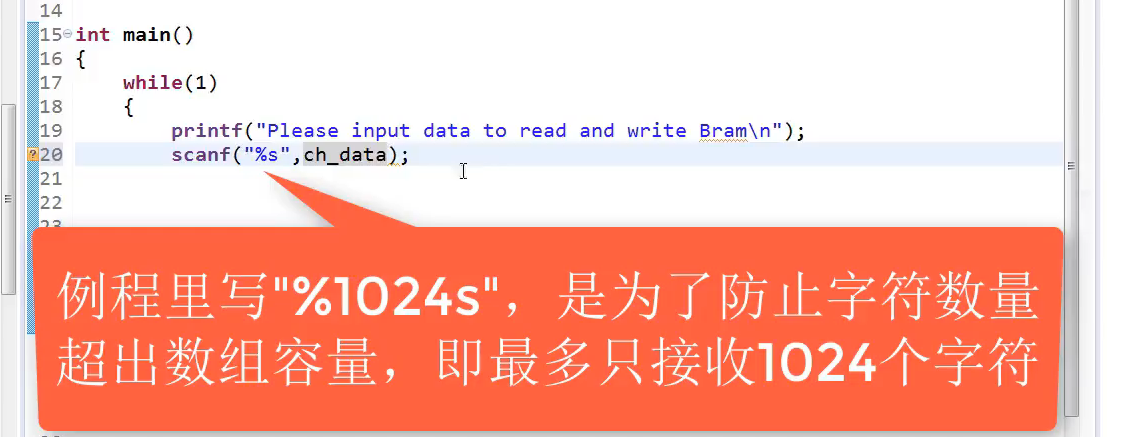

        scanf("%s",ch_data);
        ch_data_len = strlen(ch_data);

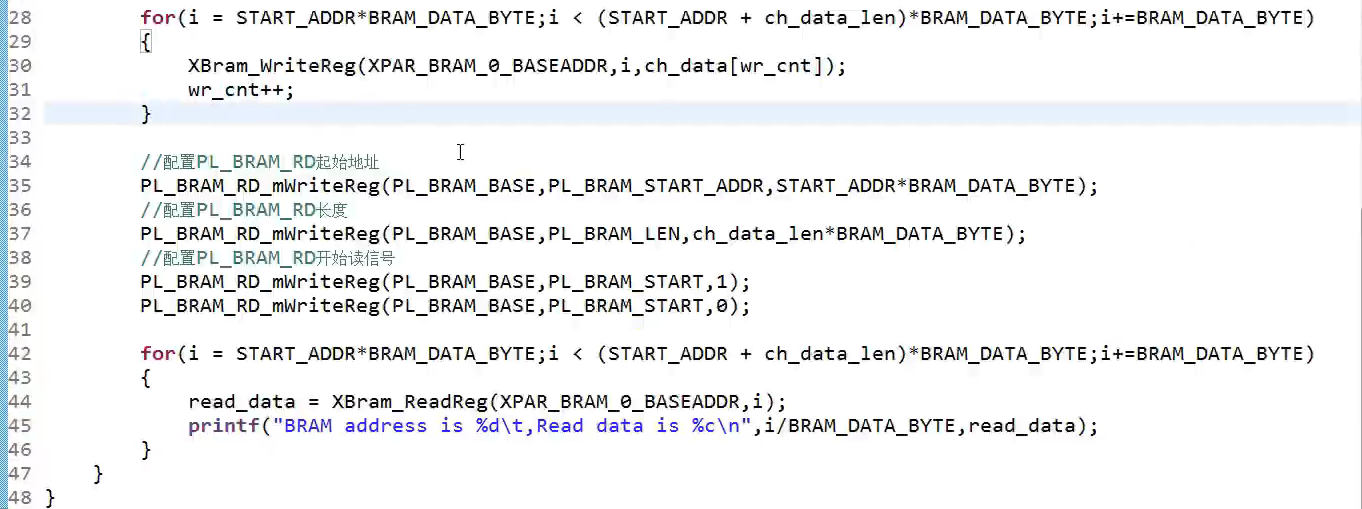

    for(i=START_ADDR*BRAM_DATA_BYTE;i<(START_ADDR+ch_data_len)*BRAM_DATA_BYTE;i+=BRAM_DATA_BYTE)
    {
    XBram_WriteReg(XPAR_BRAM_0_BASEADDR,i,ch_data[wr_cnt]);
    wr_cnt++;
        }

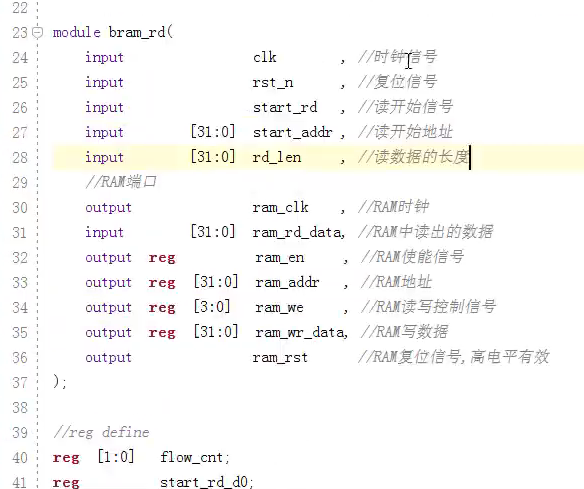

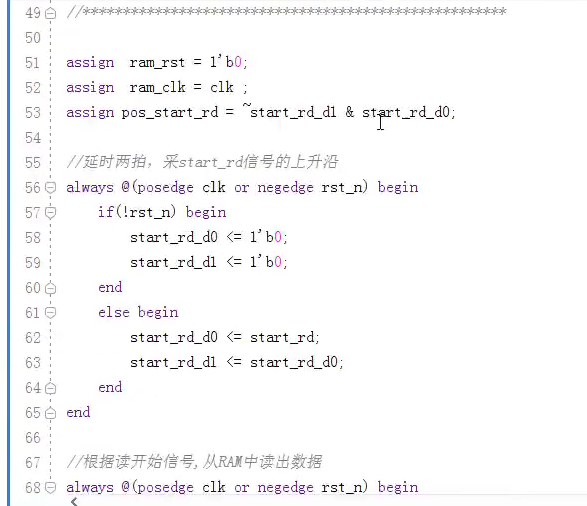

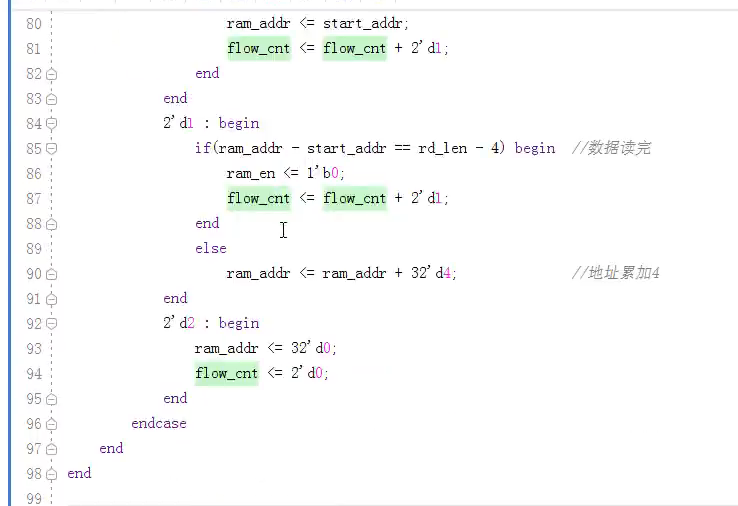

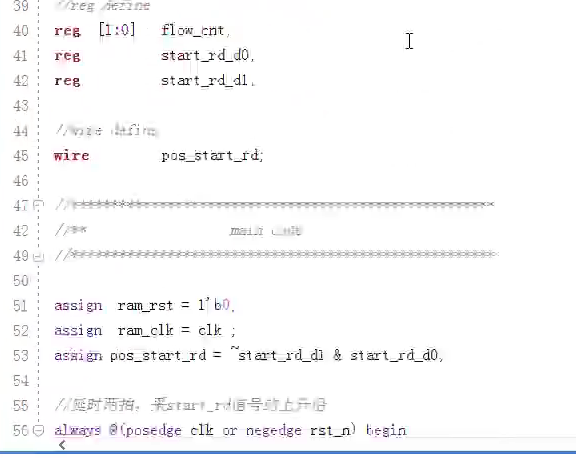

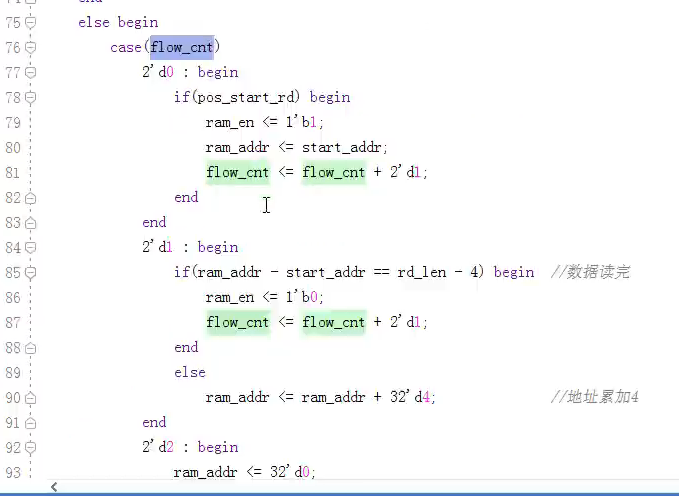

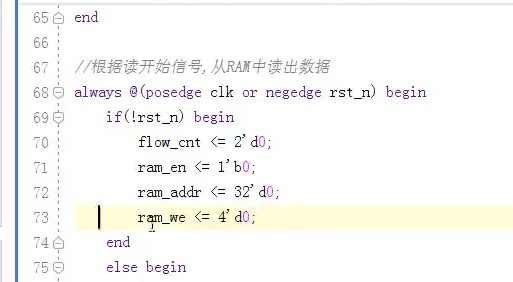

    //配置PLbram起始地址
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_START_ADDR,START_ADDR*BRAM_DATA_BYTE);
    //配置PL_BRAM长度
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_LEN,ch_data_len*BRAM_DATA_BYTE);
    //配置PL_BRAM_RD开始读信号
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_START,1);
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_START,1);
    for(i=START_ADDR*BRAM_DATA_BYTE;i<(START_ADDR+ch_data_len)*BRAM_DATA_BYTE;i+=BRAM_DATA_BYTE)
    {
        read_data = XBram_ReadReg(XPAR_BRAM_0_BASEADDR,i);
        printf("BRAM address is %d\t,read data is %c\n",i/BRAM_DATA_BYTE,read_data);
            }
    }
    return 0;
}

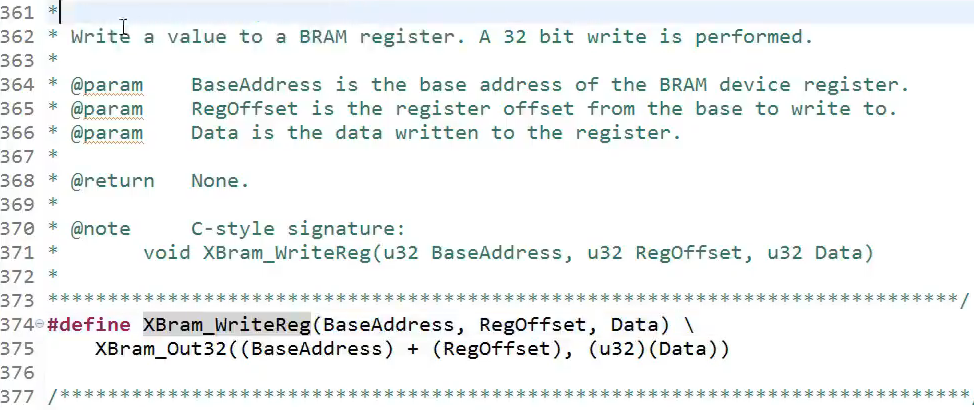

 往BRAM里面写数据，写操作

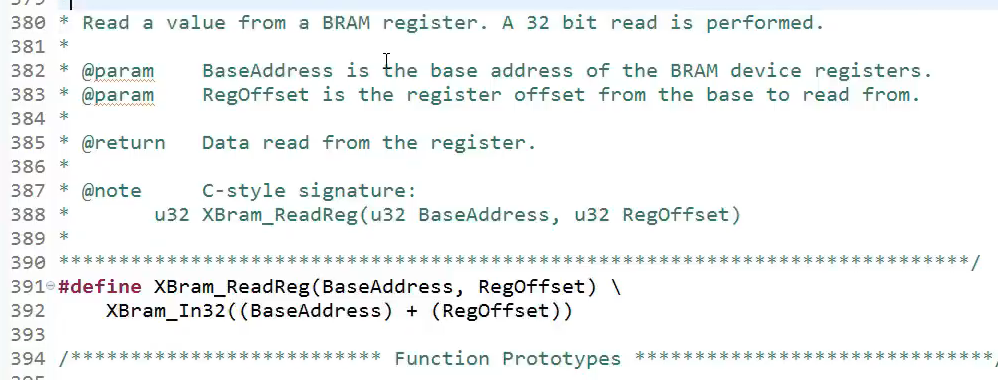

 读数据，读操作

 对BRAM的读写操作就靠这两个函数

REGOFFSET ：相对于BASEADDRESS的偏移量，即朝BRAM的哪个地址去写数据

DATA ：真正写入的数据

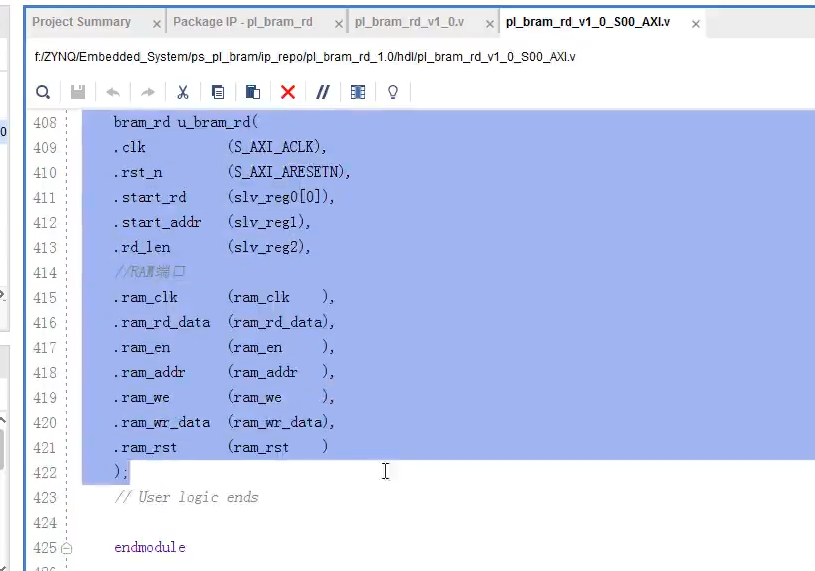

自定义IP核.h里边 关注的　　XBRAM_WRITEREG()　　XBRAM_READREG()  函数







strlen() 函数，可计算字符数量











 朝BRAM里边写数据





读数据

/*
 * main.c
 *
 *  Created on: 2022年3月7日
 *      Author: lht
 */

/*
 * main.c
 *
 *  Created on: 2022年3月6日
 *      Author: lht
 */
#include "xil_printf.h"
#include "stdio.h"
#include "xbram_hw.h"
#include "pl_bram_sw.h"
#include "xparameters.h"
#include "xuartps.h"
#include "xscugic.h"
#include <stdlib.h>
#include"sleep.h"

#define INTC_DEVICE_ID        XPAR_PS7_SCUGIC_0_DEVICE_ID
#define INTC_DEVICE_INT_ID    0x0E
#define DIST_BASEADDR        XPAR_PS7_SCUGIC_0_DIST_BASEADDR
#define uart_id                XPAR_PS7_UART_1_DEVICE_ID
#define baud_rate            XUARTPS_DFT_BAUDRATE
#define normal_mode            XUARTPS_OPER_MODE_NORMAL
#define uart1_intr            XPAR_PS7_UART_1_INTR
#define BUFFER_SIZE         1024

#define PL_BRAM_START         PL_BRAM_SW_S00_AXI_SLV_REG0_OFFSET
#define PL_BRAM_START_ADDR     PL_BRAM_SW_S00_AXI_SLV_REG1_OFFSET
#define PL_BRAM_LEN         PL_BRAM_SW_S00_AXI_SLV_REG2_OFFSET
#define PL_BRAM_BASE        XPAR_PL_BRAM_SW_0_S00_AXI_BASEADDR

#define START_ADDR            0
#define BRAM_DATA_BYTE        4 //BRAM单个数据4个字节


XScuGic ScuGic;
static XScuGic_Config *GicConfig;
XUartPs uart;
XUartPs_Config *uart_cfg;

char ch_data[1024];
int  ch_data_len;

u32 RecvCnt;
u32 codecnt;
int sig;
static u8 RecvBuffer[BUFFER_SIZE];
u16 *recvbuf_and=NULL;
int code;
u8 sum_check;
u8 xor_check;
u16 data_len;

void uart1handler(void *CallBackRef, u32 Event,u32 EventData);
void intr_init();
void init_uart();

int main()
{
    intr_init();
    init_uart();
    printf("please1 input data to read and write bram\n");
    while(1)
    {

        int i=0;
        int wr_cnt=0;
        int read_data;
        sig=1;
        printf("please input data to read and write bram\n");

        while(sig){}
        ch_data_len = codecnt;
    for(i=START_ADDR*BRAM_DATA_BYTE;i<(START_ADDR+ch_data_len)*BRAM_DATA_BYTE;i+=BRAM_DATA_BYTE)
    {
    XBram_WriteReg(XPAR_BRAM_0_BASEADDR,i,recvbuf_and[wr_cnt]);
    wr_cnt++;
        }

    //配置PLbram起始地址
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_START_ADDR,START_ADDR*BRAM_DATA_BYTE);
    //配置PL_BRAM长度
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_LEN,ch_data_len*BRAM_DATA_BYTE);
    //配置PL_BRAM_RD开始读信号
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_START,1);
    PL_BRAM_SW_mWriteReg(PL_BRAM_BASE,PL_BRAM_START,0);
    for(i=START_ADDR*BRAM_DATA_BYTE;i<(START_ADDR+ch_data_len)*BRAM_DATA_BYTE;i+=BRAM_DATA_BYTE)
    {
        read_data = XBram_ReadReg(XPAR_BRAM_0_BASEADDR,i);
        printf("BRAM address is %d\t,read data is %d\n",i/BRAM_DATA_BYTE,read_data);
            }
    sleep(1);
    }
    return 0;
}

void intr_init()
{


    GicConfig = XScuGic_LookupConfig(INTC_DEVICE_ID);
    XScuGic_CfgInitialize(&ScuGic, GicConfig,GicConfig->CpuBaseAddress);

    Xil_ExceptionInit();
    Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_IRQ_INT,
            (Xil_ExceptionHandler)XScuGic_InterruptHandler,
            &ScuGic);
    Xil_ExceptionEnable();


/*
      XScuGic_Connect(&ScuGic, F2P_INTR0_ID,
                   (Xil_ExceptionHandler)f2pintr0handler,
                   (void *)&ScuGic);

    XScuGic_SetPriTrigTypeByDistAddr(DIST_BASEADDR,F2P_INTR0_ID,0x20,0x03);    //GIC地址，中断号，中断优先级，中断类型上升沿3；
    XScuGic_Enable(&ScuGic, F2P_INTR0_ID);
    XScuGic_InterruptMaptoCpu(&ScuGic,0,F2P_INTR0_ID);
*/
    XScuGic_Connect(&ScuGic,uart1_intr,(Xil_ExceptionHandler)XUartPs_InterruptHandler,&uart);
    XScuGic_Enable(&ScuGic,uart1_intr);
}

void init_uart(){


    u32 intrmask=0;

    uart_cfg=XUartPs_LookupConfig(uart_id);
    XUartPs_CfgInitialize(&uart,uart_cfg,uart_cfg->BaseAddress);

    XUartPs_SetBaudRate(&uart,baud_rate);

    XUartPs_SetHandler(&uart,(XUartPs_Handler)uart1handler,&uart);

    intrmask=XUARTPS_IXR_TOUT|XUARTPS_IXR_RXOVR;
    XUartPs_SetInterruptMask(&uart,intrmask);
    XUartPs_SetOperMode(&uart,normal_mode);

    XUartPs_SetFifoThreshold(&uart,32);
    XUartPs_SetRecvTimeout(&uart,8);
    //XUartPs_Recv(&uart,recvbuf,64);//

}

void uart1handler(void *CallBackRef, u32 Event,u32 EventData){
    //u32 recvcnt;

    if(Event==XUARTPS_EVENT_RECV_DATA){
        /* 清除中断标志 */
                XUartPs_WriteReg(uart_cfg->BaseAddress, XUARTPS_ISR_OFFSET, XUARTPS_IXR_RXOVR) ;

                 XUartPs_Recv(&uart, RecvBuffer, 500) ;  //设置为最大，这样有多少就会接收多少
                //RecvCnt += EventData ;
                //RecvBufferPtr += EventData;

                xil_printf("1\r\n");


    }
    else if(Event==XUARTPS_EVENT_RECV_TOUT){

        int i;
        int j;
        int right=0;
        recvbuf_and = (u16 *) malloc(codecnt * sizeof(u16));
        /* 清除中断标志 */
                XUartPs_WriteReg(uart_cfg->BaseAddress, XUARTPS_ISR_OFFSET, XUARTPS_IXR_TOUT) ;
                XUartPs_Recv(&uart, RecvBuffer, 500) ;
                //RecvCnt += EventData ;

                 if((RecvBuffer[0]==0x55) && (RecvBuffer[1]==0x55)){
                          data_len=(((RecvBuffer[2])&0x00ff)<<8|(RecvBuffer[3]&0x00ff));
                         for(j=2;j<(data_len+4);j++){
                             sum_check+=RecvBuffer[j];
                             xor_check^=RecvBuffer[j];
                             //printf("RecvBuffer[j]=%d\n\r",RecvBuffer[j]);
                             //printf("j=%d\n\r",j);
                         }
                         /*
                         printf("RecvBuffer[1]=%d\n\r",RecvBuffer[1]);
                         printf("RecvBuffer[2]=%d\n\r",RecvBuffer[2]);
                         printf("RecvBuffer[3]=%d\n\r",RecvBuffer[3]);
                         printf("DATA_LEN=%d\n\r",data_len);
                         */
                         printf("SUM_CHECK=%d\n\r",sum_check);
                         printf("XOR_CHECK=%d\n\r",xor_check);
                         /*
                         printf("RecvBuffer[4+data_len]=%d\n\r",RecvBuffer[4+data_len]);
                         printf("RecvBuffer[5+data_len]=%d\n\r",RecvBuffer[5+data_len]);
                         printf("RecvBuffer[6+data_len]=%d\n\r",RecvBuffer[6+data_len]);
                         printf("RecvBuffer[7+data_len]=%d\n\r",RecvBuffer[7+data_len]);
                         */
                         if((sum_check==RecvBuffer[4+data_len]) && (xor_check==RecvBuffer[5+data_len])){

                                 right=1;
                                 printf("right=%d\n\r",right);
                                 right=0;
                             if((RecvBuffer[6+data_len]==0x66) && (RecvBuffer[7+data_len]==0x66) ){
                                 codecnt=data_len/2;
                                 for(i=2;i<codecnt+2;i++){
                                 recvbuf_and[i-2]=(((RecvBuffer[2*i])&0x00ff)<<8|(RecvBuffer[2*i+1]&0x00ff));
                                 printf("recvbuf_and[i]=%d\n\r",recvbuf_and[i-2]);
                                 printf("i=%d\n\r",i-2);
                                 }
                             }
                             else{
                                 printf("codecnt=%d\n\r",codecnt);
                             }
                     }
                         else{
                             printf("right=%d\n\r",right);
                         }
                 }

                 else {
                     for(i=0;i<BUFFER_SIZE;i++){
                         RecvBuffer[i]=0;
                     }
                 }



                xil_printf("2:%d\r\n",data_len);

                sum_check=0;
                xor_check=0;

                data_len=0;
                sig=0;
                xil_printf("sig:%d\r\n",sig);
        //recvcnt=EventData;
        // if(recvcnt==8 && recvbuf[0]==0x55 && recvbuf[1]==0x55){
            //    printf("recved frame1\n\r");

        //}

    }
}
