(一)Jira Api对接：获取项目和sprint

前言：“JIRA是一款优秀的问题跟踪管理软件工具，可以对各种类型的问题进行跟踪管理，包括缺陷、任务、子任务、需求、sprint等。公司为了提高测试效率都会测试平台化，那么就会出现跨平台使用jira数据的问题。最近一段时间我们就来讨论下如何通过jira api达到我们的目的”

想要获取到jira上的数据，首先我们需要知道是那个project、project下的那个board以及那一个sprint。本文就介绍如何获取project、board和sprint.

一、获取project

jira上project一般都会比较多，如下图，我们需要知道每个project的key或者ID，这是操作project api的基础。

public static JSONArray getJiraProjects() {
 //httpClient 自己封装的http接口调用
   HttpClientResponse clientResponse = httpClient("get", "http://you jira address:port/rest/api/2/project", "");
        if (clientResponse != null) {
            logger.info("获取jira上project成功");
            //已json数组的方式返回
            return JSONArray.fromObject(clientResponse.getResponseBody());
        }

        return null;
  }
 //url 可使用参数如下expand扩充字段、recent返回的个数、properties返回的属性
//http://jira.timevale.cn:8081/rest/api/2/project?expand=projectKeys,description,url,lead&recent=2&properties=key,id

//返回的数据结构如下，其中id和key会在后面的api中使用，需要保存
[
  {
    "expand": "description,lead,url,projectKeys",
    "self": "http://you jira address:port/rest/api/2/project/12345",
    "id": "12345",//后续需要使用
    "key": "AI",//后续需要使用
    "name": "AI项目组",
    "avatarUrls": {
      "48x48": "http://you jira address:port/secure/projectavatar?avatarId=10324",
      "24x24": "http://you jira address:port/secure/projectavatar?size=small&avatarId=10324",
      "16x16": "http://you jira address:port/secure/projectavatar?size=xsmall&avatarId=10324",
      "32x32": "http://you jira address:port/secure/projectavatar?size=medium&avatarId=10324"
    },
    "projectTypeKey": "software"
  }
]

二、获取board

有时候一个project下面可能存在多个board,如下图，那么我们就需要知道具体是那个board.

//入参projectKey是步骤一中返回的id或者key
  public static String getBoardId(String projectKey) {

        String boarId = "";
        HttpClientResponse boardResponse = httpClient("get", "http://you jira address:port/rest/agile/1.0/board?projectKeyOrId=" + projectKey, "");
        if (boardResponse != null && "200".equals(boardResponse.getStateCode())
                && boardResponse.getResponseBody() != null) {

            JSONObject jsonObject = JSONObject.fromObject(boardResponse.getResponseBody().toString());
            //获取项目看板数组
            JSONArray boardArray = jsonObject.getJSONArray("values");
            if (boardArray != null && boardArray.size() > 0) {
                for (int i = 0; i < boardArray.size(); i++) {
                    //默认使用项目名称+ board作为项目看板
                    JSONObject object = boardArray.getJSONObject(i);
                    if ((projectKey + " board").equals(object.getString("name")) || (projectKey + " Board").equals(object.getString("name"))) {
                        //返回看板ID
                        boarId = object.getString("id");
                    }
                }
                //没有满足要求的，设置第一个
                if (StringUtils.isBlank(boarId)) {
                    boarId = boardArray.getJSONObject(0).getString("id");
                }
            }
        }
        return boarId;
    }
    //URL 中可使用参数startAt表示开始的位置、maxResults表示返回的数量
    //http://you jira address:port/rest/agile/1.0/board?projectKeyOrId={projectKeyOrId}&startAt=1&maxResults=1

//返回结果如下，其中的id在获取sprint时需要使用，需要保存
{
    "maxResults": 50,
    "startAt": 0,
    "isLast": true,
    "values": [
        {
            "id": num1,//后续需要使用
            "self": "http://you jira address:port/rest/agile/1.0/board/num1",
            "name": "测试",
            "type": "kanban"
        },
        {
            "id": num2,
            "self": "http://you jira address:port/rest/agile/1.0/board/num2",
            "name": "医签宝",
            "type": "scrum"
        }
    ]
}

三、获取sprint

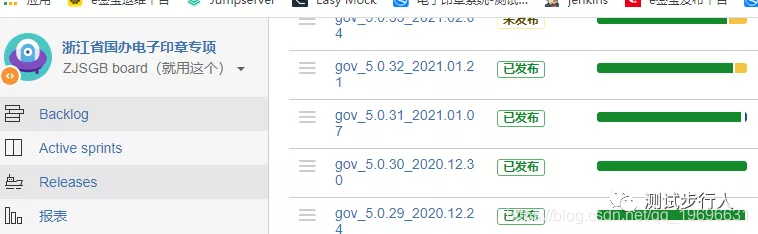

项目的一个迭代对应到jira一般就是一个sprint，如下图，获取到sprint id就可以获取到sprint关联的需求、任务、缺陷等

根据board id 获取sprint代码如下

//入参boardId就是第二步中获取的id
public static List<TmsJiraSpringModel> getSpring(String boardId) {
​
        List<TmsJiraSpringModel> result = new ArrayList<>();
        HttpClientResponse boardResponse = httpClient("get", "http://you jira address:port/rest/agile/1.0/board/" + boardId + "/sprint?state=future,active", "");
        if (boardResponse != null && "200".equals(boardResponse.getStateCode())
                && boardResponse.getResponseBody() != null) {
​
            JSONObject jsonObject = JSONObject.fromObject(boardResponse.getResponseBody().toString());
            //获取Spring
            JSONArray boardArray = jsonObject.getJSONArray("values");
            if (boardArray != null && boardArray.size() > 0) {
                for (int i = 0; i < boardArray.size(); i++) {
                    //自己封装的对象
                    TmsJiraSpringModel springModel = new TmsJiraSpringModel();
                    JSONObject object = boardArray.getJSONObject(i);
                    if (object != null) {
                        springModel.setSpringId(object.getString("id"));
                        springModel.setSpringName(object.getString("name"));
                        result.add(springModel);
                    }
                }
            }
        }
        return result;
    }
//url 可使用参数startAt表示开始的位置、maxResults表示返回的数量、state表示sprint的状态
//http://you jira address:port/rest/agile/1.0/board/{boardId}/sprint?state=future,active&startAt=1&maxResults=1

//返回结果如下， 其中id为sprint id后面会使用
{
    "maxResults": 2,
    "startAt": 1,
    "isLast": false,
    "values": [
        {
            "id": num1,//后续需要使用
            "self": "http://you jira address:port/rest/agile/1.0/sprint/num1",
            "state": "active",
            "name": "【智能人事】一期项目",
            "startDate": "2020-12-07T14:10:58.582+08:00",
            "endDate": "2021-01-15T02:10:00.000+08:00",
            "originBoardId": xxx
        },
        {
            "id": num2,
            "self": "http://you jira address:port/rest/agile/1.0/sprint/num2",
            "state": "active",
            "name": "企业合同权限迭代",
            "startDate": "2020-12-16T10:11:24.631+08:00",
            "endDate": "2020-12-29T10:11:00.000+08:00",
            "originBoardId": xxx
        }
    ]
}

附录：

jira api地址：
1、https://developer.atlassian.com/cloud/jira/platform/rest/v2/intro/#about
2、https://developer.atlassian.com/cloud/jira/software/rest/intro/#introduction
