NGFW-虚拟系统互访NAT

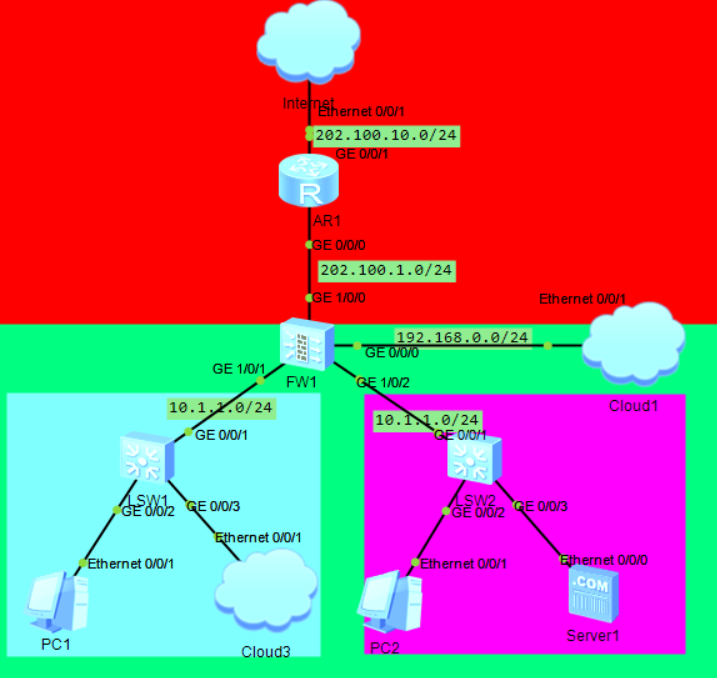

一，拓扑

二，实验需求

①配置Cloud3做NAPT，配置Server1为NAT-Server，使Cloud3可以通过2.2.2.2访问Server1。　　

②配置PC1，PC2做源目双向NAT。

三，NAPT与NAT Server互访

3.1配置

1.根墙分配地址

[FW1]vsys name VSYSA
[FW1-vsys-VSYSA]assign  global-ip  1.1.1.1 1.1.1.2 free
[FW1-vsys-VSYSA]vsys name VSYSB
[FW1-vsys-VSYSB]assign  global-ip  2.2.2.1 2.2.2.2 free

2.虚拟系统VSYSA配置Cloud3做NAPT

[FW1-VSYSA]nat address-group  Cloud3_NAPT
[FW1-VSYSA-vsys-address-group-Cloud3_NAPT]section  1.1.1.1 1.1.1.1
[FW1-VSYSA-policy-nat]rule name Cloud3_NAPT
[FW1-VSYSA-policy-nat-rule-Cloud3_NAPT]source-zone  trust
[FW1-VSYSA-policy-nat-rule-Cloud3_NAPT]destination-zone untrust
[FW1-VSYSA-policy-nat-rule-Cloud3_NAPT]source-address 10.1.1.2 32
[FW1-VSYSA-policy-nat-rule-Cloud3_NAPT]action  source-nat  address-group  Cloud3_NAPT

3.虚拟系统VSYSA的安全策略

#
 rule name Cloud3
  source-zone trust
  destination-zone untrust
  source-address 10.1.1.2 mask 255.255.255.255
  action permit
#

3.虚拟系统VSYSB配置Server1做NAT-Server

[FW1-VSYSB]nat server Server1 zone  untrust  protocol  tcp  global  2.2.2.1 2000 inside   10.1.1.2 80 unr-route

4.虚拟系统VSYSB配置安全策略

#
security-policy
 rule name Server1
  source-zone untrust
  destination-zone trust
  destination-address 10.1.1.2 mask 255.255.255.255
  action permit
#

5.根墙配置路由

[FW1]ip route-static vpn-instance  VSYSA  2.2.2.1 32  vpn-instance  VSYSB
[FW1]ip route-static 1.1.1.1 32  vpn-instance  VSYSA

3.2测试现象

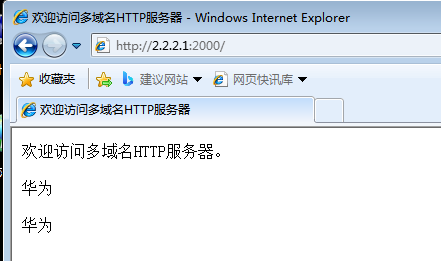

1.Cloud3通过http://2.2.2.1:2000 访问Server1



 2.查看会话表

VSYSA：

[FW1-VSYSA]display  firewall session table  verbose
2022-10-07 03:22:40.340
 Current Total Sessions : 2
 sccp  VPN: VSYSA --> VSYSB  ID: c287f903ee459602c633f9b69
 Zone: trust --> untrust  TTL: 00:20:00  Left: 00:19:51
 Recv Interface: GigabitEthernet1/0/1
 Interface: Virtual-if1  NextHop: 0.0.0.0  MAC: 0000-0000-0000
 <--packets: 4 bytes: 778 --> packets: 6 bytes: 858
 10.1.1.2:49167[1.1.1.1:2053] --> 2.2.2.1:2000 PolicyName: Cloud3
 TCP State: established

VSYSB：

[FW1-VSYSB]display  firewall session table  verbose
2022-10-07 03:23:23.870
 Current Total Sessions : 2
 http  VPN: VSYSB --> VSYSB  ID: c387f903ee45a489d4633f9b69
 Zone: untrust --> trust  TTL: 00:20:00  Left: 00:19:08
 Recv Interface: Virtual-if2
 Interface: GigabitEthernet1/0/2  NextHop: 10.1.1.2  MAC: 5489-9826-5813
 <--packets: 4 bytes: 778 --> packets: 6 bytes: 858
 1.1.1.1:2053 --> 2.2.2.1:2000[10.1.1.2:80] PolicyName: Server1
 TCP State: established

 四，配置双向NAT互访

4.1配置

1.上面分配的地址池资源不够用，分配10.1.1.3地址给VSYSA和VSYSB

[FW1]vsys name  VSYSA
[FW1-vsys-VSYSA]assign  global 10.1.1.3 10.1.1.3 free
[FW1]vsys name VSYSB
[FW1-vsys-VSYSB]assign  global 10.1.1.3 10.1.1.3 free

2.配置地址池

VSYSA：

[FW1-VSYSA]nat address-group  SNAT1
[FW1-VSYSA-vsys-address-group-SNAT1]section  10.1.1.3 10.1.1.3
[FW1-VSYSA-vsys-address-group-SNAT1]mode no-pat local
[FW1-VSYSA]nat address-group  SNAT2
[FW1-VSYSA-vsys-address-group-SNAT2]mode  no-pat  local
[FW1-VSYSA-vsys-address-group-SNAT2]section  1.1.1.2 1.1.1.2
[FW1-VSYSA]destination-nat address-group  DNA1
[FW1-VSYSA-vsys-dnat-address-group-DNA1]section  2.2.2.2 2.2.2.2
[FW1-VSYSA]destination-nat address-group  DNAT2
[FW1-VSYSA-vsys-dnat-address-group-DNAT2]section  10.1.1.1 10.1.1.1

VSYSB:

[FW1-VSYSB]NAT address-group  SNAT1
[FW1-VSYSB-vsys-address-group-SNAT1]section  10.1.1.3 10.1.1.3
[FW1-VSYSB-vsys-address-group-SNAT1]mode no-pat local
[FW1-VSYSB]nat address-group  SNAT2
[FW1-VSYSB-vsys-address-group-SNAT2]mode no-pat local
[FW1-VSYSB-vsys-address-group-SNAT2]section 2.2.2.2 2.2.2.2
[FW1-VSYSB]destination-nat address-group  DNAT1
[FW1-VSYSB-vsys-dnat-address-group-DNAT1]section 1.1.1.2 1.1.1.2
[FW1-VSYSB]destination-nat  address-group  DNAT2
[FW1-VSYSB-vsys-dnat-address-group-DNAT2]section 10.1.1.1 10.1.1.1

3.配置双向NAT策略

VSYSA：

nat-policy
 rule name NAT01
  source-zone trust
  source-address 10.1.1.1 mask 255.255.255.255
  destination-address 10.1.1.3 mask 255.255.255.255
  action source-nat address-group SNAT2
  action destination-nat static address-to-address address-group DNA1
 rule name NAT02
  source-zone untrust
  source-address 2.2.2.2 mask 255.255.255.255
  destination-address 1.1.1.2 mask 255.255.255.255
  action source-nat address-group SNAT1
  action destination-nat static address-to-address address-group DNAT2
#

VSYSB:

#
nat-policy
 rule name NAT01
  source-zone trust
  source-address 10.1.1.1 mask 255.255.255.255
  destination-address 10.1.1.3 mask 255.255.255.255
  action source-nat address-group SNAT2
  action destination-nat static address-to-address address-group DNAT1
 rule name NAT02
  source-zone untrust
  source-address 1.1.1.2 mask 255.255.255.255
  destination-address 2.2.2.2 mask 255.255.255.255
  action source-nat address-group SNAT1
  action destination-nat static address-to-address address-group DNAT2
#
return

4.2测试现象

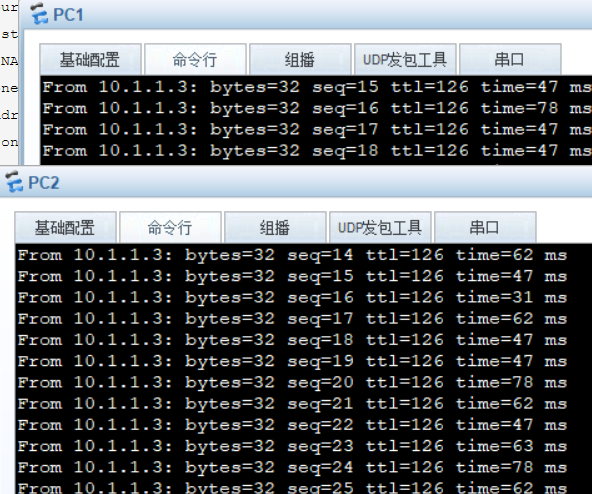

1.可以使用10.1.1.3与对端虚拟系统的PC通信。

 2.查看会话表

[FW1-VSYSB]display  firewall session table  verbose protocol  icmp
2022-10-07 09:47:24.910
 Current Total Sessions : 37
 icmp  VPN: VSYSB --> VSYSB  ID: c387fc22e7fbaf8264633ff5a7
 Zone: untrust --> trust  TTL: 00:00:20  Left: 00:00:15
 Recv Interface: Virtual-if2
 Interface: GigabitEthernet1/0/2  NextHop: 10.1.1.1  MAC: 5489-9883-2a75
 <--packets: 1 bytes: 60 --> packets: 1 bytes: 60
 1.1.1.2:41461[10.1.1.3:41461] --> 2.2.2.2:2048[10.1.1.1:2048] PolicyName: default

 icmp  VPN: VSYSB --> VSYSA  ID: c387fc22e7fd0505a5633ff5a4
 Zone: trust --> untrust  TTL: 00:00:20  Left: 00:00:12
 Recv Interface: GigabitEthernet1/0/2
 Interface: Virtual-if2  NextHop: 0.0.0.0  MAC: 0000-0000-0000
 <--packets: 1 bytes: 60 --> packets: 1 bytes: 60
 10.1.1.1:40693[2.2.2.2:40693] --> 10.1.1.3:2048[1.1.1.2:2048] PolicyName: default
[FW1-VSYSA]display  firewall session  table  verbose protocol  icmp
2022-10-07 09:48:11.000
 Current Total Sessions : 37
 icmp  VPN: VSYSA --> VSYSB  ID: c187fc22e7bcde0e633ff5d7
 Zone: trust --> untrust  TTL: 00:00:20  Left: 00:00:17
 Recv Interface: GigabitEthernet1/0/1
 Interface: Virtual-if1  NextHop: 0.0.0.0  MAC: 0000-0000-0000
 <--packets: 1 bytes: 60 --> packets: 1 bytes: 60
 10.1.1.1:53749[1.1.1.2:53749] --> 10.1.1.3:2048[2.2.2.2:2048] PolicyName: default

 icmp  VPN: VSYSA --> VSYSA  ID: c387fc22e7c1908168633ff5d1
 Zone: untrust --> trust  TTL: 00:00:20  Left: 00:00:11
 Recv Interface: Virtual-if1
 Interface: GigabitEthernet1/0/1  NextHop: 10.1.1.1  MAC: 5489-9866-3bdb
 <--packets: 1 bytes: 60 --> packets: 1 bytes: 60
 2.2.2.2:52213[10.1.1.3:52213] --> 1.1.1.2:2048[10.1.1.1:2048] PolicyName: default
