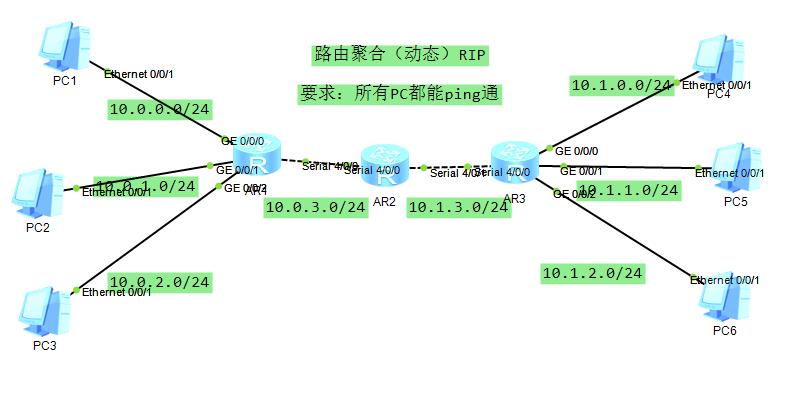

动态路由聚合

配置命令

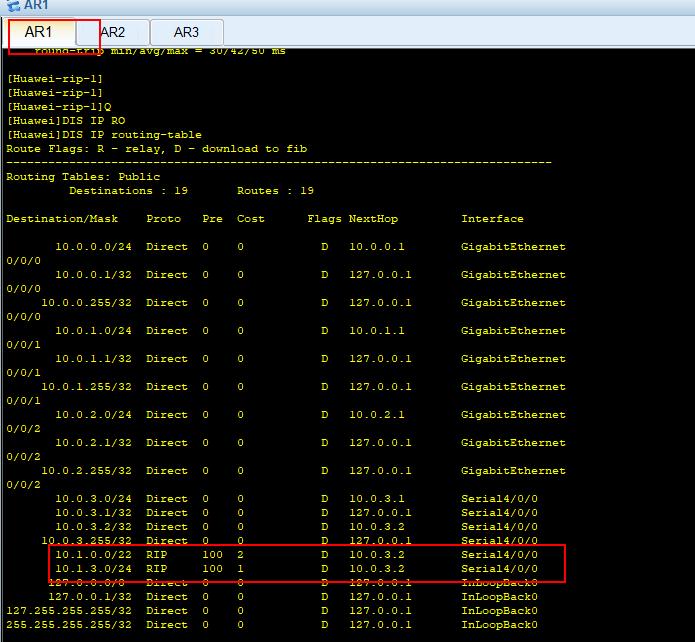

AR1：

SYS

INT G0/0/0

IP ADD 10.0.0.1 24

Q

INT G0/0/1

IP ADD 10.0.1.1 24

Q

INT G0/0/2

IP ADD 10.0.2.1 24

Q

INT SERIAL 4/0/0

IP ADD 10.0.3.1 24

RIP SUMMARY-ADDRESS 10.0.0.0 255.255.252.0

Q

RIP

UNDO SUMMARY

VERSION 2

NETWORK 10.0.0.0

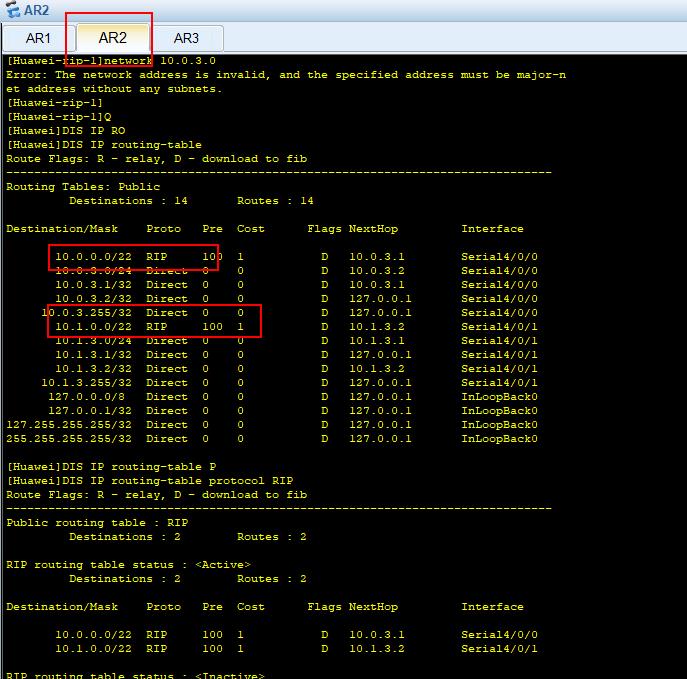

AR2：

SYS

INT SERIAL4/0/0

IP ADD 10.0.3.2 24

Q

INT SERIAL4/0/1

IP ADD 10.1.3.1 24

Q

RIP

UNDO SUMMARY

VERSION 2

NETWORK 10.0.0.0

Q

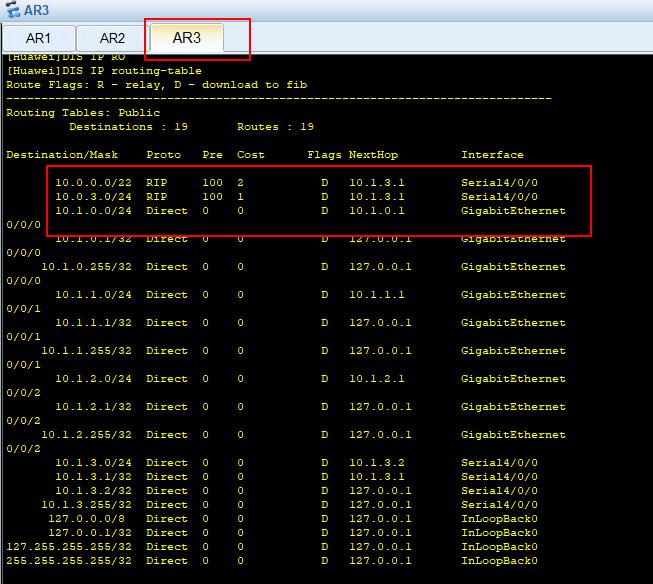

AR3：

SYS

INT G0/0/0

IP ADD 10.1.0.1 24

Q

INT G0/0/1

IP ADD 10.1.1.1 24

Q

INT G0/0/2

IP ADD 10.1.2.1 24

Q

INT SERIAL40/0/0

IP ADD 10.1.3.2 24

RIP SUMMARY-ADDRESS 10.1.0.0 255.255.252.0

Q

RIP

UNDO SUMMARY

VERSION 2

NETWORK 10.0.0.0
