使用 iText(html2pdf) + Thymeleaf 批量打印 PDF 并导出 zip
功能内容
该文章中实现的的主要功能如下,可以直接拷贝使用:
- 自定义导出字体(微软雅黑)
- 使用 Thymeleaf 自定义渲染内容
- PDF 批量打印
- 导出 zip 文件
- 前端接收并显示已接收大小
最新的 iText 相比 iText5
的 PDF 渲染速度要快非常多(从最开始用 iText5 切换到最新的 html2pdf,导出速度提高了最少 5 倍),而且对 css 样式的可使用性有明显提高,flex
布局可以正常使用,开发体验已经很棒了
吐槽:iText 本身渲染 PDF 的写法跟坨屎一样,
new Paragraph("Hello Word")
这种也就写一些简单的内容了,复杂一点的能把人累死
后端 PDF 渲染导出
先添加相关依赖 thymeleaf
ognl
html2pdf
font-asian
(thymeleaf 跟随 springboot 版本走,其它都是最新的)
这里
font-asian
我没用上,可以从html2pdf
导入的FontProvieder
注册自定义中文字体,在 itext5 中是需要itext-asian
这种包才可以的
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<!-- thymeleaf 需要这个包, 否则转 html 时会报错 -->
<dependency>
<groupId>ognl</groupId>
<artifactId>ognl</artifactId>
<version>3.1.26</version>
</dependency>
<!-- 核心 将 Tymeleaf 渲染成 PDF -->
<dependency>
<groupId>com.itextpdf</groupId>
<artifactId>html2pdf</artifactId>
<version>6.2.0</version>
</dependency>
<!-- 自定义字体 支持中文渲染,但是这个包我没用上 -->
<dependency>
<groupId>com.itextpdf</groupId>
<artifactId>font-asian</artifactId>
<version>9.2.0</version>
</dependency>
导出的 PdfUtil 类
这里注册了微软雅黑的默认字体和粗体,如果没有粗体要求的可以不导入。
windows 系统字体统一都在 C:\Windows\Fonts
下,这里将字体拷贝到了 resources
目录下
目前只用到了 convertHtmlToPdfByte
这个方法
@Slf4j
public class PdfExportUtil {
// 微软雅黑字体文件路径
private static final String FONT_PATH = "fonts/msyh.ttc";
private static final String FONT_BOLD_PATH = "fonts/msyhbd.ttc";
private static FontProvider FONT_PROVIDER;
/**
* 初始化字体提供器
*/
private static synchronized void initFontProvider() {
if (FONT_PROVIDER != null) return;
try {
FontProvider provider = new FontProvider();
registerMsyhFont(provider);
FONT_PROVIDER = provider;
} catch (Exception e) {
log.error("字体初始化失败", e);
// 回退到系统字体,(只要字体路径没错,理论上不会走到 catch 中)
FONT_PROVIDER = new FontProvider();
FONT_PROVIDER.addSystemFonts();
}
}
/**
* 注册微软雅黑字体
*/
private static void registerMsyhFont(FontProvider provider) throws Exception {
// 注册常规字体 (msyh.ttc)
try (InputStream regularIs = PdfExportUtil.class.getClassLoader().getResourceAsStream(FONT_PATH)) {
TrueTypeCollection regularTtc = new TrueTypeCollection(regularIs.readAllBytes());
FontProgram regularProgram = regularTtc.getFontByTccIndex(0);
provider.addFont(regularProgram);
}
// 注册粗体字体 (msyhbd.ttc)
try (InputStream boldIs = PdfExportUtil.class.getClassLoader().getResourceAsStream(FONT_BOLD_PATH)) {
byte[] boldData = boldIs.readAllBytes();
TrueTypeCollection boldTtc = new TrueTypeCollection(boldData);
FontProgram boldProgram = boldTtc.getFontByTccIndex(0);
provider.addFont(boldProgram);
}
log.info("微软雅黑字体注册成功");
}
private static ConverterProperties createConverterProperties() {
ConverterProperties properties = new ConverterProperties();
// 初始化字体
if (FONT_PROVIDER == null) {
initFontProvider();
}
properties.setFontProvider(FONT_PROVIDER);
return properties;
}
/**
* 将HTML内容转换为PDF
*/
private static void convertToPdf(String htmlContent, OutputStream outputStream) {
try {
// 创建PDF文档
PdfWriter pdfWriter = new PdfWriter(outputStream);
PdfDocument pdfDocument = new PdfDocument(pdfWriter);
pdfDocument.setDefaultPageSize(PageSize.DEFAULT);
// 转换HTML到PDF
HtmlConverter.convertToPdf(htmlContent, pdfDocument, createConverterProperties());
} catch (Exception e) {
log.error("HTML转PDF失败", e);
throw new RuntimeException("HTML转PDF失败", e);
}
}
/**
* 将HTML文件转换为PDF
*/
private static void convertFileToPdf(File htmlFile, OutputStream outputStream) {
try {
// 创建PDF文档
PdfWriter pdfWriter = new PdfWriter(outputStream);
PdfDocument pdfDocument = new PdfDocument(pdfWriter);
pdfDocument.setDefaultPageSize(PageSize.A4);
// 转换HTML文件到PDF
HtmlConverter.convertToPdf(Files.newInputStream(htmlFile.toPath()),
pdfDocument, createConverterProperties());
} catch (Exception e) {
log.error("HTML文件转PDF失败", e);
throw new RuntimeException("HTML文件转PDF失败", e);
}
}
/**
* 将HTML内容转换为PDF字节数组
*/
public static byte[] convertHtmlToPdfByte(String htmlContent) {
try (ByteArrayOutputStream outputStream = new ByteArrayOutputStream()) {
convertToPdf(htmlContent, outputStream);
return outputStream.toByteArray();
} catch (Exception e) {
log.error("HTML转PDF字节失败", e);
throw new RuntimeException("HTML转PDF字节失败", e);
}
}
public static void convertHtmlToPdf(String htmlContent, OutputStream outputStream) {
convertToPdf(htmlContent, outputStream);
}
public static void convertHtmlFileToPdf(File htmlFile, OutputStream outputStream) {
convertFileToPdf(htmlFile, outputStream);
}
public static void convertHtmlToPdfFile(String htmlContent, File outputFile) {
try (FileOutputStream outputStream = new FileOutputStream(outputFile)) {
convertToPdf(htmlContent, outputStream);
} catch (Exception e) {
log.error("HTML转PDF文件失败", e);
throw new RuntimeException("HTML转PDF文件失败", e);
}
}
}
ThymeleafUtil 类
public class ThymeleafRenderer {
private final TemplateEngine templateEngine;
// 仅读取 templates 下的 html 文件
public ThymeleafRenderer() {
this.templateEngine = new TemplateEngine();
ClassLoaderTemplateResolver resolver = new ClassLoaderTemplateResolver();
resolver.setPrefix("templates/");
resolver.setSuffix(".html");
resolver.setTemplateMode(TemplateMode.HTML);
resolver.setCharacterEncoding("UTF-8");
templateEngine.setTemplateResolver(resolver);
}
// 传递给 Thymeleaf 的参数
public String render(String templateName, Map<String, Object> variables) {
Context context = new Context();
if (variables != null) {
variables.forEach(context::setVariable);
}
return templateEngine.process(templateName, context);
}
}
写 Thymeleaf 注意事项
这个没啥说的,单纯的 Thymeleaf 语法而已,值得注意的是,Thymeleaf 模板中,有些 html 元素的默认样式和浏览器不一致
table
元素手动设置display: table;
才和浏览器一致caption
与浏览器相比默认多了一些边距,需注意- 其它样式细节自行发现即可
- 使用 iText7 可以用 flex 布局,但是 iText5 不行,iText5 的样式甚至需要兼容到 IE11 以下
- 若涉及到一些纯静态数据,可以转成 json,读取 json 文件并转成 Map,再传递给 Thymeleaf,引入 css 和 js 的写法我没用上,有兴趣的可以尝试

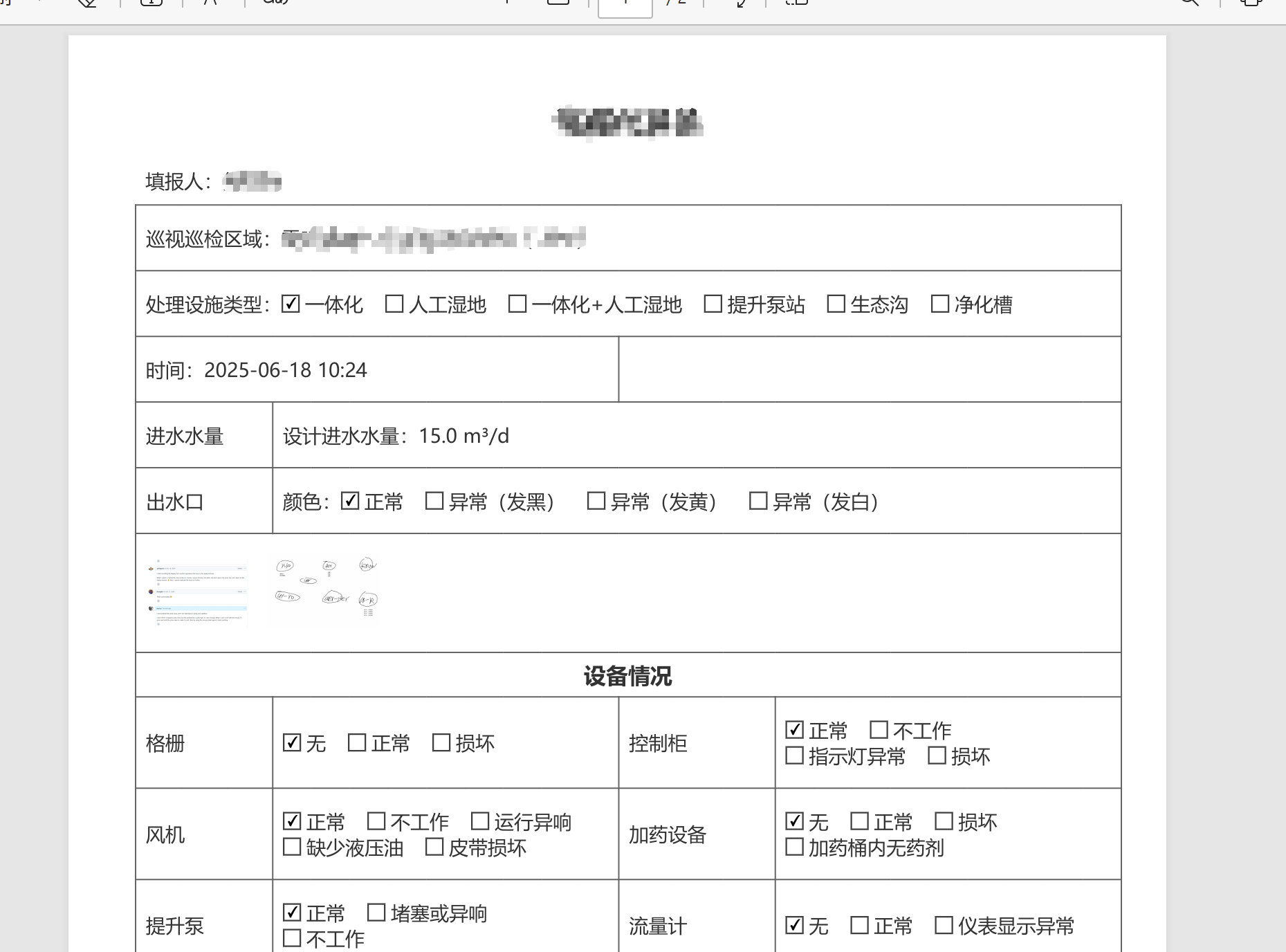

贴一个 PDF 的导出样例
这里简单提取一些简单的 html 结构示例及样式吧,以便大家可以直接根据现有业务自行修改使用
<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
<style>
table, div, span {
font-size: 14px;
color: #333333;
}
table {
width: 100%;
display: table;
border-collapse: collapse;
}
table tbody td,
table tbody th {
padding: 14px 7px;
border: 1px solid #666;
}
table caption {
margin: 0;
padding: 0;
text-align: center;
caption-side: top;
}
table tbody th {
font-weight: normal;
text-align: left;
}
th .label {
width: 100%;
white-space: nowrap;
text-align: left;
}
input[type="checkbox"] {
margin: 0;
padding: 0;
}
.flex {
display: flex;
}
.items-center {
align-items: center;
}
.flex-wrap {
flex-wrap: wrap;
}
.whitespace-nowrap {
white-space: nowrap;
}
.pl-1 {
padding-left: 4px;
}
.pr-4 {
padding-right: 16px;
}
.py-2 {
padding-top: 8px;
padding-bottom: 8px;
}
.mr-2 {
margin-right: 8px;
}
.font-bold {
font-weight: bold;
}
</style>
</head>
<body>
<table>
<caption>
<h2 class="font-bold" style="margin:0 0 12px 0">xx填报单</h2>
</caption>
<!-- 24 列,24 列在占格布局上更为灵活,可以应对大部分的行布局 -->
<colgroup>
<th:block th:each="i : ${#numbers.sequence(1, 24)}">
<col th:width="${#numbers.formatDecimal(100/24, 1, 2) + '%'}"/>
</th:block>
</colgroup>
<tbody>
<!-- 填报人 -->
<tr>
<td colspan="24" style="border: none;" class="py-2" th:text="'填报人:' + ${record.username}"></td>
</tr>
<!-- 巡视区域 -->
<tr>
<td colspan="24" th:text="'巡视巡检区域:' + ${record.fullname}"></td>
</tr>
<!-- 设施类型 -->
<tr>
<td colspan="24">
<div class="flex items-center">
<div class="whitespace-nowrap">处理设施类型:</div>
<div class="flex flex-wrap">
<div class="flex items-center" th:each="opt : ${#strings.arraySplit('一体化,人工湿地,一体化+人工湿地,提升泵站,生态沟,净化槽', ',')}">
<input type="checkbox" th:checked="${record.facilityType == opt}" readonly/>
<span class="pl-1 pr-4" th:text="${opt}"></span>
</div>
</div>
</div>
</td>
</tr>
<!-- 时间 -->
<tr>
<td colspan="12" th:text="'时间:' + ${createFormatTime}"></td>
<td colspan="12"> </td>
</tr>
<!-- 动态内容 -->
<tr th:if="${record.facilityType == '提升泵站'}">
<td colspan="24" th:text="'提升泵站提升水量:' + ${record.waterIntake} + ' m³/h'"></td>
</tr>
<th:block th:unless="${record.facilityType == '提升泵站'}">
<tr>
<th colspan="3">
<div class="label">进水水量</div>
</th>
<td colspan="21" th:text="'设计进水水量:' + ${record.waterIntake} + ' m³/d'"></td>
</tr>
<tr>
<th colspan="3">
<div class="label">出水口</div>
</th>
<td colspan="21">
<div class="flex items-center">
<div class="whitespace-nowrap">颜色:</div>
<div class="flex flex-wrap items-center" th:each="opt : ${#strings.arraySplit('正常,异常(发黑),异常(发黄),异常(发白)',',')}">
<input type="checkbox" th:checked="${record.waterOutlet == opt}" readonly/>
<span class="pl-1 pr-4" th:text="${opt}"></span>
</div>
</div>
</td>
</tr>
</th:block>
<!-- 图片 -->
<tr>
<th colspan="3">
<div class="label">图片</div>
</th>
<td colspan="21">
<th:block th:if="${record.imgUrl}">
<img th:each="url : ${#strings.arraySplit(record.imgUrl, ',')}" th:src="${url}" width="80" class="mr-2"/>
</th:block>
</td>
</tr>
</tbody>
</table>
</body>
</html>
批量打印 PDF 并返回 zip 流
到这里只需要调用上边的工具类即可,注意:这里不太好设置 zip 的 Content-Length
,因为 zip 的大小不固定,如果为了这个数值再去读一次 zip 的大小,有点得不偿失了。
public void exportTestPdf(List<String> ids, HttpServletResponse response) {
final String ZIP_NAME = "my-test.zip";
response.setContentType("application/zip");
response.setCharacterEncoding("UTF-8");
response.setHeader("Content-Disposition",
"attachment; filename=\"" + URLEncoder.encode(ZIP_NAME, StandardCharsets.UTF_8) + "\"");
if (ids == null || ids.isEmpty()) return;
try {
ThymeleafRenderer thymeleafRenderer = new ThymeleafRenderer();
// 伪代码,根据实际业务处理
List<MyList> myList = myListService.getBatchListByIds(ids);
try (ZipOutputStream zos = new ZipOutputStream(response.getOutputStream())) {
for (MyList my : myList) {
String fileName = my.getId() + ".pdf";
// 传递给 Thymeleaf 的参数(伪代码)
Map<String, Object> map = new HashMap<>();
map.put("record", my);
map.put("createFormatTime", "xxxx-xx-xx");
// 指定 thymeleaf 的模板并渲染为 html
String htmlContent = thymeleafRenderer.render("my-test", map);
byte[] pdfBytes = PdfExportUtil.convertHtmlToPdfByte(htmlContent);
// 添加PDF到ZIP
ZipEntry entry = new ZipEntry(fileName);
zos.putNextEntry(entry);
zos.write(pdfBytes);
zos.closeEntry();
}
zos.finish();
}
} catch (Exception e) {
throw new RuntimeException(e);
}
}
前端接收流文件并保存
流格式的文件保存做不到浏览器的下载一样的显示,因此只能从体验的角度来告知使用者,文件正在下载
可以使用 axios
的 onDownloadProgress
来获取已下载的文件大小,并展示给用户,这样在大文件导出时,不至于什么变化都没有,让使用者干等
const res = await axios.post(
'/pdf-export/xxx',
{ ids: [] /** 导出的数据 id 集合 */ },
{
headers: {
responseType: 'blob', // 用 blob 接收数据流
},
onDownloadProgress(progressEvent) {
// 可以在此处获取已经下载的文件大小,并展示给用户,下载的进度百分比能不做就不做,浪费导出时间
console.log('已下载大小', progressEvent.loaded);
},
},
);
const blob = new Blob([res.data],{type: 'application/zip'});
const href = window.URL.createObjectURL(blob);
const a = document.createElement('a');
a.style.display = 'none';
a.href = href;
a.download = `${Date.now().toString()}.zip`;
a.rel = 'noopener noreferrer';
document.body.append(a);
a.click();
URL.revokeObjectURL(a.href);
a.remove();
