【Java】小工具：Xmind解析为Excel（原创）

xmind自带的转excel表格不是自己期望的，主要有：

1）xmind层级和excel表的列一一对应，个人更希望xmind除了叶子结点为预期结果单独列出外，其它部分都算测试步骤中，以“—”隔开

2）xmind中除了测试用例，可能还包含一些测试步骤或备注，步骤可放到excel表中，但备注一般不需要，希望可以做出区分

3）可以标记出优先级

4）测试结果包含一些默认的下拉选项

5）可以自动生成冒烟测试、一轮、二轮测试等

大概像这样：

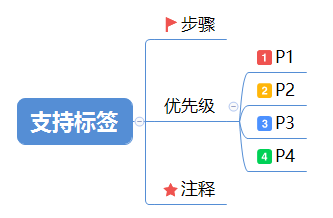

xmind文件：

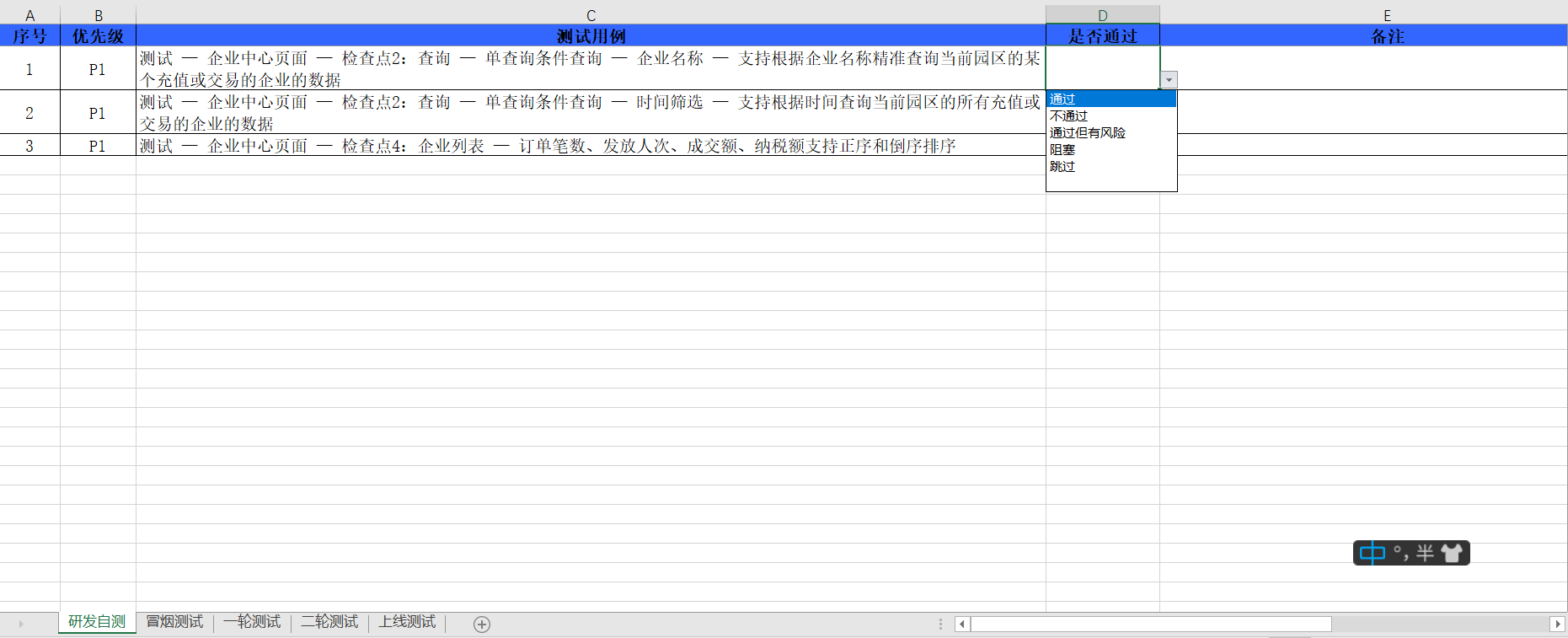

excel文件：

缺点很明显：一个java小工具，只适合个人使用（个人更喜欢用xmind写用例，用excel测试），不能共享，每次修改xmind文件都需要重新转换



测试xmind文件为xmind8，对其它xmind文件不一定能友好支持



打包的jar文件：链接  https://pan.baidu.com/s/1-BlO9tKx2BMbZt9dgU8OJQ          提取码  5fae

1. 导包

install:install-file -Dfile=C:\Users\Administrator\Desktop\xmind-3.7.jar
                     -DgroupId=com.dave.local
                     -DartifactId=xmind
                     -Dversion=3.7
                     -Dpackaging=jar

2. POM文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.dave.exp</groupId>
    <artifactId>xmind_demo</artifactId>
    <version>1.0</version>
    <packaging>jar</packaging>

    <name>xmind_demo</name>
    <!-- FIXME change it to the project's website -->
    <url>http://www.example.com</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi</artifactId>
            <version>3.17</version>
        </dependency>

        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml</artifactId>
            <version>3.17</version>
        </dependency>

        <dependency>
            <groupId>jexcelapi</groupId>
            <artifactId>jxl</artifactId>
            <version>2.6</version>
        </dependency>

        <dependency>
            <groupId>com.dave.local</groupId>
            <artifactId>xmind</artifactId>
            <version>3.7</version>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>Xmind解析</finalName>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>false</filtering>
                <excludes>
                    <exclude>**/*.txt</exclude>
                </excludes>
            </resource>

        </resources>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <!-- clean lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#clean_Lifecycle -->
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- default lifecycle, jar packaging: see https://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_jar_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-jar-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
                <!-- site lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#site_Lifecycle -->
                <plugin>
                    <artifactId>maven-site-plugin</artifactId>
                    <version>3.7.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-project-info-reports-plugin</artifactId>
                    <version>3.0.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-assembly-plugin</artifactId>
                    <configuration>
                        <appendAssemblyId>false</appendAssemblyId>
                        <descriptorRefs>
                            <descriptorRef>jar-with-dependencies</descriptorRef>
                        </descriptorRefs>
                        <archive>
                            <manifest>
                                <!-- 此处指定main方法入口的class -->
                                <mainClass>com.dave.main.Main</mainClass>
                            </manifest>
                        </archive>
                    </configuration>
                    <executions>
                        <execution>
                            <id>make-assembly</id>
                            <phase>package</phase>
                            <goals>
                                <goal>assembly</goal>
                            </goals>
                        </execution>
                    </executions>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>
</project>

3. Java代码

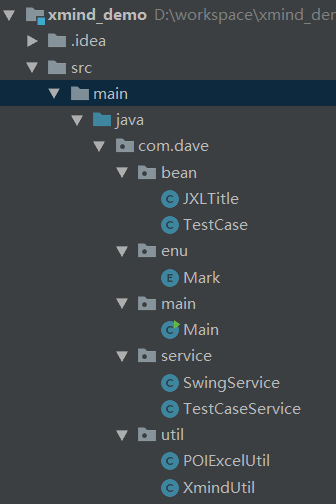

• 代码结构





• JXLTitle

package com.dave.bean;

public class JXLTitle {
    private String titleName;
    private int titleLength;

    public JXLTitle(){
        super();
    }

    public JXLTitle(String titleName, int titleLength){
        this.titleName = titleName;
        this.titleLength = titleLength;
    }

    public String getTitleName() {
        return titleName;
    }

    public void setTitleName(String titleName) {
        this.titleName = titleName;
    }

    public int getTitleLength() {
        return titleLength;
    }

    public void setTitleLength(int titleLength) {
        this.titleLength = titleLength;
    }
}

• TestCase

package com.dave.bean;

/**
 * 测试用例类
 */
public class TestCase {
    private String marker;   //测试用例标记，标记步骤或优先级
    private String context;   //测试用例内容

    public TestCase() {
    }

    public TestCase(String context){
        this.context = context;
    }

    public TestCase(String marker, String context) {
        this.marker = marker;
        this.context = context;
    }

    public String getMarker() {
        return marker;
    }

    public void setMarker(String marker) {
        this.marker = marker;
    }

    public String getContext() {
        return context;
    }

    public void setContent(String context) {
        this.context = context;
    }

    @Override
    public String toString() {
        return context+" "+marker;
    }
}

• Mark

package com.dave.enu;

public enum Mark {
    P1("[MKRRef#priority-1]","P1"), P2("[MKRRef#priority-2]","P2"), P3("[MKRRef#priority-3]","P3"),
    P4("[MKRRef#priority-4]","P4"),P("[MKRRef#flag-red]","P"),red("[MKRRef#star-red]","Red"),
    NULL("[]","");

    private String markRef;
    private String mark;

    //构造方法
    private Mark(String markRef, String mark){
        this.markRef = markRef;
        this.mark = mark;
    }

    //get set方法
    public String getMarkRef() {
        return markRef;
    }

    public void setMarkRef(String markRef) {
        this.markRef = markRef;
    }

    public String getMark() {
        return mark;
    }

    public void setMark(String mark) {
        this.mark = mark;
    }

    //获取标签
    public static String getMark(String markRef){
        for(Mark mark:Mark.values()){
            if(mark.getMarkRef().equals(markRef)){
                return mark.getMark();
            }
        }
        return "";
    }
}

• Main

package com.dave.main;

import com.dave.service.SwingService;

import javax.swing.*;

public class Main {
    public static void main(String[] args) {
        SwingUtilities.invokeLater(new Runnable() {
            @Override
            public void run() {
                new SwingService().createAndShowGUI();
            }
        });
    }
}

• SwingService

package com.dave.service;

import com.dave.bean.JXLTitle;
import com.dave.bean.TestCase;
import com.dave.util.POIExcelUtil;
import com.dave.util.XmindUtil;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;

import javax.swing.*;
import javax.swing.filechooser.FileFilter;
import java.awt.*;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.io.File;
import java.util.ArrayList;
import java.util.List;

public class SwingService {
    public void createAndShowGUI(){
        JFrame frame = new JFrame("xmind用例转换");
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setSize(650,120);
        frame.setLocationRelativeTo(null);

        final JPanel panel = new JPanel();
        panel.setLayout(null);

        final JTextField filePath = new JTextField(20);
        filePath.setBounds(10, 25, 400, 35);
        filePath.setFont(new Font("宋体", Font.PLAIN, 24));
        filePath.setEditable(false);
        panel.add(filePath);

        JButton scanButton = new JButton("浏览");
        scanButton.setBounds(420, 25, 100, 35);
        scanButton.setFont(new Font("宋体", Font.BOLD, 24));
        panel.add(scanButton);

        JButton confirmButton = new JButton("转换");
        confirmButton.setBounds(530, 25, 100, 35);
        confirmButton.setFont(new Font("宋体", Font.BOLD, 24));
        panel.add(confirmButton);

        frame.add(panel);

        frame.setResizable(false);
        frame.setVisible(true);

        scanButton.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                JFileChooser jfc = new JFileChooser();
                jfc.setPreferredSize(new Dimension(600,400));
                setFileChooserFont(jfc.getComponents());
                jfc.setFileFilter(new FileFilter() {
                    @Override
                    public boolean accept(File f) {
                        if(f.getName().endsWith(".xmind")){
                            return true;
                        }
                        return false;
                    }

                    @Override
                    public String getDescription() {
                        return "*.xmind";
                    }
                });
                jfc.setFileSelectionMode(JFileChooser.FILES_ONLY);
                jfc.showDialog(new JLabel(), "选择");
                File file = jfc.getSelectedFile();
                if (file != null && file.isFile()) {
                    filePath.setText(file.getAbsolutePath());
                }
            }
        });

        confirmButton.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                String path = filePath.getText();
                if(path.equals("") || !path.endsWith(".xmind")){
                    JOptionPane.showMessageDialog(panel, "未获取到xmind路径", "信息",JOptionPane.WARNING_MESSAGE);
                    return;
                }
                XSSFWorkbook xwb = null;
                try {
                    java.util.List<TestCase> testCases = XmindUtil.xmindToList(path);
                    xwb = POIExcelUtil.createWorkbook();
                    List<JXLTitle> sheetTitles = new ArrayList<JXLTitle>();
                    sheetTitles.add(new JXLTitle("序号",8));
                    sheetTitles.add(new JXLTitle("优先级",10));
                    sheetTitles.add(new JXLTitle("测试用例",120));
                    sheetTitles.add(new JXLTitle("是否通过",15));
                    sheetTitles.add(new JXLTitle("备注",60));

                    TestCaseService testCaseService = new TestCaseService();
                    testCaseService.getTestCase(xwb, "研发自测", sheetTitles, 1, 0, "P1", testCases);
                    testCaseService.getTestCase(xwb, "冒烟测试", sheetTitles, 1, 0, "P1", testCases);
                    testCaseService.getTestCase(xwb, "一轮测试", sheetTitles, 1, 0, "All", testCases);
                    testCaseService.getTestCase(xwb, "二轮测试", sheetTitles, 1, 0, "All", testCases);
                    testCaseService.getTestCase(xwb, "上线测试", sheetTitles, 1, 0, "Online", testCases);

                    JOptionPane.showMessageDialog(panel, "转换完成", "信息",JOptionPane.WARNING_MESSAGE);
                    POIExcelUtil.closeWorkbook(xwb,path.replace(".xmind",".xlsx"));
                } catch (Exception e1) {
                    e1.printStackTrace();
                }
            }
        });
    }

    private static void setFileChooserFont(Component[] comp)
    {
        for(int x = 0; x < comp.length; x++)
        {
            if(comp[x] instanceof Container) setFileChooserFont(((Container)comp[x]).getComponents());
            try{comp[x].setFont(new Font("宋体",Font.PLAIN,16));}
            catch(Exception e){}//do nothing
        }
    }
}

• TesCaseService

package com.dave.service;

import com.dave.bean.JXLTitle;
import com.dave.bean.TestCase;
import com.dave.util.POIExcelUtil;
import org.apache.poi.ss.usermodel.BorderStyle;
import org.apache.poi.ss.usermodel.IndexedColors;
import org.apache.poi.ss.util.CellRangeAddressList;
import org.apache.poi.xssf.usermodel.*;

import java.util.List;


public class TestCaseService {
    /**
     * 生成测试用例sheet
     * @param xwb   工作簿
     * @param sheetName   工作表名称
     * @param sheetTiles   工作表标题（名称和列宽）
     * @param freezeRowNum   冻结行
     * @param freezeColNum   冻结列
     * @param caseType  用例类型：P1：P1级用例（用于冒烟测试和研发自测用例,只有用例)  All：所有用例，包括注释和步骤
     *      *                  Online：线上测试(P1、P2用例）
     * @param testCases  测试用例（Xmind解析生成的用例链表）
     */
    public void getTestCase(XSSFWorkbook xwb, String sheetName, List<JXLTitle> sheetTiles, int freezeRowNum,
                            int freezeColNum, String caseType, List<TestCase> testCases){
        //创建sheet和标题
        XSSFSheet sheet = POIExcelUtil.createSheet(xwb, sheetName, sheetTiles, freezeRowNum, freezeColNum);
        //内容样式
        XSSFCellStyle contentXcs = POIExcelUtil.setWCF(xwb, "宋体", 12, false, (short)-1, true, false, true, (short)-1,
                BorderStyle.THIN);
        XSSFCellStyle contentXcs_center = POIExcelUtil.setWCF(xwb, "宋体", 12, false, (short)-1, true, true, true,
                (short)-1, BorderStyle.THIN);
        //注释样式
        XSSFCellStyle markXcs = POIExcelUtil.setWCF(xwb, "宋体", 12, false, IndexedColors.RED.index, true, false, true,
                (short)-1, BorderStyle.THIN);
        XSSFCellStyle markXcs_center = POIExcelUtil.setWCF(xwb, "宋体", 12, false, IndexedColors.RED.index, true, true,
                true,(short)-1, BorderStyle.THIN);
        //步骤样式
        XSSFCellStyle processXcs = POIExcelUtil.setWCF(xwb, "宋体", 12, false, IndexedColors.BLUE.index, true, false,
                true, (short)-1, BorderStyle.THIN);
        XSSFCellStyle processXcs_center = POIExcelUtil.setWCF(xwb, "宋体", 12, false, IndexedColors.BLUE.index, true,
                true, true, (short)-1, BorderStyle.THIN);

        XSSFRow row;
        XSSFCell cell;
        String marker;
        String[] results = {"通过","不通过","通过但有风险","阻塞","跳过","　"};

        //用于生成下拉列表（数据有效性）
        XSSFDataValidationHelper dvHelper = new XSSFDataValidationHelper(sheet);
        //设置下拉列表数据
        XSSFDataValidationConstraint dvConstraint = (XSSFDataValidationConstraint)
                dvHelper.createExplicitListConstraint(results);
        //创建下拉列表数据范围
        CellRangeAddressList addressList;
        //绑定下拉列表与范围
        XSSFDataValidation validation;

        /**
         * 获取研发自测/冒烟测试用例 或 上线测试用例
         */
        if(caseType.equals("P1") || caseType.equals("Online")){
            int rowid = 1;
            for(TestCase testCase : testCases){
                marker = testCase.getMarker();
                if(marker.equals("P1") || marker.equals("P2")){
                    if(caseType.equals("P1") && marker.equals("P2")){
                        continue;
                    }
                    row = sheet.createRow(rowid);
                    cell = row.createCell(0);    //序列号
                    cell.setCellValue(rowid);
                    cell.setCellStyle(contentXcs_center);
                    cell = row.createCell(1);   //优先级列
                    cell.setCellValue(marker);
                    cell.setCellStyle(contentXcs_center);
                    cell = row.createCell(2);   //测试用例列
                    cell.setCellValue(testCase.getContext());
                    cell.setCellStyle(contentXcs);
                    cell = row.createCell(3);   //测试结果列，先设置单元格样式，for循环后设置为下拉列表
                    cell.setCellStyle(contentXcs_center);
                    cell = row.createCell(4);   //备注列
                    cell.setCellStyle(contentXcs);
                    rowid++;
                }
            }
            /**
             * 测试结果列添加下拉列表
             */
            //设置第4列的1~rowid-1行为下拉列表
            if(rowid > 1){
                addressList = new CellRangeAddressList(1,rowid-1,3,3);
                //绑定下拉列表与范围
                validation = (XSSFDataValidation)dvHelper.createValidation(
                        dvConstraint,addressList);
                sheet.addValidationData(validation);
            }
        }

        /**
         * 获取所有测试用例
         */
        if(caseType.equals("All")){
            for(int i=0; i<testCases.size(); i++){
                marker = testCases.get(i).getMarker();
                if(marker.equals("P")){       //步骤
                    row = sheet.createRow(i+1);
                    cell = row.createCell(0);   //序号列
                    cell.setCellValue(i+1);
                    cell.setCellStyle(contentXcs_center);
                    cell = row.createCell(1);  //优先级列
                    cell.setCellValue("步骤");
                    cell.setCellStyle(processXcs_center);
                    cell = row.createCell(2);  //测试用例列
                    cell.setCellValue(testCases.get(i).getContext());
                    cell.setCellStyle(processXcs);
                    row.createCell(3).setCellStyle(contentXcs_center);  //测试结果列，空值
                }else if(marker.equals("Red")){
                    row = sheet.createRow(i+1);
                    cell = row.createCell(0);   //序号列
                    cell.setCellValue(i+1);
                    cell.setCellStyle(contentXcs_center);
                    cell = row.createCell(1);  //优先级列
                    cell.setCellValue("注释");
                    cell.setCellStyle(markXcs_center);
                    cell = row.createCell(2);  //测试用例列
                    cell.setCellValue(testCases.get(i).getContext());
                    cell.setCellStyle(markXcs);
                    row.createCell(3).setCellStyle(contentXcs_center);  //测试结果列，空值
                }else{
                    row = sheet.createRow(i+1);
                    cell = row.createCell(0);   //序号列
                    cell.setCellValue(i+1);
                    cell.setCellStyle(contentXcs_center);
                    cell = row.createCell(1);  //优先级列
                    cell.setCellValue(marker);
                    cell.setCellStyle(contentXcs_center);
                    cell = row.createCell(2);  //测试用例列
                    cell.setCellValue(testCases.get(i).getContext());
                    cell.setCellStyle(contentXcs);
                    cell = row.createCell(3);   //测试结果列
                    //设置当前行的第4列为下拉列表
                    addressList = new CellRangeAddressList(i+1,i+1,3,3);
                    //绑定下拉列表与范围
                    validation = (XSSFDataValidation)dvHelper.createValidation(
                            dvConstraint,addressList);
                    sheet.addValidationData(validation);
                    cell.setCellStyle(contentXcs_center);  //测试结果列


                }
                row.createCell(4).setCellStyle(contentXcs);  //备注列
            }
        }

    }
}

• POIExcelUtil

package com.dave.util;

import com.dave.bean.JXLTitle;
import jxl.write.*;
import org.apache.poi.ss.usermodel.*;
import org.apache.poi.ss.usermodel.VerticalAlignment;
import org.apache.poi.xssf.usermodel.*;

import java.io.*;
import java.util.List;

public class POIExcelUtil {
    /**
     * 创建工作簿
     * @return
     */
    public static XSSFWorkbook createWorkbook(){
        return new XSSFWorkbook();
    }

    /**
     * 创建可编辑的工作表，设置好工作表的标题列及列宽
     * @param xwb  工作簿，在此工作簿上创建工作表
     * @param sheetName 工作表名称
     * @param sheetTitles  工作表标题（设置标题名称、宽度）
     * @param freezeRowNum  行冻结（一般用于冻结首行）   值小于1时，不冻结
     * @param freezeColNum  列冻结   值小于1时，不冻结
     */
    public static XSSFSheet createSheet(XSSFWorkbook xwb, String sheetName, List<JXLTitle> sheetTitles,
                                            int freezeRowNum, int freezeColNum){
        XSSFSheet sheet = xwb.createSheet(sheetName);
        XSSFRow row = null;
        XSSFCell cell = null;

        XSSFCellStyle xcs = setWCF(xwb, "宋体" ,12, true, (short)-1, true, true, false, IndexedColors.LIGHT_BLUE.index,
                                   BorderStyle.THIN);   //标题样式

        row = sheet.createRow(0);    //首行，标题行
        for(int i=0; i<sheetTitles.size(); i++){
            //添加标题内容
            cell = row.createCell(i);
            cell.setCellValue(sheetTitles.get(i).getTitleName());
            cell.setCellStyle(xcs);
            sheet.setColumnWidth(i, sheetTitles.get(i).getTitleLength()*256);
        }



        sheet.createFreezePane(freezeColNum, freezeRowNum);

        return sheet;
    }

    /**
     * 设置单元格样式
     * @param xwb   工作簿
     * @param fontName  字体类型（宋体，楷体...）
     * @param fontSize  字体大小
     * @param bold   字体是否加粗
     * @param fontColor   字体颜色
     * @param middle   单元格是否上下居中
     * @param center   单元格是否左右居中
     * @param swap    单元格是否自动换行
     * @param bgColor  单元格颜色，纯色填充
     * @param bs    边框样式（全边框）
     * @return
     */
    public static XSSFCellStyle setWCF(XSSFWorkbook xwb, String fontName, int fontSize, boolean bold, short fontColor,
                                       boolean middle, boolean center, boolean swap, short bgColor, BorderStyle bs){
        XSSFCellStyle xcs = xwb.createCellStyle();
        XSSFFont font = xwb.createFont();
        font.setFontName(fontName);
        font.setFontHeight(fontSize);
        if(bold){
            font.setBold(true);
        }
        if(fontColor >= 0 && fontColor <= 64){
            font.setColor(fontColor);
        }
        xcs.setFont(font);
        if(middle){
            xcs.setVerticalAlignment(VerticalAlignment.CENTER);
        }
        if(center){
            xcs.setAlignment(HorizontalAlignment.CENTER);
        }
        if(swap){
            xcs.setWrapText(true);
        }
        if(bgColor >=0 && bgColor <= 64){
            xcs.setFillPattern(FillPatternType.SOLID_FOREGROUND);
            xcs.setFillForegroundColor(bgColor);
        }

        xcs.setBorderLeft(bs);
        xcs.setBorderTop(bs);
        xcs.setBorderRight(bs);
        xcs.setBorderBottom(bs);

        return xcs;
    }

    /**
     * 关闭工作簿
     * @param xwb   待关闭的工作簿
     * @param excelPath   工作簿文件
     * @throws IOException
     */
    public static void closeWorkbook(XSSFWorkbook xwb, String excelPath) throws IOException {
        FileOutputStream fos = new FileOutputStream(new File(excelPath));
        xwb.write(fos);
        fos.close();
    }
}

• XmindUtil

package com.dave.util;

import com.dave.bean.TestCase;
import com.dave.enu.Mark;
import org.xmind.core.*;

import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

public class XmindUtil {
    /**
     * 获取工作簿
     * IWorkbook：表示整个思维导图
     * @param xmindPath:xmind文件路径
     */
    public static IWorkbook getIWorkbook(String xmindPath) throws IOException, CoreException {
        if (builder == null){
            builder = Core.getWorkbookBuilder();// 初始化builder
        }
        return builder.loadFromFile(new File(xmindPath));
    }

    /**
     * 获取默认工作表的根主题
     * xmind关系：工作簿(IWorkbook)——>工作表(ISheet)——>主题(ITopic)
     * @param  iWorkbook:xmind工作簿
     */
    public static ITopic getRootTopic(IWorkbook iWorkbook){
        return iWorkbook.getPrimarySheet().getRootTopic();
    }

    /**
     * 获取从根目录到每一个叶子节点的的路径
     */
    public static List<TestCase> getAllTestCase(ITopic rootTopic){
        if(rootTopic == null){
            return null;
        }
        return getAllTestCaseIter(new TestCase(Mark.getMark(rootTopic.getMarkerRefs().toString()),getContext(rootTopic)),
                rootTopic.getAllChildren());
    }

    public static List<TestCase> getAllTestCaseIter(TestCase parentTestCase,List<ITopic> childrenINodes){
        for(ITopic childrenINode:childrenINodes){
            String parentContext = parentTestCase.getContext();
            String parentMarker = parentTestCase.getMarker();
            String childrenContext = getContext(childrenINode);
            String childrenMarker = Mark.getMark(childrenINode.getMarkerRefs().toString());
            if(!childrenMarker.equals("")){
                parentMarker = childrenMarker;
            }
            if(childrenINode.getAllChildren().size() == 0){
                list.add(new TestCase(parentMarker,parentContext+" — "+childrenContext));
            }else{
                getAllTestCaseIter(new TestCase(parentMarker,parentContext+" — "+childrenContext),
                        childrenINode.getAllChildren());
            }
        }
        return list;
    }

    /**
     * 解析Xmind文件,获取所有的行
     */
    public static List<TestCase> xmindToList(String xmindPath) throws IOException, CoreException {
        return getAllTestCase(getRootTopic(getIWorkbook(xmindPath)));
    }

    /**
     * 获取某节点的内容，去掉换行
     * @param  iTopic: 当前节点
     */
    public static String getContext(ITopic iTopic){
        return iTopic.getTitleText().replaceAll("\r|\n"," ");   //去掉换行
    }

    private static IWorkbookBuilder builder = null;
    private static List<TestCase> list = new ArrayList<TestCase>();
}

4.支持的xmind标签



5.打包命令（可执行的jar包）

mvn clean package -Dmaven.test.skip=true assembly:assembly
