[Container] Kubernetes Objects

Object: a bundle of software data that has an identity, a state, and a behavior

• Variables, fata structures, and specific functions

Entity: a person, palce, or thing with an identity and associated data

Persistent: that which lasts, despite server failures / network attacks

Kubernetes objects are persistent entities

• Pods
• Namespaces
• ReplicaSets
• Deployments

kubernetes objects consist of two main fields

• Object spec
  • Provided by user
  • Defines desired state
• Status
  • Provided by Kubernetes
  • Defines current state

Labels and selectors

Labels are key/value pairs attached to objects

• Intended for identification of objects
• Not unique
• Help organize and group objects

Label selectors are the core grouping method in Kubernetes

Namespaces and names

Namespaces provide a mechanism for isolateing groups of resources withing a single cluster

• Segregate cluster by team, project, etc
• Necessary with larger numbers of users

Namespaces provide a scope for object names

• Each object has a name
• Names are unique for a resource type within a namespace

Pods

Simplest unit in Kubernetes

Represents processes running in your cluster

Encapsulates one or more containers

Replicating a Pod serves to scale applications horizontally

apiVersion: v1
kind: Pod
metadata:
    name: nginx
spec:
    containers:
    - name: nginx
      image: nginx:1.7.9
      ports:
      - containerPort: 80

ReplicaSet

A ReplicaSet is a set of horizontally scaled running Pods

• A ReplicaSet configuration file defines:
  • Number of replicas
  • Pod template
  • Selector to identify which Pods it can acquire
• Generally encapsulated by a Deployment

apiVersion: apps/v1
kind: ReplicaSet
metadata:
    name: nignx-replicaset
    labels:
        app: nginx
spec:
    replicas: 3
    selector:
        matchLabels:
            app: nginx
    template:
        metadata:
            labels:
                app: nginx
        spec:
            containers:
            - name: naginx
              image: nginx:1.7.9
              ports:
              - contianerPort: 80

Deployment

A Deployment is a higher-level object that provides updates for Pods and RelicaSets

Deployments:

• Run multiple replicas of an application
• Suitable for stateless applications
• Update triggers a rollout

apiVersion: apps/v1
kind: Deployment
metadata:
    name: nignx-deployment
    labels:
        app: nginx
spec:
    replicas: 3
    selector:
        matchLabels:
            app: nginx
    template:
        metadata:
            labels:
                app: nginx
        spec:
            containers:
            - name: naginx
              image: nginx:1.7.9
              ports:
              - contianerPort: 80

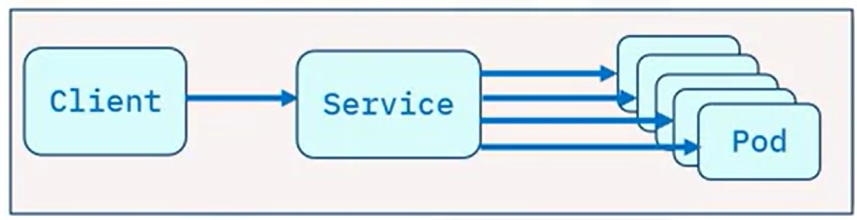

Service

• Is a REST object, like Pods
• Is a logical abstraction for a set of Pods in a cluster
• Provides policies for accessing the Pods and cluster
• Acts as a load balancer across the Pods
• Is assigned a unique IP address for accessing applications deployed on Pods
• Eliminates the need for a separate Service discovery process
• Service properties:
  • suppoerts multiple protocaols such as TCP(default), UDP, and others
  • Support multiple port definitions
    • The port number with the same name can vary in each backend Pod
  • Can have an optional selector
  • Optioally maps incoming ports to a targetPort

 Why is a Service needed

• Pods in a cluster are volatile
• This volatility leads to discoverability issues because of changing IP addresses
• A Service keeps track of the changes and exposes a single IP address or a DNS name
• A Service utilizes selectors to target a set of Pods
• Native Kubernetes applications: Update API endpoints when there are changes in the Pods of a Service
• Non-native Kubernetes applications: Use a virtual-IP-based bridge or load balancer between the applications and the backend Pods

Service types

ClusterIP

• Is the default and most common Service type
• Is assigned a cluster-internal IP address to the ClusterIP Service that makes the Service only reachable within the cluster
• Cannot make requests to Service(Pods) from outside the cluster
• You set the ClusterIP address in the Service definition communication within the cluster

NodePort

• Is an extension of ClusterIP Service
• Creates and routes the incoming requests automatically to the ClusterIP Service
• Exposes the Service on each Node's IP address at a static port
• Exposes a single Service, with no load-balancing requirements for multiple services

LoadBalancer

• An extension of the NodePort Service, an External Load Balncer, or ELB, creates NodePort and CLusterIP Services automatically
• Integrates and automatically directs traffic to the NodePort Service with a cloud provider's ELB
• To expose a Service to the Internet, you need a new ELB with an IP address
• Use a cloud provide's ELB to host your cluster

External Name

• Maps to a DNS name and not to any selector
• Requires a `spec.externalName` parameter
• Maps the Service to contents of the externalName field that returns a CNAME record and its value
• Used to create a Service that represents an external storage and enable Pods from different namespaces to tlk to each other

Ingress

• Is an API objectI combined with a controller) tha provides routing rules to manage external users' access to multiple Services in a Kubernetes cluster
• In production, Ingress exposes applications to the Internet via port 80 or port 443
• An ELB is expensive and is managed outside the cluster while the cluster monitors Ingress

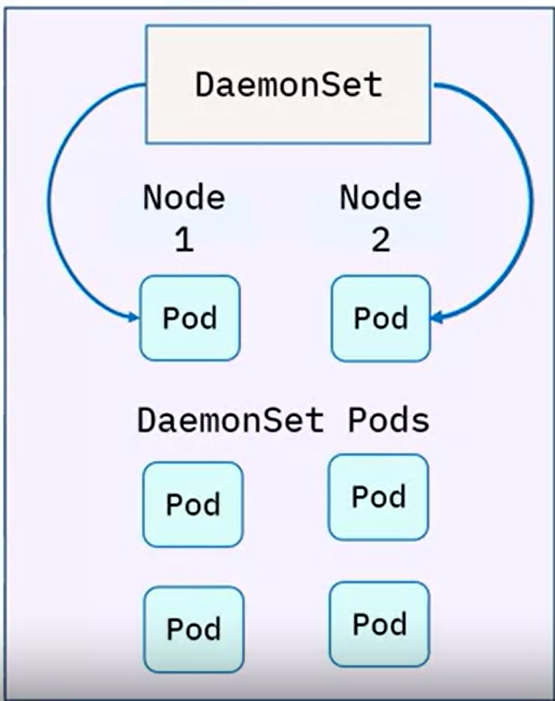

DaemonSet

• Is an object that makes sure that Nodes run a copy of a Pod
• As Nodes are added to a cluster, Pods are added to the Nodes
• Pods are garbage collected when removed from a cluster
• If you delete a DaemonSet, all Pods are removed
• Ideally used for storage, logs, and monitoring Nodes

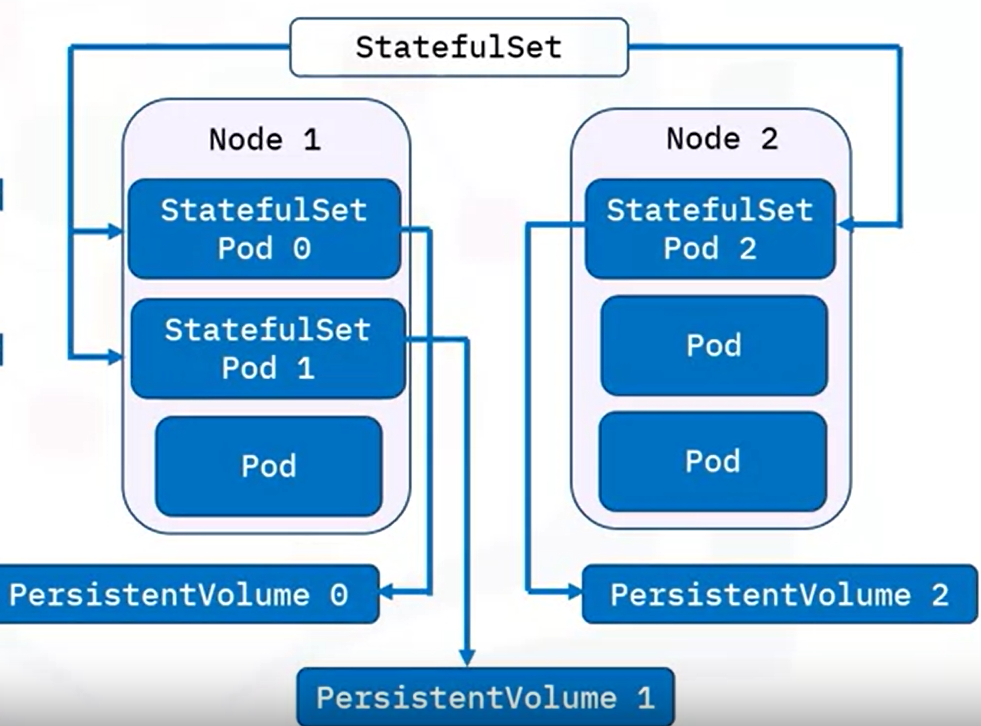

StatefulSet

Is an object that manages stateful applications Manages deployment and scaling of Pods Provides guarantees about the ordering and uniqueness of Pods Maintains a sticky identity for each of your Pods Provides persistent storage volumes for your worloads

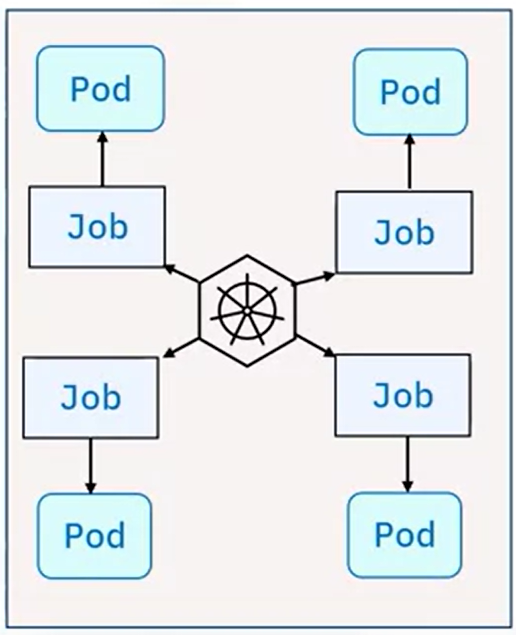

Job

• Is an object that creates Pods and tracks its completion process
• Jobs are retried until completed
• Deleting a Job will remove the created Pods
• Suspending a Job will delete its active Pods until the Job resumes
• A Job can run several Pods in parallel
• A CronJob is regularly used to create Jobs on an iterative schedule
