HCNP综合实验

综合实验HCNP小型网络

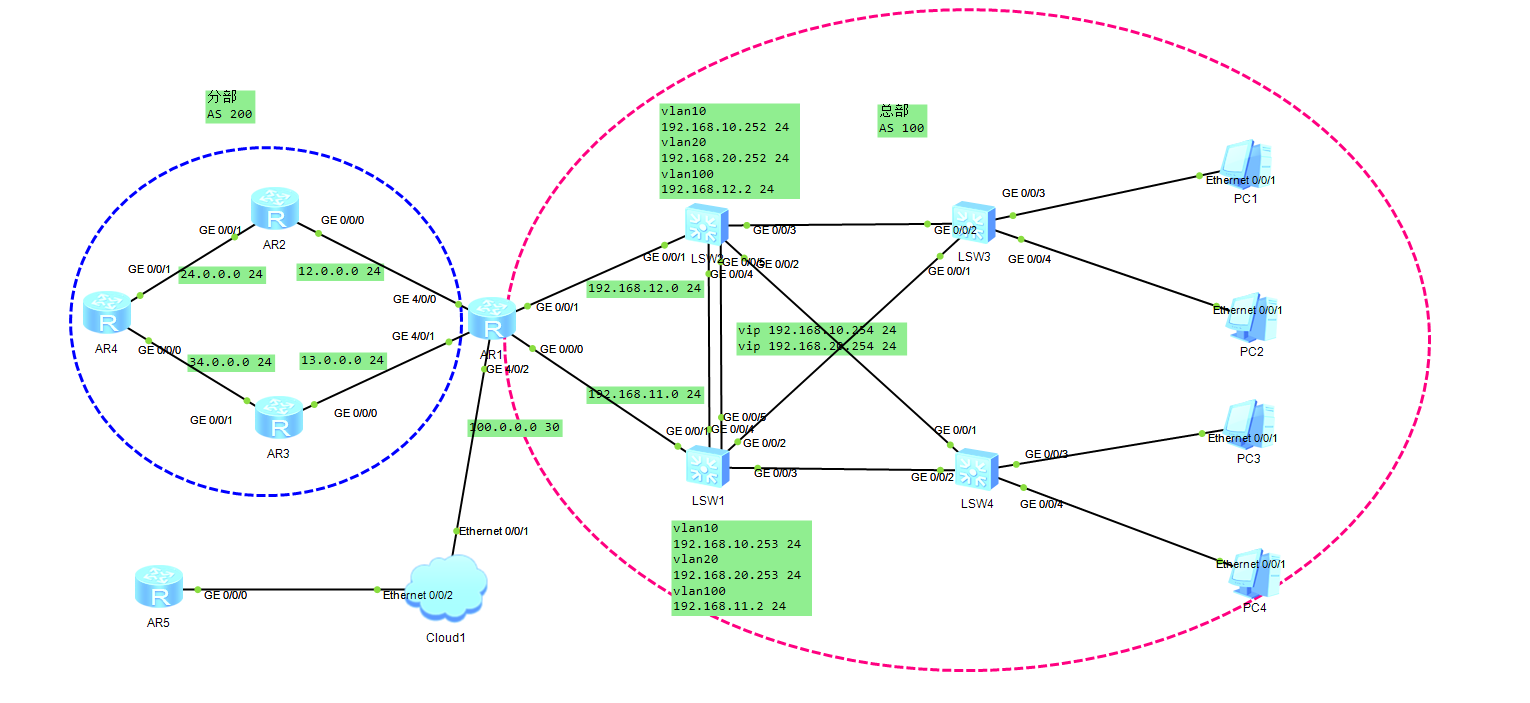

实验拓扑

实验需求

  • 按照拓扑搭建网络环境，网络拓扑分为总部、分部二，设备IP地址见IP地址规划表。
  • 总部4台交换机采用MSTP协议防止环路及实现链路冗余。其中VLAN10的主根为SW1，VLAN20的主根为SW2。
  • SW1与SW2之间运行VRRP协议，PC的的网关在虚拟路由器上。要求VLAN10业务由SW1转发，VLAN20业务由SW2转发。
  • 总部与分部二都运行OSPF协议，总部属于AREA 0，分部二属于AREA 1。为了确保安全性，总部与分部二之间链路需要启用接口认证，认证口令为SPOTO。
  • 总部AREA 0通过OSPF学习到默认路由。
  • 总部与分部二之间属于不同的自治域，要求启用BGP协议互联。
  • 分部二内的三台路由器采用环回口建立IBGP邻居, 并在R4上宣告Loopback1和Loopback2。
  • 通过修改MED的方式，实现R1前往16.10.1的路由优选R2，R1前往172.16.20.1的路由优选R3。
  • R5为模拟运营商设备，总部有上公网的需求，但仅允许VLAN10的设备访问，在R1进行NAT配置，采用PC1、PC2 ping R5进行测试。



IP地址规划

设备名称

接口

IP地址

R1

GigabitEthernet0/0/0

192.168.11.1/24

GigabitEthernet0/0/1

192.168.12.1/24

GigabitEthernet0/0/2

FC00:0:0:1000::1

GigabitEthernet4/0/0

12.0.0.1/24

GigabitEthernet4/0/1

13.0.0.1/24

GigabitEthernet4/0/2

100.0.0.1/30

Loopback 0

1.1.1.1/32

Tunnel0/0/0

16.0.0.1/24

R2

GigabitEthernet0/0/0

12.0.0.2/24

GigabitEthernet0/0/1

24.0.0.2/24

Loopback 0

2.2.2.2/24

R3

GigabitEthernet0/0/0

13.0.0.3/24

GigabitEthernet0/0/1

34.0.0.3/24

Loopback 0

3.3.3.3/32

R4

GigabitEthernet0/0/0

24.0.0.4/24

GigabitEthernet0/0/1

34.0.0.4/24

Loopback 0

4.4.4.4/32

Loopback 1

172.16.10.1/32

Loopback 2

172.16.20.1/32

R5

GigabitEthernet0/0/0

100.0.0.2/30

SW1

Vlanif 10

192.168.10.252/24

Vlanif 20

192.168.20.252/24

Vlanif 100

192.168.11.2/24

SW2

Vlanif 10

192.168.10.253/24

Vlanif 20

192.168.20.253/24

Vlanif 100

192.168.12.2/24

PC1

VLAN 10

192.168.10.1/24

PC2

VLAN 20

192.168.20.2/24

PC3

VLAN 10

192.168.10.3/24

PC4

VLAN 20

192.168.20.4/24

VRRP

VRID 1

192.168.10.254/24

VRID 2

192.168.20.254/24

总结：

  • 四台交换机配置mstp
  • vlan 10 S1主根
  • vlan 20 S2主根
  • S1 S2做VRRP协议
  • 总部和分部都是ospf
  • 总部事ospf0
  • 分部是ospf1
  • 两个部门BGP互联
  • 分部二内的三台路由器采用环回口建立IBGP邻居



1.配置IP地址

"=============R1============="
[R1]ospfv3 1
[R1-ospfv3-1]router-id 1.1.1.1
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.11.1 24
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip address 192.168.12.1 24
[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]ipv6 enable
[R1-GigabitEthernet0/0/2]ipv6 address FC00:0:0:1000::1/64
[R1-GigabitEthernet0/0/2]ospfv3 1 area 0
[R1]interface GigabitEthernet 4/0/0
[R1-GigabitEthernet4/0/0]ip address 12.0.0.1 24
[R1]interface GigabitEthernet 4/0/1
[R1-GigabitEthernet4/0/1]ip address 13.0.0.1 24
[R1]interface GigabitEthernet 4/0/2
[R1-GigabitEthernet4/0/2]ip address 100.0.0.1 30
[R1]interface LoopBack 0
[R1-LoopBack0]ip address 1.1.1.1 32
[R1]interface Tunnel 0/0/0
[R1-Tunnel0/0/0]ip address 16.0.0.1 24


[R1-Tunnel0/0/0]tunnel-protocol ipv4-ipv6
[R1-Tunnel0/0/0]source GigabitEthernet 0/0/2
[R1-Tunnel0/0/0]description FC00:0:0:2000::6

"=============R2============="
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip address 12.0.0.2 24
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ip address  24.0.0.2 24
[R2]interface LoopBack 0
[R2-LoopBack0]ip address 2.2.2.2 24

"=============R3============="
[R3]interface GigabitEthernet 0/0/0
[R3-GigabitEthernet0/0/0]ip address 13.0.0.3 24
[R3]interface GigabitEthernet 0/0/1
[R3-GigabitEthernet0/0/1]ip address 34.0.0.3 24
[R3]interface LoopBack 0
[R3-LoopBack0]ip address 3.3.3.3 32

"=============R4============="
[R4]interface GigabitEthernet 0/0/0
[R4-GigabitEthernet0/0/0]ip address 34.0.0.4 24
[R4]interface GigabitEthernet 0/0/1
[R4-GigabitEthernet0/0/1]ip address 24.0.0.4 24
[R4]interface LoopBack 0
[R4-LoopBack0]ip address 4.4.4.4  32
[R4]interface LoopBack 1
[R4-LoopBack1]ip address 172.16.10.1 32
[R4]interface LoopBack 2
[R4-LoopBack2]ip address 172.16.20.1 32

"=============R5============="
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 100.0.0.2 255.255.255.252



2.配置交换机

"=============SW1============="
[SW1]vlan batch 10 20  100
[SW1]interface Vlanif 10
[SW1-Vlanif10]ip address 192.168.10.252 24
[SW1]interface Vlanif 20
[SW1-Vlanif20]ip address 192.168.20.252 24
[SW1]interface Vlanif 100
[SW1-Vlanif100]ip address 192.168.11.2 24
[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass  vlan all
[SW1]interface GigabitEthernet 0/0/3
[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/3]port trunk allow-pass  vlan all
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan  100

"=============SW2============="
[SW2]vlan  batch  10 20 100
[SW2]interface Vlanif  10
[SW2-Vlanif10]ip address 192.168.10.253 24
[SW2]interface Vlanif 20
[SW2-Vlanif20]ip address 192.168.20.253 24
[SW2]interface Vlanif 100
[SW2-Vlanif100] ip address 192.168.12.2 24
[SW2]interface GigabitEthernet 0/0/2
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-GigabitEthernet0/0/2]port trunk allow-pass  vlan all
[SW2]interface GigabitEthernet 0/0/3
[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port trunk allow-pass  vlan all
[SW2]interface GigabitEthernet 0/0/1
[SW2-GigabitEthernet0/0/1]port link-type access
[SW2-GigabitEthernet0/0/1]port default vlan  100

"=============SW3============="
[SW3]vlan  batch  10 20 100
[SW3]interface GigabitEthernet 0/0/3
[SW3-GigabitEthernet0/0/3]port link-type access
[SW3-GigabitEthernet0/0/3]port default vlan 10
[SW3]interface GigabitEthernet 0/0/4
[SW3-GigabitEthernet0/0/4]port link-type access
[SW3-GigabitEthernet0/0/4]port default vlan  20
[SW3]interface GigabitEthernet 0/0/2
[SW3-GigabitEthernet0/0/2]port link-type  trunk
[SW3-GigabitEthernet0/0/2]port trunk allow-pass  vlan all
[SW3]interface GigabitEthernet 0/0/1
[SW3-GigabitEthernet0/0/1]port link-type trunk
[SW3-GigabitEthernet0/0/1]port trunk allow-pass  vlan all

"=============SW4============="
[SW4]vlan  batch  10 20 100
[SW4]interface GigabitEthernet 0/0/3
[SW4-GigabitEthernet0/0/3]port link-type access
[SW4-GigabitEthernet0/0/3]port default vlan 10
[SW4]interface GigabitEthernet 0/0/4
[SW4-GigabitEthernet0/0/4]port link-type access
[SW4-GigabitEthernet0/0/4]port default vlan  20
[SW4]interface GigabitEthernet 0/0/2
[SW4-GigabitEthernet0/0/2]port link-type  trunk
[SW4-GigabitEthernet0/0/2]port trunk allow-pass  vlan all
[SW4]interface GigabitEthernet 0/0/1
[SW4-GigabitEthernet0/0/1]port link-type trunk
[SW4-GigabitEthernet0/0/1]port trunk allow-pass  vlan all



3.配置聚合链路

配置SW1和SW2的聚合链路，使宽带的速率提高

"=============SW1============="
[SW1]interface Eth-Trunk 1
[SW1-Eth-Trunk1]trunkport GigabitEthernet 0/0/4
[SW1-Eth-Trunk1]trunkport GigabitEthernet 0/0/5
[SW1-Eth-Trunk1]port link-type trunk
[SW1-Eth-Trunk1]port trunk allow-pass  vlan all

"=============SW2============="
[SW2]interface Eth-Trunk 1
[SW2-Eth-Trunk1]trunkport GigabitEthernet 0/0/4
[SW2-Eth-Trunk1]trunkport GigabitEthernet 0/0/5
[SW2-Eth-Trunk1]port link-type trunk
[SW2-Eth-Trunk1]port trunk allow-pass  vlan all



4.配置MSTP多生成树协议

"=============SW1============="
[SW1]stp  mode mstp
[SW1]stp  region-configuration
[SW1-mst-region]region-name spoto
[SW1-mst-region]instance  1 vlan 10
[SW1-mst-region]instance 2 vlan 20
[SW1-mst-region]active region-configuration
[SW1]stp instance  1 root primary
[SW1]stp instance 2 root secondary

"=============SW2============="
[SW2]stp mode mstp
[SW2]stp  region-configuration
[SW2-mst-region]region-name spoto
[SW2-mst-region]instance  1 vlan 10
[SW2-mst-region]instance 2 vlan 20
[SW2-mst-region]active  region-configuration
[SW2]stp instance  1 root secondary
[SW2]stp  instance  2 root primary

"=============SW3============="
[SW3]stp  mode mstp
[SW3]stp  region-configuration
[SW3-mst-region]region-name spoto
[SW3-mst-region]instance  1 vlan 10
[SW3-mst-region]instance  2 vlan 20
[SW3-mst-region]active region-configuration

"=============SW4============="
[SW4]stp  mode mstp
[SW4]stp  region-configuration
[SW4-mst-region]region-name spoto
[SW4-mst-region]instance  1 vlan 10
[SW4-mst-region]instance  2 vlan 20
[SW4-mst-region]active region-configuration



5.配置VRRP虚拟IP

"=============SW1============="
[SW1]interface Vlanif 10
[SW1-Vlanif10]vrrp vrid 1 virtual-ip 192.168.10.254
[SW1-Vlanif10]vrrp vrid 1 priority 120
[SW1-Vlanif10]vrrp vrid 1 track interface  GigabitEthernet 0/0/1 reduced 30
[SW1]interface Vlanif  20
[SW1-Vlanif20]vrrp vrid 2 virtual-ip 192.168.20.254

"=============SW2============="
[SW2]interface Vlanif 10
[SW2-Vlanif10]vrrp vrid 1 virtual-ip 192.168.10.254
[SW2]interface Vlanif 20
[SW2-Vlanif20]vrrp vrid 2 virtual-ip  192.168.20.254
[SW2-Vlanif20]vrrp vrid 2 priority 120
[SW2-Vlanif20]vrrp vrid 2 track interface GigabitEthernet 0/0/1 reduced 30



6.配置OSPF

分部的OSPF配置区域为AREA1 总部配置为AREA0

"配置分部的OSPF"
"=============R1============="
[R1]ospf 1
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]network 192.168.11.0 0.0.0.255
[R1-ospf-1-area-0.0.0.0]network 192.168.12.0 0.0.0.255
[R1-ospf-1-area-0.0.0.0]authentication-mode simple plain huawei
[R1-ospf-1]area 1
[R1-ospf-1-area-0.0.0.1]network 12.0.0.0 0.0.0.255
[R1-ospf-1-area-0.0.0.1]network 13.0.0.0 0.0.0.255
[R1-ospf-1-area-0.0.0.1]authentication-mode simple plain huawei


"=============R2============="
[R2]ospf 1
[R2-ospf-1]area 1
[R2-ospf-1-area-0.0.0.1]network 2.2.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.1]network 12.0.0.0 0.0.0.255
[R2-ospf-1-area-0.0.0.1]network 24.0.0.0 0.0.0.255
[R2-ospf-1-area-0.0.0.1]authentication-mode simple plain huawei


"=============R3============="
[R3]ospf 1
[R3-ospf-1]area 1
[R3-ospf-1-area-0.0.0.1]network 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.1]network 13.0.0.0 0.0.0.255
[R3-ospf-1-area-0.0.0.1]network 34.0.0.0 0.0.0.255
[R3-ospf-1-area-0.0.0.1]authentication-mode simple plain huawei


"=============R4============="
[R4]ospf 1
[R4-ospf-1]area 1
[R4-ospf-1-area-0.0.0.1]network 4.4.4.4 0.0.0.0
[R4-ospf-1-area-0.0.0.1]network 24.0.0.0 0.0.0.255
[R4-ospf-1-area-0.0.0.1]network 34.0.0.0 0.0.0.255
[R4-ospf-1-area-0.0.0.1]authentication-mode simple plain huawei



"配置总部的OSPF"

"=============SW1============="
[SW1]ospf 1
[SW1-ospf-1]area 0
[SW1-ospf-1-area-0.0.0.0]network 192.168.11.0 0.0.0.255
[SW1-ospf-1-area-0.0.0.0]network 192.168.10.0 0.0.0.255
[SW1-ospf-1-area-0.0.0.0]network 192.168.20.0 0.0.0.255
[SW1-ospf-1-area-0.0.0.0]authentication-mode simple plain huawei


"=============SW2============="
[SW2]ospf 1
[SW2-ospf-1]area 0
[SW2-ospf-1-area-0.0.0.0]network 192.168.12.0 0.0.0.255
[SW2-ospf-1-area-0.0.0.0]network 192.168.10.0 0.0.0.255
[SW2-ospf-1-area-0.0.0.0]network 192.168.20.0 0.0.0.255
[SW2-ospf-1-area-0.0.0.0]authentication-mode simple plain huawei



7.配置BGP协议互联

配置R1 R2 R3 R4路由器BGP互联协议

"=============R1============="
[R1]bgp 100
[R1-bgp]router-id 1.1.1.1
[R1-bgp]peer 12.0.0.2  as-number 200
[R1-bgp]peer 13.0.0.3 as-number 200
[R1-bgp]ipv4-family unicast
[R1-bgp-af-ipv4]undo  synchronization
[R1-bgp-af-ipv4]peer 12.0.0.2 en
[R1-bgp-af-ipv4]peer 12.0.0.2 enable
[R1-bgp-af-ipv4]peer 13.0.0.3 enable

"=============R2============="
[R2]bgp 200
[R2-bgp]router-id 2.2.2.2
[R2-bgp]peer 3.3.3.3 as-number 200
[R2-bgp]peer 3.3.3.3 connect-interface LoopBack 0
[R2-bgp]peer 4.4.4.4 as-number 200
[R2-bgp]peer 4.4.4.4 connect-interface LoopBack 0
[R2-bgp]peer 12.0.0.1 as-number 200
[R2-bgp]ipv4-family unicast
[R2-bgp-af-ipv4]undo synchronization
[R2-bgp-af-ipv4]peer 3.3.3.3 enable
[R2-bgp-af-ipv4]peer 3.3.3.3 next-hop-local
[R2-bgp-af-ipv4]peer 4.4.4.4 enable
[R2-bgp-af-ipv4]peer 4.4.4.4 next-hop-local
[R2-bgp-af-ipv4]peer 12.0.0.1 enable
[R2-bgp-af-ipv4]peer 12.0.0.1 route-policy 1 export

"=============R3============="
[R3]bgp 200
[R3-bgp]router-id 3.3.3.3
[R3-bgp]peer 2.2.2.2 as-number 200
[R3-bgp]peer 2.2.2.2 connect-interface LoopBack 0
[R3-bgp]peer 4.4.4.4 as-number 200
[R3-bgp]peer 4.4.4.4 connect-interface  LoopBack 0
[R3-bgp]peer 13.0.0.1 as-number 200
[R3-bgp]ipv4-family unicast
[R3-bgp-af-ipv4]undo  synchronization
[R3-bgp-af-ipv4]peer 2.2.2.2 enable
[R3-bgp-af-ipv4]peer 2.2.2.2 next-hop-local
[R3-bgp-af-ipv4]peer 4.4.4.4 enable
[R3-bgp-af-ipv4]peer 4.4.4.4 next-hop-local
[R3-bgp-af-ipv4]peer 13.0.0.1 enable
[R3-bgp-af-ipv4]peer 13.0.0.1 route-policy 1 export

"=============R4============="
[R4]bgp 200
[R4-bgp]router-id 4.4.4.4
[R4-bgp]peer 2.2.2.2 as-number 200
[R4-bgp]peer 2.2.2.2 connect-interface LoopBack 0
[R4-bgp]peer 3.3.3.3 as-number 200
[R4-bgp]peer 3.3.3.3 connect-interface LoopBack 0
[R4-bgp]ipv4-family unicast
[R4-bgp-af-ipv4]undo  synchronization
[R4-bgp-af-ipv4]network 172.16.10.1 255.255.255.255
[R4-bgp-af-ipv4]network 172.16.20.1 255.255.255.255
[R4-bgp-af-ipv4]peer 2.2.2.2 enable
[R4-bgp-af-ipv4]peer 2.2.2.2 next-hop-local
[R4-bgp-af-ipv4]peer 3.3.3.3 enable
[R4-bgp-af-ipv4]peer 3.3.3.3 next-hop-local



8.R1配置ACL

配置ACL访问过滤

"=============R1============="
[R1]acl number 2000
[R1-acl-basic-2000]rule 5 permit  source 192.168.10.0 0.0.0.255
[R1]acl 3001
[R1-acl-adv-3001]rule 10 permit ip source 192.168.10.0 0.0.0.255 destination  172.16.10.1 0
[R1]acl 3002
[R1-acl-adv-3002]rule 10 permit  ip source 192.168.20.0 0.0.0.255 destination 172.16.20.1 0
[R1]interface GigabitEthernet 4/0/0
[R1-GigabitEthernet4/0/0]nat outbound 2000
[R1]interface GigabitEthernet 4/0/2
[R1-GigabitEthernet4/0/2]nat outbound 2000



9.R2配置路由策略

定义策略路由指定访问网通地址段的数据报文下一跳为网通网关，创建一个基于IP地址前缀列表的匹配规则。

"=============R2============="
[R2]route-policy 1 permit node 10
[R2-route-policy]if-match ip-prefix 2
[R2-route-policy]apply cost 100
[R2]route-policy 1 permit  node 20
[R2-route-policy]if-match ip-prefix 2
[R2-route-policy]apply  cost 200
[R2]ip ip-prefix 1 index 10 permit 172.16.10.1 32
[R2]ip ip-prefix 2 index 10 permit 172.16.20.1 32

"=============R3============="
[R3]route-policy 1 permit node 10
[R3-route-policy]if-match ip-prefix 2
[R3-route-policy]apply cost 100
[R3]route-policy 1 permit  node 20
[R3-route-policy]if-match ip-prefix 2
[R3-route-policy]apply  cost 200
[R3]ip ip-prefix 1 index 10 permit 172.16.10.1 32
[R3]ip ip-prefix 2 index 10 permit 172.16.20.1 32



10.路由器配置认证

路由器配置VTY和console认证 开启telnet

"=============R1============="
[R1]user-interface console 0
[R1-ui-console0]authentication-mode password
Please configure the login password (maximum length 16):huawei
[R1]user-interface vty 0 4
[R1-ui-vty0-4]set authentication password cipher huawei
[R1-ui-vty0-4]user privilege level 3
[R1]aaa
[R1-aaa]local-user admin password cipher huawei
[R1-aaa]local-user admin service-type http

"=============R2============="
[R2]user-interface console 0
[R2-ui-console0]authentication-mode password
Please configure the login password (maximum length 16):huawei
[R2]user-interface vty 0 4
[R2-ui-vty0-4]set authentication password cipher huawei
[R2-ui-vty0-4]user privilege level 3
[R2]aaa
[R2-aaa]local-user admin password cipher huawei
[R2-aaa]local-user admin service-type http

"=============R3============="
[R3]user-interface console 0
[R3-ui-console0]authentication-mode password
Please configure the login password (maximum length 16):huawei
[R3]user-interface vty 0 4
[R3-ui-vty0-4]set authentication password cipher huawei
[R3-ui-vty0-4]user privilege level 3
[R3]aaa
[R3-aaa]local-user admin password cipher huawei
[R3-aaa]local-user admin service-type http

"=============R4============="
[R4]user-interface console 0
[R4-ui-console0]authentication-mode password
Please configure the login password (maximum length 16):huawei
[R4]user-interface vty 0 4
[R4-ui-vty0-4]set authentication password cipher huawei
[R4-ui-vty0-4]user privilege level 3
[R4]aaa
[R4-aaa]local-user admin password cipher huawei
[R4-aaa]local-user admin service-type http

"=============R5============="
[R5]user-interface console 0
[R5-ui-console0]authentication-mode password
Please configure the login password (maximum length 16):huawei
[R5]user-interface vty 0 4
[R5-ui-vty0-4]set authentication password cipher huawei
[R5-ui-vty0-4]user privilege level 3
[R5]aaa
[R5-aaa]local-user admin password cipher huawei
[R5-aaa]local-user admin service-type http



11.交换机配置认证

"=============SW1============="
[SW1]aaa
[SW1-aaa]local-user admin password simple huawei
[SW1-aaa]local-user admin service-type http
[SW1]user-interface  console 0
[SW1-ui-console0]set authentication password cipher huawei
[SW1-ui-console0]user privilege level 15
[SW1]user-interface vty 0 4
[SW1-ui-vty0-4]set authentication password cipher huawei
[SW1-ui-vty0-4]user privilege level 3

"=============SW2============="
[SW2]aaa
[SW2-aaa]local-user admin password simple huawei
[SW2-aaa]local-user admin service-type http
[SW2]user-interface  console 0
[SW2-ui-console0]set authentication password cipher huawei
[SW2-ui-console0]user privilege level 15
[SW2]user-interface vty 0 4
[SW2-ui-vty0-4]set authentication password cipher huawei
[SW2-ui-vty0-4]user privilege level 3

"=============SW3============="
[SW3]aaa
[SW3-aaa]local-user admin password simple huawei
[SW3-aaa]local-user admin service-type http
[SW3]user-interface  console 0
[SW3-ui-console0]set authentication password cipher huawei
[SW3-ui-console0]user privilege level 15
[SW3]user-interface vty 0 4
[SW3-ui-vty0-4]set authentication password cipher huawei
[SW3-ui-vty0-4]user privilege level 3

"=============SW4============="
[SW4]aaa
[SW4-aaa]local-user admin password simple huawei
[SW4-aaa]local-user admin service-type http
[SW4]user-interface  console 0
[SW4-ui-console0]set authentication password cipher huawei
[SW4-ui-console0]user privilege level 15
[SW4]user-interface vty 0 4
[SW4-ui-vty0-4]set authentication password cipher huawei
[SW4-ui-vty0-4]user privilege level 3



posted @ 2021-08-13 18:49  isicman  阅读(1442)  评论(1)    收藏  举报
