安卓逆向之路 hook

Xposed hook框架安装

打开 http://repo.xposed.info/module/de.robv.android.xposed.installer
下载 de.robv.android.xposed.installer_v33_36570c.apk (770.28 KB)
打开 https://jcenter.bintray.com/de/robv/android/xposed/api/
下载 api-82.jar
帮助 https://github.com/rovo89/XposedBridge/wiki/Development-tutorial

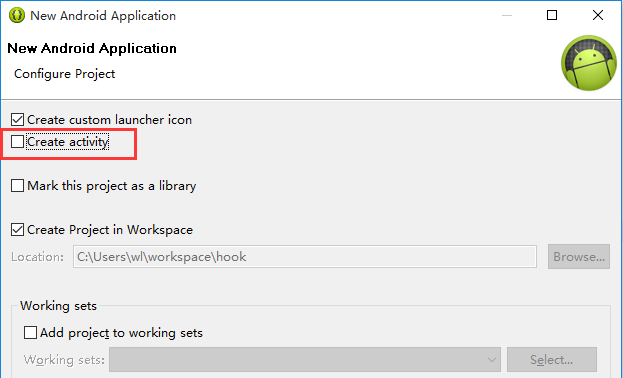

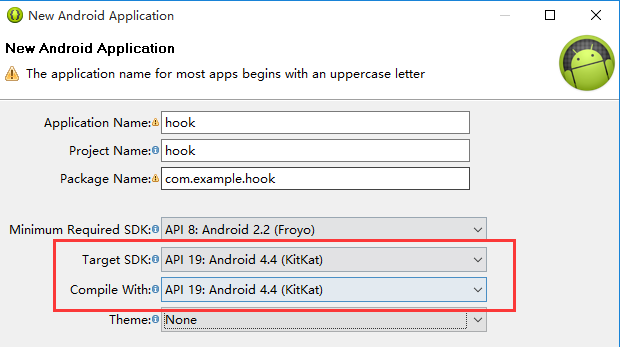

eclipse创建安卓工程 --> 新增lib目录 --> api-82.jar拖入后构建路径(实际上就是使用第三方jar包) --> 修改AndroidManifest.xml
Project -- > properties --> Resource --> Other --> UTF-8

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name" >
        <meta-data
            android:name="xposedmodule"
            android:value="true" />
        <meta-data
            android:name="xposeddescription"
            android:value="my name is xiaojianbang" />
        <meta-data
            android:name="xposedminversion"
            android:value="53" />
    </application>

src --> 新建一个包com.xposed --> 新建一个类

package com.xposed;

import android.util.Log;
import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.callbacks.XC_LoadPackage.LoadPackageParam;

public class Hook implements IXposedHookLoadPackage {
    public void handleLoadPackage(final LoadPackageParam lpparam) throws Throwable {

        Log.d("xiaojianbang", "hook...");

        if (!lpparam.packageName.equals("com.xingin.xhs")) return;

        Log.d("xiaojianbang", "hooking...");
    }
}

assets --> xposed_init --> com.xposed.Hook

安装xposed框架 --> 给予root权限 模拟器软重启 真机重启

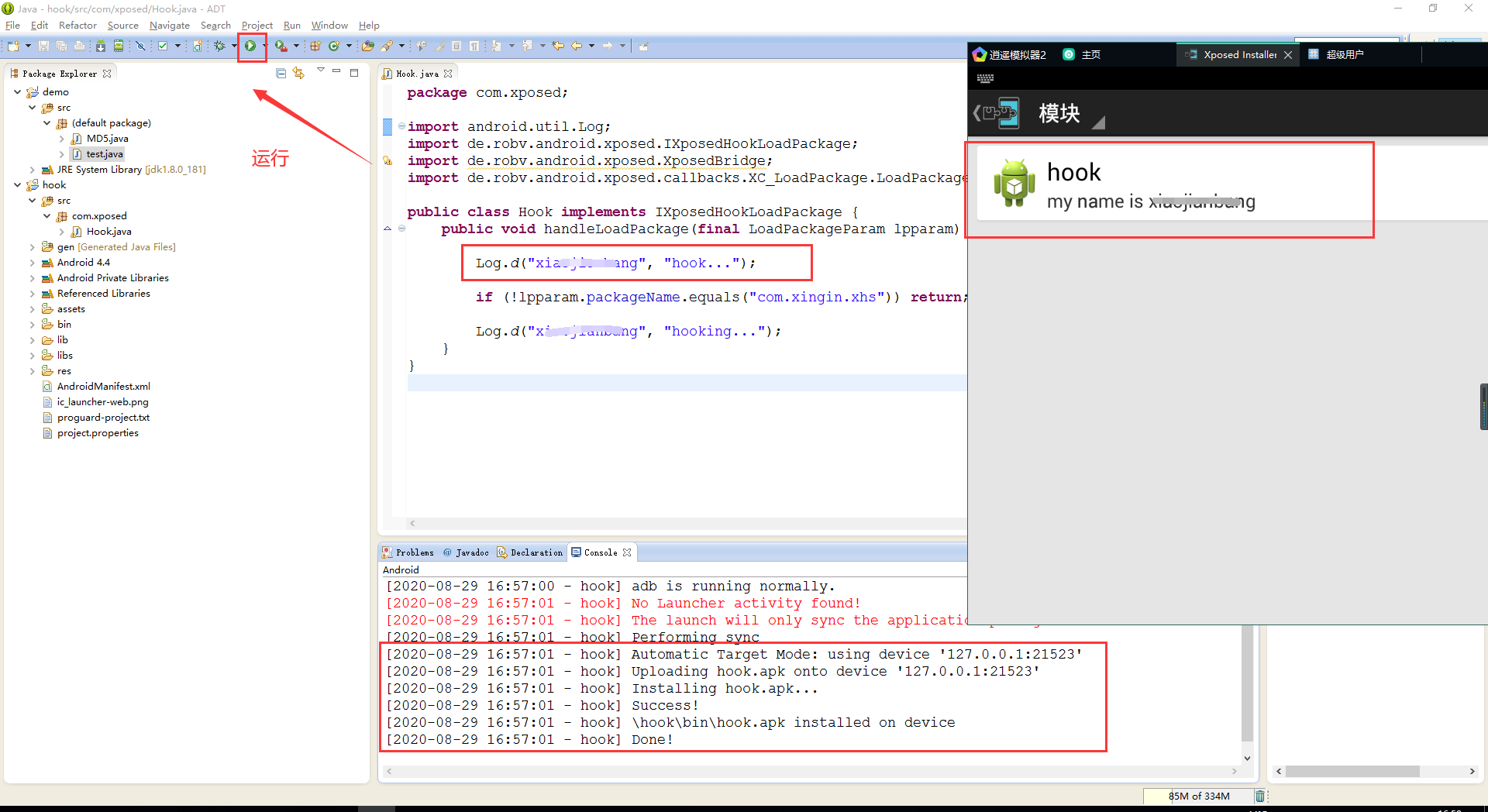

安装自写的模块 --> 勾选 --> 框架 模拟器软重启 真机重启

IDE

模拟器

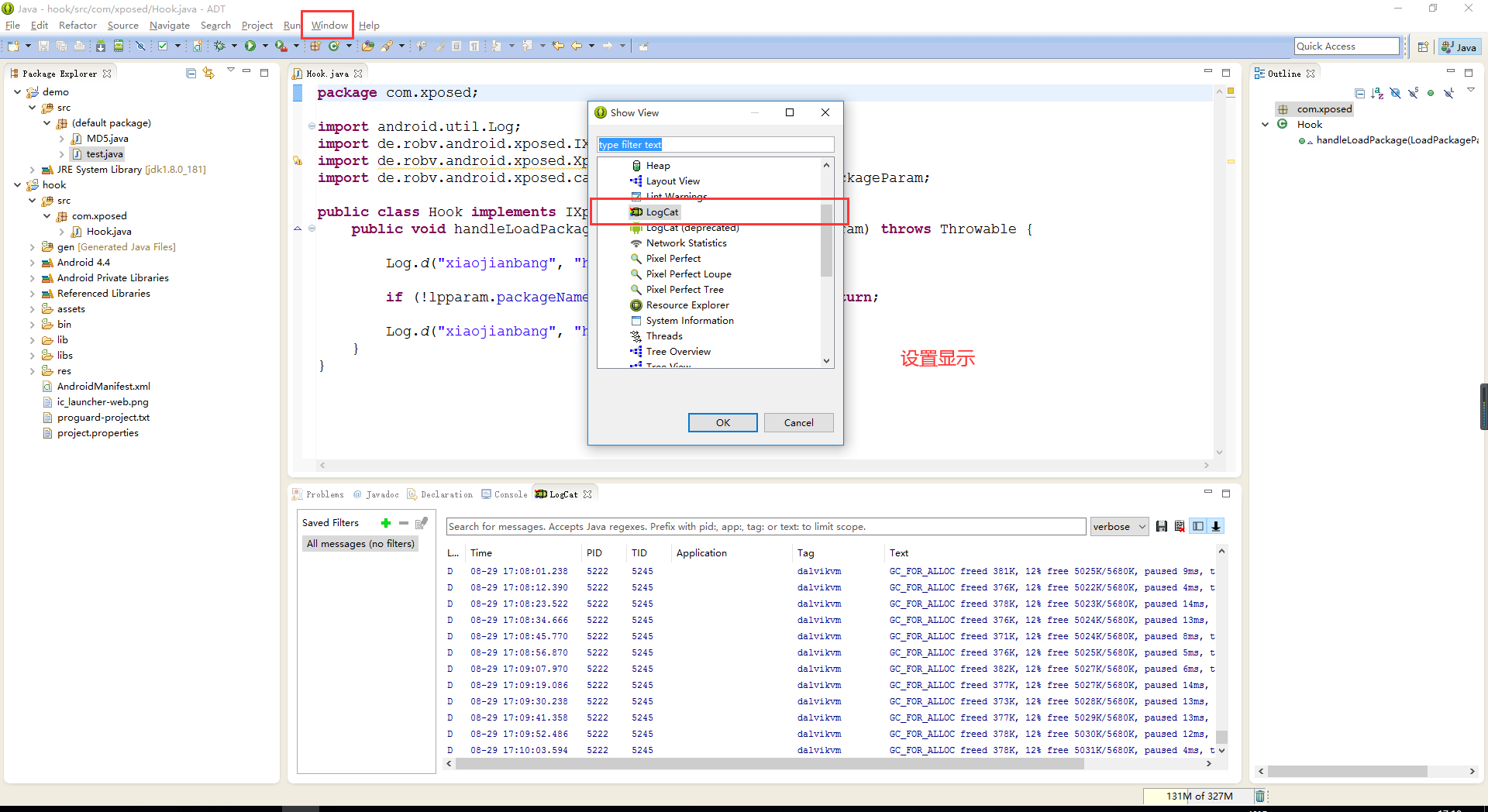

输出日志

Xposed hook初探

hook代码

https://github.com/rovo89/XposedBridge/wiki/Development-tutorial

package de.robv.android.xposed.mods.tutorial;

import static de.robv.android.xposed.XposedHelpers.findAndHookMethod;
import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.callbacks.XC_LoadPackage.LoadPackageParam;

public class Tutorial implements IXposedHookLoadPackage {
    public void handleLoadPackage(final LoadPackageParam lpparam) throws Throwable {
    	if (!lpparam.packageName.equals("com.android.systemui"))
            return;

    	findAndHookMethod("com.android.systemui.statusbar.policy.Clock", lpparam.classLoader, "updateClock", new XC_MethodHook() {
    		@Override
    		protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
    			// this will be called before the clock was updated by the original method
    		}
    		@Override
    		protected void afterHookedMethod(MethodHookParam param) throws Throwable {
    			// this will be called after the clock was updated by the original method
    		}
	});
    }
}

x小薪



package com.xposed;
import static de.robv.android.xposed.XposedHelpers.findAndHookMethod;

import android.R.string;
import android.util.Log;
import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.callbacks.XC_LoadPackage.LoadPackageParam;
import de.robv.android.xposed.XC_MethodHook;


public class Hook implements IXposedHookLoadPackage {
    public void handleLoadPackage(final LoadPackageParam lpparam)
            throws Throwable {

        Log.d("xiaojianbang", "hook...");

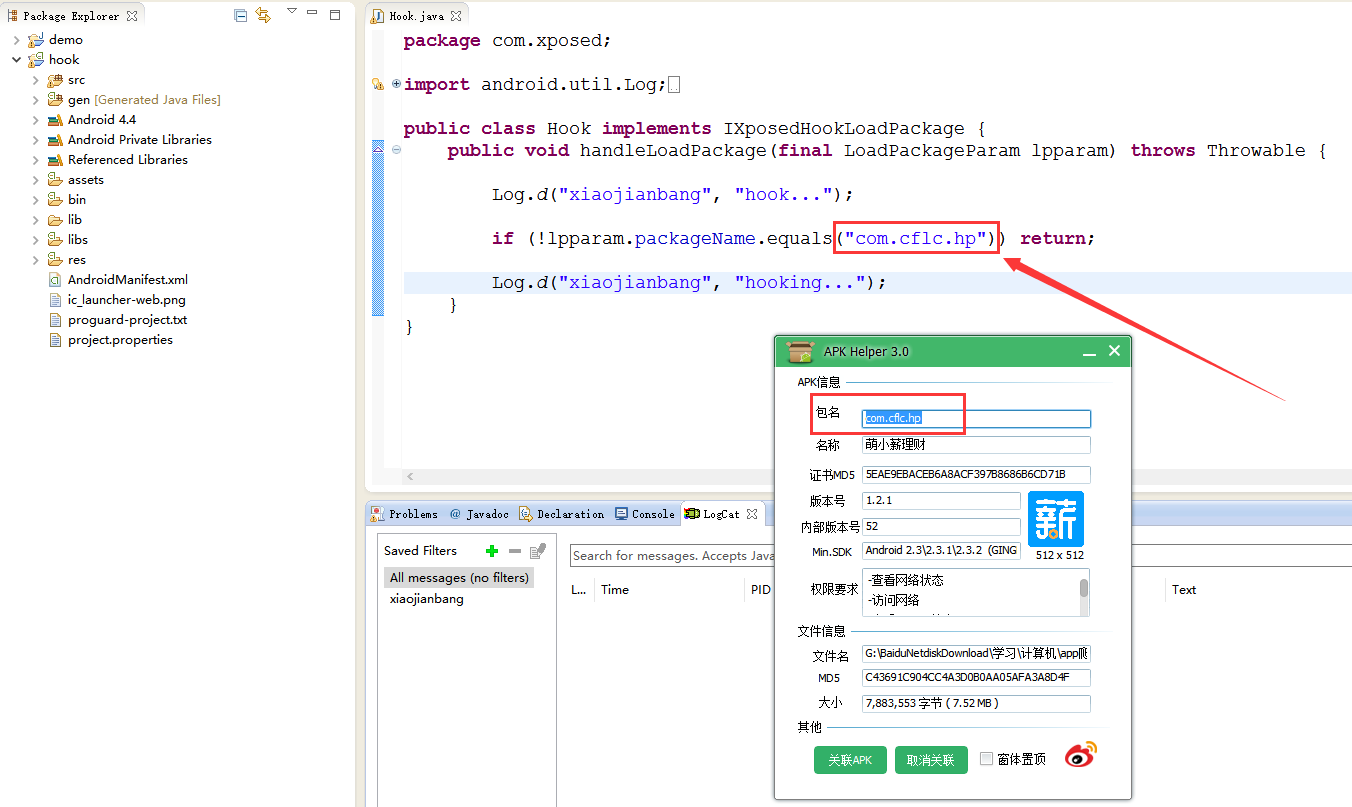

        if (!lpparam.packageName.equals("com.cflc.hp"))
            return;

        Log.d("xiaojianbang", "hooking...");

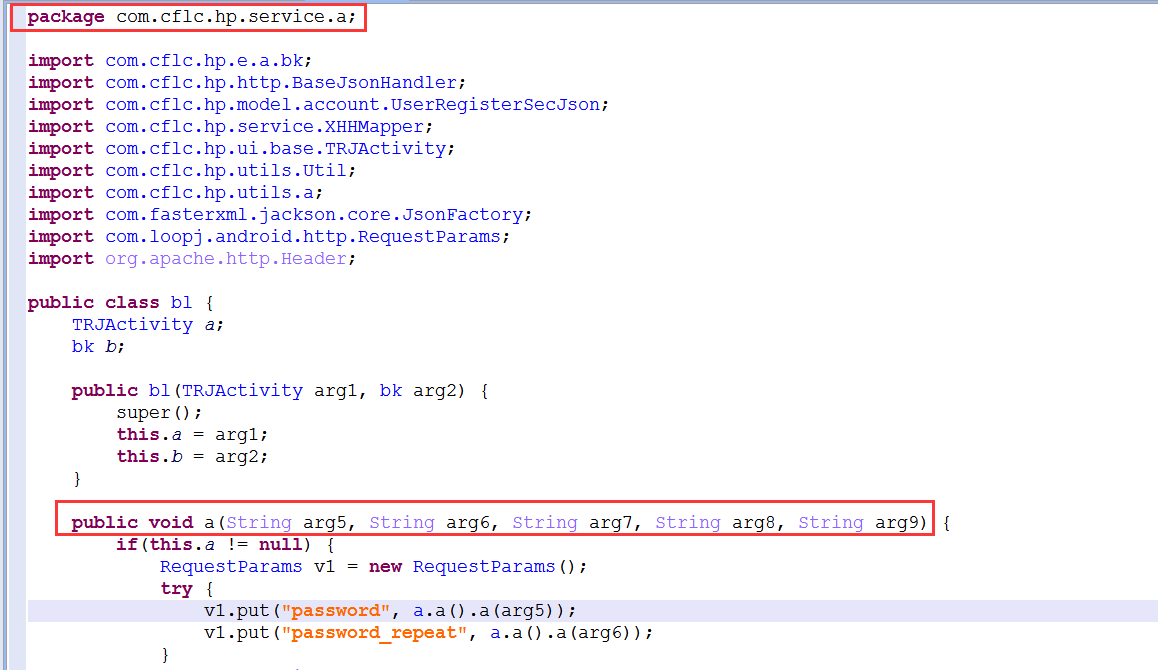

        findAndHookMethod("com.cflc.hp.service.a",
                lpparam.classLoader, "a",
                string.class,
                string.class,
                string.class,
                string.class,
                string.class,

                new XC_MethodHook() {
                    @Override
                    protected void beforeHookedMethod(MethodHookParam param)
                            throws Throwable {

                    }

                    @Override
                    protected void afterHookedMethod(MethodHookParam param)
                            throws Throwable {

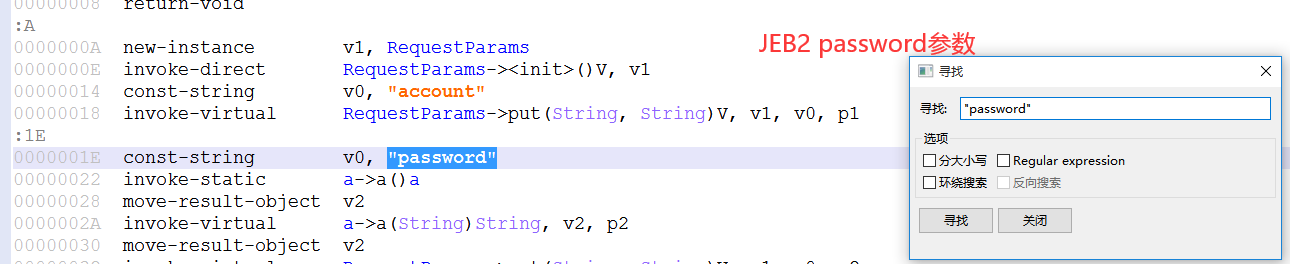

                        String args0 =(String) param.args[0];
                        String args1 =(String) param.args[1];
                        String args2 =(String) param.args[2];
                        String args3 =(String) param.args[3];
                        String args4 =(String) param.args[4];
                        Log.d("xiaojianbang", args0);
                        Log.d("xiaojianbang", args1);
                        Log.d("xiaojianbang", args2);
                        Log.d("xiaojianbang", args3);
                        Log.d("xiaojianbang", args4);
                    }
                });
    }

}

运行hook项目 ->模拟器Xposed软重启

编写Xposed模块
