spring 源码解读之标签解析与bean的注册
默认标签解析
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
Element ele = (Element) node;
if (delegate.isDefaultNamespace(ele)) {
//默认标签解析
parseDefaultElement(ele, delegate);
}
else {
//自定义标签解析
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
//import标签解析
if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
importBeanDefinitionResource(ele);
}
//alias标签解析 别名标签
else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
processAliasRegistration(ele);
}
//bean标签
else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
processBeanDefinition(ele, delegate);
}
else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
// recurse
doRegisterBeanDefinitions(ele);
}
}bean标签解析
例如：
<bean id="student" class="cn.com.dq.bean.Student"></bean>protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
//解析document，封装成BeanDefinition
BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
if (bdHolder != null) {
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
try {
//对BeanDefinition对象进行缓存注册
// Register the final decorated instance.
BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
}
catch (BeanDefinitionStoreException ex) {
getReaderContext().error("Failed to register bean definition with name '" +
bdHolder.getBeanName() + "'", ele, ex);
}
// Send registration event.
getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
}
}BeanDefinition封装

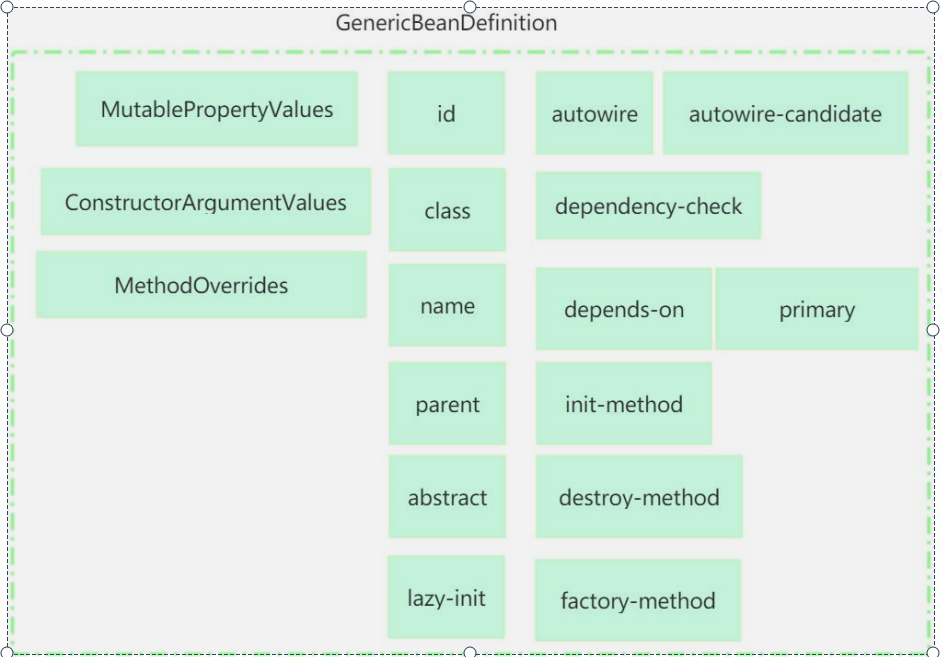

BeanDefinition属性如下图：
public BeanDefinitionHolder parseBeanDefinitionElement(Element ele, @Nullable BeanDefinition containingBean) {
String id = ele.getAttribute(ID_ATTRIBUTE);
String nameAttr = ele.getAttribute(NAME_ATTRIBUTE);
List<String> aliases = new ArrayList<>();
if (StringUtils.hasLength(nameAttr)) {
String[] nameArr = StringUtils.tokenizeToStringArray(nameAttr, MULTI_VALUE_ATTRIBUTE_DELIMITERS);
aliases.addAll(Arrays.asList(nameArr));
}
String beanName = id;
if (!StringUtils.hasText(beanName) && !aliases.isEmpty()) {
beanName = aliases.remove(0);
if (logger.isTraceEnabled()) {
logger.trace("No XML 'id' specified - using '" + beanName +
"' as bean name and " + aliases + " as aliases");
}
}
//检查beanName是否重复
if (containingBean == null) {
checkNameUniqueness(beanName, aliases, ele);
}
AbstractBeanDefinition beanDefinition = parseBeanDefinitionElement(ele, beanName, containingBean);
if (beanDefinition != null) {
if (!StringUtils.hasText(beanName)) {
try {
if (containingBean != null) {
beanName = BeanDefinitionReaderUtils.generateBeanName(
beanDefinition, this.readerContext.getRegistry(), true);
}
else {
beanName = this.readerContext.generateBeanName(beanDefinition);
// Register an alias for the plain bean class name, if still possible,
// if the generator returned the class name plus a suffix.
// This is expected for Spring 1.2/2.0 backwards compatibility.
String beanClassName = beanDefinition.getBeanClassName();
if (beanClassName != null &&
beanName.startsWith(beanClassName) && beanName.length() > beanClassName.length() &&
!this.readerContext.getRegistry().isBeanNameInUse(beanClassName)) {
aliases.add(beanClassName);
}
}
if (logger.isTraceEnabled()) {
logger.trace("Neither XML 'id' nor 'name' specified - " +
"using generated bean name [" + beanName + "]");
}
}
catch (Exception ex) {
error(ex.getMessage(), ele);
return null;
}
}
String[] aliasesArray = StringUtils.toStringArray(aliases);
return new BeanDefinitionHolder(beanDefinition, beanName, aliasesArray);
}
return null;
}创建beanDefinition，解析bean标签属性
public AbstractBeanDefinition parseBeanDefinitionElement(
Element ele, String beanName, @Nullable BeanDefinition containingBean) {
this.parseState.push(new BeanEntry(beanName));
String className = null;
if (ele.hasAttribute(CLASS_ATTRIBUTE)) {
className = ele.getAttribute(CLASS_ATTRIBUTE).trim();
}
String parent = null;
if (ele.hasAttribute(PARENT_ATTRIBUTE)) {
parent = ele.getAttribute(PARENT_ATTRIBUTE);
}
try {
//创建GenericBeanDefinition对象
AbstractBeanDefinition bd = createBeanDefinition(className, parent);
//解析bean标签的属性，并把解析出来的属性设置到BeanDefinition对象中
parseBeanDefinitionAttributes(ele, beanName, containingBean, bd);
bd.setDescription(DomUtils.getChildElementValueByTagName(ele, DESCRIPTION_ELEMENT));
//解析bean中的meta标签
parseMetaElements(ele, bd);
//解析bean中的lookup-method标签
parseLookupOverrideSubElements(ele, bd.getMethodOverrides());
//解析bean中的replaced-method标签
parseReplacedMethodSubElements(ele, bd.getMethodOverrides());
//解析bean中的constructor-arg标签
parseConstructorArgElements(ele, bd);
//解析bean中的property标签
parsePropertyElements(ele, bd);
//解析bean中的qualifier标签
parseQualifierElements(ele, bd);
bd.setResource(this.readerContext.getResource());
bd.setSource(extractSource(ele));
return bd;
}
catch (ClassNotFoundException ex) {
error("Bean class [" + className + "] not found", ele, ex);
}
catch (NoClassDefFoundError err) {
error("Class that bean class [" + className + "] depends on not found", ele, err);
}
catch (Throwable ex) {
error("Unexpected failure during bean definition parsing", ele, ex);
}
finally {
this.parseState.pop();
}
return null;
}
创建GenericBeanDefinition
public static AbstractBeanDefinition createBeanDefinition(
@Nullable String parentName, @Nullable String className, @Nullable ClassLoader classLoader) throws ClassNotFoundException {
GenericBeanDefinition bd = new GenericBeanDefinition();
bd.setParentName(parentName);
if (className != null) {
if (classLoader != null) {
bd.setBeanClass(ClassUtils.forName(className, classLoader));
}
else {
bd.setBeanClassName(className);
}
}
return bd;
}解析bean标签的属性，并把解析出来的属性设置到BeanDefinition对象中
public AbstractBeanDefinition parseBeanDefinitionAttributes(Element ele, String beanName,
@Nullable BeanDefinition containingBean, AbstractBeanDefinition bd) {
//scope属性
if (ele.hasAttribute(SINGLETON_ATTRIBUTE)) {
error("Old 1.x 'singleton' attribute in use - upgrade to 'scope' declaration", ele);
}
else if (ele.hasAttribute(SCOPE_ATTRIBUTE)) {
bd.setScope(ele.getAttribute(SCOPE_ATTRIBUTE));
}
else if (containingBean != null) {
// Take default from containing bean in case of an inner bean definition.
bd.setScope(containingBean.getScope());
}
//abstract属性
if (ele.hasAttribute(ABSTRACT_ATTRIBUTE)) {
bd.setAbstract(TRUE_VALUE.equals(ele.getAttribute(ABSTRACT_ATTRIBUTE)));
}
//lazy-init属性
String lazyInit = ele.getAttribute(LAZY_INIT_ATTRIBUTE);
if (DEFAULT_VALUE.equals(lazyInit)) {
lazyInit = this.defaults.getLazyInit();
}
bd.setLazyInit(TRUE_VALUE.equals(lazyInit));
//autowire属性
String autowire = ele.getAttribute(AUTOWIRE_ATTRIBUTE);
bd.setAutowireMode(getAutowireMode(autowire));
//depends-on属性
if (ele.hasAttribute(DEPENDS_ON_ATTRIBUTE)) {
String dependsOn = ele.getAttribute(DEPENDS_ON_ATTRIBUTE);
bd.setDependsOn(StringUtils.tokenizeToStringArray(dependsOn, MULTI_VALUE_ATTRIBUTE_DELIMITERS));
}
//autowire-candidate
String autowireCandidate = ele.getAttribute(AUTOWIRE_CANDIDATE_ATTRIBUTE);
if ("".equals(autowireCandidate) || DEFAULT_VALUE.equals(autowireCandidate)) {
String candidatePattern = this.defaults.getAutowireCandidates();
if (candidatePattern != null) {
String[] patterns = StringUtils.commaDelimitedListToStringArray(candidatePattern);
bd.setAutowireCandidate(PatternMatchUtils.simpleMatch(patterns, beanName));
}
}
else {
bd.setAutowireCandidate(TRUE_VALUE.equals(autowireCandidate));
}
//primary
if (ele.hasAttribute(PRIMARY_ATTRIBUTE)) {
bd.setPrimary(TRUE_VALUE.equals(ele.getAttribute(PRIMARY_ATTRIBUTE)));
}
//init-method
if (ele.hasAttribute(INIT_METHOD_ATTRIBUTE)) {
String initMethodName = ele.getAttribute(INIT_METHOD_ATTRIBUTE);
bd.setInitMethodName(initMethodName);
}
else if (this.defaults.getInitMethod() != null) {
bd.setInitMethodName(this.defaults.getInitMethod());
bd.setEnforceInitMethod(false);
}
//destroy-method
if (ele.hasAttribute(DESTROY_METHOD_ATTRIBUTE)) {
String destroyMethodName = ele.getAttribute(DESTROY_METHOD_ATTRIBUTE);
bd.setDestroyMethodName(destroyMethodName);
}
else if (this.defaults.getDestroyMethod() != null) {
bd.setDestroyMethodName(this.defaults.getDestroyMethod());
bd.setEnforceDestroyMethod(false);
}
//factory-method
if (ele.hasAttribute(FACTORY_METHOD_ATTRIBUTE)) {
bd.setFactoryMethodName(ele.getAttribute(FACTORY_METHOD_ATTRIBUTE));
}
//factory-bean
if (ele.hasAttribute(FACTORY_BEAN_ATTRIBUTE)) {
bd.setFactoryBeanName(ele.getAttribute(FACTORY_BEAN_ATTRIBUTE));
}
return bd;
}
（1）、id:Bean 的唯一标识名。它必须是合法的 XMLID，在整个 XML 文档中唯一。
（2）、name:用来为 id 创建一个或多个别名。它可以是任意的字母符合。多个别名之间用逗号或空格分 开。
（3）、class:用来定义类的全限定名（包名＋类名）。只有子类 Bean 不用定义该属性。
（4）、parent:子类 Bean 定义它所引用它的父类 Bean。这时前面的 class 属性失效。子类 Bean 会继承 父类 Bean 的所有属性，子类 Bean 也可以覆盖父类 Bean 的属性。注意：子类 Bean 和父类 Bean 是同一 个 Java 类。
（5）、abstract（默认为”false”）：用来定义 Bean 是否为抽象 Bean。它表示这个 Bean 将不会被实 例化，一般用于父类 Bean，因为父类 Bean 主要是供子类 Bean 继承使用。
（7）、lazy-init（默认为“default”）：用来定义这个 Bean 是否实现懒初始化。如果为“true”，它将 在 BeanFactory 启动时初始化所有的 SingletonBean。反之，如果为“false”,它只在 Bean 请求时才开 始创建 SingletonBean。
（8）、autowire（自动装配，默认为“default”）：它定义了 Bean 的自动装载方式。
1、“no”:不使用自动装配功能。
2、“byName”:通过 Bean 的属性名实现自动装配。
3、“byType”:通过 Bean 的类型实现自动装配。
4、“constructor”:类似于 byType，但它是用于构造函数的参数的自动组装。
5、“autodetect”:通过 Bean 类的反省机制（introspection）决定是使用“constructor” 还是使用“byType”。
（10）、depends-on（依赖对象）：这个 Bean 在初始化时依赖的对象，这个对象会在这个 Bean 初始 化之前创建。 （11）、init-method:用来定义 Bean 的初始化方法，它会在 Bean 组装之后调用。它必须是一个无参数 的方法。 （12）、destroy-method：用来定义 Bean 的销毁方法，它在 BeanFactory 关闭时调用。同样，它也必 须是一个无参数的方法。它只能应用于 singletonBean。
（13）、factory-method：定义创建该 Bean 对象的工厂方法。它用于下面的“factory-bean”，表示 这个 Bean 是通过工厂方法创建。此时，“class”属性失效。
（14）、factory-bean:定义创建该 Bean 对象的工厂类。如果使用了“factory-bean”则“class”属性 失效。
（15）、autowire-candidate：采用 xml 格式配置 bean 时，将
bean标签以及其属性解析完成以后，然后解析bean标签的子标签
meta标签
<bean id="student" class="cn.com.dq.bean.Student">
<meta key="password" value="123"></meta>
</bean>
public void parseMetaElements(Element ele, BeanMetadataAttributeAccessor attributeAccessor) {
NodeList nl = ele.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (isCandidateElement(node) && nodeNameEquals(node, META_ELEMENT)) {
Element metaElement = (Element) node;
String key = metaElement.getAttribute(KEY_ATTRIBUTE);
String value = metaElement.getAttribute(VALUE_ATTRIBUTE);
BeanMetadataAttribute attribute = new BeanMetadataAttribute(key, value);
attribute.setSource(extractSource(metaElement));
attributeAccessor.addMetadataAttribute(attribute);
}
}
}
meta标签封装在BeanMetadataAttribute 对象中，BeanMetadataAttribute 有2个属性，name用于存放key，value用于存放value，最后将BeanMetadataAttribute加入到beanDefinition的attributes的属性中，key是那么,value是BeanMetadataAttribute 对象，attributes属性是个map容器
property标签
<bean class="PropertyBean" id="propertyBean">
<property name="username" value="qwe"/>
<property name="password" value="123"/>
</bean>
public void parsePropertyElement(Element ele, BeanDefinition bd) {
String propertyName = ele.getAttribute(NAME_ATTRIBUTE);
if (!StringUtils.hasLength(propertyName)) {
error("Tag 'property' must have a 'name' attribute", ele);
return;
}
this.parseState.push(new PropertyEntry(propertyName));
try {
if (bd.getPropertyValues().contains(propertyName)) {
error("Multiple 'property' definitions for property '" + propertyName + "'", ele);
return;
}
Object val = parsePropertyValue(ele, bd, propertyName);
PropertyValue pv = new PropertyValue(propertyName, val);
parseMetaElements(ele, pv);
pv.setSource(extractSource(ele));
bd.getPropertyValues().addPropertyValue(pv);
}
finally {
this.parseState.pop();
}
}
public MutablePropertyValues addPropertyValue(PropertyValue pv) {
for (int i = 0; i < this.propertyValueList.size(); i++) {
PropertyValue currentPv = this.propertyValueList.get(i);
if (currentPv.getName().equals(pv.getName())) {
pv = mergeIfRequired(pv, currentPv);
setPropertyValueAt(pv, i);
return this;
}
}
this.propertyValueList.add(pv);
return this;
}property标签封装在PropertyValue对象中，然后将PropertyValue加入到beanDefinition的MutablePropertyValues属性中，MutablePropertyValues里面实际是一个List容器
lookup-method 标签
<bean id="woman" class="Woman" lazy-init="false"></bean>
<bean id="people" class="ShowSexClass">
<lookup-method name="getPeople" bean="woman"></lookup-method>
</bean>
public void parseLookupOverrideSubElements(Element beanEle, MethodOverrides overrides) {
NodeList nl = beanEle.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (isCandidateElement(node) && nodeNameEquals(node, LOOKUP_METHOD_ELEMENT)) {
Element ele = (Element) node;
String methodName = ele.getAttribute(NAME_ATTRIBUTE);
String beanRef = ele.getAttribute(BEAN_ELEMENT);
LookupOverride override = new LookupOverride(methodName, beanRef);
override.setSource(extractSource(ele));
overrides.addOverride(override);
}
}
}lookup-method标签解析封装在LookupOverride对象中，然后将其加入到beanDefinition的MethodOverrides属性中，
MethodOverrides里面实际是一个List容器
replaced-method标签
示例：
<bean id="replaceClass" class="ReplaceClass" lazy-init="false"/>
<bean id="originClass" class="OriginClass">
<replaced-method name="method" replacer="replaceClass">
<arg-type match="java.lang.String"/>
</replaced-method>
</bean>
public void parseReplacedMethodSubElements(Element beanEle, MethodOverrides overrides) {
NodeList nl = beanEle.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (isCandidateElement(node) && nodeNameEquals(node, REPLACED_METHOD_ELEMENT)) {
Element replacedMethodEle = (Element) node;
String name = replacedMethodEle.getAttribute(NAME_ATTRIBUTE);
String callback = replacedMethodEle.getAttribute(REPLACER_ATTRIBUTE);
//一个replaced-method标签封装成一个ReplaceOverride对象，最后加入到BeanDefinition对象中
ReplaceOverride replaceOverride = new ReplaceOverride(name, callback);
// Look for arg-type match elements.
List<Element> argTypeEles = DomUtils.getChildElementsByTagName(replacedMethodEle, ARG_TYPE_ELEMENT);
for (Element argTypeEle : argTypeEles) {
//根据方法参数类型来区分同名的不同的方法
String match = argTypeEle.getAttribute(ARG_TYPE_MATCH_ATTRIBUTE);
match = (StringUtils.hasText(match) ? match : DomUtils.getTextValue(argTypeEle));
if (StringUtils.hasText(match)) {
replaceOverride.addTypeIdentifier(match);
}
}
replaceOverride.setSource(extractSource(replacedMethodEle));
overrides.addOverride(replaceOverride);
}
}
}replaced-method标签解析封装在ReplaceOverride 对象中，然后将其加入到beanDefinition的MethodOverrides属性中，MethodOverrides里面实际是一个List容器
LookupOverride 与ReplaceOverride 都继承了MethodOverride
constructor-arg标签
<bean class="ConstructorArgBean" id="constructorArgBean">
<constructor-arg name="username" value="qwe" index="0" type="java.lang.String"/>
<constructor-arg name="password" value="123" index="1" type="java.lang.String"/>
</bean>
public void parseConstructorArgElement(Element ele, BeanDefinition bd) {
String indexAttr = ele.getAttribute(INDEX_ATTRIBUTE);
String typeAttr = ele.getAttribute(TYPE_ATTRIBUTE);
String nameAttr = ele.getAttribute(NAME_ATTRIBUTE);
if (StringUtils.hasLength(indexAttr)) {
try {
int index = Integer.parseInt(indexAttr);
if (index < 0) {
error("'index' cannot be lower than 0", ele);
}
else {
try {
this.parseState.push(new ConstructorArgumentEntry(index));
Object value = parsePropertyValue(ele, bd, null);
ConstructorArgumentValues.ValueHolder valueHolder = new ConstructorArgumentValues.ValueHolder(value);
if (StringUtils.hasLength(typeAttr)) {
valueHolder.setType(typeAttr);
}
if (StringUtils.hasLength(nameAttr)) {
valueHolder.setName(nameAttr);
}
valueHolder.setSource(extractSource(ele));
if (bd.getConstructorArgumentValues().hasIndexedArgumentValue(index)) {
error("Ambiguous constructor-arg entries for index " + index, ele);
}
else {
bd.getConstructorArgumentValues().addIndexedArgumentValue(index, valueHolder);
}
}
finally {
this.parseState.pop();
}
}
}
catch (NumberFormatException ex) {
error("Attribute 'index' of tag 'constructor-arg' must be an integer", ele);
}
}
else {
try {
this.parseState.push(new ConstructorArgumentEntry());
Object value = parsePropertyValue(ele, bd, null);
ConstructorArgumentValues.ValueHolder valueHolder = new ConstructorArgumentValues.ValueHolder(value);
if (StringUtils.hasLength(typeAttr)) {
valueHolder.setType(typeAttr);
}
if (StringUtils.hasLength(nameAttr)) {
valueHolder.setName(nameAttr);
}
valueHolder.setSource(extractSource(ele));
bd.getConstructorArgumentValues().addGenericArgumentValue(valueHolder);
}
finally {
this.parseState.pop();
}
}
}constructor-arg标签解析封装在ValueHolder对象中，然后将其加入到beanDefinition的ConstructorArgumentValues的属性中，ConstructorArgumentValues里面实际是个list和linkHashMap,根据有误index属性来判断，有index，加入到linkHashMap容器，无index加入到list容器。
默认标签解析已经完成，完后讲标签解析出来后封装成BeanDefinition
初探自定义标签
在默认标签解析代码中,如下
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
//解析document，封装成BeanDefinition
BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
if (bdHolder != null) {
//装饰者设计模式，加上SPI设计思想
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
try {
//完成document到BeanDefinition对象转换后，对BeanDefinition对象进行缓存注册
// Register the final decorated instance.
BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
}
catch (BeanDefinitionStoreException ex) {
getReaderContext().error("Failed to register bean definition with name '" +
bdHolder.getBeanName() + "'", ele, ex);
}
// Send registration event.
getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
}
}注意看这行代码
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
它是解决
<bean class="DecoratorBean" id="decoratorBean"
p:username="qwe" p:password="123" c:age="12" c:sex="1"/>这类标签解析的，进入代码
public BeanDefinitionHolder decorateBeanDefinitionIfRequired(
Element ele, BeanDefinitionHolder definitionHolder, @Nullable BeanDefinition containingBd) {
BeanDefinitionHolder finalDefinition = definitionHolder;
//根据bean标签属性装饰BeanDefinitionHolder，比如<bean class="xx" p:username="qwe"/>
//
// Decorate based on custom attributes first.
NamedNodeMap attributes = ele.getAttributes();
for (int i = 0; i < attributes.getLength(); i++) {
Node node = attributes.item(i);
finalDefinition = decorateIfRequired(node, finalDefinition, containingBd);
}
//根据bean标签子元素装饰BeanDefinitionHolder
// Decorate based on custom nested elements.
NodeList children = ele.getChildNodes();
for (int i = 0; i < children.getLength(); i++) {
Node node = children.item(i);
if (node.getNodeType() == Node.ELEMENT_NODE) {
finalDefinition = decorateIfRequired(node, finalDefinition, containingBd);
}
}
return finalDefinition;
}
//核心方法
public BeanDefinitionHolder decorateIfRequired(
Node node, BeanDefinitionHolder originalDef, @Nullable BeanDefinition containingBd) {
//根据node获取到node的命名空间，形如：http://www.springframework.org/schema/p p:username="qwe"
String namespaceUri = getNamespaceURI(node);
if (namespaceUri != null && !isDefaultNamespace(namespaceUri)) {
//这里有SPI服务发现的思想，根据配置文件获取namespaceUri对应的处理类
NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
if (handler != null) {
//调用NamespaceHandler处理类的decorate方法，开始具体装饰过程，并返回装饰完的对象
//org.springframework.beans.factory.xml.SimplePropertyNamespaceHandler
BeanDefinitionHolder decorated =
handler.decorate(node, originalDef, new ParserContext(this.readerContext, this, containingBd));
if (decorated != null) {
return decorated;
}
}
else if (namespaceUri.startsWith("http://www.springframework.org/")) {
error("Unable to locate Spring NamespaceHandler for XML schema namespace [" + namespaceUri + "]", node);
}
else {
// A custom namespace, not to be handled by Spring - maybe "xml:...".
if (logger.isDebugEnabled()) {
logger.debug("No Spring NamespaceHandler found for XML schema namespace [" + namespaceUri + "]");
}
}
}
return originalDef;
}
public NamespaceHandler resolve(String namespaceUri) {
//获取spring中所有jar包里面的 "META-INF/spring.handlers"文件，并且建立映射关系
Map<String, Object> handlerMappings = getHandlerMappings();
//根据namespaceUri：http://www.springframework.org/schema/p，获取到这个命名空间的处理类
Object handlerOrClassName = handlerMappings.get(namespaceUri);
if (handlerOrClassName == null) {
return null;
}
else if (handlerOrClassName instanceof NamespaceHandler) {
return (NamespaceHandler) handlerOrClassName;
}
else {
String className = (String) handlerOrClassName;
try {
Class<?> handlerClass = ClassUtils.forName(className, this.classLoader);
if (!NamespaceHandler.class.isAssignableFrom(handlerClass)) {
throw new FatalBeanException("Class [" + className + "] for namespace [" + namespaceUri +
"] does not implement the [" + NamespaceHandler.class.getName() + "] interface");
}
NamespaceHandler namespaceHandler = (NamespaceHandler) BeanUtils.instantiateClass(handlerClass);
//调用处理类的init方法，在init方法中完成标签元素解析类的注册
namespaceHandler.init();
handlerMappings.put(namespaceUri, namespaceHandler);
return namespaceHandler;
}
catch (ClassNotFoundException ex) {
throw new FatalBeanException("Could not find NamespaceHandler class [" + className +
"] for namespace [" + namespaceUri + "]", ex);
}
catch (LinkageError err) {
throw new FatalBeanException("Unresolvable class definition for NamespaceHandler class [" +
className + "] for namespace [" + namespaceUri + "]", err);
}
}
}1.根据node获取到node的命名空间namespaceUri
2.获取spring中所有jar包里面的 "META-INF/spring.handlers"文件，并且建立映射关系
3.根据namespaceUri：http://www.springframework.org/schema/p，获取到这个命名空间的处理类NamespaceHandler
命名空间的处理类特点都实现了NamespaceHandler接口
NamespaceHandler接口有三个方法：
init 完成标签元素解析类的注册
parse 解析
decorate 装饰BeanDefinitionHolder
4.在spring.handlers文件中，发现p标签和c标签的实现类
http://www.springframework.org/schema/c=org.springframework.beans.factory.xml.SimpleConstructorNamespaceHandler
http://www.springframework.org/schema/p=org.springframework.beans.factory.xml.SimplePropertyNamespaceHandler
5.看p标签处理，实现类SimplePropertyNamespaceHandler
public BeanDefinitionHolder decorate(Node node, BeanDefinitionHolder definition, ParserContext parserContext) {
if (node instanceof Attr) {
Attr attr = (Attr) node;
String propertyName = parserContext.getDelegate().getLocalName(attr);
String propertyValue = attr.getValue();
MutablePropertyValues pvs = definition.getBeanDefinition().getPropertyValues();
if (pvs.contains(propertyName)) {
parserContext.getReaderContext().error("Property '" + propertyName + "' is already defined using " +
"both <property> and inline syntax. Only one approach may be used per property.", attr);
}
if (propertyName.endsWith(REF_SUFFIX)) {
propertyName = propertyName.substring(0, propertyName.length() - REF_SUFFIX.length());
pvs.add(Conventions.attributeNameToPropertyName(propertyName), new RuntimeBeanReference(propertyValue));
}
else {
pvs.add(Conventions.attributeNameToPropertyName(propertyName), propertyValue);
}
}
return definition;
}可以看出解析出propertyName与propertyValue 然后封装成PropertyValue，添加到MutablePropertyValues中
6.看c标签解析，实现类SimpleConstructorNamespaceHandler
public BeanDefinitionHolder decorate(Node node, BeanDefinitionHolder definition, ParserContext parserContext) {
if (node instanceof Attr) {
Attr attr = (Attr) node;
String argName = StringUtils.trimWhitespace(parserContext.getDelegate().getLocalName(attr));
String argValue = StringUtils.trimWhitespace(attr.getValue());
ConstructorArgumentValues cvs = definition.getBeanDefinition().getConstructorArgumentValues();
boolean ref = false;
// handle -ref arguments
if (argName.endsWith(REF_SUFFIX)) {
ref = true;
argName = argName.substring(0, argName.length() - REF_SUFFIX.length());
}
ValueHolder valueHolder = new ValueHolder(ref ? new RuntimeBeanReference(argValue) : argValue);
valueHolder.setSource(parserContext.getReaderContext().extractSource(attr));
// handle "escaped"/"_" arguments
if (argName.startsWith(DELIMITER_PREFIX)) {
String arg = argName.substring(1).trim();
// fast default check
if (!StringUtils.hasText(arg)) {
cvs.addGenericArgumentValue(valueHolder);
}
// assume an index otherwise
else {
int index = -1;
try {
index = Integer.parseInt(arg);
}
catch (NumberFormatException ex) {
parserContext.getReaderContext().error(
"Constructor argument '" + argName + "' specifies an invalid integer", attr);
}
if (index < 0) {
parserContext.getReaderContext().error(
"Constructor argument '" + argName + "' specifies a negative index", attr);
}
if (cvs.hasIndexedArgumentValue(index)) {
parserContext.getReaderContext().error(
"Constructor argument '" + argName + "' with index "+ index+" already defined using <constructor-arg>." +
" Only one approach may be used per argument.", attr);
}
cvs.addIndexedArgumentValue(index, valueHolder);
}
}
// no escaping -> ctr name
else {
String name = Conventions.attributeNameToPropertyName(argName);
if (containsArgWithName(name, cvs)) {
parserContext.getReaderContext().error(
"Constructor argument '" + argName + "' already defined using <constructor-arg>." +
" Only one approach may be used per argument.", attr);
}
valueHolder.setName(Conventions.attributeNameToPropertyName(argName));
cvs.addGenericArgumentValue(valueHolder);
}
}
return definition;
}同样它的实现逻辑与constructor-arg标签的解析类似
BeanDefinition 注册
public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
throws BeanDefinitionStoreException {
Assert.hasText(beanName, "Bean name must not be empty");
Assert.notNull(beanDefinition, "BeanDefinition must not be null");
if (beanDefinition instanceof AbstractBeanDefinition) {
try {
((AbstractBeanDefinition) beanDefinition).validate();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
"Validation of bean definition failed", ex);
}
}
//先判断BeanDefinition是否已经注册
BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName);
if (existingDefinition != null) {
if (!isAllowBeanDefinitionOverriding()) {
throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition);
}
else if (existingDefinition.getRole() < beanDefinition.getRole()) {
// e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
if (logger.isInfoEnabled()) {
logger.info("Overriding user-defined bean definition for bean '" + beanName +
"' with a framework-generated bean definition: replacing [" +
existingDefinition + "] with [" + beanDefinition + "]");
}
}
else if (!beanDefinition.equals(existingDefinition)) {
if (logger.isDebugEnabled()) {
logger.debug("Overriding bean definition for bean '" + beanName +
"' with a different definition: replacing [" + existingDefinition +
"] with [" + beanDefinition + "]");
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace("Overriding bean definition for bean '" + beanName +
"' with an equivalent definition: replacing [" + existingDefinition +
"] with [" + beanDefinition + "]");
}
}
this.beanDefinitionMap.put(beanName, beanDefinition);
}
else {
if (hasBeanCreationStarted()) {
// Cannot modify startup-time collection elements anymore (for stable iteration)
synchronized (this.beanDefinitionMap) {
this.beanDefinitionMap.put(beanName, beanDefinition);
List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);
updatedDefinitions.addAll(this.beanDefinitionNames);
updatedDefinitions.add(beanName);
this.beanDefinitionNames = updatedDefinitions;
if (this.manualSingletonNames.contains(beanName)) {
Set<String> updatedSingletons = new LinkedHashSet<>(this.manualSingletonNames);
updatedSingletons.remove(beanName);
this.manualSingletonNames = updatedSingletons;
}
}
}
else {
//把beanDefinition缓存到map中
// Still in startup registration phase
this.beanDefinitionMap.put(beanName, beanDefinition);
//把beanName放到beanDefinitionNames list中，这个list着重记住，bean实例化的时候需要用到
this.beanDefinitionNames.add(beanName);
this.manualSingletonNames.remove(beanName);
}
this.frozenBeanDefinitionNames = null;
}
if (existingDefinition != null || containsSingleton(beanName)) {
resetBeanDefinition(beanName);
}
}2个核心容器beanDefinitionMap，beanDefinitionNames，bean在实例化的时候需要用到这2个容器
自定义标签解析
public BeanDefinition parseCustomElement(Element ele, @Nullable BeanDefinition containingBd) {
String namespaceUri = getNamespaceURI(ele);
if (namespaceUri == null) {
return null;
}
NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
if (handler == null) {
error("Unable to locate Spring NamespaceHandler for XML schema namespace [" + namespaceUri + "]", ele);
return null;
}
return handler.parse(ele, new ParserContext(this.readerContext, this, containingBd));
}NamespaceHandler
请看NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
可以看到在如下标签解析
<bean class="DecoratorBean" id="decoratorBean"
p:username="qwe" p:password="123" c:age="12" c:sex="1"/>中，也出现了如下代码：
public NamespaceHandler resolve(String namespaceUri) {
//获取spring中所有jar包里面的 "META-INF/spring.handlers"文件，并且建立映射关系
Map<String, Object> handlerMappings = getHandlerMappings();
//根据namespaceUri：http://www.springframework.org/schema/p，获取到这个命名空间的处理类
Object handlerOrClassName = handlerMappings.get(namespaceUri);
if (handlerOrClassName == null) {
return null;
}
else if (handlerOrClassName instanceof NamespaceHandler) {
return (NamespaceHandler) handlerOrClassName;
}
else {
String className = (String) handlerOrClassName;
try {
Class<?> handlerClass = ClassUtils.forName(className, this.classLoader);
if (!NamespaceHandler.class.isAssignableFrom(handlerClass)) {
throw new FatalBeanException("Class [" + className + "] for namespace [" + namespaceUri +
"] does not implement the [" + NamespaceHandler.class.getName() + "] interface");
}
NamespaceHandler namespaceHandler = (NamespaceHandler) BeanUtils.instantiateClass(handlerClass);
//调用处理类的init方法，在init方法中完成标签元素解析类的注册
namespaceHandler.init();
handlerMappings.put(namespaceUri, namespaceHandler);
return namespaceHandler;
}
catch (ClassNotFoundException ex) {
throw new FatalBeanException("Could not find NamespaceHandler class [" + className +
"] for namespace [" + namespaceUri + "]", ex);
}
catch (LinkageError err) {
throw new FatalBeanException("Unresolvable class definition for NamespaceHandler class [" +
className + "] for namespace [" + namespaceUri + "]", err);
}
}
}上面代码可以看到NamespaceHandler什么时候调用init方法
NamespaceHandler namespaceHandler = (NamespaceHandler) BeanUtils.instantiateClass(handlerClass);
//调用处理类的init方法，在init方法中完成标签元素解析类的注册
namespaceHandler.init();
handlerMappings.put(namespaceUri, namespaceHandler);
return namespaceHandler;最后调用了NamespaceHandler 的parse方法
context标签解析
<context:component-scan base-package="com.lemo">
1.通过context获取namespaceUri
2.通过spring.handlers文件中找到context标签的解析类为ContextNamespaceHandler
http://www.springframework.org/schema/context=org.springframework.context.config.ContextNamespaceHandler
ContextNamespaceHandler
@Override
public void init() {
registerBeanDefinitionParser("property-placeholder", new PropertyPlaceholderBeanDefinitionParser());
registerBeanDefinitionParser("property-override", new PropertyOverrideBeanDefinitionParser());
registerBeanDefinitionParser("annotation-config", new AnnotationConfigBeanDefinitionParser());
registerBeanDefinitionParser("component-scan", new ComponentScanBeanDefinitionParser());
registerBeanDefinitionParser("load-time-weaver", new LoadTimeWeaverBeanDefinitionParser());
registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
registerBeanDefinitionParser("mbean-export", new MBeanExportBeanDefinitionParser());
registerBeanDefinitionParser("mbean-server", new MBeanServerBeanDefinitionParser());
}registerBeanDefinitionParser("property-placeholder", new PropertyPlaceholderBeanDefinitionParser());
实际是向容器private final Map<String, BeanDefinitionParser> parsers = new HashMap<>();中添加元素解析类
component-scan元素解析
ComponentScanBeanDefinitionParser类的parser方法
public BeanDefinition parse(Element element, ParserContext parserContext) {
//获取basePackage属性
String basePackage = element.getAttribute(BASE_PACKAGE_ATTRIBUTE);
basePackage = parserContext.getReaderContext().getEnvironment().resolvePlaceholders(basePackage);
//可以用逗号分开
String[] basePackages = StringUtils.tokenizeToStringArray(basePackage,
ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
//创建注解扫描器
// Actually scan for bean definitions and register them.
ClassPathBeanDefinitionScanner scanner = configureScanner(parserContext, element);
//扫描并把扫描的类封装成beanDefinition对象 核心方法
Set<BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
registerComponents(parserContext.getReaderContext(), beanDefinitions, element);
return null;
}1.创建注解扫描器ClassPathBeanDefinitionScanner
<context:component-scan base-package="com.test" use-default-filters="true">
默认情况下use-default-filters为true
protected ClassPathBeanDefinitionScanner configureScanner(ParserContext parserContext, Element element) {
//使用默认的过滤器
boolean useDefaultFilters = true;
//@Service @Component 默认filter
if (element.hasAttribute(USE_DEFAULT_FILTERS_ATTRIBUTE)) {
useDefaultFilters = Boolean.valueOf(element.getAttribute(USE_DEFAULT_FILTERS_ATTRIBUTE));
}
//创建注解的扫描器
// Delegate bean definition registration to scanner class.
ClassPathBeanDefinitionScanner scanner = createScanner(parserContext.getReaderContext(), useDefaultFilters);
scanner.setBeanDefinitionDefaults(parserContext.getDelegate().getBeanDefinitionDefaults());
scanner.setAutowireCandidatePatterns(parserContext.getDelegate().getAutowireCandidatePatterns());
if (element.hasAttribute(RESOURCE_PATTERN_ATTRIBUTE)) {
scanner.setResourcePattern(element.getAttribute(RESOURCE_PATTERN_ATTRIBUTE));
}
try {
parseBeanNameGenerator(element, scanner);
}
catch (Exception ex) {
parserContext.getReaderContext().error(ex.getMessage(), parserContext.extractSource(element), ex.getCause());
}
try {
parseScope(element, scanner);
}
catch (Exception ex) {
parserContext.getReaderContext().error(ex.getMessage(), parserContext.extractSource(element), ex.getCause());
}
parseTypeFilters(element, scanner, parserContext);
return scanner;
}
protected ClassPathBeanDefinitionScanner createScanner(XmlReaderContext readerContext, boolean useDefaultFilters) {
return new ClassPathBeanDefinitionScanner(readerContext.getRegistry(), useDefaultFilters,
readerContext.getEnvironment(), readerContext.getResourceLoader());
}2.createScanner
protected ClassPathBeanDefinitionScanner createScanner(XmlReaderContext readerContext, boolean useDefaultFilters) {
return new ClassPathBeanDefinitionScanner(readerContext.getRegistry(), useDefaultFilters,
readerContext.getEnvironment(), readerContext.getResourceLoader());
}3.ClassPathBeanDefinitionScanner
public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters,
Environment environment, @Nullable ResourceLoader resourceLoader) {
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
this.registry = registry;
//使用默认的过滤器
if (useDefaultFilters) {
//@Service @Component
registerDefaultFilters();
}
setEnvironment(environment);
setResourceLoader(resourceLoader);
}4.registerDefaultFilters
protected void registerDefaultFilters() {
//过滤器中添加需要扫描的注解类型
this.includeFilters.add(new AnnotationTypeFilter(Component.class));
ClassLoader cl = ClassPathScanningCandidateComponentProvider.class.getClassLoader();
try {
this.includeFilters.add(new AnnotationTypeFilter(
((Class<? extends Annotation>) ClassUtils.forName("javax.annotation.ManagedBean", cl)), false));
logger.trace("JSR-250 'javax.annotation.ManagedBean' found and supported for component scanning");
}
catch (ClassNotFoundException ex) {
// JSR-250 1.1 API (as included in Java EE 6) not available - simply skip.
}
try {
this.includeFilters.add(new AnnotationTypeFilter(
((Class<? extends Annotation>) ClassUtils.forName("javax.inject.Named", cl)), false));
logger.trace("JSR-330 'javax.inject.Named' annotation found and supported for component scanning");
}
catch (ClassNotFoundException ex) {
// JSR-330 API not available - simply skip.
}
}this.includeFilters.add(new AnnotationTypeFilter(Component.class));这行代码可以看到默认将@Component注解的类和@Service注解的类加入到includeFilters中,为什么有@Service，是因为@Service继承了@Component
5.Set< BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
for (String basePackage : basePackages) {
//扫描到有注解的类并封装成BeanDefinition对象
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
for (BeanDefinition candidate : candidates) {
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
if (candidate instanceof AbstractBeanDefinition) {
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
}
if (candidate instanceof AnnotatedBeanDefinition) {
//支持了@Lazy @DependOn注解
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
}
if (checkCandidate(beanName, candidate)) {
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
definitionHolder =
AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
beanDefinitions.add(definitionHolder);
//BeanDefinition注册
registerBeanDefinition(definitionHolder, this.registry);
}
}
}
return beanDefinitions;
}6.Set< BeanDefinition> candidates = findCandidateComponents(basePackage);
private Set<BeanDefinition> scanCandidateComponents(String basePackage) {
Set<BeanDefinition> candidates = new LinkedHashSet<>();
try {
String packageSearchPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
resolveBasePackage(basePackage) + '/' + this.resourcePattern;
//这里递归寻找文件
Resource[] resources = getResourcePatternResolver().getResources(packageSearchPath);
boolean traceEnabled = logger.isTraceEnabled();
boolean debugEnabled = logger.isDebugEnabled();
for (Resource resource : resources) {
if (traceEnabled) {
logger.trace("Scanning " + resource);
}
if (resource.isReadable()) {
try {
//包装了类的基本信息的对象
MetadataReader metadataReader = getMetadataReaderFactory().getMetadataReader(resource);
//如果类上面有includeFilters注解
if (isCandidateComponent(metadataReader)) {
ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
sbd.setResource(resource);
sbd.setSource(resource);
if (isCandidateComponent(sbd)) {
if (debugEnabled) {
logger.debug("Identified candidate component class: " + resource);
}
candidates.add(sbd);
}
else {
if (debugEnabled) {
logger.debug("Ignored because not a concrete top-level class: " + resource);
}
}
}
else {
if (traceEnabled) {
logger.trace("Ignored because not matching any filter: " + resource);
}
}
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(
"Failed to read candidate component class: " + resource, ex);
}
}
else {
if (traceEnabled) {
logger.trace("Ignored because not readable: " + resource);
}
}
}
}
catch (IOException ex) {
throw new BeanDefinitionStoreException("I/O failure during classpath scanning", ex);
}
return candidates;
}
a.递归查找basePackage包下面所有的类文件
b.然后将类包装成MetadataReader对象，MetadataReader对象中有一个属性ClassMetadata，将类解析出来后，将类的所有信息都存在ClassMetadata里面
c.if (isCandidateComponent(metadataReader))
判断类上面是否含有includeFilters包含的注解,默认的是@Component
如果有，则new一个ScannedGenericBeanDefinition
7.创建了BeanDefinition后，需要对BeanDefinition属性赋值
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
for (String basePackage : basePackages) {
//扫描到有注解的类并封装成BeanDefinition对象
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
for (BeanDefinition candidate : candidates) {
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
if (candidate instanceof AbstractBeanDefinition) {
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
}
if (candidate instanceof AnnotatedBeanDefinition) {
//支持了@Lazy @DependOn注解
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
}
if (checkCandidate(beanName, candidate)) {
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
//这里不看
definitionHolder =
AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
beanDefinitions.add(definitionHolder);
//BeanDefinition注册
registerBeanDefinition(definitionHolder, this.registry);
}
}
}
return beanDefinitions;
}candidate.setScope(scopeMetadata.getScopeName());设置scope属性
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
可以看到对@Lazy注解支持，对@DependsOn注解支持，对@Primary注解支持等，其它2个用的比较少
static void processCommonDefinitionAnnotations(AnnotatedBeanDefinition abd, AnnotatedTypeMetadata metadata) {
//对@Lazy注解支持
AnnotationAttributes lazy = attributesFor(metadata, Lazy.class);
if (lazy != null) {
abd.setLazyInit(lazy.getBoolean("value"));
}
else if (abd.getMetadata() != metadata) {
lazy = attributesFor(abd.getMetadata(), Lazy.class);
if (lazy != null) {
abd.setLazyInit(lazy.getBoolean("value"));
}
}
if (metadata.isAnnotated(Primary.class.getName())) {
abd.setPrimary(true);
}
//对@DependsOn注解支持
AnnotationAttributes dependsOn = attributesFor(metadata, DependsOn.class);
if (dependsOn != null) {
abd.setDependsOn(dependsOn.getStringArray("value"));
}
AnnotationAttributes role = attributesFor(metadata, Role.class);
if (role != null) {
abd.setRole(role.getNumber("value").intValue());
}
AnnotationAttributes description = attributesFor(metadata, Description.class);
if (description != null) {
abd.setDescription(description.getString("value"));
}
}8.有了BeanDefinition,也给BeanDefinition赋值了，接着就是注册BeanDefinition
registerBeanDefinition(definitionHolder, this.registry);
public static void registerBeanDefinition(
BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
throws BeanDefinitionStoreException {
// Register bean definition under primary name.
String beanName = definitionHolder.getBeanName();
//完成BeanDefinition的注册
registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
//建立别名和 id的映射，这样就可以根据别名获取到id
// Register aliases for bean name, if any.
String[] aliases = definitionHolder.getAliases();
if (aliases != null) {
for (String alias : aliases) {
registry.registerAlias(beanName, alias);
}
}
}组件注册
registerComponents(parserContext.getReaderContext(), beanDefinitions, element);
public BeanDefinition parse(Element element, ParserContext parserContext) {
//获取basePackage属性
String basePackage = element.getAttribute(BASE_PACKAGE_ATTRIBUTE);
basePackage = parserContext.getReaderContext().getEnvironment().resolvePlaceholders(basePackage);
//可以用逗号分开
String[] basePackages = StringUtils.tokenizeToStringArray(basePackage,
ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
//创建注解扫描器
// Actually scan for bean definitions and register them.
ClassPathBeanDefinitionScanner scanner = configureScanner(parserContext, element);
//扫描并把扫描的类封装成beanDefinition对象 核心方法，重要程度 5
Set<BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
registerComponents(parserContext.getReaderContext(), beanDefinitions, element);
return null;
}
protected void registerComponents(
XmlReaderContext readerContext, Set<BeanDefinitionHolder> beanDefinitions, Element element) {
Object source = readerContext.extractSource(element);
CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(element.getTagName(), source);
for (BeanDefinitionHolder beanDefHolder : beanDefinitions) {
compositeDef.addNestedComponent(new BeanComponentDefinition(beanDefHolder));
}
// Register annotation config processors, if necessary.
boolean annotationConfig = true;
if (element.hasAttribute(ANNOTATION_CONFIG_ATTRIBUTE)) {
annotationConfig = Boolean.valueOf(element.getAttribute(ANNOTATION_CONFIG_ATTRIBUTE));
}
if (annotationConfig) {
//注册了几个比较重要的BeanPostProcessor类
//AutowiredAnnotationBeanPostProcessor,ConfigurationClassPostProcessor,CommonAnnotationBeanPostProcessor
Set<BeanDefinitionHolder> processorDefinitions =
AnnotationConfigUtils.registerAnnotationConfigProcessors(readerContext.getRegistry(), source);
for (BeanDefinitionHolder processorDefinition : processorDefinitions) {
compositeDef.addNestedComponent(new BeanComponentDefinition(processorDefinition));
}
}
readerContext.fireComponentRegistered(compositeDef);
}Set< BeanDefinitionHolder> processorDefinitions =
AnnotationConfigUtils.registerAnnotationConfigProcessors(readerContext.getRegistry(), source);
public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
BeanDefinitionRegistry registry, @Nullable Object source) {
DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
if (beanFactory != null) {
if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
}
if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
}
}
Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);
if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
}
if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition();
try {
def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
AnnotationConfigUtils.class.getClassLoader()));
}
catch (ClassNotFoundException ex) {
throw new IllegalStateException(
"Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
}
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
}
if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
}
if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
}
return beanDefs;
}从上面代码可以看出注册了如下
ConfigurationClassPostProcessor,AutowiredAnnotationBeanPostProcessor,CommonAnnotationBeanPostProcessor,
PersistenceAnnotationBeanPostProcessor
ConfigurationClassPostProcessor对@Configuration,@Component,@ComponentScan,@Import,@ImportResource,@Bean注解的支撑
AutowiredAnnotationBeanPostProcessor对@Autowired，@Value注解的支撑
CommonAnnotationBeanPostProcessor对@PostConstruct，@PreDestroy，@Resource注解的支撑
PersistenceAnnotationBeanPostProcessor对JPA的支撑
自定义注解，将bean交给spring管理
1、@MyService可以继承@Component
2、
@Component
public class BeanDefinitionTest implements BeanDefinitionRegistryPostProcessor {
@Override
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(registry);
scanner.addIncludeFilter(new AnnotationTypeFilter(MyService.class));
scanner.scan("com.test");
}
@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
}
}实现自定义标签
<test:redis id="redis" ip="192.168.88.139" port="6379"/>
1.在spring.schemas下定义标签规范约束
http://www.test.com/schema/mytags.xsd=META-INF/mytags.xsd
2.
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema xmlns="http://www.test.com/schema/mytags"
xmlns:xsd="http://www.w3.org/2001/XMLSchema" targetNamespace="http://www.test.com/schema/mytags"
elementFormDefault="qualified" attributeFormDefault="unqualified">
<xsd:element name="redis">
<xsd:complexType>
<xsd:attribute name="id" type="xsd:string"></xsd:attribute>
<xsd:attribute name="ip" type="xsd:string"></xsd:attribute>
<xsd:attribute name="port" type="xsd:string"></xsd:attribute>
</xsd:complexType>
</xsd:element>
</xsd:schema>3.spring.handlers定义标签解析类
http://www.test.com/schema/mytags=com.test.tag.TagsNamespaceHandler
4.
public class TagsNamespaceHandler extends NamespaceHandlerSupport {
public void init() {
this.registerBeanDefinitionParser("redis",
new RedisBeanDifinitionParser());
}
@Override
public BeanDefinitionHolder decorate(Node node, BeanDefinitionHolder definition, ParserContext parserContext) {
return super.decorate(node, definition, parserContext);
}
}public class RedisBeanDifinitionParser extends
AbstractSingleBeanDefinitionParser {
protected Class<?> getBeanClass(Element element) {
return Jedis.class;
}
protected void doParse(Element element, BeanDefinitionBuilder builder) {
String ip = element.getAttribute("ip");
String port = element.getAttribute("port");
builder.addConstructorArgValue(ip);
builder.addConstructorArgValue(Integer.parseInt(port));
}
}总结
1.spring标签解析分为默认标签解析与自定义标签解析
2.默认标签解析最常见的就是bean标签，次之为import标签等
3.bean标签解析先构建GenericBeanDefinition，然后将标签上的元素与子标签解析出来，为GenericBeanDefinition里的属性赋值
bean标签常见的元素有id,class,init-method,factory-bean,factory-method,lazy-init,depends-on,destroy-method,scope,primary等等
子标签有constructor-arg，property，lookup-method，replaced-method
4.GenericBeanDefinition中MutablePropertyValues，MethodOverrides，ConstructorArgumentValues,attributes三个重要的属性对应着property标签，lookup-method与replaced-method标签，constructor-arg标签，meta标签的解析与封装
5.创建完GenericBeanDefinition后，接着就是注册，注册时2个比较重要的容器是beanDefinitionMap，beanDefinitionNames
6.自定义标签解析首先是通过spring.handlers文件找到namespaceUri对应的解析类NameSpaceHandler
7.该解析类中有3个重要的方法
init 完成标签元素解析类的注册
parse 解析
decorate 装饰BeanDefinitionHolder
8.解析首先是创建注解扫描器
9.注解扫描器默认扫描的是类上包含@Component,@Service注解的类，并对其一些注解的支持,一并封装到ScannedGenericBeanDefinition中
10.完成@Component,@Service注解类的注册
11.完成默认标签与自定义标签解析后，spring注册了几个常见的BeanPostProcessor,如下
ConfigurationClassPostProcessor,AutowiredAnnotationBeanPostProcessor,CommonAnnotationBeanPostProcessor,
PersistenceAnnotationBeanPostProcessor
ConfigurationClassPostProcessor对@Configuration,@Component,@ComponentScan,@Import,@ImportResource,@Bean注解的支撑
AutowiredAnnotationBeanPostProcessor对@Autowired，@Value注解的支撑
CommonAnnotationBeanPostProcessor对@PostConstruct，@PreDestroy，@Resource注解的支撑
PersistenceAnnotationBeanPostProcessor对JPA的支撑
浙公网安备 33010602011771号
