kubernetes1.18安装Dashboard

​

安装dashboard

1. 下载安装dashboard用yaml文件

wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0/aio/deploy/recommended.yaml

2. 修改kubernetes-dashboard的service类型为NodePort类型

修改kubernetes-dashboard的service类型为NodePort类型，使用nodeport方式访问Dashboard 。

[root@k8s-master dashboard]# vim recommended.yaml
...
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort # 新增
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30443 # 新增
  selector:
    k8s-app: kubernetes-dashboard

3. 安装Dashboard

[root@k8s-master dashboard]# kubectl create -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created

4. 确认Dashboard 关联pod和service的状态

[root@k8s-master dashboard]# kubectl get pod,svc -n kubernetes-dashboard
NAME                                            READY   STATUS    RESTARTS   AGE
pod/dashboard-metrics-scraper-c79c65bb7-bpnbq   1/1     Running   0          2m52s
pod/kubernetes-dashboard-56484d4c5-cthdm        1/1     Running   0          2m52s

NAME                                TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)         AGE
service/dashboard-metrics-scraper   ClusterIP   10.105.74.63   <none>        8000/TCP        2m52s
service/kubernetes-dashboard        NodePort    10.98.84.244   <none>        443:30444/TCP   2m52s

5.创建serviceaccount和clusterrolebinding资源YAML文件

默认Dashboard为最小RBAC权限，添加集群管理员权限以便从Dashboard操作集群资源

[root@k8s-master dashboard]# vim adminuser.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

6. 创建admin-user并且赋予admin-user集权管理员权限

[root@k8s-master dashboard]# kubectl create -f adminuser.yaml
serviceaccount/admin-user created
clusterrolebinding.rbac.authorization.k8s.io/admin-user created

浏览器访问Dashboard UI

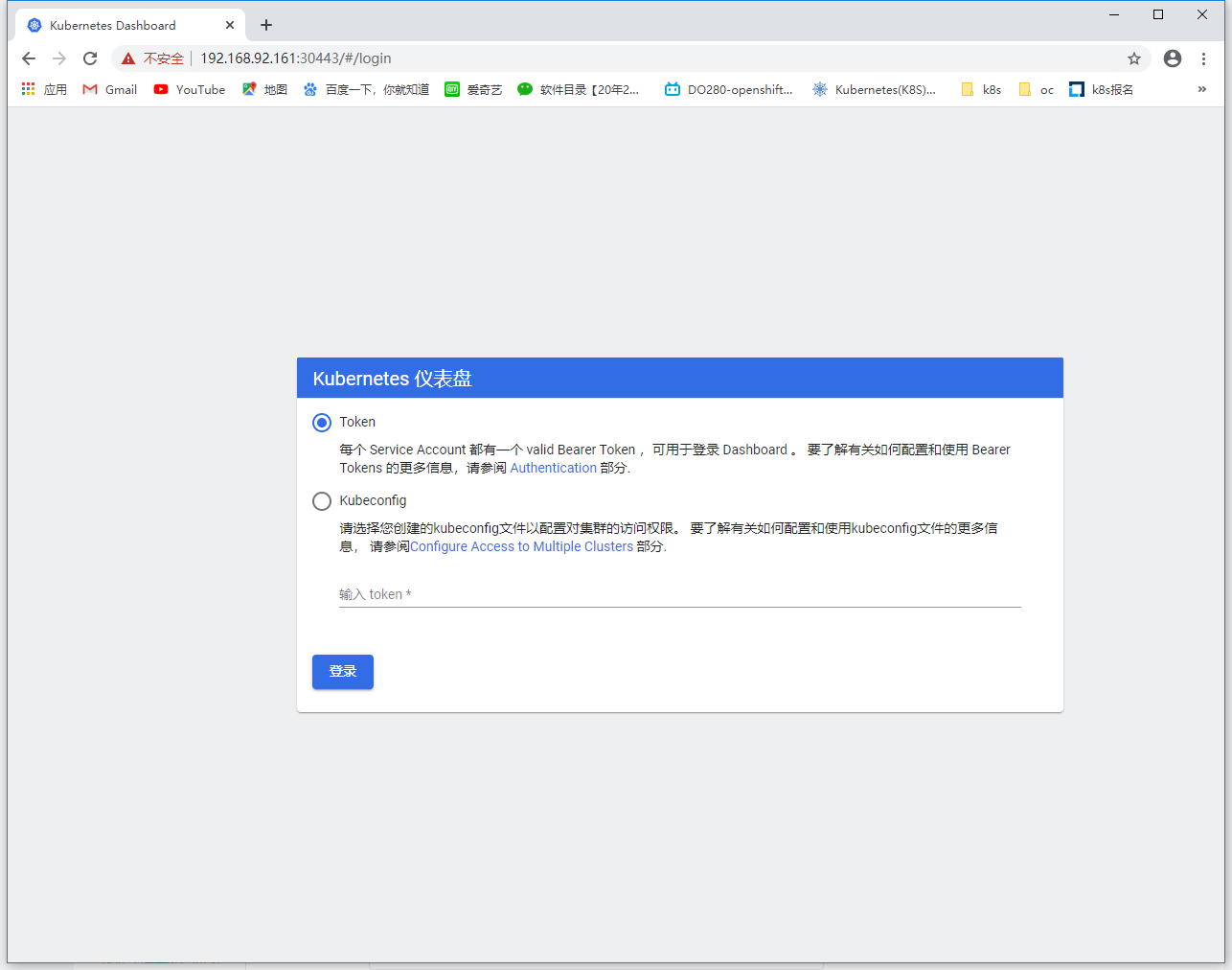

1. 浏览器访问https://IP:30443

​

2. 查看token

获取token，用于登录Dashboard UI

[root@k8s-master dashboard]# kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-k4gdg
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: d116f560-15a2-45ca-930f-40f4fc12ce44

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IlNEa2dTVGZhM09xd0MyNWtqaGFoZEc5R0NuYnVsZ0FfVlJQODNaQUFhZjgifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWs0Z2RnIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJkMTE2ZjU2MC0xNWEyLTQ1Y2EtOTMwZi00MGY0ZmMxMmNlNDQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.qn98x11n4rPUGkDBU6ceImElgeVbM-b2SeXeeiUEm0rj41_vWXzlpd-r1Z1leuRHuveYnLpquR3QhMlFdjxLAIVAQ83KnDNhHyXYY08ZFeoGqGqlOWIAI-OCS9_IhClIskmmqYwA0kQ5AkHWbEsCKEMiYL-dZH7ECPziV0icFfBIYa6zK8-RLUBHR56rvzgjcap1WeTPdu84vr1jl8a4ZLMrzdwW_WmC4rsesA67DH6cQLgoKZRejGf6Sp4h7izO3DEwcGCUrNbg8biDRoqJwzusKoM7IJbC_C14Omg1kGrozFrMufHs8n7ujjpyuLeUyGjseX9eazlnyNkAwY0XIw

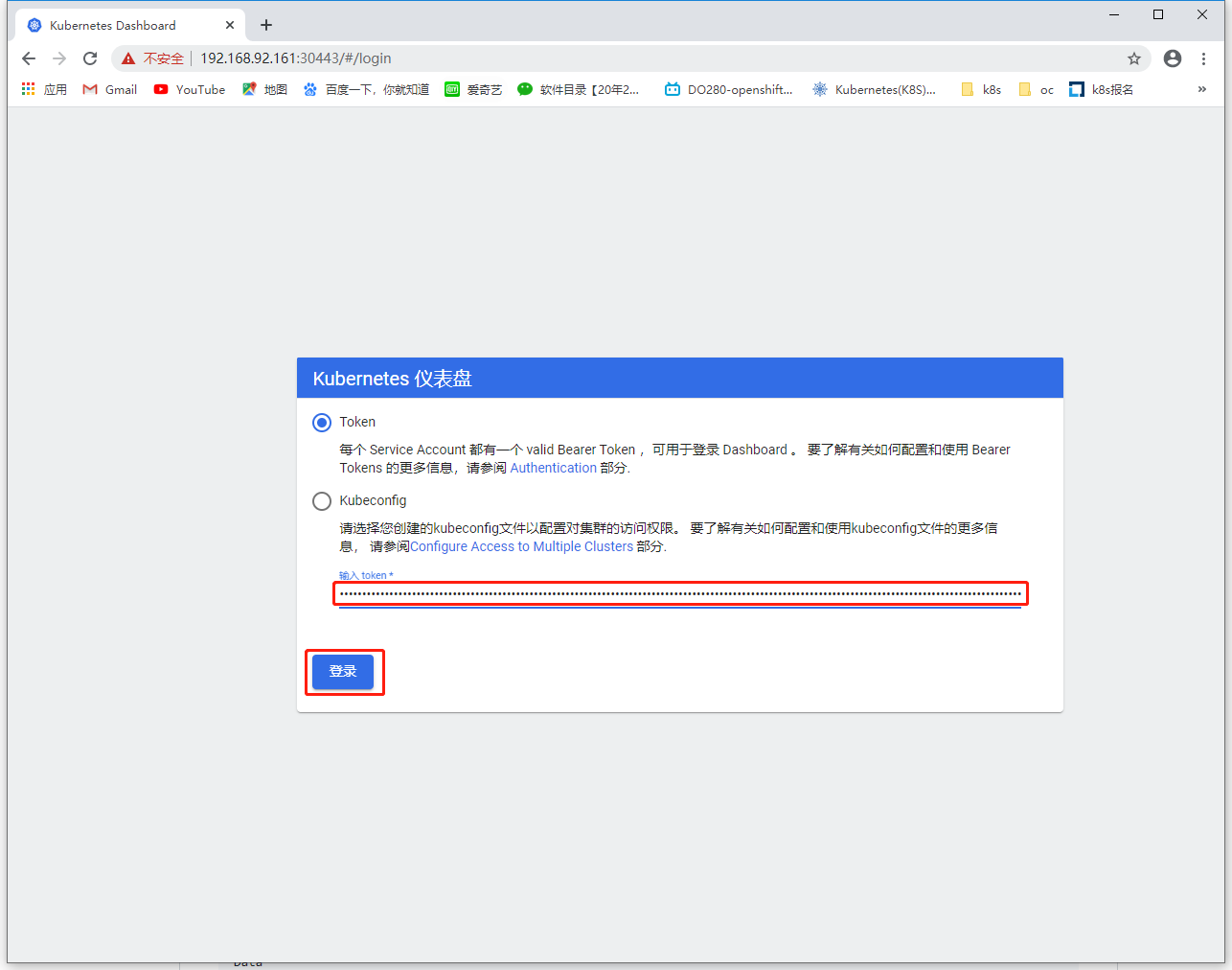

3. 登录Dashboard UI

输入第二部获取到的token值，点击登录按钮

​

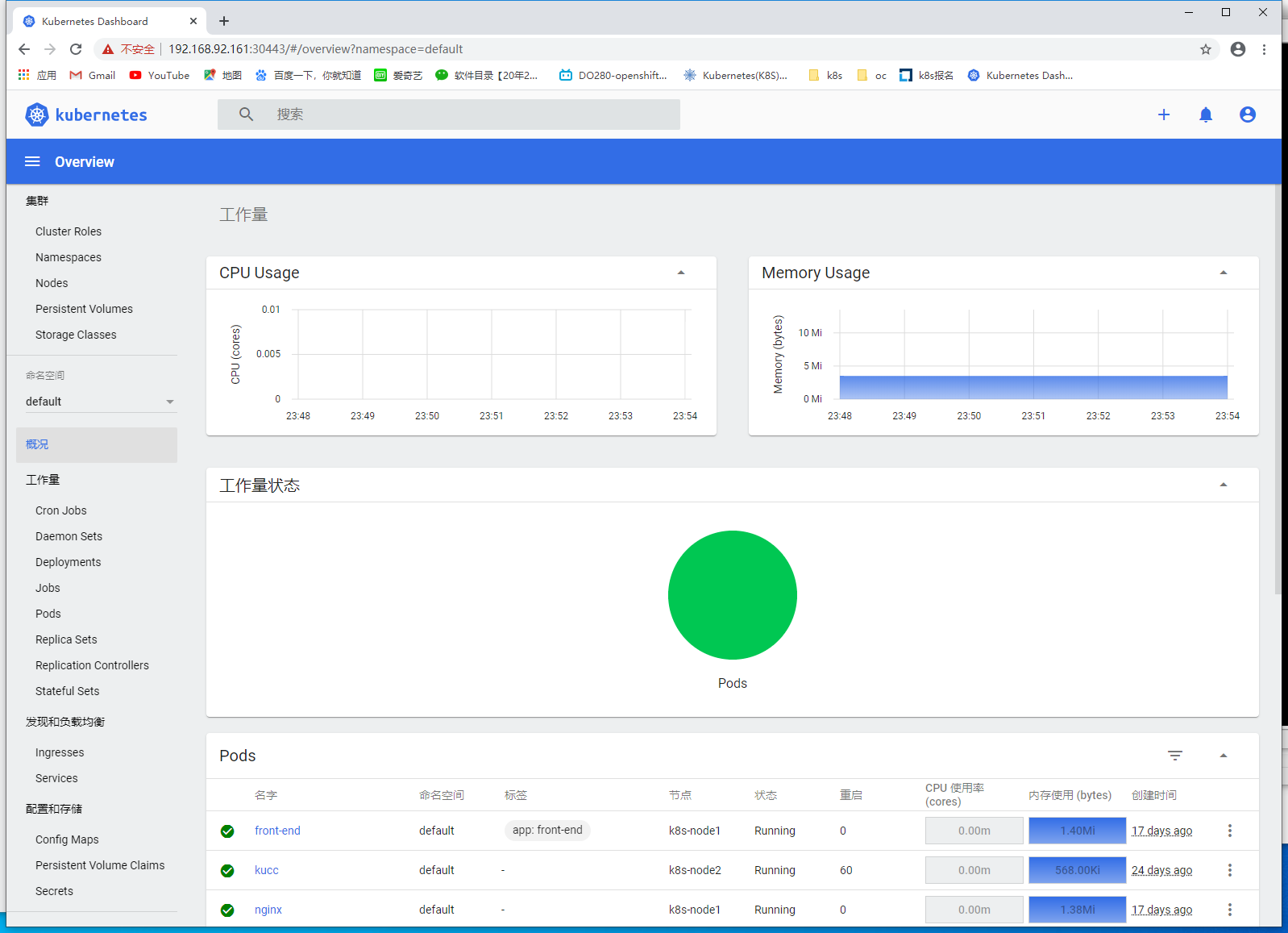

Dashboard 概况画面如下

​

参考资料

https://github.com/kubernetes/dashboard/tree/v2.0.0/docs

​
