红黑树~

ref: 《STL源码剖析》

红黑树

红黑树是一种平衡二叉树;平衡二叉树有AVL-TREE、RB-TREE、AA-TREE等;

平衡”的大致意思是:没有任何一个节点过深。

此外,红黑树还必须满足以下规则:

  1. 每个节点不是红色就是黑色;
  2. 根节点为黑色;
  3. 如果节点为红色,其子节点必须为黑色;
  4. 任一节点至NULL(树尾端,叶节点的子节点)的任何路径,所含黑节点数必须相同;

插入

首先需要将新节点插入树中,将其设置为红色,然后重新平衡(rebalance);

template  <class Key, class Value, class KeyOfValue, class Compare>
pair <typename rb_tree<Key, Value, KeyOfValue, Compare>::iterator, bool> rb_tree<Key, Value, KeyOfValue, Compare>::insert_unique(const Value &v){ // 插入唯一的值
    link_type y = header;

    // 从树根开始遍历,找到合适的插入位置;
    link_type x = root();
    bool cmp = true;
    while( x != 0 ){
        y = x;
        cmp = key_compare(KeyOfValue()(v), key(x));  // key_compare 等价于 key(v) < key(x)
        x = cmp ? left(x) : right(x);  // 小于向左,大于等于向右
    }
    // 结束循环时,y为x的父节点
    iterator it = iterator(y);
    if(cmp)    // cmp 为最后一次比较的结果
        if(it == begin())  // 如果插入点为最左节点,直接插入
            return pair<iterator, bool>(_insert(x, y, v), true);
        else    // 否则,it--
            it--;
    if(key_compare(key(it.node_ptr), KeyOfValue()(v)))
        return pair<iterator, bool>(_insert(x, y, v), true);
    // 这样做的原因是,最后,插入点假设为ite,则满足:*(ite-1) < *ite < *(ite+1);
    // 但如果找到的位置不满足这个关系,则必然已经有该值
    return pair<iterator, bool>(it, false);
}

template  <class Key, class Value, class KeyOfValue, class Compare>
typename rb_tree<Key, Value, KeyOfValue, Compare>::iterator
rb_tree<Key, Value, KeyOfValue, Compare>::_insert(base_ptr_type x, base_ptr_type y, const value_type &v){
    // 插入点为x,x的父节点为y,v为插入的值
    link_type _x = (link_type)x;
    link_type _y = (link_type)y;
    link_type z;
    if(_y == header || _x != 0 || key_compare(KeyOfValue()(v), key(_y))){
        z = create_node(v);
        left(_y) = z;
        if(_y == header){
            root() = z;
            rightmost() = z;
        }
        else if(_y == leftmost()){
            leftmost() = z;
        }
    }
    else{
        z = create_node(v);
        right(_y) = z;
        if(_y == rightmost())
            rightmost() = z;
    }
    parent(z) = _y;
    left(z) = 0;
    right(z) = 0;
    _rb_tree_rebalance(z, header->parent);  // 重新平衡
    node_count ++;
    return iterator(z);
}

根据条件4,所有新节点必须为红色,根据条件3,新节点之父必须为黑,如果上述两个条件未能满足,则需要改变树的形状。

假定:
插入的元素:X
X的父节点:P
P的父节点:G
P的兄弟节点:S
G的父节点:GG

X必然为红色,此时对于插入有以下几种情况:

P为黑色

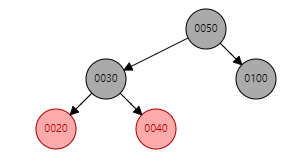

直接插入即可(下图,40节点插入45)

P为红色

这就复杂了啊,还需要几种情况讨论:

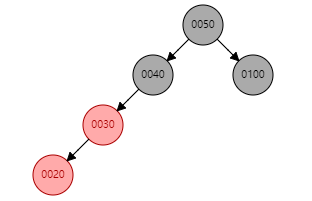

1. S为黑且X为外侧插入:单旋



// 左旋
inline void _rb_tree_rotate_left(rb_tree_base_node *x, rb_tree_base_node* &root){
    rb_tree_base_node *y = x->right;
    x->right = y->left;
    if(y->left){
        y->left->parent = x;
    }
    y->parent = x->parent;
    if(x == root){
        root = y;
    }
    else if(x == x->parent->left){
        x->parent->left = y;
    }
    else{
        x->parent->right = y;
    }
    y->left = x;
    x->parent = y;
}
// 右旋
inline void _rb_tree_rotate_right(rb_tree_base_node *x, rb_tree_base_node* &root){
    rb_tree_base_node *y = x->left;
    x->left = y->right;
    if(y->right){
        y->right->parent = x;
    }
    y->parent = x->parent;
    if(x == root){
        root = y;
    }
    else if(x == x->parent->right){
        x->parent->right = y;
    }
    else{
        x->parent->left = y;
    }
    y->right = x;
    x->parent = y;
}

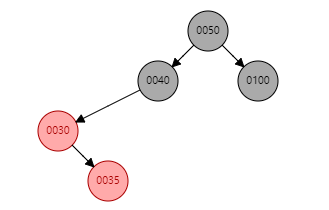

2. S为黑且X为内侧插入:双旋



先进行一次单旋

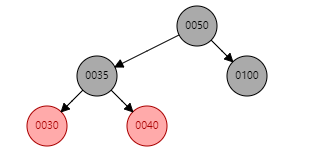

此时,相当于上一种情况,再次单旋

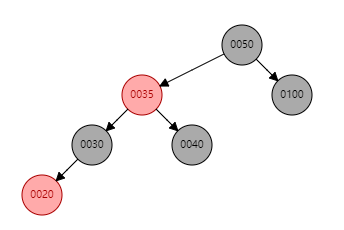

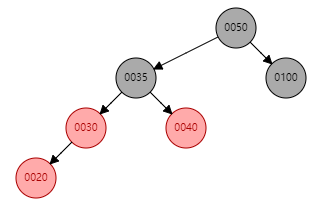

3. S为红色且X为外(内)侧插入:单旋(也可以直接变色)

之后有两种结果,一种为GG为黑色(如下图所示,则直接返回即可);另一种为GG为红色,则需要继续处理(见4);


4. S为红色且X为外(内)侧插入(续)

这时,可以将G设为X,那么此时问题又转化了之前的状况,以此循环;

重平衡代码实现:

inline void _rb_tree_rebalance(rb_tree_base_node* x, rb_tree_base_node* &root){
    x->color = rb_tree_color_red;   // 新节点必须为红色
    while(x != root && x->parent->color == rb_tree_color_red){  // 父节点需要为红色
        if(x->parent == x->parent->parent->left){              // X在GG的左子树
            rb_tree_base_node *y = x->parent->parent->right;   // Y为S
            if(y && y->color == rb_tree_color_red){            // S为红色,只需要变色(3)
                x->parent->color = rb_tree_color_black;
                y->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                x = x->parent->parent;                         // X变为GG,继续循环(4)
            }
            else{
                if(x == x->parent->right){                    // 如果在内侧,两次旋转(2)
                    x = x->parent;
                    _rb_tree_rotate_left(x, root);
                }                                             // 如果在外侧,只需要单旋(1)
                x->parent->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                _rb_tree_rotate_right(x->parent->parent, root);
            }
        }
        else{                                                 // 与上一个类似
            rb_tree_base_node *y = x->parent->parent->left;
            if(y && y->color == rb_tree_color_red){
                x->parent->color = rb_tree_color_black;
                y->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                x = x->parent->parent;
            }
            else{
                if(x == x->parent->left){
                    x = x->parent;
                    _rb_tree_rotate_right(x, root);
                }
                x->parent->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                _rb_tree_rotate_left(x->parent->parent, root);
            }
        }
    }
    root->color = rb_tree_color_black;                         // 确保根节点为黑色
}

完整代码

#ifndef RBTREE
#define RBTREE
#include <utility>
#include <iostream>
#include <typeinfo>
using namespace std;

typedef bool rb_tree_color_type;
const rb_tree_color_type rb_tree_color_red = false;
const rb_tree_color_type rb_tree_color_black = true;

struct rb_tree_base_node{
    typedef rb_tree_color_type color_type;
    typedef rb_tree_base_node * link_type;

    color_type color;
    link_type parent;
    link_type left;
    link_type right;
    static link_type minimum(link_type x){
        while (x->left != 0) x = x->left;
        return x;
    }

    static link_type maximum(link_type x){
        while (x->right != 0) x = x->right;
        return x;
    }
};

template <class Value>
struct rb_tree_node: public rb_tree_base_node{
    typedef rb_tree_node<Value> *link_type;
    Value value_field;
};

struct rb_tree_iterator_base{
    rb_tree_base_node *node_ptr;
    void increment();
    void decrement();
};

template <class Value,class Ref,class Ptr>
struct rb_tree_iterator: public rb_tree_iterator_base{
    typedef Value value_type;
    typedef Ref reference;
    typedef Ptr pointer;
    typedef rb_tree_iterator<Value, Value&, Value*> iterator;
    typedef rb_tree_iterator<Value, const Value&, const Value*> const_iterator;
    typedef rb_tree_iterator<Value, Ref, Ptr> self;
    typedef rb_tree_node<Value> *link_type;
    rb_tree_iterator(){}
    rb_tree_iterator(link_type x){ node_ptr = x; }
    rb_tree_iterator(const iterator &it){ node_ptr = it.node_ptr; }

    reference operator*() const { return link_type(node_ptr)->value_field; }
    pointer operator->() const { return &(operator*()); }

    self &operator++(){ increment(); return *this;}
    self operator++(int){
        self tmp = *this;
        increment();
        return tmp;
    }

    self &operator--(){ decrement(); return *this;}
    self operator--(int){
        self tmp = *this;
        decrement();
        return tmp;
    }

    bool operator==(const iterator &it) const{
        return (operator*()) == (*it);
    }
};

// template <class Key, class Value, class KeyOfValue, class Compare, class Alloc = alloc>
template <class Key, class Value, class KeyOfValue, class Compare>
class rb_tree{
protected:
    typedef void* void_pointer;
    typedef rb_tree_base_node *base_ptr_type;
    typedef rb_tree_node<Value> rb_tree_node_type;
    // typedef simple_alloc<rb_tree_node_type, Alloc> rb_tree_node_allocator;
    typedef rb_tree_color_type color_type;
public:
    typedef Key key_type;
    typedef Value value_type;
    typedef value_type *pointer;
    typedef const value_type* const_pointer;
    typedef value_type &reference;
    typedef const value_type &const_reference;
    typedef rb_tree_node_type *link_type;
    typedef size_t size_type;
    typedef ptrdiff_t difference_type;
protected:
    // link_type get_node() { /* TO-DO */ }
    // void put_node(link_type p) { /* TO-DO */ }
    link_type create_node(const value_type& x){
        link_type tmp = new rb_tree_node<value_type>();
        tmp->value_field = x;
        return tmp;
    }

    link_type clone_node(link_type x){
        link_type tmp = create_node(x->value_field);
        tmp->color = x->color;
        tmp->left = 0;
        tmp->right = 0;
        return tmp;
    }

    void destroy_node(link_type p){
        delete &(p->value_field);
        delete p;
    }

protected:
    size_type node_count;
    link_type header;
    Compare key_compare;

    link_type &root() const{
        return (link_type &)(header->parent);
    }

    link_type &leftmost() const{
        return (link_type &)(header->left);
    }

    link_type &rightmost() const{
        return (link_type &)(header->right);
    }

    static link_type &left(link_type x){
        return (link_type &)(x->left);
    }

    static link_type &right(link_type x){
        return (link_type &)(x->right);
    }

    static link_type &parent(link_type x){
        return (link_type &)(x->parent);
    }

    static reference value(link_type x){
        return x->value_field;
    }

    static const key_type &key(link_type x){
        return KeyOfValue()(value(x));  // KeyOfValue 仿函数,用于从实值value中取出键值key, (用户定义并传入的)
    }

    static color_type &color(link_type x){
        return (color_type &)(x->color);
    }

    static link_type &left(base_ptr_type x){
        return (link_type &)(x->left);
    }

    static link_type &right(base_ptr_type x){
        return (link_type &)(x->right);
    }
    static link_type &parent(base_ptr_type x){
        return (link_type &)(x->parent);
    }
    static reference value(base_ptr_type x){
        return ((link_type)x)->value_field;
    }
    static const key_type &key(base_ptr_type x){
        return KeyOfValue()(value((link_type)x));  // KeyOfValue 仿函数,用于从实值value中取出键值key, (用户定义并传入的)
    }
    static color_type &color(base_ptr_type x){
        return (color_type &)((link_type)x->color);
    }

    static link_type minimum(link_type x){
        return (link_type) rb_tree_base_node::minimum(x);
    }

    static link_type maximum(link_type x){
        return (link_type) rb_tree_base_node::maximum(x);
    }

public:
    typedef rb_tree_iterator<value_type, reference, pointer> iterator;

private:
    iterator _insert(base_ptr_type x, base_ptr_type y, const value_type &v); // 插入点为x,父节点为y,参数v为新值,即插入在x和y之间
    link_type _copy(link_type, link_type);
    void _erase(link_type);
    void init(){
        header = new rb_tree_node<Value>();
        color(header) = rb_tree_color_red;
        root() = 0;
        leftmost() = header;
        rightmost() = header;
    }

public:
    rb_tree(const Compare& comp = Compare()): node_count(0), key_compare(comp) {
        init();
    }
    ~rb_tree(){
        // clear();
        delete header;
    }
    rb_tree<Key, Value, KeyOfValue, Compare> & operator=(const rb_tree<Key, Value, KeyOfValue, Compare>);

public:
    Compare key_comp() const{return key_compare;}
    iterator begin(){ return leftmost();}
    iterator end(){ return header;}
    bool empty()const{ return node_count == 0; }
    size_type size() const{ return node_count; }
    size_type max_size() const{ return size_type(-1); }

public:
    pair<iterator, bool> insert_unique(const value_type&);

    template<class InputIterator>
    void insert_unique(const InputIterator&, const InputIterator&);

    iterator insert_equal(const value_type&);

    template<class InputIterator>
    void insert_equal(const InputIterator&, const InputIterator&);

    iterator find(const Key &k);

};


inline void _rb_tree_rotate_left(rb_tree_base_node *x, rb_tree_base_node* &root){
    rb_tree_base_node *y = x->right;
    x->right = y->left;
    if(y->left){
        y->left->parent = x;
    }
    y->parent = x->parent;
    if(x == root){
        root = y;
    }
    else if(x == x->parent->left){
        x->parent->left = y;
    }
    else{
        x->parent->right = y;
    }
    y->left = x;
    x->parent = y;
}

inline void _rb_tree_rotate_right(rb_tree_base_node *x, rb_tree_base_node* &root){
    rb_tree_base_node *y = x->left;
    x->left = y->right;
    if(y->right){
        y->right->parent = x;
    }
    y->parent = x->parent;
    if(x == root){
        root = y;
    }
    else if(x == x->parent->right){
        x->parent->right = y;
    }
    else{
        x->parent->left = y;
    }
    y->right = x;
    x->parent = y;
}

inline void _rb_tree_rebalance(rb_tree_base_node* x, rb_tree_base_node* &root){
    x->color = rb_tree_color_red;
    while(x != root && x->parent->color == rb_tree_color_red){
        if(x->parent == x->parent->parent->left){
            rb_tree_base_node *y = x->parent->parent->right;
            if(y && y->color == rb_tree_color_red){
                x->parent->color = rb_tree_color_black;
                y->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                x = x->parent->parent;
            }
            else{
                if(x == x->parent->right){
                    x = x->parent;
                    _rb_tree_rotate_left(x, root);
                }
                x->parent->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                _rb_tree_rotate_right(x->parent->parent, root);
            }
        }
        else{
            rb_tree_base_node *y = x->parent->parent->left;
            if(y && y->color == rb_tree_color_red){
                x->parent->color = rb_tree_color_black;
                y->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                x = x->parent->parent;
            }
            else{
                if(x == x->parent->left){
                    x = x->parent;
                    _rb_tree_rotate_right(x, root);
                }
                x->parent->color = rb_tree_color_black;
                x->parent->parent->color = rb_tree_color_red;
                _rb_tree_rotate_left(x->parent->parent, root);
            }
        }
    }
    root->color = rb_tree_color_black;
}

template <class Key, class Value, class KeyOfValue, class Compare>
template <class InputIterator>
void rb_tree<Key, Value, KeyOfValue, Compare>::insert_equal(const InputIterator &first, const InputIterator &last){
    InputIterator it = first;
    while(it != last){
        insert_equal(*it);
        it ++;
    }
}

template  <class Key, class Value, class KeyOfValue, class Compare>
typename rb_tree<Key, Value, KeyOfValue, Compare>::iterator rb_tree<Key, Value, KeyOfValue, Compare>::insert_equal(const Value &v){
    link_type y = header;
    link_type x = root();
    while( x != 0 ){
        y = x;
        x = key_compare(KeyOfValue()(v), key(x)) ? left(x) : right(x);
    }
    return _insert(x, y, v);
}

template <class Key, class Value, class KeyOfValue, class Compare>
template <class InputIterator>
void rb_tree<Key, Value, KeyOfValue, Compare>::insert_unique(const InputIterator &first, const InputIterator &last){
    InputIterator it = first;
    while(it != last){
        insert_unique(*it);
        it ++;
    }
}

template  <class Key, class Value, class KeyOfValue, class Compare>
pair <typename rb_tree<Key, Value, KeyOfValue, Compare>::iterator, bool> rb_tree<Key, Value, KeyOfValue, Compare>::insert_unique(const Value &v){
    link_type y = header;
    link_type x = root();
    bool cmp = true;
    while( x != 0 ){
        y = x;
        cmp = key_compare(KeyOfValue()(v), key(x));
        x = cmp ? left(x) : right(x);
    }
    iterator it = iterator(y);
    if(cmp)
        if(it == begin())
            return pair<iterator, bool>(_insert(x, y, v), true);
        else
            it--;
    if(key_compare(key(it.node_ptr), KeyOfValue()(v)))
        return pair<iterator, bool>(_insert(x, y, v), true);
    return pair<iterator, bool>(it, false);
}

template  <class Key, class Value, class KeyOfValue, class Compare>
typename rb_tree<Key, Value, KeyOfValue, Compare>::iterator
rb_tree<Key, Value, KeyOfValue, Compare>::_insert(base_ptr_type x, base_ptr_type y, const value_type &v){
    link_type _x = (link_type)x;
    link_type _y = (link_type)y;
    link_type z;
    if(_y == header || _x != 0 || key_compare(KeyOfValue()(v), key(_y))){
        z = create_node(v);
        left(_y) = z;
        if(_y == header){
            root() = z;
            rightmost() = z;
        }
        else if(_y == leftmost()){
            leftmost() = z;
        }
    }
    else{
        z = create_node(v);
        right(_y) = z;
        if(_y == rightmost())
            rightmost() = z;
    }
    parent(z) = _y;
    left(z) = 0;
    right(z) = 0;
    _rb_tree_rebalance(z, header->parent);
    node_count ++;
    return iterator(z);
}

template <class Key, class Value, class KeyOfValue, class Compare>
typename rb_tree<Key, Value, KeyOfValue, Compare>::iterator
rb_tree<Key, Value, KeyOfValue, Compare>::find(const Key &k) {
    link_type y = header;
    link_type x = root();
    while(x != 0)
        if(!key_compare(key(x), k))
            y = x, x = left(x);
        else
            x = right(x);
    iterator it = iterator(y);
    return (it == end() || key_compare(k, key(y)))? end() : it;
}

/*
本红黑树有额外的根节点 end/start:
root->parent == end
end->left == minimum
end->right = maximum
*/
void rb_tree_iterator_base::increment(){
    if (node_ptr->right != 0){
        node_ptr = node_ptr->right;
        while(node_ptr->left != 0)
            node_ptr = node_ptr->left;
    }
    else{
        rb_tree_base_node *p = node_ptr->parent;
        if(p->right == node_ptr){
            p = p->parent;
            node_ptr = node_ptr->parent;
            while(p->right == node_ptr){
                p = p->parent;
                node_ptr = node_ptr->parent;
            }
        }
        if(p->right != node_ptr)  //不满足该条件则指向了end
            node_ptr = p;
    }
}

void rb_tree_iterator_base::decrement(){
    if (node_ptr->left != 0){
        node_ptr = node_ptr->left;
    }
    else{
        rb_tree_base_node *p = node_ptr->parent;
        if(p->right == node_ptr){
            node_ptr = p;
        }
        else{
            node_ptr = p;
            p = node_ptr->parent;
            while(p->left == node_ptr){
                node_ptr = p;
                p = node_ptr->parent;
            }
            if(p->right == node_ptr)
                node_ptr = p;
        }
    }
}

#endif

set

特性

1)所有元素都会根据键值自动排序;
2)set元素的键值就是实值,实值就是键值;
3)set不允许两个元素有相同的键值;
4)不可以通过迭代器改变set元素值,因为set元素值就是键值,如果任意改变set元素值,会严重破坏set组织(故set::iterator被定义为RB-tree的const_iterator,杜绝写入操作);

实现

set以RB-tree为底层机制,set几乎只是转调用RB-tree的操作行为;
我们在红黑树实现的时候,其实k,v都存储于Value中,然后通过KeyOfValue仿函数,从实值value中取出键值key,如set的Value就是key,而map的Value为pair<key, value> (用户定义并传入的)

1.类型定义

template<class Key,  class Compare=less<Key>>
class set{
public:
  typedef Key key_type;
  typedef Key value_type;
private:
  typedef rb_tree<key_type, value_type, identity<value_type>, key_compare> rep_type;
  // 上述四个模板参数分别为:键值类型、实值类型、获取键值的方法、键值的比较方法

  rep_type t;   // 定义了一个红黑树。。。。

  // 下面是 identity<value_type> 定义
  template <class T>
  struct identiry : public unary_function<T, T> {  // 由于set键值就是实值,
                                                  // 我们只需要通过该函数取出value的值即可
    const T&operator()(const T& x) const {return x;}
  };
public:
  typedef typename rep_type::const_iterator iterator;  // 注意是const
};

2.其他实现

pair<iteartor, bool> insert(const value_type& x){   // 注意:因为元素不可重复,所以使用insert_unique(调用RB_tree::insert_unique)
  pair<typename rep_type::iterator, bool> p = t.insert_unique(x);
  return pair<iterator, bool>(p.first, p.second);
}

map

特性:

1)所有元素都会根据元素的键值自动被排序;
2)所有元素都是pair,同时拥有实值(value)和键值(key),pair的第一元素被视为键值,第二元素被视为实值;
3)map不允许两个元素拥有相同的键值;
4)不能通过迭代器改变map的键值,但可以改变实值

// pair定义
template <class T1, class T2>
struct pair{
  typedef T1 first_type;
  typedef T2 second_type;
  T1 first;
  T2 second;
  pair() : first(T1()), second(T2()) { }
  pair(const T1& a, const T2& b): first(a), second(b) {}
};

实现

1. 类型定义

template<class Key, class T, class Compare=less<Key>>
class map{
public:
  // Key -- 键值类别  T -- 实值类型
  typedef Key key_type;
  typedef T data_type;
  typedef pair<const Key, T> value_type; // 注意:是const Key,说明键值无法修改,但实值可以

  // 仿函数,用于比较元素
  class value_compare :public binary_function<value_type, value_type, bool> {
    friend class map<Key, T, Compare>;
    protected:
      Compare comp;
      value_compare(Compare c) :comp(c)
    public:
      bool operator()(const value_type& x, const value_type& y) const {
        return comp(x.first, y.first);
      }
  };
private:
  // 使用红黑树表示map, select1st<value>(pair<key, value>)取出pair中的key
  typedef rb_tree<key_type, value_type, select1st<value>, key_compare> rep_type;
  rep_type t;
public:
  typedef typename rep_type::iterator iterator;  // 注意,和set不同,这里的iterator并不是const,应为允许用户修改迭代器的实值;
};

2. 其他实现

// 插入,和set一样,调用的insert_unique
pair<iterator, bool> insert(const value_type& x){
  return t.insert_unique(x);
}

// 下标操作符map[k],试图向map中插入pair(k, v());(v():初始化一个默认的value)
// 如果没有k,则直接插入,并返回v()的引用;
// 如果有k,则返回则返回找到的*(pair<iterator,bool>.first).second引用;(参照insert_unique的返回值)
T& operator[](const key_type& k){
  return (*(insert(value_type(k, T())).first)).second;
}

multiset和multimap

他们和map、set的唯一区别是他们insert调用的是RB_tree::insert_equal而非RB_tree::insert_unique;

posted @ 2022-03-07 17:49  fwx  阅读(67)  评论(0)    收藏  举报
