nacos-server 2.4.x 集群版部署(在阿里云k8s中部署)

部署目标

在阿里云k8s集群内网vpc中使用mysql部署nacos集群, 不需鉴权

准备

• mysql实例: 172.16.16.66:3306, 用户名: root, 密妈: pwd123456
• 已有的阿里云k8s集群, 命名空间: pd-cloud-online

部署步骤

Step 1: 导入nacos所需的表结构

在mysql中新建nacos数据库, 将nacos需要的表结构导入nacos数据库中，表结构数据见：mysql表结构

Step 2: 部署nacos-server StatefulSet服务

StatefulSet服务yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    app: pd-nacos-cm
  name: pd-nacos-cm
  namespace: pd-cloud-online
spec:
  persistentVolumeClaimRetentionPolicy:
    whenDeleted: Retain
    whenScaled: Retain
  podManagementPolicy: OrderedReady
  replicas: 3
  selector:
    matchLabels:
      app: pd-nacos-cm
  serviceName: pd-nacos-cm-headless
  template:
    metadata:
      labels:
        app: pd-nacos-cm
    spec:
      containers:
        - env:
            - name: MODE
              value: cluster
            - name: NACOS_AUTH_ENABLE
              value: 'false'
            - name: MYSQL_SERVICE_HOST
              value: 172.16.16.66
            - name: MYSQL_SERVICE_DB_NAME
              value: nacos
            - name: MYSQL_SERVICE_USER
              value: root
            - name: MYSQL_SERVICE_PASSWORD
              value: pwd123456
            - name: NACOS_SERVERS
              value: 'pd-nacos-cm-0.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:8848 pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:8848 pd-nacos-cm-2.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:8848'
            - name: SPRING_DATASOURCE_PLATFORM
              value: mysql
            - name: PREFER_HOST_MODE
              value: hostname
          image: 'nacos/nacos-server:v2.4.3'
          imagePullPolicy: IfNotPresent
          name: pd-nacos-cm
          ports:
            - containerPort: 8848
              name: p-client
              protocol: TCP
            - containerPort: 9848
              name: p-client-rpc
              protocol: TCP
            - containerPort: 9849
              name: p-raft-rpc
              protocol: TCP
          readinessProbe:
            failureThreshold: 3
            initialDelaySeconds: 15
            periodSeconds: 10
            successThreshold: 1
            tcpSocket:
              port: 8848
            timeoutSeconds: 1
          resources:
            limits:
              cpu: '1'
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 512Mi
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          volumeMounts:
            - mountPath: /etc/localtime
              name: volume-localtime
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
      volumes:
        - hostPath:
            path: /etc/localtime
            type: ''
          name: volume-localtime
  updateStrategy:
    type: RollingUpdate

等待服务启动完成.

Step 3: 创建nacos headless服务(用于nacos集群自身)

apiVersion: v1
kind: Service
metadata:
  name: pd-nacos-cm-headless
  namespace: pd-cloud-online
spec:
  ports:
    - name: p1
      port: 8848
      protocol: TCP
      targetPort: 8848
    - name: p2
      port: 9848
      protocol: TCP
      targetPort: 9848
    - name: p3
      port: 9849
      protocol: TCP
      targetPort: 9849
    - name: p4
      port: 7848
      protocol: TCP
      targetPort: 7848
  selector:
    app: pd-nacos-cm
  clusterIP: None
  type: ClusterIP

Step 4: 创建普通服务(用于其他服务服务发现和注册)

apiVersion: v1
kind: Service
metadata:
  name: pd-nacos
  namespace: pd-cloud-online
spec:
  ports:
    - name: p1
      port: 8848
      protocol: TCP
      targetPort: 8848
    - name: p2
      port: 9848
      protocol: TCP
      targetPort: 9848
    - name: p3
      port: 9849
      protocol: TCP
      targetPort: 9849
  selector:
    app: pd-nacos-cm
  type: ClusterIP

Step 5: 检查集群状态

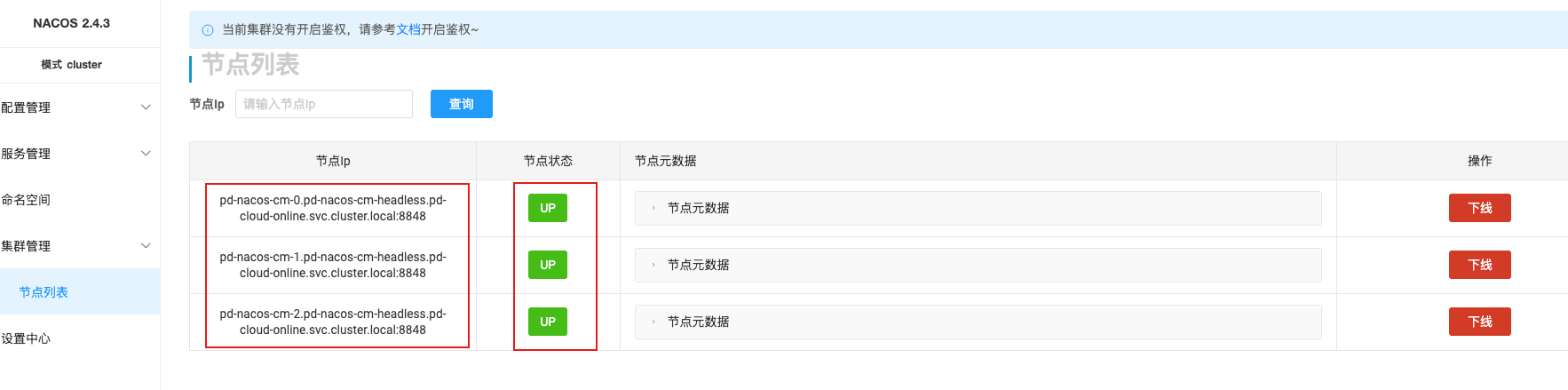

打开浏览器访问其中一个pod的ip，端口为8848
确认集群节点为3个
所有节点元数据为下面格式时则集群正常:

{
    "lastRefreshTime": 1737869534723,
    "raftMetaData": {
        "metaDataMap": {
            "naming_instance_metadata": {
                "leader": "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                "raftGroupMember": [
                    "pd-nacos-cm-0.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-2.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848"
                ],
                "term": 1
            },
            "naming_persistent_service": {
                "leader": "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                "raftGroupMember": [
                    "pd-nacos-cm-0.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-2.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848"
                ],
                "term": 1
            },
            "naming_persistent_service_v2": {
                "leader": "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                "raftGroupMember": [
                    "pd-nacos-cm-0.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-2.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848"
                ],
                "term": 1
            },
            "naming_service_metadata": {
                "leader": "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                "raftGroupMember": [
                    "pd-nacos-cm-0.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-2.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848",
                    "pd-nacos-cm-1.pd-nacos-cm-headless.pd-cloud-online.svc.cluster.local:7848"
                ],
                "term": 1
            }
        }
    },
    "raftPort": "7848",
    "readyToUpgrade": true,
    "version": "2.4.3"
}

踩坑点

坑1: 集群节点存在DOWN状态的节点

是因为StatefulSet服务中spec.serviceName的值跟nacos headless服务的名称不一致，需配置与nacos headless服务的名称一致

坑2: 个别rpc服务注册不上

是因为集群元数据不正常，需正确配置 环境变量: NACOS_SERVERS，值必须为headless服务的全限定名(带svc.cluster.local的那种)

坑3: 集群节点跟预期不符(设置的3个pod，却有4个节点数据)

是因为nacos默认使用的ip模式，需PREFER_HOST_MODE=hostname

坑4: 新建的配置，重启nacos pod后数据丢失

是因为没有使用mysql，需设置环境变量: SPRING_DATASOURCE_PLATFORM=mysql
