2025，每天10分钟，跟我学K8S（四十五）- Prometheus（三）添加系统监控项

在上一章节，我们完成了Prometheus的安装，也可以在prometheus的targets管理页面看到了现在已经有一些系统应用指标被监控到了，例如 kube-apiserver，kubelet。但是任然有一些系统应用指标还缺失，例如 kube-scheduler、kube-controller-manager、kube-proxy 这三个系统组件就还没被监控。

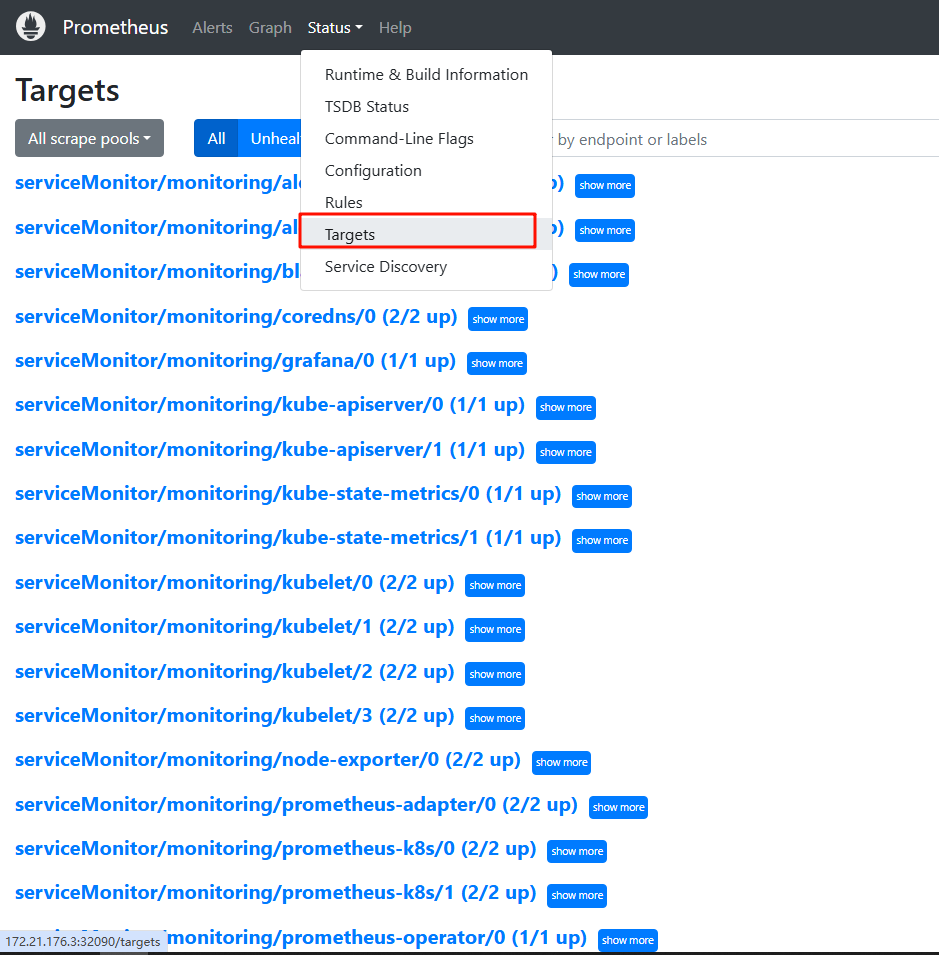

如下图所示：

本节内容，我们来一起学习下 Prometheus中系统监控项的添加方式。

配置kube-scheduler监控

1.首先修改 /etc/kubernetes/manifests/kube-scheduler.yaml 文件中的bind IP

spec:
  containers:
  - command:
    - kube-scheduler
    - --authentication-kubeconfig=/etc/kubernetes/scheduler.conf
    - --authorization-kubeconfig=/etc/kubernetes/scheduler.conf
    - --bind-address=127.0.0.1
====修改为====
spec:
  containers:
  - command:
    - kube-scheduler
    - --authentication-kubeconfig=/etc/kubernetes/scheduler.conf
    - --authorization-kubeconfig=/etc/kubernetes/scheduler.conf
    - --bind-address=0.0.0.0  #修改这里

2.再来查看一下manifests/kubernetesControlPlane-serviceMonitorKubeScheduler.yaml这个文件，这里给它添加上了注释。

apiVersion: monitoring.coreos.com/v1  # 定义 CRD 资源类型为 ServiceMonitor
kind: ServiceMonitor
metadata:
  labels:
    app.kubernetes.io/name: kube-scheduler  # 标识监控目标为 kube-scheduler
    app.kubernetes.io/part-of: kube-prometheus  # 标记属于 kube-prometheus 生态
  name: kube-scheduler  # ServiceMonitor 资源名称
  namespace: monitoring  # 部署在 monitoring 命名空间
spec:
  endpoints:
  - bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token  # 使用 ServiceAccount Token 认证
    interval: 30s   # 抓取间隔 30 秒
    port: https-metrics  # 关联 Service 的端口名称
    scheme: https   # 使用 HTTPS 协议（需配合 TLS 配置）
    tlsConfig:
      insecureSkipVerify: true  # 跳过 HTTPS 证书验证（生产环境建议配置合法证书）[1](@ref)
  - bearerTokenFile: /var/run/secrets/kubernetes.io/serviceaccount/token
    interval: 5s  # 更高频率的抓取间隔（适用于实时性指标）
    metricRelabelings:
    - action: drop  # 指标重标记：过滤特定指标
      regex: process_start_time_seconds  # 正则匹配需要丢弃的指标名称
      sourceLabels:
      - __name__  # 作用于指标名称字段
    path: /metrics/slis  # 自定义指标路径（服务级别指标）
    port: https-metrics
    scheme: https
    tlsConfig:
      insecureSkipVerify: true
  jobLabel: app.kubernetes.io/name  # 使用标签值作为 Prometheus Job 名称
  namespaceSelector:
    matchNames:
    - kube-system  # 仅在 kube-system 命名空间发现目标服务
  selector:
    matchLabels:
      app.kubernetes.io/name: kube-scheduler  # 匹配 Service 的标签选择器

3.发现最后的matchLabels，表名需要选择标签为 app.kubernetes.io/name: kube-scheduler 的 Service，但是通过kubectl get svc -n kube-system 发现并没有这个svc。

root@k8s-master:~/prometheus/kube-prometheus-0.14.0/manifests# kubectl get svc -n kube-system
NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                        AGE
kube-dns         ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP,9153/TCP         21d
kubelet          ClusterIP   None            <none>        10250/TCP,10255/TCP,4194/TCP   24h
metrics-server   ClusterIP   10.105.177.80   <none>        443/TCP                        2d

那我们就创建一个svc，并且绑定对应的标签

# kube-scheduler-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: kube-scheduler
  namespace: kube-system
  labels:
    k8s-app: kube-scheduler
    app.kubernetes.io/name: kube-scheduler
spec:
  clusterIP: None  # Headless Service
  ports:
  - name: https-metrics
    port: 10259
    targetPort: 10259
    protocol: TCP
  selector:
    component: kube-scheduler  # 必须与 Pod 的标签匹配




# 应用这个yaml文件
root@k8s-master:~/prometheus/kube-prometheus-0.14.0/manifests# kubectl apply -f kube-scheduler-service.yaml
service/kube-scheduler created


# 再次查看svc
root@k8s-master:~/prometheus/kube-prometheus-0.14.0/manifests# kubectl get svc -n kube-system
NAME             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                        AGE
kube-scheduler   ClusterIP   None            <none>        10259/TCP                      67s

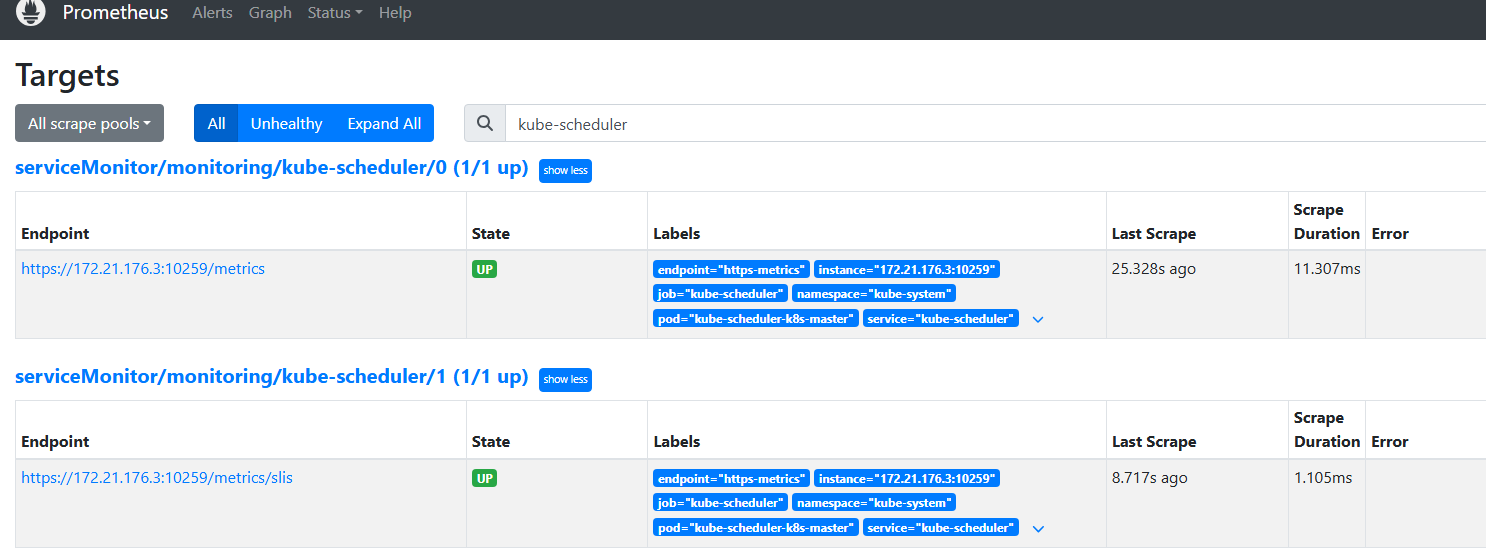

4.过一会回到页面，即可发现现在已经有了这个监控项

配置kube-controller-manager监控

1.首先修改 /etc/kubernetes/manifests/kube-controller-manager.yaml 的bind IP

spec:
  containers:
  - command:
    - kube-controller-manager
    - --allocate-node-cidrs=true
    - --authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --bind-address=127.0.0.1
====修改为====
spec:
  containers:
  - command:
    - kube-controller-manager
    - --allocate-node-cidrs=true
    - --authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --bind-address=0.0.0.0

2.查看kubernetesControlPlane-serviceMonitorKubeControllerManager.yaml 文件最后的标签，这里只看最后的matchLabels 是app.kubernetes.io/name: kube-controller-manager

# vim manifests/kubernetesControlPlane-serviceMonitorKubeControllerManager.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    app.kubernetes.io/name: kube-controller-manager
    app.kubernetes.io/part-of: kube-prometheus
  name: kube-controller-manager
  namespace: monitoring
spec:

....
  selector:
    matchLabels:
      app.kubernetes.io/name: kube-controller-manager

3. 发现最后的matchLabels，表名需要选择标签为 app.kubernetes.io/name: kube-controller-manager 的 Service，但是通过kubectl get svc -n kube-system 发现并没有这个svc。这里直接创建一个对应的svc yaml文件，需要对应标签为 app.kubernetes.io/name: kube-controller-manager，并且指定了endpoint

# kube-controller-manager-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: kube-controller-manager
  namespace: kube-system
  labels:
    app.kubernetes.io/name: kube-controller-manager  # 必须与 ServiceMonitor 的标签匹配
spec:
  clusterIP: None
  ports:
  - name: https-metrics
    port: 10257
    targetPort: 10257
    protocol: TCP
  selector:
    component: kube-controller-manager
---
apiVersion: v1
kind: Endpoints
metadata:
  name: kube-controller-manager
  namespace: kube-system
subsets:
- addresses:
  - ip: 172.21.176.3  # 替换为 Controller Manager 实际 IP
  ports:
  - name: https-metrics
    port: 10257

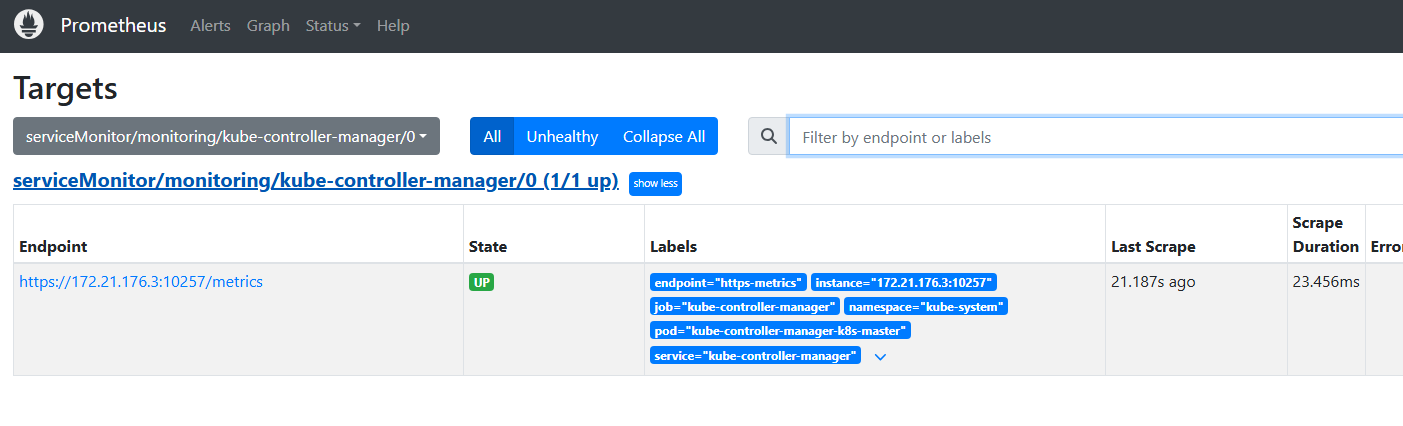

4.过一会回到页面，即可发现现在已经有了这个监控项

配置kube-proxy

其实在有了上面2个例子，我们就已经弄明白了，系统服务的监控总共分3个步骤

修改配置文件监听的端口
查看或创建ServiceMonitor 文件，用于 Prometheus 添加监控项
查看或创建Service和endpoint文件,对象可以正确获取到 metrics 数据

有了这个共识，继续来监控kube-proxy。

1.修改配置文件监听端口

kube-proxy是以pod的形式运行的，并没有单独的配置文件

使用命令 kubectl -n kube-system get configmap kube-proxy -o yaml | grep metricsBindAddress获取端口，确保输出为 metricsBindAddress: "0.0.0.0:10249"，若127.0.0.1 或空需修改 ConfigMap

kubectl -n kube-system get configmap kube-proxy -o yaml | grep metricsBindAddress

# 使用edit 来修改
kubectl -n kube-system edit configmap kube-proxy

    metricsBindAddress: ""
====修改为====
    metricsBindAddress: "0.0.0.0:10249"


#重启kube-proxy
kubectl -n kube-system rollout restart daemonset/kube-proxy

2. 创建ServiceMonitor 文件

说明：无需 TLS 配置，因 kube-proxy 默认使用 HTTP 协议

# vim manifests/kubernetesControlPlane-serviceMonitorKube-Proxy.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: kube-proxy
  namespace: monitoring
spec:
  endpoints:
  - interval: 30s
    port: http-metrics  # 与 Service 端口名称一致
    scheme: http        # 协议为 HTTP
  selector:
    matchLabels:
      k8s-app: kube-proxy
  namespaceSelector:
    matchNames: [kube-system]

3.创建Service文件

# vim manifests/kube-proxy-service.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: kube-proxy
  namespace: monitoring
spec:
  endpoints:
  - interval: 30s
    port: http-metrics  # 与 Service 端口名称一致
    scheme: http        # 协议为 HTTP
  selector:
    matchLabels:
      k8s-app: kube-proxy
  namespaceSelector:
    matchNames: [kube-system]
---
apiVersion: v1
kind: Endpoints
metadata:
  name: kube-proxy
  namespace: kube-system
subsets:
- addresses:
  - ip: 172.21.176.3  # 替换为实际节点 IP
  ports:
  - name: http-metrics
    port: 10249

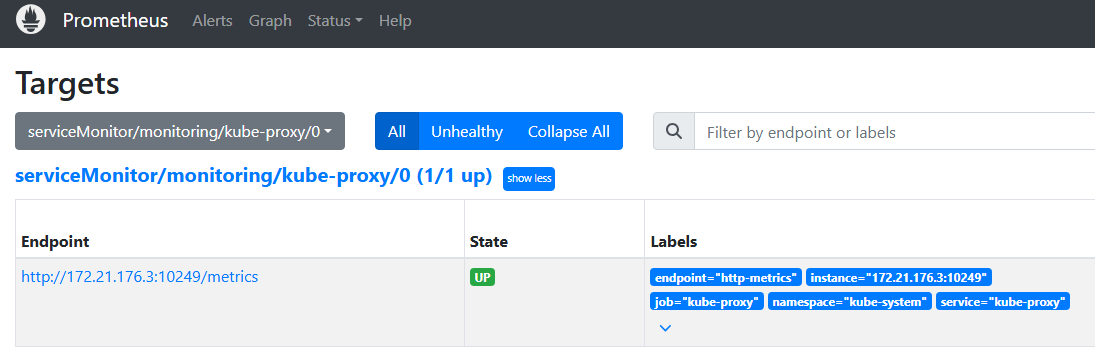

4.应用并查看

root@k8s-master:~/prometheus/kube-prometheus-0.14.0# kubectl apply -f manifests/kubernetesControlPlane-serviceMonitorKube-Proxy.yaml
servicemonitor.monitoring.coreos.com/kube-proxy created
root@k8s-master:~/prometheus/kube-prometheus-0.14.0# kubectl apply -f manifests/kube-proxy-service.yaml
service/kube-proxy created
