sipp注册带鉴权的xml
注册CSV脚本
SEQUENTIAL
20000;20000;[authentication username=20000 password=a111111]
20001;20001;[authentication username=20001 password=a111111]
第一行SEQUENTIAL表示顺序读取
第二行中每一项使用";"分割,分割的每一项被用于xml文件中的field字段,field字段从0开始编码
第二项中field1表示的注册域名,不能使用ip地址代替
<?xml version="1.0" encoding="ISO-8859-1" ?>
<!DOCTYPE scenario SYSTEM "sipp.dtd">
<scenario name="branch_client"> <label id="1"/>
<send retrans="6000">
<![CDATA[
REGISTER sip:[remote_ip] SIP/2.0
Via: SIP/2.0/[transport] [local_ip]:5062;branch=[branch]
From: <sip:[field0]@[field1]>;tag=[call_number]
To: <sip:[field0]@[field1]>
Call-ID: [call_id]
CSeq: 1 REGISTER
Contact: sip:[field0]@[local_ip]:5062
Max-Forwards: 5
Expires: 3600
User-Agent: SIPp
Content-Length: 0
]]>
</send>

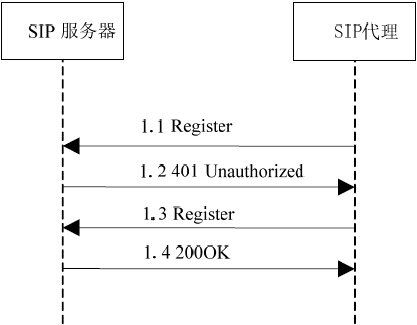

<recv response="401" auth="true"> #鉴权认证。如果该属性被设置为“true”则消息 中 的 消 息 头"Proxy-Authenticate:"会被存储并可以用来生 成 认 证 用 的 关 键 词[authentication]
</recv>
<send retrans="6000">
<![CDATA[
REGISTER sip:[remote_ip] SIP/2.0
Via: SIP/2.0/[transport] [local_ip]:5062;branch=[branch]
From: <sip:[field0]@[field1]>;tag=[call_number]
To: <sip:[field0]@[field1]>
Call-ID: [call_id]
CSeq: 2 REGISTER
Contact: sip:[field0]@[local_ip]:5062
[field2]
Max-Forwards: 5
Expires: 3600
User-Agent: SIPp
Content-Length: 0
]]>
</send>
<recv response="200"></recv>
<pause milliseconds="600000" next="1"/>
<!-- definition of the response time repartition table (unit is ms) -->
<ResponseTimeRepartition value="10, 20, 30, 40, 50, 100, 150, 200"/> </scenario>
