Kubernetes-1.16部署之二 K8s-dashboard

一、修改Dashboard配置文件

1）在master下载Dashboard服务(下载使用dashboard yaml程序时注意是否支持当前使用的kubernetes版本)

# mkdir -p /opt/kubernetes/dashboard/{ssl,metrics,yaml}

# curl -o /opt/kubernetes/dashboard/yaml/dashboard-v2.0.0-beta8.yaml https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta8/aio/deploy/recommended.yaml

2）修改dashboard-v2.0.0-beta8.yaml文件内容

# vi /opt/kubernetes/dashboard/yaml/dashboard-v2.0.0-beta8.yaml
将部分
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard
改为
spec:
  type: NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 31944
  selector:
    k8s-app: kubernetes-dashboard

把 kubernetes-dashboard-certs Secret 部分注释掉
#apiVersion: v1
#kind: Secret
#metadata:
#  labels:
#    k8s-app: kubernetes-dashboard
#  name: kubernetes-dashboard-certs
#  namespace: kubernetes-dashboard
#type: Opaque

二、部署kubernetes dashboard service

# kubectl apply -f dashboard-v2.0.0-beta8.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created

三、生成dashboard管理员证书

1）签发证书

# cd /opt/kubernetes/dashboard/ssl
# openssl req -nodes -newkey rsa:2048 -keyout dashboard.key -out dashboard.csr -subj '/CN=kubernetes-dashboard'
# openssl x509 -req -sha256 -days 36500 -in dashboard.csr -signkey dashboard.key -out dashboard.crt

# ls
dashboard.crt dashboard.csr dashboard.key

2）导入kubernetes dashboard证书

＃ kubectl create secret generic kubernetes-dashboard-certs --from-file=dashboard.key --from-file=dashboard.crt -n kubernetes-dashboard

四、创建登录用户

# cd /opt/kubernetes/dashboard/yaml
# vi dashboard-admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kube-system

# kubectl apply -f dashboard-admin.yaml

查看service状态

# kubectl get svc -o wide --all-namespaces
NAMESPACE              NAME                        TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)                  AGE     SELECTOR
default                kubernetes                  ClusterIP   10.1.0.1       <none>        443/TCP                  2d13h   <none>
kube-system            kube-dns                    ClusterIP   10.1.0.2       <none>        53/UDP,53/TCP,9153/TCP   22h     k8s-app=kube-dns
kubernetes-dashboard   dashboard-metrics-scraper   ClusterIP   10.1.178.235   <none>        8000/TCP                 24m     k8s-app=dashboard-metrics-scraper
kubernetes-dashboard   kubernetes-dashboard        NodePort    10.1.253.141   <none>        443:31944/TCP            24m     k8s-app=kubernetes-dashboard


# kubectl get service -n kubernetes-dashboard  -o wide
NAME                        TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)         AGE   SELECTOR
dashboard-metrics-scraper   ClusterIP   10.1.178.235   <none>        8000/TCP        24m   k8s-app=dashboard-metrics-scraper
kubernetes-dashboard        NodePort    10.1.253.141   <none>        443:31944/TCP   25m   k8s-app=kubernetes-dashboard


# kubectl get pods -A -o wide
NAMESPACE              NAME                                         READY   STATUS    RESTARTS   AGE   IP             NODE     NOMINATED NODE   READINESS GATES
default                busybox-555c656b9-gwsbn                      1/1     Running   0          71m   10.2.196.144   work-node01   <none>           <none>
kube-system            calico-kube-controllers-7c4fb94b96-7qg9d     1/1     Running   0          71m   192.168.168.3  work-node01   <none>           <none>
kube-system            calico-node-8kr9t                            1/1     Running   5          11h   192.168.168.3  work-node01   <none>           <none>
kube-system            calico-node-k4vg7                            1/1     Running   5          11h   192.168.168.4  work-node02   <none>           <none>
kube-system            coredns-788bb5bd8d-82rsl                     1/1     Running   0          71m   10.2.196.146   work-node01   <none>           <none>
kubernetes-dashboard   dashboard-metrics-scraper-76585494d8-9c6dd   1/1     Running   0          29m   10.2.140.66    work-node01   <none>           <none>
kubernetes-dashboard   kubernetes-dashboard-5996555fd8-cmk8h        1/1     Running   0          29m   10.2.140.65    work-node01   <none>           <none>
可确定访问kubernetes dashboard使用work-node01节点的ip

# kubectl get secret  -n kubernetes-dashboard
NAME                               TYPE                                  DATA   AGE
dashboard-admin-token-thtbz        kubernetes.io/service-account-token   3      20m
default-token-974zq                kubernetes.io/service-account-token   3      22m
kubernetes-dashboard-certs         Opaque                                2      21m
kubernetes-dashboard-csrf          Opaque                                1      22m
kubernetes-dashboard-key-holder    Opaque                                2      22m
kubernetes-dashboard-token-bshn6   kubernetes.io/service-account-token   3      22m

注：PORT(S)值中31944为dashboard访问端口

五、使用node节点IP访问dashboard(http://%nodeIP%:31944)，选择“令牌”登录方式后先不要点击“确定”

1）在master上查询token令牌

# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-jm46g
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: be379339-6188-47d9-9768-3f5eaec20ac9

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1359 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IjZqVVluWlY1UFBrUDBOdGVISGZEX25CRUhwS1RFVEJiS3UyTTgtY0JXQlEifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWptNDZnIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJiZTM3OTMzOS02MTg4LTQ3ZDktOTc2OC0zZjVlYWVjMjBhYzkiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.GCiJi_OHJd5ovsdxW0MRo88XTYH4j-Rl9Mk8JaAdbTVIg8SJyuORCa8AhDxVpEVeXe9V2MPv4PeSkdgFOgCNEqh1G8b45lslT6zLvo2wjDAxGHy53glEhohysvUCHWL842Txg7bmGa6AS3roa_HfNbWr71qyld-Al-ginOOsMR6YofEcgEFx2ARNQJZwdeWBzBaWKvDogMziF_DdPydg405YROTIj-h1kUWZpR158ImzIvcRAcBRZMp8go1tOLFWNWqGg2z9kDjGYbAKKSl0Exwog2jc15Nt-PyEr1Nly2cv-zetq-9pYTCZP0JhdiZBCjfRiE-qhSuyFlB1xgDRUA

注：将生成的token字符串复制到上图的“输入领牌”栏中，然后点击“确定 ”

2）Dashboard登录页面

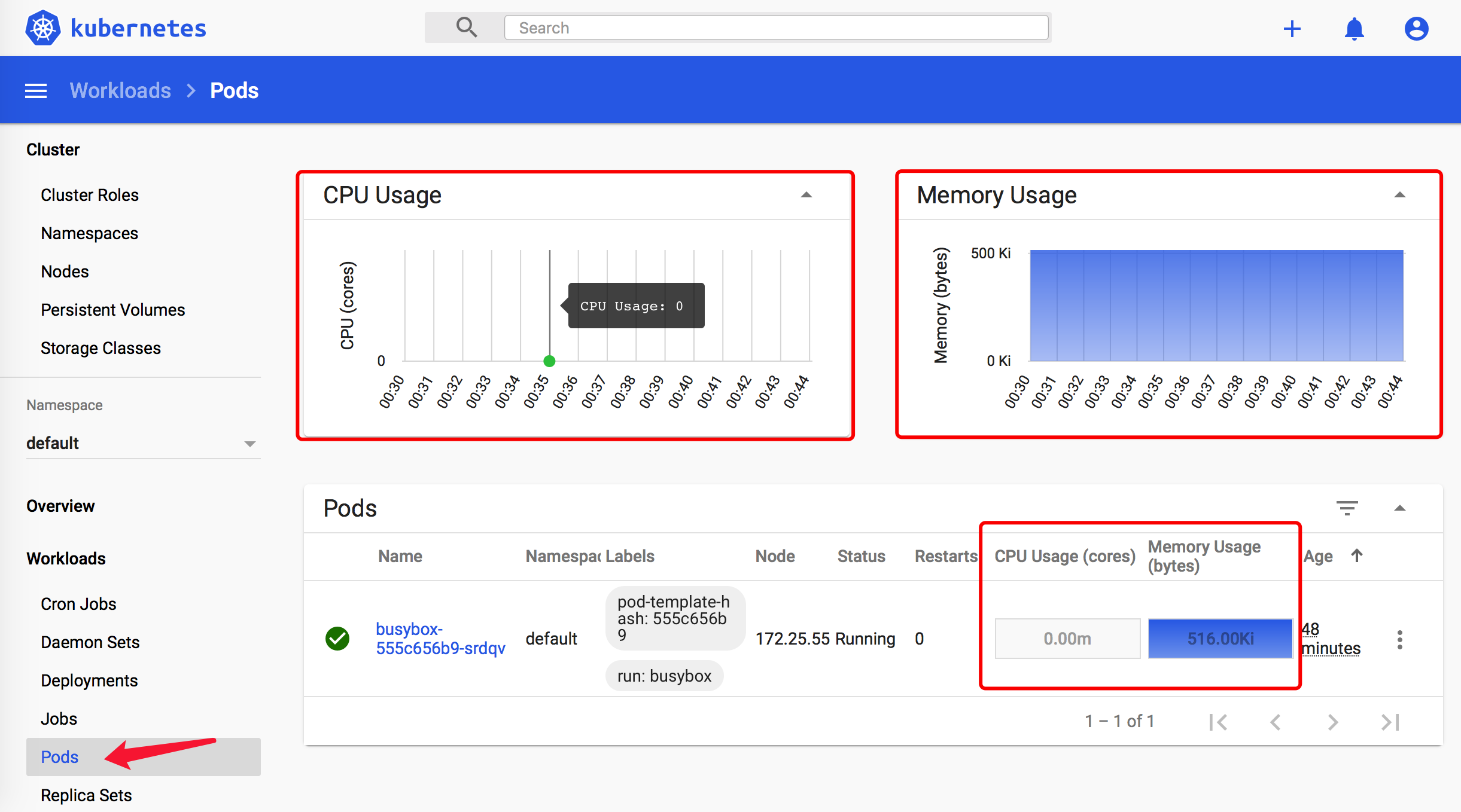

注：此时获取不到cpu和内存信息，因为没有安装metrics-server

六、安装metrics-server

1）下载metrics-server声明文件

# yum -y install git
# git clone https://github.com/kubernetes-incubator/metrics-server.git
# cp /opt/software/metrics-server/deploy/1.8+/* /opt/kubernetes/dashboard/metrics/

# ll /opt/kubernetes/dashboard/metrics/
total 28
-rw-r--r-- 1 root root  397 Dec 14 15:17 aggregated-metrics-reader.yaml
-rw-r--r-- 1 root root  303 Dec 14 15:18 auth-delegator.yaml
-rw-r--r-- 1 root root  324 Dec 14 15:18 auth-reader.yaml
-rw-r--r-- 1 root root  298 Dec 14 15:18 metrics-apiservice.yaml
-rw-r--r-- 1 root root 1316 Dec 14 15:24 metrics-server-deployment.yaml
-rw-r--r-- 1 root root  297 Dec 14 15:19 metrics-server-service.yaml
-rw-r--r-- 1 root root  532 Dec 14 15:20 resource-reader.yaml

# mkdir /opt/kubernetes/metrics/ssl/

2）修改metrics-server yaml文件配置

# cd /opt/kubernetes/dashboard/metrics/
# sed -i 's/k8s.gcr.io/mirrorgooglecontainers/g' metrics-server-deployment.yaml

# vi metrics-server-deployment.yaml
将此处
- name: metrics-server
  image: k8s.gcr.io/metrics-server-amd64:v0.3.6
  imagePullPolicy: IfNotPresent
  args:
    - --cert-dir=/tmp
    - --secure-port=4443
改为
- name: metrics-server
  image: mirrorgooglecontainers/metrics-server-amd64:v0.3.6
  imagePullPolicy: IfNotPresent
  command:
  - /metrics-server
  - --metric-resolution=30s
  - --kubelet-insecure-tls
  - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
  args:
    - --cert-dir=/tmp
    - --secure-port=4443

3）签发metrics证书

# cd /root/ssl
# cat > metrics-proxy-csr.json << EOF
{
  "CN": "metrics-proxy",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "K8s",
      "OU": "System"
    }
  ]
}
EOF

# cfssl gencert -ca=ca.pem \
-ca-key=ca-key.pem \
-config=ca-config.json \
-profile=kubernetes metrics-proxy-csr.json | cfssljson -bare metrics-proxy

# cp metrics-proxy*.pem /opt/kubernetes/metrics/ssl/

4）修改kube-apiserver.service和apiserver.conf文件，添加如下内容

＃ vi /opt/kubernetes/conf/apiserver.conf
## mertics data capture
KUBE_METRICS_PARAMETER="--requestheader-client-ca-file=/opt/kubernetes/ssl/ca.pem \
  --requestheader-allowed-names="" \
  --enable-aggregator-routing=true \
  --requestheader-extra-headers-prefix="X-Remote-Extra-" \
  --requestheader-group-headers=X-Remote-Group \
  --requestheader-username-headers=X-Remote-User \
  --proxy-client-cert-file=/opt/kubernetes/metrics/ssl/metrics-proxy.pem \
  --proxy-client-key-file=/opt/kubernetes/metrics/ssl/metrics-proxy-key.pem"

# vi /usr/lib/systemd/system/kube-apiserver.service
[Service]
EnvironmentFile=/opt/kubernetes/conf/apiserver.conf
ExecStart=/opt/kubernetes/bin/kube-apiserver \
           $KUBE_API_ADDRESS \
           $KUBE_ETCD_SERVERS \
           $KUBE_SERVICE_ADDRESSES \
           $KUBE_ADMISSION_CONTROL \
           $KUBE_METRICS_PARAMETER \       //此处为新增部分
           $KUBE_API_ARGS
Restart=on-failure

重启master kube-apiserver

# systemctl daemon-reload
# systemctl restart kube-apiserver

5）部署metrics-server

# kubectl apply -f ./
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
clusterrolebinding.rbac.authorization.k8s.io/metrics-server:system:auth-delegator created
rolebinding.rbac.authorization.k8s.io/metrics-server-auth-reader created
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created
serviceaccount/metrics-server created
deployment.apps/metrics-server created
service/metrics-server created
clusterrole.rbac.authorization.k8s.io/system:metrics-server created
clusterrolebinding.rbac.authorization.k8s.io/system:metrics-server created

6）验证配置

# kubectl top node
NAME           CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
192.168.168.3  212m         21%    867Mi           22%
192.168.168.4  143m         14%    1030Mi          26%
