第三次Blog作业

（1）前言

抽象类的使用
考虑面向对象设计的“单一职责原则”
继承、多态性使用方法以及接口的应用
封装性

（2）设计与分析

①题目集7（7-1）、（7-2）两道题目的递进式设计分析总结

　　 7-1 图形卡片排序游戏 (40 分)

　　　　掌握类的继承、多态性使用方法以及接口的应用。详见作业指导书 2020-OO第07次作业-1指导书V1.0.pdf

　　输入格式:

首先，在一行上输入一串数字（1~4，整数），其中，1代表圆形卡片，2代表矩形卡片，3代表三角形卡片，4代表梯形卡片。各数字之间以一个或多个空格分隔，以“0”结束。例如： 1 3 4 2 1 3 4 2 1 3 0
然后根据第一行数字所代表的卡片图形类型，依次输入各图形的相关参数，例如：圆形卡片需要输入圆的半径，矩形卡片需要输入矩形的宽和长，三角形卡片需要输入三角形的三条边长，梯形需要输入梯形的上底、下底以及高。各数据之间用一个或多个空格分隔。

　　　代码如下：　

  1 import java.util.ArrayList;
  2 import java.util.Random;
  3 import java.util.Scanner;
  4 public class Main {
  5     public static Scanner input = new Scanner(System.in);
  6
  7     public static void main(String args[]){
  8         ArrayList<Integer> list = new ArrayList<Integer>();
  9         int num = input.nextInt();
 10         while(num != 0){
 11             if(num < 0 || num > 4){
 12                 System.out.println("Wrong Format");
 13                 System.exit(0);
 14             }
 15             list.add(num);
 16             num = input.nextInt();
 17         }
 18         DealCardList dealCardList = new DealCardList(list);
 19         if(!dealCardList.validate()){
 20             System.out.println("Wrong Format");
 21             System.exit(0);
 22         }
 23         dealCardList.showResult();
 24         input.close();
 25     }
 26 }
 27 class DealCardList{
 28     private ArrayList<Card> cardList=new ArrayList<Card>();
 29     public DealCardList(){}
 30     public DealCardList(ArrayList<Integer> list){
 31         for(int i=0;i<list.size();i++)
 32         {
 33             if(list.get(i)==0)
 34             {
 35                 break;
 36             }
 37             else
 38             {
 39                 switch(list.get(i)){
 40                     case 1://circle
 41                         Card card1=new Card(new Circle(Main.input.nextDouble()));
 42                         card1.getShape().setShapeName("Circle");
 43                         cardList.add(card1);
 44                         break;
 45                     case 2://rectangle
 46                         Card card2=new Card(new Rectangle(Main.input.nextDouble(),Main.input.nextDouble()));
 47                         card2.getShape().setShapeName("Rectangle");
 48                         cardList.add(card2);
 49                         break;
 50                     case 3://triangle
 51                         Card card3=new Card(new Triangle(Main.input.nextDouble(),Main.input.nextDouble(),Main.input.nextDouble()));
 52                         card3.getShape().setShapeName("Triangle");
 53                         cardList.add(card3);
 54                         break;
 55                     case 4://trapezoid
 56                         Card card4=new Card(new Trapezoid(Main.input.nextDouble(),Main.input.nextDouble(),Main.input.nextDouble()));
 57                         card4.getShape().setShapeName("Trapezoid");
 58                         cardList.add(card4);
 59                         break;
 60                 }
 61             }
 62         }
 63     }
 64     public boolean validate(){
 65         boolean flag=true;
 66         for(int i=0;i<cardList.size();i++){
 67             if(!cardList.get(i).getShape().validate())
 68             {
 69                 flag=false;
 70                 break;
 71             }
 72         }
 73         return flag;
 74     }
 75     public void cardSort(){
 76         int i,j;
 77         Card temp;
 78         for(i=0;i<cardList.size();i++)
 79         {
 80             int mindex=i;
 81             for(j=i+1;j< cardList.size();j++)
 82             {
 83                 if(cardList.get(j).getShape().getArea()>cardList.get(mindex).getShape().getArea())
 84                 {
 85                     mindex=j;
 86                 }
 87             }
 88             temp=cardList.get(i);
 89             cardList.set(i,cardList.get(mindex));
 90             cardList.set(mindex,temp);
 91         }
 92         for (int k=0;k<cardList.size();k++) {
 93             System.out.print(cardList.get(k).getShape()+":");
 94             System.out.printf("%.2f ",cardList.get(k).getShape().getArea());
 95         }
 96     }
 97     public double getAllArea(){
 98         double sum=0;
 99         for(int i=0;i<cardList.size();i++)
100         {
101             sum+=cardList.get(i).getShape().getArea();
102         }
103         return sum;
104     }
105     public void showResult(){
106         System.out.println("The original list:");
107         for (int i=0;i<cardList.size();i++) {
108             System.out.printf(cardList.get(i).getShape()+":");
109             System.out.printf("%.2f ",cardList.get(i).getShape().getArea());
110         }
111         System.out.println();
112         System.out.println("The sorted list:");
113         cardSort();
114         System.out.println();
115         System.out.printf("Sum of area:%.2f\n",getAllArea());
116     }
117
118 }
119 class Card implements Comparable<Card>{
120     private  Shape shape;
121     public Card(){}
122     public Card(Shape shape){this.shape=shape;}
123
124     public Shape getShape() {
125         return shape;
126     }
127
128     public void setShape(Shape shape) {
129         this.shape = shape;
130     }
131     public int compareTo(Card card){
132         return (int)(shape.getArea()-card.getShape().getArea());
133     }
134 }
135
136 abstract class Shape{
137     private String shapeName;
138     public Shape(){
139
140     }
141     public Shape(String shapeName) {
142         this.shapeName=shapeName;
143     }
144
145     public String getShapeName() {
146         return shapeName;
147     }
148
149     public void setShapeName(String shapeName) {
150         this.shapeName = shapeName;
151     }
152     abstract public double getArea();
153     abstract public boolean validate();
154      public String toString(){
155          return getShapeName();
156      }
157 }
158
159  class Circle extends Shape
160 {
161     private double radius;
162     public Circle(){}
163     public Circle(double radius){
164         this.radius=radius;
165     }
166
167     public void setRadius(double radius) {
168         this.radius = radius;
169     }
170
171     public double getRadius() {
172         return radius;
173     }
174
175     public double getArea() {
176         return Math.PI* Math.pow(radius,2);
177     }
178     public boolean validate()
179     {
180         if(radius<=0)
181         {
182             return false;
183         }
184         else
185         {
186             return true;
187         }
188     }
189 }
190 class Rectangle extends Shape
191 {
192     private double width;
193     private double length;
194     public Rectangle(){}
195     public Rectangle(double width,double length){
196         this.length=length;
197         this.width=width;
198     }
199     public void setLength(double length) {
200         this.length = length;
201     }
202
203     public double getLength() {
204         return length;
205     }
206
207     public double getWidth() {
208         return width;
209     }
210
211     public void setWidth(double width) {
212         this.width = width;
213     }
214
215     public double getArea() {
216         return width*length;
217     }
218     public boolean validate()
219     {
220         if(width<0||length<0)
221         {
222             return false;
223         }
224         else
225         {
226             return true;
227         }
228     }
229 }
230 class Triangle extends Shape
231 {
232     private double side1;
233     private double side2;
234     private double side3;
235     public Triangle(){}
236     public Triangle(double side1,double side2,double side3)
237     {
238         this.side1=side1;
239         this.side2=side2;
240         this.side3=side3;
241     }
242
243     public double getSide2() {
244         return side2;
245     }
246
247     public void setSide2(double side1) {
248         this.side2 = side2;
249     }
250
251     public double getSide3() {
252         return side3;
253     }
254
255     public void setSide3(double side3) {
256         this.side3 = side3;
257     }
258     public double getArea()
259     {
260         double p=(side1+side2+side3)/2;
261         return Math.sqrt(p*(p-side1)*(p-side2)*(p-side3));
262     }
263     public boolean validate()
264     {
265         if(side1+side2<=side3||side1+side3<=side2||side2+side3<=side1)
266         {
267             return false;
268         }
269         if(side1-side2>=side3||side1-side3>=side2||side2-side3>=side1)
270         {
271             return false;
272         }
273         else
274         {
275             return true;
276         }
277     }
278 }
279 class Trapezoid extends Shape{
280     private double topSide;
281     private double bottomSide;
282     private double height;
283     public Trapezoid(){}
284     public Trapezoid(double topSide,double bottomSide,double height)
285     {
286         this.topSide=topSide;
287         this.bottomSide=bottomSide;
288         this.height=height;
289     }
290     public double getArea()
291     {
292         return (topSide+bottomSide)/2*height;
293     }
294     public boolean validate()
295     {
296         if(topSide<0||bottomSide<0||height<0)
297         {
298             return false;
299         }
300         else
301         {
302             return true;
303         }
304     }
305 }

View Code

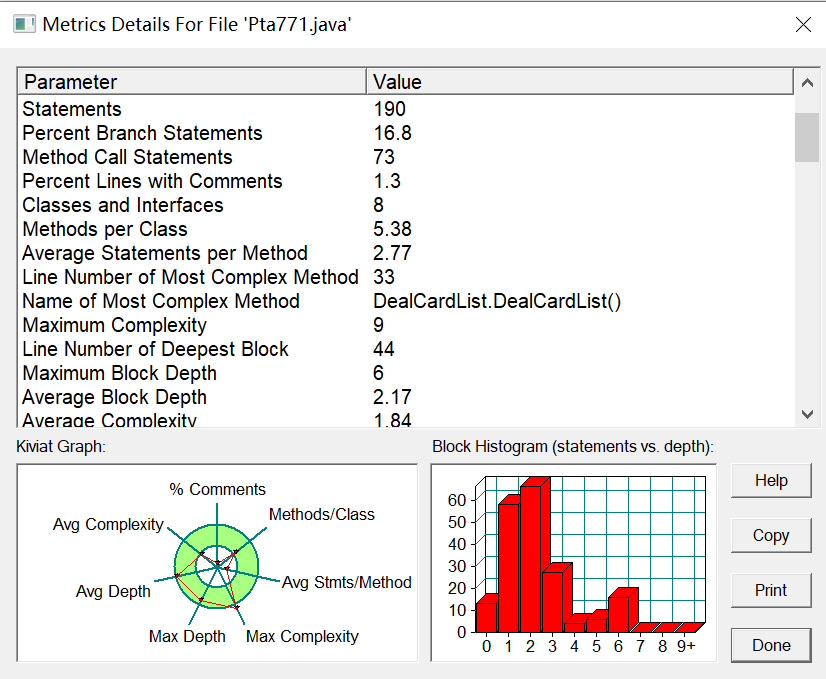

　　　　　　　　　　　　　　　　　　报表内容如下：

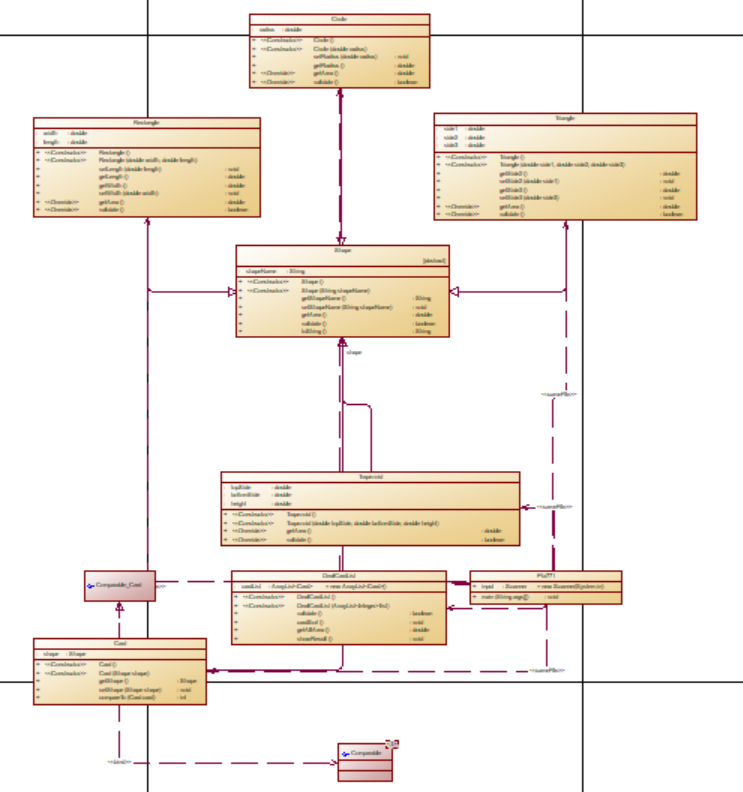

　　　　　　　　　　　　　　　　　　类图如下：

　　本次题目采用了ArrayList数组，数组中存入图形类元素，卡片分为四种形状：圆形（Circle）、矩形（Rectangle）、三角形（Triangle）和梯形（Trapezoid）。

利用 Comparable 接口在 Card 类当中实现 Comparable 接口中的 CompareTo()方法，CompareTo()方法关系到数组当中排序的大小，根据接口在ArrayList数组中将卡片

面积按从大到小的顺序进行排序。由报表内容看到圈复杂度还是有点大，主要原因还是使用了过多的循环和判断，导致阅读性很差。采用ArrayList数组可以很方便的存储

各种图形对象，这也为写代码提供了很大的方便。

　　7-2 图形卡片分组游戏 (60 分)

　　掌握类的继承、多态性使用方法以及接口的应用。具体需求参考作业指导书。

　　2021-OO第07次作业-2指导书V1.0.pdf

　　输入格式:

在一行上输入一串数字（1~4，整数），其中，1代表圆形卡片，2代表矩形卡片，3代表三角形卡片，4代表梯形卡片。各数字之间以一个或多个空格分隔，以“0”结束。例如：1 3 4 2 1 3 4 2 1 3 0
根据第一行数字所代表的卡片图形类型，依次输入各图形的相关参数，例如：圆形卡片需要输入圆的半径，矩形卡片需要输入矩形的宽和长，三角形卡片需要输入三角形的三条边长，梯形需要输入梯形的上底、下底以及高。各数据之间用一个或多个空格分隔。

代码如下：

  1 import java.util.TreeSet;
  2 import java.util.ArrayList;
  3 import java.util.Random;
  4 import java.util.Scanner;
  5 public class Main {
  6     public static Scanner input = new Scanner(System.in);
  7     public static void main(String args[]){
  8         ArrayList<Integer> list = new ArrayList<Integer>();
  9         int num = input.nextInt();
 10         if(num==0)
 11         {
 12             System.out.println("Wrong Format");
 13                 System.exit(0);
 14         }
 15         while(num != 0){
 16             if(num < 0 || num > 4){
 17                 System.out.println("Wrong Format");
 18                 System.exit(0);
 19             }
 20             list.add(num);
 21             num = input.nextInt();
 22         }
 23         DealCardList dealCardList = new DealCardList(list);
 24         if(!dealCardList.validate()){
 25             System.out.println("Wrong Format");
 26             System.exit(0);
 27         }
 28         dealCardList.showResult();
 29         input.close();
 30     }
 31
 32 }
 33 class DealCardList{
 34     double[] zs=new double[4];
 35     private ArrayList<Card> cardList=new ArrayList<Card>();
 36     public DealCardList(){}
 37     public DealCardList(ArrayList<Integer> list){
 38         for(int i=0;i<list.size();i++)
 39         {
 40             if(list.get(i)==0)
 41             {
 42                 break;
 43             }
 44             else
 45             {
 46                 switch(list.get(i)){
 47                     case 1://circle
 48                         Card card1=new Card(new Circle(Main.input.nextDouble()));
 49                         card1.getShape().setShapeName("Circle");
 50                         cardList.add(card1);
 51                         break;
 52                     case 2://rectangle
 53                         Card card2=new Card(new Rectangle(Main.input.nextDouble(),Main.input.nextDouble()));
 54                         card2.getShape().setShapeName("Rectangle");
 55                         cardList.add(card2);
 56                         break;
 57                     case 3://triangle
 58                         Card card3=new Card(new Triangle(Main.input.nextDouble(),Main.input.nextDouble(),Main.input.nextDouble()));
 59                         card3.getShape().setShapeName("Triangle");
 60                         cardList.add(card3);
 61                         break;
 62                     case 4://trapezoid
 63                         Card card4=new Card(new Trapezoid(Main.input.nextDouble(),Main.input.nextDouble(),Main.input.nextDouble()));
 64                         card4.getShape().setShapeName("Trapezoid");
 65                         cardList.add(card4);
 66                         break;
 67                 }
 68             }
 69         }
 70     }
 71     public boolean validate(){
 72         boolean flag=true;
 73         for(int i=0;i<cardList.size();i++){
 74             if(!cardList.get(i).getShape().validate())
 75             {
 76                 flag=false;
 77                 break;
 78             }
 79         }
 80         return flag;
 81     }
 82     public void circle(){
 83         zs[0]=0;
 84         System.out.print("[");
 85         for (Card a:cardList){
 86             if(a.getShape().getShapeName().equals("Circle")){
 87                 System.out.print(a.getShape()+":");
 88                 System.out.printf("%.2f ",a.getShape().getArea());
 89                 zs[0]=zs[0]+a.getShape().getArea();
 90             }
 91         }
 92         System.out.print("]");
 93     }
 94     //输出矩形的数据并计算总面积
 95     public void rectangle(){
 96         zs[1]=0;
 97         System.out.print("[");
 98         for (Card a:cardList){
 99             if(a.getShape().getShapeName().equals("Rectangle")){
100                 System.out.print(a.getShape()+":");
101                 System.out.printf("%.2f ",a.getShape().getArea());
102                 zs[1]=zs[1]+a.getShape().getArea();
103             }
104         }
105         System.out.print("]");
106     }
107     //输出三角形的数据并计算总面积
108     public void triangle(){
109         zs[2]=0;
110         System.out.print("[");
111         for (Card a:cardList){
112             if(a.getShape().getShapeName().equals("Triangle")){
113                 System.out.print(a.getShape()+":");
114                 System.out.printf("%.2f ",a.getShape().getArea());
115                 zs[2]=zs[2]+a.getShape().getArea();
116             }
117         }
118         System.out.print("]");
119     }
120     //输出梯形的数据并计算总面积
121     public void trapezoid(){
122         zs[3]=0;
123         System.out.print("[");
124         for (Card a:cardList){
125             if(a.getShape().getShapeName().equals("Trapezoid")){
126                 System.out.print(a.getShape()+":");
127                 System.out.printf("%.2f ",a.getShape().getArea());
128                 zs[3]=zs[3]+a.getShape().getArea();
129             }
130         }
131         System.out.print("]");
132     }
133     //从大到小输出圆的数据
134     public void circleSort(){
135         TreeSet<Card> kp = new TreeSet<>(cardList);
136         System.out.print("[");
137         for (Card a:kp){
138             if(a.getShape().getShapeName().equals("Circle")){
139                 System.out.print(a.getShape()+":");
140                 System.out.printf("%.2f ",a.getShape().getArea());
141             }
142         }
143         System.out.print("]");
144     }
145     //从大到小输出矩形的数据
146     public void rectangleSort() {
147         TreeSet<Card> kp = new TreeSet<>(cardList);
148         System.out.print("[");
149         for (Card a : kp) {
150             if (a.getShape().getShapeName().equals("Rectangle")) {
151                 System.out.print(a.getShape()+":");
152                 System.out.printf("%.2f ",a.getShape().getArea());
153             }
154         }
155         System.out.print("]");
156     }
157 //从大到小输出三角形的数据
158         public void triangleSort() {
159             TreeSet<Card> kp = new TreeSet<>(cardList);
160             System.out.print("[");
161             for (Card a : kp) {
162                 if (a.getShape().getShapeName().equals("Triangle")) {
163                     System.out.print(a.getShape()+":");
164                     System.out.printf("%.2f ",a.getShape().getArea());
165                 }
166             }
167             System.out.print("]");
168         }
169         //从大到小输出梯形的数据
170         public void trapezoidSort() {
171             TreeSet<Card> kp = new TreeSet<>(cardList);
172             System.out.print("[");
173             for (Card a : kp) {
174                 if (a.getShape().getShapeName().equals("Trapezoid")) {
175                     System.out.print(a.getShape()+":");
176                     System.out.printf("%.2f ",a.getShape().getArea());
177                 }
178             }
179             System.out.print("]");
180         }
181         //找出最大总面积
182         public double getMax() {
183             double max = 0;
184             int i;
185             for (i = 0; i < 4; i++) {
186                 if (max < zs[i]) {
187                     max = zs[i];
188                 }
189             }
190             return max;
191         }
192         public void showResult() {
193             System.out.println("The original list:");
194             System.out.print("[");
195             for (int i=0;i<cardList.size();i++) {
196                 System.out.printf(cardList.get(i).getShape()+":");
197                 System.out.printf("%.2f ",cardList.get(i).getShape().getArea());
198             }
199             System.out.print("]");
200             System.out.println("\nThe Separated List:");
201             circle();rectangle();triangle();trapezoid();
202             System.out.println("\nThe Separated sorted List:");
203             circleSort();rectangleSort();triangleSort();trapezoidSort();
204             System.out.printf("\nThe max area:%.2f\n",getMax());
205
206         }
207 }
208
209 class Card implements Comparable<Card>{
210     private  Shape shape;
211     public Card(){}
212     public Card(Shape shape){this.shape=shape;}
213
214     public Shape getShape() {
215         return shape;
216     }
217     public void setShape(Shape shape) {
218         this.shape = shape;
219     }
220     public int compareTo(Card card){
221         return (int)(card.getShape().getArea()-shape.getArea());
222     }
223 }
224
225 abstract class Shape{
226     private String shapeName;
227     public Shape(){
228
229     }
230     public Shape(String shapeName) {
231         this.shapeName=shapeName;
232     }
233
234     public String getShapeName() {
235         return shapeName;
236     }
237
238     public void setShapeName(String shapeName) {
239         this.shapeName = shapeName;
240     }
241     abstract public double getArea();
242     abstract public boolean validate();
243     public String toString(){
244         return getShapeName();
245     }
246 }
247
248 class Circle extends Shape
249 {
250     private double radius;
251     public Circle(){}
252     public Circle(double radius){
253         this.radius=radius;
254     }
255     public double getArea() {
256         return Math.PI* Math.pow(radius,2);
257     }
258     public boolean validate()
259     {
260         if(radius<=0)
261         {
262             return false;
263         }
264         else
265         {
266             return true;
267         }
268     }
269 }
270 class Rectangle extends Shape
271 {
272     private double width;
273     private double length;
274     public Rectangle(){}
275     public Rectangle(double width,double length){
276         this.length=length;
277         this.width=width;
278     }
279     public double getArea() {
280         return width*length;
281     }
282     public boolean validate()
283     {
284         if(width<0||length<0)
285         {
286             return false;
287         }
288         else
289         {
290             return true;
291         }
292     }
293 }
294 class Triangle extends Shape
295 {
296     private double side1;
297     private double side2;
298     private double side3;
299     public Triangle(){}
300     public Triangle(double side1,double side2,double side3)
301     {
302         this.side1=side1;
303         this.side2=side2;
304         this.side3=side3;
305     }
306     public double getArea()
307     {
308         double p=(side1+side2+side3)/2;
309         return Math.sqrt(p*(p-side1)*(p-side2)*(p-side3));
310     }
311     public boolean validate()
312     {
313         if(side1+side2<=side3||side1+side3<=side2||side2+side3<=side1)
314         {
315             return false;
316         }
317         if(side1-side2>=side3||side1-side3>=side2||side2-side3>=side1)
318         {
319             return false;
320         }
321         else
322         {
323             return true;
324         }
325     }
326 }
327 class Trapezoid extends Shape{
328     private double topSide;
329     private double bottomSide;
330     private double height;
331     public Trapezoid(){}
332     public Trapezoid(double topSide,double bottomSide,double height)
333     {
334         this.topSide=topSide;
335         this.bottomSide=bottomSide;
336         this.height=height;
337     }
338     public double getArea()
339     {
340         return (topSide+bottomSide)/2*height;
341     }
342     public boolean validate()
343     {
344         if(topSide<0||bottomSide<0||height<0)
345         {
346             return false;
347         }
348         else
349         {
350             return true;
351         }
352     }
353 }

View Code

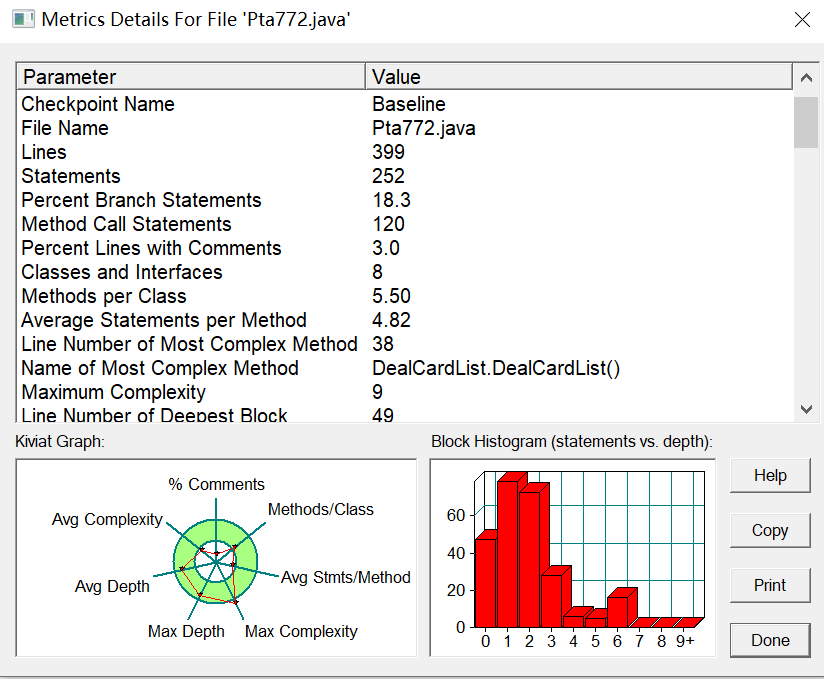

　　　　　　　　报表内容如下：

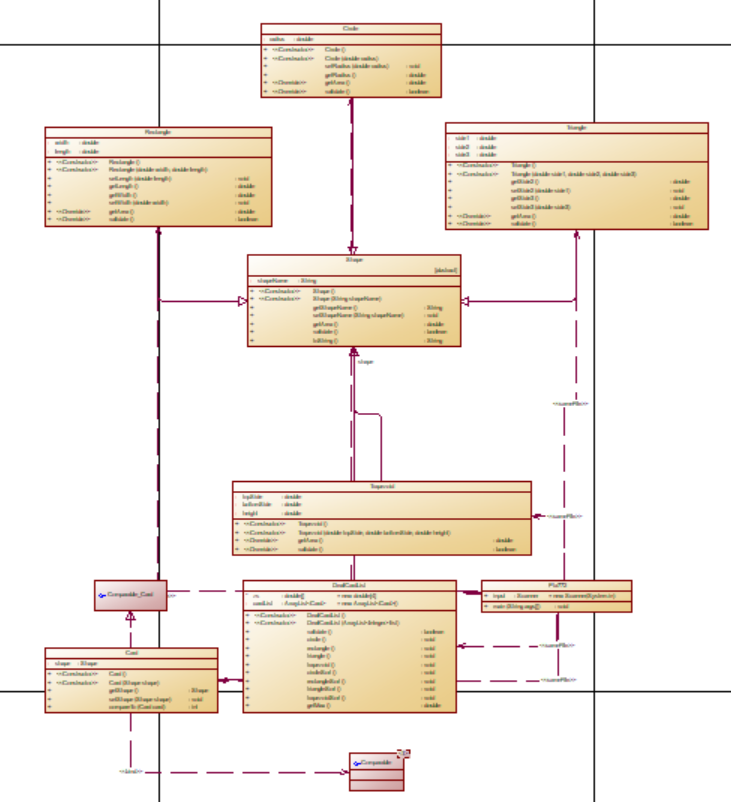

　　　　　　　　类图如下：

　　这题和 7-1类似，主要是对卡片（Card）进行分组，同样，卡片分为四种形状：圆形（Circle）、矩形（Rectangle）、三角形（Triangle）及梯形（Trapezoid）。

这次需要将每组的卡片根据面积值从大到小进行排序，并且求出卡片面积之和，然后根据卡片面积之和中的最大值排序。将根据卡片类型将所有卡片进行分组，对每组的

卡片根据面积值从大到小进行排序，同时求出该组内所有卡片的面积之和，最后求出每组卡片面积之和中的最大值。同样使用了ArrayList数组存储各种图形对象，对高

效解题有很大帮助。

②题目集8和题目集9两道ATM机仿真题目的设计思路分析总结

　　7-3 ATM机类结构设计（一） (100 分)

　　设计ATM仿真系统，具体要求参见作业说明。 OO作业8-1题目说明.pdf

　　输入格式:

　　每一行输入一次业务操作，可以输入多行，最终以字符#终止。具体每种业务操作输入格式如下：

存款、取款功能输入数据格式： 卡号密码 ATM机编号金额（由一个或多个空格分隔），其中，当金额大于0时，代表取款，否则代表存款。
查询余额功能输入数据格式： 卡号

代码如下：

  1 import java.util.ArrayList;
  2 import java.util.List;
  3 import java.util.Scanner;
  4
  5 public class Main {
  6     public static void main(String[] args) {
  7         ATM atm1 = new ATM("01","中国建设银行");
  8         ATM atm2 = new ATM("02","中国建设银行");
  9         ATM atm3 = new ATM("03","中国建设银行");
 10         ATM atm4 = new ATM("04","中国建设银行");
 11         ATM atm5 = new ATM("05","中国工商银行");
 12         ATM atm6 = new ATM("06","中国工商银行");
 13         //ATM组1  01,02,03,04
 14         ArrayList<ATM> AtmList1 = new ArrayList<>();
 15         AtmList1.add(atm1);
 16         AtmList1.add(atm2);
 17         AtmList1.add(atm3);
 18         AtmList1.add(atm4);
 19         //ATM组2  05,06
 20         ArrayList<ATM> AtmList2 = new ArrayList<>();
 21         AtmList2.add(atm5);
 22         AtmList2.add(atm6);
 23         //总atm组，共六台
 24         ArrayList<ATM> atmList=new ArrayList<ATM>();
 25         atmList.add(atm1);
 26         atmList.add(atm2);
 27         atmList.add(atm3);
 28         atmList.add(atm4);
 29         atmList.add(atm5);
 30         atmList.add(atm6);
 31
 32         Bank bank1 = new Bank("中国建设银行", AtmList1);
 33         Bank bank2 = new Bank("中国工商银行", AtmList2);
 34         //银行组 2个银行
 35         ArrayList<Bank> bankList = new ArrayList<Bank>();
 36         bankList.add(bank1);
 37         bankList.add(bank2);
 38         //银联
 39         UnionPay unionPay = new UnionPay(bankList);
 40         //卡号组 分8组，10个卡号，含卡号，密码
 41         Card card1 = new Card("6217000010041315709", "88888888");//杨过
 42         Card card2 = new Card("6217000010041315715", "88888888");
 43         ArrayList<Card> cardList1 = new ArrayList<Card>();
 44         cardList1.add(card1);
 45         cardList1.add(card2);
 46         Card card3 = new Card("6217000010041315718", "88888888");
 47         ArrayList<Card> cardList2 = new ArrayList<Card>();
 48         cardList2.add(card3);
 49         Card card4 = new Card("6217000010051320007", "88888888");//郭靖
 50         ArrayList<Card> cardList3 = new ArrayList<Card>();
 51         cardList3.add(card4);
 52         Card card5 = new Card("6222081502001312389", "88888888");//张无忌
 53         ArrayList<Card> cardList4 = new ArrayList<Card>();
 54         cardList4.add(card5);
 55         Card card6 = new Card("6222081502001312390", "88888888");
 56         ArrayList<Card> cardList5 = new ArrayList<Card>();
 57         cardList5.add(card6);
 58         Card card7 = new Card("6222081502001312399", "88888888");
 59         Card card8 = new Card("6222081502001312400", "88888888");
 60         ArrayList<Card> cardList6 = new ArrayList<Card>();
 61         cardList6.add(card7);
 62         cardList6.add(card8);
 63         Card card9 = new Card("6222081502051320785", "88888888");//韦小宝
 64         ArrayList<Card> cardList7 = new ArrayList<Card>();
 65         cardList7.add(card9);
 66         Card card10 = new Card("6222081502051320786", "88888888");
 67         ArrayList<Card> cardList8 = new ArrayList<Card>();
 68         cardList8.add(card10);
 69         //账号组 分4组 8个账号，含账号，卡号和余额
 70         Account account1 = new Account("3217000010041315709", 10000.00, cardList1);
 71         Account account2 = new Account("3217000010041315715", 10000.00, cardList2);
 72         ArrayList<Account> accountList1 = new ArrayList<Account>();
 73         accountList1.add(account1);
 74         accountList1.add(account2);
 75         Account account3 = new Account("3217000010051320007", 10000.00, cardList3);
 76         ArrayList<Account> accountList2 = new ArrayList<Account>();
 77         accountList2.add(account3);
 78         Account account4 = new Account("3222081502001312389", 10000.00, cardList4);
 79         Account account5 = new Account("3222081502001312390", 10000.00, cardList5);
 80         Account account6 = new Account("3222081502001312399", 10000.00, cardList6);
 81         ArrayList<Account> accountList3 = new ArrayList<Account>();
 82         accountList3.add(account4);
 83         accountList3.add(account5);
 84         accountList3.add(account6);
 85         Account account7 = new Account("3222081502051320785", 10000.00, cardList7);
 86         Account account8 = new Account("3222081502051320786", 10000.00, cardList8);
 87         ArrayList<Account> accountList4 = new ArrayList<Account>();
 88         accountList4.add(account7);
 89         accountList4.add(account8);
 90
 91         ArrayList<Account> accountList = new ArrayList<Account>();
 92         accountList.add(account1);
 93         accountList.add(account2);
 94         accountList.add(account3);
 95         accountList.add(account4);
 96         accountList.add(account5);
 97         accountList.add(account6);
 98         accountList.add(account7);
 99         accountList.add(account8);
100         //4个用户 含用户名，银行和账号
101         User user1 = new User("杨过", "中国建设银行", accountList1,bank1);
102         User user2 = new User("郭靖", "中国建设银行", accountList2,bank1);
103         User user3 = new User("张无忌", "中国工商银行", accountList3,bank2);
104         User user4 = new User("韦小宝", "中国工商银行", accountList4,bank2);
105         //总用户组 含4个用户，包含姓名，银行，账号，余额，卡号，密码
106         ArrayList<User> userList = new ArrayList<User>();
107         userList.add(user1);
108         userList.add(user2);
109         userList.add(user3);
110         userList.add(user4);
111
112         Scanner input=new Scanner(System.in);
113         String s;
114         Check check;
115         Check1 check1;
116         s=input.nextLine();
117         while(!s.equals("#")){
118             int i,j;
119             String[] shuju=s.split("\\s+");//输入的每行数据用空格隔开，存为数组
120             if(shuju.length!=1){
121                 check = new Check(userList,shuju[0],shuju[1],shuju[2],Double.parseDouble(shuju[3]));
122                 if (check.check()){
123                     Access access = new Access(userList,shuju[0], shuju[1],shuju[2],Double.parseDouble(shuju[3]));
124                     access.access();
125
126                     Show show = new Show(userList,shuju[0], shuju[1],shuju[2],Double.parseDouble(shuju[3]));
127                     show.show();
128                 }
129             }
130             else {
131                 check1=new Check1(userList,shuju[0]);
132                 if(check1.check1()){
133                     Show1 show1= new Show1(userList,shuju[0]);
134                     show1.show1();
135                 }
136             }
137             s=input.nextLine();
138         }
139     }
140 }
141
142 class Check {
143     ArrayList<User> userList;
144     //ArrayList<Account> accountList;
145     //ArrayList<Bank> bankList;
146     ArrayList<ATM> atmList;
147     String cardID;
148     String password;
149     String atmID;
150     double money;
151
152     public Check(ArrayList<User> userList, String cardID, String password, String atmID, double money) {
153         this.userList = userList;
154         this.atmID = atmID;
155         this.password = password;
156         this.cardID = cardID;
157         this.money = money;
158     }
159
160     public boolean check() {
161         int flag = 0;
162         int i, j = 0,m=0;
163         int k=0, l = 0,n=0;
164         //检查账号是否正确
165         for (i = 0; i < userList.size(); i++) {
166             for (j = 0; j < userList.get(i).accountList.size(); j++) {
167                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
168                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
169                         flag = 1;
170                         k = i;
171                         l = j;
172                         n = m;
173                         break;
174                     }
175                 }
176                 if (flag == 1) {
177                     break;
178                 }
179             }
180             if (flag == 1) {
181                 break;
182             }
183         }
184         //检查密码是否正确
185         if (flag == 1) {
186             if (password.equals(userList.get(k).accountList.get(l).cardList.get(n).password)) {
187                 flag = 2;
188             } else {
189                 System.out.println("Sorry,your password is wrong.");//银行卡密码错误
190                 return false;
191             }
192         } else {
193             System.out.println("Sorry,this card does not exist.");//卡号不存在
194             return false;
195         }
196         //检查ATM机编号是否正确
197         if (flag == 2) {
198           /*  for (i = 0; i < atmList.size(); i++) {
199
200                     if(atmID.equals(atmList.get(i).atmID))
201                     {
202                         flag = 3;
203                         break;
204                     }
205
206             }*/
207             if(atmID.equals("01")||atmID.equals("02")||atmID.equals("03")||atmID.equals("04")||atmID.equals("05")||atmID.equals("06"))
208             {
209                 flag = 3;
210
211             }
212         }
213         //检查金额是否正确
214         if (flag == 3) {
215             if (money <= userList.get(k).accountList.get(l).getBalance()) {
216                 flag = 4;
217             } else {
218                 System.out.println("Sorry,your account balance is insufficient.");//取款金额大于账户余额
219                 return false;
220             }
221         } else {
222             System.out.println("Sorry,the ATM's id is wrong.");//ATM机编号不存在
223             return false;
224         }
225         //检查是否跨行
226         if (flag == 4) {
227             for (i = 0; i < userList.size(); i++) {
228                 for (j=0;j<userList.get(k).bank.AtmList.size();j++) {
229                     if(atmID.equals(userList.get(k).bank.AtmList.get(j).atmID))
230                     {
231                         flag =5;
232                         break;
233                     }
234                 }
235             }
236         }
237         if (flag != 5) {
238             System.out.println("Sorry,cross-bank withdrawal is not supported.");//跨行存取款
239             return false;
240         } else
241             return true;
242     }
243 }
244
245 //余额查询的检查类
246 class Check1{
247     ArrayList<User> userList;
248    // ArrayList<Account> accountList;
249     String cardID;
250
251     public Check1(ArrayList<User> userList, String cardID){
252         this.userList = userList;
253         this.cardID = cardID;
254     }
255     public boolean check1(){
256         int i,j,m;
257         int flag=0;
258         //卡号校验
259         for (i = 0; i < userList.size(); i++) {
260             for (j = 0; j < userList.get(i).accountList.size(); j++) {
261                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
262                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
263                         flag = 1;
264                         break;
265                     }
266                 }
267                 if (flag == 1) {
268                     break;
269                 }
270             }
271             if (flag == 1) {
272                 break;
273             }
274         }
275         if(flag==1)
276             return true;
277         else{
278             System.out.println("Sorry,this card does not exist.");//卡号不存在
279             return false;
280         }
281     }
282 }
283
284 class Access{
285     ArrayList<User> userList;
286     //ArrayList<Account> accountList;
287     String cardID;
288     String password;
289     String atmID;
290     double money;
291     public Access(ArrayList<User> userList, String cardID, String password, String atmID, double money){
292         this.password=password;
293         this.atmID=atmID;
294         this.cardID=cardID;
295         this.userList=userList;
296         this.money=money;
297     }
298     public void access(){
299         int i,j,m;
300         int t=0,k=0;
301         //卡号校验
302         for (i = 0; i < userList.size(); i++) {
303             for (j = 0; j < userList.get(i).accountList.size(); j++) {
304                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
305                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
306                         t=i;
307                         k=j;
308                         break;
309                     }
310                 }
311             }
312         }
313         userList.get(t).accountList.get(k).setBalance(userList.get(t).accountList.get(k).getBalance()-money);
314     }
315 }
316
317 //存取款的展示类
318 class Show{
319     //ArrayList<Account> accountList;
320     ArrayList<User> userList;
321     String cardID;
322     String password;
323     String atmID;
324     double money;
325     public Show( ArrayList<User> userList, String cardID, String password, String atmID, double money){
326         this.password=password;
327         this.atmID=atmID;
328         this.cardID=cardID;
329         this.userList=userList;
330         this.money=money;
331     }
332     public void show() {
333         int i, j, k=0;
334         int t = 0, l = 0,m;
335         //卡号校验
336         for (i = 0; i < userList.size(); i++) {
337             for (j = 0; j < userList.get(i).accountList.size(); j++) {
338                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
339                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
340                         t=i;
341                         k=j;
342                         break;
343                     }
344                 }
345             }
346         }
347         //取款
348         if (money >= 0) {
349             System.out.printf(userList.get(t).getUserName() + "在" + userList.get(t).getBankName() + "的" + atmID + "号ATM机上取款¥%.2f\n", money);
350         } else {
351             money = -money;
352             System.out.printf(userList.get(t).getUserName() + "在" + userList.get(t).getBankName() + "的" + atmID + "号ATM机上存款¥%.2f\n", money);
353         }
354         System.out.printf("当前余额为¥%.2f\n", userList.get(t).accountList.get(k).getBalance());
355     }
356 }
357
358 //余额查询的展示类
359 class Show1{
360     //ArrayList<Account> accountList;
361     ArrayList<User> userList;
362     String cardID;
363     public Show1(ArrayList<User> userList, String cardID){
364         this.userList=userList;
365         this.cardID=cardID;
366     }
367     public void show1(){
368         int i,j,m;
369         int t=0,k=0;
370         //卡号校验
371         for (i = 0; i < userList.size(); i++) {
372             for (j = 0; j < userList.get(i).accountList.size(); j++) {
373                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
374                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
375                         t=i;
376                         k=j;
377                         break;
378                     }
379                 }
380             }
381         }
382         System.out.printf("¥%.2f\n",userList.get(t).accountList.get(k).getBalance());
383     }
384 }
385
386 class UnionPay{
387     ArrayList<Bank> BankList;
388     public UnionPay(){}
389     public UnionPay(ArrayList<Bank> BankList){
390         this.BankList=BankList;
391     }
392     public ArrayList<Bank> getBankList() {
393         return BankList;
394     }
395
396     public void setBankList(ArrayList<Bank> bankList) {
397         BankList = bankList;
398     }
399 }
400
401 class Bank{
402     String BankName;
403     ArrayList<ATM> AtmList;
404     public Bank(){}
405     public Bank(String BankName,ArrayList<ATM> AtmList){
406         this.BankName=BankName;
407         this.AtmList=AtmList;
408     }
409     public String getBankName() {
410         return BankName;
411     }
412     public ArrayList<ATM> getAtmList() {
413         return AtmList;
414     }
415     public void setBankName(String BankName){
416         this.BankName=BankName;
417     }
418     public void setAtmList(ArrayList<ATM> AtmList){
419         this.AtmList=AtmList;
420     }
421 }
422 class ATM{
423     String atmID;
424     String bankName;
425     public ATM(){}
426     public ATM(String atmID,String bankName){
427         this.atmID=atmID;
428         this.bankName=bankName;
429     }
430
431     public String getAtmID() {
432         return atmID;
433     }
434
435     public void setAtmID(String atmID) {
436         this.atmID = atmID;
437     }
438
439     public String getBankName() {
440         return bankName;
441     }
442
443     public void setBankName(String bankName) {
444         this.bankName = bankName;
445     }
446 }
447
448 class User{
449     String UserName;
450     String bankName;
451     Bank bank;
452     ArrayList<Account> accountList=new ArrayList<Account>();
453     public User(){}
454     public User(String UserName,String bankName,ArrayList<Account> accountList, Bank bank){
455         this.accountList=accountList;
456         this.bankName=bankName;
457         this.UserName=UserName;
458         this.bank=bank;
459     }
460
461     public void setBankName(String bankName) {
462         this.bankName = bankName;
463     }
464
465     public String getBankName() {
466         return bankName;
467     }
468
469     public ArrayList<Account> getAccountList() {
470         return accountList;
471     }
472
473     public String getUserName() {
474         return UserName;
475     }
476
477     public void setAccountList(ArrayList<Account> accountList) {
478         this.accountList = accountList;
479     }
480
481     public void setUserName(String userName) {
482         UserName = userName;
483     }
484 }
485 class Account{
486     String accountID;
487     double balance;
488     ArrayList<Card> cardList=new ArrayList<Card>();
489     public Account(){}
490     public Account(String accountID,double balance,ArrayList<Card> cardList){
491         this.balance=balance;
492         this.accountID=accountID;
493         this.cardList=cardList;
494     }
495
496     public double getBalance() {
497         return balance;
498     }
499
500     public void setBalance(double balance) {
501         this.balance = balance;
502     }
503
504     public String getAccountID() {
505         return accountID;
506     }
507
508     public void setAccountID(String accountID) {
509         this.accountID = accountID;
510     }
511
512     public ArrayList<Card> getCardList() {
513         return cardList;
514     }
515
516     public void setCardList(ArrayList<Card> cardList) {
517         this.cardList = cardList;
518     }
519 }
520 class Card{
521     String cardID;
522     String password;
523     public Card(){}
524     public Card(String cardID,String password){
525         this.cardID=cardID;
526         this.password=password;
527     }
528
529     public void setPassword(String password) {
530         this.password = "88888888";
531     }
532
533     public String getPassword() {
534         return password;
535     }
536
537     public String getCardID() {
538         return cardID;
539     }
540
541     public void setCardID(String cardID) {
542         this.cardID = cardID;
543     }
544 }

View Code

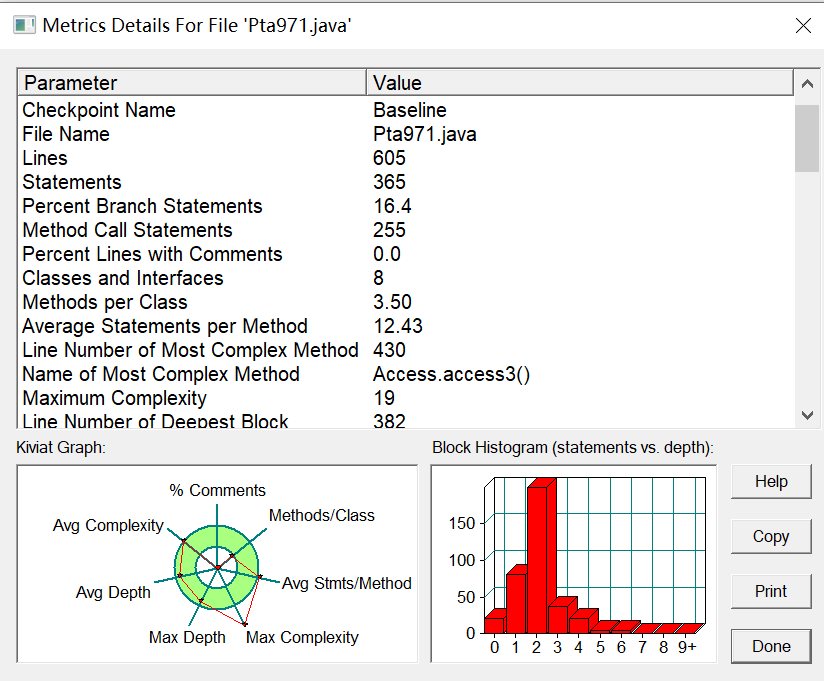

　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　报表内容如下：

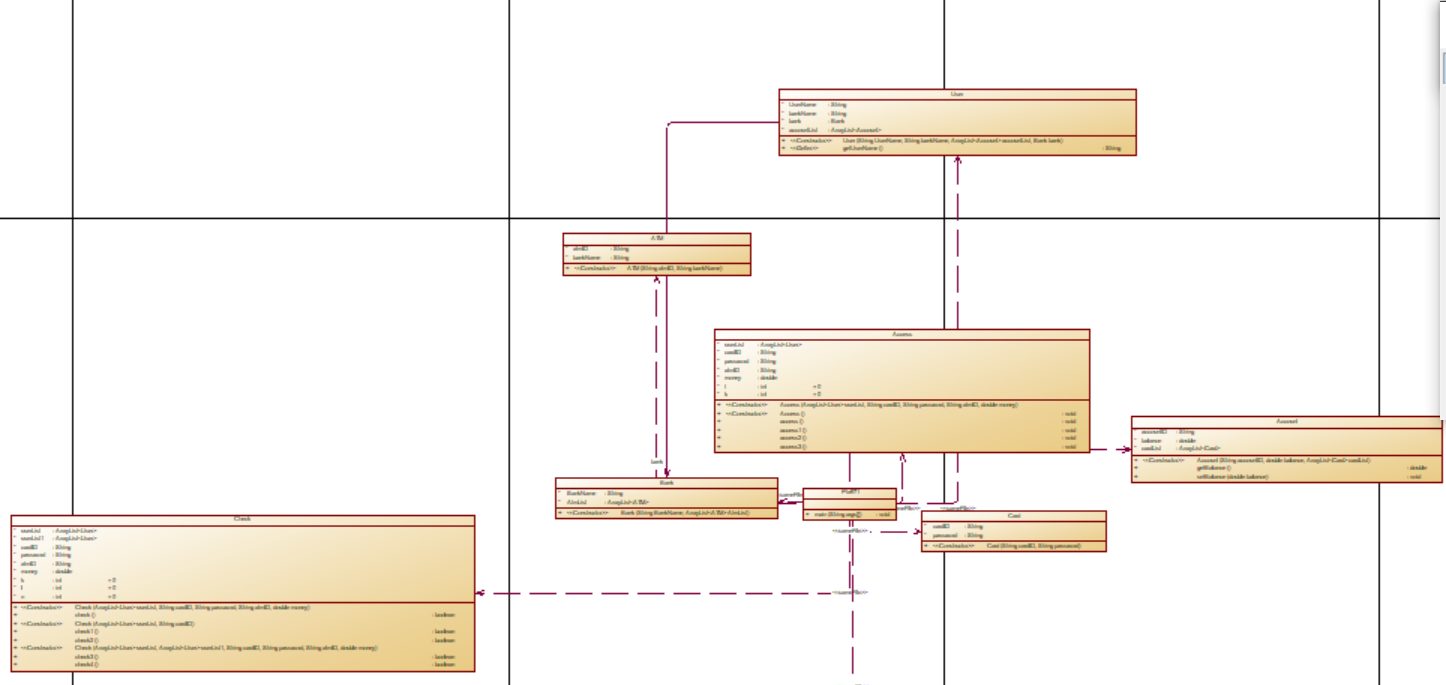

　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　类图如下：

　　本次作业未按照标准格式写，代码中运用了大量的ArrayList数组初始化个用户的数据，总初始化代码量就占据了100行作业，数量非常多，且所用的诸如校验和计算类当

中有许多重复的代码，可用性比较差，只能通过User去查找，由此产生了很多循环，每次查找都需要使用3次for循环才能找到卡号，最大圈复杂度很大，可读性很差。所

有的查找都是基于卡号去查询的，而查询都必须经过User去查找，所有的信息最后都存储在了User类中。银行类并没有实现太大的功能，所以初始化当中也有很多冗余

的代码。主要也是这次作业难度实在有点大，各类当中的关系很难理清，Account类不仅包含账户信息，还必须能够通过Card类查找到与之相连的卡号等信息，所以最后

干脆都存储在了User类当中，所有信息都可通过User类去寻找。

　　7-1 ATM机类结构设计（二） (100 分)

　　设计ATM仿真系统，具体要求参见作业说明。 OO作业9-1题目说明.pdf

　　输入格式:

　　　　每一行输入一次业务操作，可以输入多行，最终以字符#终止。具体每种业务操作输入格式如下：

取款功能输入数据格式： 卡号密码 ATM机编号金额（由一个或多个空格分隔）
查询余额功能输入数据格式： 卡号

代码如下：

  1 import java.util.ArrayList;
  2 import java.util.Scanner;
  3
  4 public class Main{
  5     public static void main(String[] args) {
  6         String a="中国建设银行",b1="中国工商银行",c="中国农业银行";
  7         ATM atm1 = new ATM("01",a);
  8         ATM atm2 = new ATM("02",a);
  9         ATM atm3 = new ATM("03",a);
 10         ATM atm4 = new ATM("04",a);
 11         ATM atm5 = new ATM("05",b1);
 12         ATM atm6 = new ATM("06",b1);
 13         ATM atm7 = new ATM("07",c);
 14         ATM atm8 = new ATM("08",c);
 15         ATM atm9 = new ATM("09",c);
 16         ATM atm10= new ATM("10",c);
 17         ATM atm11= new ATM("11",c);
 18         ArrayList<ATM> AtmList1 = new ArrayList<>();
 19         AtmList1.add(atm1);
 20         AtmList1.add(atm2);
 21         AtmList1.add(atm3);
 22         AtmList1.add(atm4);
 23         ArrayList<ATM> AtmList2 = new ArrayList<>();
 24         AtmList2.add(atm5);
 25         AtmList2.add(atm6);
 26         ArrayList<ATM> AtmList3 = new ArrayList<>();
 27         AtmList3.add(atm7);
 28         AtmList3.add(atm8);
 29         AtmList3.add(atm9);
 30         AtmList3.add(atm10);
 31         AtmList3.add(atm11);
 32         ATM atms[] ={atm1,atm2,atm3,atm4,atm5,atm6,atm7,atm8,atm9,atm10,atm11};
 33         ArrayList<ATM> atmList=new ArrayList<>();
 34         for (int i = 0; i < atms.length;i ++){
 35             atmList.add(atms[i]);
 36         }
 37
 38         Bank bank1 = new Bank(a, AtmList1);
 39         Bank bank2 = new Bank(b1, AtmList2);
 40         Bank bank3 = new Bank(c, AtmList3);
 41         ArrayList<Bank> bankList = new ArrayList<>();
 42         bankList.add(bank1);
 43         bankList.add(bank2);
 44         bankList.add(bank3);
 45
 46         String p="88888888";
 47         Card card1 = new Card("6217000010041315709",p);
 48         Card card2 = new Card("6217000010041315715",p);
 49         ArrayList<Card> cardList1 = new ArrayList<>();
 50         cardList1.add(card1);
 51         cardList1.add(card2);
 52         Card card3 = new Card("6217000010041315718",p);
 53         ArrayList<Card> cardList2 = new ArrayList<>();
 54         cardList2.add(card3);
 55         Card card4 = new Card("6217000010051320007",p);
 56         ArrayList<Card> cardList3 = new ArrayList<>();
 57         cardList3.add(card4);
 58         Card card5 = new Card("6222081502001312389",p);
 59         ArrayList<Card> cardList4 = new ArrayList<>();
 60         cardList4.add(card5);
 61         Card card6 = new Card("6222081502001312390",p);
 62         ArrayList<Card> cardList5 = new ArrayList<>();
 63         cardList5.add(card6);
 64         Card card7 = new Card("6222081502001312399",p);
 65         Card card8 = new Card("6222081502001312400",p);
 66         ArrayList<Card> cardList6 = new ArrayList<>();
 67         cardList6.add(card7);
 68         cardList6.add(card8);
 69         Card card9 = new Card("6222081502051320785",p);
 70         ArrayList<Card> cardList7 = new ArrayList<>();
 71         cardList7.add(card9);
 72         Card card10 = new Card("6222081502051320786",p);
 73         ArrayList<Card> cardList8 = new ArrayList<>();
 74         cardList8.add(card10);
 75         Card card11 = new Card("6640000010045442002",p);
 76         Card card12 = new Card("6640000010045442003",p);
 77         ArrayList<Card> cardList9 = new ArrayList<>();
 78         cardList9.add(card11);
 79         cardList9.add(card12);
 80         Card card13 = new Card("6640000010045441009",p);
 81         ArrayList<Card> cardList10 = new ArrayList<>();
 82         cardList10.add(card13);
 83         Card card14 = new Card("6630000010033431001",p);
 84         ArrayList<Card> cardList11 = new ArrayList<>();
 85         cardList11.add(card14);
 86         Card card15 = new Card("6630000010033431008",p);
 87         ArrayList<Card> cardList12 = new ArrayList<>();
 88         cardList12.add(card15);
 89         double b=10000.00;
 90         Account account1 = new Account("3217000010041315709", b, cardList1);
 91         Account account2 = new Account("3217000010041315715", b, cardList2);
 92         ArrayList<Account> accountList1 = new ArrayList<>();
 93         accountList1.add(account1);
 94         accountList1.add(account2);
 95         Account account3 = new Account("3217000010051320007", b, cardList3);
 96         ArrayList<Account> accountList2 = new ArrayList<>();
 97         accountList2.add(account3);
 98         Account account4 = new Account("3222081502001312389", b, cardList4);
 99         Account account5 = new Account("3222081502001312390", b, cardList5);
100         Account account6 = new Account("3222081502001312399", b, cardList6);
101         ArrayList<Account> accountList3 = new ArrayList<>();
102         accountList3.add(account4);
103         accountList3.add(account5);
104         accountList3.add(account6);
105         Account account7 = new Account("3222081502051320785", b, cardList7);
106         Account account8 = new Account("3222081502051320786", b, cardList8);
107         ArrayList<Account> accountList4 = new ArrayList<>();
108         accountList4.add(account7);
109         accountList4.add(account8);
110         Account account9 = new Account("3640000010045442002", b, cardList9);
111         ArrayList<Account> accountList5 = new ArrayList<>();
112         accountList5.add(account9);
113         Account account10 = new Account("3640000010045441009", b, cardList10);
114         ArrayList<Account> accountList6 = new ArrayList<>();
115         accountList6.add(account10);
116         Account account11 = new Account("3630000010033431001", b, cardList11);
117         ArrayList<Account> accountList7 = new ArrayList<>();
118         accountList7.add(account11);
119         Account account12 = new Account("3630000010033431008", b, cardList12);
120         ArrayList<Account> accountList8 = new ArrayList<>();
121         accountList8.add(account12);
122
123         ArrayList<Account> accountList = new ArrayList<>();
124         Account accountss[] = {account1,account2,account3,account4,account5,account6,account7,account8,account9,account10,account11,account12};
125         for (int i = 0; i< accountss.length;i ++){
126             accountList.add(accountss[i]);
127         }
128
129         User user1 = new User("杨过", a, accountList1,bank1);
130         User user2 = new User("郭靖", a, accountList2,bank1);
131         User user3 = new User("张无忌", b1, accountList3,bank2);
132         User user4 = new User("韦小宝", b1, accountList4,bank2);
133         User user5 = new User("张三丰", a, accountList5,bank1);
134         User user6 = new User("令狐冲", b1, accountList6,bank2);
135         User user7 = new User("乔峰", c, accountList7,bank3);
136         User user8 = new User("洪七公", c, accountList8,bank3);
137
138         ArrayList<User> userList = new ArrayList<>();
139         User users[]={user1,user2,user3,user4,user5,user6,user7,user8};
140         for (int i = 0; i< users.length;i ++){
141             userList.add(users[i]);
142         }
143
144         ArrayList<User> userList1 = new ArrayList<>();
145         userList1.add(user5);
146         userList1.add(user6);
147         userList1.add(user7);
148         userList1.add(user8);
149
150         Scanner input=new Scanner(System.in);
151         String s;
152         Check check;
153         Check check1;
154
155         Access access;
156         Show show;
157
158         s=input.nextLine();
159         while(!s.equals("#")){
160             String[] shuju=s.split("\\s+");
161             if(shuju.length!=1){
162                 access =new Access(userList,shuju[0],shuju[1],shuju[2],Double.parseDouble(shuju[3]));
163                 check = new Check(userList,shuju[0],shuju[1],shuju[2],Double.parseDouble(shuju[3]));
164                 check1=new Check(userList,userList1,shuju[0],shuju[1],shuju[2],Double.parseDouble(shuju[3]));
165                 show=new Show(userList,shuju[0],shuju[1],shuju[2],Double.parseDouble(shuju[3]));
166                 if (check.check()){
167                     if(check1.check3()) {
168
169                             if (check.check2()) {
170                                 access.access3();
171                                 show.show2();
172                             } else {
173                                 access.access2();
174                                 show.show2();
175                             }
176                     }
177                     else {
178                         if(check.check4()){
179                             if(check.check2()){
180                                 access.access1();
181                                 show.show();
182                             }
183                             else {
184                                 access.access();
185                                 show.show();
186                             }
187                         }
188                     }
189                 }
190             }
191             else {
192                 check=new Check(userList,shuju[0]);
193                 if(check.check1()){
194                     show=new Show(userList,shuju[0]);
195                     show.show1();
196                 }
197             }
198             s=input.nextLine();
199         }
200     }
201 }
202
203 class Check {
204     ArrayList<User> userList;
205     ArrayList<User> userList1;
206     String cardID;
207     String password;
208     String atmID;
209     double money;
210     int k = 0, l = 0, n = 0;
211     public Check(ArrayList<User> userList, String cardID, String password, String atmID, double money) {
212         this.userList = userList;
213         this.atmID = atmID;
214         this.password = password;
215         this.cardID = cardID;
216         this.money = money;
217     }
218
219     public boolean check() {
220         int flag = 0;
221         int i, j , m ;
222         for (i = 0; i < userList.size(); i++) {
223             for (j = 0; j < userList.get(i).accountList.size(); j++) {
224                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
225                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
226                         flag = 1;
227                         this.k = i;
228                         this.l = j;
229                         this.n = m;
230                         break;
231                     }
232                 }
233                 if (flag == 1) {
234                     break;
235                 }
236             }
237             if (flag == 1) {
238                 break;
239             }
240         }
241
242         if (flag == 1) {
243             if (password.equals(userList.get(k).accountList.get(l).cardList.get(n).password)) {
244                 flag = 2;
245             } else {
246                 System.out.println("Sorry,your password is wrong.");
247                 return false;
248             }
249         } else {
250             System.out.println("Sorry,this card does not exist.");
251             return false;
252         }
253
254         if (flag == 2) {
255             if (atmID.equals("01") || atmID.equals("02") || atmID.equals("03") || atmID.equals("04") || atmID.equals("05") || atmID.equals("06") || atmID.equals("07") || atmID.equals("08") || atmID.equals("09") || atmID.equals("10") || atmID.equals("11")) {
256                 flag = 3;
257
258             }
259         }
260         if (flag == 3) {
261             return true;
262         }
263         else{
264             System.out.println("Sorry,the ATM's id is wrong.");
265             return false;
266         }
267     }
268     public Check(ArrayList<User> userList, String cardID)
269     {
270         this.userList = userList;
271         this.cardID = cardID;
272     }
273
274     public boolean check1(){
275         int i,j,m;
276         int flag=0;
277
278         for (i = 0; i < userList.size(); i++) {
279             for (j = 0; j < userList.get(i).accountList.size(); j++) {
280                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
281                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
282                         flag = 1;
283                         break;
284                     }
285                 }
286                 if (flag == 1) {
287                     break;
288                 }
289             }
290             if (flag == 1) {
291                 break;
292             }
293         }
294         if(flag==1)
295             return true;
296         else{
297             System.out.println("Sorry,this card does not exist.");
298             return false;
299         }
300     }
301     public boolean check2(){
302         check();
303         int j,flag=0;
304         for (j=0;j<userList.get(this.k).bank.AtmList.size();j++) {
305             if(atmID.equals(userList.get(this.k).bank.AtmList.get(j).atmID))
306             {
307                 flag =1;
308                 break;
309             }
310         }
311         if(flag==1){
312             return false;
313         }
314         else {
315             return true;
316         }
317     }
318     public Check(ArrayList<User> userList,ArrayList<User> userList1,String cardID,String password,String atmID,double money){
319         this.userList = userList;
320         this.userList1=userList1;
321         this.atmID = atmID;
322         this.password = password;
323         this.cardID = cardID;
324         this.money = money;
325     }
326     public boolean check3(){
327         int i, j, m;
328         int flag = 0;
329
330         for (i = 0; i < userList1.size(); i++) {
331             for (j = 0; j < userList1.get(i).accountList.size(); j++) {
332                 for (m = 0; m < userList1.get(i).accountList.get(j).cardList.size(); m++) {
333                     if (cardID.equals(userList1.get(i).accountList.get(j).cardList.get(m).cardID)) {
334                         flag=1;
335                         break;
336                     }
337                 }
338             }
339         }
340         if(flag==1){
341             return true;
342         }
343         else {
344             return false;
345         }
346     }
347     public boolean check4(){
348         check();
349         if (money <= userList.get(k).accountList.get(l).getBalance()) {
350             return true;
351         } else {
352             System.out.println("Sorry,your account balance is insufficient.");
353             System.exit(0);
354             return false;
355         }
356     }
357 }
358
359
360
361 class Access{
362     ArrayList<User> userList;
363     String cardID;
364     String password;
365     String atmID;
366     double money;
367     int t=0,k=0;
368     public Access(ArrayList<User> userList, String cardID, String password, String atmID, double money){
369         this.password=password;
370         this.atmID=atmID;
371         this.cardID=cardID;
372         this.userList=userList;
373         this.money=money;
374     }
375     public void Access(){
376         int i,j,m;
377         for (i = 0; i < userList.size(); i++) {
378             for (j = 0; j < userList.get(i).accountList.size(); j++) {
379                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
380                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
381                         this.t=i;
382                         this.k=j;
383                         break;
384                     }
385                 }
386             }
387         }
388     }
389     public void access(){
390         Access();
391         userList.get(t).accountList.get(k).setBalance(userList.get(t).accountList.get(k).getBalance()-money);
392     }
393     public void access1(){
394         Access();
395         double p=0;
396         for (int j = 0; j < userList.get(t).bank.AtmList.size(); j++) {
397             if (atmID.equals("01") || atmID.equals("02") || atmID.equals("03") || atmID.equals("04")) {
398                 p = money * 0.02;
399                 break;
400             } else if (atmID.equals("05") || atmID.equals("06")) {
401                 p = money * 0.03;
402                 break;
403             } else if (atmID.equals("07") || atmID.equals("08") || atmID.equals("09") || atmID.equals("10") || atmID.equals("11")) {
404                 p = money * 0.04;
405                 break;
406             }
407         }
408         userList.get(t).accountList.get(k).setBalance(userList.get(t).accountList.get(k).getBalance()-money-p);
409     }
410     public void access2(){
411         double p;
412         Access();
413
414         if(userList.get(t).accountList.get(k).getBalance()>0&&userList.get(t).accountList.get(k).getBalance()>money)
415         {
416             userList.get(t).accountList.get(k).setBalance(userList.get(t).accountList.get(k).getBalance()-money);
417         }
418         else if(userList.get(t).accountList.get(k).getBalance()>0&&userList.get(t).accountList.get(k).getBalance()<money)
419         {
420
421             p=(money-userList.get(t).accountList.get(k).getBalance())*0.05;
422             userList.get(t).accountList.get(k).setBalance(userList.get(t).accountList.get(k).getBalance()-money-p);
423         }
424         else if(userList.get(t).accountList.get(k).getBalance()<=0&&userList.get(t).accountList.get(k).getBalance()<money){
425             p=money*0.05;
426             userList.get(t).accountList.get(k).setBalance(userList.get(t).accountList.get(k).getBalance()-money-p);
427         }
428     }
429     public void access3(){
430         Access();
431         int j;
432         double p = 0,q;
433         for (j = 0; j < userList.get(k).bank.AtmList.size(); j++) {
434             if (atmID.equals("01") || atmID.equals("02") || atmID.equals("03") || atmID.equals("04")) {
435                 p = money * 0.02;
436                 break;
437             } else if (atmID.equals("05") || atmID.equals("06")) {
438                 p = money * 0.03;
439                 break;
440             } else if (atmID.equals("07") || atmID.equals("08") || atmID.equals("09") || atmID.equals("10") || atmID.equals("11")) {
441                 p = money * 0.04;
442                 break;
443             }
444         }
445         if(userList.get(t).accountList.get(k).getBalance()>0&&userList.get(t).accountList.get(this.k).getBalance()>=money){
446             userList.get(t).accountList.get(k).setBalance(userList.get(this.t).accountList.get(this.k).getBalance()-money-p);
447         }
448         else if(userList.get(t).accountList.get(k).getBalance()>0&&userList.get(this.t).accountList.get(this.k).getBalance()<money){
449             q=(money-userList.get(t).accountList.get(this.k).getBalance())*0.05;
450             userList.get(t).accountList.get(k).setBalance(userList.get(this.t).accountList.get(this.k).getBalance()-money-p-q);
451         }
452         else if(userList.get(this.t).accountList.get(this.k).getBalance()<=0&&userList.get(this.t).accountList.get(this.k).getBalance()<money)
453         {
454             q=money*0.05;
455             userList.get(this.t).accountList.get(this.k).setBalance(userList.get(this.t).accountList.get(this.k).getBalance()-money-p-q);
456         }
457     }
458 }
459
460 class Show {
461     int t=0,k=0;
462     String bankName;
463     ArrayList<User> userList;
464     String cardID;
465     String password;
466     String atmID;
467     double money;
468
469     public Show(ArrayList<User> userList, String cardID, String password, String atmID, double money) {
470         this.password = password;
471         this.atmID = atmID;
472         this.cardID = cardID;
473         this.userList = userList;
474         this.money = money;
475     }
476     public void Show(){
477         int i, j,m;
478         for (i = 0; i < userList.size(); i++) {
479             for (j = 0; j < userList.get(i).accountList.size(); j++) {
480                 for (m = 0; m < userList.get(i).accountList.get(j).cardList.size(); m++) {
481                     if (cardID.equals(userList.get(i).accountList.get(j).cardList.get(m).cardID)) {
482                         this.t = i;
483                         this.k = j;
484                         break;
485                     }
486                 }
487             }
488         }
489     }
490     public void Show1(){
491
492         for (int j = 0; j < userList.get(this.k).bank.AtmList.size(); j++) {
493             if (atmID.equals("01") || atmID.equals("02") || atmID.equals("03") || atmID.equals("04")) {
494                 this.bankName = "中国建设银行";
495                 break;
496             } else if (atmID.equals("05") || atmID.equals("06")) {
497                 this.bankName = "中国工商银行";
498                 break;
499             } else if (atmID.equals("07") || atmID.equals("08") || atmID.equals("09") || atmID.equals("10") || atmID.equals("11")) {
500                 this.bankName = "中国农业银行";
501                 break;
502             }
503         }
504     }
505     public void show() {
506         Show();
507         Show1();
508         if (money >= 0) {
509             if (userList.get(this.t).accountList.get(this.k).getBalance() > 0) {
510                 System.out.printf("业务：取款 " + userList.get(this.t).getUserName() + "在" + bankName + "的" + atmID + "号ATM机上取款¥%.2f\n", money);
511                 System.out.printf("当前余额为¥%.2f\n", userList.get(this.t).accountList.get(this.k).getBalance());
512             } else {
513                 System.out.println("Sorry,your account balance is insufficient.");
514                 System.exit(0);
515             }
516         } else {
517             money = -money;
518             System.out.printf("业务：存款 " + userList.get(this.t).getUserName() + "在" + bankName + "的" + atmID + "号ATM机上存款¥%.2f\n", money);
519             System.out.printf("当前余额为¥%.2f\n", userList.get(this.t).accountList.get(this.k).getBalance());
520         }
521     }
522     public Show(ArrayList<User> userList, String cardID){
523         this.userList=userList;
524         this.cardID=cardID;
525     }
526     public void show1(){
527         Show();
528         System.out.printf("业务：查询余额 ¥%.2f\n",userList.get(this.t).accountList.get(this.k).getBalance());
529     }
530     public void show2(){
531         Show();
532         Show1();
533         if (money > 0) {
534             if (userList.get(t).accountList.get(k).getBalance() >=(-50000)) {
535                 System.out.printf("业务：取款 " + userList.get(this.t).getUserName() + "在" + bankName + "的" + atmID + "号ATM机上取款¥%.2f\n", money);
536                 System.out.printf("当前余额为¥%.2f\n", userList.get(this.t).accountList.get(this.k).getBalance());
537             } else {
538                 System.out.println("Sorry,your account balance is insufficient.");
539                 System.exit(0);
540             }
541         } else {
542             money = -money;
543             System.out.printf("业务：存款 " + userList.get(this.t).getUserName() + "在" + bankName + "的" + atmID + "号ATM机上存款¥%.2f\n", money);
544             System.out.printf("当前余额为¥%.2f\n", userList.get(this.t).accountList.get(this.k).getBalance());
545         }
546     }
547 }
548 class Bank{
549     String BankName;
550     ArrayList<ATM> AtmList;
551     public Bank(String BankName,ArrayList<ATM> AtmList){
552         this.BankName=BankName;
553         this.AtmList=AtmList;
554     }
555 }
556 class ATM{
557     String atmID;
558     String bankName;
559     public ATM(String atmID,String bankName){
560         this.atmID=atmID;
561         this.bankName=bankName;
562     }
563 }
564
565 class User{
566     String UserName;
567     String bankName;
568     Bank bank;
569     ArrayList<Account> accountList;
570     public User(String UserName,String bankName,ArrayList<Account> accountList, Bank bank){
571         this.accountList=accountList;
572         this.bankName=bankName;
573         this.UserName=UserName;
574         this.bank=bank;
575     }
576     public String getUserName() {
577         return UserName;
578     }
579 }
580 class Account{
581     String accountID;
582     double balance;
583     ArrayList<Card> cardList;
584     public Account(String accountID,double balance,ArrayList<Card> cardList){
585         this.balance=balance;
586         this.accountID=accountID;
587         this.cardList=cardList;
588     }
589     public double getBalance() {
590         return balance;
591     }
592
593     public void setBalance(double balance) {
594         this.balance = balance;
595     }
596 }
597 class Card{
598     String cardID;
599     String password;
600     public Card(String cardID,String password){
601         this.cardID=cardID;
602         this.password=password;
603     }
604 }

View Code

报表内容如下：

类图如下：

　　这次题目和上次的ATM机从总体上来看大同小异，仅仅增加了一种新的信用卡。但从结构上来说，却要发生很大的改变，所有的包括atm机以及Account、User类等结构

都需要新增加信用卡类别。对于初始化又有了很大的负担。且新增了check类和count类来计算信用卡用户，由于要分借记卡和信用卡，所以要另外写check类和count类，

还有show类等，主要结构没有发生太大变化，直接在主函数里面加入判断，从而实现借记卡和信用卡的存取款。

（3）采坑心得

　　1.主要问题是关于7-3 ATM机类结构设计（一）的提交过程中，出现了代码长度超长，导致提交不了，于是删了许多基础类中没有用到的函数。由此可以知道代码切忌冗余，

最好简介清晰。

　　2.在7-1 ATM机类结构设计（二）中也遇到了和7-3 ATM机类结构设计（一）同样的问题，代码超出限定长度大概200多行。于是将check类、show类、account类进行了简写，

将代码中相同的部分全部整合到一个类当中去，在类里面进行各种借记卡和信用卡的分类使用。最后再初始化也进行了简写处理，将数组利用循环存储。

　　3.提交7-1 ATM机类结构设计（二）答案之后，只有60分，期间一直在测试bug，发现例子的数据都对得上，但就是拿不到满分。然后发现是少了一名成员洪七公（只能怪他

单独出现在下一页，没看到。）本以为问题解决了，结果一提交还是60分，但是测试的所有数据都没有问题，所以才想可能是有些小细节出现了差错，比如打错字什么的，最后，

在我的室友的共同努力下，终于找出了错误。原来是在初始化时，新增的信用卡用户没有放到新数组里面，还是放在了原来的借记卡用户数组里，所以导致有四个测试点过不去。

粗心害死人啊，改了整整两天才看到！

（4）改进建议

　　主要问题还是出现在ATM机类结构设计那两道题目中，从代码超长就可以看出写的代码并不简洁，代码中有许多重复的过程，比如初始化数据，我是一个一个添加进去的，有多

少用户就有多少个数组，所以初始化就占了100多行。有其是在这基础上加了新类型卡和新用户，初始化更复杂了。（二）中的check和show类等也是结构没有设计好，没实现单

一职责，所以添加新方法的时候会增加很多不必要的重复代码。所以在设计类的时候要先分析各类之间的联系以及类的结构设计，这在简化代码上会有很大帮助。

（5）总结

　　开闭原则是最基础的一个原则，抽象化是开闭原则的关键。是通过接口或者抽象类对扩展进行约束，不允许出现在接口或者抽象类中不存在的public方法。参数类型，引用对

象尽量使用接口或者抽象类，而不是具体的实现类。抽象层尽量保持稳定，一旦确定就不允许修改。写代码的时候要严格按照题目给的输入输出格式，不能完全按照自己所想

的，所想的想法要在规则之内。看完题目以及题目要求之后，按照自己想去敲代码，敲了一定的时间后，就敲不下去了，有的地方完全不是按照我自己脑子里想的那样去做。

这三次作业中基本上都运用到了面向对象的封装性、继承性与多态性三大技术特性，这让我们进一步加深了对它们的理解。其中的封装性基本上每道题都有用到，将每个类

中的属性设为私有，且每个类中都含有getter、setter方法和构造方法。继承性在三次作业中也是基本上都用上了，但难度却是逐步提升，首先是简单的使用extends来体现

继承性，然后开始增加难度，要使用子类继承并重写父类的方法（@Override）。在本阶段的后期学习了多态化的概念（不同的对象，接收到同一个消息的时候，产生不同的

操作），还学习了解了compareTo()接口等。

posted @ 2021-12-18 19:46 chi_qian 阅读(55) 评论(0) 收藏举报

刷新页面返回顶部

迟千

第三次Blog作业

输入格式:

输入格式:

输入格式:

输入格式:

公告
