kafka消费者API之自定义存储offset 到mysql中

pom文件

<dependencies>
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-clients</artifactId>
            <version>0.11.0.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.47</version>
        </dependency>
    </dependencies>

1. 定义producer

   package com.cw.kafka.consumer.mysql;

   import org.apache.kafka.clients.producer.*;
   import org.apache.kafka.common.serialization.StringSerializer;

   import java.math.BigInteger;
   import java.security.MessageDigest;
   import java.security.NoSuchAlgorithmException;
   import java.util.Properties;
   import java.util.Random;

   /**
    * @author 陈小哥cw
    * @date 2020/6/19 19:22
    */
   public class KafkaProducerTest {
       static Properties properties = null;
       static KafkaProducer<String, String> producer = null;

       static {
           properties = new Properties();
           // kafka集群，broker-list
           properties.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "cm1:9092,cm2:9092,cm3:9092");
           properties.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
           properties.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());

           // 重试次数
           properties.put(ProducerConfig.ACKS_CONFIG, "all");
           // 批次大小
           properties.put(ProducerConfig.BATCH_SIZE_CONFIG, 16384);
           // 等待时间
           properties.put(ProducerConfig.LINGER_MS_CONFIG, 100);
           // RecordAccumulator缓冲区大小
           properties.put(ProducerConfig.BUFFER_MEMORY_CONFIG, 33554432);

           producer = new KafkaProducer<String, String>(properties);
       }

       public static void main(String[] args) throws NoSuchAlgorithmException {
           for (int i = 0; i < 100; i++) {
               System.out.println("第" + (i + 1) + "条消息开始发送");
               sendData();
               try {
                   Thread.sleep(1000);
               } catch (InterruptedException e) {
                   e.printStackTrace();
               }
           }
           producer.close();
       }

       public static String generateHash(String input) throws NoSuchAlgorithmException {
           MessageDigest digest = MessageDigest.getInstance("MD5");
           int random = new Random().nextInt(1000);
           digest.update((input + random).getBytes());
           byte[] bytes = digest.digest();
           BigInteger bi = new BigInteger(1, bytes);
           String string = bi.toString(16);
           return string.substring(0, 3) + input + random;
       }

       public static void sendData() throws NoSuchAlgorithmException {
           String topic = "mysql_store_offset";

           producer.send(new ProducerRecord<String, String>(
                           topic,
                           generateHash(topic),
                           new Random().nextInt(1000) + "\t金锁家庭财产综合险(家顺险)\t1\t金锁家庭财产综合险(家顺险)\t213\t自住型家财险\t10\t家财保险\t44\t人保财险\t23:50.0"),
                   new Callback() {
                       @Override
                       public void onCompletion(RecordMetadata metadata, Exception exception) {
                           if (exception != null) {
                               System.out.println("|----------------------------\n|topic\tpartition\toffset\n|" + metadata.topic() + "\t" + metadata.partition() + "\t" + metadata.offset() + "\n|----------------------------");
                           } else {
                               exception.printStackTrace();
                           }
                       }
                   });
       }
   }



2. 创建消费者

   package com.cw.kafka.consumer.mysql;

   import org.apache.kafka.clients.consumer.*;
   import org.apache.kafka.common.TopicPartition;
   import org.apache.kafka.common.serialization.StringDeserializer;

   import java.text.SimpleDateFormat;
   import java.util.*;

   /**
    * @author 陈小哥cw
    * @date 2020/6/19 20:12
    */
   public class KafkaConsumerTest {
       private static Properties properties = null;
       private static String group = "mysql_offset";
       private static String topic = "mysql_store_offset";
       private static KafkaConsumer<String, String> consumer;

       static {
           properties = new Properties();
           // kafka集群，broker-list
           properties.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "cm1:9092,cm2:9092,cm3:9092");

           properties.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
           properties.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
           // 消费者组，只要group.id相同，就属于同一个消费者组
           properties.put(ConsumerConfig.GROUP_ID_CONFIG, group);
           // 关闭自动提交offset
           properties.put(ConsumerConfig.ENABLE_AUTO_COMMIT_CONFIG, "false");

           // 1.创建一个消费者
           consumer = new KafkaConsumer<>(properties);
       }

       public static void main(String[] args) {

           consumer.subscribe(Arrays.asList(topic), new ConsumerRebalanceListener() {

               // rebalance之前将记录进行保存
               @Override
               public void onPartitionsRevoked(Collection<TopicPartition> partitions) {
                   for (TopicPartition partition : partitions) {
                       // 获取分区
                       int sub_topic_partition_id = partition.partition();
                       // 对应分区的偏移量
                       long sub_topic_partition_offset = consumer.position(partition);
                       String date = new SimpleDateFormat("yyyy年MM月dd日 HH:mm:ss").format(
                               new Date(
                                       new Long(
                                               System.currentTimeMillis()
                                       )
                               )
                       );

                       DBUtils.update("replace into offset values(?,?,?,?,?)",
                               new Offset(
                                       group,
                                       topic,
                                       sub_topic_partition_id,
                                       sub_topic_partition_offset,
                                       date
                               )
                       );
                   }
               }

               // rebalance之后读取之前的消费记录，继续消费
               @Override
               public void onPartitionsAssigned(Collection<TopicPartition> partitions) {
                   for (TopicPartition partition : partitions) {
                       int sub_topic_partition_id = partition.partition();
                       long offset = DBUtils.queryOffset(
                               "select sub_topic_partition_offset from offset where consumer_group=? and sub_topic=? and sub_topic_partition_id=?",
                               group,
                               topic,
                               sub_topic_partition_id
                       );
                       System.out.println("partition = " + partition + "offset = " + offset);
                       // 定位到最近提交的offset位置继续消费
                       consumer.seek(partition, offset);

                   }
               }
           });

           while (true) {
               ConsumerRecords<String, String> records = consumer.poll(100);
               List<Offset> offsets = new ArrayList<>();
               for (ConsumerRecord<String, String> record : records) {
                   String date = new SimpleDateFormat("yyyy年MM月dd日 HH:mm:ss").format(
                           new Date(
                                   new Long(
                                           System.currentTimeMillis()
                                   )
                           )
                   );
                   offsets.add(new Offset(group, topic, record.partition(), record.offset(), date));

                   System.out.println("|---------------------------------------------------------------\n" +
                           "|group\ttopic\tpartition\toffset\ttimestamp\n" +
                           "|" + group + "\t" + topic + "\t" + record.partition() + "\t" + record.offset() + "\t" + record.timestamp() + "\n" +
                           "|---------------------------------------------------------------"
                   );
               }
               for (Offset offset : offsets) {
                   DBUtils.update("replace into offset values(?,?,?,?,?)", offset);
               }
               offsets.clear();
           }
       }
   }



3. 其他类

   数据库工具类

   package com.cw.kafka.consumer.mysql;

   import java.io.IOException;
   import java.sql.*;
   import java.util.Properties;

   /**
    * JDBC操作工具类, 提供注册驱动, 连接, 发送器, 动态绑定参数, 关闭资源等方法
    * jdbc连接参数的提取, 使用Properties进行优化(软编码)
    *
    * @author 陈小哥cw
    * @date 2020/6/19 19:41
    */
   public class DBUtils {

       private static String driver;
       private static String url;
       private static String user;
       private static String password;

       static {
           // 借助静态代码块保证配置文件只读取一次就行
           // 创建Properties对象
           Properties prop = new Properties();
           try {
               // 加载配置文件, 调用load()方法
               // 类加载器加载资源时, 去固定的类路径下查找资源, 因此, 资源文件必须放到src目录才行
               prop.load(DBUtils.class.getClassLoader().getResourceAsStream("db.properties"));
               // 从配置文件中获取数据为成员变量赋值
               driver = prop.getProperty("db.driver").trim();
               url = prop.getProperty("db.url").trim();
               user = prop.getProperty("db.user").trim();
               password = prop.getProperty("db.password").trim();
               // 加载驱动
               Class.forName(driver);
           } catch (IOException e) {
               e.printStackTrace();
           } catch (ClassNotFoundException e) {
               e.printStackTrace();
           }
       }

       /**
        * 动态绑定参数
        *
        * @param pstmt
        * @param params
        */
       public static void bindParam(PreparedStatement pstmt, Object... params) {
           try {
               for (int i = 0; i < params.length; i++) {
                   pstmt.setObject(i + 1, params[i]);
               }
           } catch (SQLException e) {
               e.printStackTrace();
           }
       }


       /**
        * 预处理发送器
        *
        * @param conn
        * @param sql
        * @return
        */
       public static PreparedStatement getPstmt(Connection conn, String sql) {
           PreparedStatement pstmt = null;
           try {
               pstmt = conn.prepareStatement(sql);
           } catch (SQLException e) {
               e.printStackTrace();
           }
           return pstmt;
       }

       /**
        * 获取发送器的方法
        *
        * @param conn
        * @return
        */
       public static Statement getStmt(Connection conn) {
           Statement stmt = null;
           try {
               stmt = conn.createStatement();
           } catch (SQLException e) {
               e.printStackTrace();
           }
           return stmt;
       }

       /**
        * 获取数据库连接的方法
        *
        * @return
        */
       public static Connection getConn() {
           Connection conn = null;
           try {
               conn = DriverManager.getConnection(url, user, password);
           } catch (SQLException e) {
               e.printStackTrace();
           }
           return conn;
       }

       /**
        * 获取特定消费者组，主题，分区下的偏移量
        *
        * @return offset
        */
       public static long queryOffset(String sql, Object... params) {
           Connection conn = getConn();
           long offset = 0;
           PreparedStatement preparedStatement = getPstmt(conn, sql);
           bindParam(preparedStatement, params);

           ResultSet resultSet = null;
           try {
               resultSet = preparedStatement.executeQuery();
               while (resultSet.next()) {
                   offset = resultSet.getLong("sub_topic_partition_offset");
               }
           } catch (SQLException e) {
               e.printStackTrace();
           } finally {
               close(resultSet, preparedStatement, conn);
           }

           return offset;
       }

       /**
        * 根据特定消费者组，主题，分区，更新偏移量
        *
        * @param offset
        */
       public static void update(String sql, Offset offset) {
           Connection conn = getConn();
           PreparedStatement preparedStatement = getPstmt(conn, sql);

           bindParam(preparedStatement,
                   offset.getConsumer_group(),
                   offset.getSub_topic(),
                   offset.getSub_topic_partition_id(),
                   offset.getSub_topic_partition_offset(),
                   offset.getTimestamp()
           );

           try {
               preparedStatement.executeUpdate();
           } catch (SQLException e) {
               e.printStackTrace();
           } finally {
               close(null, preparedStatement, conn);
           }

       }


       /**
        * 统一关闭资源
        *
        * @param rs
        * @param stmt
        * @param conn
        */
       public static void close(ResultSet rs, Statement stmt, Connection conn) {
           try {
               if (rs != null) {
                   rs.close();
               }
           } catch (SQLException e) {
               e.printStackTrace();
           }
           try {
               if (stmt != null) {
                   stmt.close();
               }
           } catch (SQLException e) {
               e.printStackTrace();
           }
           try {
               if (conn != null) {
                   conn.close();
               }
           } catch (SQLException e) {
               e.printStackTrace();
           }
       }

       public static void main(String[] args) {

       }
   }



   offset实体类

   package com.cw.kafka.consumer.mysql;

   /**
    * @author 陈小哥cw
    * @date 2020/6/19 20:00
    */
   public class Offset {
       private String consumer_group;
       private String sub_topic;
       private Integer sub_topic_partition_id;
       private Long sub_topic_partition_offset;
       private String timestamp;

       public Offset() {
       }

       public Offset(String consumer_group, String sub_topic, Integer sub_topic_partition_id, Long sub_topic_partition_offset, String timestamp) {
           this.consumer_group = consumer_group;
           this.sub_topic = sub_topic;
           this.sub_topic_partition_id = sub_topic_partition_id;
           this.sub_topic_partition_offset = sub_topic_partition_offset;
           this.timestamp = timestamp;
       }

       public String getConsumer_group() {
           return consumer_group;
       }

       public void setConsumer_group(String consumer_group) {
           this.consumer_group = consumer_group;
       }

       public String getSub_topic() {
           return sub_topic;
       }

       public void setSub_topic(String sub_topic) {
           this.sub_topic = sub_topic;
       }

       public Integer getSub_topic_partition_id() {
           return sub_topic_partition_id;
       }

       public void setSub_topic_partition_id(Integer sub_topic_partition_id) {
           this.sub_topic_partition_id = sub_topic_partition_id;
       }

       public Long getSub_topic_partition_offset() {
           return sub_topic_partition_offset;
       }

       public void setSub_topic_partition_offset(Long sub_topic_partition_offset) {
           this.sub_topic_partition_offset = sub_topic_partition_offset;
       }

       public String getTimestamp() {
           return timestamp;
       }

       public void setTimestamp(String timestamp) {
           this.timestamp = timestamp;
       }

       @Override
       public String toString() {
           return "Offset{" +
                   "consumer_group='" + consumer_group + '\'' +
                   ", sub_topic='" + sub_topic + '\'' +
                   ", sub_topic_partition_id=" + sub_topic_partition_id +
                   ", sub_topic_partition_offset=" + sub_topic_partition_offset +
                   ", timestamp='" + timestamp + '\'' +
                   '}';
       }
   }



   配置文件

   # mysql连接相关信息
   db.driver=com.mysql.jdbc.Driver
   db.user=root
   db.password=123456
   db.url=jdbc:mysql://192.168.139.101:3306/mydb?useUnicode=true&characterEncoding=UTF8&useSSL=false

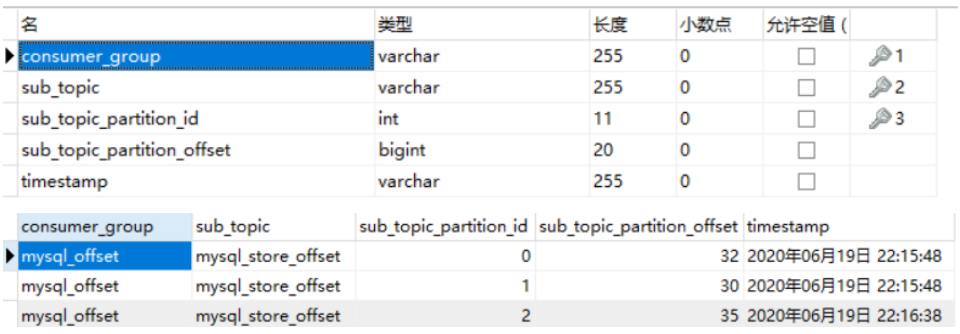

4. 数据库建表语句

   CREATE TABLE `offset` (
     `consumer_group` varchar(255) NOT NULL DEFAULT '',
     `sub_topic` varchar(255) NOT NULL DEFAULT '',
     `sub_topic_partition_id` int(11) NOT NULL DEFAULT '0',
     `sub_topic_partition_offset` bigint(20) NOT NULL,
     `timestamp` varchar(255) CHARACTER SET utf8 NOT NULL,
     PRIMARY KEY (`consumer_group`,`sub_topic`,`sub_topic_partition_id`)
   ) ENGINE=InnoDB DEFAULT CHARSET=latin1;


   mysql数据截图

   使用replace的话，必须有相应的主键作为限制，不然起不到我们想要的目的

   replace：根据三个主键，先去查询是否存在三个主键对应值得存在，不存在的话直接insert，存在的话就覆盖

根据需求，如果需要加入consumer_id的话，那就同样可以设置为4号主键，动态的数据不能设置为主键，动手尝试一下就知道其中的奥妙了

==============回收的分区=============
==============重新得到的分区==========
partition = first-2
partition = first-1
partition = first-0

此时在不关闭已开启的程序的情况下，再启动一次程序

第一次运行的程序结果

==============回收的分区=============
partition = first-2
partition = first-1
partition = first-0
==============重新得到的分区==========
partition = first-2

第二次运行的程序结果

==============回收的分区=============
==============重新得到的分区==========
partition = first-1
partition = first-0

这是因为两次运行的程序的消费者组id都是test，为同一个消费者组，当第二次运行程序时，对原来的分区进行回收，进行了分区的rebalance重新分配(range分配)。
