Radius - 概述

RADIUS（Remote Authentication Dial In User Service，远程用户拨号认证）协议是一种分布式的、客户端/服务器结构的信息交互协议，能保护网络不受未授权访问的干扰，常应用在既要求较高安全性、又允许远程用户访问的各种网络环境中。RADIUS协议为标准协议，基本所有主流设备均支持，在实际网络中应用最多。RADIUS使用UDP（User Datagram Protocol，用户数据报协议）作为传输协议，具有良好的实时性；同时也支持重传机制和备用服务器机制，具有较好的可靠性；实现较为简单，适用于大用户量时服务器端的多线程结构



参考资料：

https://blog.csdn.net/m0_49864110/article/details/129584307

https://tonydeng.github.io/sdn-handbook/sdn/aaa/radius.html

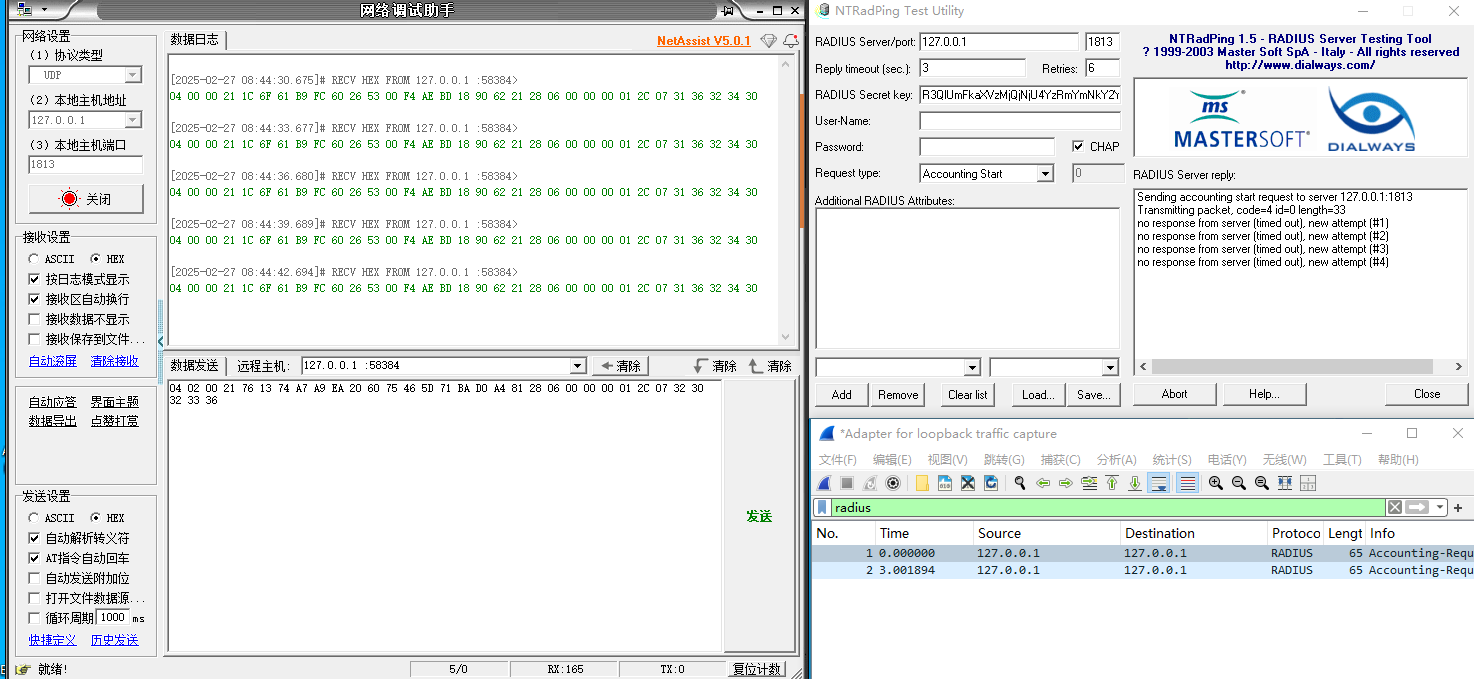

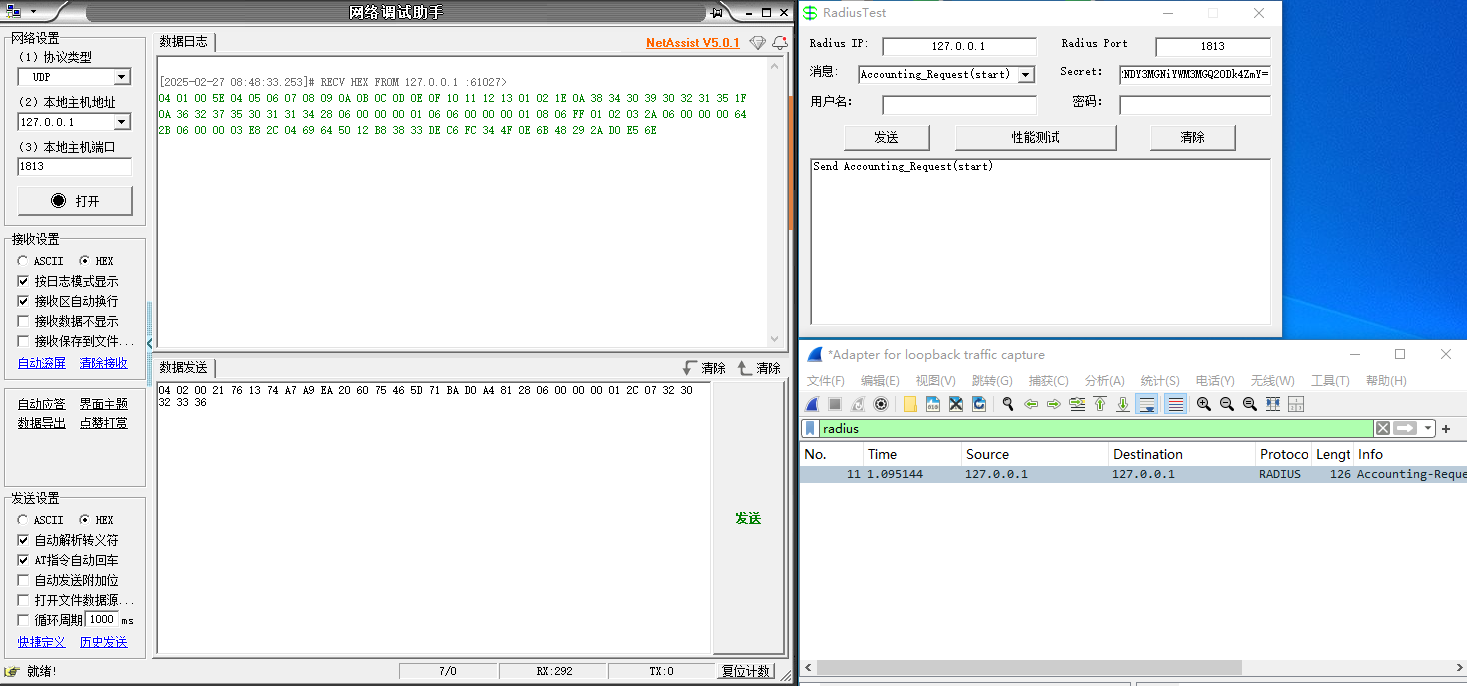

抓包测试

请求报文：04 00 00 21 1C 6F 61 B9 FC 60 26 53 00 F4 AE BD 18 90 62 21 28 06 00 00 00 01 2C 07 31 36 32 34 30

通过报文：05 00 00 26 B4 9C 6E 23 71 F4 C5 D3 35 BB 68 B9 7F 67 CD 63 50 12 9A AB 65 EE DE 81 5A DF 4E 1C 37 CB D1 C0 03 06

报文数据：04 01 00 5E 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13 01 02 1E 0A 38 34 30 39 30 32 31 35 1F 0A 36 32 37 35 30 31 31 34 28 06 00 00 00 01 06 06 00 00 00 01 08 06 FF 01 02 03 2A 06 00 00 00 64 2B 06 00 00 03 E8 2C 04 69 64 50 12 B8 38 33 DE C6 FC 34 4F 0E 6B 48 29 2A D0 E5 6E

通过报文：05 01 00 26 F3 0F BE 8A 6D 04 3F 20 33 48 F7 A1 DA BA 2A C0 50 12 F4 55 7C D4 20 C7 2B B1 DA 18 57 BE C8 AF 1C 56

Message-Authenticator校验规则



linux下抓包

sudo tcpdump -i any port 1812 or port 1813

sudo tcpdump -i any -w radius_packets.pcap port 1812 or port 1813

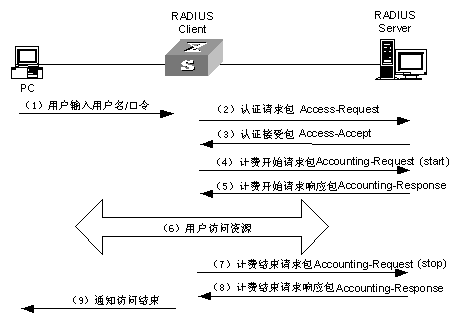

交互解读

 Raduis服务器和NAS服务器通过UDP协议进行通信，Raduis服务器的1812端口负责认证，1813端口负责计费工作。

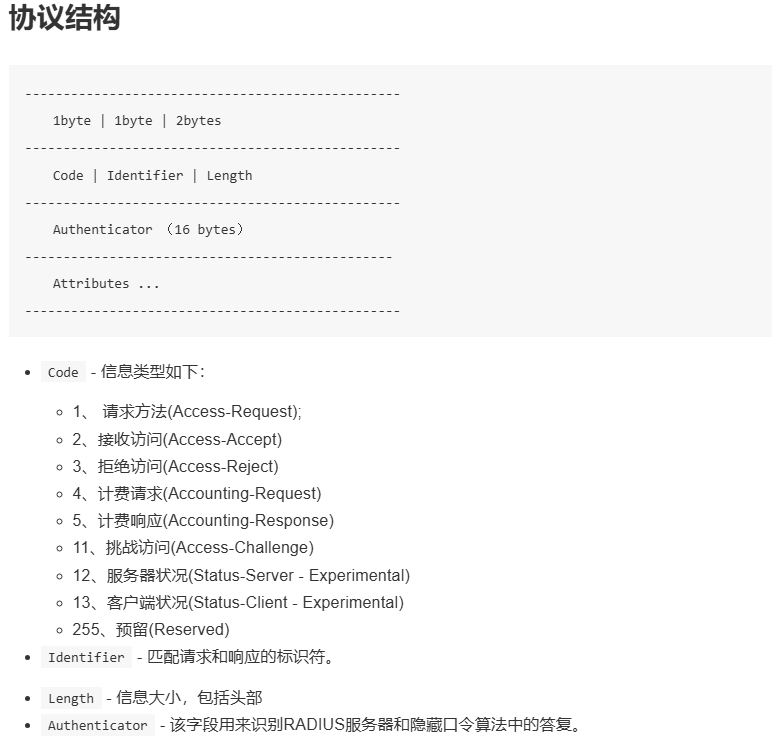

Identifier 包标识

1、用来匹配请求和响应报文

Radius客户端发送请求报文后，Radius服务器返回的响应报文中的Identifier值与请求报文中的Identifier值相同，将相同Identifier值的请求和响应报文进行匹配

2、用来检测在一段时间内重发的请求报文

如果在一个很短的时间内收到相同的源IP地址、源UDP端口号以及Identifier值的请求报文，Radius服务器就认为是重复的请求报文

Length 包长度

指定Radius报文的长度（Code、Identifier、Length、Authenticator、Avps五个字段）

接收到的报文的实际长度大于Length的取值，超过的字节将作为填充字符而忽略

接收到的报文的实际长度小于Length的取值，该报文会被丢弃

Authenticator 包验证字（对用户进行认证授权）

Authenticator=MD5（Code+Identifier+Length+请求验证字+Avps+共享密钥）

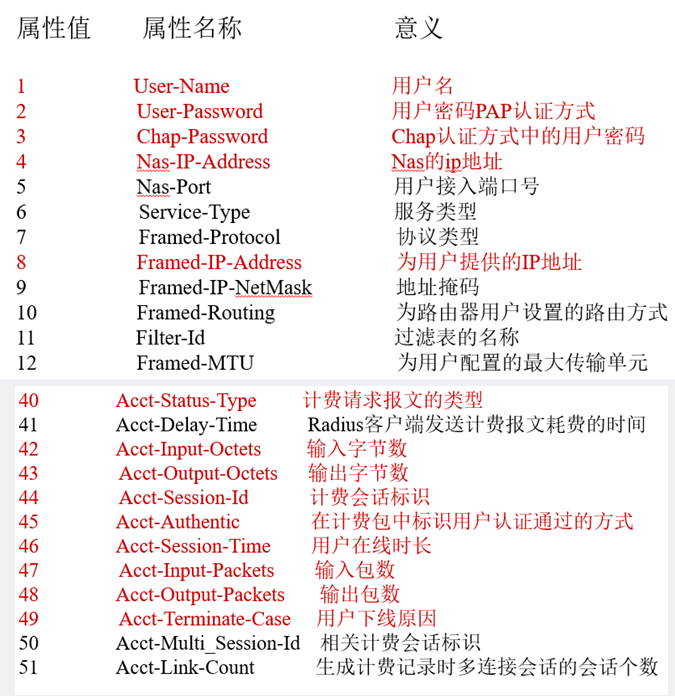

AVPs（Attributes Value Pairs）（Radius属性，可变字段）

携带认证、授权和记账信息（通过TLV结构表示）

 报文数据：04ae01320ec270f4b1fd56d1b1c9e5a6e9fbe29c04060a1400911e0f676c6f62616c73696d2e63786e0706000000073d06000000051f1134363731393030313736383637393428060000000108060a6000282c12424335434138413342333436424536442e0600000000370667bd2207290600000000322236374244323230373030303030303638323430303830303137353533343530461a17000028af01113234303038303031373535333435301a0c000028af0306000000001a0c000028af0606dcceb5431a0d000028af080732343030381a09000028af0a03381a09000028af0c03301a0c000028af0d06306630301a18000028af1412333532393736313131363539343534321a09000028af1503061a15000028af160f8264f0105b5964f010081fc8031a0a000028af17042300



rcf2866计费只有密钥，没用户名密码



开源库

golang：github.com/bronze1man/radius

net：Flexinets.Radius.Core



手撸编解码

using System.Net;
using System.Security.Cryptography;
using System.Text;

namespace RadiusNet
{
    class RadiusPacket
    {
        public byte Code { get; set; }
        public byte Identifier { get; set; }
        public ushort Length { get; set; }
        public byte[] Authenticator { get; set; }
        public RadiusAttribute[] Attributes { get; set; }
    }

    public class RadiusAttribute
    {
        public byte Type { get; set; }
        public byte Length { get; set; }
        public byte[] Value { get; set; }
    }

    class RadiusUtil
    {
        /// <summary>
        /// 生成请求报文
        /// </summary>
        public static byte[] CreateRadiusAccountRequest(byte[] secretBytes)
        {
            var attributes = WithAccountingRequestAttributes().ToArray();

            byte code = 0x04;
            byte identifier = 0x00;
            ushort length = Convert.ToUInt16(4 + 16 + attributes.Length);

            byte[] request = new byte[length];
            request[0] = code;
            request[1] = identifier;
            request[2] = (byte)((length >> 8) & 0xFF); // 包总长度,低字节
            request[3] = (byte)(length & 0xFF); // 包总长度,高字节

            Array.Copy(attributes, 0, request, 20, attributes.Length); // 拷贝属性

            byte[] hash = CreateAuthenticator(code, identifier, length, attributes, secretBytes, new byte[16]);// 16字节零填充
            Array.Copy(hash, 0, request, 4, hash.Length); // 拷贝Authenticator

            return request;
        }

        /// <summary>
        /// 请求属性
        /// </summary>
        static List<byte> WithAccountingRequestAttributes()
        {
            // BitConverter.GetBytes(1).Reverse()
            // Encoding.UTF8.GetBytes(value);
            // StringToByteArray("9aab65eede815adf4e1c37cbd1c00306");
            //
            List<byte> attrs = new();

            // Acct-Status-Type (必须字段)
            var status = BitConverter.GetBytes(1).Reverse();
            attrs.Add(Convert.ToByte(40)); // Type=40
            attrs.Add(Convert.ToByte(2 + 4)); // Length=6
            attrs.AddRange(status);

            // Acct-Session-Id
            string str = "16240";
            attrs.Add(Convert.ToByte(44));
            attrs.Add(Convert.ToByte(2 + str.Length));// Length:2 + 5
            attrs.AddRange(Encoding.UTF8.GetBytes(str));

            return attrs;
        }

        /// <summary>
        /// 生成回复报文
        /// </summary>
        public static byte[] CreateRadiusAccountResponse(byte[] request, byte[] secretBytes)
        {
            byte[] requestAuthenticator =  new byte[16];
            Array.Copy(request, 4, requestAuthenticator, 0, requestAuthenticator.Length);

            var attributes = WithAccountingResponseAttributes().ToArray(); var b1 = BitConverter.ToString(attributes).Replace("-", " ");

            byte code = 0x05;
            byte identifier = 0x00;
            ushort length = Convert.ToUInt16(4 + 16 + attributes.Length);

            byte[] response = new byte[length]; // RADIUS报文最大128字节
            response[0] = code;
            response[1] = identifier;
            response[2] = (byte)((length >> 8) & 0xFF); // 包总长度,低字节
            response[3] = (byte)(length & 0xFF); // 包总长度,高字节

            Array.Copy(attributes, 0, response, 20, attributes.Length); // 拷贝属性

            // 计算Message-Authenticator
            // Authenticator：请求中的Authenticator
            // Message-Authenticator：值临时置为 16 字节零填充，HMAC-MD5(共享密钥, 完整报文数据)
            Array.Copy(requestAuthenticator, 0, response, 4, requestAuthenticator.Length);// 响应Message-Authenticator,用的是老的Authenticator
            var strMessageAuth = BitConverter.ToString(response).Replace("-", "");

            byte[] messageAuth = CreateMessageAuthenticator(response, secretBytes); var strMessageMD5 = BitConverter.ToString(messageAuth).Replace("-", "");// 9AAB65EEDE815ADF4E1C37CBD1C00306
            Array.Copy(messageAuth, 0, response, response.Length - 16, messageAuth.Length);// 更新最后的16字节

            byte[] hash = CreateAuthenticator(code, identifier, length, attributes, secretBytes, requestAuthenticator);// requestAuthenticator
            Array.Copy(hash, 0, response, 4, hash.Length); // 更新Authenticator

            return response;
        }

        /// <summary>
        /// 回复属性
        /// </summary>
        static List<byte> WithAccountingResponseAttributes()
        {
            // Message-Authenticator
            List<byte> attrs = new();
            attrs.Add(Convert.ToByte(80));
            //
            //attrs.Add(Convert.ToByte(18));
            //attrs.AddRange(StringToByteArray("9aab65eede815adf4e1c37cbd1c00306"));
            //
            attrs.Add(Convert.ToByte(18)); // Length=18（2字节头+16字节值）
            attrs.AddRange(new byte[16]);// 计算前：临时置为16字节零填充后再计算；计算后：9aab65eede815adf4e1c37cbd1c00306

            return attrs;
        }

        /// <summary>
        /// 生成Authenticator
        /// </summary>
        static byte[] CreateAuthenticator(byte code, byte identifier, ushort length, byte[] attributes, byte[] secretBytes, byte[] padding)
        {
            using (MD5 md5 = MD5.Create())
            {
                byte[] input = new[] { code, identifier }
                    .Concat(BitConverter.GetBytes(IPAddress.HostToNetworkOrder((short)length)))
                    .Concat(padding)
                    .Concat(attributes)
                    .Concat(secretBytes)
                    .ToArray();

                return md5.ComputeHash(input);
            }
        }

        /// <summary>
        /// 生成MessageAuthenticator
        /// </summary>
        static byte[] CreateMessageAuthenticator(byte[] data, byte[] secret)
        {
            var b1 = BitConverter.ToString(data).Replace("-", "");

            using (var hmac = new HMACMD5(secret))
            {
                byte[] hmacResult = hmac.ComputeHash(data);
                return hmacResult;
            }
        }

        /// <summary>
        /// 校验MessageAuthenticator
        /// </summary>
        public static bool IsMessageAuthenticator(byte[] response, byte[] request, byte[] secret)
        {
            bool result = false;

            var b1 = BitConverter.ToString(response).Replace("-", " ");

            // 1. 定位并置零 Message-Authenticator 属性（Type=80）
            //int offset = 20; // 跳过头部
            //while (offset < response.Length)
            //{
            //    byte type = response[offset];
            //    byte length = response[offset + 1];
            //    if (type == 80) // 找到 Message-Authenticator
            //    {
            //        // 将 Value 置零（位置：offset+2 至 offset+2+16）
            //        Array.Clear(response, offset + 2, 16);
            //        break;
            //    }
            //    offset += length;
            //}

            var messageAuth = new byte[16];
            Array.Copy(response, response.Length - 16, messageAuth, 0, 16);// 取出校验值MessageAuthenticator

            Array.Copy(request, 4, response, 4, 16);// 用请求中的Authenticator替换
            Array.Clear(response, response.Length - 16, 16);// MessageAuthenticator置空

            var b2 = BitConverter.ToString(response).Replace("-", "");

            // 2. 计算 HMAC-MD5
            using (var hmac = new HMACMD5(secret))
            {
                var md5 = hmac.ComputeHash(response);

                result = md5.SequenceEqual(messageAuth);
            }

            return result;
        }

        /// <summary>
        /// 校验请求的Authentic
        /// </summary>
        public static bool IsAuthenticRequest(byte[] request, byte[] secret)
        {
            bool result = false;

            List<byte> auth = new List<byte>(request.Length + 16 + secret.Length);

            // Identifier + Length 4 个字节
            for (int i = 0; i < 4; i++)
            {
                auth.Add(request[i]);
            }

            // Authenticator 置0 16字节
            for (int i = 0; i < 16; i++)
            {
                auth.Add(0);
            }

            // AVPs
            for (int i = 20; i < request.Length; i++)
            {
                auth.Add(request[i]);
            }

            // secret
            auth.AddRange(secret);

            // 计算 MD5 哈希
            using (MD5 md5 = MD5.Create())
            {
                byte[] hash = md5.ComputeHash(auth.ToArray()); Console.WriteLine("MD5 Hash: " +  BitConverter.ToString(hash).Replace("-", "").ToLowerInvariant());

                byte[] requestAuth = new byte[16]; // request报文中Authenticator数据
                Array.Copy(request, 4, requestAuth, 0, requestAuth.Length); Console.WriteLine("MD5 Request: " +  BitConverter.ToString(requestAuth).Replace("-", "").ToLowerInvariant());

                // 对比
                result = hash.SequenceEqual(requestAuth);
                Console.WriteLine("Request Result:" + result);
            }

            return result;
        }

        /// <summary>
        /// 校验回复的Authentic
        /// </summary>
        public static bool IsAuthenticResponse(byte[] response, byte[] request, byte[] secret)
        {
            bool result = false;

            if (response.Length < 20 || request.Length < 20 || secret.Length == 0)
            {
                return false;
            }

            using (MD5 md5 = MD5.Create())
            {
                using (var memoryStream = new System.IO.MemoryStream())
                {
                    memoryStream.Write(response, 0, 4);
                    memoryStream.Write(request, 4, 16);
                    memoryStream.Write(response, 20, response.Length - 20);
                    memoryStream.Write(secret, 0, secret.Length);
                    byte[] hash = md5.ComputeHash(memoryStream.ToArray()); Console.WriteLine("MD5 Hash: " +  BitConverter.ToString(hash).Replace("-", "").ToLowerInvariant());
                    byte[] expectedHash = new byte[16];
                    Array.Copy(response, 4, expectedHash, 0, 16); Console.WriteLine("MD5 Response: " +  BitConverter.ToString(expectedHash).Replace("-", "").ToLowerInvariant());

                    // 对比
                    result = hash.SequenceEqual(expectedHash);
                    Console.WriteLine("Response Result:" + result);
                }
            }

            return result;
        }

        public static RadiusAttribute[] ParseAttributes(byte[] data)
        {
            var attributes = new System.Collections.Generic.List<RadiusAttribute>();
            int index = 0;

            while (index < data.Length)
            {
                byte type = data[index];
                byte length = data[index + 1];
                byte[] value = data.Skip(index + 2).Take(length - 2).ToArray();

                attributes.Add(new RadiusAttribute
                {
                    Type = type,
                    Length = length,
                    Value = value
                });

                // 更新索引
                index += length;
            }

            return attributes.ToArray();
        }

        public static byte[] StringToByteArray(string hex)
        {
            hex = hex.Replace(" ", "");

            int numberChars = hex.Length;
            byte[] bytes = new byte[numberChars / 2];
            for (int i = 0; i < numberChars; i += 2)
            {
                bytes[i / 2] = Convert.ToByte(hex.Substring(i, 2), 16);
            }
            return bytes;
        }
    }

    class RadiusParse
    {
        // 共享密钥
        static byte[] secret = Encoding.UTF8.GetBytes("R3QlUmFkaXVzMjQjNjU4YzRmYmNkY2Y0Mzc2NDY3MGNiYWM3MGQ2ODk4ZmY=");

        public static void Account()
        {
            // 请求报文

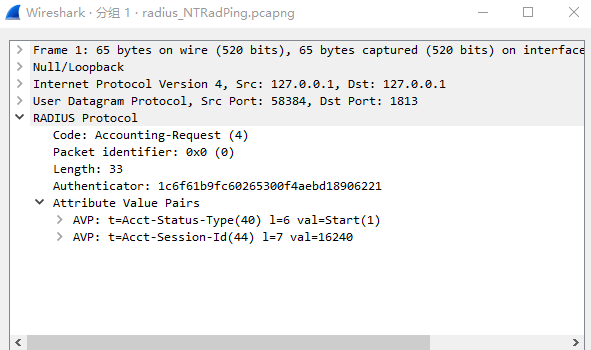

            //RADIUS Protocol
            //Code: Accounting-Request(4)
            //Packet identifier: 0x0(0)
            //Length: 33
            //Authenticator: 1c6f61b9fc60265300f4aebd18906221
            //Attribute Value Pairs
            //    AVP: t=Acct-Status-Type(40) l=6 val=Start(1)
            //    AVP: t=Acct-Session-Id(44) l=7 val=16240
            string strRequest = "04 00 00 21 1C 6F 61 B9 FC 60 26 53 00 F4 AE BD 18 90 62 21 28 06 00 00 00 01 2C 07 31 36 32 34 30";

            // 响应报文
            //RADIUS Protocol
            //    Code: Accounting-Response(5)
            //    Packet identifier: 0x0 (0)
            //    Length: 38
            //    Authenticator: b49c6e2371f4c5d335bb68b97f67cd63
            //    Attribute Value Pairs
            //        AVP: t=Message-Authenticator(80) l=18 val=9aab65eede815adf4e1c37cbd1c00306

            string strResponse = "05 00 00 26 B4 9C 6E 23 71 F4 C5 D3 35 BB 68 B9 7F 67 CD 63 50 12 9A AB 65 EE DE 81 5A DF 4E 1C 37 CB D1 C0 03 06";

            //Authenticator 计算规则
            //请求报文：使用 MD5(Code +Identifier + Length + 16字节零填充 + 属性 + 共享密钥)
            //响应报文：使用 MD5(Code +Identifier + Length + 请求报文Authenticator + 属性 + 共享密钥)

            byte[] request = RadiusUtil.StringToByteArray(strRequest);
            byte[] response = RadiusUtil.StringToByteArray(strResponse);

            var c1 = RadiusUtil.IsAuthenticRequest(request, secret);
            var c2 = RadiusUtil.IsAuthenticResponse(response, request, secret);

            // 请求包
            var p1 = RadiusUtil.CreateRadiusAccountRequest(secret);
            var b1 = BitConverter.ToString(p1).Replace("-", " ");

            // 响应包
            var p2 = RadiusUtil.CreateRadiusAccountResponse(p1, secret);
            var b2 = BitConverter.ToString(p2).Replace("-", " ");

            // 校验Message-Authenticator
            var b3 = RadiusUtil.IsMessageAuthenticator(p2, request, secret);

            // 报文解析
            Console.WriteLine("【报文解析】");
            RadiusPacket packet = new RadiusPacket
            {
                Code = request[0],
                Identifier = request[1],
                Length = BitConverter.ToUInt16(request, 2),
                Authenticator = request.Skip(4).Take(16).ToArray(),
                Attributes = RadiusUtil.ParseAttributes(request.Skip(20).ToArray())
            };

            // 输出解析结果
            Console.WriteLine($"Code: {packet.Code}");
            Console.WriteLine($"Identifier: {packet.Identifier}");
            Console.WriteLine($"Length: {packet.Length}");
            Console.WriteLine($"Authenticator: {BitConverter.ToString(packet.Authenticator).Replace("-", "")}");

            foreach (var attr in packet.Attributes)
            {
                Console.WriteLine($"Attribute Type: {attr.Type}, Length: {attr.Length}, Value: {BitConverter.ToString(attr.Value)}");
            }

            Console.WriteLine("OK");
        }
    }
}
