基于 httprunner Django数据模型关系-正反向查询概念解析

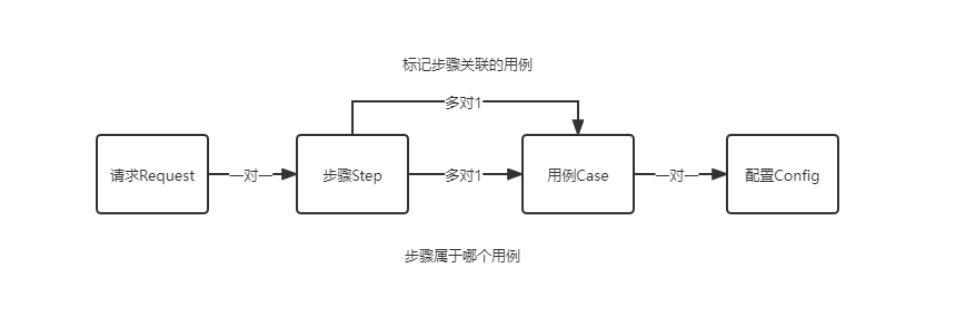

数据库模型关系图

from django.db.models import Value
from django.test import TestCase
#运行 python manage.py test
# Create your tests here.
from sqtp.models import Case,Config,Step,Request

class TestRelateQuery(TestCase):
    def setUp(self) -> None:
        #创建用例
        config1=Config.objects.create(name='case003',base_url='http://localhost')
        config2 = Config.objects.create(name='case004', base_url='http://localhost')
        self.case1=Case.objects.create(config=config1)
        self.case2 = Case.objects.create(config=config2)
    def test_steps_query(self):
        step1=Step.objects.create(belong_case=self.case1,name='step1')
        step1.linked_case=self.case2
        step1.save()
        step2 = Step.objects.create(belong_case=self.case2,name='step2')
        #正向查询：
        print('-----1------')
        print(step1.belong_case)#查看step1所属用例
        print(step1.linked_case)#查看step1关联的用例
        #反向查询：
        print('---------2-------')
        print(self.case1.teststeps.all())#查看用例一的步骤
        print(self.case2.linked_steps.all())  # 查看用例2被哪些步骤应用
class TestJsonField(TestCase):#执行 python manage.py test sqtp.tests.TestJsonField
    def setUp(self) -> None:#request
        req1=Request.objects.create(method=1,url='/abc/def/',
                                    data={"name":"zhangsan","age":18,"address":"hangzhou"})
    def test_json01(self):
        res=Request.objects.all() .first()
        print(res)
    #测试修改
        res.data={"name":"小强","age":18,"address":"hangzhou"}
        res.save()
        print('---------3-------')
        print(Request.objects.all().first().data)#查看修改后的内容
    #修改局部
        print(Request.objects.all().first().data['name'])#修改前
        res.data['name']='李四'
        res.save()
        print(Request.objects.all().first().data['name'])#修改后
        print("********")
        print(Request.objects.filter(method=1))
        #完全匹配
        print(Request.objects.filter(url='/abc/def/'))

    #删除整体
        # res.data=Value('null')
        # #res.data = None  有区别
        # print('---------4-------')
        # res.save()
        # print(Request.objects.all().first().data)
    # 删除局部
    #     res.data.pop('name')
    #     res.save()
    #     print(Request.objects.all().first().data)
    #条件查询
        print('---------5-------')
        res=Request.objects.filter(data__name='李四')
        print(res)
class TestFieldQuery(TestCase):#执行 python manage.py test sqtp.tests.TestFieldQuery
    def setUp(self) -> None:#request
        req1=Request.objects.create(method=1,url='/abc/def/',
                                    data={"name":"zhangsan","age":18,"address":"hangzhou"})
    def test_query01(self):
        res=Request.objects.all() .first()
        print("********")
        print(Request.objects.filter(method=1))
        #完全匹配
        print(Request.objects.filter(url='/abc/def/'))
        #字段条件的语法是字段__条件名
        print(Request.objects.filter(url__iexact='/abc/def/'))
        print(Request.objects.filter(url__contains='def/'))
        print(Request.objects.filter(url__in=['/abc/def/','/ab1c/def/']))
#跨关系查询
class TsetOverRelations(TestCase):#执行 python manage.py test sqtp.tests.TsetOverRelations
    def setUp(self) -> None:
        # 创建用例
        config1 = Config.objects.create(name='case003', base_url='http://localhost1')
        self.case1 = Case.objects.create(config=config1)
        config2 = Config.objects.create(name='case004', base_url='http://localhost2')
        self.case2 = Case.objects.create(config=config2)
    def test_step_request(self):
        #准备测试数据
        step1 = Step.objects.create(belong_case=self.case1, name='step1')
        step2 = Step.objects.create(belong_case=self.case1, name='step2')
        step3 = Step.objects.create(belong_case=self.case2, name='step3')
        step4 = Step.objects.create(belong_case=self.case2, name='step4')
        req1 = Request.objects.create(method=1, url='/abc/def/1',
                                      data={"name": "zhangsan1", "age": 18, "address": "hangzhou"},step=step1)
        req2= Request.objects.create(method=1, url='/abc/def/2',
                                      data={"name": "zhangsan2", "age": 18, "address": "hangzhou"}, step=step2)
        req3 = Request.objects.create(method=1, url='/abc/def/3',
                                      data={"name": "zhangsan3", "age": 18, "address": "hangzhou"}, step=step3)
        req4 = Request.objects.create(method=1, url='/abc/def/4',
                                      data={"name": "zhangsan4", "age": 18, "address": "hangzhou"}, step=step4)
        #跨关系查询
        print(req1.step.belong_case)#链式查找法
        print('*************')
        print(Request.objects.filter(step=step1))
        print("**************")
        #跨关系语法字段__关联字段
        print(Request.objects.filter(step__belong_case=self.case1
                                    ))
        print('***********')
        print(Request.objects.filter(step__belong_case=self.case2
                                     ))
        print('***********')
        print(Request.objects.filter(step__belong_case__config__name='case003'
                                     ).filter(url__contains="/abc/def/1"))
