pytest测试用例

测试步骤：
DUT:
删除portchannel1
sonic-cli –c 'configure terminal' –c ' no interface PortChannel 1'

配置手动portchannel1，切换到L3，配置portchannel1的ip
sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c ' portchannel-create mode manual' –c ' switchmode L3'
sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c 'ip address 10.0.0.56/31'

配置成员口
sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'join-portchannel 1' –c 'no shutdown'

VM:
interface ethernet 1
no channel-group 1 mode active
channel-group 1 mode on

预期结果：
删除portchannel1后show interface portchannel

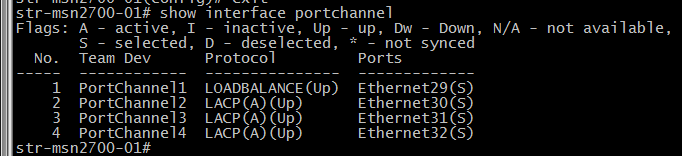

配置手动portchannel1并加入成员口之后show interface portchannel

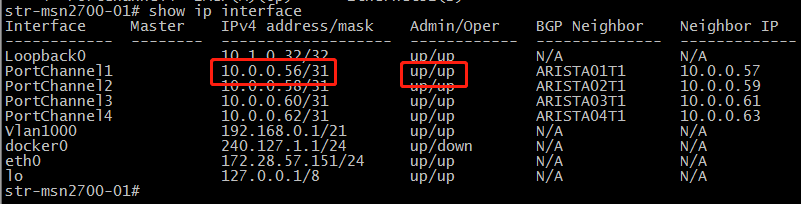

配置ip之后show ip interface

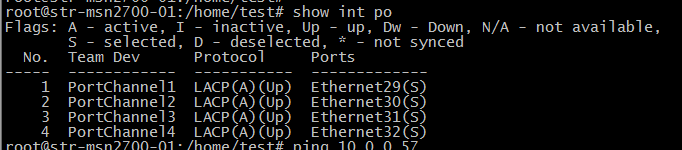

恢复配置后portchannel1显示为lacp模式

配置还原：
DUT
sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'shutdown' –c 'no join-portchannel 1'
sonic-cli –c 'configure terminal' –c 'no interface PortChannel 1'
sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c ' portchannel-create mode lacp' –c 'switchmode L3'
sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c 'ip address 10.0.0.56/31'
sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'join-portchannel 1' –c 'no shutdown'

VM
configure
interface ethernet 1
no channel-group 1 mode on
channel-group 1 mode active

import logging
import pytest
import random
import re
import time
import os
import pprint
import json
import ptf.testutils as testutils
import ptf.mask as mask
import ptf.packet as scapy
from datetime import datetime

from tests.common.helpers.assertions import pytest_assert
from tests.common import config_reload
from tests.conftest import duthost
from collections import defaultdict
from tests.common import reboot, port_toggle
from tests.common.helpers.assertions import pytest_require
from tests.common import testbed
from natsort import natsorted
import tests.common.utilities as utilities

pytestmark = [
    pytest.mark.topology('t0')
]

logger = logging.getLogger(__name__)

@pytest.fixture(scope="module")
def cfg_facts(duthosts, rand_one_dut_hostname):
    duthost = duthosts[rand_one_dut_hostname]
    return get_cfg_facts(duthost)


def get_cfg_facts(duthost):
    tmp_facts = json.loads(duthost.shell("sonic-cfggen -d --print-data")['stdout'])  # return config db contents(running-config)
    port_name_list_sorted = natsorted(tmp_facts['PORT'].keys())
    port_index_map = {}
    for idx, val in enumerate(port_name_list_sorted):
        port_index_map[val] = idx
    tmp_facts['config_port_indices'] = port_index_map
    return tmp_facts

@pytest.fixture(scope='module', autouse=True)
def setup_dut(cfg_facts):
    # dut port  map ptf port
    utilities.log_info("begin set params")
    # set params
    global portChannel1
    global dutPortToVm
    global newDutPortToVm
    global ptfRecvPortMapVm
    global ptfSendPortMapDut
    global dutPortChannel1Ip
    global vmPortChannel1Ip
    global vmIps
    global Vm1Ip
    global Po1Ip

    dutPortMapVm = 'Ethernet8'
    dutPortChannel1Ip = '10.0.0.56/31'
    vmPortChannel1Ip = '10.0.0.57/31'
    vmIps = ['10.1.1.1', '10.1.2.1']
    Po1Ip = '10.0.0.56/31'

    portChannelList = natsorted(cfg_facts['PORTCHANNEL'].keys())
    Vm1Ip = natsorted(cfg_facts['BGP_NEIGHBOR'].keys())[0].split("|")[1]

    portChannel1 = portChannelList[0]
    # Ethernet29
    dutPortToVm = cfg_facts['PORTCHANNEL'][portChannel1]['members'][0]
    pattern = "[0-9]"
    # Ethernet 29
    newDutPortToVm = re.sub(pattern, lambda x: " " + x.group(0), dutPortToVm, 1)
    ptfRecvPortMapVm = cfg_facts['config_port_indices'][dutPortToVm]
    ptfSendPortMapDut = cfg_facts['config_port_indices'][dutPortMapVm]

    yield
    utilities.log_info("End of the test")


@pytest.fixture(scope='function', autouse=True)
def check_config(duthost, nbrhosts):
    utilities.log_info("Start checking the configuration, get the old configuration")
    beforeConfigList = []
    afterConfigList = []
    torNeighbors = natsorted([neighbor for neighbor in nbrhosts.keys()])
    tor = torNeighbors[0]
    beforeConfigList = utilities.getConfigList(beforeConfigList, nbrhosts[tor]['host'], duthost)
    yield
    utilities.log_info("Start checking the configuration, get the new configuration")
    afterConfigList = utilities.getConfigList(afterConfigList, nbrhosts[tor]['host'], duthost)
    result = utilities.getConfigComp(beforeConfigList, afterConfigList)
    utilities.log_info("End of configuration check, result is {}".format(str(result)))
    if not result:
        config_reload(duthost)
    pytest_assert(result, "Configuration not cleared")

def test_portchannel_manual(duthosts, rand_one_dut_hostname, duthost, localhost, ptfadapter, nbrhosts, eos, ptfhost, tbinfo):

    duthost = duthosts[rand_one_dut_hostname]

    try:
        utilities.log_info("Test portchannel manual start")

        utilities.log_info("DUT side configuration start")
        utilities.log_step("===== remove portchannel 1 on dut =====")
        duthost.shell(
            "sonic-cli –c 'configure terminal' –c ' no interface PortChannel 1'")
        time.sleep(2)
        utilities.log_step("===== create portchannel 1=====")
        duthost.shell(
            "sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c ' portchannel-create mode manual' –c ' switchmode L3'")
        time.sleep(2)
        duthost.shell(
            "sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c 'ip address {}'".format(Po1Ip))
        time.sleep(2)
        utilities.log_step("===== add Ethernet 29 to portchannel 1 =====")
        duthost.shell(
            "sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'switchmode L3'")
        time.sleep(2)
        duthost.shell(
            "sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'join-portchannel 1' –c 'no shutdown'")
        time.sleep(2)
        utilities.log_info("DUT side configuration finish")

        utilities.log_info("VM side configuration start")
        torNeighbors = natsorted([neighbor for neighbor in nbrhosts.keys()])
        VM1 = torNeighbors[0]
        utilities.log_info("VM1 configure")
        cmds = ['no channel-group 1 mode active', 'channel-group 1 mode on']
        nbrhosts[VM1]['host'].eos_config(lines=cmds, parents='interface ethernet 1')
        utilities.log_info("VM side configuration finish")
        time.sleep(5)

        utilities.log_info("Start checking function")
        utilities.log_info("L3 Ping check")
        res_ping = duthost.shell('sudo ping {} -c 4 | grep received'.format(Vm1Ip))["stdout"]
        utilities.log_info("res_ping : {}".format(res_ping))
        pytest_assert('4 received' in res_ping, "ping {} failed".format(Vm1Ip))
        utilities.log_info("Start checking switch routing")
        pkt = testutils.simple_tcp_packet(
            eth_dst=duthost.facts["router_mac"],
            eth_src=ptfadapter.dataplane.get_mac(0, 0),
            ip_src='2.1.1.1',
            ip_dst='20.1.1.2',
            #vlan_vid=vid,
            ip_ttl=64,
            tcp_sport=1234,
            tcp_dport=4321)

    	exp_pkt = pkt.copy()
    	exp_pkt = mask.Mask(exp_pkt)
    	exp_pkt.set_do_not_care_scapy(packet.Ether, 'dst')
    	exp_pkt.set_do_not_care_scapy(packet.Ether, 'src')
    	exp_pkt.set_do_not_care_scapy(packet.IP, 'ttl')
    	exp_pkt.set_do_not_care_scapy(packet.IP, 'chksum')

    	testutils.send(ptfadapter, ptfSendPortMapDut, pkt)
    	testutils.verify_packet_any_port(ptfadapter, exp_pkt, ports=[ptfRecvPortMapVm])

    finally:
        utilities.log_info("Restore the configuration")

        utilities.log_info("VM side restore start")
        torNeighbors = natsorted([neighbor for neighbor in nbrhosts.keys()])
        VM1 = torNeighbors[0]
        cmds = ['no channel-group 1 mode on', 'channel-group 1 mode active']
        nbrhosts[VM1]['host'].eos_config(lines=cmds, parents='interface ethernet 1')
        utilities.log_info("VM side restore finish")

        utilities.log_info("DUT side restore start")
        duthost.shell("sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'shutdown' –c 'no join-portchannel 1'")
        duthost.shell("sonic-cli –c 'configure terminal' –c 'no interface PortChannel 1'")
        duthost.shell("sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c ' portchannel-create mode lacp' –c 'switchmode L3'")
        duthost.shell("sonic-cli –c 'configure terminal' –c 'interface PortChannel 1' –c 'ip address {}'".format(Po1Ip))
        duthost.shell("sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'switchmode L3'")
        duthost.shell("sonic-cli –c 'configure terminal' –c 'interface Ethernet 29' –c 'join-portchannel 1' –c 'no shutdown'")
        utilities.log_info("DUT side restore finish")
